Towards a Framework for Dynamic Data Physicalisation

Towards a Framework for Dynamic Data Physicalisation

Presentation given at International Workshop Toward a Design Language for Data Physicalization, Berlin, Germany.

ABSTRACT: Advanced data visualisation techniques enable the exploration and analysis of large datasets. Recently, there is the emerging field of data physicalisation, where data is represented in physical space (e.g. via physical models) and can no longer only be explored visually, but also by making use of other senses such as touch. Most existing data physicalisation solutions are static and cannot be dynamically updated based on a user’s interaction. Our goal is to develop a framework for new forms of dynamic data physicalisation in order to support an interactive exploration and analysis of datasets. Based on a study of the design space for dynamic data physicalisation, we are therefore working on a grammar for representing the fundamental physical operations and interactions that can be applied to the underlying data. Our envisioned extensible data physicalisation framework will enable the rapid prototyping of dynamic data physicalisations and thereby support researchers who want to experiment with new combinations of physical variables or output devices for dynamic data physicalisation as well as designers and application developers who are interested in the development of innovative dynamic data physicalisation solutions.

Research paper: https://beatsigner.com/publications/towards-a-framework-for-dynamic-data-physicalisation.pdf

Beat Signer
PRO

October 21, 2018
Tweet

More Decks by Beat Signer

Other Decks in Science

Transcript

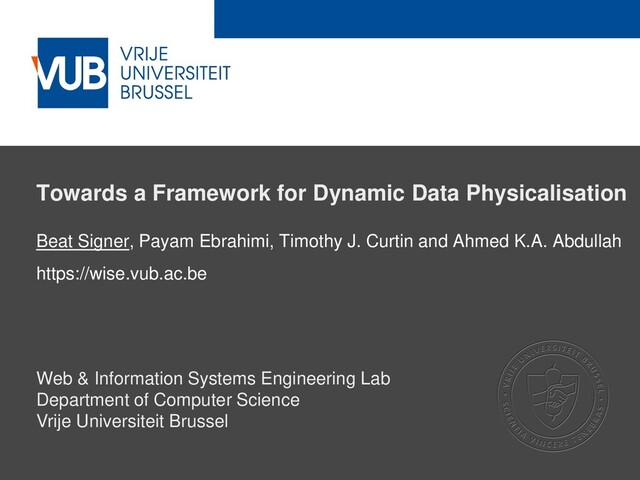

  1. 2 December 2005
    Towards a Framework for Dynamic Data Physicalisation
    Beat Signer, Payam Ebrahimi, Timothy J. Curtin and Ahmed K.A. Abdullah
    https://wise.vub.ac.be
    Web & Information Systems Engineering Lab
    Department of Computer Science
    Vrije Universiteit Brussel

    View Slide

  2. Beat Signer - Department of Computer Science - [email protected] 2
    October 21, 2018
    Dynamic Data Physicalisation
    ▪ Understanding the design space
    ▪ how do users map data to physicalisations
    ▪ Data physicalisation design guidelines
    ▪ what are the just-perceptual differences that
    a physical variable can convey?
    ▪ Dynamic data physicalisation framework
    ▪ data physicalisation grammar
    ▪ data processing with device-independent output
    ▪ software drivers for different physicalisations (e.g. TangHo)
    ▪ New application domains
    Jacques Bertin, 1967

    View Slide

  3. Beat Signer - Department of Computer Science - [email protected] 3
    October 21, 2018
    Data Physicalisation Framework

    View Slide

  4. Beat Signer - Department of Computer Science - [email protected] 4
    October 21, 2018
    Tangible Hologram (TangHo) Setup
    Timothy J. Curtin

    View Slide

  5. Beat Signer - Department of Computer Science - [email protected] 5
    October 21, 2018
    Tangible Hologram (TangHo) Platform

    View Slide

  6. Beat Signer - Department of Computer Science - [email protected] 6
    October 21, 2018
    Dynamic Data Physicalisation
    ▪ Physical objects used for
    input as well as output
    ▪ How can we achieve
    dynamic data physicali-
    sation with dynamic
    affordances
    ▪ use physical variables such
    as temperature or texture
    ▪ exploration of big data sets
    ▪ experimental tangible
    holograms (TangHo)
    platform

    View Slide

  7. Beat Signer - Department of Computer Science - [email protected] 7
    October 21, 2018
    Conclusions
    ▪ Conceptual and software
    dataphys framework
    ▪ rapid prototyping
    ▪ drivers for physicalisations
    (e.g. TangHo)
    ▪ Dataphys grammar
    ▪ data-driven physicalisation
    ▪ exploration of large
    multi-dimensional datasets
    ▪ Dynamic dataphys design
    and interaction guidelines

    View Slide
