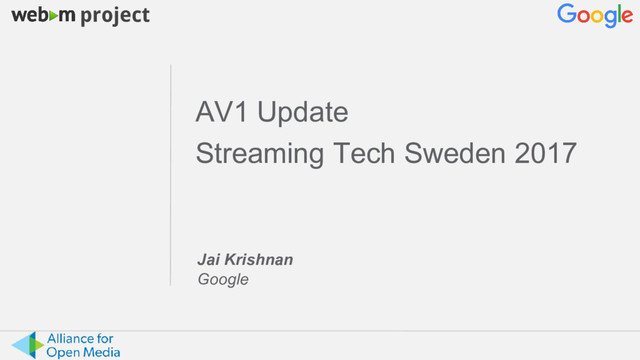

  1. project AV1 Update Streaming Tech Sweden 2017 Jai Krishnan Google

  2. project Why Google Invests in Codecs YouTube VP9 watch time

    gains vs. H.264 +25% +20% +15% +10% +5% +2%
  3. project AOM Goals • Video codec for the web with

    state of the art compression efficiency • Open source & royalty-free • Widely supported & adopted • Develop and deploy faster than industry standard
  4. project VoD Streaming Use Case • Studio content streamers require

    high quality encodes • User-generated content streamers require operation at massive scale
  5. project Live Streaming Use Cases • Broadcast-style encoding maintains high

    quality • RTC / Interactive requires ultra low latency
  6. project What will AV1 include? • Published Specification • High

    Level Syntax • Container Bindings & Metadata • Reference Encoder & Decoder • Reference Hardware RTL Design • Conformance Test Streams
  7. project What will AV1 include? • Published Specification • High

    Level Syntax • Container Bindings & Metadata • Reference Encoder & Decoder • Reference Hardware RTL Design • Conformance Test Streams ◦ 63 tools technically integrated and adopted ◦ 5 tools conditionally adopted, pending changes ◦ 26 tools under review
  8. project AV1 Tool Categories Entropy coding: “Daala” non-binary arithmetic coding,

    level map Intra prediction: Directional intra modes, palette, rectangular intra prediction Inter prediction: Warping, OBMC, 6 ref frames, wedge, inter-intra Partitioning: 4x4 coding units, 128x128 superblocks Transforms: separable hor/ver tx type, rectangular tx, quad-tree, 64x64 tx Quantization: DeltaQ, Quant matrices Filters: Three in-loop filters (deblock, CDEF, loop restoration)
  9. project Some things take more than 10 minutes... Compound ref

    modes 8-Compound ref modes; {Global Warp} 1-reference 7-references chosen per frame encoded frame Wedge INTER-INTRA modes: wedge-index + INTRA mode + single-ref INTER mode Wedge INTER-INTER: wedge-index + Compound ref mode Compound Segment INTER-INTER: cs-index + Compound ref mode 2-references 2-references 1-reference + Intra INTRA modes: {CfL, DC, PAETH, SMOOTH, SMOOTH_H, SMOOTH_V 8 directional modes + finer directions Gradual INTER-INTRA modes: INTERINTRA mode + Single-ref INTER mode 1-reference + Intra Ref1 Ref2 Ref3 MV1 MV2 MV1 MV2 MV1 MV2 Single ref lists Compound ref lists Ref1/R ef2 {MV1} {MV2} Ref1/R ef3 {MV1} {MV3} Ref2/R ef3 {MV2} {MV3} Create Ref lists Single ref modes 4 Single-ref modes; {Global; OBMC / Local Warp}
  10. project AV1 Tool Categories Entropy coding: “Daala” non-binary arithmetic coding,

    level map Intra prediction: Directional intra modes, palette, rectangular intra prediction Inter prediction: Warping, Wedge, OBMC, 6 ref frames, inter-intra Partitioning: 4x4 coding units, 128x128 superblocks Transforms: separable hor/ver tx type, rectangular tx, quad-tree, 64x64 tx Quantization: DeltaQ, Quant matrices Filters: Three in-loop filters (deblock, CDEF, loop restoration)
  11. project Example 1: Compound INTER prediction • Per-pixel blending P

    1 (i, j) P 2 (i, j) P f (i, j) m(i, j) 64-m(i, j) Blend Mask m(i, j) ∈ [0, 64] (integerized) P 1 P 2 P f {MV1, Ref1} {MV2, Ref2} INTER INTER Blend Mask depends on Side Info sent / Predictors themselves Compound-Segment Inter-Inter Wedge M P 1 P 2 P f {MV1, Ref1} {Mode} INTER INTRA Blend Mask depends on Side Info sent / Intra mode Inter-intra Gradual Inter-intra Wedge M (x + 32) >> 6
  12. project Example 1A: Compound INTER prediction with Wedge Square codebook

    Rectangular codebook Wedge codebook: Inter-Inter 4-bit shape 1-bit sign _________ 5 bits total Used for 8x8 up to 32x32 sizes
  13. project Example 1B: Compound INTER prediction with Warp Hor shear

    Ver shear Affine model
  14. project Example 2: Transform Block Variation Prediction Partitioning 16 transforms

    4 horizontal x 4 vertical Transform blocks DCT ADST FlipADST Identity
  15. project Example 3: CDEF (Constrained Directional Enhancement Filter) • CDEF:

    ◦ Combination of Daala Deringing filter and Cisco’s Constrained Low Pass Filter ◦ Adapts filtering to direction of edges and patterns in an image • Steps: ◦ Direction estimation: ▪ Conducted at 8x8 level by minimizing variances along predefined lines ◦ Based on direction use a nonlinear filter ▪ 5x5 support region
  16. project Example 3: CDEF (Constrained Directional Enhancement Filter) Primary filter

    Secondary filter
  17. project Preliminary Results, AV1 data savings vs. VP9 Metric VoD

    Savings Live Savings PSNR-Y -26.51% -29.25% PSNR-Cb -22.35% -28.43% PSNR-Cr -23.90% N/A PSNR-HVS -25.13% -27.09% CIEDE 2000 -25.12% -28.06% SSIM -24.48% -30.46% MS-SSIM -23.57% -28.43%
  18. project Timeline & More Information • Soft bitstream freeze, finalizing

    existing tools • Bitstream freeze in January 2018 • YouTube demos in Chrome Dev end of November 2017 • Codebase at aomedia.googlesource.com • Run tests at www.arewecompressedyet.com
