  1. Delays in broadcast networks

  2. Why is the delay in broadcast of interest to us?

    • Long & Variable delay (Cheering neighbor problem) • Social interaction is broken due to the varying delays • No or poor interactivity (chat, voting) • Limits extended screen services 2 | Net Insight AB Live internet streaming Compared to Live Broadcast
  3. Net Insight AB 3 | Broadcast sources Live Recorded

  4. Net Insight AB 4 | When is live live? ”

    Glass to Glass “ 7 seconds according to EBU

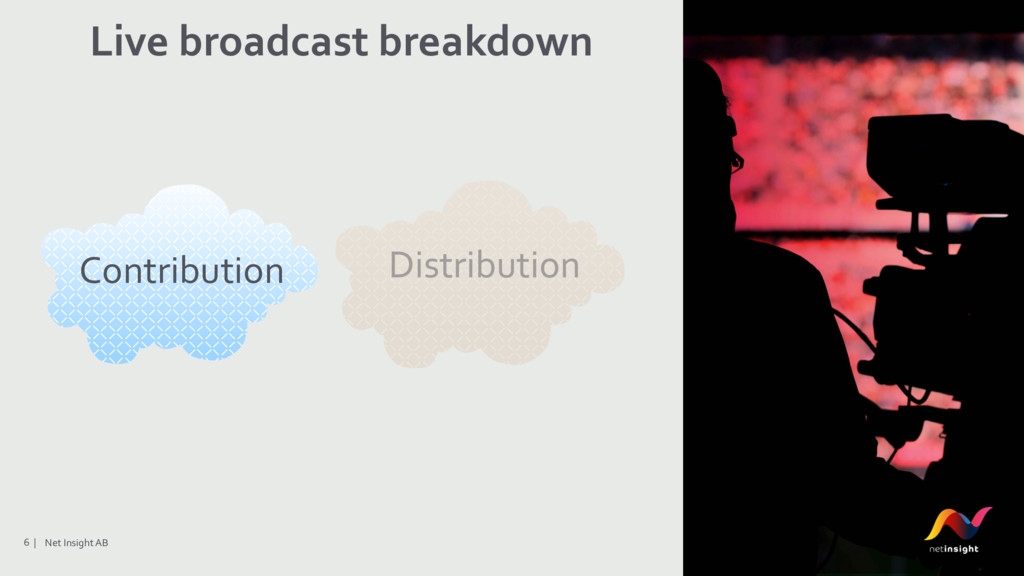

  5. Net Insight AB 5 | Live broadcast breakdown Contribution Distribution

  6. Net Insight AB 6 | Live broadcast breakdown Contribution

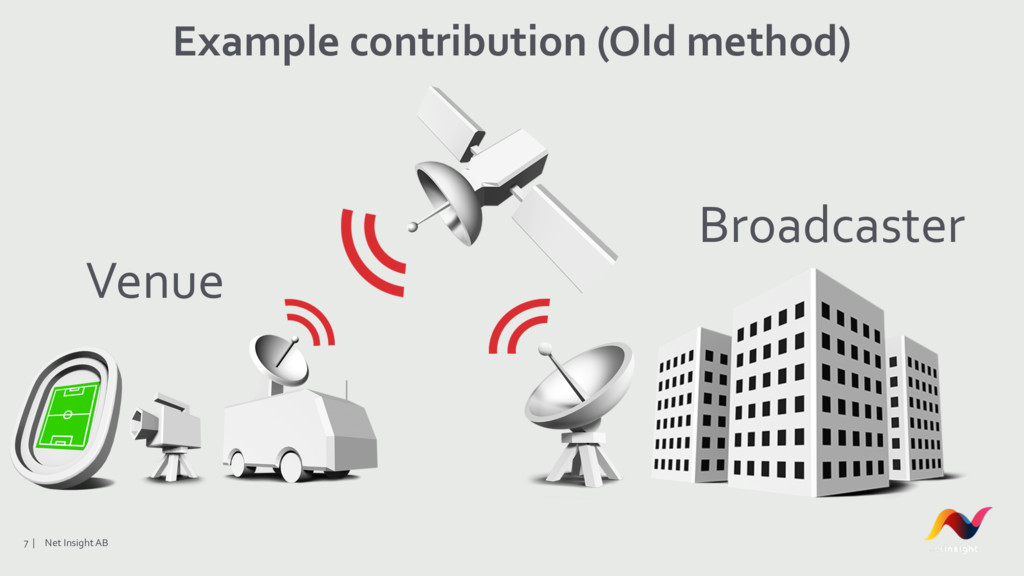

  7. Net Insight AB 7 | Example contribution (Old method) Venue

    Broadcaster

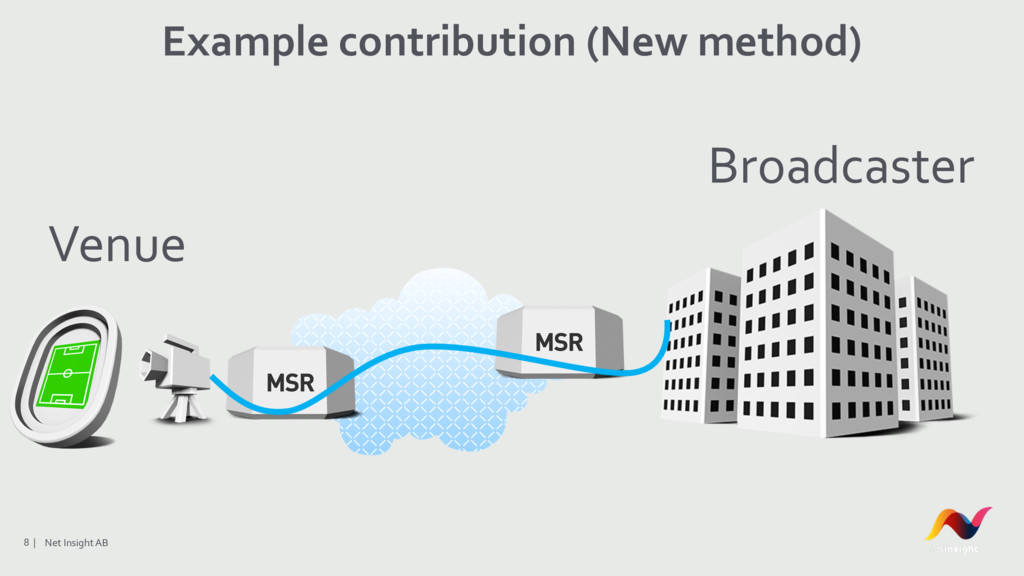

  8. Net Insight AB 8 | Example contribution (New method) Venue

    Broadcaster
  9. Net Insight AB 9 | Approximate contribution times breakdown •

    Camera 20-40 ms • OB-Encoder 500-2000 ms • One satellite-hop 250ms • Decoder 200 ms • Total -> about 2 seconds • Camera 20-40 ms • OB-Encoder 50 ms • Network 20ms • Decoder 50 ms • Total -> about 160 ms
  10. Net Insight AB 10 | Live broadcast breakdown Distribution

  11. Net Insight AB 11 | Distribution • Many different methods

    available • DVB-C (Digital cable) • DVB-S (Digital satellite) • DVB-T (Digital terrestrial) • IPTV • (let’s skip all analog methods) • In this case let’s focus on DVB-T
  12. Net Insight AB 12 | Example DVB-T Broadcaster National TV

    tower Fiber Network End user DVB Network
  13. Component breakdown

  14. Net Insight AB 14 | From broadcaster to TV-Tower

  15. Net Insight AB 15 | TV Tower

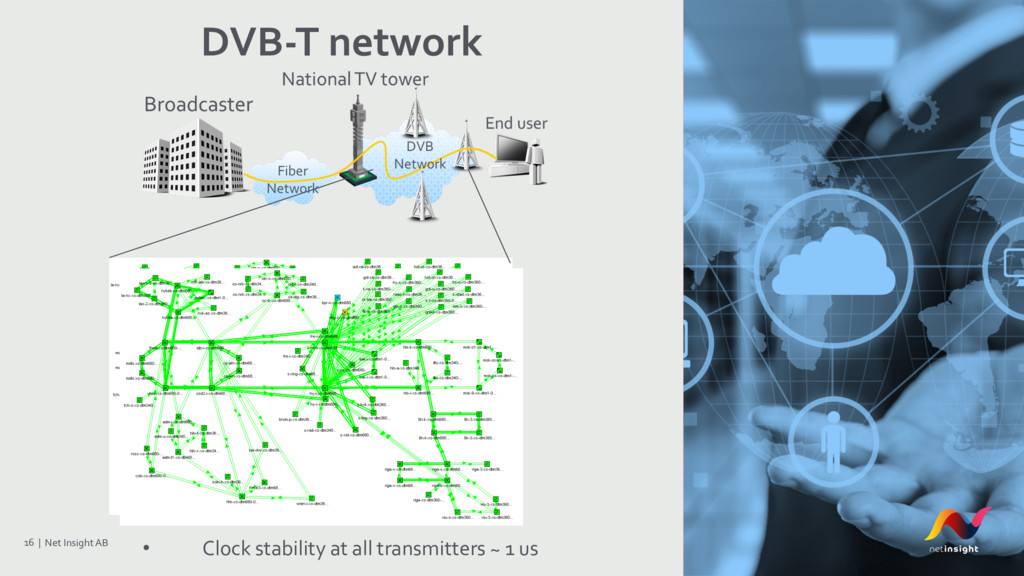

  16. Net Insight AB 16 | DVB-T network • Clock stability

    at all transmitters ~ 1 us
  17. Net Insight AB 17 | Approximate distribution times breakdown •

    Broadcaster to TV-Tower < 5ms • TV-Tower ~4 s • DVB-T network ~1 s (due to SFN) • Decoder ~0.5 s • Total -> about 5.5 seconds
  18. Net Insight AB 18 | Is it possible for OTT

    to beat or harmonize against live broadcast? And why?
  19. Net Insight AB 19 | User engagement

  20. Net Insight AB 20 | Betting / Voting

  21. Net Insight AB 21 | Live broadcast time distribution •

    The inter-delay difference is approximately 5 seconds (static) • Very very small time variations within a single transport technology (miliseconds). End user A End user B End user C
  22. Net Insight AB 22 | Live streaming time difference •

    The inter-delay difference is seconds to minutes (variable) • Very very large time variations within a single transport technology (seconds to minutes) End user A End user B End user C
  23. Low latency streaming a Live public example

  24. None
  25. None

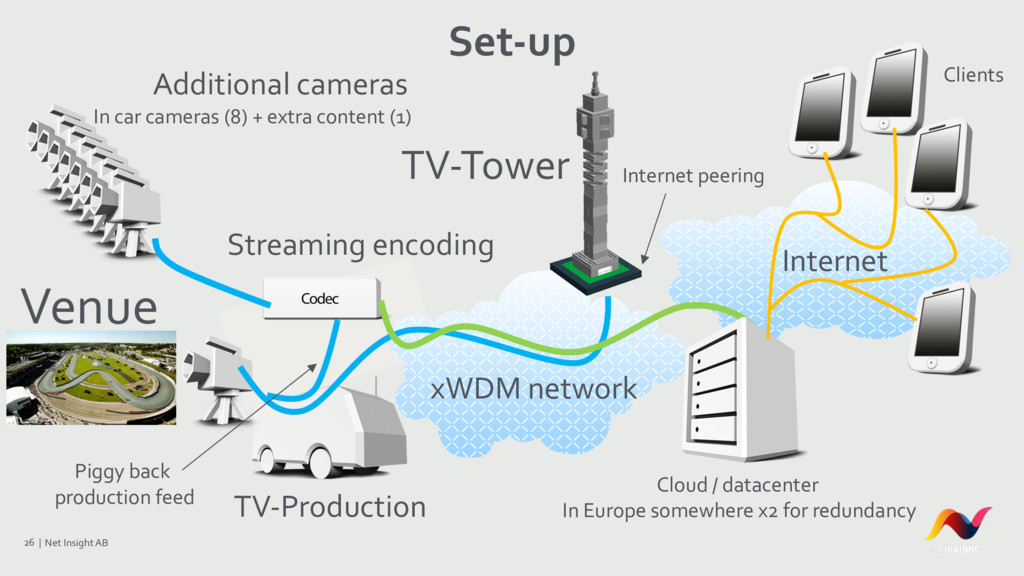

  26. Net Insight AB 26 | Set-up Venue TV-Tower xWDM network

    TV-Production Streaming encoding Internet peering Internet Cloud / datacenter In Europe somewhere x2 for redundancy Additional cameras In car cameras (8) + extra content (1) Piggy back production feed Clients
  27. Net Insight AB 27 | Interactive application

  28. Net Insight AB 28 | Great opportunity to measure Internet

    Broadcaster A Broadcaster B Broadcaster C Broadcaster D Venue Photons in Photons out Streaming clients Client at venue

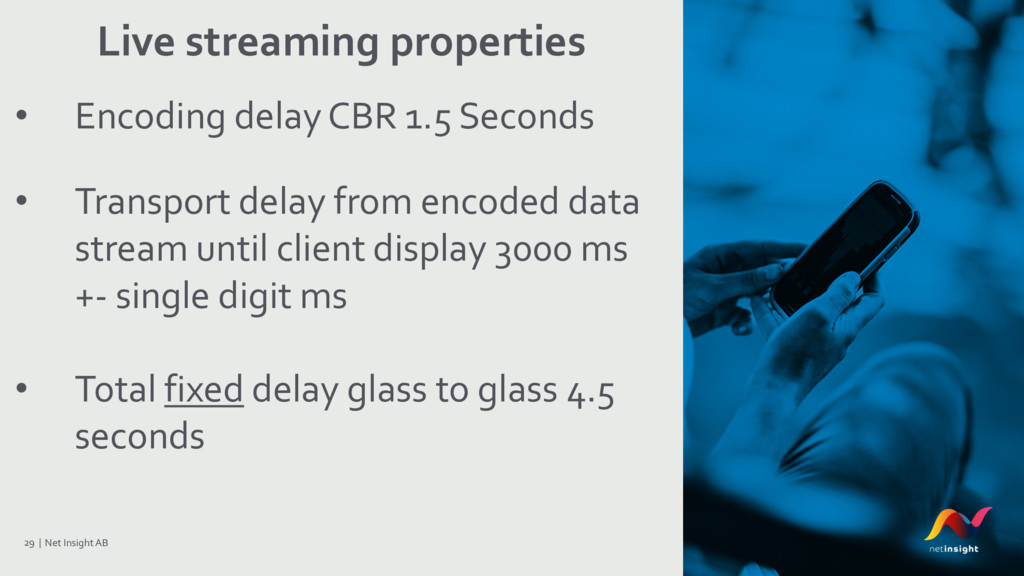

  29. Net Insight AB 29 | Live streaming properties • Encoding

    delay CBR 1.5 Seconds • Transport delay from encoded data stream until client display 3000 ms +- single digit ms • Total fixed delay glass to glass 4.5 seconds
  30. Net Insight AB 30 | Timing results Our streaming reference

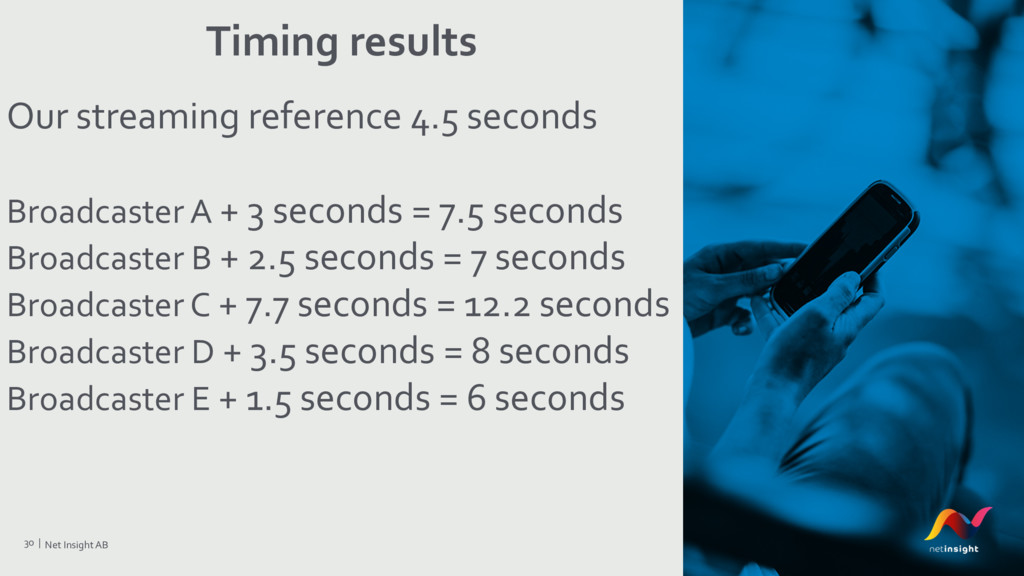

    4.5 seconds Broadcaster A + 3 seconds = 7.5 seconds Broadcaster B + 2.5 seconds = 7 seconds Broadcaster C + 7.7 seconds = 12.2 seconds Broadcaster D + 3.5 seconds = 8 seconds Broadcaster E + 1.5 seconds = 6 seconds
  31. Net Insight AB 31 | Conclusion • Yes, it’s possible

    to harmonize or beat live broadcast networks delay today. • We have to stop talking about delay at streaming start as the only parameter. Delay stability over time is a must if you want to enable voting / betting / social interaction.
  32. Thanks for watching Anders Cedronius
