Faster FFI for Ruby

Building a faster FFI for Ruby. Leveraging an FFI type DSL to generate C extensions that contain hints for the JIT compiler. CRuby gets faster because C extensions are faster than FFI. When the JIT is enabled calls get even faster

Transcript

1. Faster FFI for Ruby Ca l l C functions at native speeds
2. Aaron Patterson @tenderlove
4. I LOVE RUBY! LOVE It’s a fact!
5. Can Ruby be faster than C? Answer: Yes. But how?
6. FFI
7. What is FFI?
8. Why use FFI?
9. FFI Per f ormance
10. Faster FFI for Ruby!
11. What is FFI?
12. FFI: Foreign Function Inter f ace

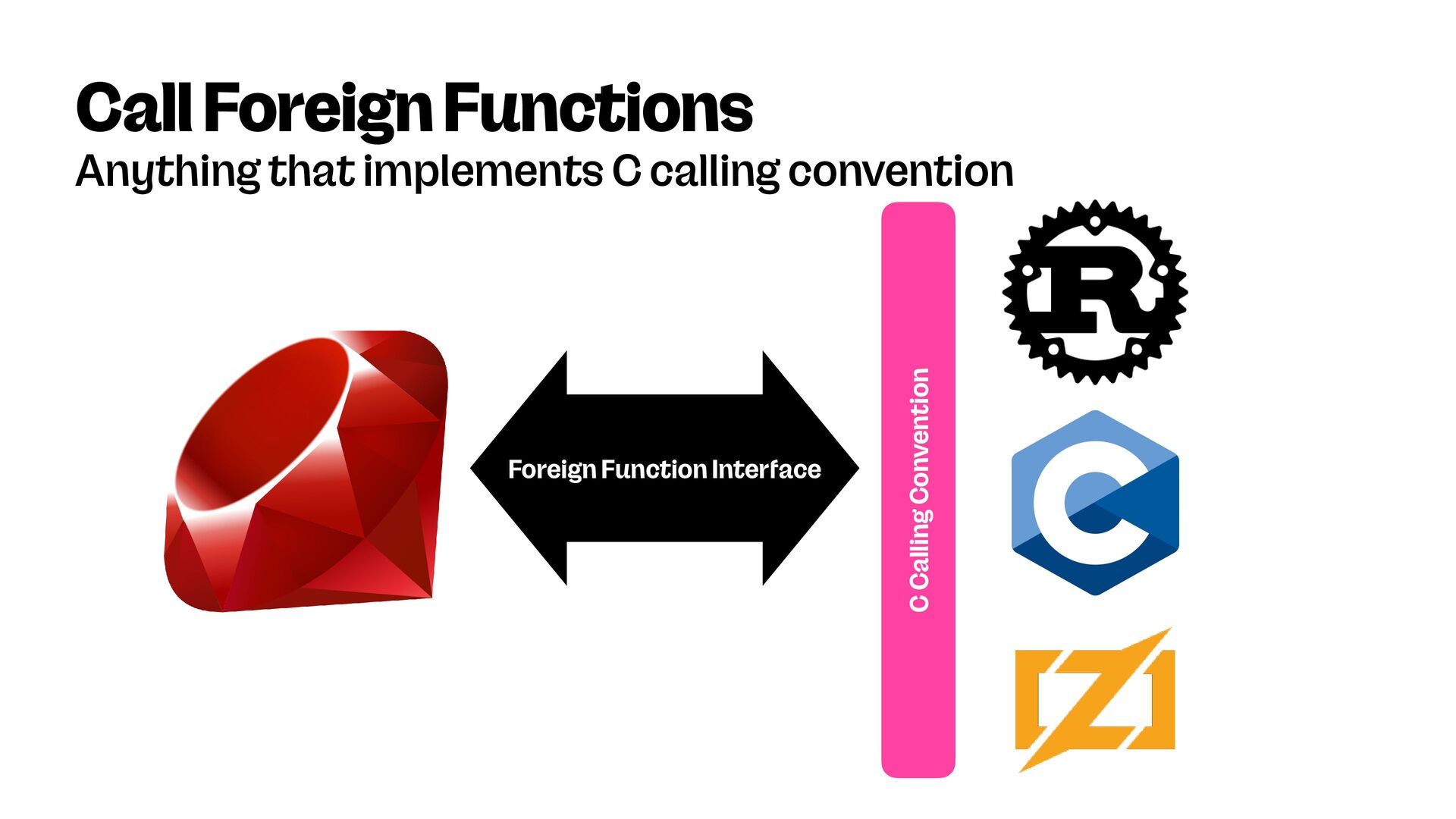

13. Ca l l Foreign Functions Anything that implements C ca l ling convention Foreign Function Inter f ace C Ca l ling Convention

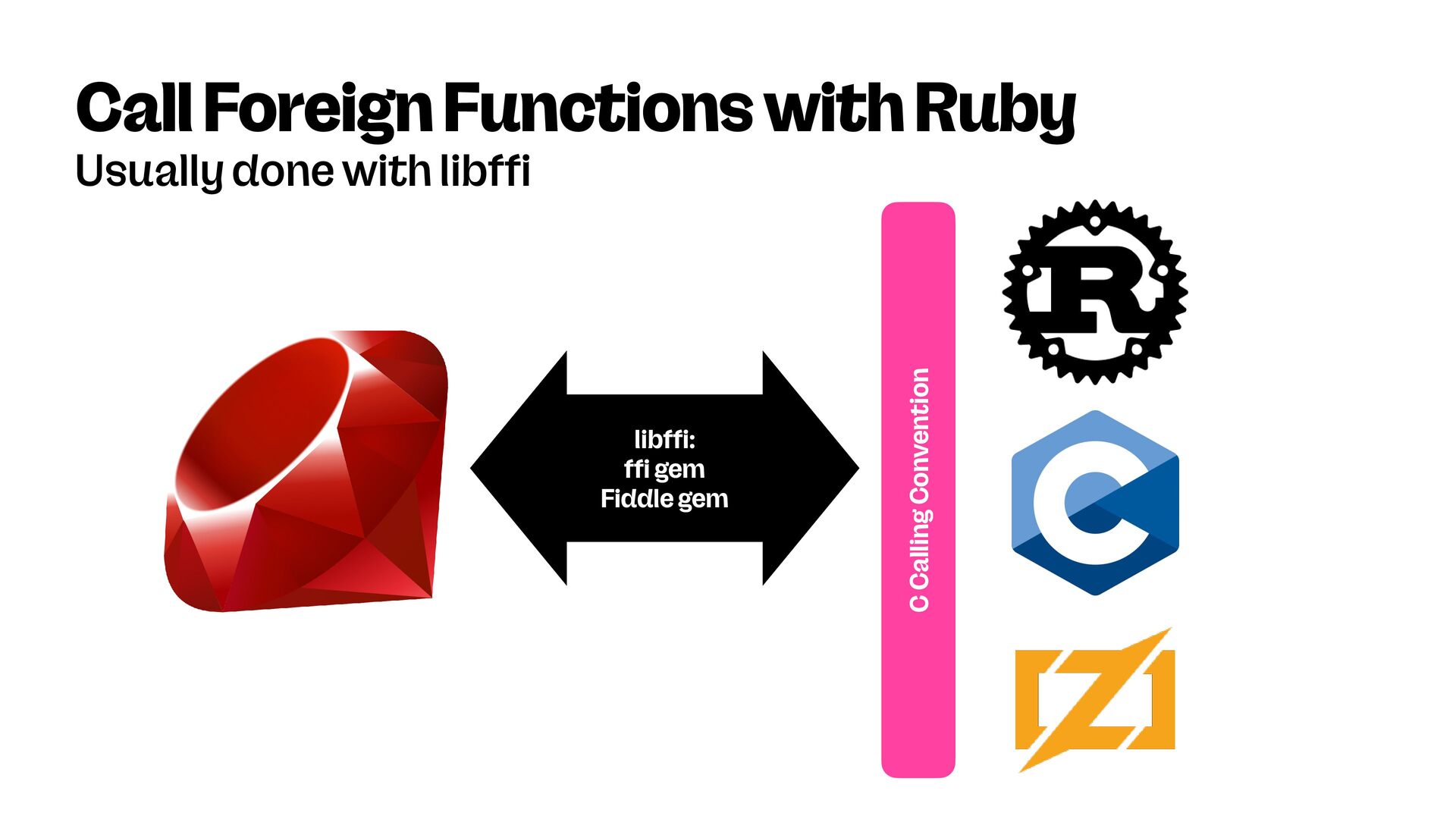

14. Ca l l Foreign Functions with Ruby Usua l ly done with libf f libf fi : f fi gem Fiddle gem C Ca l ling Convention

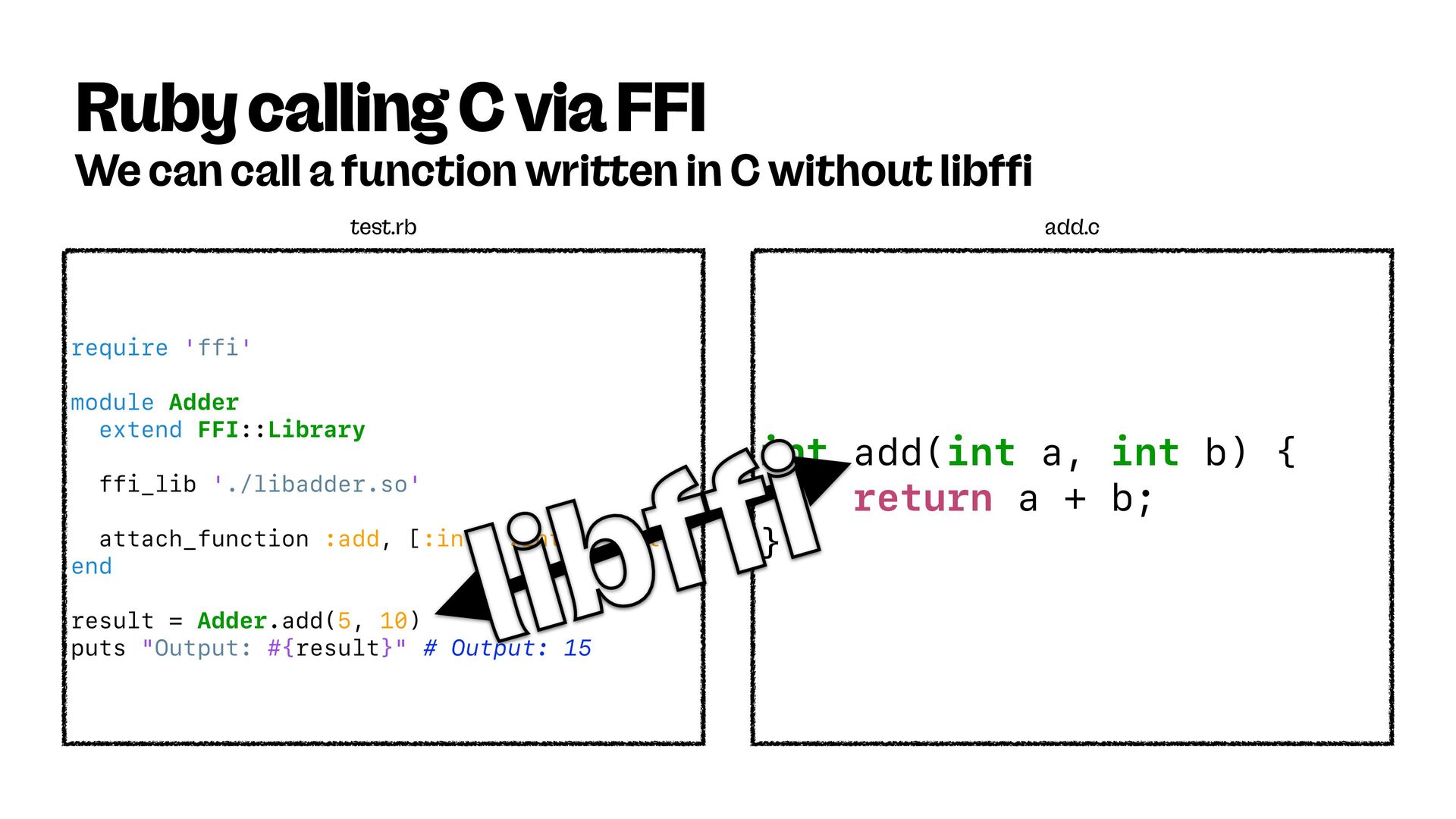

15. Ruby ca l ling C via FFI We can ca l l a function written in C without libf f require 'ffi' module Adder extend FFI::Library ffi_lib './libadder.so' attach_function :add, [:int, :int], :int end result = Adder.add(5, 10) puts "Output: #{result}" # Output: 15 test.rb int add(int a, int b) { return a + b; } add.c libf f

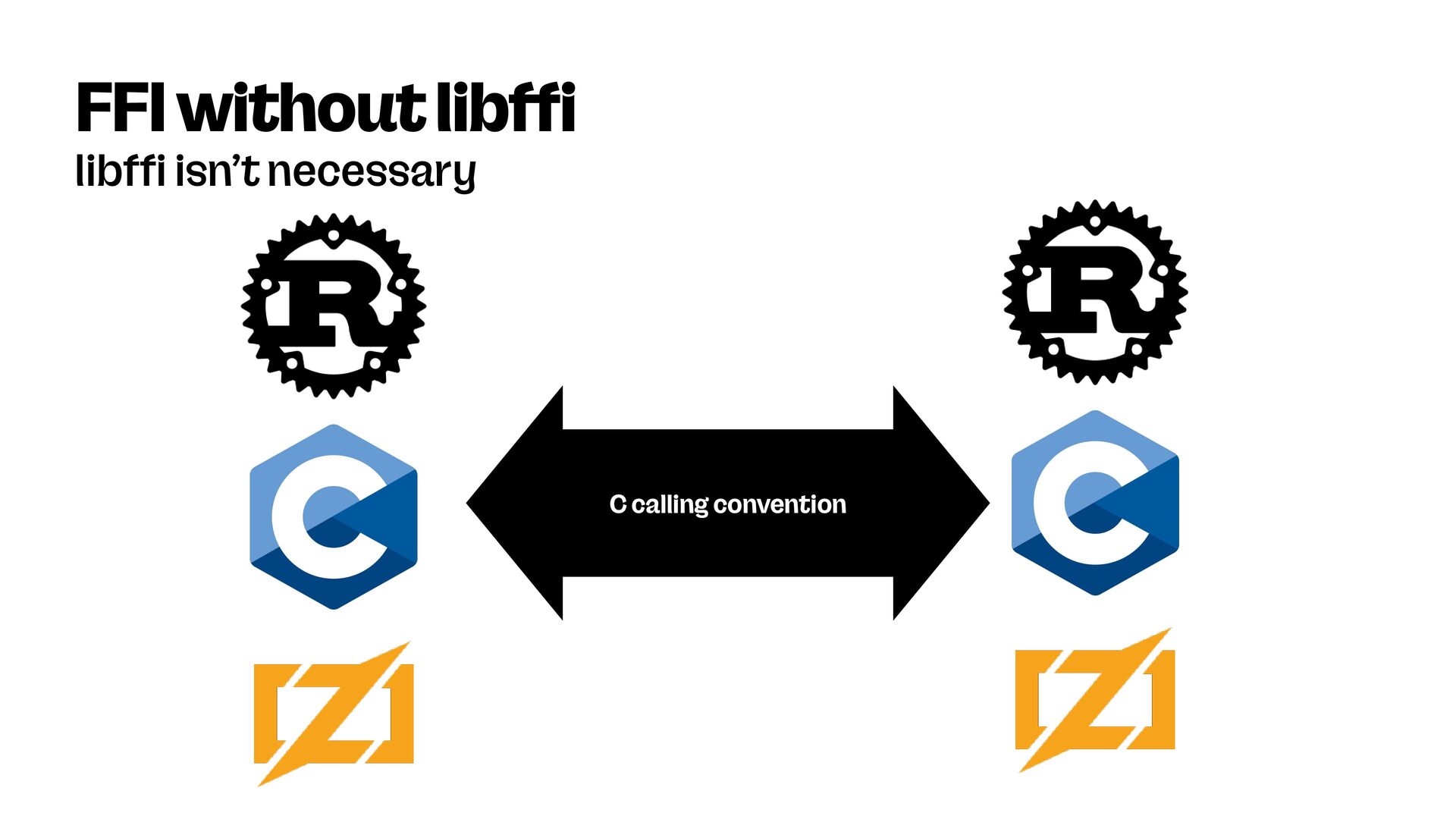

16. FFI without libffi libf fi isn’t necessary C ca l ling convention
17. FFI is an idea, not a library
18. Why use FFI?
19. Write Ruby
20. Safety
21. Works on a l l Ruby Implementations
22. Why NOT use FFI?
23. FFI Per f ormance

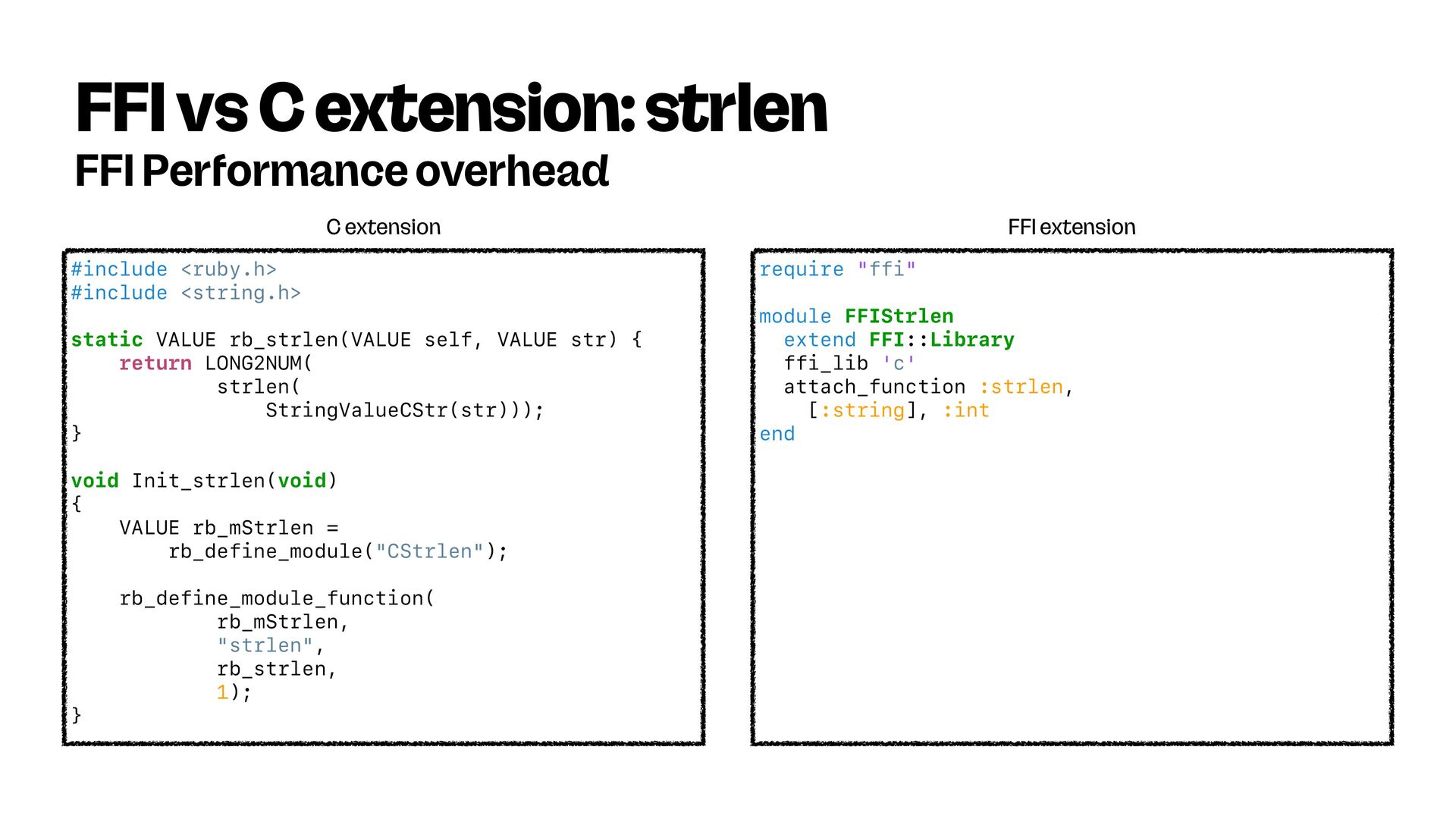

24. FFI vs C extension: strlen FFI Per f ormance overhead #include <ruby.h> #include <string.h> static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } void Init_strlen(void) { VALUE rb_mStrlen = rb_define_module("CStrlen"); rb_define_module_function( rb_mStrlen, "strlen", rb_strlen, 1); } C extension require "ffi" module FFIStrlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :int end FFI extension

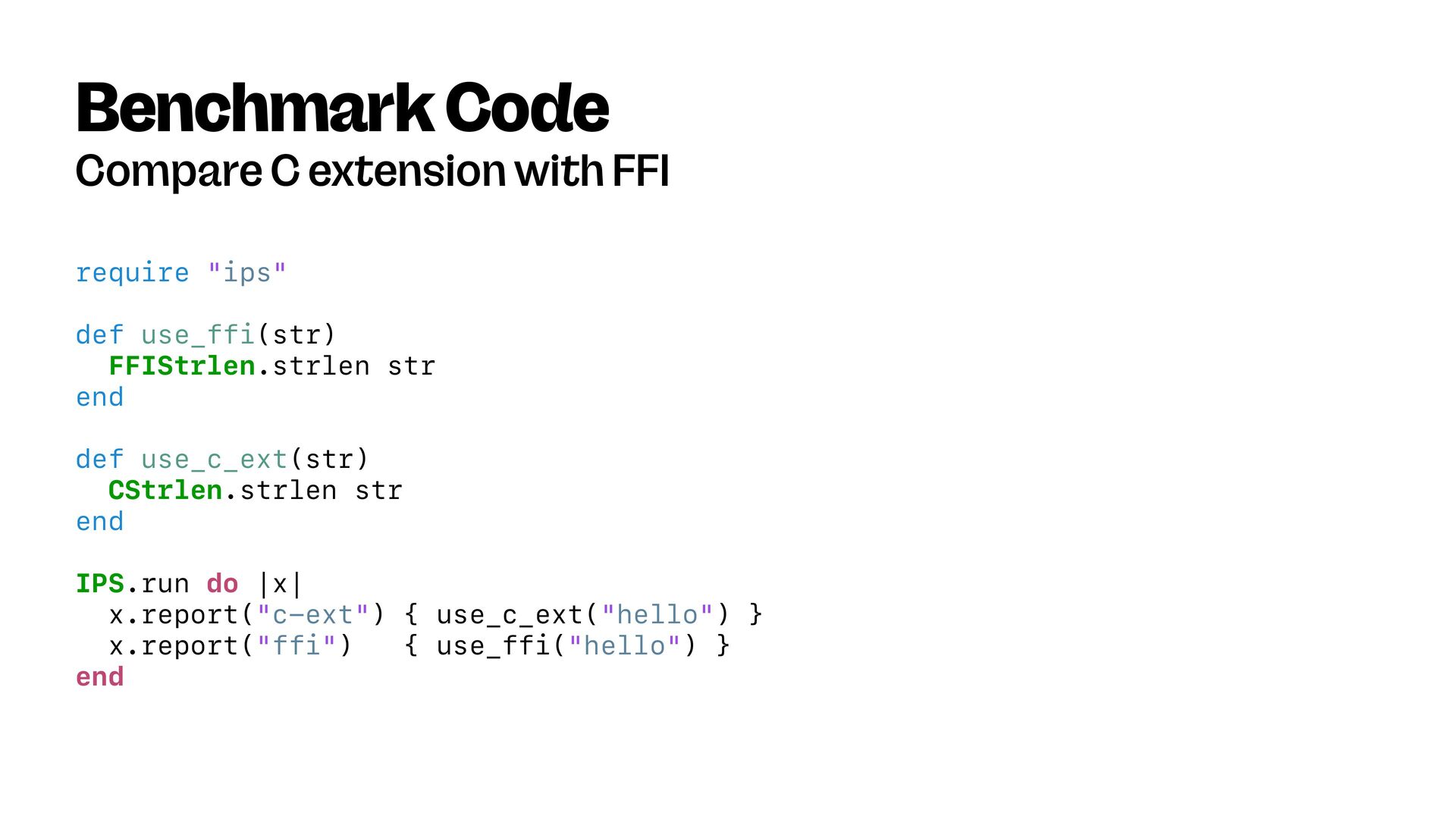

25. Benchmark Code Compare C extension with FFI require "ips" def use_ffi(str) FFIStrlen.strlen str end def use_c_ext(str) CStrlen.strlen str end IPS.run do |x| x.report("c-ext") { use_c_ext("hello") } x.report("ffi") { use_ffi("hello") } end

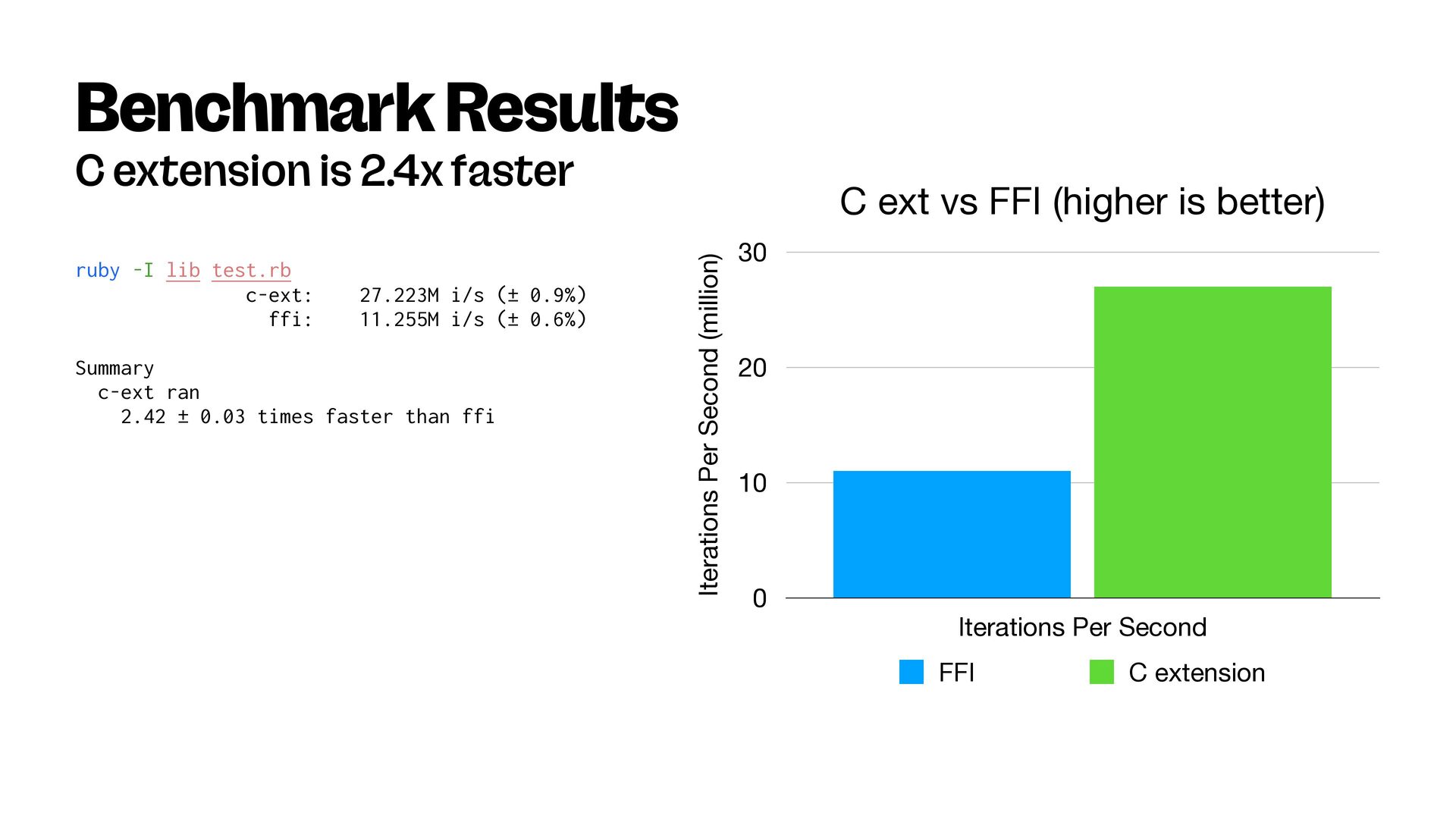

26. Benchmark Results C extension is 2.4x faster ruby -I lib test.rb c-ext: 27.223M i/s (± 0.9%) ffi: 11.255M i/s (± 0.6%) Summary c-ext ran 2.42 ± 0.03 times faster than ffi C ext vs FFI (higher is better) Iterations Per Second (million) 0 10 20 30 Iterations Per Second FFI C extension
27. FFѪͯ͠ͳ͍ I don’t love this
28. Is ca l ling a C extension “fast”?

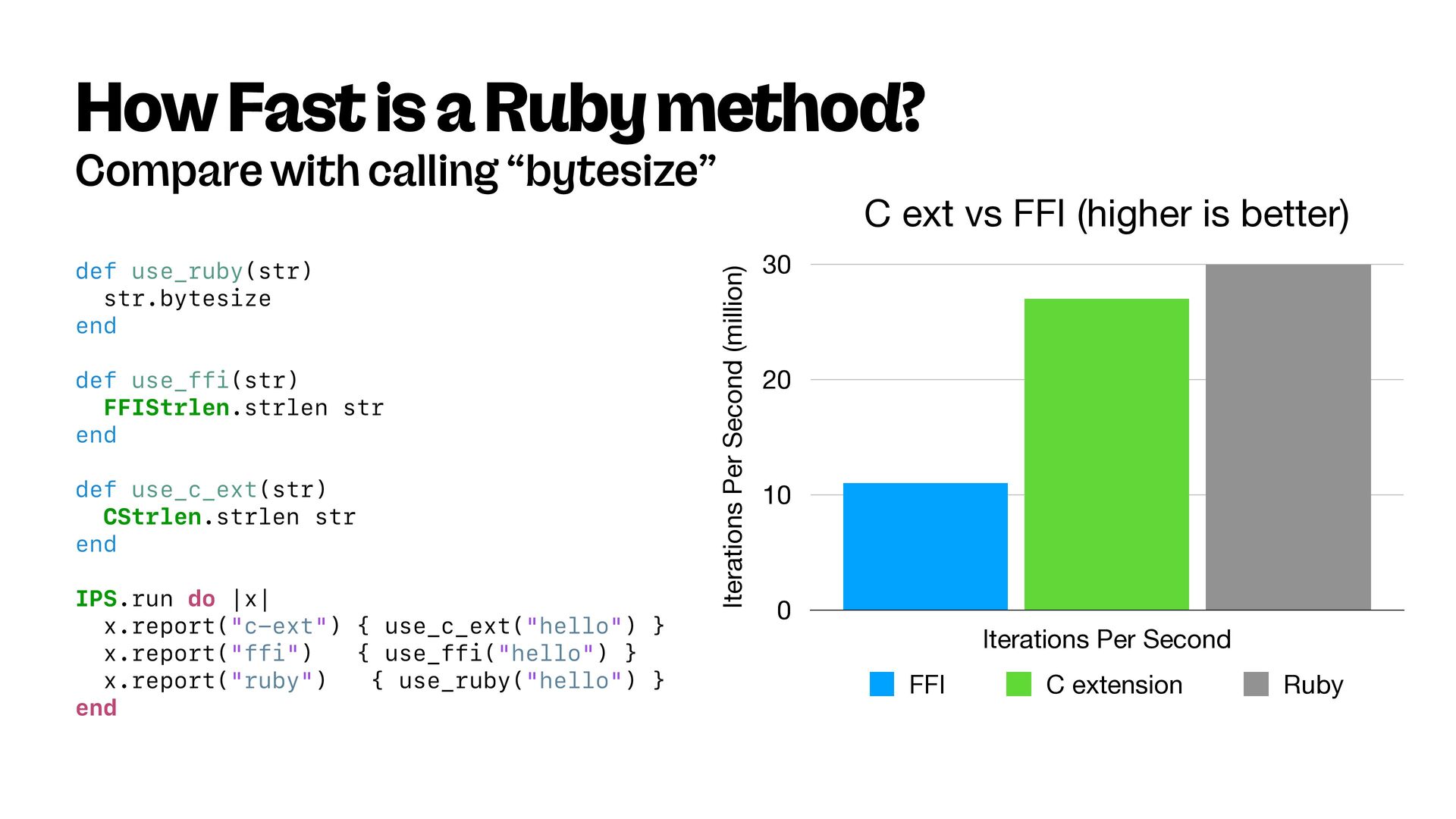

29. How Fast is a Ruby method? Compare with ca l ling “bytesize” def use_ruby(str) str.bytesize end def use_ffi(str) FFIStrlen.strlen str end def use_c_ext(str) CStrlen.strlen str end IPS.run do |x| x.report("c-ext") { use_c_ext("hello") } x.report("ffi") { use_ffi("hello") } x.report("ruby") { use_ruby("hello") } end C ext vs FFI (higher is better) Iterations Per Second (million) 0 10 20 30 Iterations Per Second FFI C extension Ruby
30. What makes FFI slow?
31. How does Ruby ca l l C extensions?
32. Parameters / Return Value
33. Ruby uses a stack, C uses registers Stack must be copied to registers some_c_function(1, 2, 3) Ruby Code self 1 2 3 Ruby Stack X0 X1 X2 X3 C Registers (ARM64)

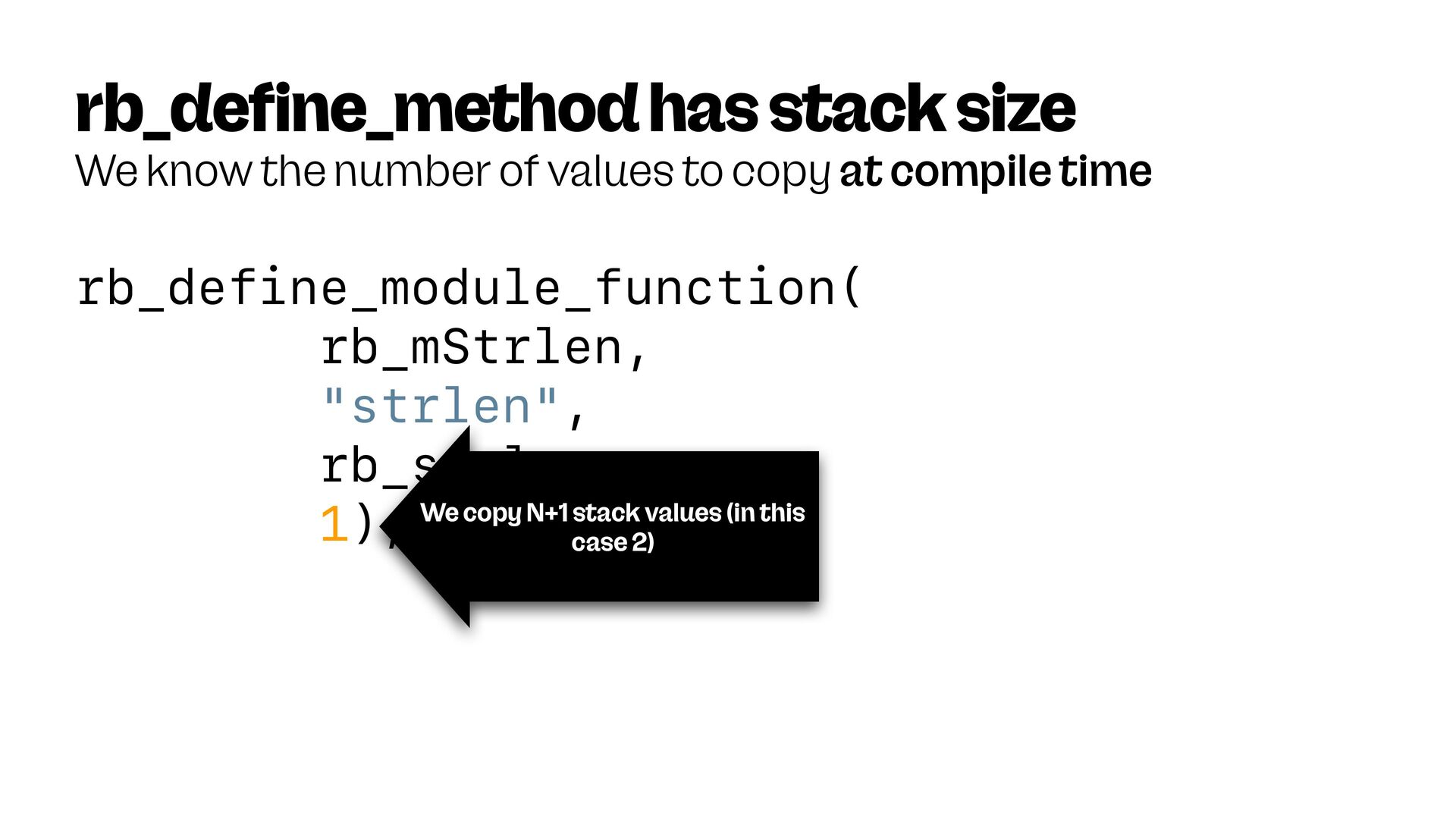

34. rb_define_module_function( rb_mStrlen, "strlen", rb_strlen, 1); rb_define_method has stack size We know the number of values to copy at compile time rb_define_module_function( rb_mStrlen, "strlen", rb_strlen, 1); We copy N+1 stack values (in this case 2)

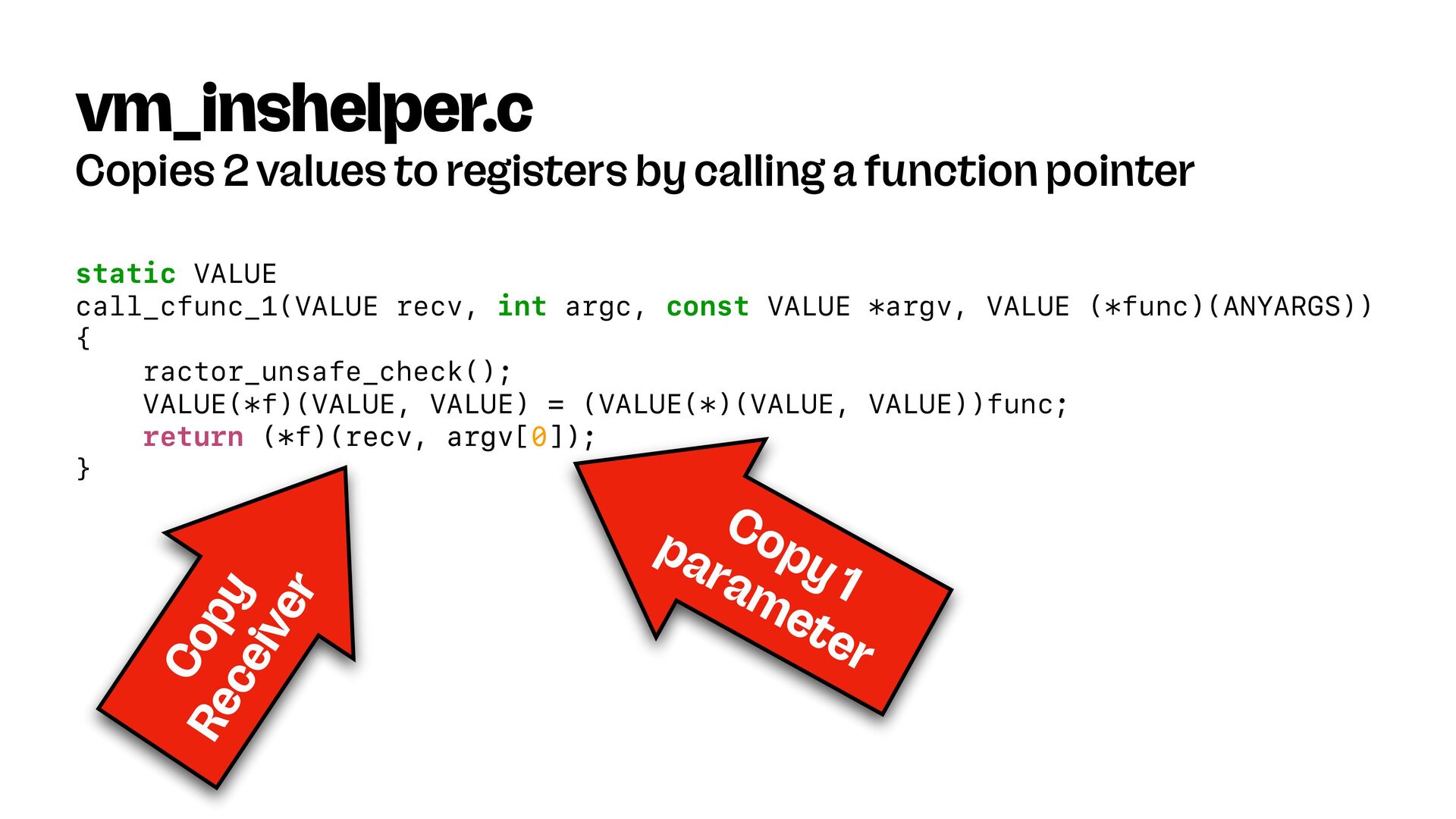

35. static VALUE call_cfunc_1(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE) = (VALUE(*)(VALUE, VALUE))func; return (*f)(recv, argv[0]); } vm_inshelper.c Copies 2 values to registers by ca l ling a function pointer static VALUE call_cfunc_1(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE) = (VALUE(*)(VALUE, VALUE))func; return (*f)(recv, argv[0]); } Copy Receiver Copy 1 parameter
36. vm_inshelper.c Copies 3 values to registers by ca l ling a function pointer static VALUE call_cfunc_2(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE, VALUE) = (VALUE(*)(VALUE, VALUE, VALUE))func; return (*f)(recv, argv[0], argv[1]); } Copy Receiver Copy 2 parameters
37. vm_inshelper.c Copies 4 values to registers by ca l ling a function pointer static VALUE call_cfunc_3(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE, VALUE, VALUE) = (VALUE(*)(VALUE, VALUE, VALUE, VALUE))func; return (*f)(recv, argv[0], argv[1], argv[2]); } Copy Receiver Copy 3 parameters
38. vm_inshelper.c Copies 5 values to registers by ca l ling a function pointer static VALUE call_cfunc_4(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE, VALUE, VALUE, VALUE) = (VALUE(*)(VALUE, VALUE, VALUE, VALUE, VALUE))func; return (*f)(recv, argv[0], argv[1], argv[2], argv[3]); } Copy Receiver Copy 4 parameters
39. static VALUE call_cfunc_0(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE) = (VALUE(*)(VALUE))func; return (*f)(recv); } static VALUE call_cfunc_1(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE) = (VALUE(*)(VALUE, VALUE))func; return (*f)(recv, argv[0]); } static VALUE call_cfunc_2(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE, VALUE) = (VALUE(*)(VALUE, VALUE, VALUE))func; return (*f)(recv, argv[0], argv[1]); } static VALUE call_cfunc_3(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS)) { ractor_unsafe_check(); VALUE(*f)(VALUE, VALUE, VALUE, VALUE) = (VALUE(*)(VALUE, VALUE, VALUE, VALUE))func; return (*f)(recv, argv[0], argv[1], argv[2]); } static VALUE call_cfunc_4(VALUE recv, int argc, const VALUE *argv, VALUE (*func)(ANYARGS))
40. Don’t do that.
41. Unbox Parameters (not Ruby::Box 😂)

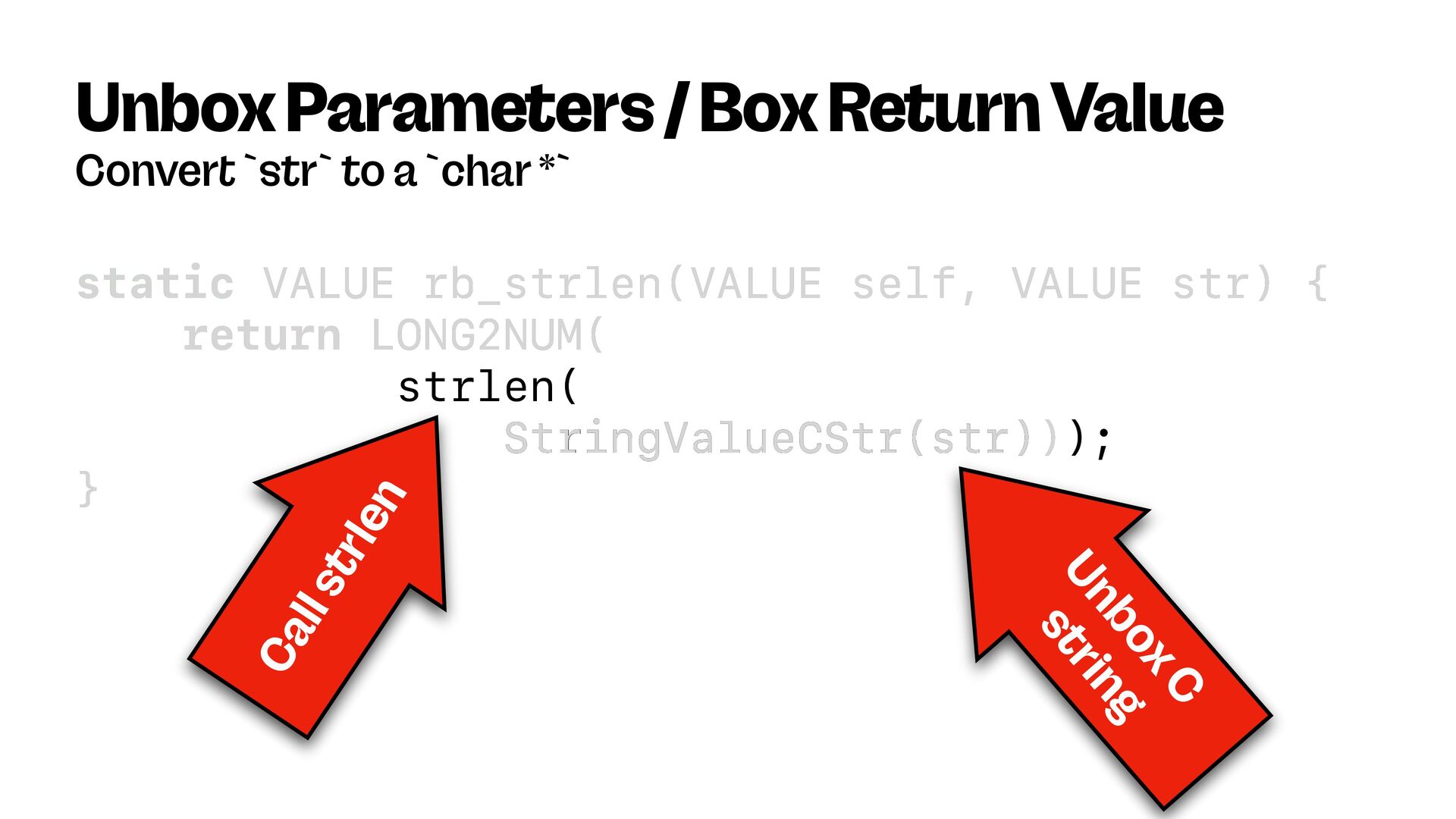

42. Unbox Parameters / Box Return Value Conver t `str` to a `char *` static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } Unbox C string static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } Ca l l strlen

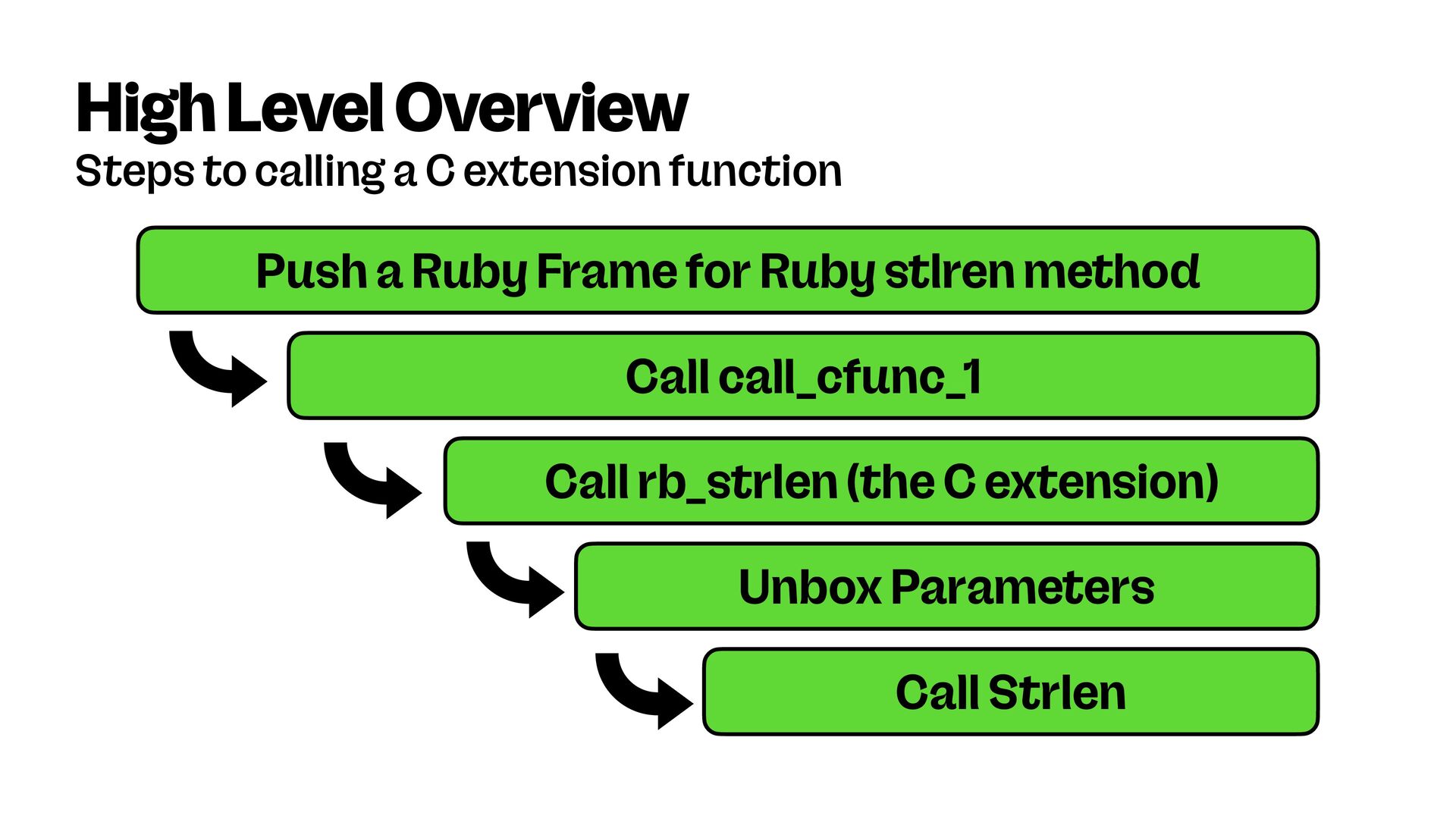

43. High Level Overview Steps to ca l ling a C extension function Push a Ruby Frame for Ruby stlren method Ca l l ca l l_cfunc_1 Ca l l rb_strlen (the C extension) Unbox Parameters Ca l l Strlen

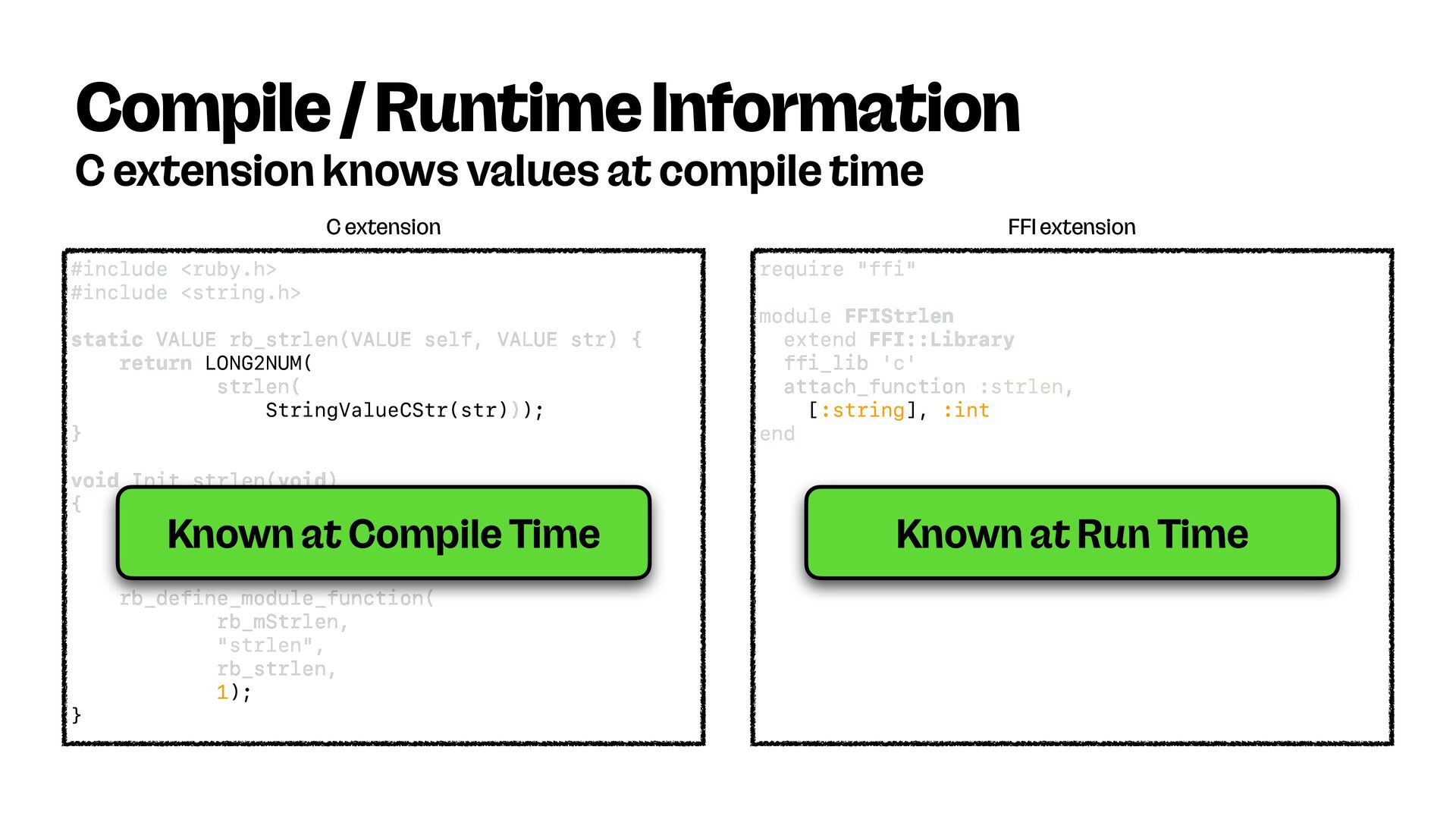

44. Compile / Runtime Information C extension knows values at compile time #include <ruby.h> #include <string.h> static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } void Init_strlen(void) { VALUE rb_mStrlen = rb_define_module("CStrlen"); rb_define_module_function( rb_mStrlen, "strlen", rb_strlen, 1); } C extension require "ffi" module FFIStrlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :int end FFI extension #include <ruby.h> #include <string.h> static VALUE rb_strlen(VALUE self, VALUE str) { return LONG2NUM( strlen( StringValueCStr(str))); } void Init_strlen(void) { VALUE rb_mStrlen = rb_define_module("CStrlen"); rb_define_module_function( rb_mStrlen, "strlen", rb_strlen, 1); } C extension require "ffi" module FFIStrlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :int end FFI extension Known at Compile Time Known at Run Time

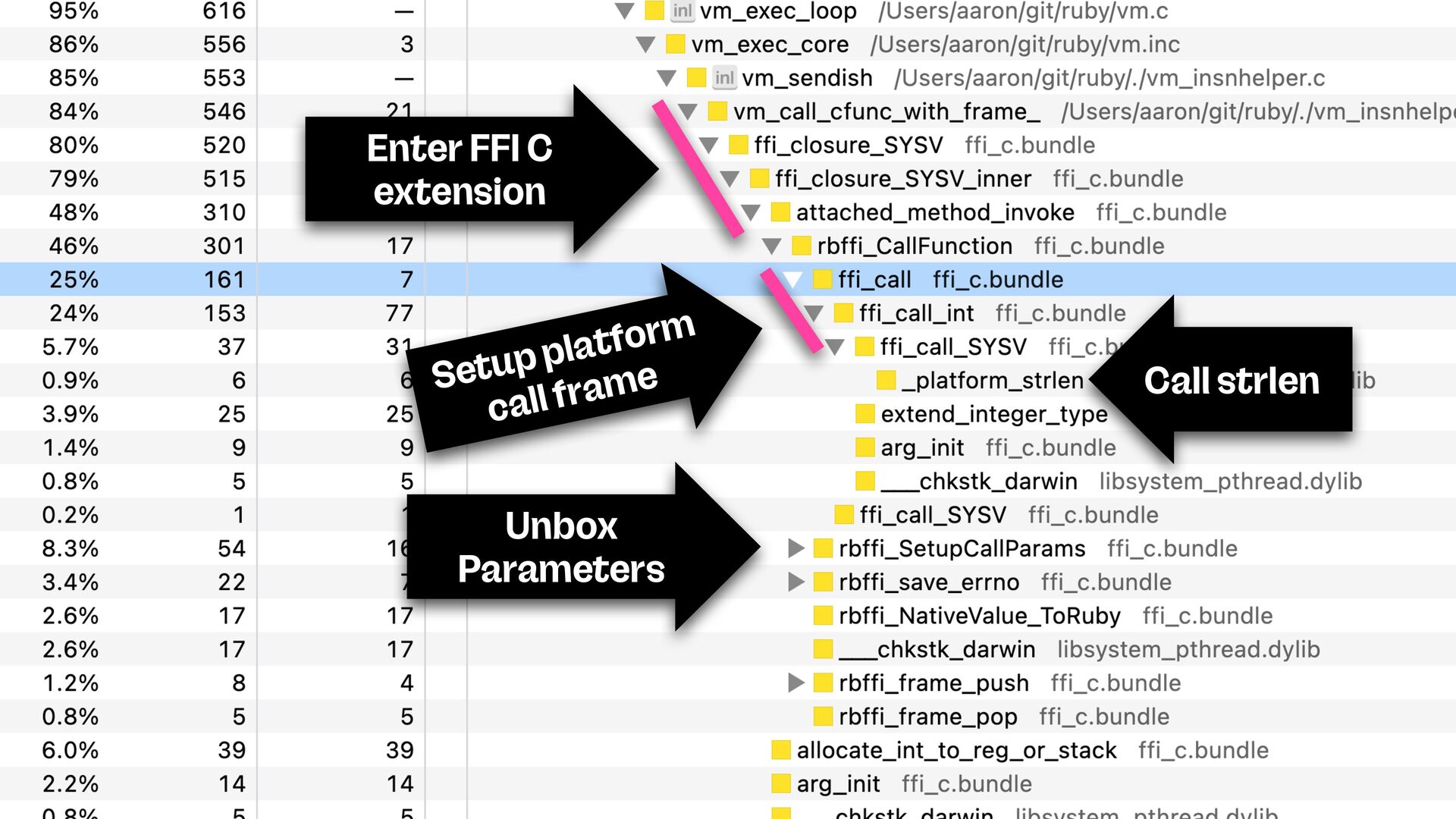

45. Setup platform ca l l frame Ca l l strlen Enter FFI C extension Unbox Parameters
46. FFI: ~twice the work
47. Faster FFI for Ruby!
48. JIT Compilation!
49. Two Problems:
50. Extra Frame Pushes
51. Runtime Type Conversion
52. First Attempt: FJIT

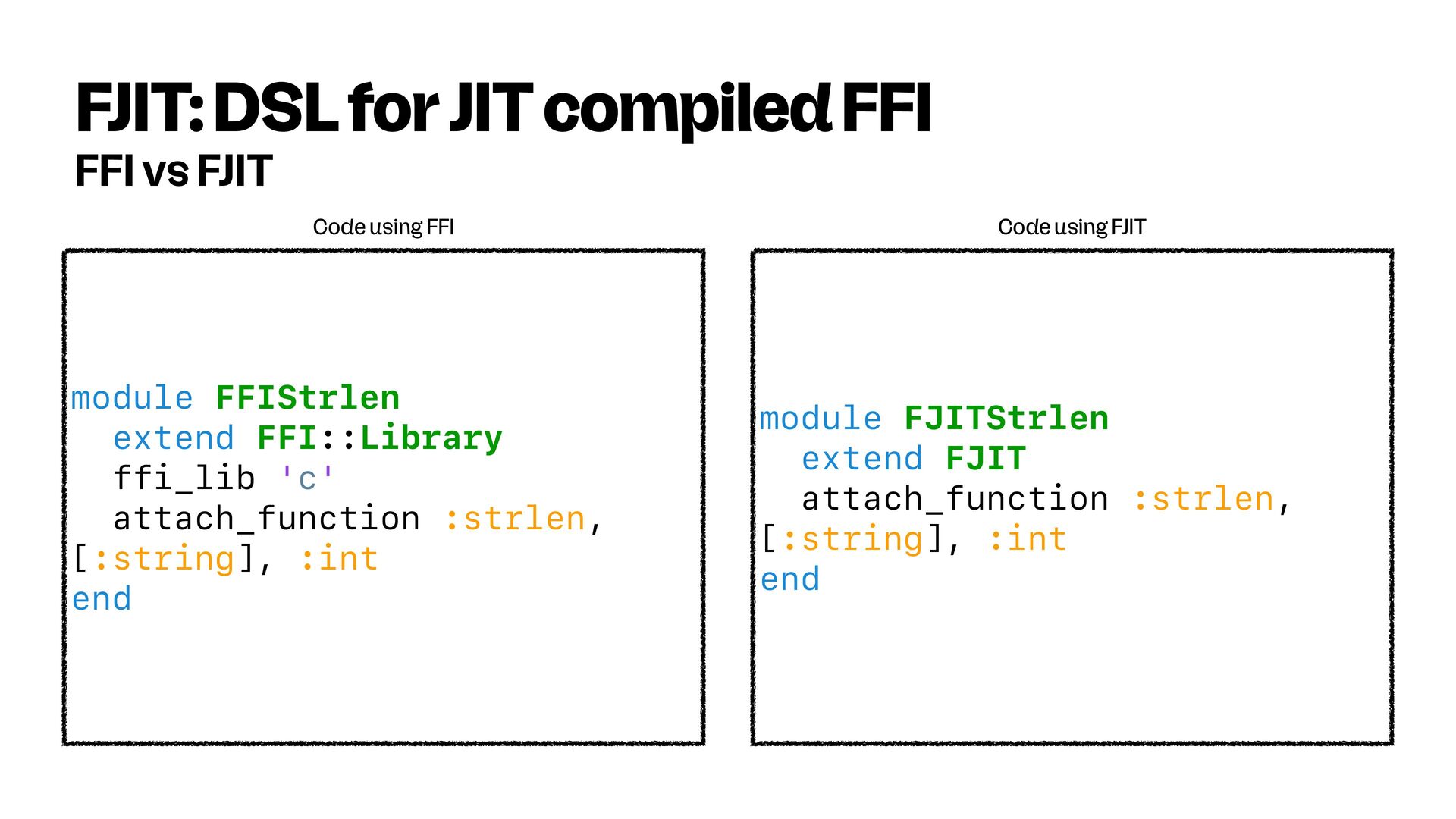

53. FJIT: DSL for JIT compiled FFI FFI vs FJIT module FFIStrlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :int end Code using FFI module FJITStrlen extend FJIT attach_function :strlen, [:string], :int end Code using FJIT

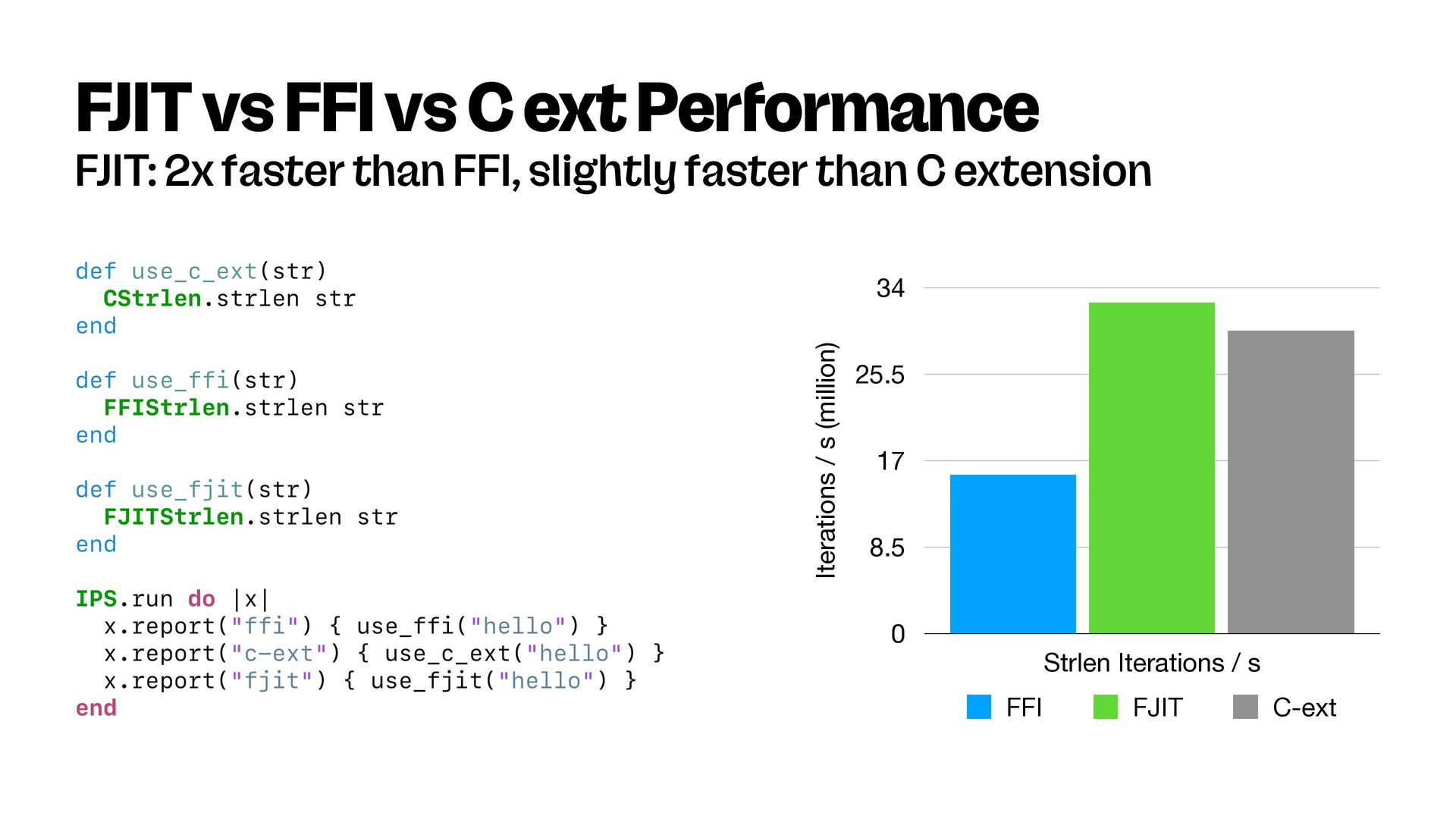

54. FJIT vs FFI vs C ext Per f ormance FJIT: 2x faster than FFI, slightly faster than C extension def use_c_ext(str) CStrlen.strlen str end def use_ffi(str) FFIStrlen.strlen str end def use_fjit(str) FJITStrlen.strlen str end IPS.run do |x| x.report("ffi") { use_ffi("hello") } x.report("c-ext") { use_c_ext("hello") } x.report("fjit") { use_fjit("hello") } end Iterations / s (million) 0 8.5 17 25.5 34 Strlen Iterations / s FFI FJIT C-ext
55. How does FJIT work?

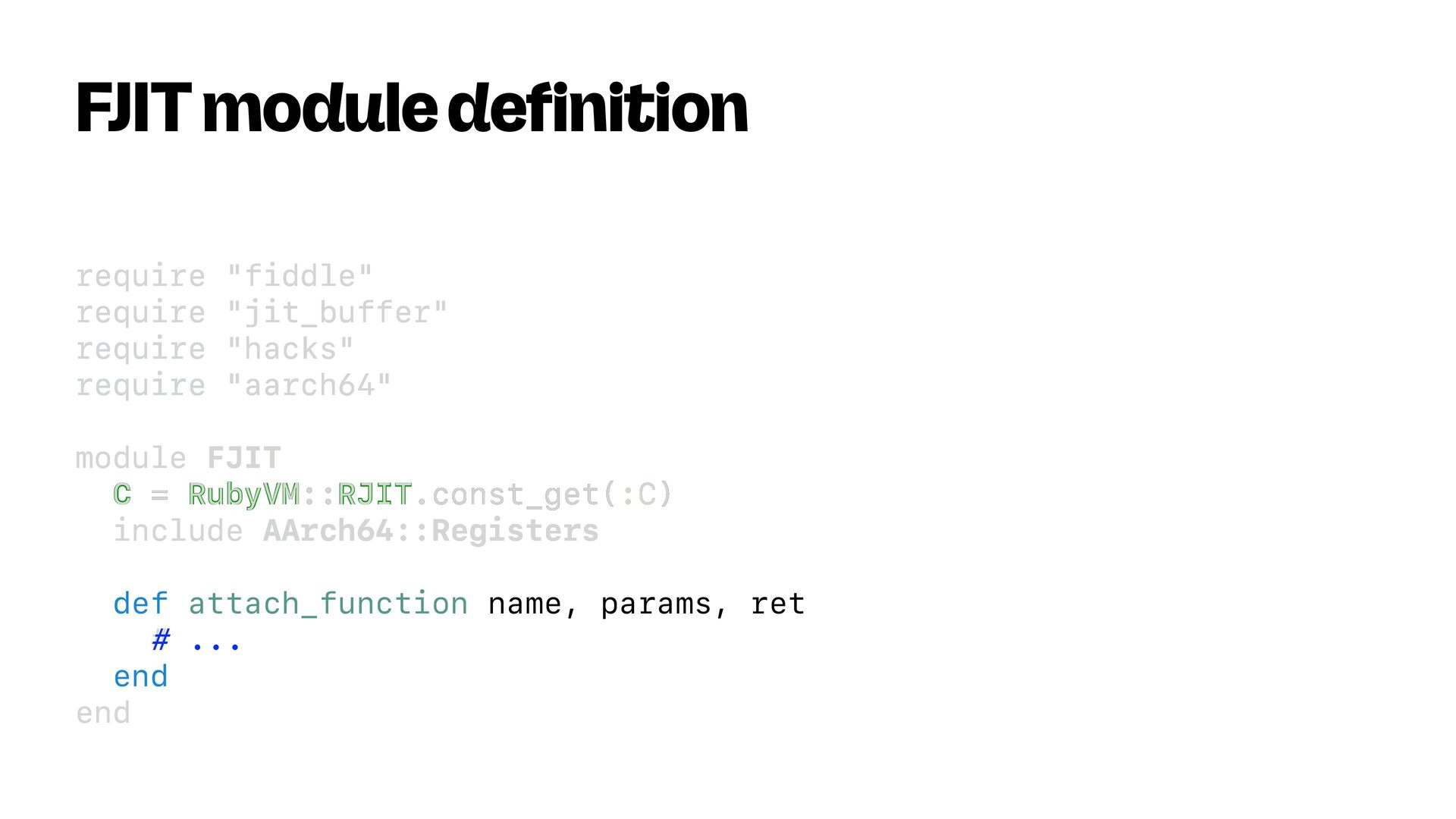

56. FJIT module definition require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end require "fiddle" require "jit_buffer" require "hacks" require "aarch64" module FJIT C = RubyVM::RJIT.const_get(:C) include AArch64::Registers def attach_function name, params, ret # ... end end

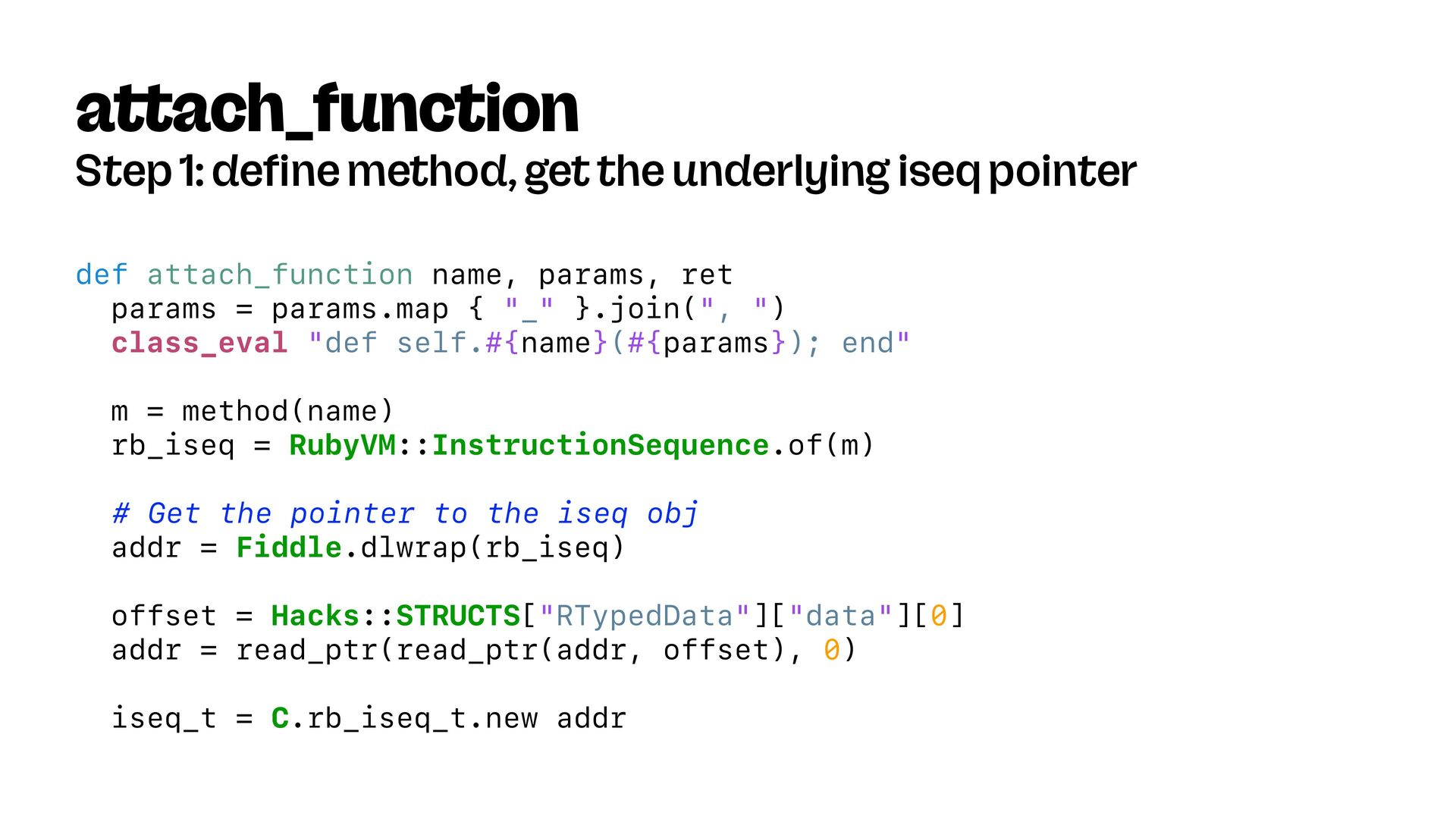

57. attach_function Step 1: de fi ne method, get the underlying iseq pointer def attach_function name, params, ret params = params.map { "_" }.join(", ") class_eval "def self.#{name}(#{params}); end" m = method(name) rb_iseq = RubyVM::InstructionSequence.of(m) # Get the pointer to the iseq obj addr = Fiddle.dlwrap(rb_iseq) offset = Hacks::STRUCTS["RTypedData"]["data"][0] addr = read_ptr(read_ptr(addr, offset), 0) iseq_t = C.rb_iseq_t.new addr

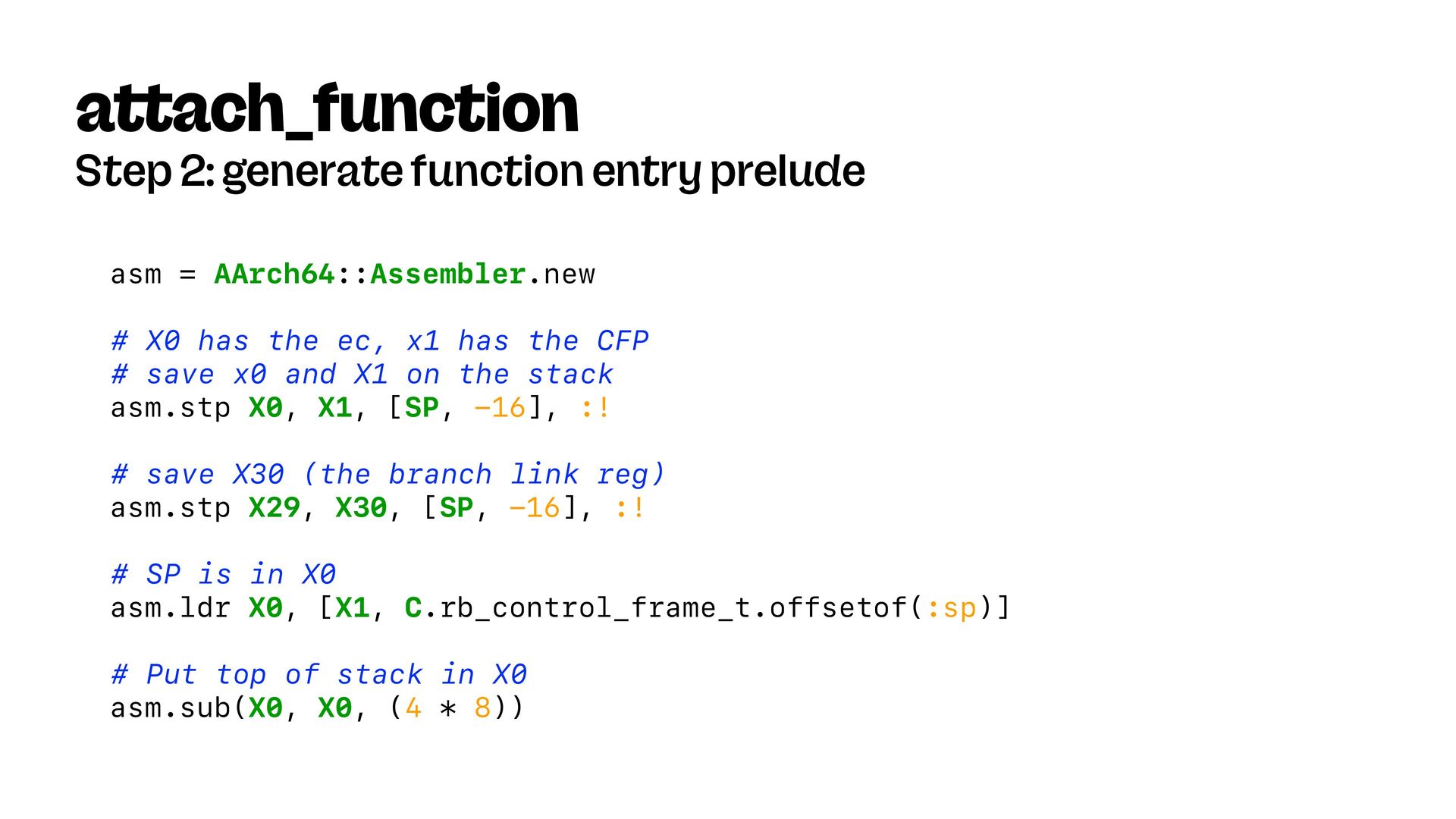

58. attach_function Step 2: generate function entry prelude asm = AArch64::Assembler.new # X0 has the ec, x1 has the CFP # save x0 and X1 on the stack asm.stp X0, X1, [SP, -16], :! # save X30 (the branch link reg) asm.stp X29, X30, [SP, -16], :! # SP is in X0 asm.ldr X0, [X1, C.rb_control_frame_t.offsetof(:sp)] # Put top of stack in X0 asm.sub(X0, X0, (4 * 8))

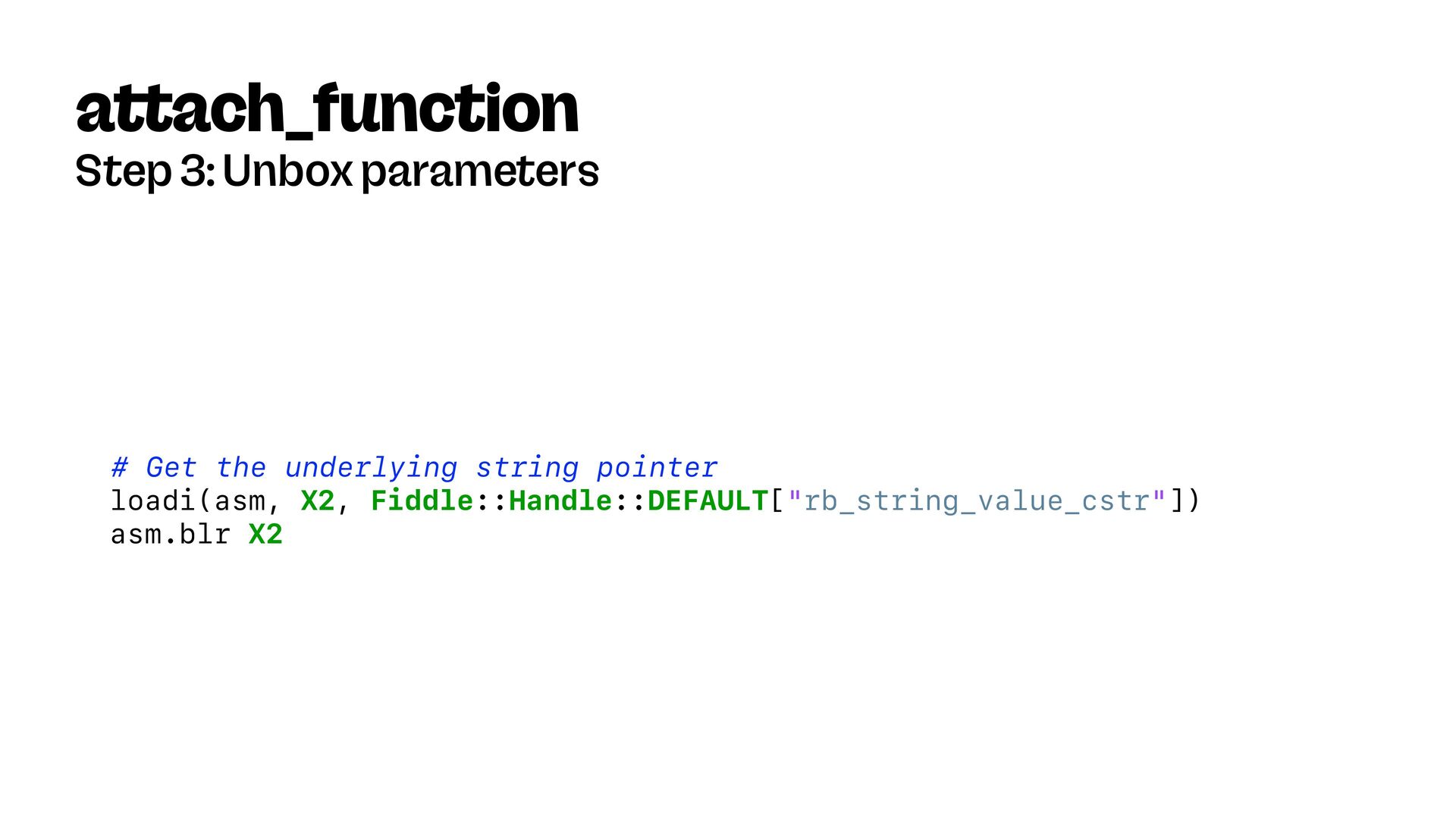

59. attach_function Step 3: Unbox parameters # Get the underlying string pointer loadi(asm, X2, Fiddle::Handle::DEFAULT["rb_string_value_cstr"]) asm.blr X2

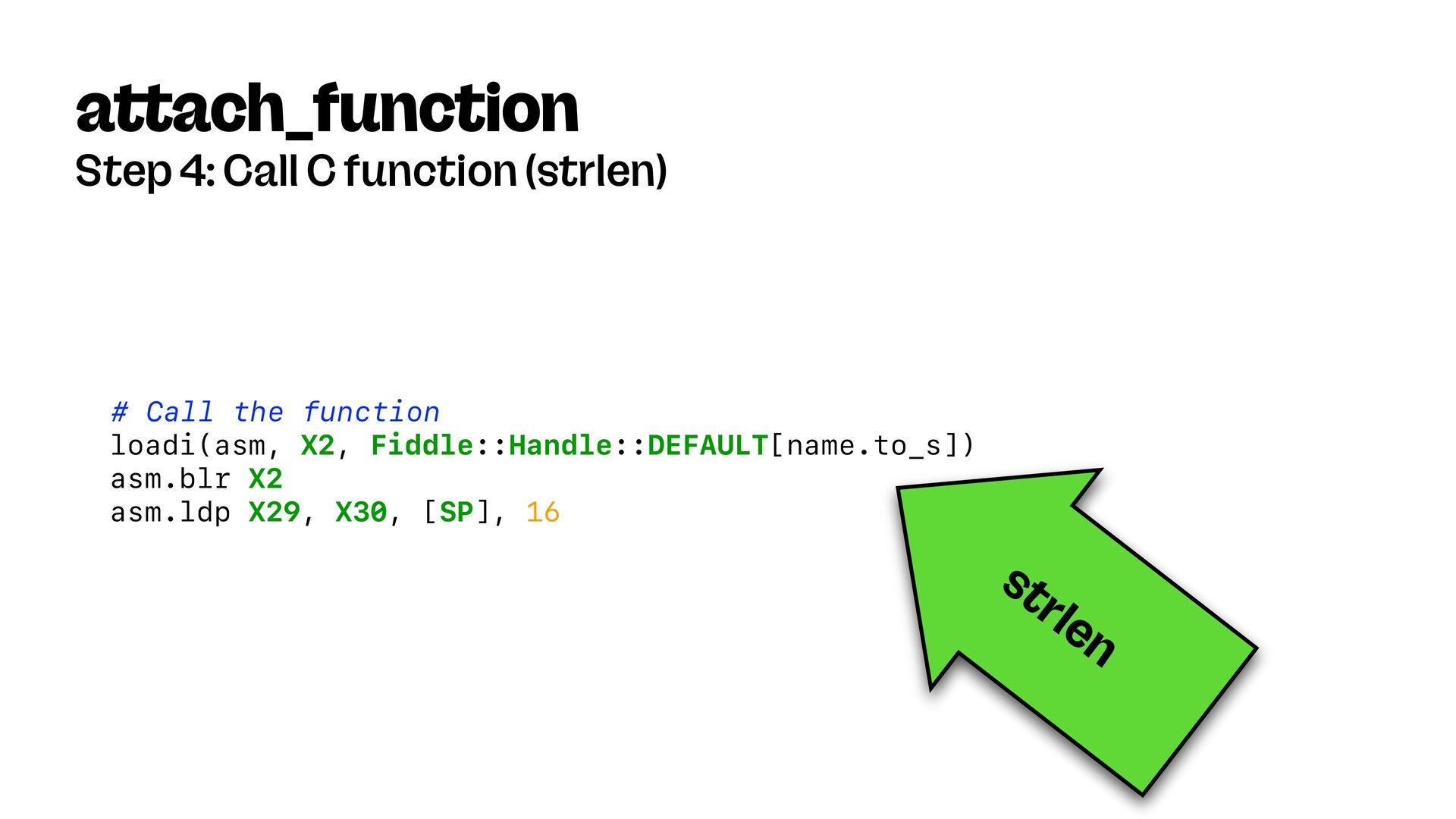

60. attach_function Step 4: Ca l l C function (strlen) # Call the function loadi(asm, X2, Fiddle::Handle::DEFAULT[name.to_s]) asm.blr X2 asm.ldp X29, X30, [SP], 16 strlen

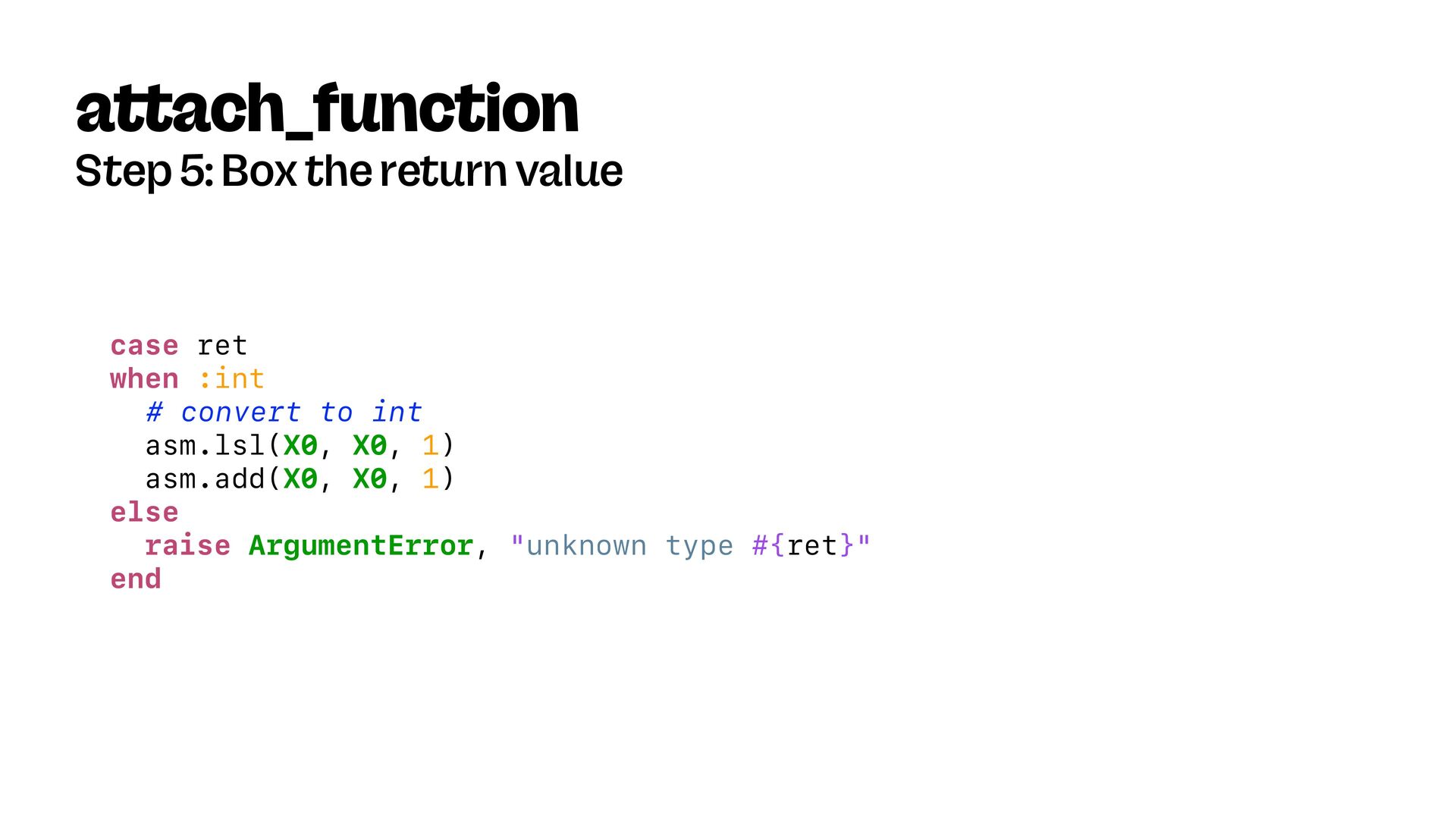

61. attach_function Step 5: Box the return value case ret when :int # convert to int asm.lsl(X0, X0, 1) asm.add(X0, X0, 1) else raise ArgumentError, "unknown type #{ret}" end

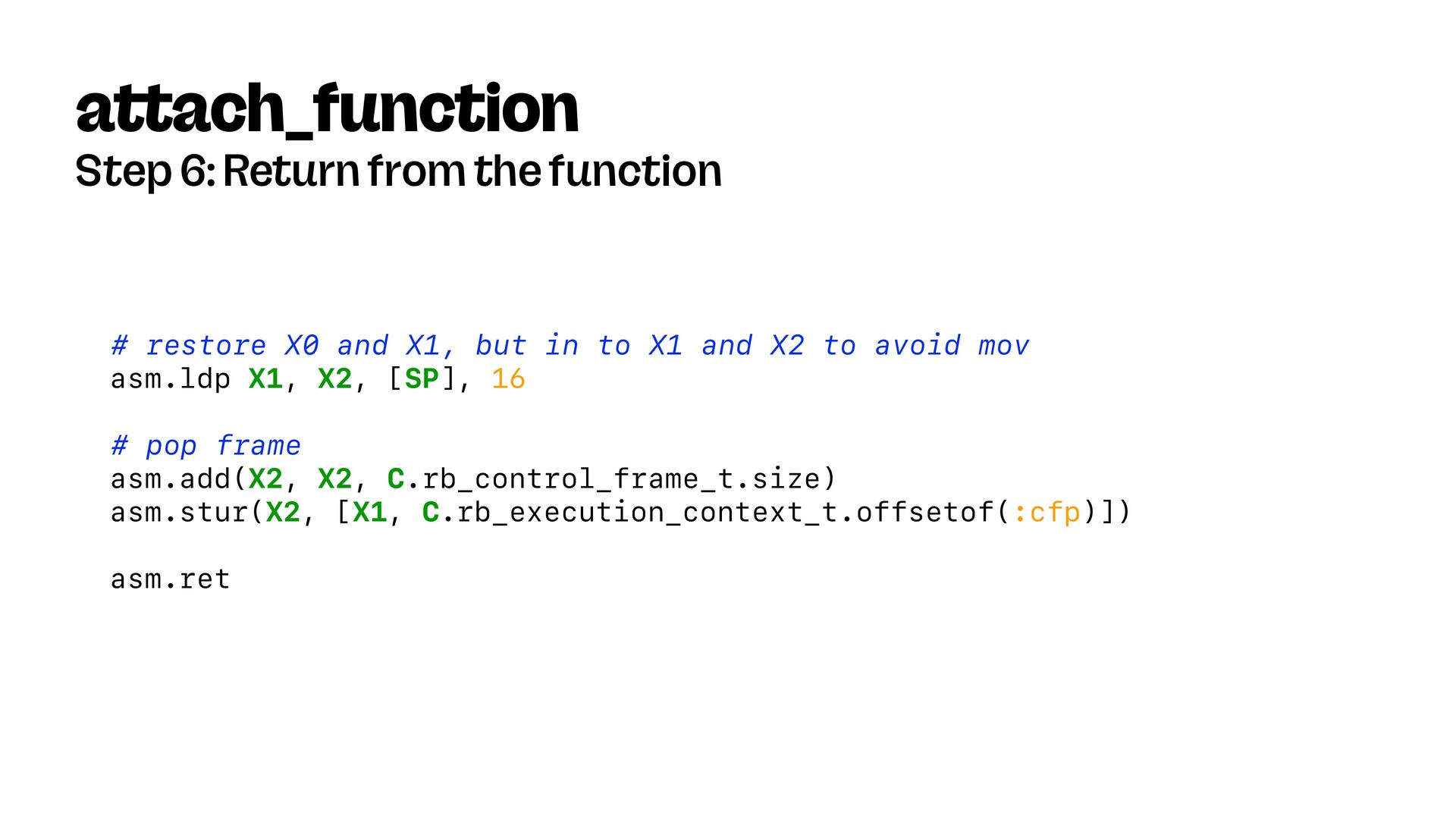

62. attach_function Step 6: Return from the function # restore X0 and X1, but in to X1 and X2 to avoid mov asm.ldp X1, X2, [SP], 16 # pop frame asm.add(X2, X2, C.rb_control_frame_t.size) asm.stur(X2, [X1, C.rb_execution_context_t.offsetof(:cfp)]) asm.ret

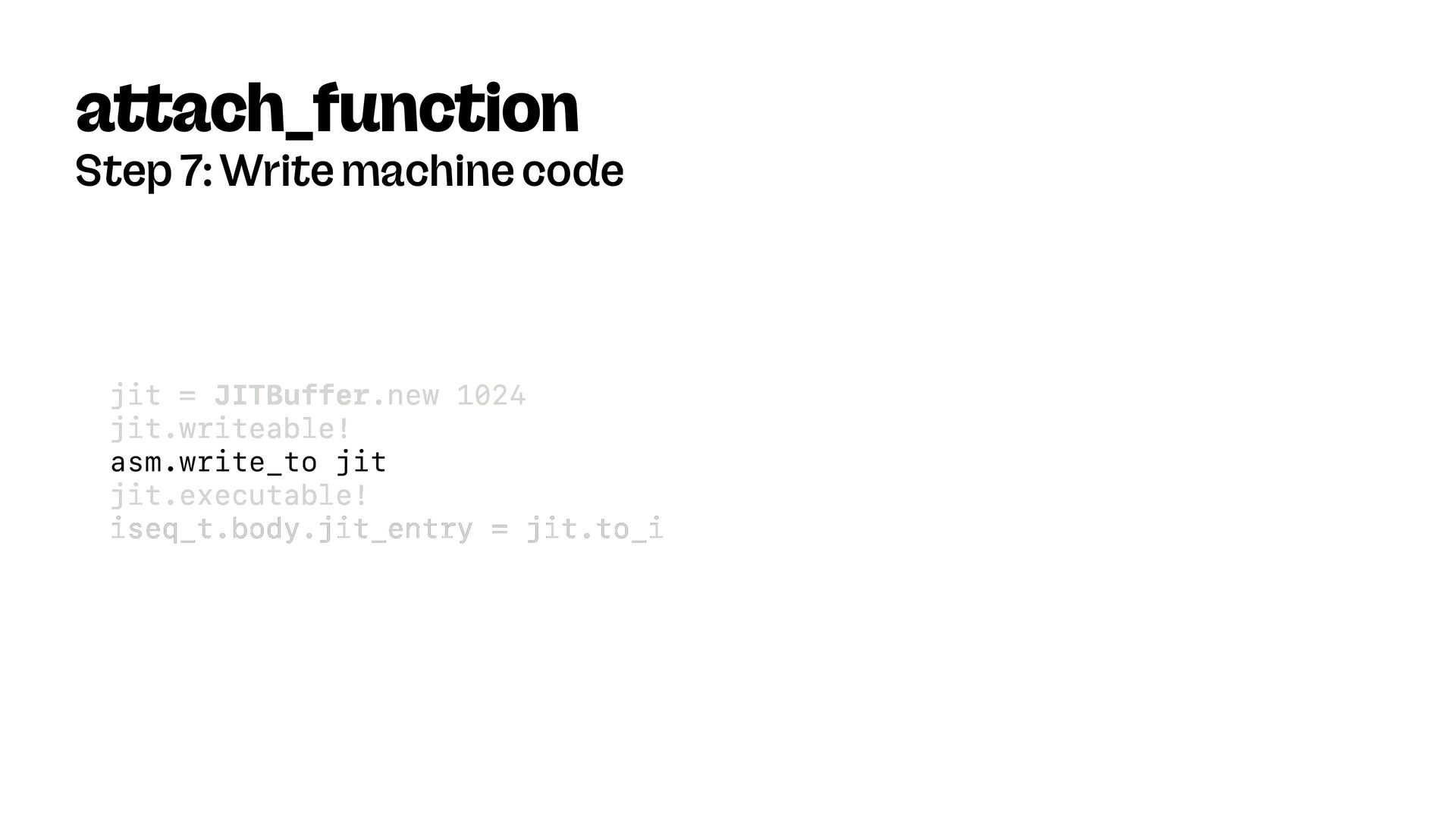

63. attach_function Step 7: Write machine code jit = JITBuffer.new 1024 jit.writeable! asm.write_to jit jit.executable! iseq_t.body.jit_entry = jit.to_i jit = JITBuffer.new 1024 jit.writeable! asm.write_to jit jit.executable! iseq_t.body.jit_entry = jit.to_i jit = JITBuffer.new 1024 jit.writeable! asm.write_to jit jit.executable! iseq_t.body.jit_entry = jit.to_i
64. This a l l works!
65. It’s pure Ruby
66. It’s fast!
67. It depends on RJIT

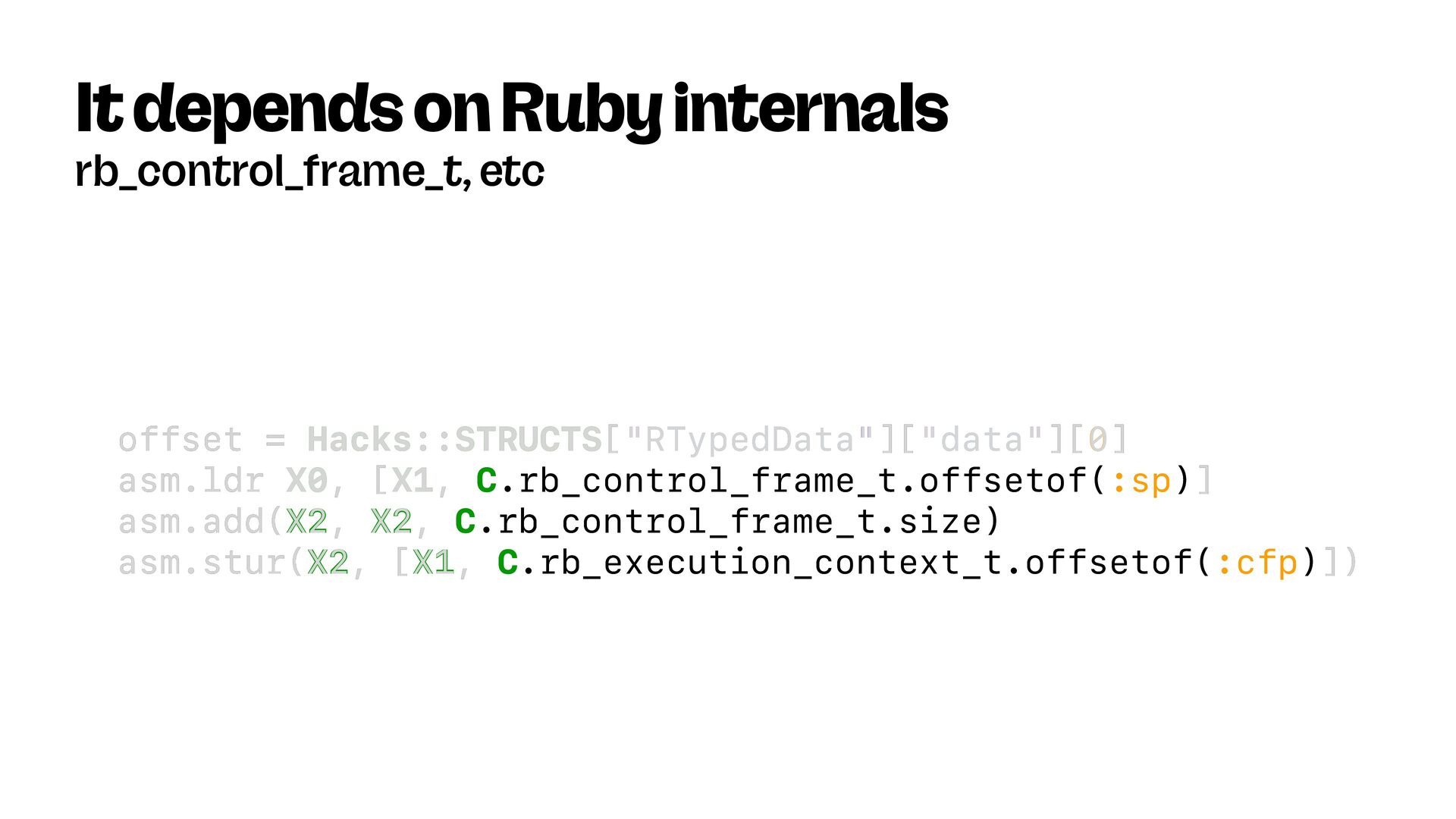

68. It depends on Ruby internals rb_control_frame_t, etc offset = Hacks::STRUCTS["RTypedData"]["data"][0] asm.ldr X0, [X1, C.rb_control_frame_t.offsetof(:sp)] asm.add(X2, X2, C.rb_control_frame_t.size) asm.stur(X2, [X1, C.rb_execution_context_t.offsetof(:cfp)]) offset = Hacks::STRUCTS["RTypedData"]["data"][0] asm.ldr X0, [X1, C.rb_control_frame_t.offsetof(:sp)] asm.add(X2, X2, C.rb_control_frame_t.size) asm.stur(X2, [X1, C.rb_execution_context_t.offsetof(:cfp)])
69. Ruby’s FFI
70. Ruby itself should suppor t FFI
71. ZJIT “API” + FFX
72. DrWenowdis: Specializing Dynamic Langu a ge C Extensions using Type Information https://bernsteinbear.com/assets/img/dr-wenowdis.pdf By M a x Bernstein and CF Bolz-Tereick
73. Provide an FFI compatible API
74. Translate to C on CRuby *At insta l l time
75. C code contains JIT hints
76. JIT compiler reads hints
77. Development Workflow

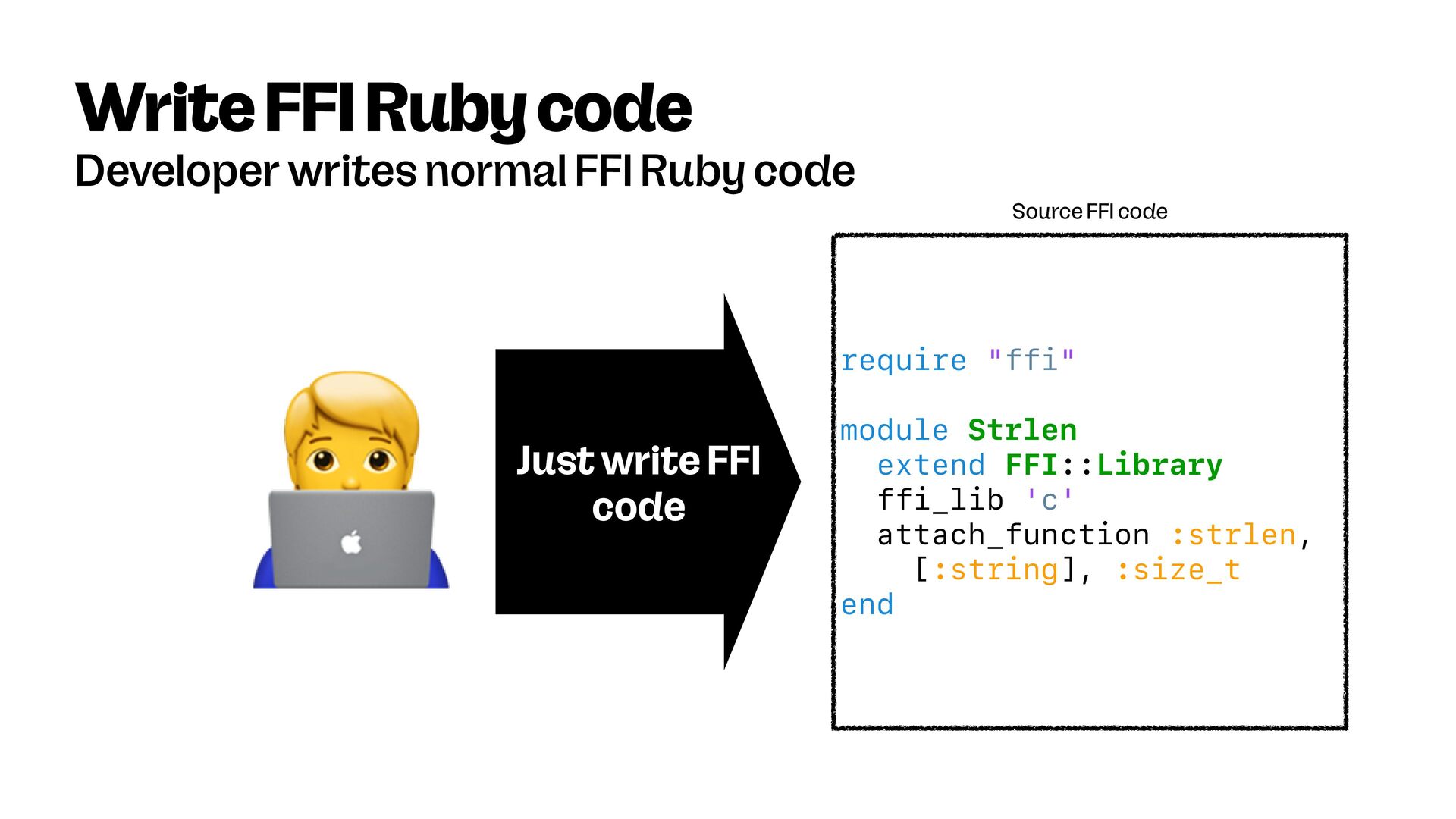

78. Write FFI Ruby code Developer writes normal FFI Ruby code require "ffi" module Strlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :size_t end Source FFI code 🧑💻 Just write FFI code

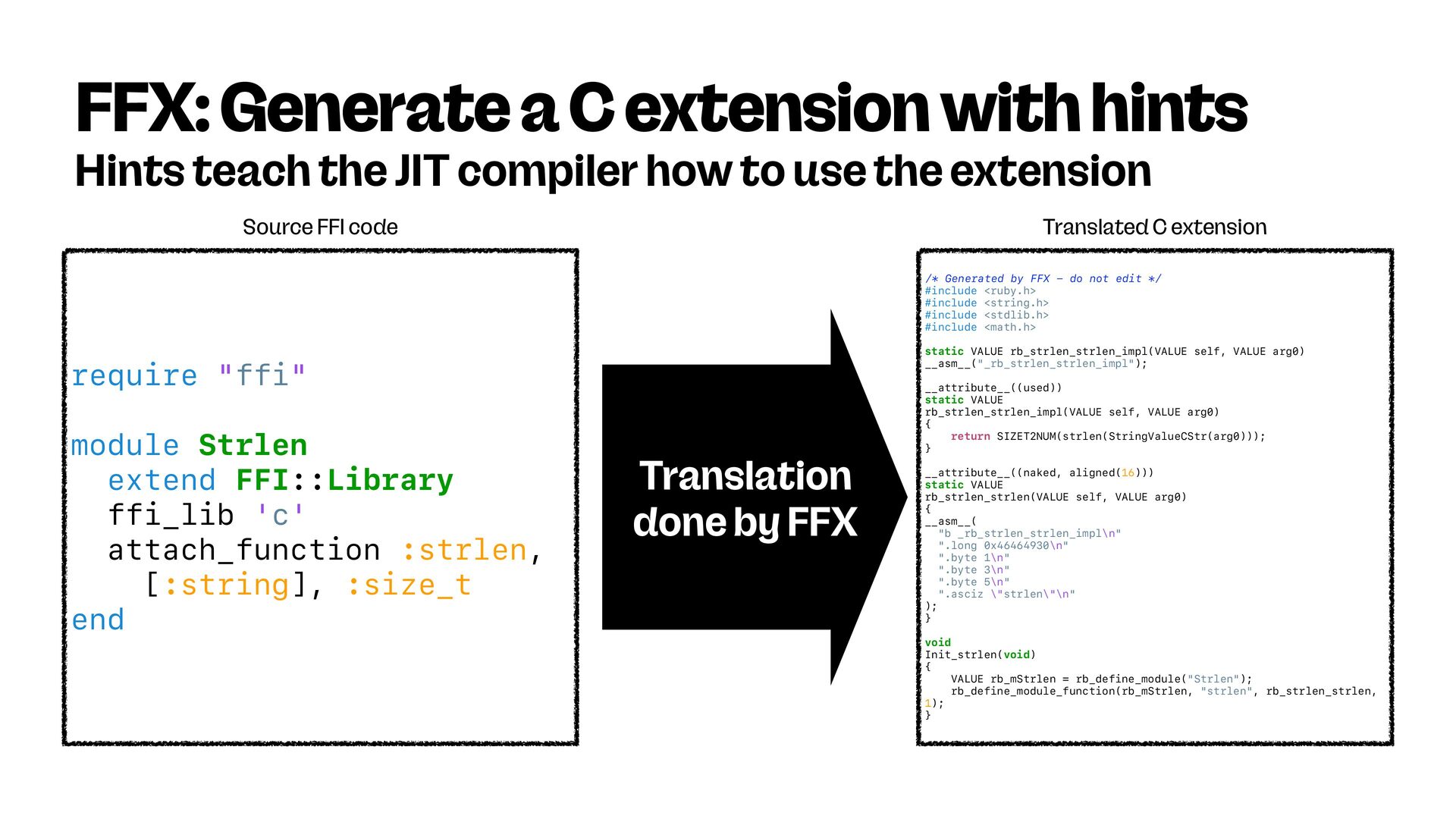

79. FFX: Generate a C extension with hints Hints teach the JIT compiler how to use the extension require "ffi" module Strlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :size_t end Source FFI code /* Generated by FFX - do not edit */ #include <ruby.h> #include <string.h> #include <stdlib.h> #include <math.h> static VALUE rb_strlen_strlen_impl(VALUE self, VALUE arg0) __asm__("_rb_strlen_strlen_impl"); __attribute__((used)) static VALUE rb_strlen_strlen_impl(VALUE self, VALUE arg0) { return SIZET2NUM(strlen(StringValueCStr(arg0))); } __attribute__((naked, aligned(16))) static VALUE rb_strlen_strlen(VALUE self, VALUE arg0) { __asm__( "b _rb_strlen_strlen_impl\n" ".long 0x46464930\n" ".byte 1\n" ".byte 3\n" ".byte 5\n" ".asciz \"strlen\"\n" ); } void Init_strlen(void) { VALUE rb_mStrlen = rb_define_module("Strlen"); rb_define_module_function(rb_mStrlen, "strlen", rb_strlen_strlen, 1); } Translated C extension Translation done by FFX

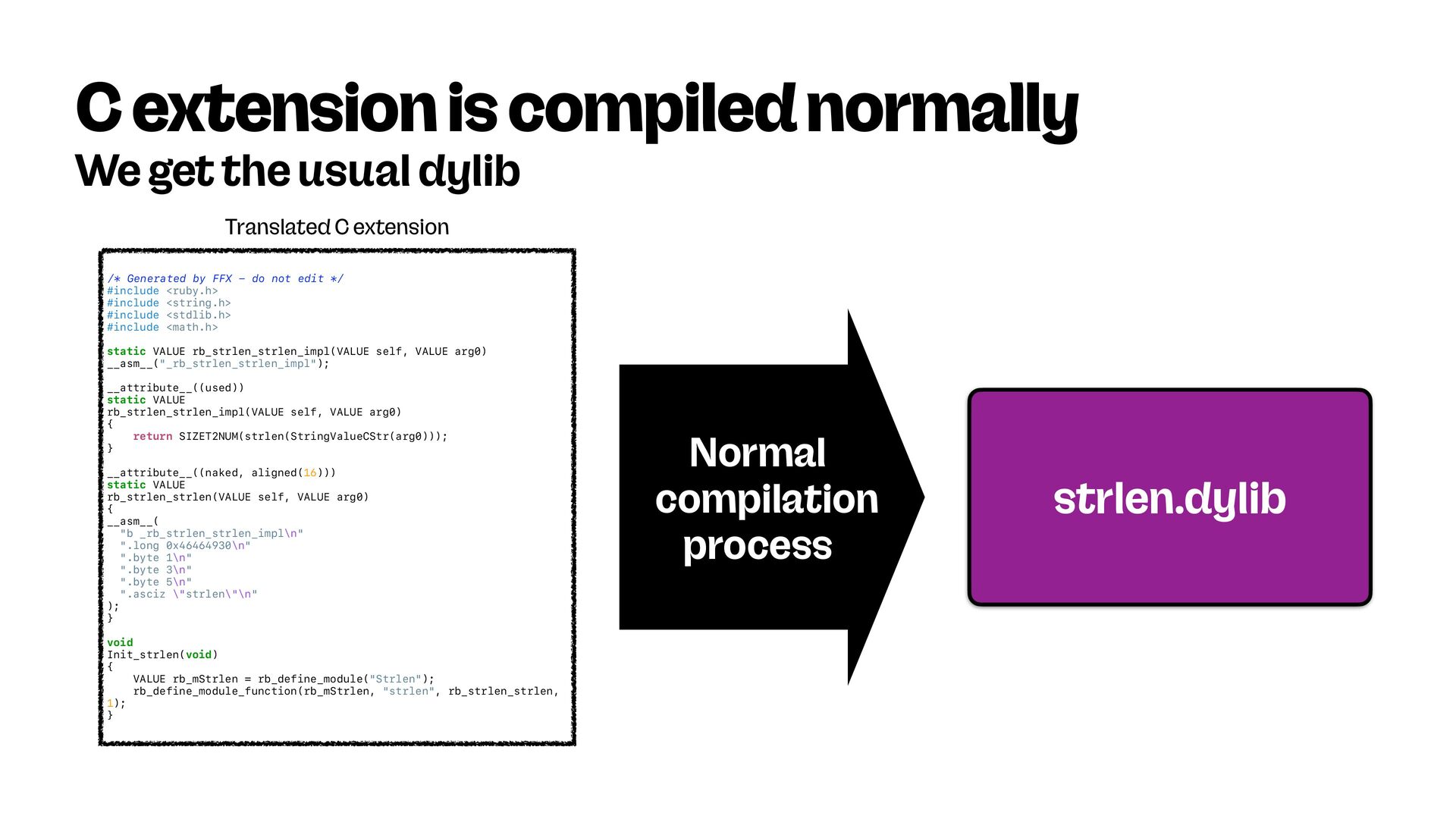

80. C extension is compiled norma l ly We get the usual dylib /* Generated by FFX - do not edit */ #include <ruby.h> #include <string.h> #include <stdlib.h> #include <math.h> static VALUE rb_strlen_strlen_impl(VALUE self, VALUE arg0) __asm__("_rb_strlen_strlen_impl"); __attribute__((used)) static VALUE rb_strlen_strlen_impl(VALUE self, VALUE arg0) { return SIZET2NUM(strlen(StringValueCStr(arg0))); } __attribute__((naked, aligned(16))) static VALUE rb_strlen_strlen(VALUE self, VALUE arg0) { __asm__( "b _rb_strlen_strlen_impl\n" ".long 0x46464930\n" ".byte 1\n" ".byte 3\n" ".byte 5\n" ".asciz \"strlen\"\n" ); } void Init_strlen(void) { VALUE rb_mStrlen = rb_define_module("Strlen"); rb_define_module_function(rb_mStrlen, "strlen", rb_strlen_strlen, 1); } Translated C extension Normal compilation process strlen.dylib
81. CRuby: Faster by C code
82. CRuby + ZJIT: Even faster
83. JRuby / TruffleRuby: Just Work
84. How can we go faster?
85. JIT Hints

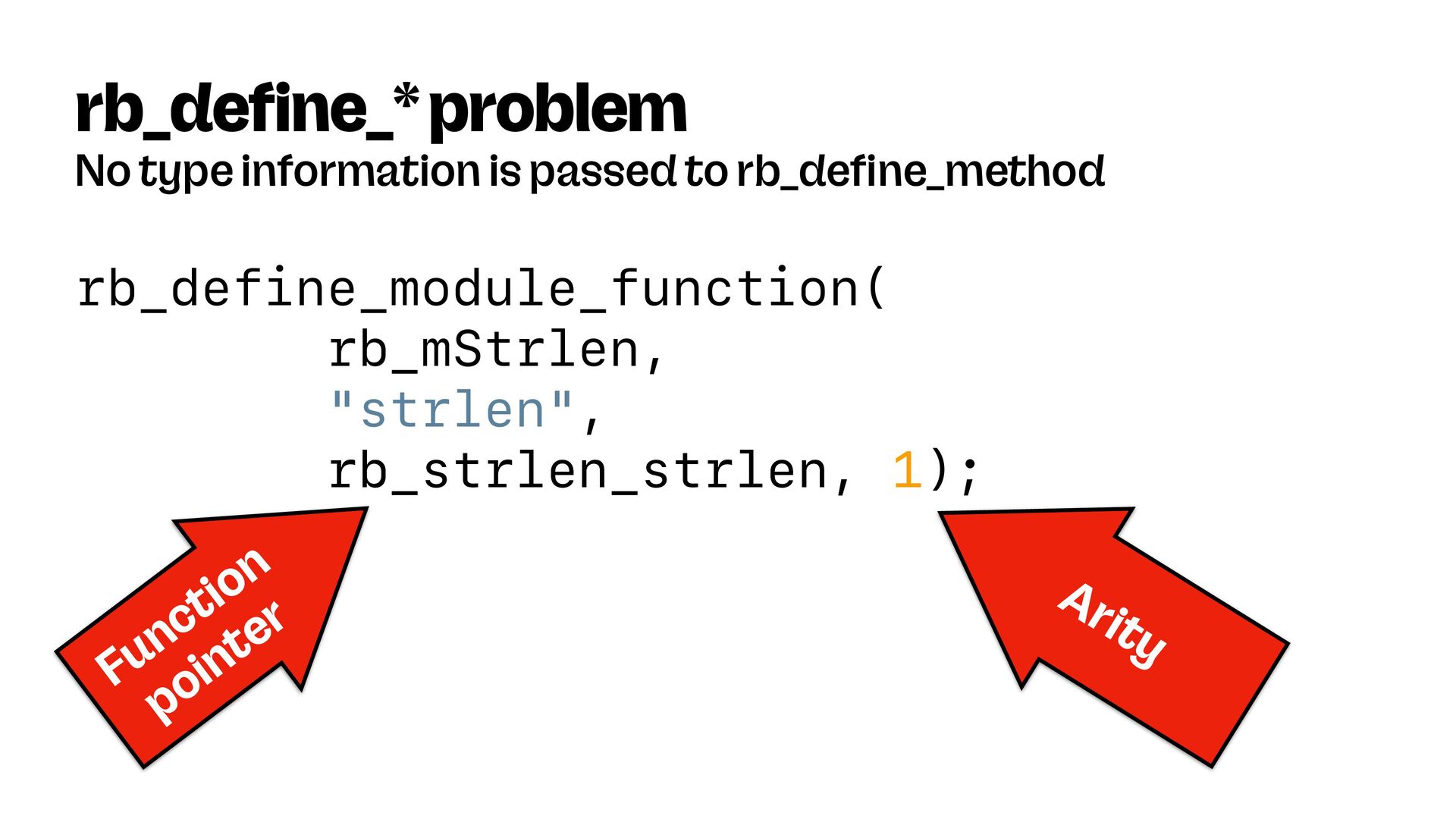

86. rb_define_module_function( rb_mStrlen, "strlen", rb_strlen_strlen, 1); rb_define_* problem No type information is passed to rb_de fi ne_method rb_define_module_function( rb_mStrlen, "strlen", rb_strlen_strlen, 1); Function pointer Arity

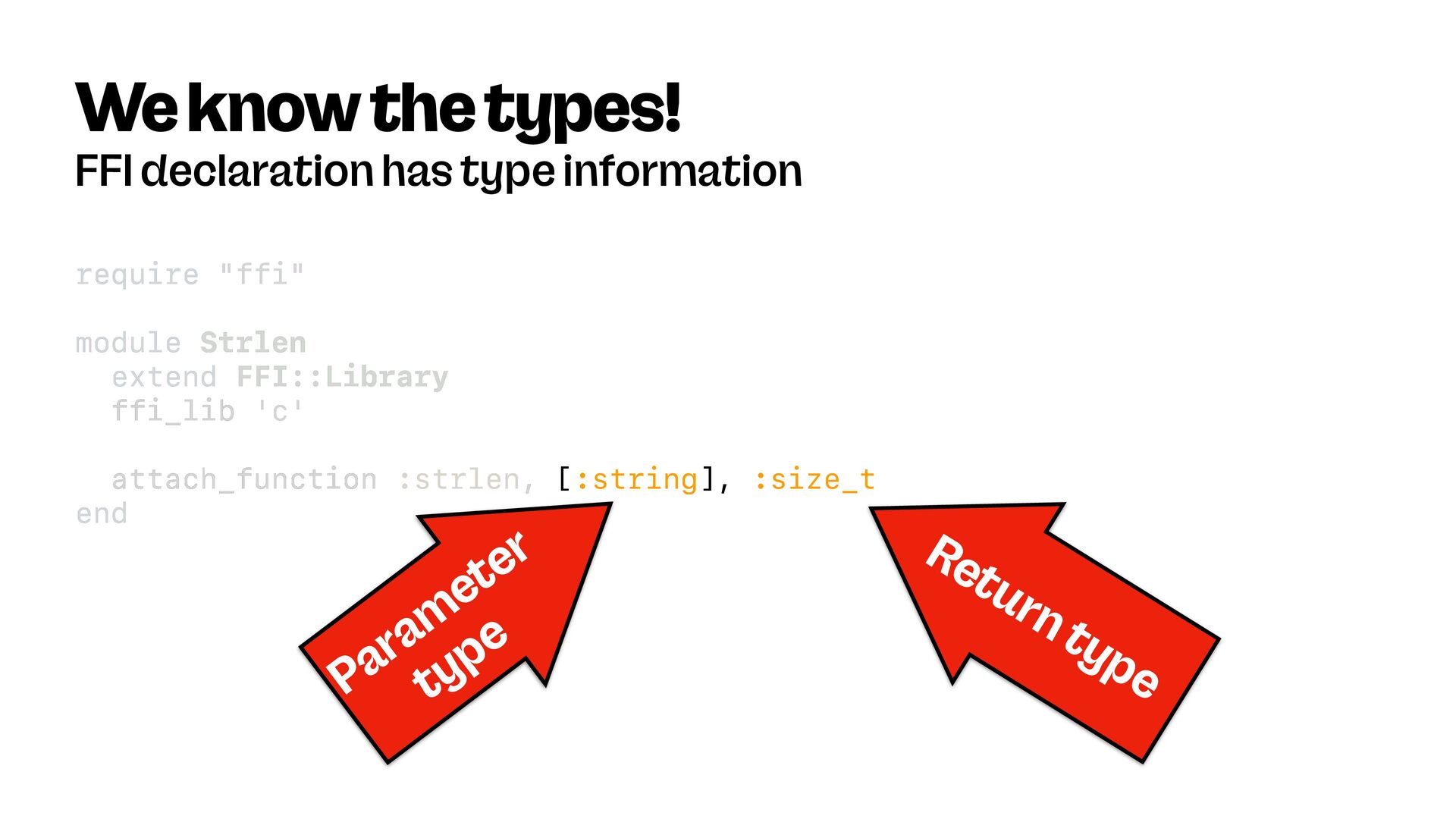

87. We know the types! FFI declaration has type information require "ffi" module Strlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :size_t end Param eter type Return type require "ffi" module Strlen extend FFI::Library ffi_lib 'c' attach_function :strlen, [:string], :size_t end
88. Smuggling

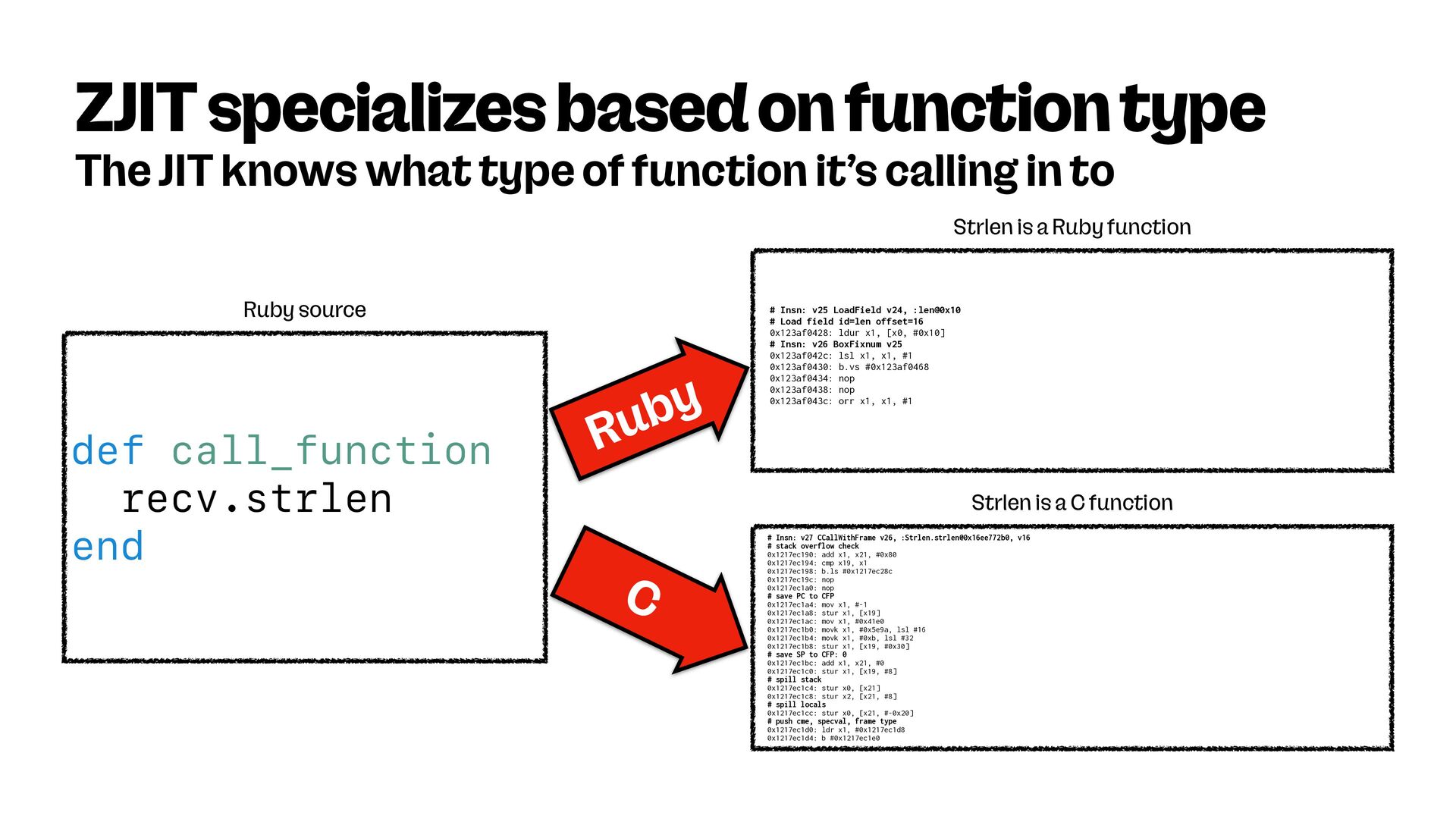

89. ZJIT specializes based on function type The JIT knows what type of function it’s ca l ling in to def call_function recv.strlen end Ruby source # Insn: v25 LoadField v24, :len@0x10 # Load field id=len offset=16 0x123af0428: ldur x1, [x0, #0x10] # Insn: v26 BoxFixnum v25 0x123af042c: lsl x1, x1, #1 0x123af0430: b.vs #0x123af0468 0x123af0434: nop 0x123af0438: nop 0x123af043c: orr x1, x1, #1 Strlen is a Ruby function # Insn: v27 CCallWithFrame v26, :Strlen.strlen@0x16ee772b0, v16 # stack overflow check 0x1217ec190: add x1, x21, #0x80 0x1217ec194: cmp x19, x1 0x1217ec198: b.ls #0x1217ec28c 0x1217ec19c: nop 0x1217ec1a0: nop # save PC to CFP 0x1217ec1a4: mov x1, #-1 0x1217ec1a8: stur x1, [x19] 0x1217ec1ac: mov x1, #0x41e0 0x1217ec1b0: movk x1, #0x5e9a, lsl #16 0x1217ec1b4: movk x1, #0xb, lsl #32 0x1217ec1b8: stur x1, [x19, #0x30] # save SP to CFP: 0 0x1217ec1bc: add x1, x21, #0 0x1217ec1c0: stur x1, [x19, #8] # spill stack 0x1217ec1c4: stur x0, [x21] 0x1217ec1c8: stur x2, [x21, #8] # spill locals 0x1217ec1cc: stur x0, [x21, #-0x20] # push cme, specval, frame type 0x1217ec1d0: ldr x1, #0x1217ec1d8 0x1217ec1d4: b #0x1217ec1e0 Strlen is a C function Ruby C

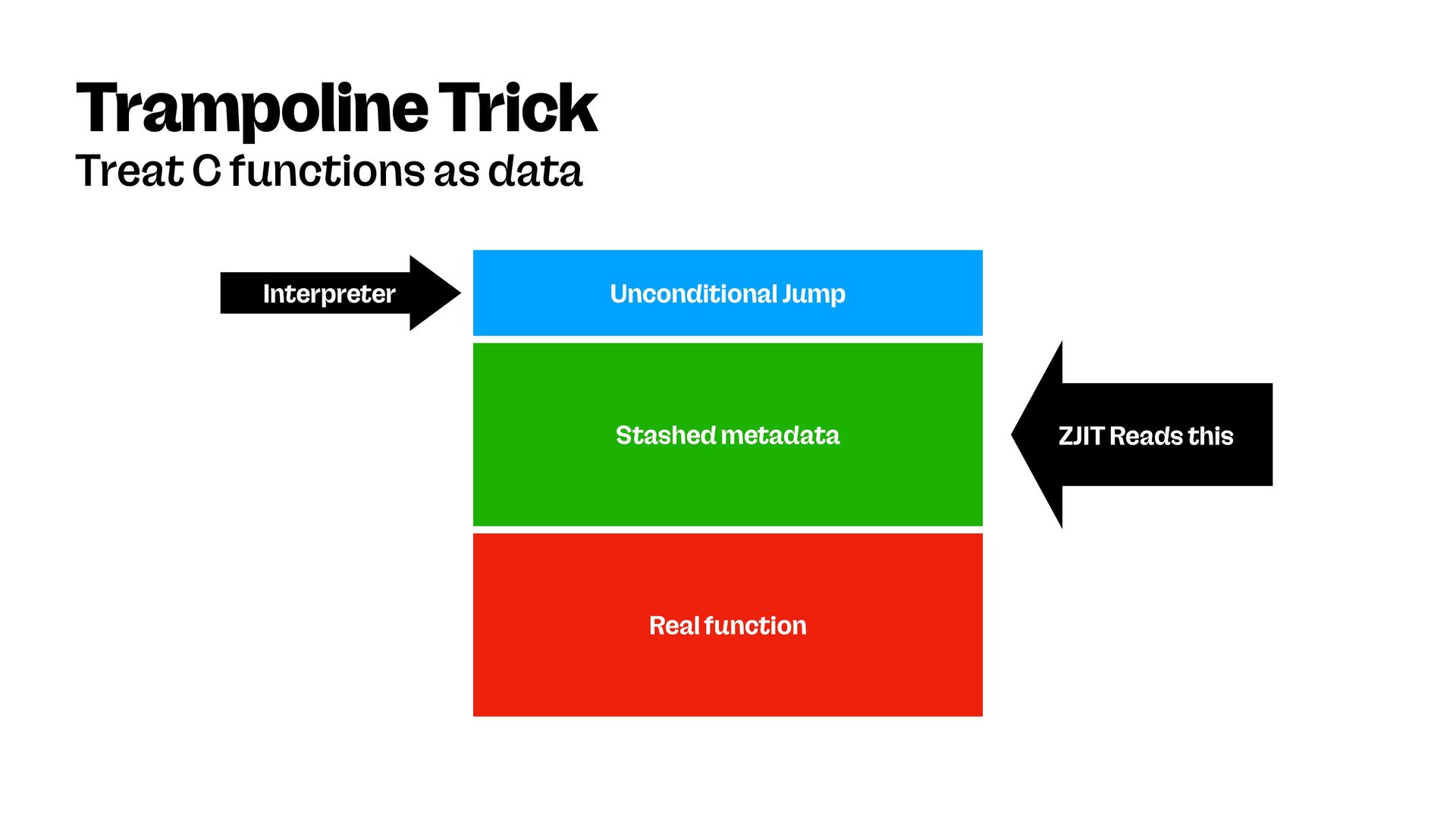

90. Trampoline Trick Treat C functions as data Unconditional Jump Stashed metadata Real function Interpreter ZJIT Reads this

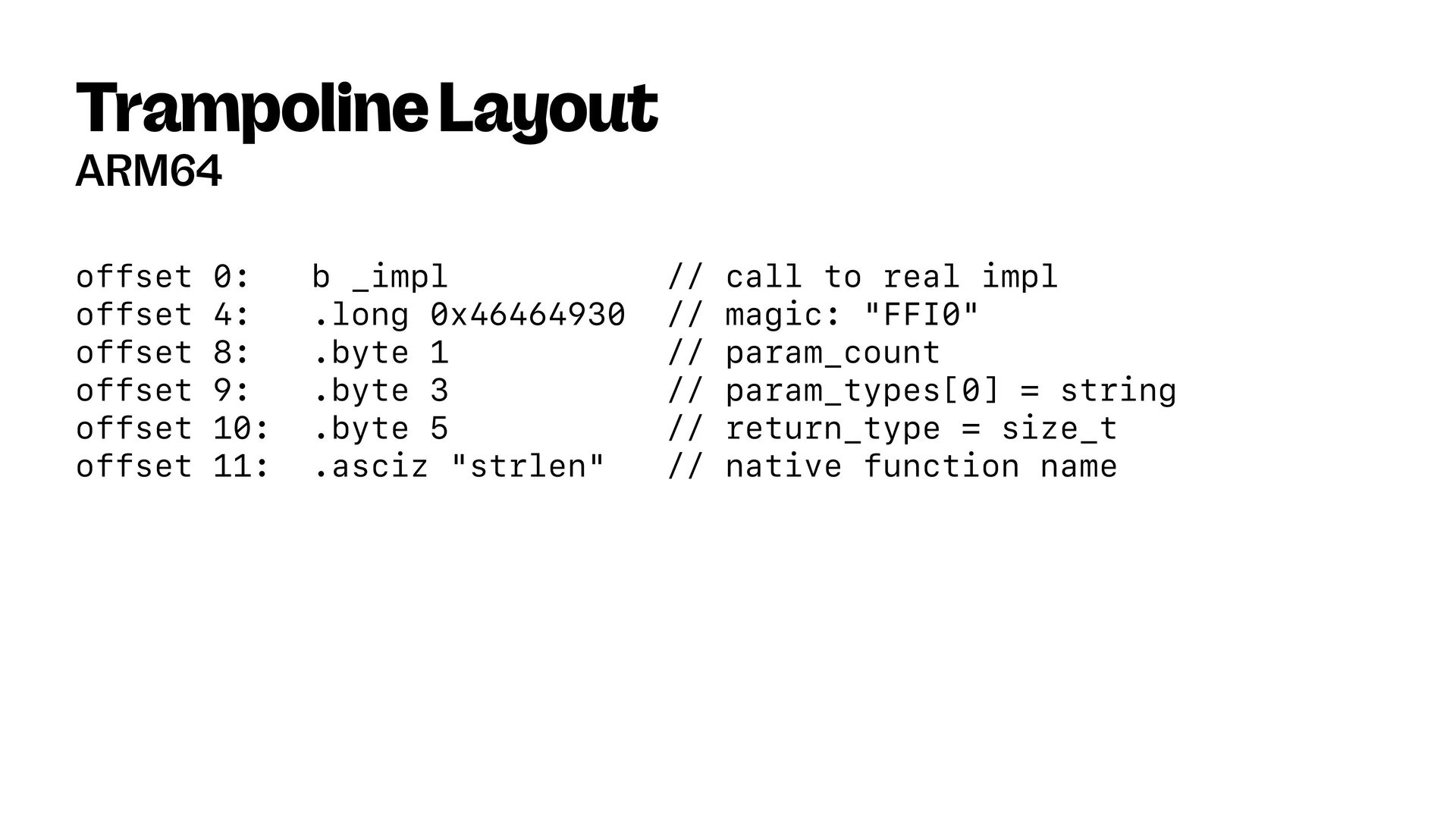

91. Trampoline Layout ARM64 offset 0: b _impl // call to real impl offset 4: .long 0x46464930 // magic: "FFI0" offset 8: .byte 1 // param_count offset 9: .byte 3 // param_types[0] = string offset 10: .byte 5 // return_type = size_t offset 11: .asciz "strlen" // native function name

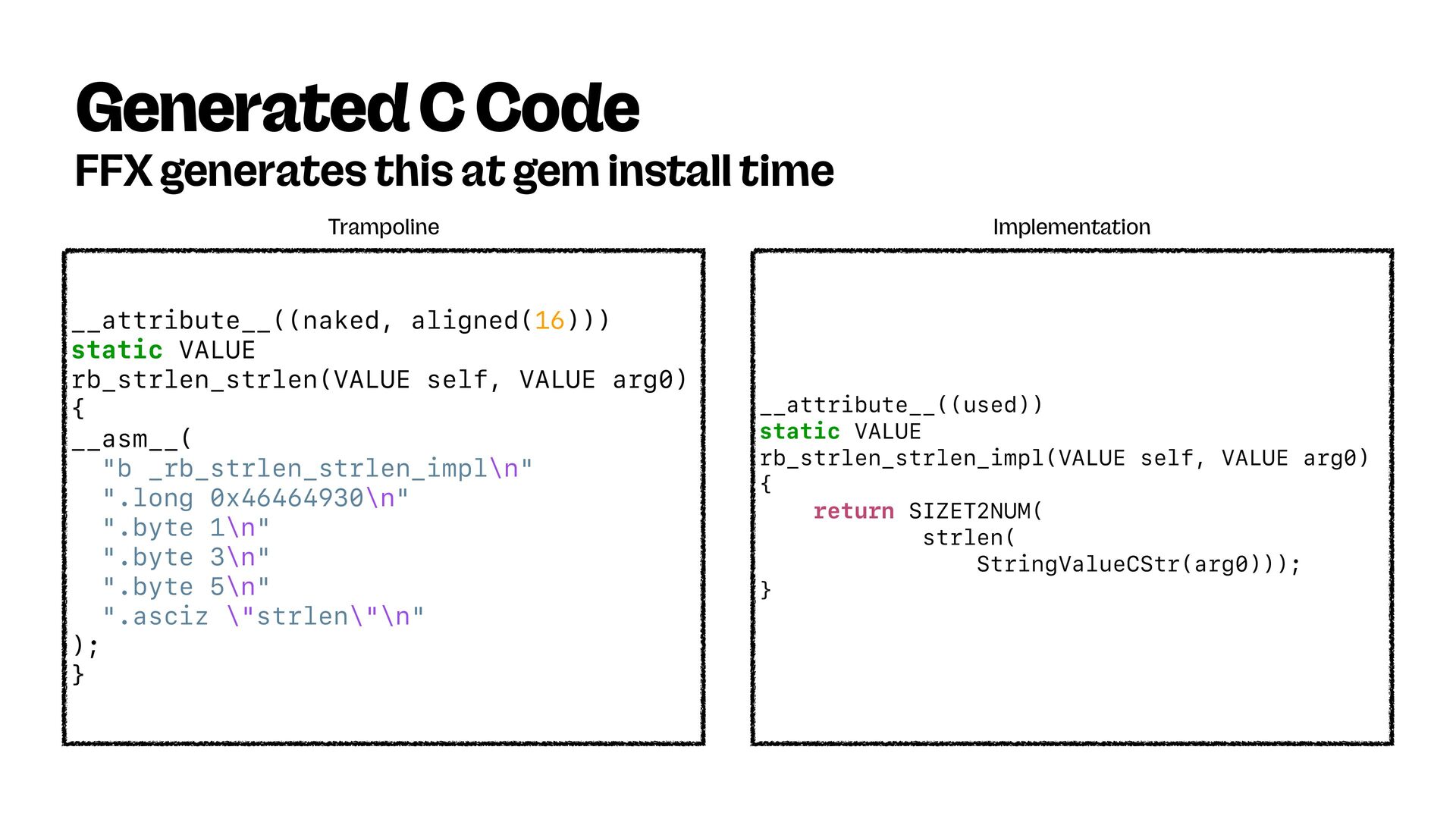

92. Generated C Code FFX generates this at gem insta l l time __attribute__((naked, aligned(16))) static VALUE rb_strlen_strlen(VALUE self, VALUE arg0) { __asm__( "b _rb_strlen_strlen_impl\n" ".long 0x46464930\n" ".byte 1\n" ".byte 3\n" ".byte 5\n" ".asciz \"strlen\"\n" ); } Trampoline __attribute__((used)) static VALUE rb_strlen_strlen_impl(VALUE self, VALUE arg0) { return SIZET2NUM( strlen( StringValueCStr(arg0))); } Implementation
93. ZJIT’s Side

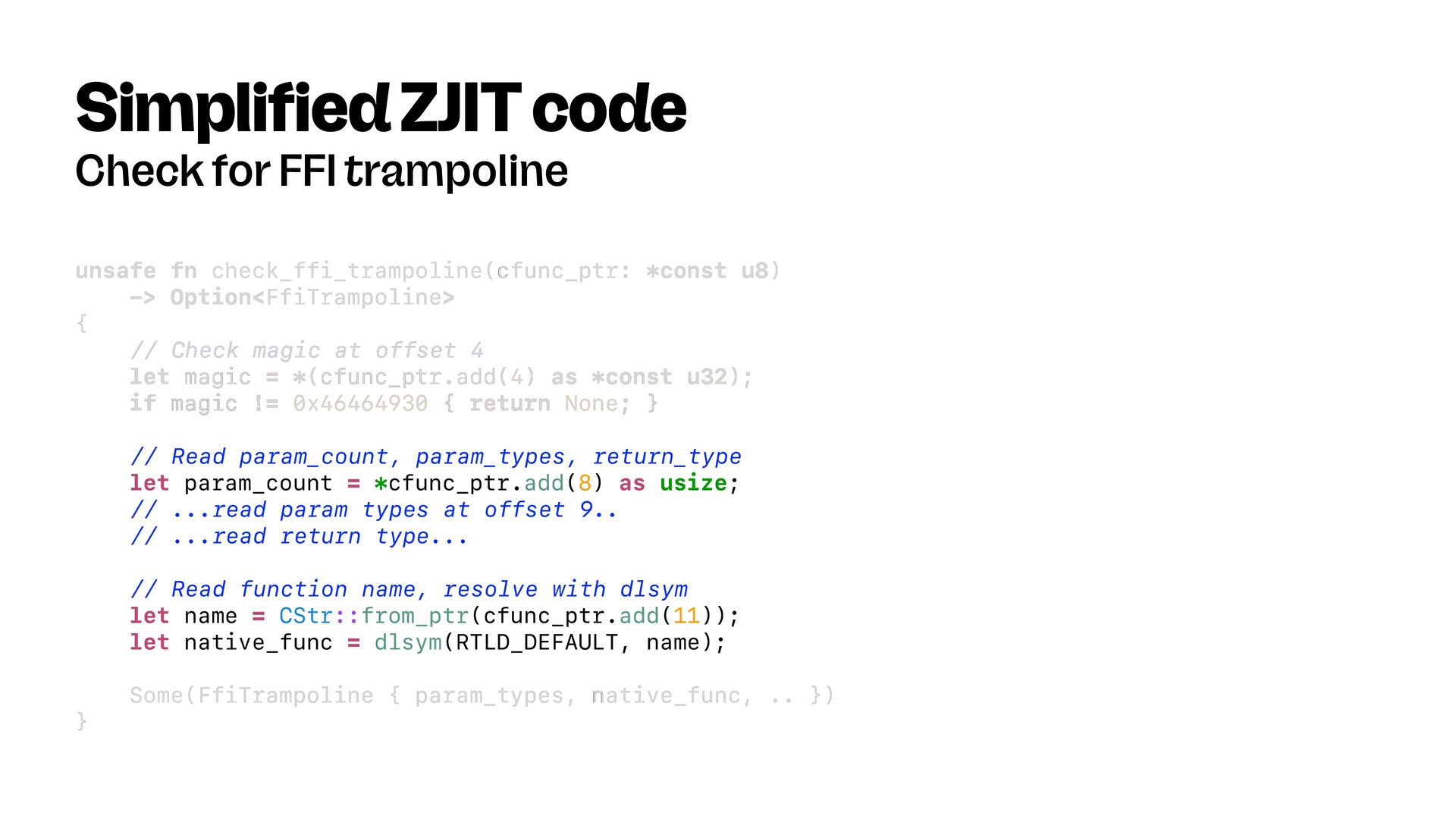

94. Simplified ZJIT code Check for FFI trampoline unsafe fn check_ffi_trampoline(cfunc_ptr: *const u8) -> Option<FfiTrampoline> { // Check magic at offset 4 let magic = *(cfunc_ptr.add(4) as *const u32); if magic != 0x46464930 { return None; } // Read param_count, param_types, return_type let param_count = *cfunc_ptr.add(8) as usize; // ...read param types at offset 9.. // ...read return type... // Read function name, resolve with dlsym let name = CStr::from_ptr(cfunc_ptr.add(11)); let native_func = dlsym(RTLD_DEFAULT, name); Some(FfiTrampoline { param_types, native_func, .. }) } unsafe fn check_ffi_trampoline(cfunc_ptr: *const u8) -> Option<FfiTrampoline> { // Check magic at offset 4 let magic = *(cfunc_ptr.add(4) as *const u32); if magic != 0x46464930 { return None; } // Read param_count, param_types, return_type let param_count = *cfunc_ptr.add(8) as usize; // ...read param types at offset 9.. // ...read return type... // Read function name, resolve with dlsym let name = CStr::from_ptr(cfunc_ptr.add(11)); let native_func = dlsym(RTLD_DEFAULT, name); Some(FfiTrampoline { param_types, native_func, .. }) } unsafe fn check_ffi_trampoline(cfunc_ptr: *const u8) -> Option<FfiTrampoline> { // Check magic at offset 4 let magic = *(cfunc_ptr.add(4) as *const u32); if magic != 0x46464930 { return None; } // Read param_count, param_types, return_type let param_count = *cfunc_ptr.add(8) as usize; // ...read param types at offset 9.. // ...read return type... // Read function name, resolve with dlsym let name = CStr::from_ptr(cfunc_ptr.add(11)); let native_func = dlsym(RTLD_DEFAULT, name); Some(FfiTrampoline { param_types, native_func, .. }) } unsafe fn check_ffi_trampoline(cfunc_ptr: *const u8) -> Option<FfiTrampoline> { // Check magic at offset 4 let magic = *(cfunc_ptr.add(4) as *const u32); if magic != 0x46464930 { return None; } // Read param_count, param_types, return_type let param_count = *cfunc_ptr.add(8) as usize; // ...read param types at offset 9.. // ...read return type... // Read function name, resolve with dlsym let name = CStr::from_ptr(cfunc_ptr.add(11)); let native_func = dlsym(RTLD_DEFAULT, name); Some(FfiTrampoline { param_types, native_func, .. }) }

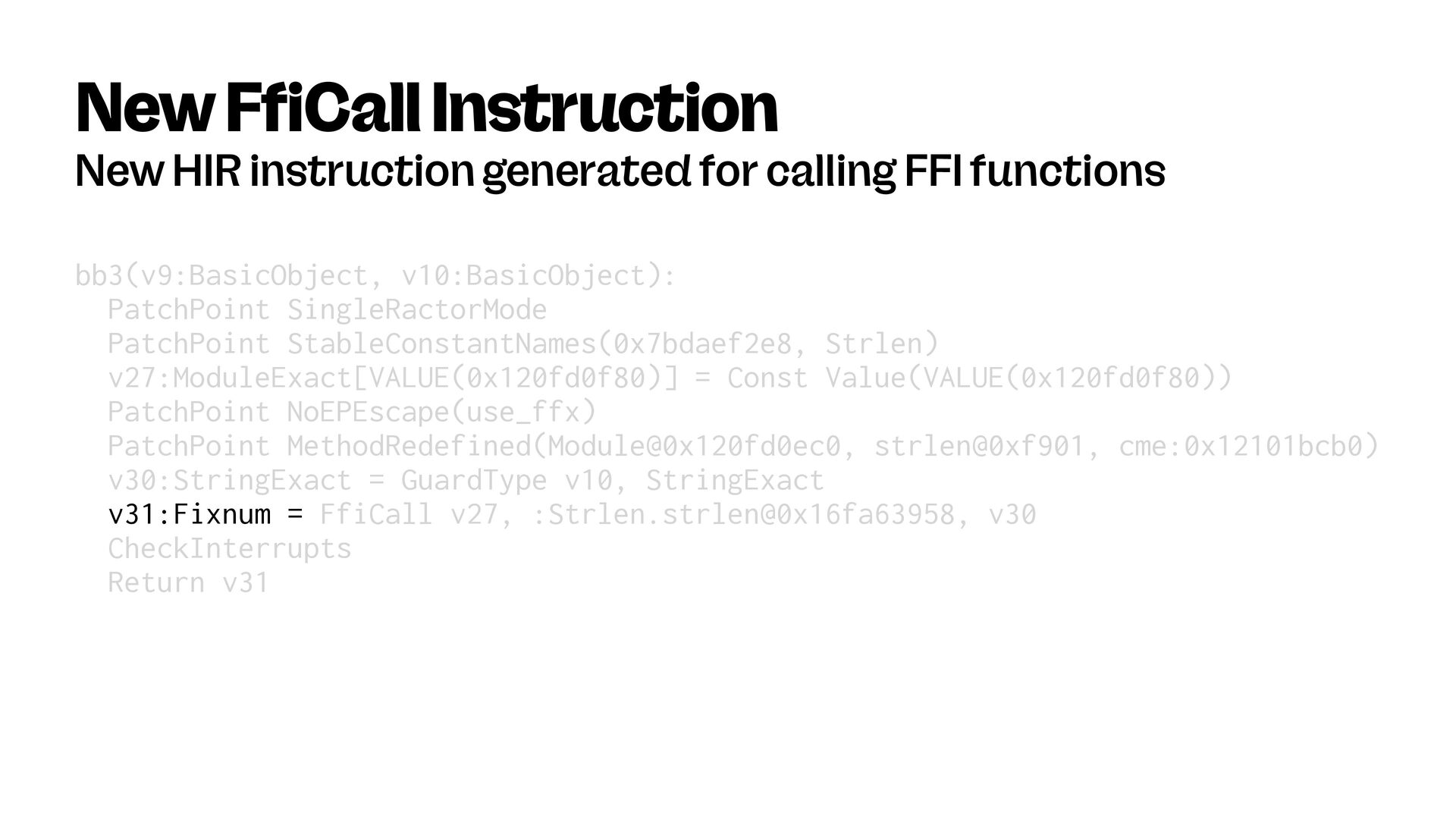

95. New FfiCa l l Instruction New HIR instruction generated for ca l ling FFI functions bb3(v9:BasicObject, v10:BasicObject): PatchPoint SingleRactorMode PatchPoint StableConstantNames(0x7bdaef2e8, Strlen) v27:ModuleExact[VALUE(0x120fd0f80)] = Const Value(VALUE(0x120fd0f80)) PatchPoint NoEPEscape(use_ffx) PatchPoint MethodRedefined(Module@0x120fd0ec0, strlen@0xf901, cme:0x12101bcb0) v30:StringExact = GuardType v10, StringExact v31:Fixnum = FfiCall v27, :Strlen.strlen@0x16fa63958, v30 CheckInterrupts Return v31 bb3(v9:BasicObject, v10:BasicObject): PatchPoint SingleRactorMode PatchPoint StableConstantNames(0x7bdaef2e8, Strlen) v27:ModuleExact[VALUE(0x120fd0f80)] = Const Value(VALUE(0x120fd0f80)) PatchPoint NoEPEscape(use_ffx) PatchPoint MethodRedefined(Module@0x120fd0ec0, strlen@0xf901, cme:0x12101bcb0) v30:StringExact = GuardType v10, StringExact v31:Fixnum = FfiCall v27, :Strlen.strlen@0x16fa63958, v30 CheckInterrupts Return v31 bb3(v9:BasicObject, v10:BasicObject): PatchPoint SingleRactorMode PatchPoint StableConstantNames(0x7bdaef2e8, Strlen) v27:ModuleExact[VALUE(0x120fd0f80)] = Const Value(VALUE(0x120fd0f80)) PatchPoint NoEPEscape(use_ffx) PatchPoint MethodRedefined(Module@0x120fd0ec0, strlen@0xf901, cme:0x12101bcb0) v30:StringExact = GuardType v10, StringExact v31:Fixnum = FfiCall v27, :Strlen.strlen@0x16fa63958, v30 CheckInterrupts Return v31 bb3(v9:BasicObject, v10:BasicObject): PatchPoint SingleRactorMode PatchPoint StableConstantNames(0x7bdaef2e8, Strlen) v27:ModuleExact[VALUE(0x120fd0f80)] = Const Value(VALUE(0x120fd0f80)) PatchPoint NoEPEscape(use_ffx) PatchPoint MethodRedefined(Module@0x120fd0ec0, strlen@0xf901, cme:0x12101bcb0) v30:StringExact = GuardType v10, StringExact v31:Fixnum = FfiCall v27, :Strlen.strlen@0x16fa63958, v30 CheckInterrupts Return v31

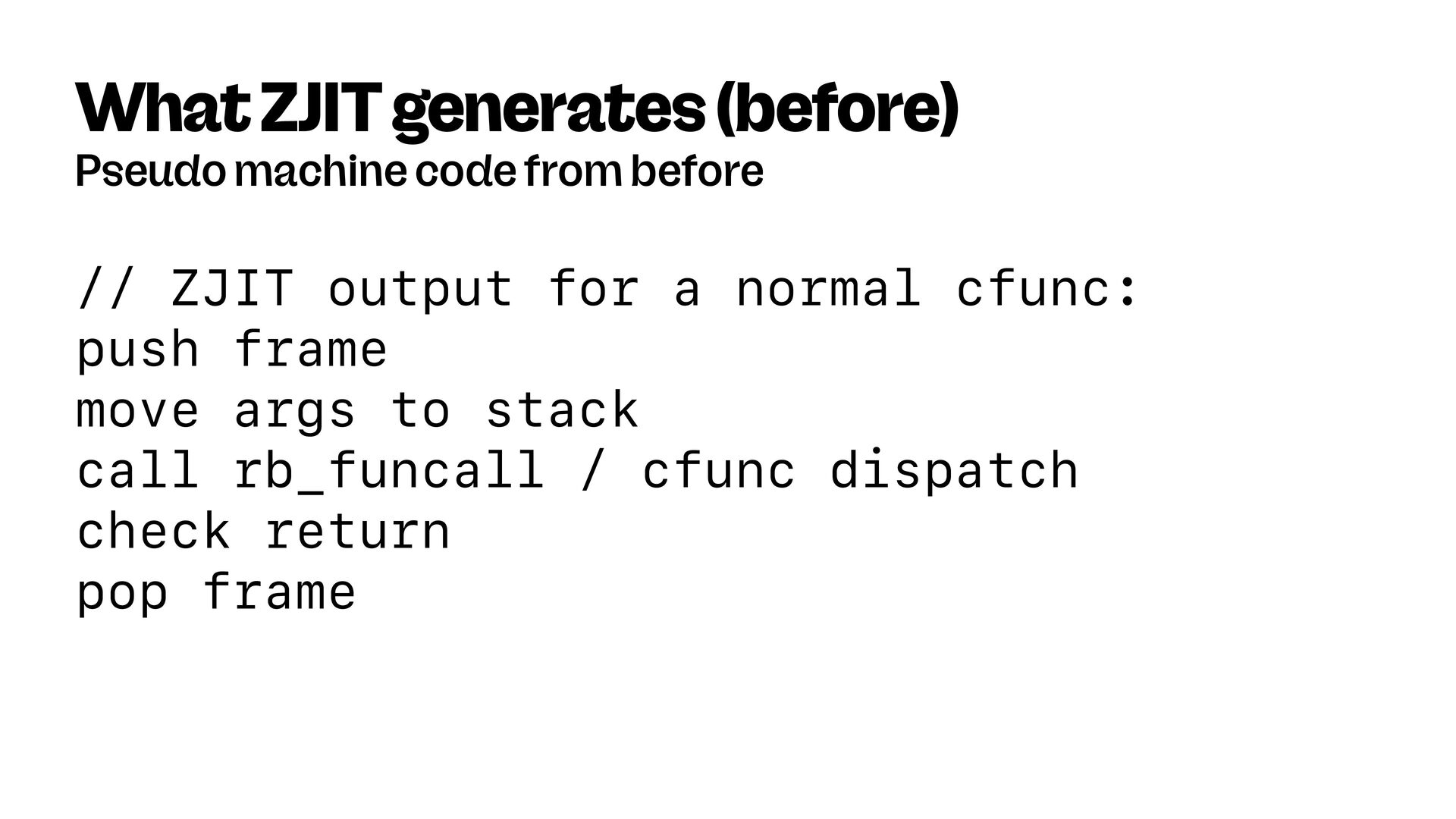

96. What ZJIT generates (before) Pseudo machine code from before // ZJIT output for a normal cfunc: push frame move args to stack call rb_funcall / cfunc dispatch check return pop frame

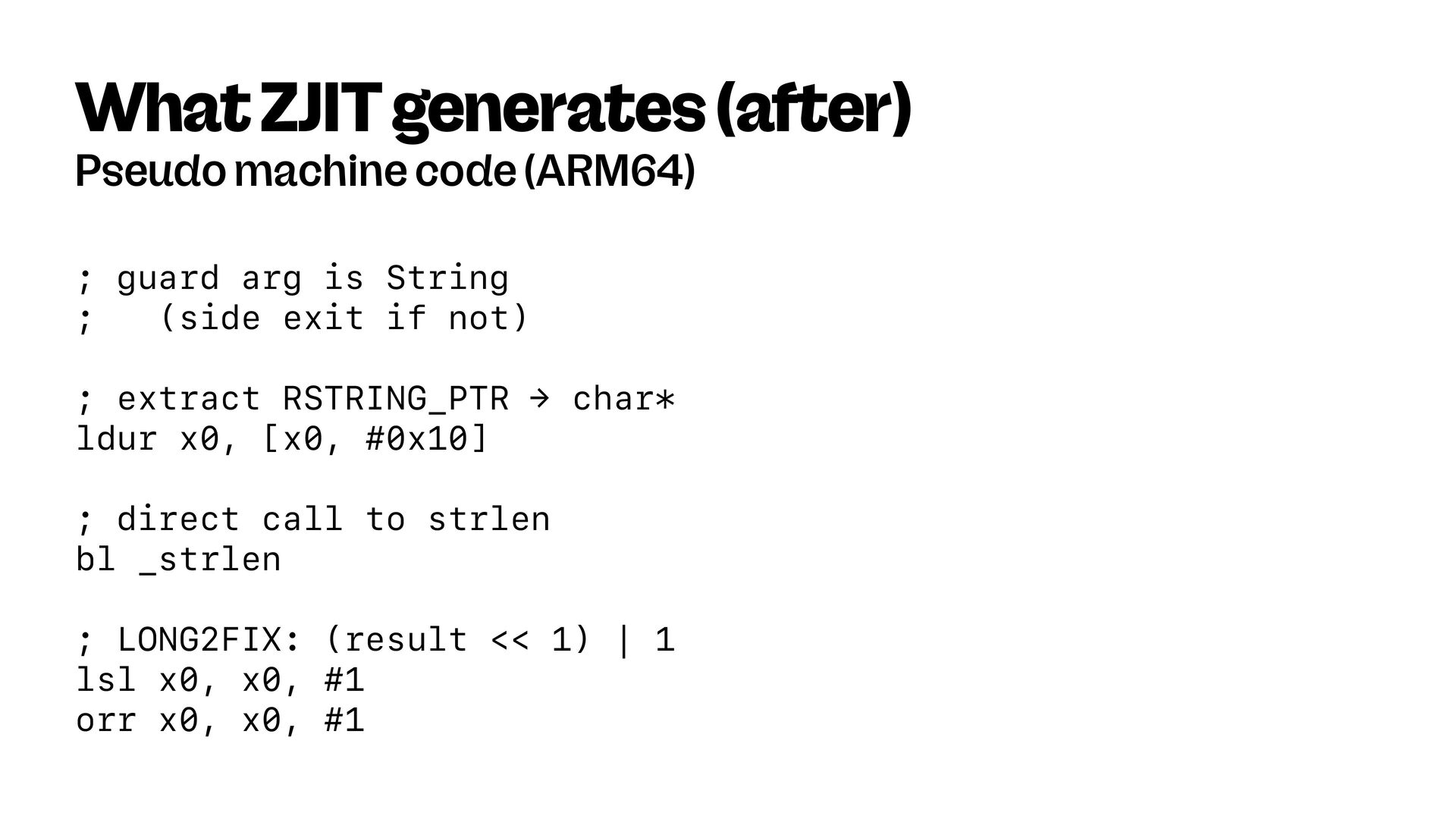

97. What ZJIT generates (after) Pseudo machine code (ARM64) ; guard arg is String ; (side exit if not) ; extract RSTRING_PTR → char* ldur x0, [x0, #0x10] ; direct call to strlen bl _strlen ; LONG2FIX: (result << 1) | 1 lsl x0, x0, #1 orr x0, x0, #1

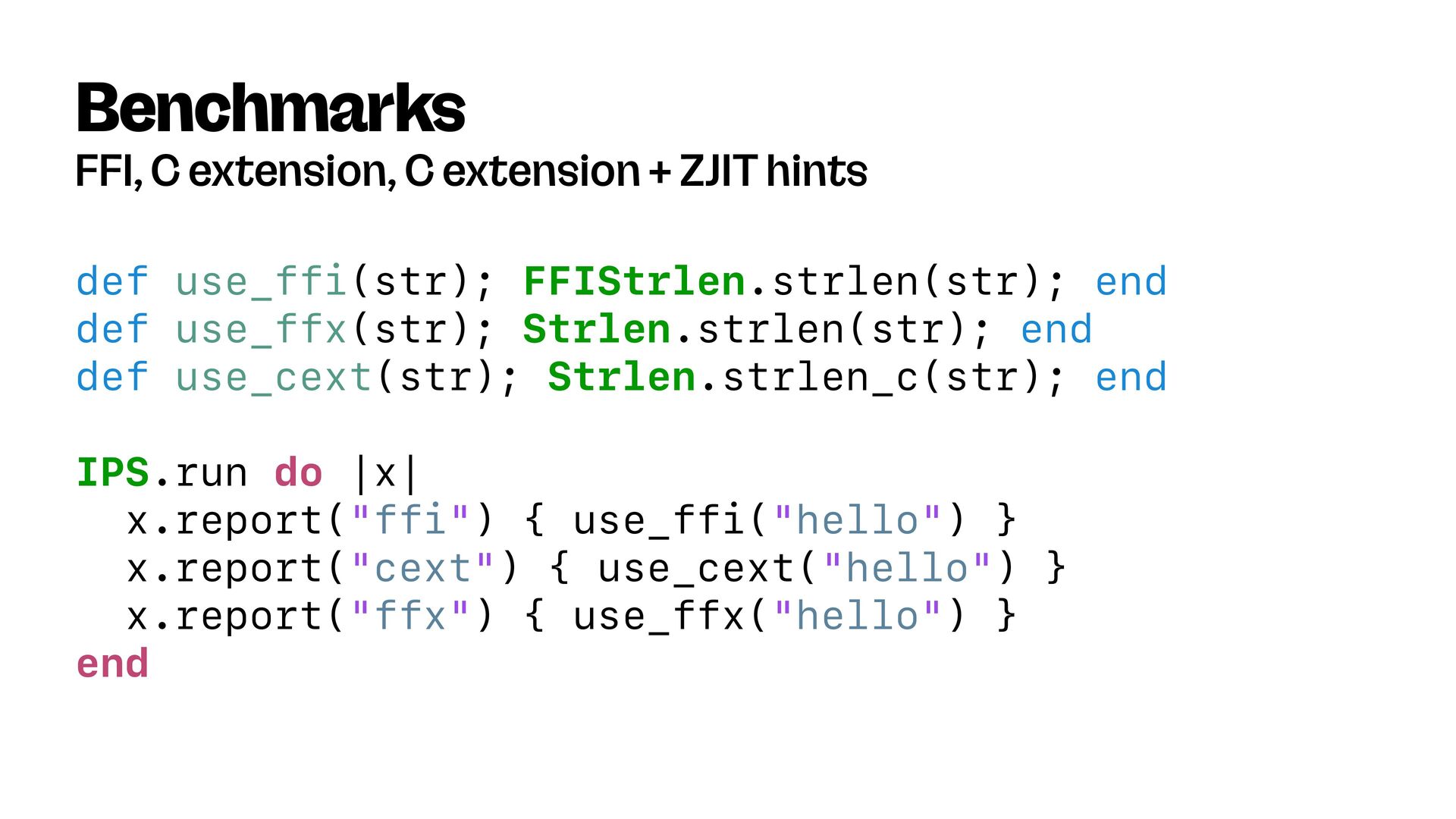

98. Benchmarks FFI, C extension, C extension + ZJIT hints def use_ffi(str); FFIStrlen.strlen(str); end def use_ffx(str); Strlen.strlen(str); end def use_cext(str); Strlen.strlen_c(str); end IPS.run do |x| x.report("ffi") { use_ffi("hello") } x.report("cext") { use_cext("hello") } x.report("ffx") { use_ffx("hello") } end

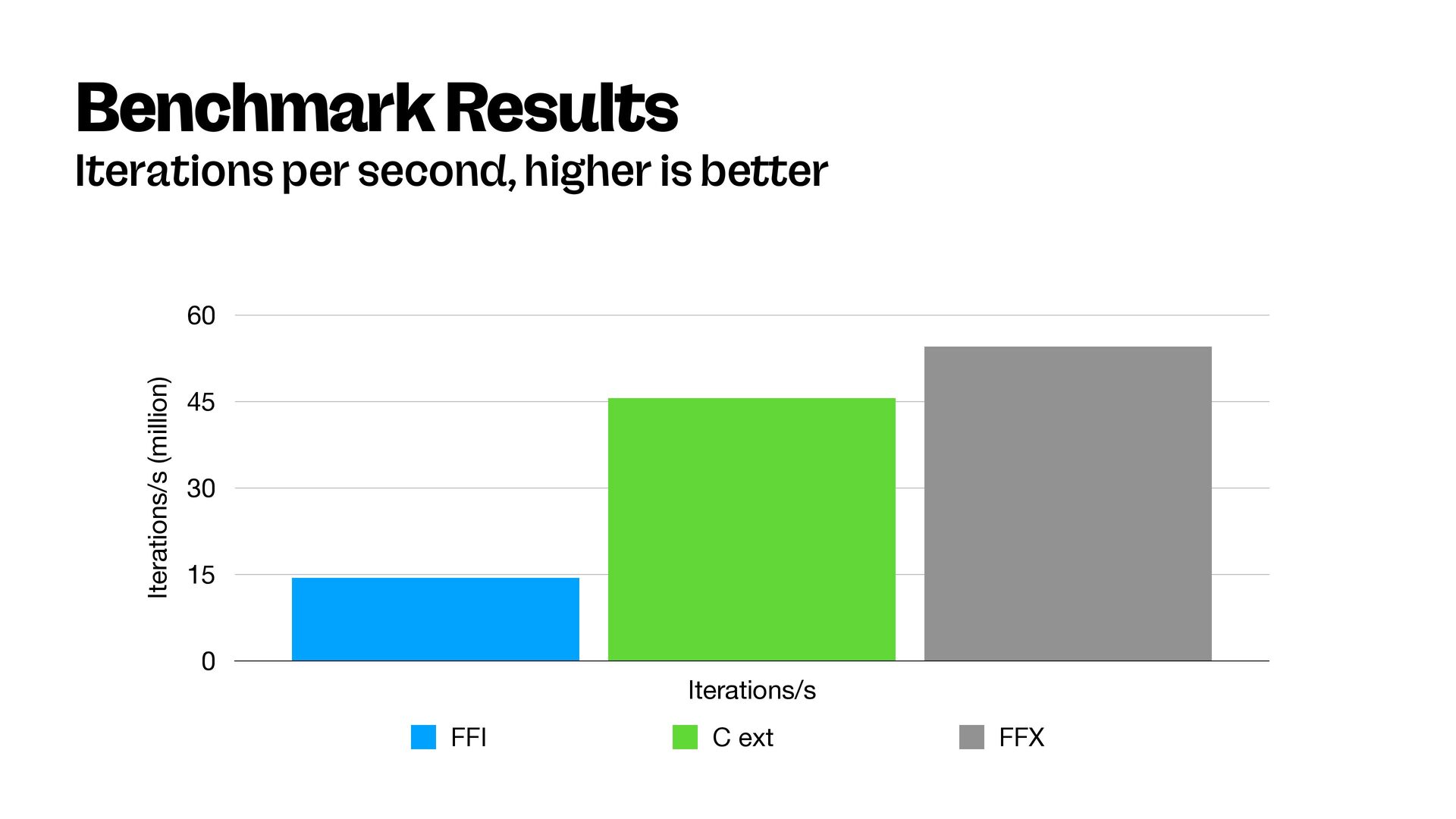

99. Benchmark Results Iterations per second, higher is better Iterations/s (million) 0 15 30 45 60 Iterations/s FFI C ext FFX
100. Lets see something Real
101. SQLite3

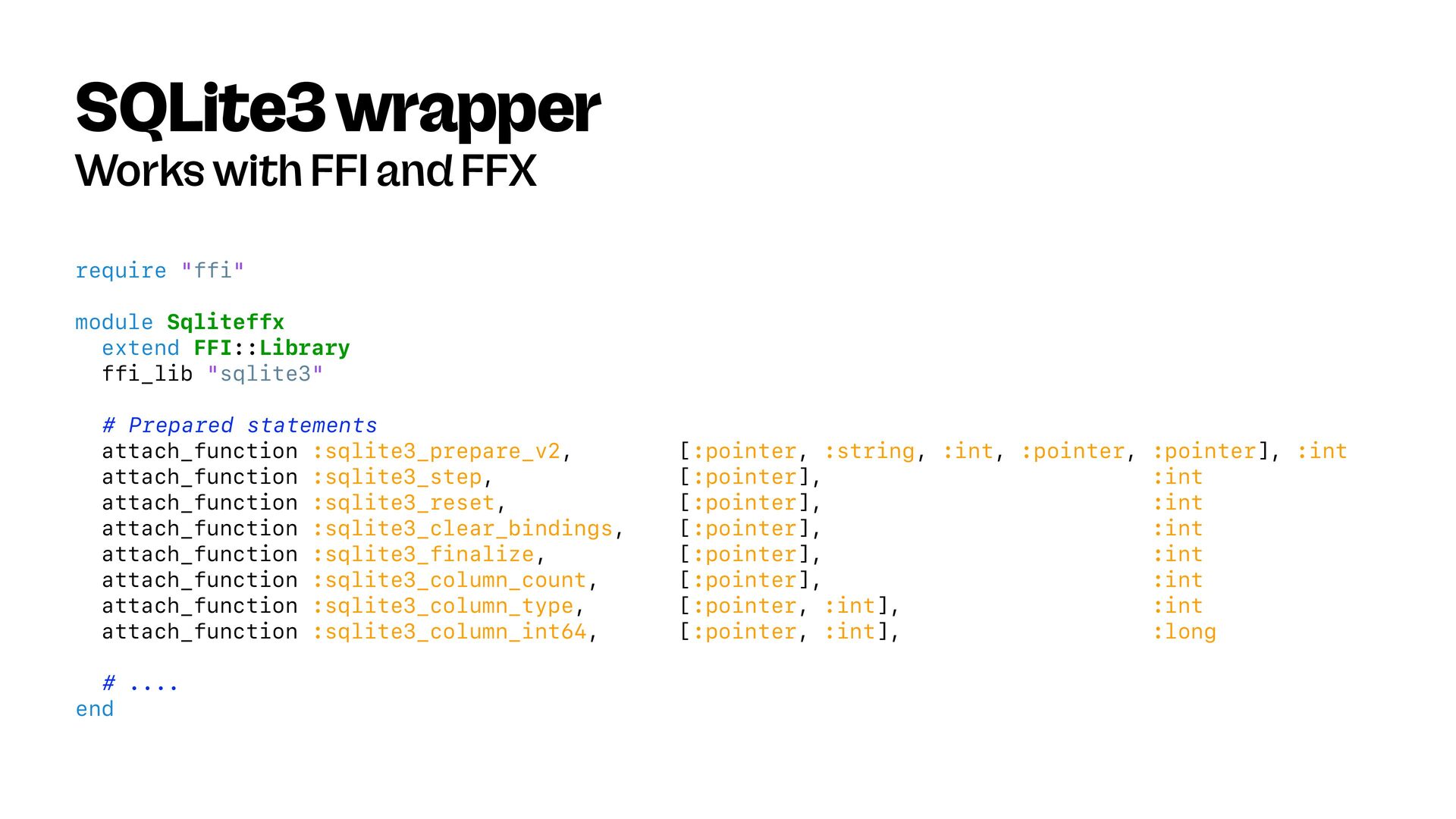

102. SQLite3 wrapper Works with FFI and FFX require "ffi" module Sqliteffx extend FFI::Library ffi_lib "sqlite3" # Prepared statements attach_function :sqlite3_prepare_v2, [:pointer, :string, :int, :pointer, :pointer], :int attach_function :sqlite3_step, [:pointer], :int attach_function :sqlite3_reset, [:pointer], :int attach_function :sqlite3_clear_bindings, [:pointer], :int attach_function :sqlite3_finalize, [:pointer], :int attach_function :sqlite3_column_count, [:pointer], :int attach_function :sqlite3_column_type, [:pointer, :int], :int attach_function :sqlite3_column_int64, [:pointer, :int], :long # .... end

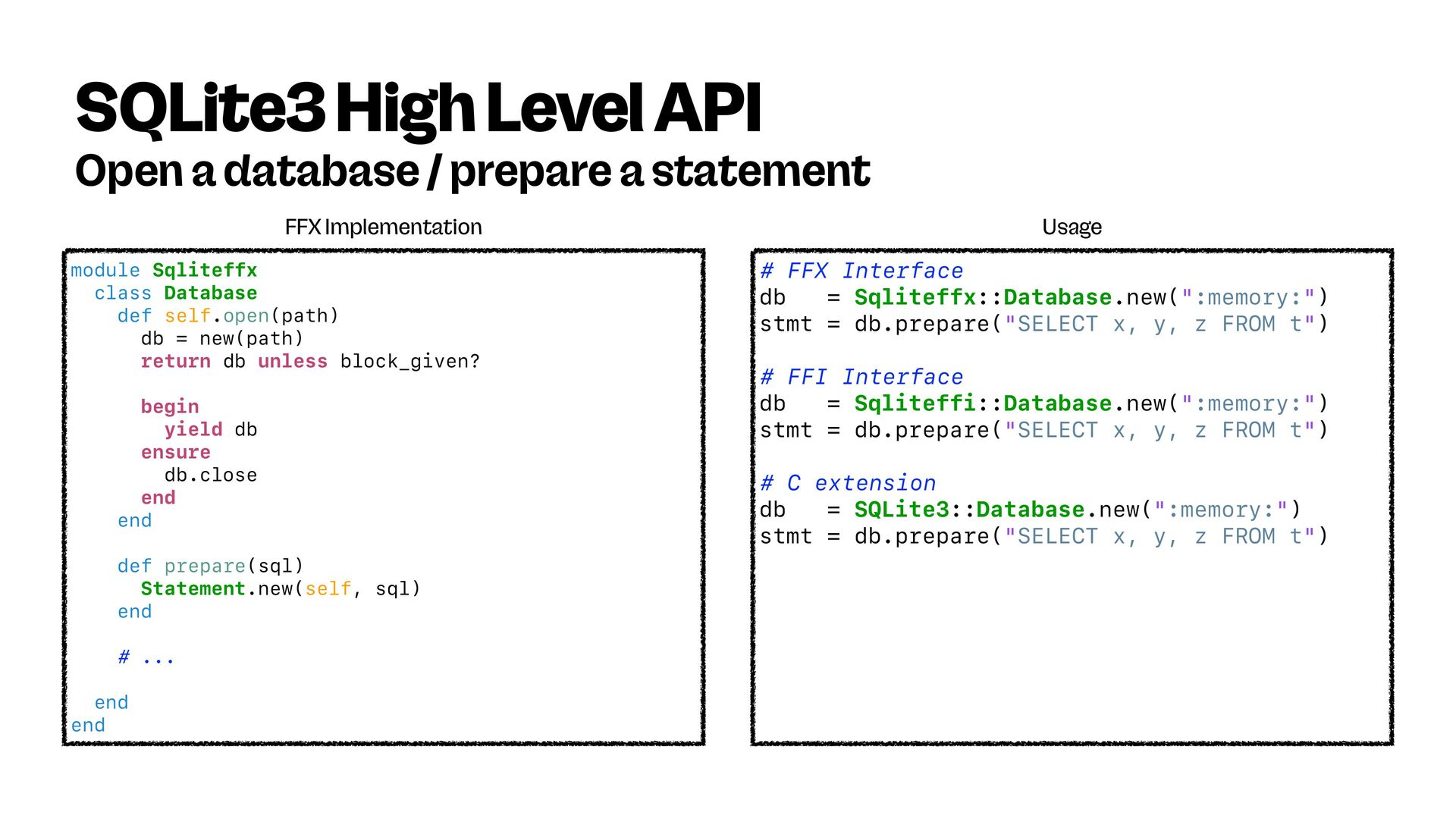

103. SQLite3 High Level API Open a database / prepare a statement module Sqliteffx class Database def self.open(path) db = new(path) return db unless block_given? begin yield db ensure db.close end end def prepare(sql) Statement.new(self, sql) end # ... end end FFX Implementation # FFX Interface db = Sqliteffx::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") # FFI Interface db = Sqliteffi::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") # C extension db = SQLite3::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") Us a ge

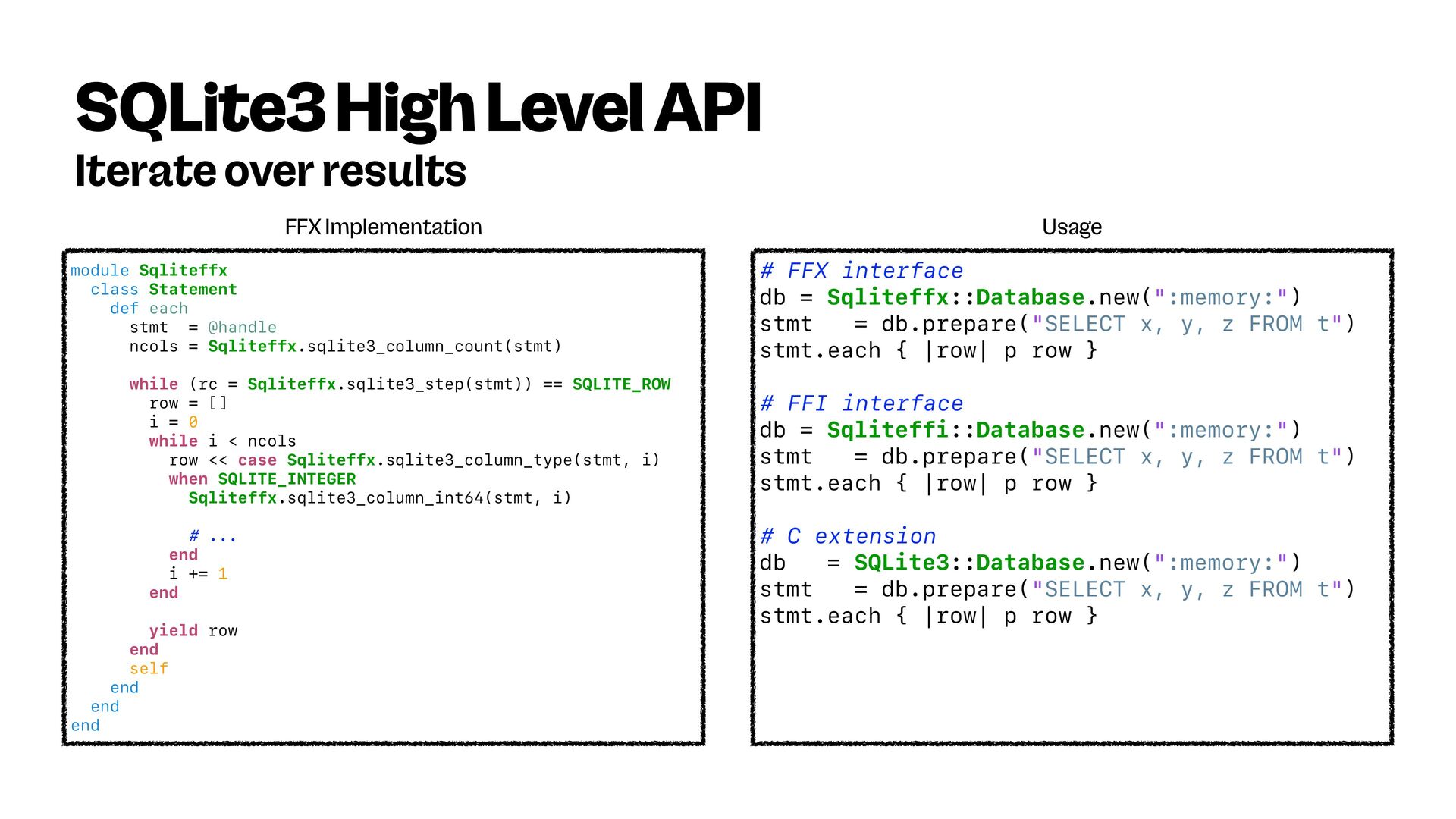

104. SQLite3 High Level API Iterate over results module Sqliteffx class Statement def each stmt = @handle ncols = Sqliteffx.sqlite3_column_count(stmt) while (rc = Sqliteffx.sqlite3_step(stmt)) == SQLITE_ROW row = [] i = 0 while i < ncols row << case Sqliteffx.sqlite3_column_type(stmt, i) when SQLITE_INTEGER Sqliteffx.sqlite3_column_int64(stmt, i) # ... end i += 1 end yield row end self end end end FFX Implementation # FFX interface db = Sqliteffx::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") stmt.each { |row| p row } # FFI interface db = Sqliteffi::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") stmt.each { |row| p row } # C extension db = SQLite3::Database.new(":memory:") stmt = db.prepare("SELECT x, y, z FROM t") stmt.each { |row| p row } Us a ge

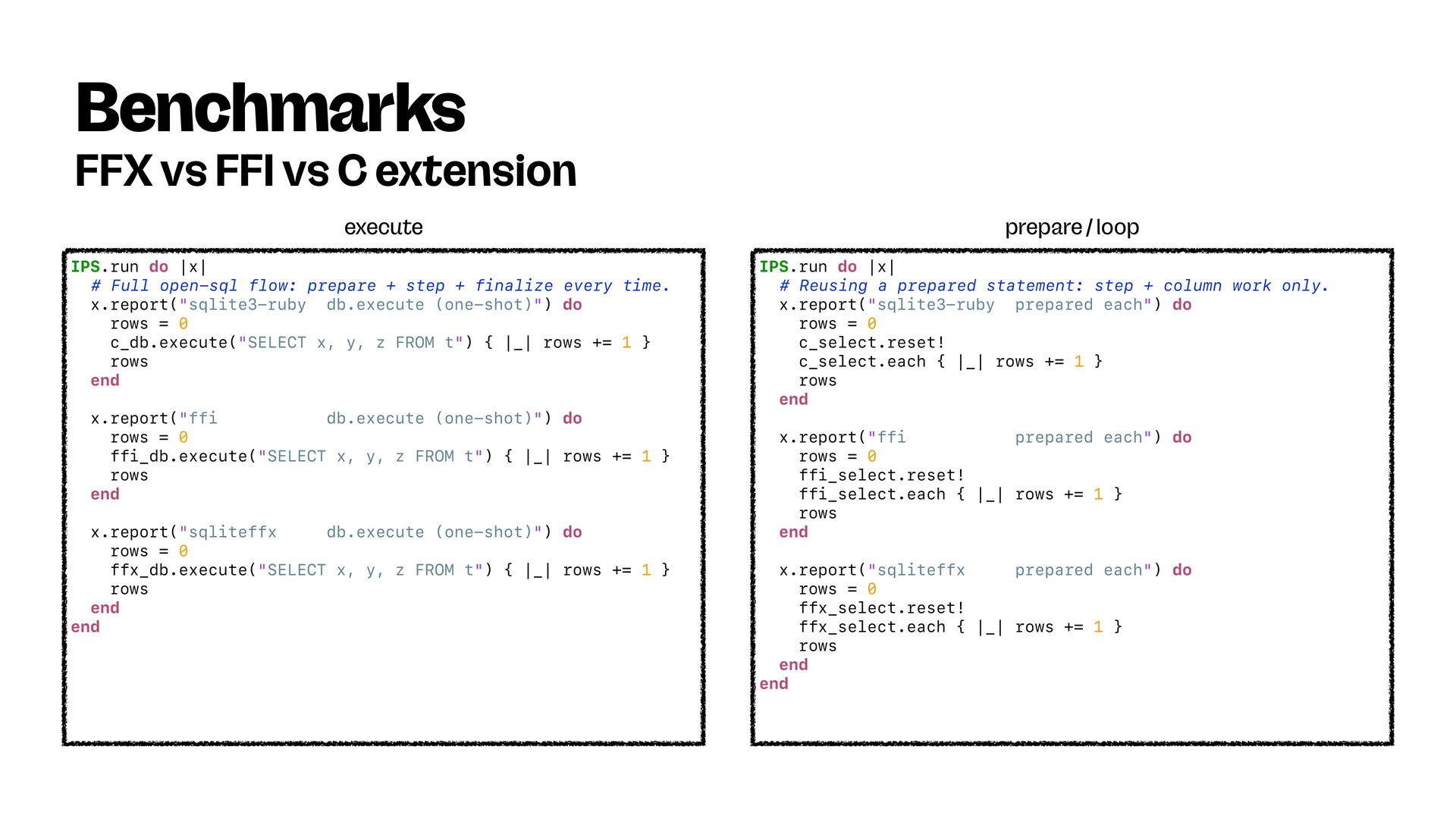

105. Benchmarks FFX vs FFI vs C extension IPS.run do |x| # Full open-sql flow: prepare + step + finalize every time. x.report("sqlite3-ruby db.execute (one-shot)") do rows = 0 c_db.execute("SELECT x, y, z FROM t") { |_| rows += 1 } rows end x.report("ffi db.execute (one-shot)") do rows = 0 ffi_db.execute("SELECT x, y, z FROM t") { |_| rows += 1 } rows end x.report("sqliteffx db.execute (one-shot)") do rows = 0 ffx_db.execute("SELECT x, y, z FROM t") { |_| rows += 1 } rows end end execute IPS.run do |x| # Reusing a prepared statement: step + column work only. x.report("sqlite3-ruby prepared each") do rows = 0 c_select.reset! c_select.each { |_| rows += 1 } rows end x.report("ffi prepared each") do rows = 0 ffi_select.reset! ffi_select.each { |_| rows += 1 } rows end x.report("sqliteffx prepared each") do rows = 0 ffx_select.reset! ffx_select.each { |_| rows += 1 } rows end end prepare / loop

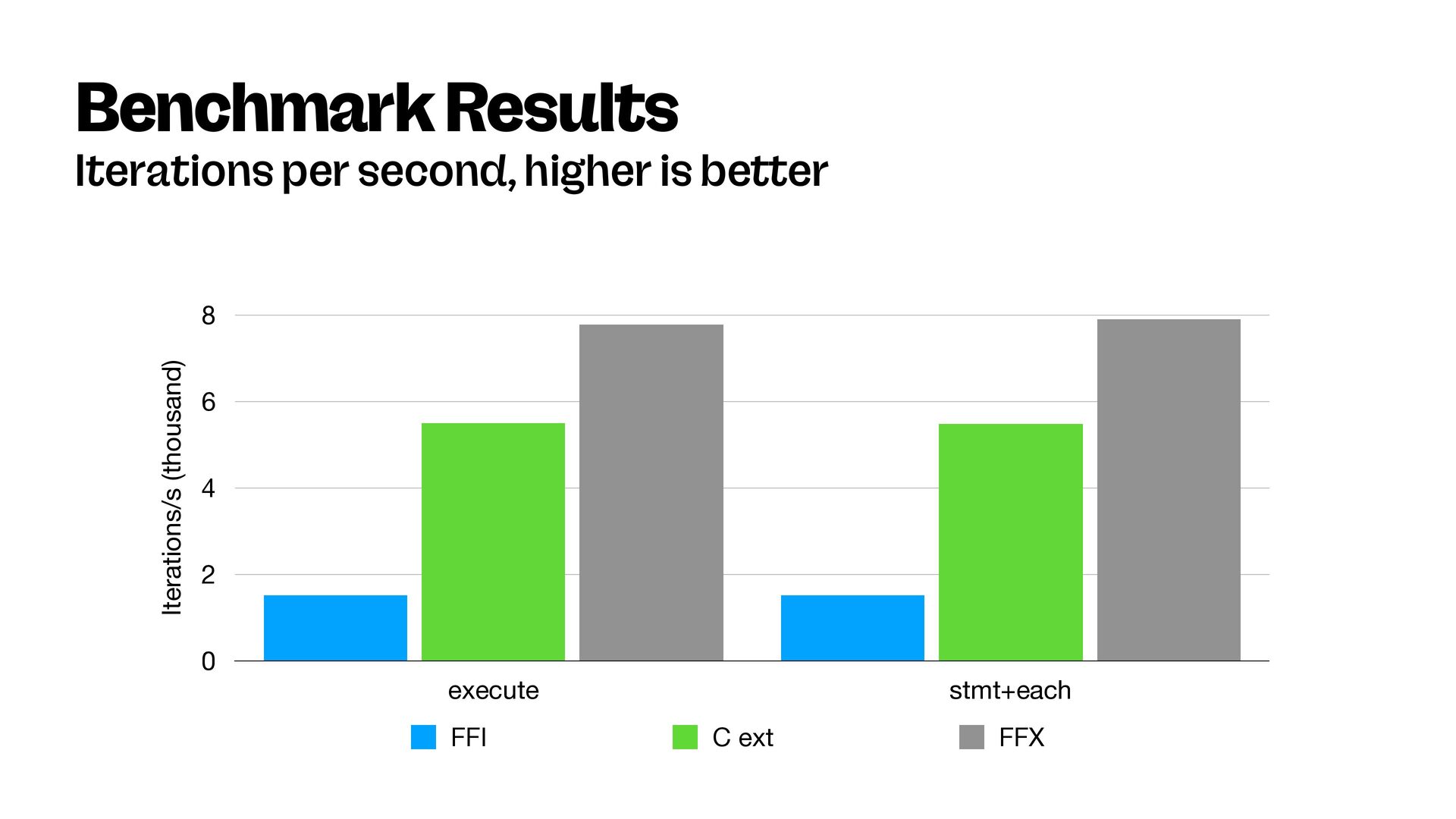

106. Benchmark Results Iterations per second, higher is better Iterations/s (thousand) 0 2 4 6 8 execute stmt+each FFI C ext FFX
107. ZJIT + FFX: ~1.4x faster than C ext
108. We wrote Ruby
109. Faster than C
110. Ruby is faster than C
111. What’s next?
112. More Types
113. It’s a prototype
114. We need a fast FFI
115. FFX: github.com/tenderlove/ffx strlen: github.com/tenderlove/strlen sqliteffx: github.com/tenderlove/ sqliteffx
