Challenges in Building IoT Systems for Automotive Systems

Zoomcar is a multi-modal mobility company based in India
currently operating more than 10000 cars and eScooters across 40
cities. This talk will cover the challenges and solutions in
designing, deploying and maintaining IoT systems in cars and eScooters.
It will also touch upon the protocols and security of these
distributed systems.

Transcript

1. J P M C I n n o v a t i o n W e e k Business and Technology Innovating Together
2. JPMC Innovation Week CHALLENGES IN BUILDING IOT SYSTEMS FOR AUTOMOTIVE SYSTEMS VINAYAK HEGDE CTO, ZOOMCAR Business and Technology Innovating Together Speaker Series | Ideation Events | Hackathon
3. Cars Cycles eScooters JPMC Innovation Week | 2019
4. CHALLENGES IN BUILDING IOT SYSTEMS • Different standards and different versions • Bluetooth, Zigbee, IPWave • Variety of platforms (in our case, cars, Escooters) • CAN / OBD protocols provide some standards but there are divergences • Many times have to integrate proprietary protocols • Battery Battery Battery • Lossy and constrained networks (rides over GPRS/2G networks) JPMC Innovation Week | 2019
5. IT GETS TOUGHER • Security is a topmost constraint • And hence key management has to be stronger • Devices are in hostile territory • Customers have physical access to device • Devices have to work in wind, rain, sun, dust and exposed to elements • And they are moving as well (non-static IoT or IoMT) JPMC Innovation Week | 2019
6. CONSTRAINTS IT IMPOSES ON PROTOCOL DESIGN • Security and key-management is important • Software can be reverse engineered (especially on phones) • Store and forward (spooling is critical) • Retry mechanisms • Publish and subscribe • Message ids and acks are critical • Compression is critical because of bandwidth • Criticality of messages and priority (say immobilisation) • Reverse Engineering (and working with Manufacturers) JPMC Innovation Week | 2019
7. CONSTRAINTS IT IMPOSES ON PROTOCOL DESIGN • OTA updates (cryptographically signed) • PATCH command • SUIT WG documents • Keys management is paramount as keys might need to be revoked • Logic and command and control on webservice and mobile app as proxy • One-time use keys need to be generated using TOTP (RFC 6238) and HOTP (RFC 4226) • Timing and management of update / Forced update • Fallback in case of failures / Acknowledgement JPMC Innovation Week | 2019
8. CARS • OBD Data • Battery levels • Fuel Levels • Gear information • Vehicle / Engine speed • Braking behaviour • GPS Coordinates • Immobilisation • KLE (Keyless Entry) JPMC Innovation Week | 2019
9. CARS JPMC Innovation Week | 2019
10. CARS - How the data flows JPMC Innovation Week | 2019
11. CYCLES • Lock / Unlock status • GPS Coordinates • Battery levels JPMC Innovation Week | 2019
12. CYCLES JPMC Innovation Week | 2019
13. CYCLES - How the data flows JPMC Innovation Week | 2019

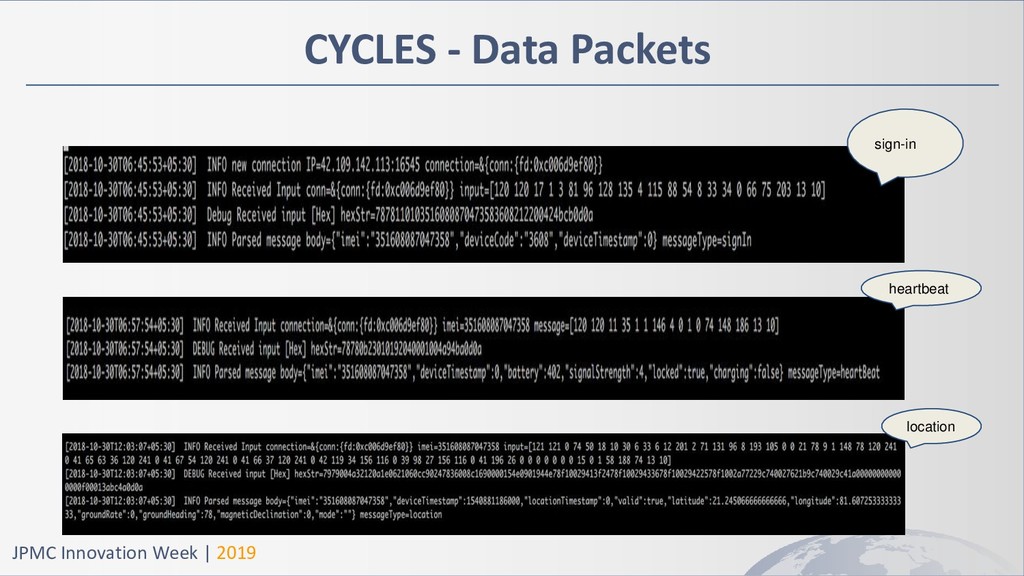

14. CYCLES - Data Packets JPMC Innovation Week | 2019 sign-in heartbeat location
15. EScooters JPMC Innovation Week | 2019
16. EScooters - How the data flows JPMC Innovation Week | 2019 Bluetooth AMP Service RabbitMQ TCP/IP Device Zoomcar Apps TCP/IP Device Service
17. APPLICATIONS • Damage attestation / detection • Driver Behavior / Score • Asset Usage / Breakdown prediction • Charging Cycles • Range Prediction JPMC Innovation Week | 2019
18. Data Usage • Driver Score • Helps in reducing Insurance exposure • Challenges • Different terrains (elevations) • Traffic conditions (by time of day) • Road conditions • Geolocations • Predictive maintenance • Clutch usage • Battery levels JPMC Innovation Week | 2019
19. IETF Working Groups • IPWAVE (IP Wireless Access in Vehicular Environments) • SUIT (Software Updates for Internet of Things) JPMC Innovation Week | 2019
20. IPWAVE • Vehicular networking draft https://datatracker.ietf.org/doc/draft-ietf-ipwave-vehicular-networking/?include_text=1 • V2I, I2V and V2V communications and different between them • The use cases of V2I networking include navigation service, fuel-efficient speed recommendation service, and accident notification service. • The use cases of V2V networking include context-aware navigation for driving safety, cooperative adaptive cruise control in an urban roadway, and platooning in a highway. These three techniques will be important elements for self-driving vehicles. • The use cases for I2V networking are OTA updates, immobilization or global fleet route optimization JPMC Innovation Week | 2019
21. SUIT • Information Model for IoT devices • List different attacks possible and what should be contained in the metadata https://datatracker.ietf.org/doc/draft-ietf-suit-information-model/?include_text=1 • Types of Updates • For different types of update strategies https://datatracker.ietf.org/doc/draft-zhu-suit-automatic-fu-arch/?include_text=1 • Reference Update Architecture https://datatracker.ietf.org/doc/draft-ietf-suit-architecture/?include_text=1 JPMC Innovation Week | 2019
22. TYPES OF UPDATE • Client Initiated update (Poll Model) • Span of control with client • Negotiated Update • Co-ordinated between client and server • Server Initiated update (Push Model) • Useful for dump/non-critical devices • Forced Updates JPMC Innovation Week | 2019
23. THREAT MODEL FOR UPDATES • S.T.R.I.D.E • Spoofing Identity • Tampering Data • Repudiation • Information Disclosure • Denial of Service • Elevation of Privilege JPMC Innovation Week | 2019
24. FURTHER READING • IPWave - https://datatracker.ietf.org/wg/ipwave/about/ • SUIT WG - https://datatracker.ietf.org/wg/suit/about/ • DNS Rebinding attack - https://medium.com/@brannondorsey/attacking-private- networks-from-the-internet-with-dns-rebinding-ea7098a2d325 • Mirai Botnet - https://blog.cloudflare.com/inside-mirai-the-infamous-iot-botnet-a- retrospective-analysis/ • Stride - https://docs.microsoft.com/en-us/previous-versions/commerce- server/ee823878(v=cs.20) JPMC Innovation Week | 2019
25. Q & A • vinayak@zoomcar.com / vinayakh@gmail.com • Twitter @vinayakh • CREDITS • IoT Team @ Zoomcar – Vishal Ram, Nikhil B, Arushi Jain JPMC Innovation Week | 2019
