Heavy-Duty Cable Tray Systems & MEP Integration Guide | XMQJ

An engineering and visual guide to specifying heavy-duty cable management systems for mission-critical infrastructure.
Shanghai Xinma (XMQJ) provides IEC 61537 compliant ladder cable trays, perforated troughs, and smart 3D busways for global data centers and massive MEP environments. Featuring patented molded corrugated structural designs.
🔗 **Access Interactive Load Charts & OEM Specs:** https://xmqj.com

Transcript

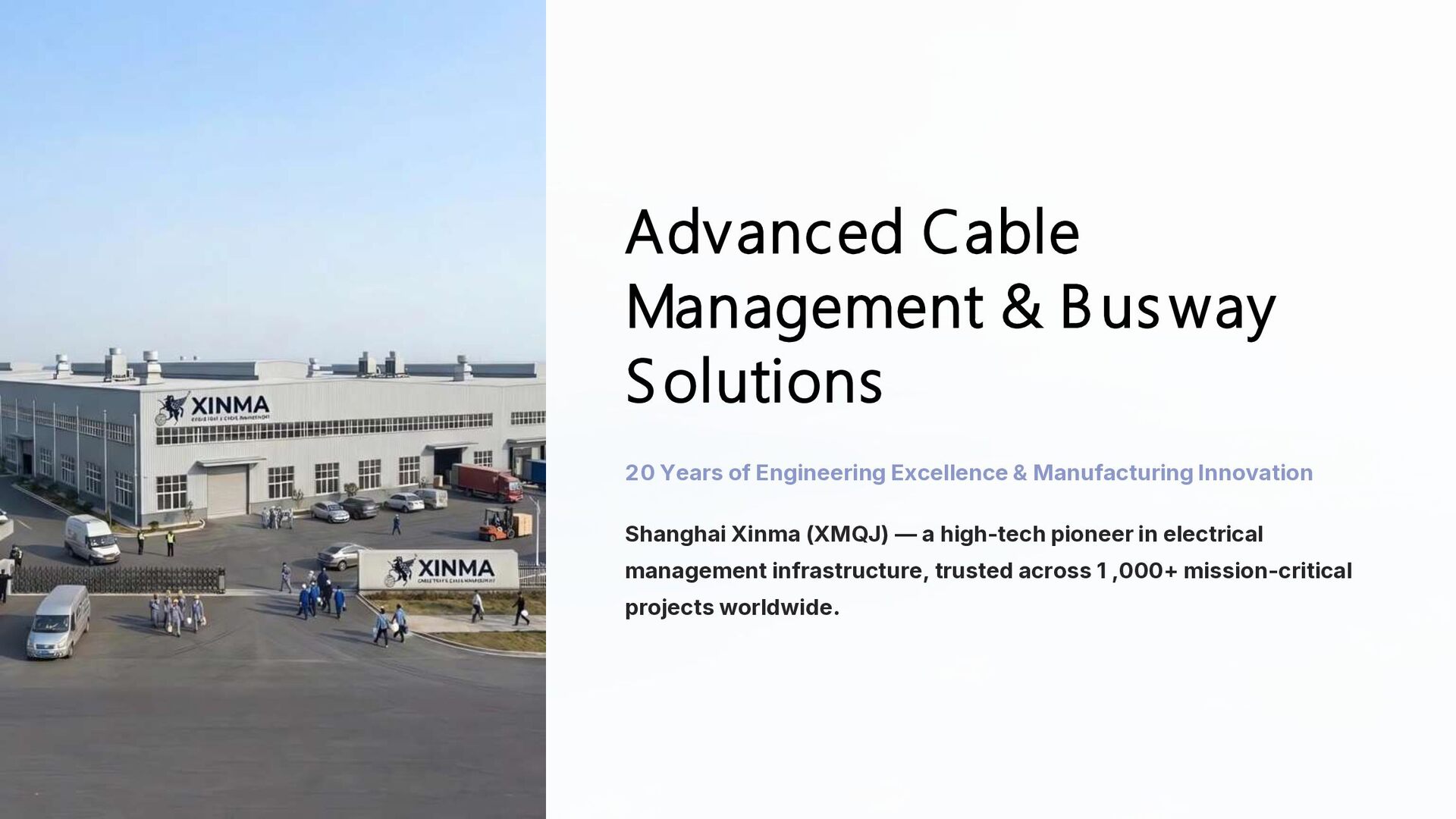

1. Advanced Cable Management & Busway Solutions 20 Years of Engineering Excellence & Manufacturing Innovation Shanghai Xinma (XMQJ) — a high-tech pioneer in electrical management infrastructure, trusted across 1 ,000+ mission-critical projects worldwide.

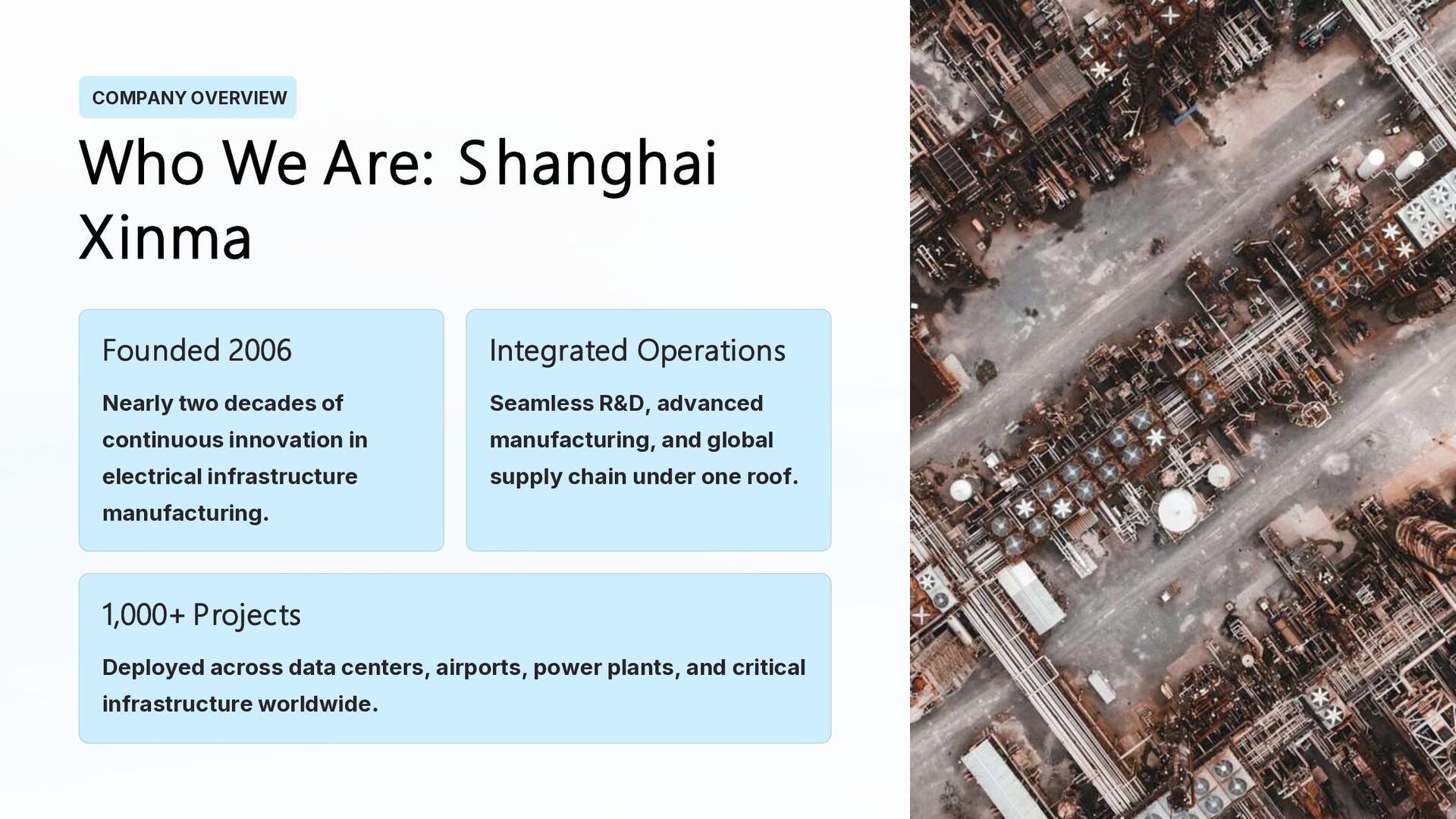

2. COMPANY OVERVIEW Who We Are: Shanghai Xinma Founded 2006 Nearly two decades of continuous innovation in electrical infrastructure manufacturing. Integrated Operations Seamless R&D, advanced manufacturing, and global supply chain under one roof. 1,000+ Projects Deployed across data centers, airports, power plants, and critical infrastructure worldwide.

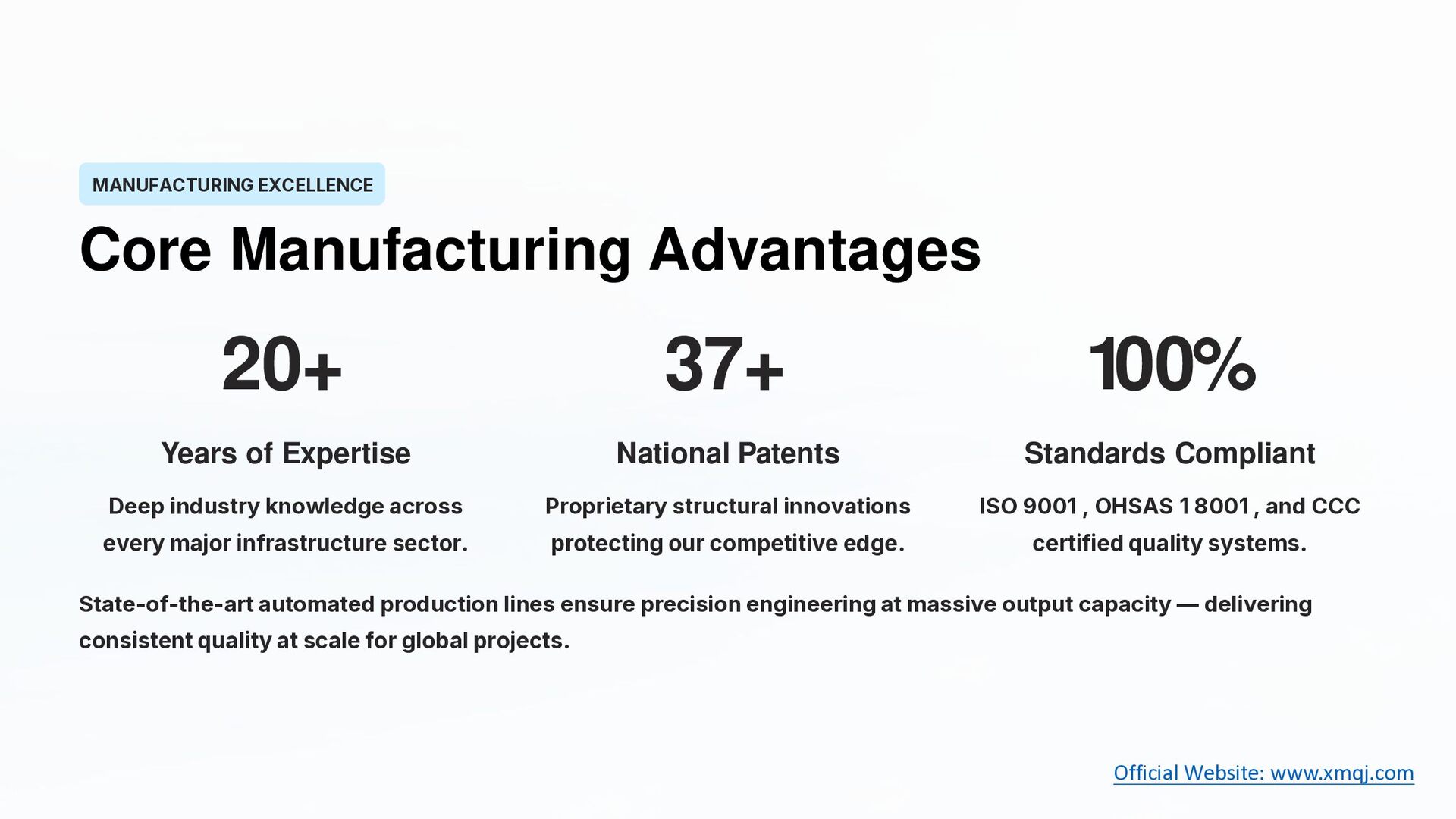

3. MANUFACTURING EXCELLENCE Core Manufacturing Advantages 20+ Years of Expertise Deep industry knowledge across every major infrastructure sector. 37+ National Patents Proprietary structural innovations protecting our competitive edge. 100% Standards Compliant ISO 9001 , OHSAS 1 8001 , and CCC certified quality systems. State-of-the-art automated production lines ensure precision engineering at massive output capacity — delivering consistent quality at scale for global projects. Official Website: www.xmqj.com

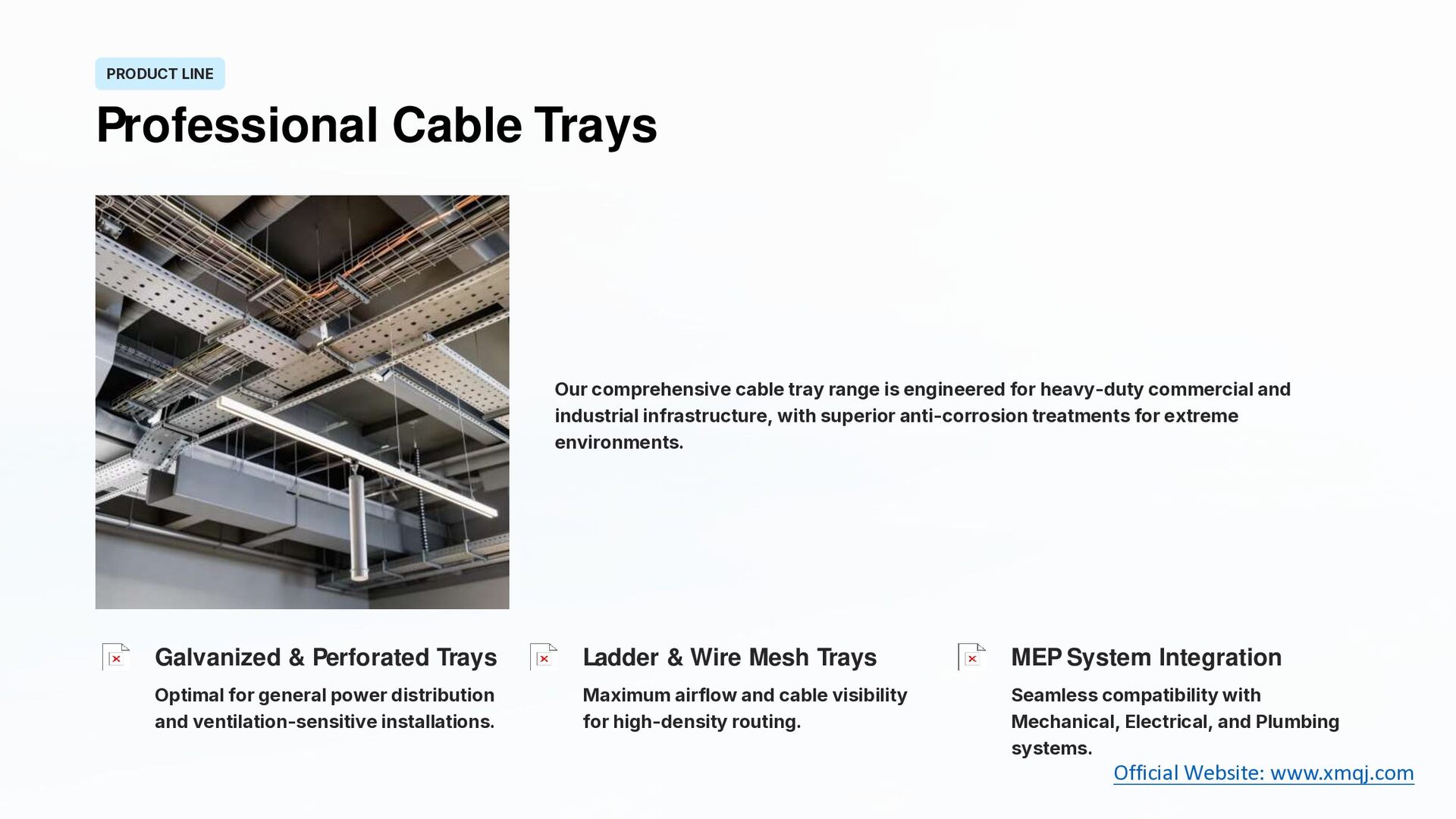

4. PRODUCT LINE Professional Cable Trays Our comprehensive cable tray range is engineered for heavy-duty commercial and industrial infrastructure, with superior anti-corrosion treatments for extreme environments. Galvanized & Perforated Trays Optimal for general power distribution and ventilation-sensitive installations. Ladder & Wire Mesh Trays Maximum airflow and cable visibility for high-density routing. MEP System Integration Seamless compatibility with Mechanical, Electrical, and Plumbing systems. Official Website: www.xmqj.com

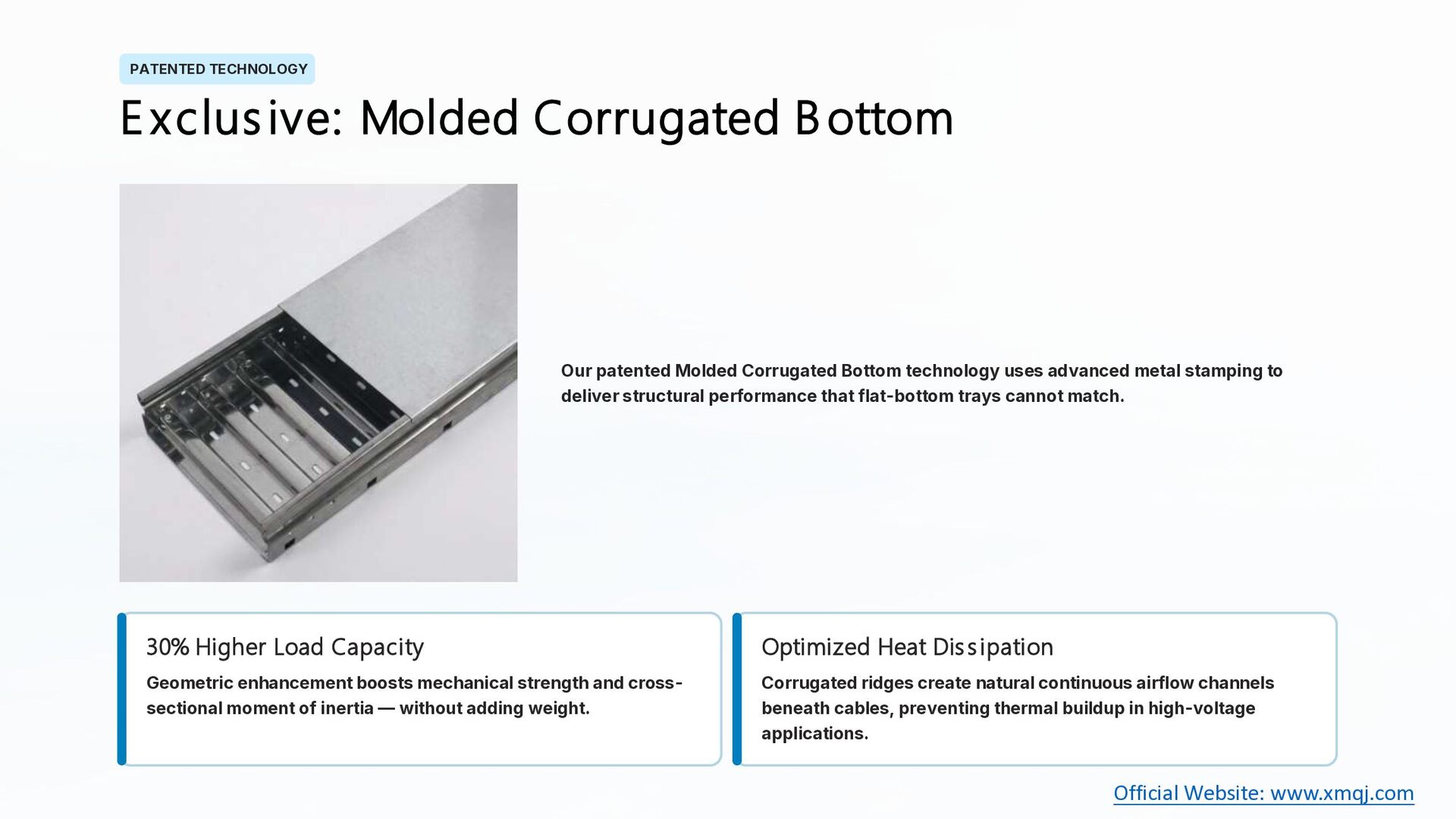

5. PATENTED TECHNOLOGY E xclusive: Molded Corrugated B ottom Our patented Molded Corrugated Bottom technology uses advanced metal stamping to deliver structural performance that flat-bottom trays cannot match. 30% Higher Load Capacity Geometric enhancement boosts mechanical strength and cross- sectional moment of inertia — without adding weight. Optimized Heat Dissipation Corrugated ridges create natural continuous airflow channels beneath cables, preventing thermal buildup in high-voltage applications. Official Website: www.xmqj.com

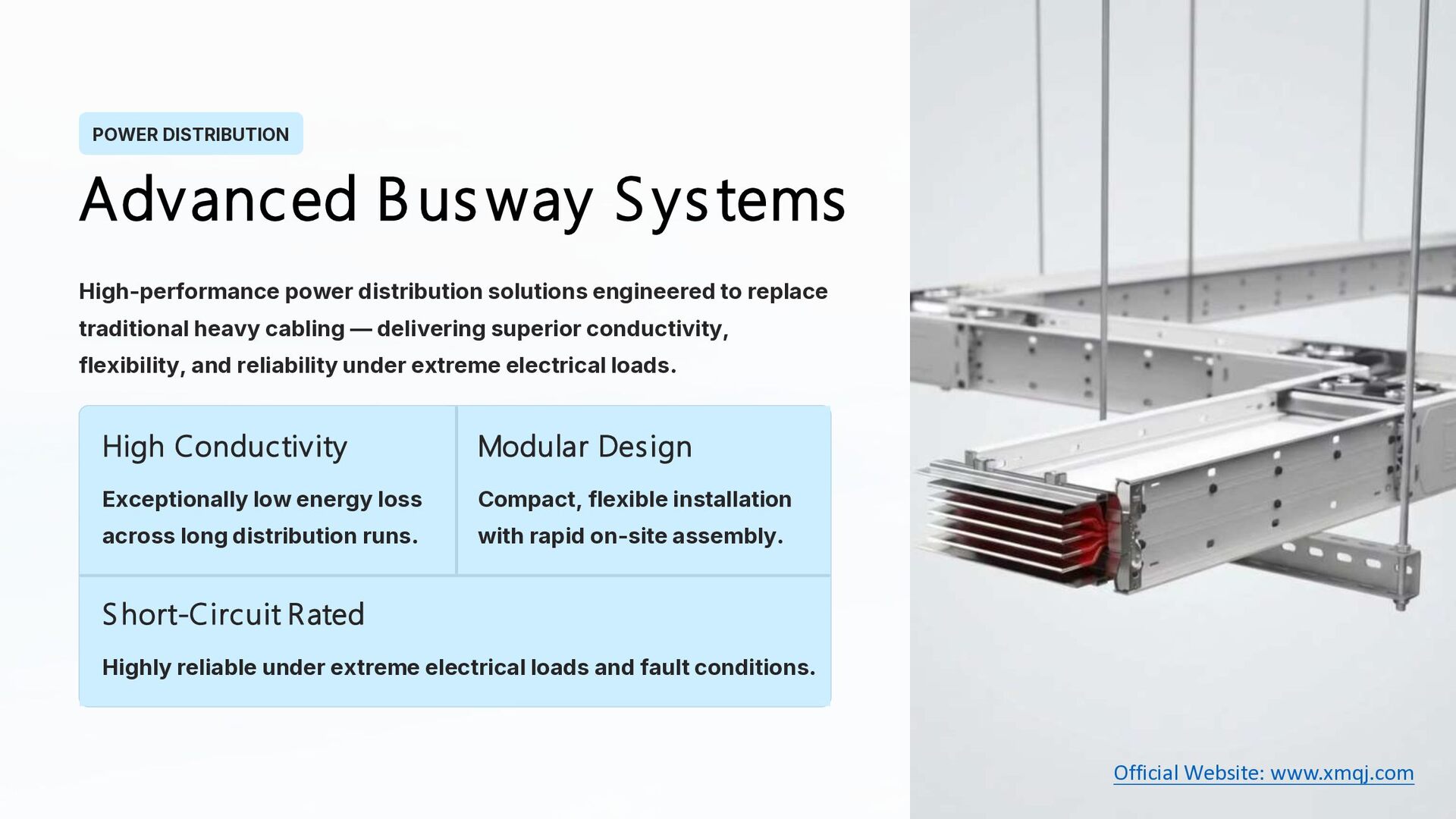

6. POWER DISTRIBUTION Advanced Busway Systems High-performance power distribution solutions engineered to replace traditional heavy cabling — delivering superior conductivity, flexibility, and reliability under extreme electrical loads. High Conductivity Exceptionally low energy loss across long distribution runs. Modular Design Compact, flexible installation with rapid on-site assembly. Short-Circuit Rated Highly reliable under extreme electrical loads and fault conditions. Official Website: www.xmqj.com

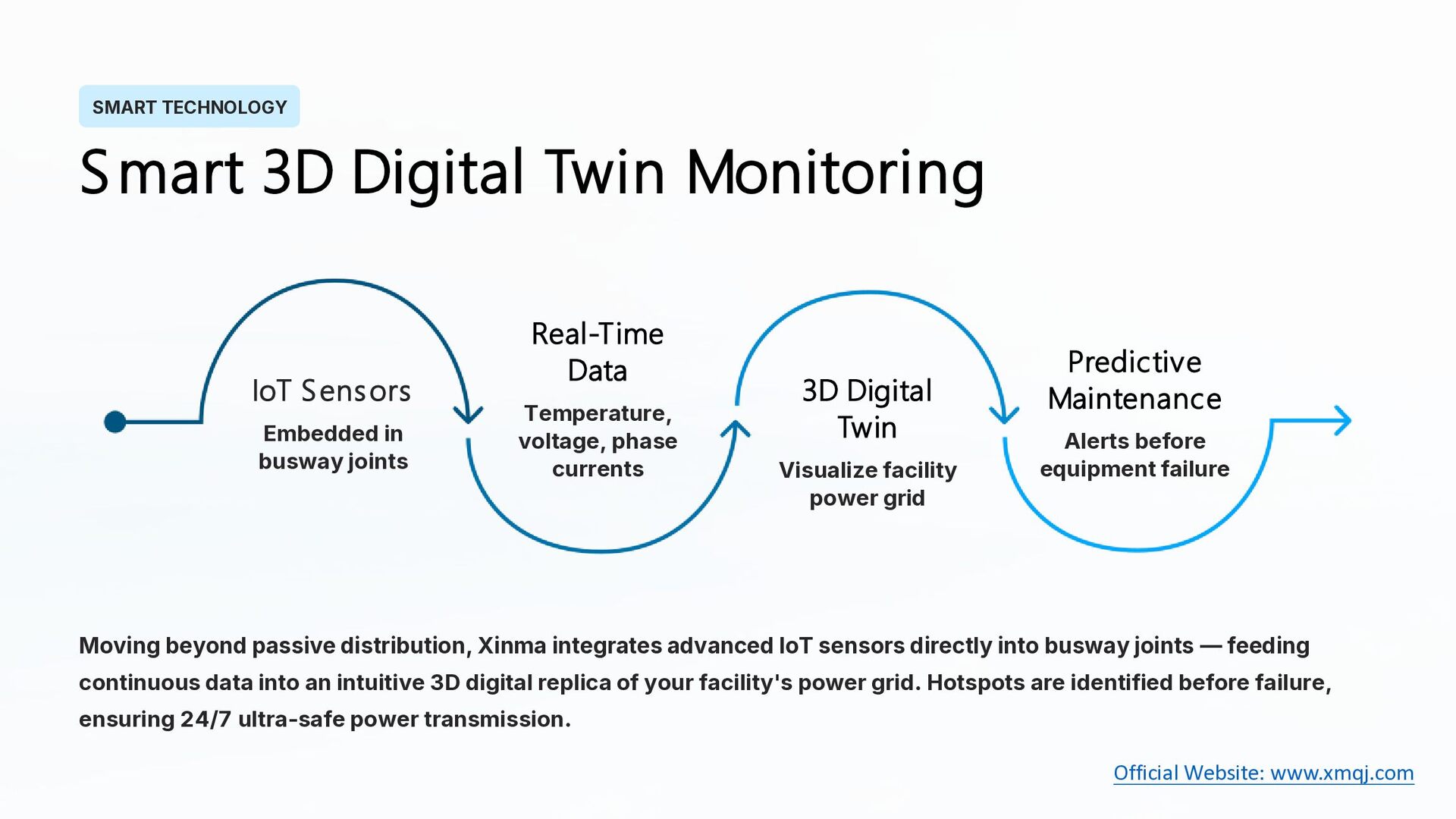

7. SMART TECHNOLOGY Smart 3D Digital Twin Monitoring IoT Sensors Embedded in busway joints Real-Time Data Temperature, voltage, phase currents 3D Digital Twin Visualize facility power grid Predictive Maintenance Alerts before equipment failure Moving beyond passive distribution, Xinma integrates advanced IoT sensors directly into busway joints — feeding continuous data into an intuitive 3D digital replica of your facility's power grid. Hotspots are identified before failure, ensuring 24/7 ultra-safe power transmission. Official Website: www.xmqj.com

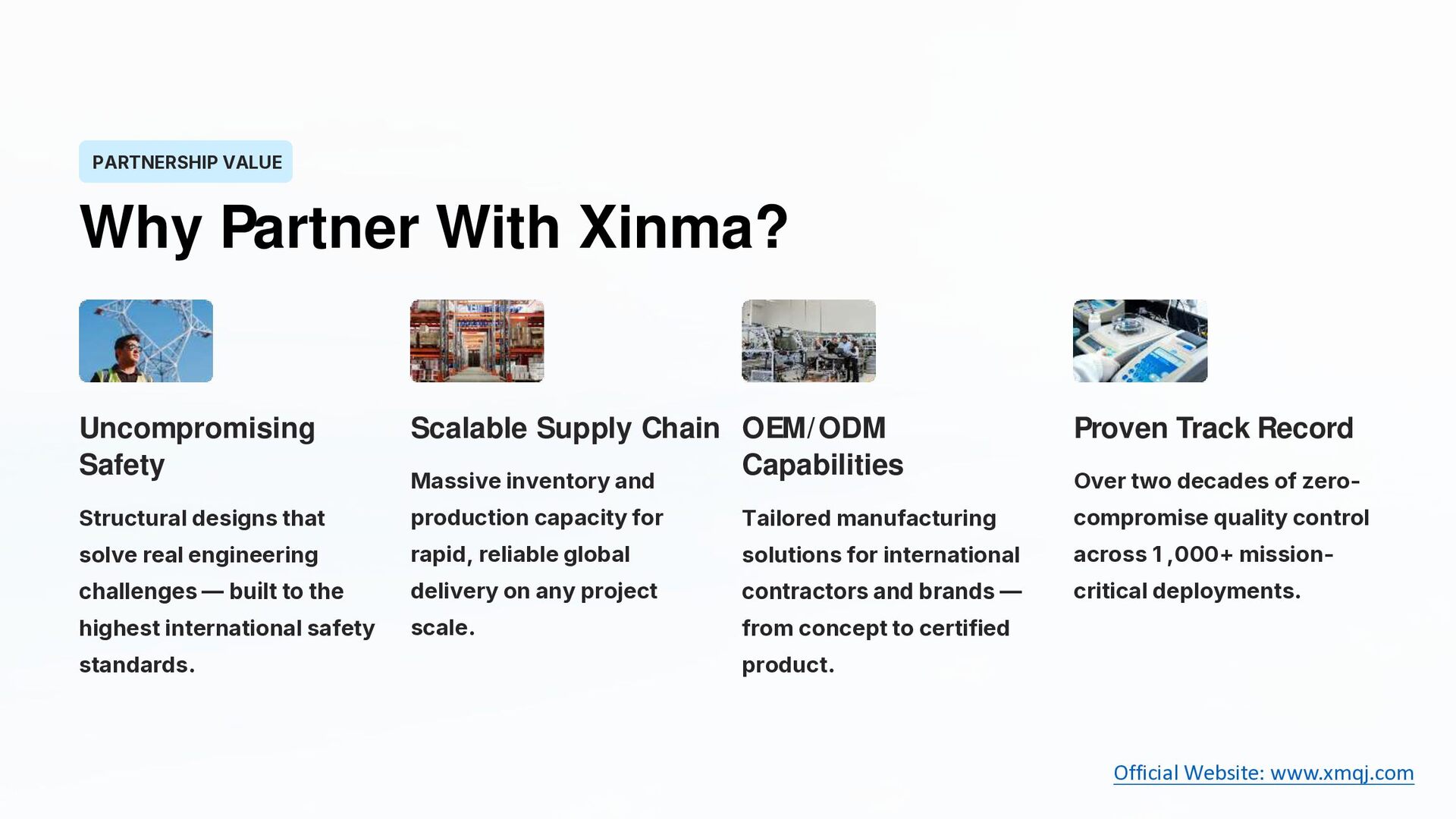

8. PARTNERSHIP VALUE Why Partner With Xinma? Uncompromising Safety Structural designs that solve real engineering challenges — built to the highest international safety standards. Scalable Supply Chain Massive inventory and production capacity for rapid, reliable global delivery on any project scale. OEM/ODM Capabilities Tailored manufacturing solutions for international contractors and brands — from concept to certified product. Proven Track Record Over two decades of zero- compromise quality control across 1 ,000+ mission- critical deployments. Official Website: www.xmqj.com

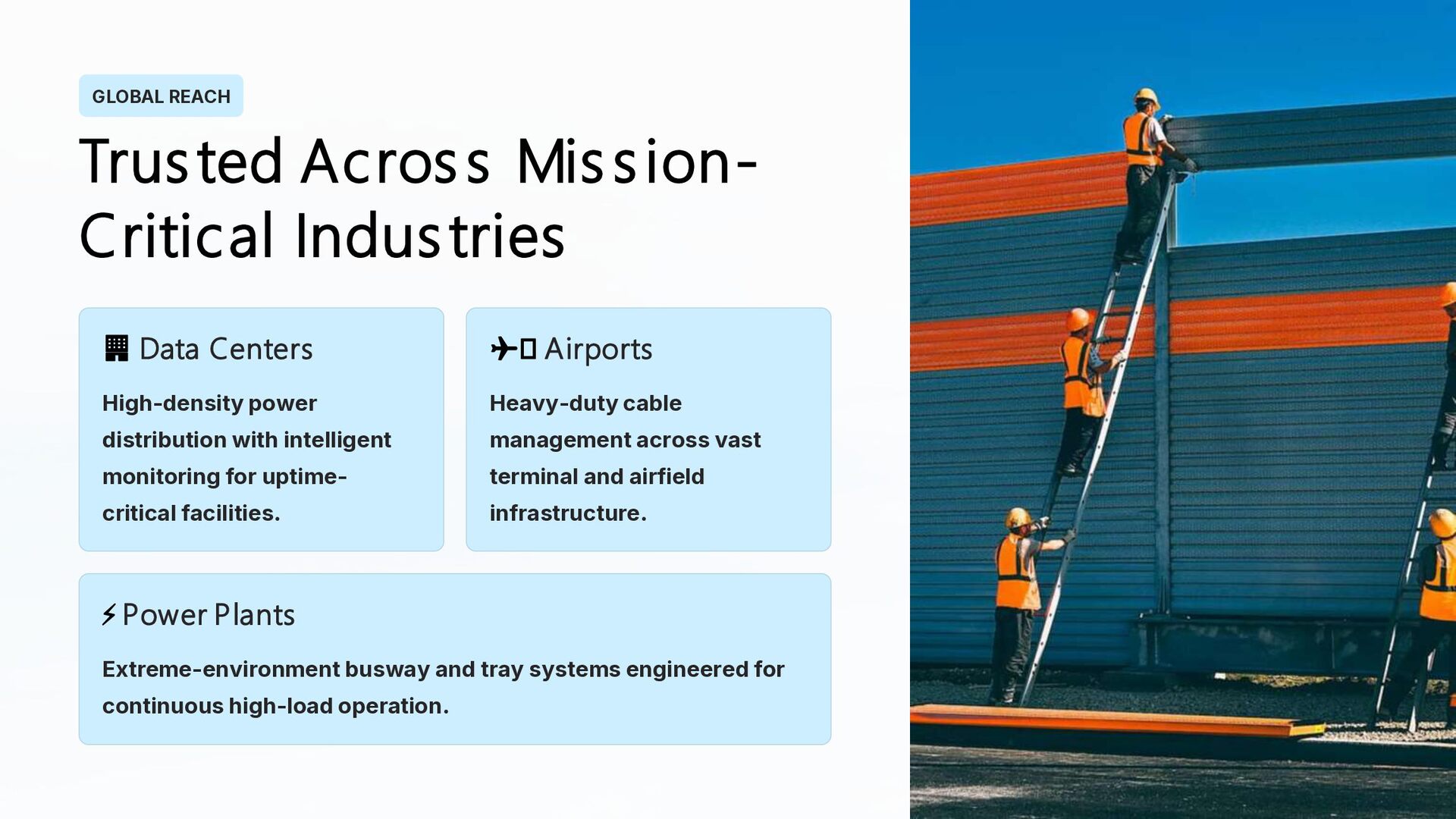

9. GLOBAL REACH Trusted Across Mission- Critical Industries 🏢 Data Centers High-density power distribution with intelligent monitoring for uptime- critical facilities. ✈️ Airports Heavy-duty cable management across vast terminal and airfield infrastructure. ⚡ Power Plants Extreme-environment busway and tray systems engineered for continuous high-load operation.

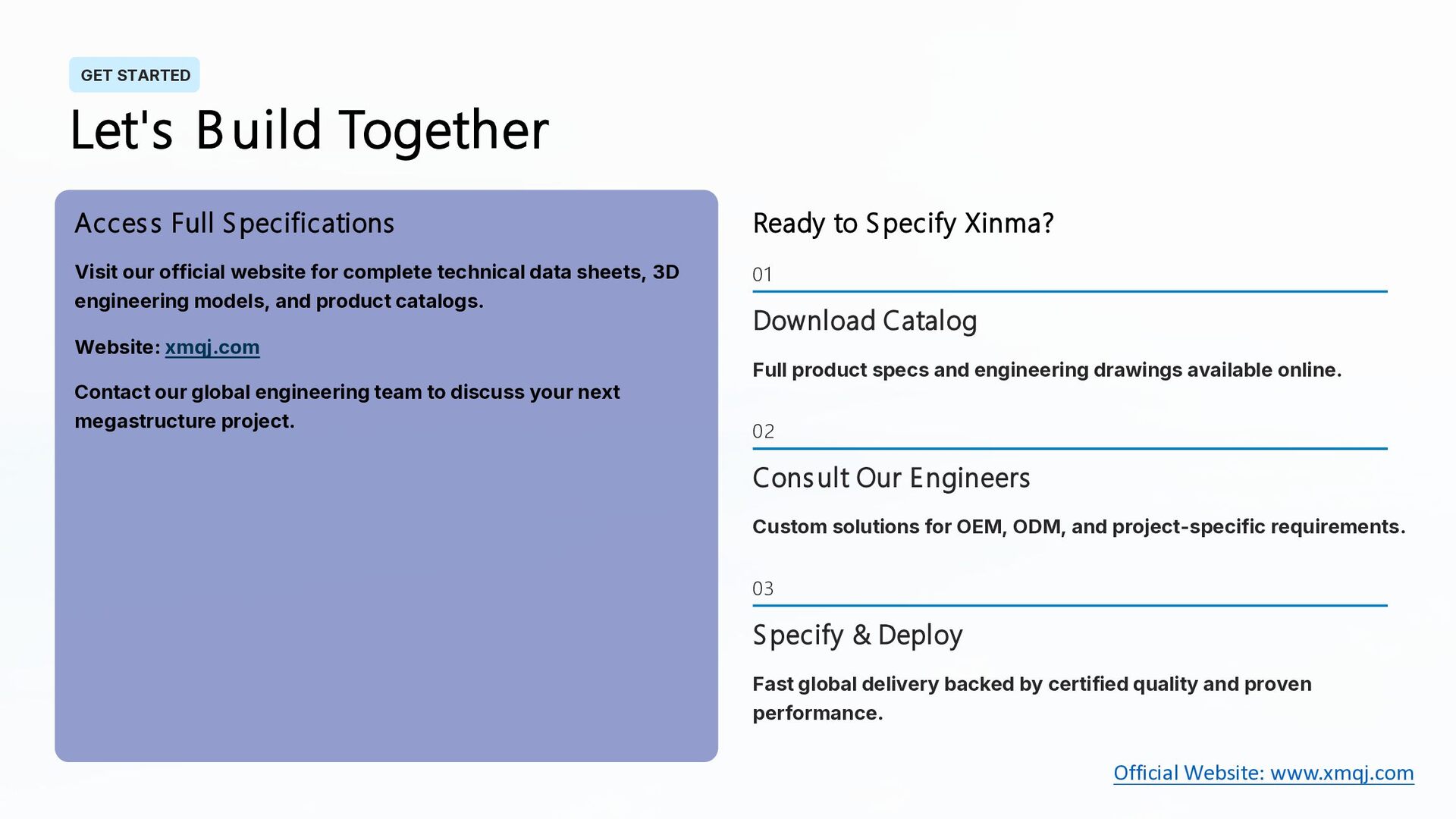

10. GET STARTED Let's Build Together Access Full Specifications Visit our official website for complete technical data sheets, 3D engineering models, and product catalogs. Website: xmqj.com Contact our global engineering team to discuss your next megastructure project. Ready to Specify Xinma? 01 Download Catalog Full product specs and engineering drawings available online. 02 Consult Our Engineers Custom solutions for OEM, ODM, and project-specific requirements. 03 Specify & Deploy Fast global delivery backed by certified quality and proven performance. Official Website: www.xmqj.com
