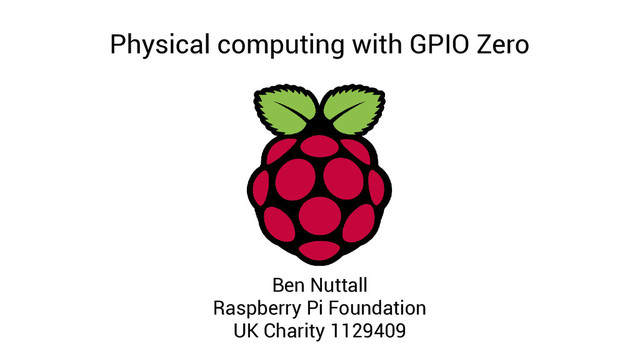

  1. Physical computing with GPIO Zero
    Ben Nuttall
    Raspberry Pi Foundation
    UK Charity 1129409

    View full-size slide

  2. Ben Nuttall

    Education Developer Advocate
    at the Raspberry Pi Foundation
    – Software & project development
    – Learning resources & teacher
    training
    – Outreach

    Hobbyist turned employee

    Based in Cambridge

    @ben_nuttall on Twitter

    View full-size slide

  3. Python – RPi.GPIO
    import RPi.GPIO as GPIO
    from time import sleep
    GPIO.setmode(GPIO.BCM)
    GPIO.setwarnings(False)
    led = 17
    GPIO.setup(led, GPIO.OUT)
    while True:
    GPIO.output(led, True)
    sleep(1)
    GPIO.output(led, False)
    sleep(1)

    View full-size slide

  4. Python – GPIO Zero
    from gpiozero import LED
    from time import sleep
    led = LED(17)
    while True:
    led.on()
    sleep(1)
    led.off()
    sleep(1)

    View full-size slide

  5. LED
    from gpiozero import LED
    from time import sleep
    led = LED(17)
    led.on() # on
    led.off() # off
    led.toggle() # on­>off or off­>on
    led.blink() # flash on/off continuously

    View full-size slide

  6. LED + Button
    from gpiozero import LED, Button
    led = LED(17)
    button = Button(3)
    button.when_pressed = led.on
    button.when_released = led.off

    View full-size slide

  7. Motion sensor
    from gpiozero import LED, MotionSensor
    led = LED(2)
    sensor = MotionSensor(3)
    sensor.when_motion = led.on
    sensor.when_no_motion = led.off

    View full-size slide

  8. Traffic Lights
    from gpiozero import TrafficLights
    lights = TrafficLights(9, 10, 11)
    lights.on() # all on
    lights.off() # all off
    lights.red.on() # red on
    lights.toggle() # swap state of all lights

    View full-size slide

  9. Traffic Lights sequence
    lights.green.on()
    lights.amber.off()
    lights.red.off()
    while True:
    sleep(10)
    lights.green.off()
    lights.amber.on()
    sleep(1)
    lights.amber.off()
    lights.red.on()
    sleep(10)
    lights.amber.on()
    sleep(1)
    lights.green.on()
    lights.amber.off()
    lights.red.off()

    View full-size slide

  10. Full colour LED
    from gpiozero import RGBLED
    led = RGBLED(2, 3, 4)
    led.red.on() # full red
    led.color = (255, 0, 255) # purple
    led.blue = 100 # dim the blue value to 100
    # now (255, 0, 100)

    View full-size slide

  11. Motor
    from gpiozero import Motor
    from time import sleep
    motor = Motor(forward=17, back=18)
    while True:
    motor.forward()
    sleep(5)
    motor.backward()
    sleep(5)

    View full-size slide

  12. Robot
    from gpiozero import Robot
    from time import sleep
    robot = Robot(left=(17, 18), right=(22, 23))
    while True:
    robot.forward()
    sleep(10)
    robot.left()
    sleep(1)

    View full-size slide

  13. Button controlled Robot
    from gpiozero import RyanteckRobot, Button
    robot = RyanteckRobot()
    left = Button(26)
    right = Button(16)
    fw = Button(21)
    bw = Button(20)
    fw.when_pressed = robot.forward
    fw.when_released = robot.stop
    left.when_pressed = robot.left
    left.when_released = robot.stop
    right.when_pressed = robot.right
    right.when_released = robot.stop
    bw.when_pressed = robot.backward
    bw.when_released = robot.stop

    View full-size slide

  14. Analogue - potentiometers
    from gpiozero import RGBLED, MCP3008
    led = RGBLED(2, 3, 4)
    pot = MCP3008()
    while True:
    red = pot.value
    led.color = (red, 0, 0) # set brightness of red

    View full-size slide

  15. GPIO Zero - beta

    www.pythonhosted.org/gpiozero
    – Installation instructions
    – Documentation
    – Examples

    Google Doc (linked from documentation)
    – Suggestions
    – Feedback

    Contact me
    [email protected]
    – @ben_nuttall on Twitter

    #gpiozero on Twitter

    View full-size slide

  16. CamJam EduKit

    £5 starter kit (kit 1)

    £7 sensors kit (kit 2)

    £17 robotics kit (kit 3)

    Free worksheets

    Very reusable

    View full-size slide

  17. Physical computing with GPIO Zero
    Ben Nuttall
    Raspberry Pi Foundation
    UK Charity 1129409

    View full-size slide
