iOS UI testing

Internal presentation about UIAutomation and some extension for it.

Transcript

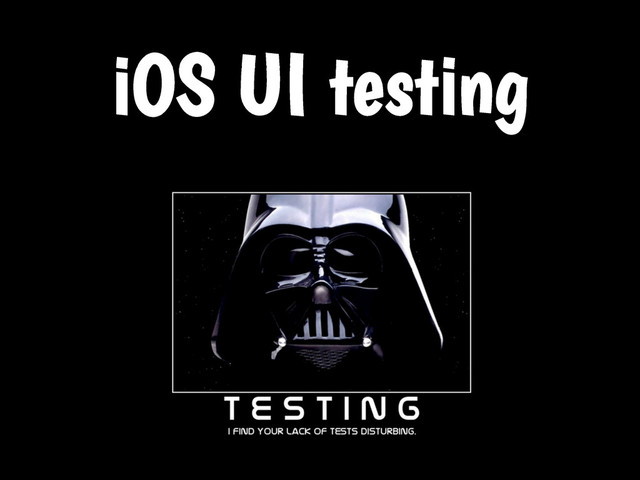

1. iOS UI testing
2. User testing
3. Automation developer testing
4. 3rd party
5. Cabalash KIF NativeDriver UISpec iCuke Bromine Sikuli AutomationKit Kiwi
6. Apple style
7. UIAutomation
8. • JavaScript • UIAccessibility • Instruments
9. • Access its UI element hierarchy • Add timing flexibility by having timeout periods • Log and verify the information returned by Instruments • Handle alerts properly • Handle changes in device orientation gracefully • Handle multitasking
10. But how it actually works?
11. VoiceOver
12. Xcode vs code self.editButton.isAccessibilityElement = YES; self.editButton.accessibilityLabel = @"Edit button"; self.editButton.accessibilityTraits = UIAccessibilityTraitButton;
13. Instruments Automation
14. var target = UIATarget.localTarget(); var app = target.frontMostApp(); var window = app.mainWindow(); target.logElementTree();
16. Demo
17. Tune-up
18. JavaScript library make already easy work even easier
19. var testName = "Test 1"; var target = UIATarget.localTarget(); var app = target.frontMostApp(); var window = app.mainWindow(); UIALogger.logStart(testName); app.logElementTree(); if (/* something */){ UIALogger.logPass(testName); } else { UIALogger.logFail(testName); }
20. #import "tuneup/tuneup.js" test("Test 1", function(target, app) { var window = app.mainWindow(); app.logElementTree(); assertTrue(/* something */); });
21. • assertions • window assertion • device handling • better delays • keyboard types • ruby console runner (next) What's tuned
22. instruments -t /Applications/Xcode. app/Contents/Applications/Instruments. app/Contents/PlugIns/AutomationInstrument. bundle/Contents/Resources/Automation. tracetemplate /Users/obenes/Library/Application\ Support/iPhone\ Simulator/6. 1/Applications/8B5E2957-A535-430C-BB88- E07E47AF466E/BazarTip.app -e UIASCRIPT /Users/obenes/Devel/BazarTip/tests.js Ugly Apple way
23. ./run BazarTip tests.js output/ Better Tune-up way
24. 2013-02-28 09:14:29 +0000 Start: Delete keyword 2013-02-28 09:14:29 +0000 Default: Check for edit button 2013-02-28 09:14:29 +0000 Default: Checking for added keyword 2013-02-28 09:14:29 +0000 Default: Tapping edit button 2013-02-28 09:14:29 +0000 : target.frontMostApp().mainWindow(). navigationBar().leftButton().tap() 2013-02-28 09:14:29 +0000 Default: Check for delete button 2013-02-28 09:14:30 +0000 Default: Tapping delete button 2013-02-28 09:14:30 +0000 : target.frontMostApp().mainWindow(). tableViews()[0].groups()[0].buttons()["Delete"].tap() 2013-02-28 09:14:31 +0000 Default: Checking for deletion of keyword 2013-02-28 09:14:41 +0000 Pass: Delete keyword Instruments Trace Complete (Duration : 19.321390s; Output : /Users/obenes/Desktop/instrumentscli1.trace) 2 tests, 0 failures TEST PASSED
25. Monkey
26. UIAutoMonkey
27. config: { numberOfEvents: 1000, delayBetweenEvents: 0.05, // In seconds // Events are triggered based on the relative weights here. // The event with this highest number gets triggered the most. eventWeights: { tap: 30, drag: 1, flick: 1, orientation: 1, clickVolumeUp: 1, clickVolumeDown: 1, lock: 1, pinchClose: 10, pinchOpen: 10, shake: 1 }, // Probability that touch events will have these different properties touchProbability: { multipleTaps: 0.05, multipleTouches: 0.05,
28. Let's try it
29. References iOS Developer Library http://developer.apple.com/library/ios/#documentation/DeveloperTools/Reference/UIAutomationRef/_index.html WWDC 2010 - 306 Automating User Interface Testing with Instruments https://developer.apple.com/itunes/?destination=adc.apple.com.4088510335.04088510337.4096407259?i=1391909688 Instruments User Guide http://developer.apple. com/library/ios/#documentation/DeveloperTools/Conceptual/InstrumentsUserGuide/UsingtheAutomationInstrument/UsingtheAutomati onInstrument.html iOS Automated Tests with UIAutomation - Manbolo Blog http://blog.manbolo.com/2012/04/08/ios-automated-tests-with-uiautomation Tune-up - Alex Vollmer https://github.com/alexvollmer/tuneup_js UIAutoMonkey - Jonathan Penn https://github.com/jonathanpenn/ui-auto-monkey
