Datasheet - Outdoor Cabling

Transcript

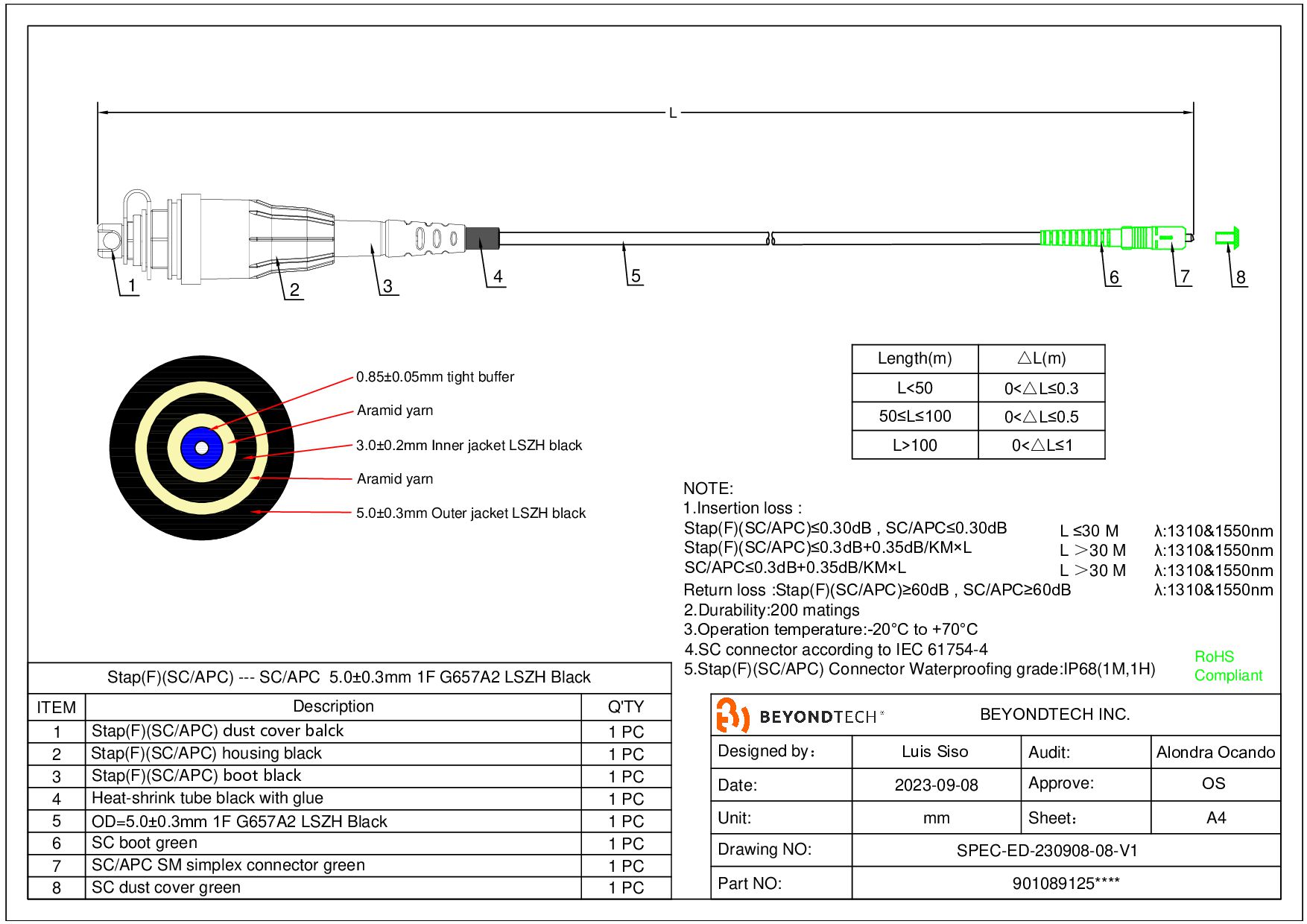

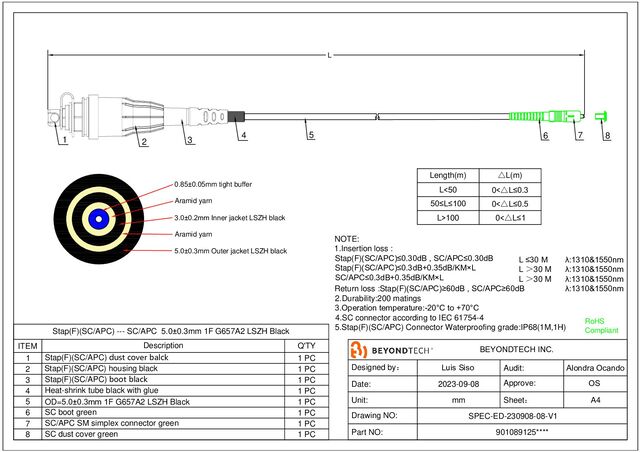

1. RoHS Compliant BEYONDTECH INC. Designed by： Luis Siso Audit: Date: 2023-09-08 Approve: Unit: mm Sheet： A4 Drawing NO: SPEC-ED-230908-08-V1 Part NO: 901089125**** Length(m) △L(m) L 50 0 △L≤0.3 50≤L≤100 0 △L≤0.5 L 100 0 △L≤1 NOTE: 1.Insertion loss : Stap(F) (SC/APC)≤0.30dB , SC/APC≤0.30dB L ≤30 M λ:1310&1550nm Stap(F) (SC/APC)≤0.3dB+0.35dB/KM×L L ＞30 M λ:1310&1550nm SC/APC≤0.3dB+0.35dB/KM×L L ＞30 M λ:1310&1550nm Return loss :Stap(F) (SC/APC)≥60dB , SC/APC≥60dB λ:1310&1550nm 2.Durability:200 matings 3.Operation temperature:-20°C to +70°C 4.SC connector according to IEC 61754-4 5.Stap(F)(SC/APC) Connector Waterproofing grade:IP68(1M,1H) Stap(F)(SC/APC) --- SC/APC 5.0 ± 0.3mm 1F G657A2 LSZH Black ITEM Description Q'TY 1 Stap(F)(SC/APC) dust cover balck 1 PC 2 Stap(F)(SC/APC) housing black 1 PC 3 Stap(F)(SC/APC) boot black 1 PC 4 Heat-shrink tube black with glue 1 PC 5 OD= 5.0±0.3mm 1F G657A2 LSZH Black 1 PC 6 SC boot green 1 PC 7 SC/APC SM simplex connector green 1 PC 8 SC dust cover green 1 PC 0.85 ± 0.05mm tight buffer Aramid yarn 3.0±0.2mm Inn er jacket LSZH black Aramid yarn 5.0±0.3 mm Outer jacket LSZH black 5 L 2 3 1 4 6 7 8 Alondra Ocando OS
