JSNaughty: Recovering Clear, Natural Identifiers from Obfuscated JavaScript Names

Well-chosen variable names are critical to source code readability, reusability, and maintainability. Unfortunately, in deployed JavaScript code (which is ubiquitous on the web) the identifier names are frequently minified and overloaded. This is done both for efficiency and also to protect potentially proprietary intellectual property. In this paper, we describe an approach based on statistical machine translation (SMT) that recovers some of the original names from the JavaScript programs minified by the very popular UglifyJS. This simple tool, Autonym, performs comparably to the best currently available de-obfuscator for JavaScript, JSnice, which uses sophisticated static analysis. In fact, Autonym is quite complementary to JSnice, performing well when it does not, and vice versa. We also introduce a new tool, JSNaughty, which blends Autonym and JSNice, and significantly outperforms both at identifier name recovery, while remaining just as easy to use as JSNice.

JSNaughty is available online at http://jsnaughty.org.

Transcript

1. Bogdan Vasilescu (CMU, ISR) Prem Devanbu (UCDavis) Casey Casalnuovo (UCDavis) Recovering Clear, Natural Identifiers from Obfuscated (JavaScript) Names @b_vasilescu @devanbu

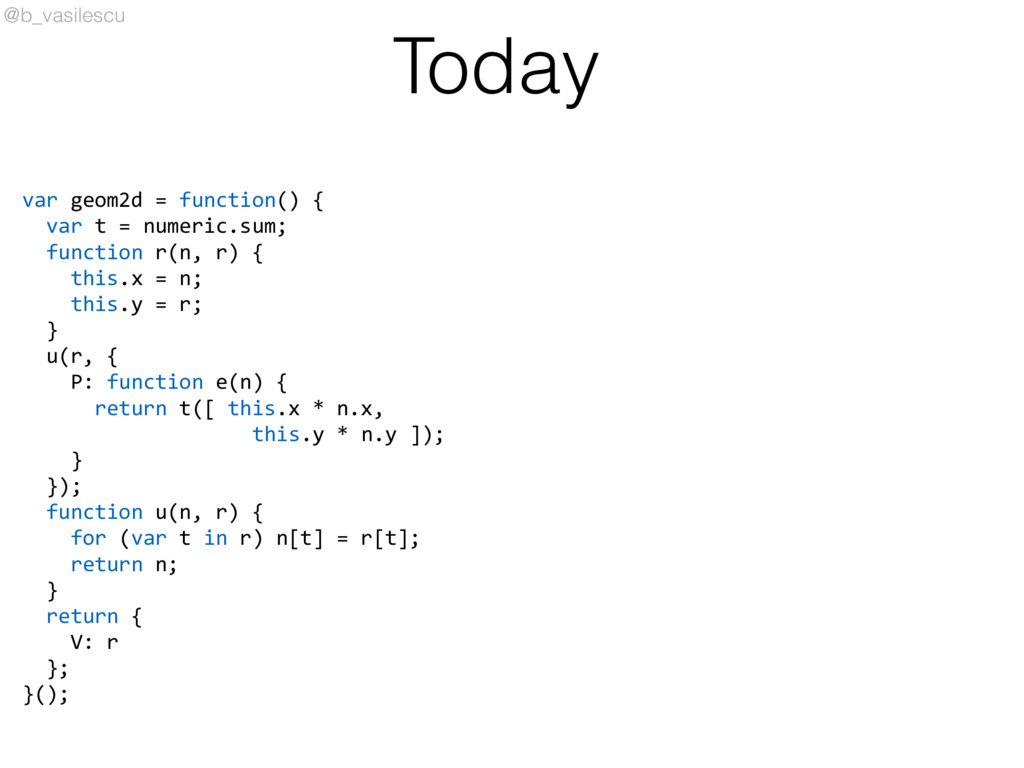

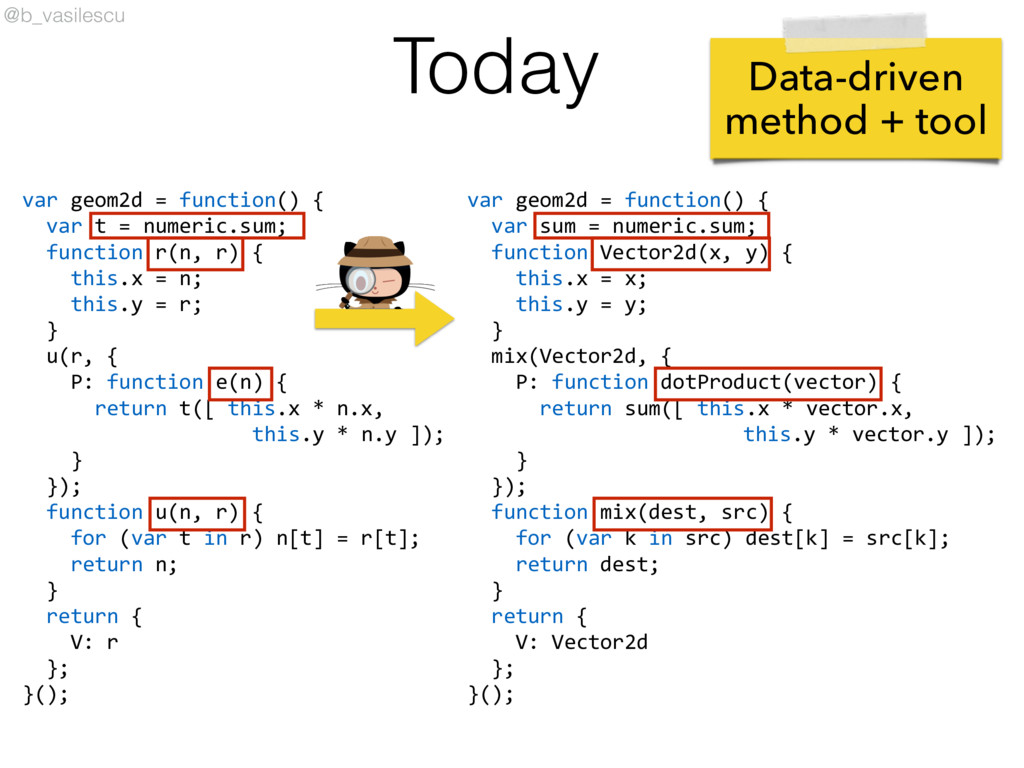

2. @b_vasilescu var geom2d = function() { var t = numeric.sum; function r(n, r) { this.x = n; this.y = r; } u(r, { P: function e(n) { return t([ this.x * n.x, this.y * n.y ]); } }); function u(n, r) { for (var t in r) n[t] = r[t]; return n; } return { V: r }; }(); Today
3. @b_vasilescu var geom2d = function() { var t = numeric.sum; function r(n, r) { this.x = n; this.y = r; } u(r, { P: function e(n) { return t([ this.x * n.x, this.y * n.y ]); } }); function u(n, r) { for (var t in r) n[t] = r[t]; return n; } return { V: r }; }(); Today
4. @b_vasilescu var geom2d = function() { var t = numeric.sum; function r(n, r) { this.x = n; this.y = r; } u(r, { P: function e(n) { return t([ this.x * n.x, this.y * n.y ]); } }); function u(n, r) { for (var t in r) n[t] = r[t]; return n; } return { V: r }; }(); var geom2d = function() { var sum = numeric.sum; function Vector2d(x, y) { this.x = x; this.y = y; } mix(Vector2d, { P: function dotProduct(vector) { return sum([ this.x * vector.x, this.y * vector.y ]); } }); function mix(dest, src) { for (var k in src) dest[k] = src[k]; return dest; } return { V: Vector2d }; }(); Today Data-driven method + tool
5. Why? • Programs are (also) written to be read “Instead of imagining that our main task is to instruct a computer what to do, let us concentrate rather on explaining to human beings what we want a computer to do.” [Don Knuth] @b_vasilescu
6. Why? • Programs are (also) written to be read • Well-chosen variable names are critical to source code readability, reusability, maintainability • Example tasks: • reverse engineering binaries • reverse engineering obfuscated JavaScript • consistent styling in large, distributed teams @b_vasilescu
7. Why? • Programs are (also) written to be read • Well-chosen variable names are critical to source code readability, reusability, maintainability • Example tasks: • reverse engineering binaries • reverse engineering obfuscated JavaScript • consistent styling in large, distributed teams @b_vasilescu
8. Why? • Programs are (also) written to be read • Well-chosen variable names are critical to source code readability, reusability, maintainability [many] • Example tasks: • reverse engineering binaries • reverse engineering obfuscated JavaScript • consistent styling in large, distributed teams 9 9 9 Martin Vechev, “Probabilistic Learning From Big Code”. Keynote at ISSTA 2016 @b_vasilescu
9. Key ingredient • The “naturalness” of software [Hindle et al, 2011]
10. Hmmmm…. Natural languages are complex
11. Tiger, Tiger
 burning bright In the forests of the night What immortal hand or eye, Could frame thy fearful symmetry? Natural languages are complex
12. TIGER!!
 RUN!!! ..but most utterances are simple & repetitive
13. English, த"#, German Can be Rich, Powerful, Expressive
14. English, த"#, German Can be Rich, Powerful, Expressive ..but “in nature” is mostly Simple, Repetitive, Boring
15. English, த"#, German Can be Rich, Powerful, Expressive ..but “in nature” is mostly Simple, Repetitive, Boring Statistical Models
16. English, த"#, German Can be Rich, Powerful, Expressive ..but “in nature” is mostly Simple, Repetitive, Boring Statistical Models
17. The “naturalness of software” thesis Programming Languages are complex... ...but Natural Programs are simple & repetitive. and this, too, CAN BE EXPLOITED!! [Hindle et al, 2011]
19. Variable Name Guesser (AUTONYM) .org Autonym
20. Variable Name Guesser (AUTONYM) Minified
 Source Code function u(n, r) { for (var t in r) n[t] = r[t]; return n; } .org Autonym
21. Variable Name Guesser (AUTONYM) Minified
 Source Code Un-Minified
 Source Code function u(n, r) { for (var t in r) n[t] = r[t]; return n; } function mix(dest, src) { for (var k in src) dest[k] = src[k]; return dest; } .org Autonym
22. .org Moses SMT Pre- processing Post- processing Autonym Minified
 Source Code Un-Minified
 Source Code

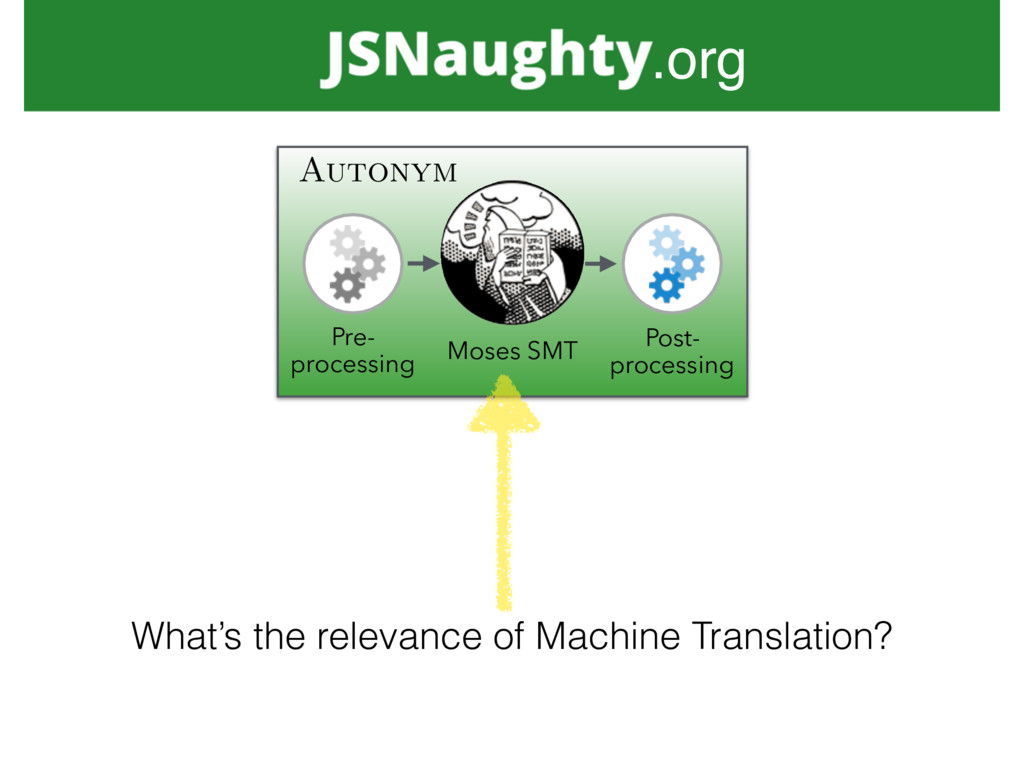

23. .org Moses SMT Pre- processing Post- processing Autonym What’s the relevance of Machine Translation?
24. Noisy channel translation model
25. Noisy channel translation model
26. Noisy channel translation model distorted message

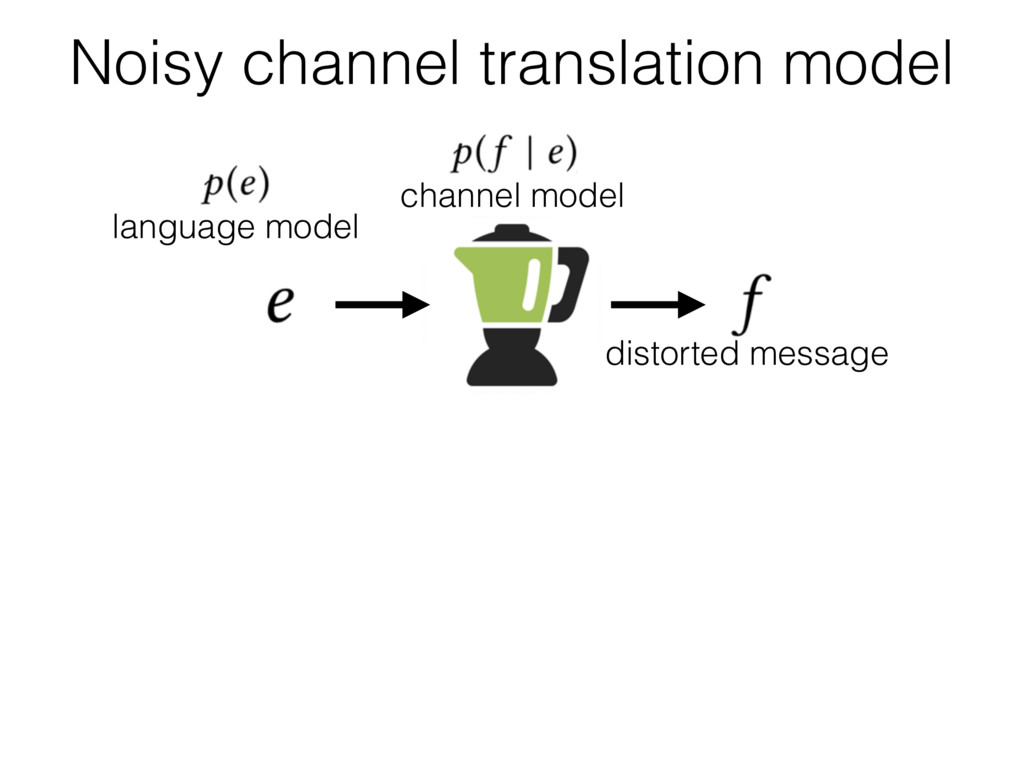

27. Noisy channel translation model channel model distorted message
28. Noisy channel translation model channel model language model distorted message
29. Noisy channel translation model Goal: recover e|f) = p(f|e)p(e)/p(f) channel model language model distorted message
30. Noisy channel translation model Goal: recover e|f) = p(f|e)p(e)/p(f) channel model language model distorted message
31. Noisy channel translation model Goal: recover e|f) = p(f|e)p(e)/p(f) channel model language model distorted message (for a given ) Bayes theorem
32. Noisy channel translation model Goal: recover e|f) = p(f|e)p(e)/p(f) channel model language model distorted message Language model Translation (channel distortion) model

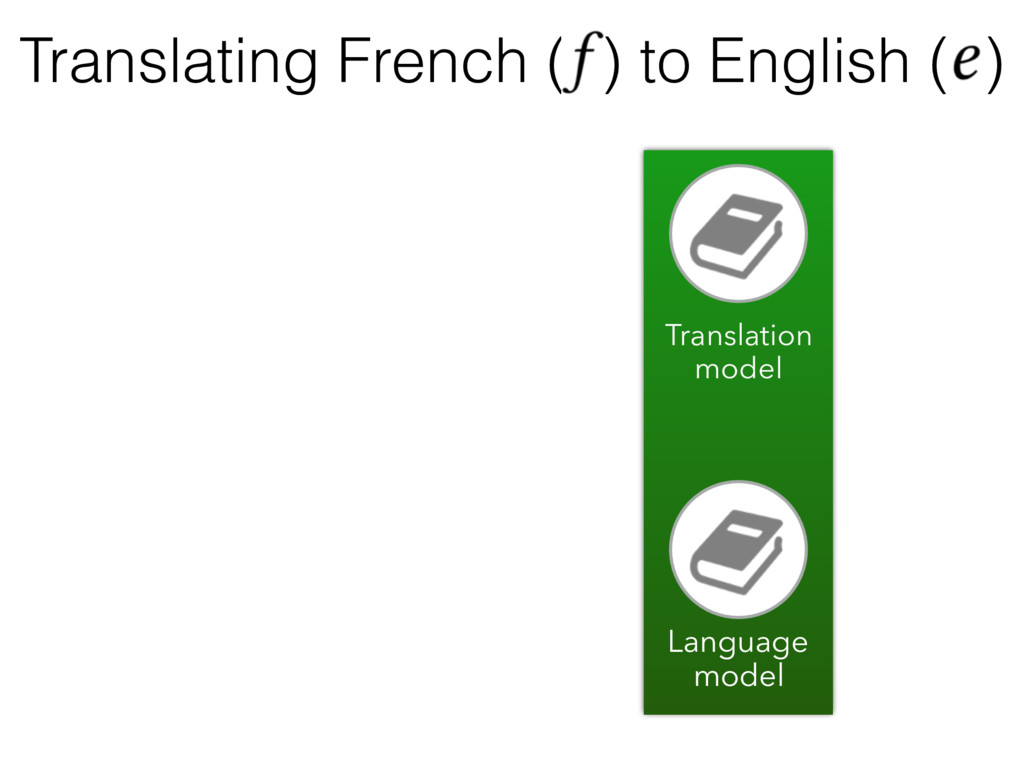

33. Language model Translation model Translating French ( ) to English ( )
34. Language model Translation model Aligned French-English Corpus Translating French ( ) to English ( )
35. English Corpus Language model Translation model Aligned French-English Corpus Translating French ( ) to English ( )
36. English Corpus Language model Translation model Aligned French-English Corpus Translating French ( ) to English ( )
37. Clear Code Corpus Language model Translation model Aligned Clear-Minified
 Code Corpus Translating minified ( ) to clear JS ( )
38. Clear Code Corpus Language model Translation model Aligned Clear-Minified
 Code Corpus Translating minified ( ) to clear JS ( ) GitHub + minifier

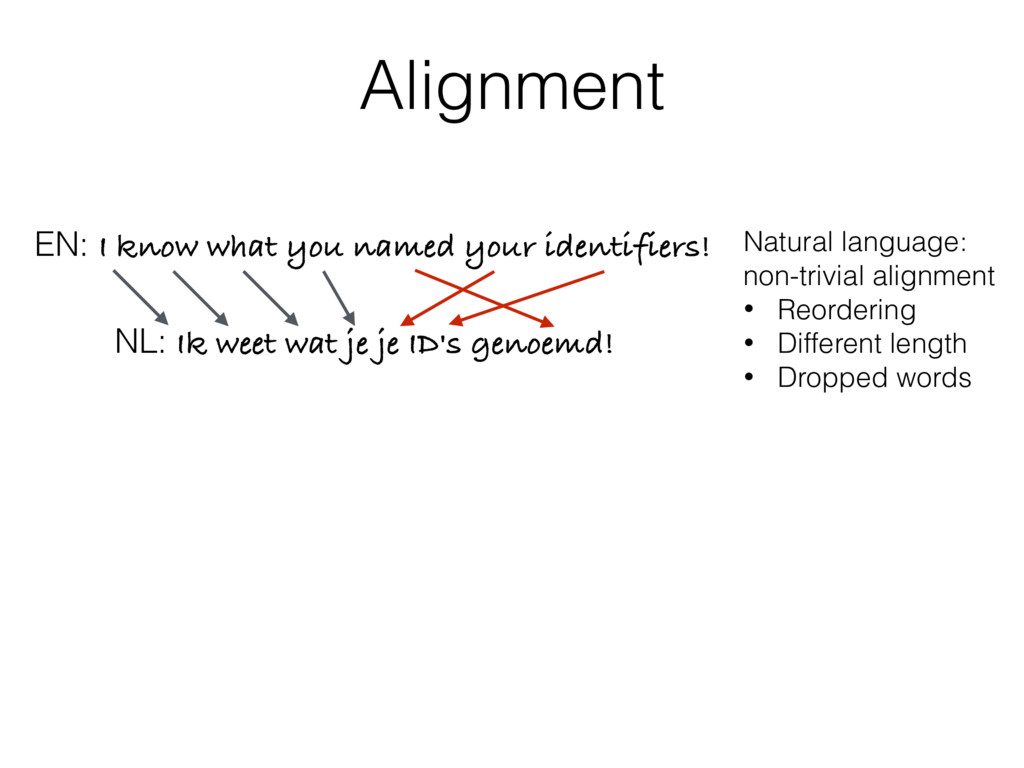

39. Alignment EN: I know what you named your identifiers! NL: Ik weet wat je je ID's genoemd! Natural language: non-trivial alignment • Reordering • Different length • Dropped words
40. Alignment EN: I know what you named your identifiers! NL: Ik weet wat je je ID's genoemd! Natural language: non-trivial alignment • Reordering • Different length • Dropped words

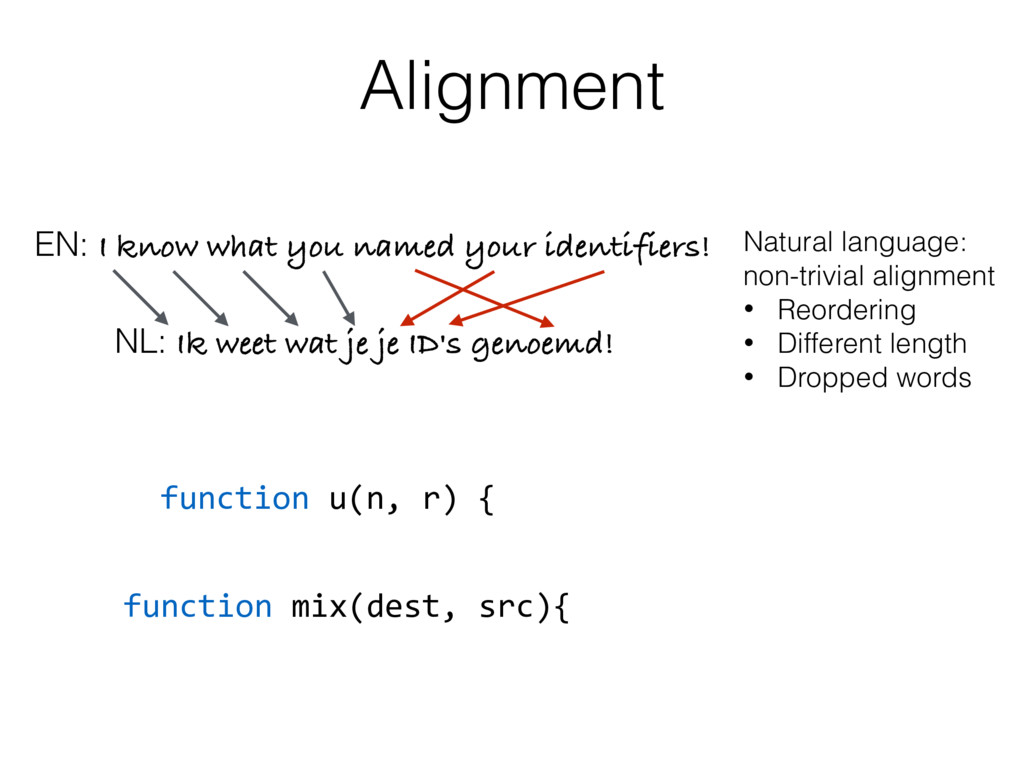

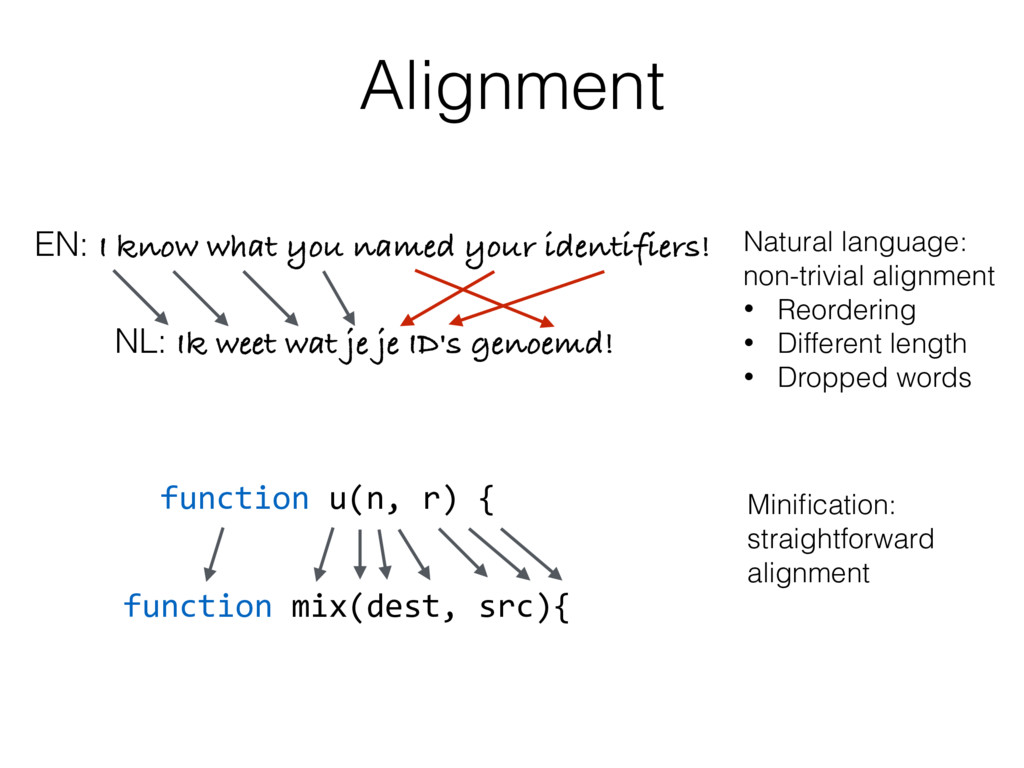

41. Alignment EN: I know what you named your identifiers! NL: Ik weet wat je je ID's genoemd! function u(n, r) { function mix(dest, src){ Natural language: non-trivial alignment • Reordering • Different length • Dropped words
42. Alignment EN: I know what you named your identifiers! NL: Ik weet wat je je ID's genoemd! function u(n, r) { function mix(dest, src){ Natural language: non-trivial alignment • Reordering • Different length • Dropped words Minification: straightforward alignment

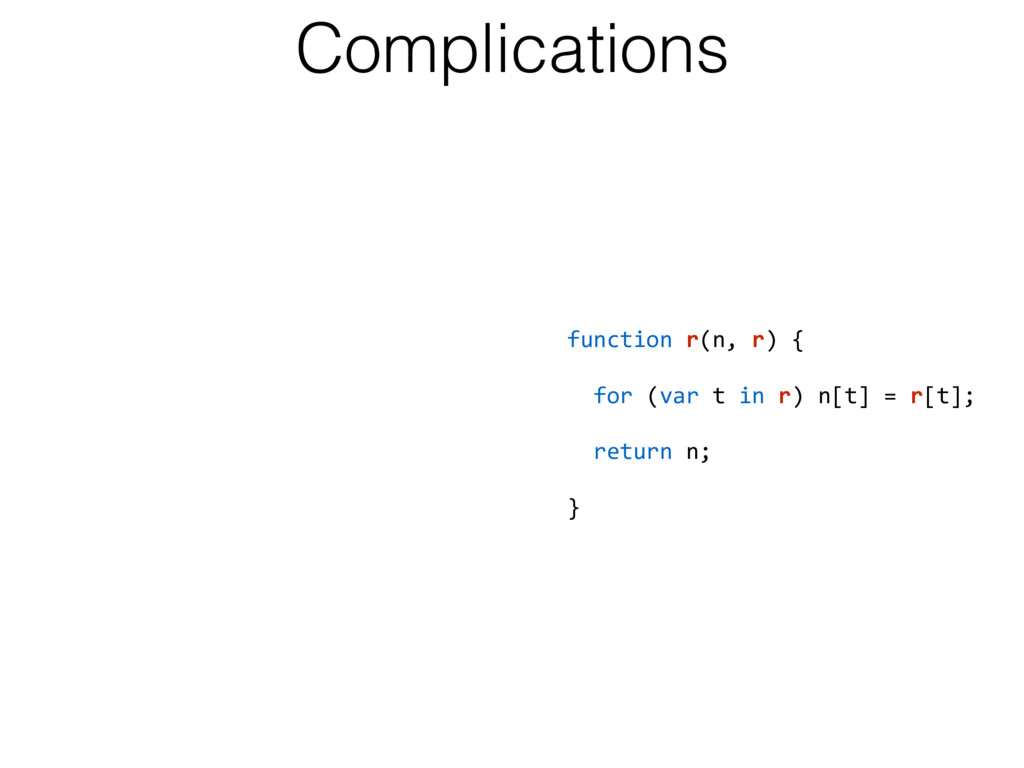

43. Complications function r(n, r) { for (var t in r) n[t] = r[t]; return n; } ?
44. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } Complications
45. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } Complications
46. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } Complications Autonym

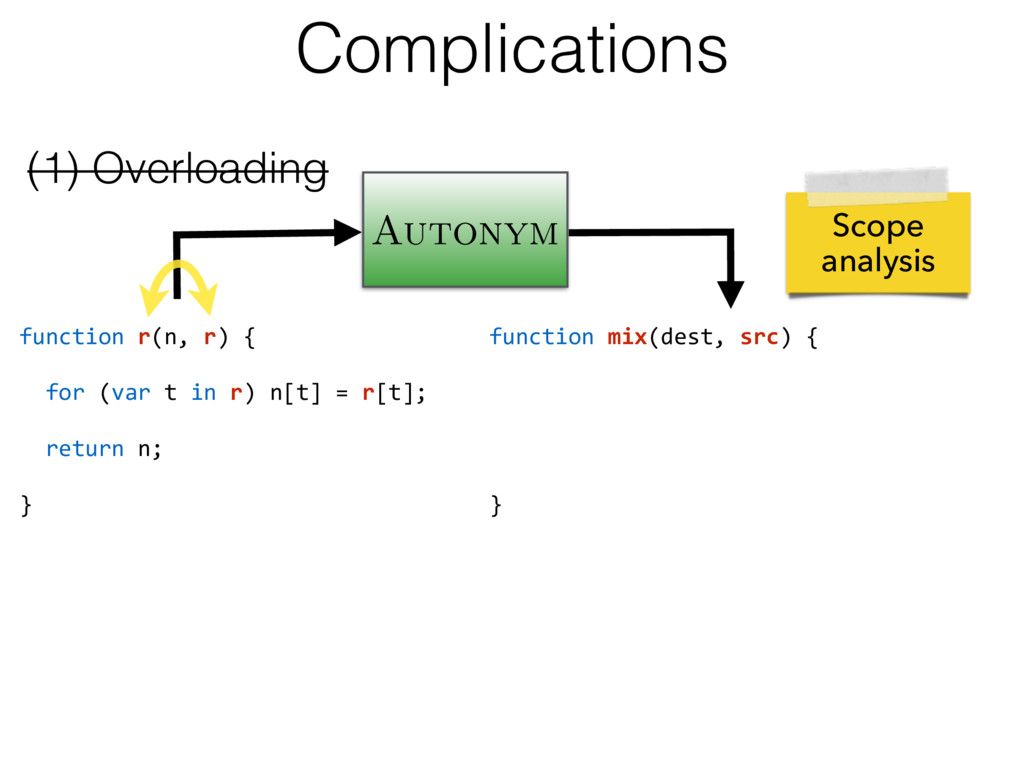

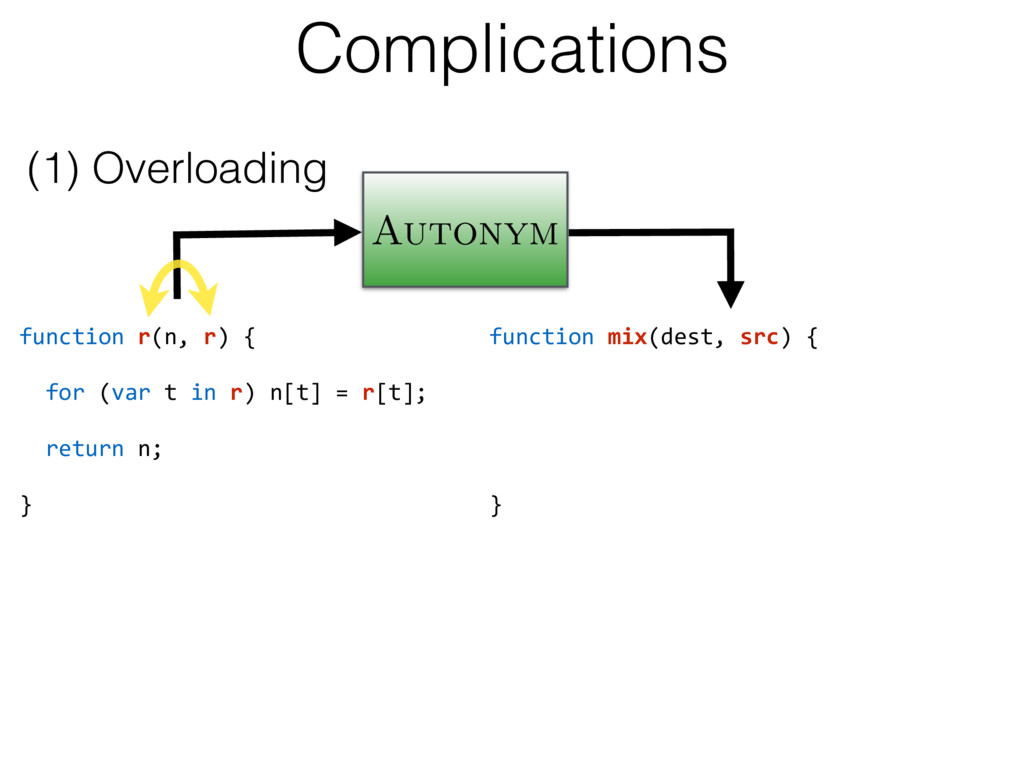

47. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } (1) Overloading function mix(dest, src) { } Complications Autonym
48. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } (1) Overloading function mix(dest, src) { } Scope analysis Complications Autonym
49. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } function mix(dest, src) { for (var k in list) dest[k] = list[k]; return dest; } (2) Consistency (Sentence-by-sentence translation) Complications Autonym
50. function r(n, r) { for (var t in r) n[t] = r[t]; return n; } function mix(dest, src) { for (var k in list) dest[k] = list[k]; return dest; } (2) Consistency (Sentence-by-sentence translation) Language model scoring Idea: try all, let language model decide which is more natural, on average, across ALL lines Language model Translation model Complications Autonym

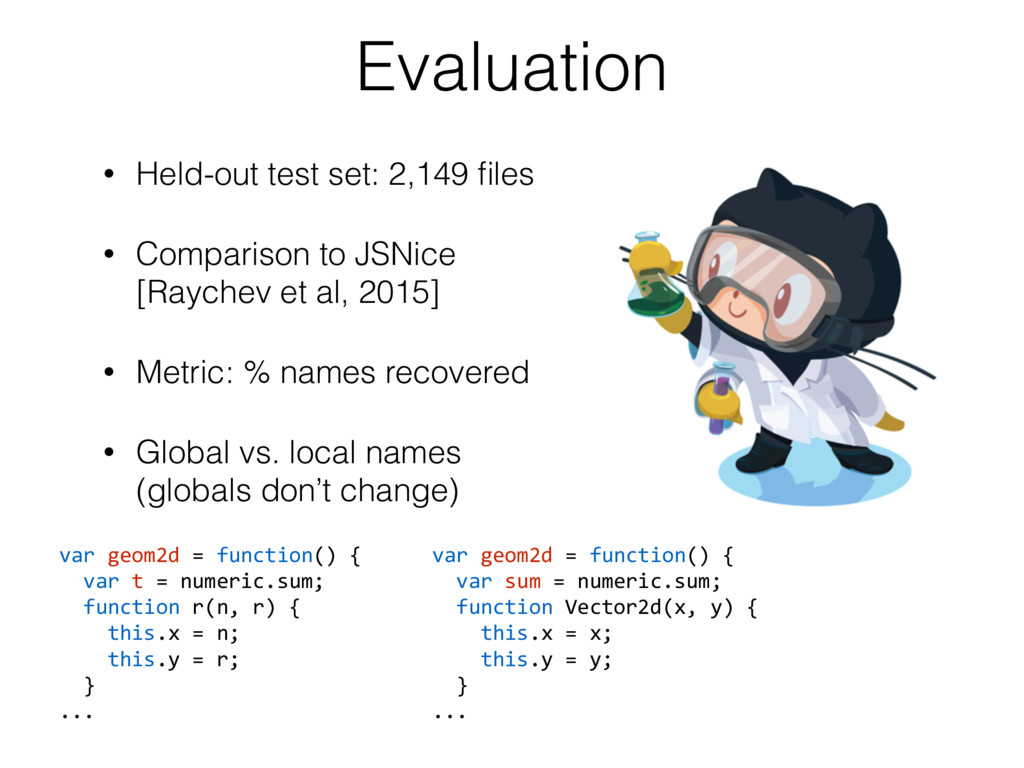

51. Evaluation • Held-out test set: 2,149 files • Comparison to JSNice [Raychev et al, 2015] • Metric: % names recovered
52. Evaluation • Held-out test set: 2,149 files • Comparison to JSNice [Raychev et al, 2015] • Metric: % names recovered • Global vs. local names (globals don’t change) var geom2d = function() { var t = numeric.sum; function r(n, r) { this.x = n; this.y = r; } ... var geom2d = function() { var sum = numeric.sum; function Vector2d(x, y) { this.x = x; this.y = y; } ...

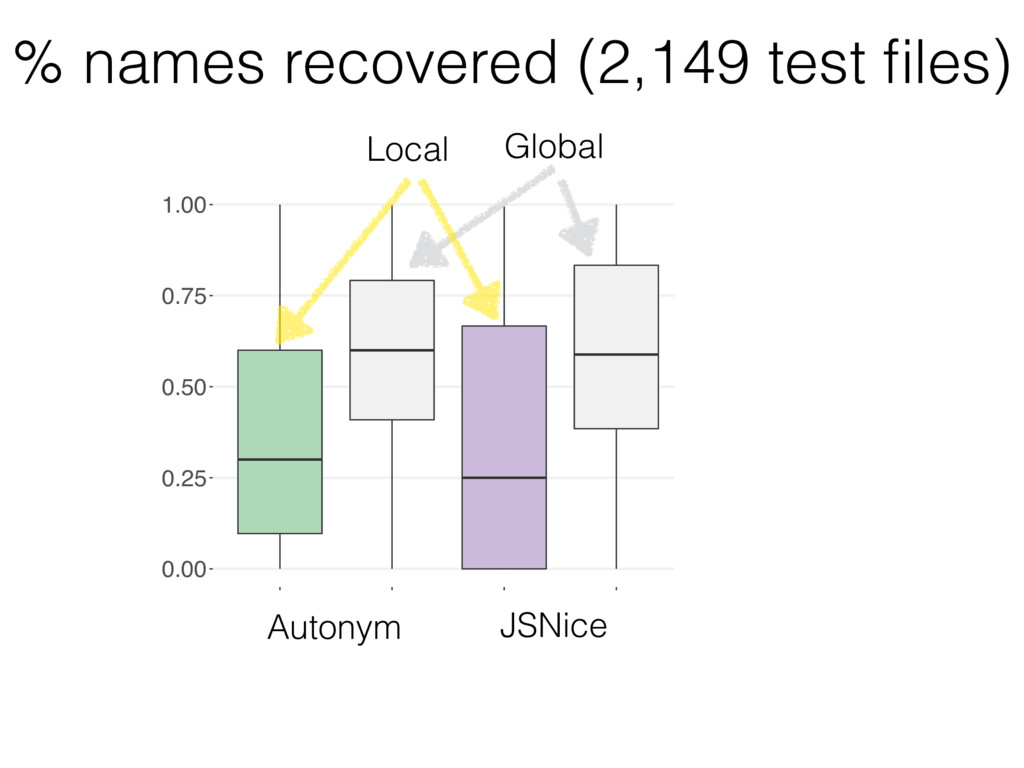

53. 0.00 0.25 0.50 0.75 1.00 Autonym (Local) Autonym (All) JSN ice (Local) JSN ice (All) JSN aughty (Local) JSN aughty (All) Renaming technique % names recovered − 2149 files % names recovered (2,149 test files) Local Global Autonym JSNice
54. 0.00 0.25 0.50 0.75 1.00 0.00 0.25 0.50 0.75 1.00 Autonym File Accuracy JSNice File Accuracy 20 40 60 Frequency Joining forces
55. Moses SMT Pre- processing Post- processing Autonym Becoming JSNaughty
56. Moses SMT Pre- processing Post- processing Autonym JSNice Becoming JSNaughty
57. 0.00 0.25 0.50 0.75 1.00 Autonym (Local) Autonym (All) JSN ice (Local) JSN ice (All) JSN aughty (Local) JSN aughty (All) Renaming technique % names recovered − 2149 files % names recovered (2,149 test files) Autonym JSNice JSNaughty Global
58. Examples 1 module . exports = http . c r e a t e S e r v e r ( function ( e , r ) { 2 var t ; 3 var i = new stream . Stream ( ) ; 4 . . . 5 var n = " " ; 6 csv ( ) . fromStream ( e ) . on ( " data " , function ( e , r ) { 7 i f ( ! t ) { . . . } 8 var a = {}; 9 ( . zip ( t , e ) ) . each ( function ( e ) { . . . } ) ; 10 i . emit ( " data " , n + JSON. s t r i n g i f y ( a ) ) ; 11 n = " ," ; 12 } ) . on ( " end " , function ( e ) { 13 i . emit ( " data " , " ]} " ) ; 14 i . emit ( " end " ) ; 15 } ) . on ( " error " , function ( e ) { 16 i . emit ( " error " , e ) ; 17 c o n s o l e . log ( " csv error " , e . message ) ; 18 } ) ; 19 } ) ; Original: error AUTONYM err JSNICE err JSNAUGHTY err Original: tuple AUTONYM tuple JSNICE key JSNAUGHTY tuple Original: headers AUTONYM headers JSNICE headers JSNAUGHTY headers Original: jsonStream AUTONYM i JSNICE s JSNAUGHTY s Original: req AUTONYM req JSNICE q JSNAUGHTY req Original: res AUTONYM res JSNICE r JSNAUGHTY res Original: separator AUTONYM data JSNICE sep JSNAUGHTY sep

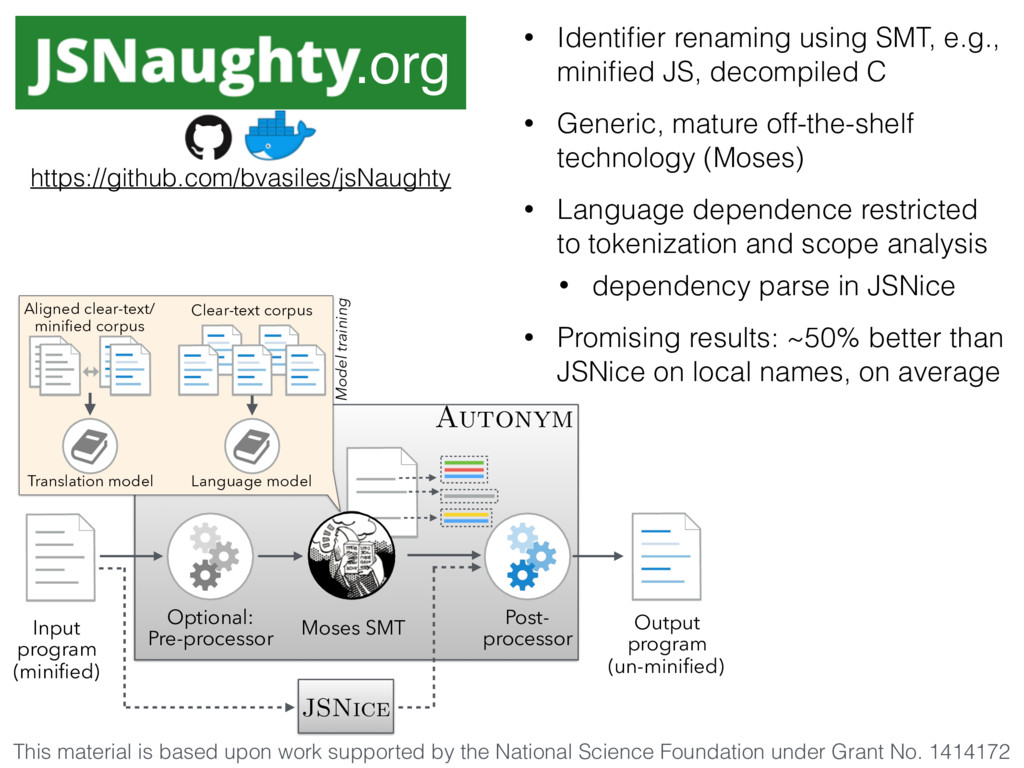

59. Input program (minified) Output program (un-minified) Moses SMT Optional: Pre-processor Post- processor Autonym JSNice Aligned clear-text/ minified corpus Language model Translation model Clear-text corpus Model training This material is based upon work supported by the National Science Foundation under Grant No. 1414172 .org https://github.com/bvasiles/jsNaughty • Identifier renaming using SMT, e.g., minified JS, decompiled C • Generic, mature off-the-shelf technology (Moses) • Language dependence restricted to tokenization and scope analysis • dependency parse in JSNice • Promising results: ~50% better than JSNice on local names, on average

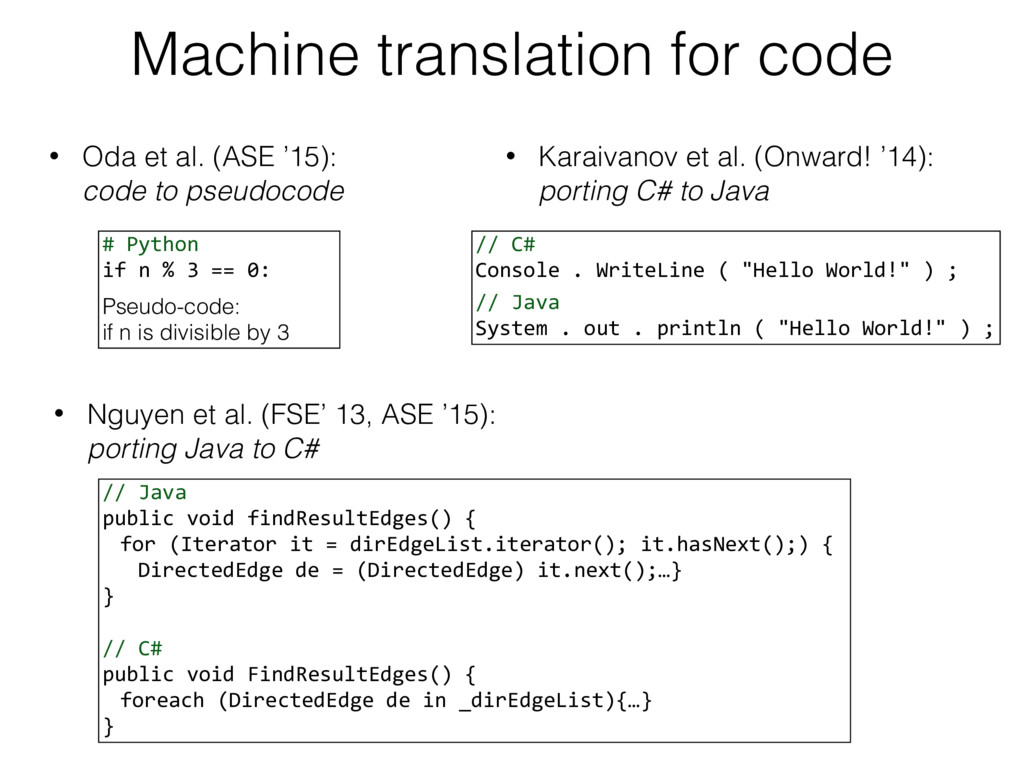

60. Machine translation for code # Python if n % 3 == 0: Pseudo-code: if n is divisible by 3 // C# Console . WriteLine ( "Hello World!" ) ; // Java System . out . println ( "Hello World!" ) ; • Oda et al. (ASE ’15): code to pseudocode • Karaivanov et al. (Onward! ’14): porting C# to Java
61. Machine translation for code # Python if n % 3 == 0: Pseudo-code: if n is divisible by 3 // C# Console . WriteLine ( "Hello World!" ) ; // Java System . out . println ( "Hello World!" ) ; • Oda et al. (ASE ’15): code to pseudocode • Karaivanov et al. (Onward! ’14): porting C# to Java // Java public void findResultEdges() { for (Iterator it = dirEdgeList.iterator(); it.hasNext();) { DirectedEdge de = (DirectedEdge) it.next();…} } // C# public void FindResultEdges() { foreach (DirectedEdge de in _dirEdgeList){…} } • Nguyen et al. (FSE’ 13, ASE ’15): porting Java to C#
