HPA autoscaling/v2beta2 の機能解説と Datadog を利用した HPA External Metrics の活用事例 / Introduction to the feature of HPA autoscaling/v2beta2 and examples of using HPA External Metrics with Datadog

Takeshi Kondo
January 21, 2021

HPA autoscaling/v2beta2 の機能解説と Datadog を利用した HPA External Metrics の活用事例 / Introduction to the feature of HPA autoscaling/v2beta2 and examples of using HPA External Metrics with Datadog

Kubernetes meetup tokyo#38

Takeshi Kondo

January 21, 2021
Tweet

More Decks by Takeshi Kondo

Other Decks in Technology

Transcript

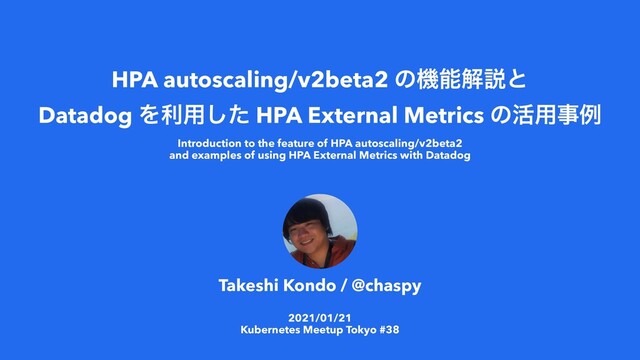

  1. HPA autoscaling/v2beta2 ͷػೳղઆͱ
    Datadog Λར༻ͨ͠ HPA External Metrics ͷ׆༻ࣄྫ
    Introduction to the feature of HPA autoscaling/v2beta2
    and examples of using HPA External Metrics with Datadog
    Takeshi Kondo / @chaspy
    2021/01/21
    Kubernetes Meetup Tokyo #38
