Containers: a Basic Look Under The Hood

An intro to containers-- what are they really? How are they different from VMs? What are the building blocks of containers and how do they fit together?

Transcript

1. Containers The basics David Julia - Jan 2015

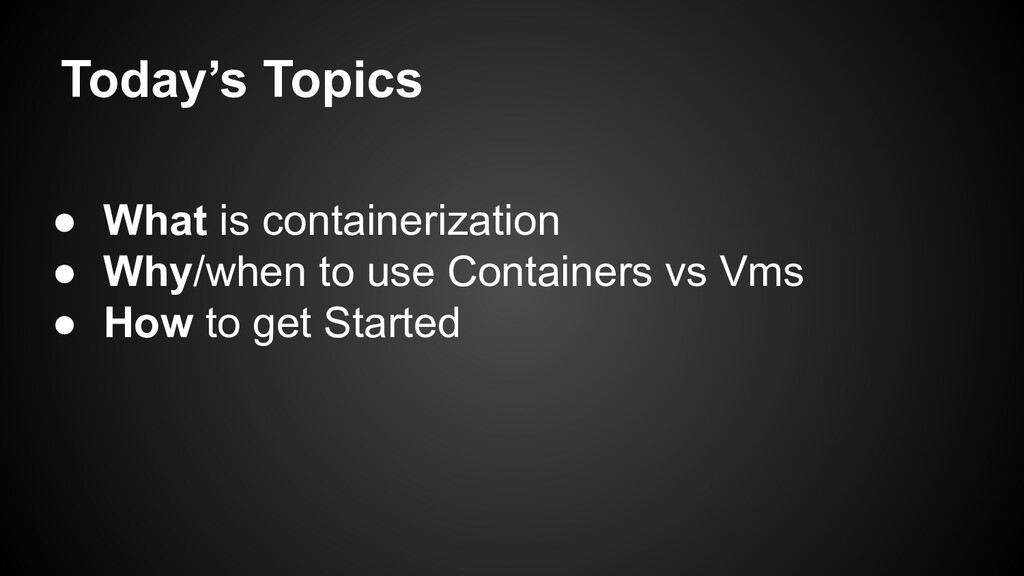

2. Today’s Topics • What is containerization • Why/when to use Containers vs Vms • How to get Started
3. What are containers? Anyone…?
4. Containerization: Working Definition “Virtualization via resource management and user space isolation at an OS level”
5. Containerization Implies... Bye Goodbye, Hypervisor
6. Containerization Implies... OS support for containerization
9. Specifically LXC and Garden-Linux (Go Pivotal!) Let’s talk Linux **lmctfy (Google’s) and others are probably very similar!
10. Linux Containerization Technologies LXC, Garden-Linux cgroups namespaces Union File System

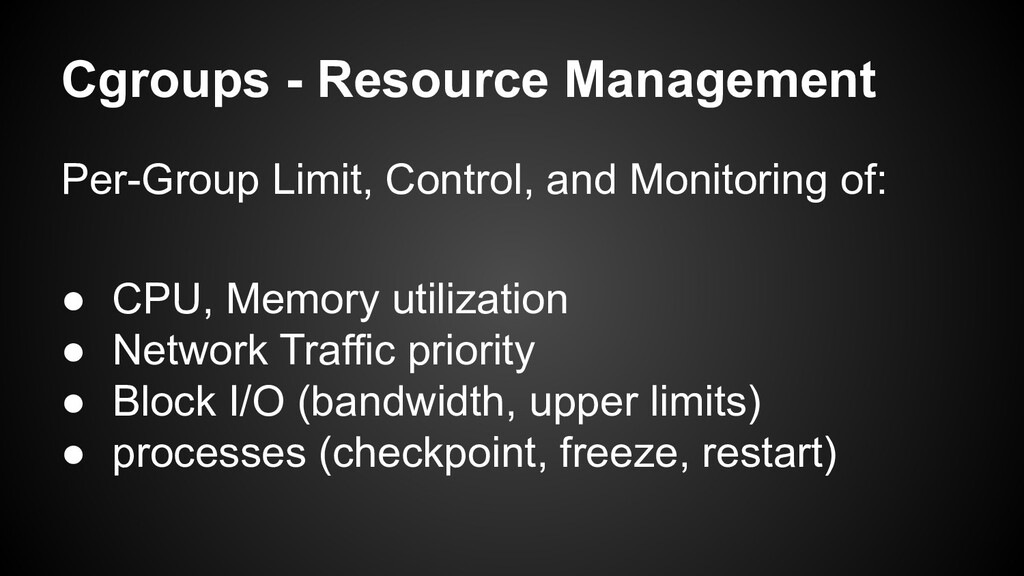

11. Cgroups - Resource Management Per-Group Limit, Control, and Monitoring of: • CPU, Memory utilization • Network Traffic priority • Block I/O (bandwidth, upper limits) • processes (checkpoint, freeze, restart)

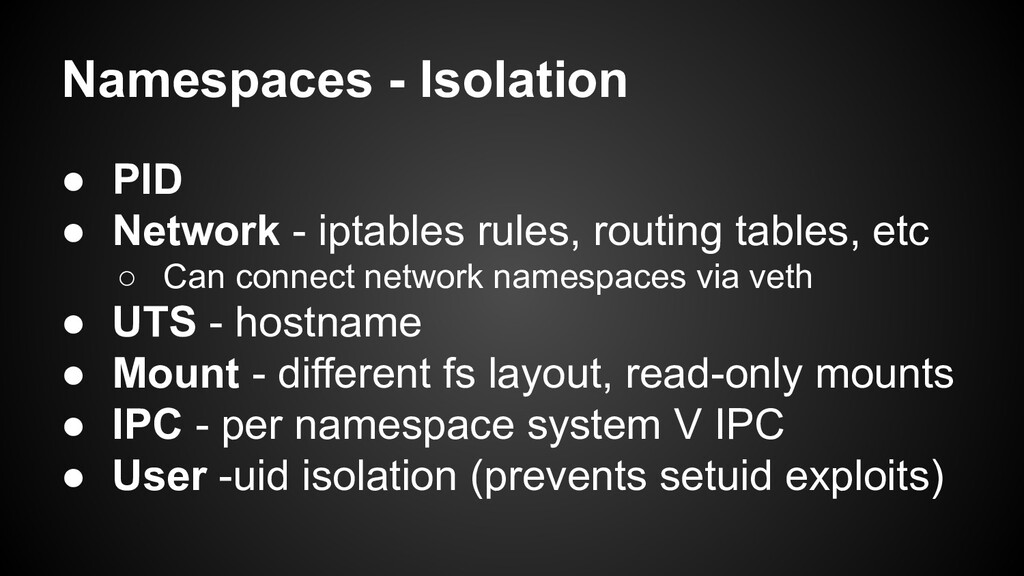

12. Namespaces - Isolation • PID • Network - iptables rules, routing tables, etc ◦ Can connect network namespaces via veth • UTS - hostname • Mount - different fs layout, read-only mounts • IPC - per namespace system V IPC • User -uid isolation (prevents setuid exploits)

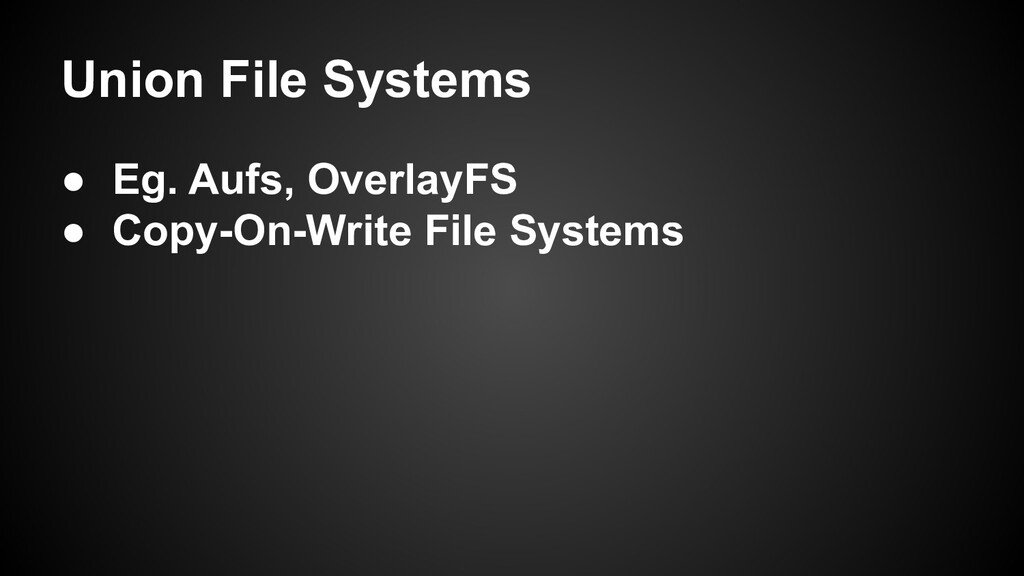

13. Union File Systems • Eg. Aufs, OverlayFS • Copy-On-Write File Systems

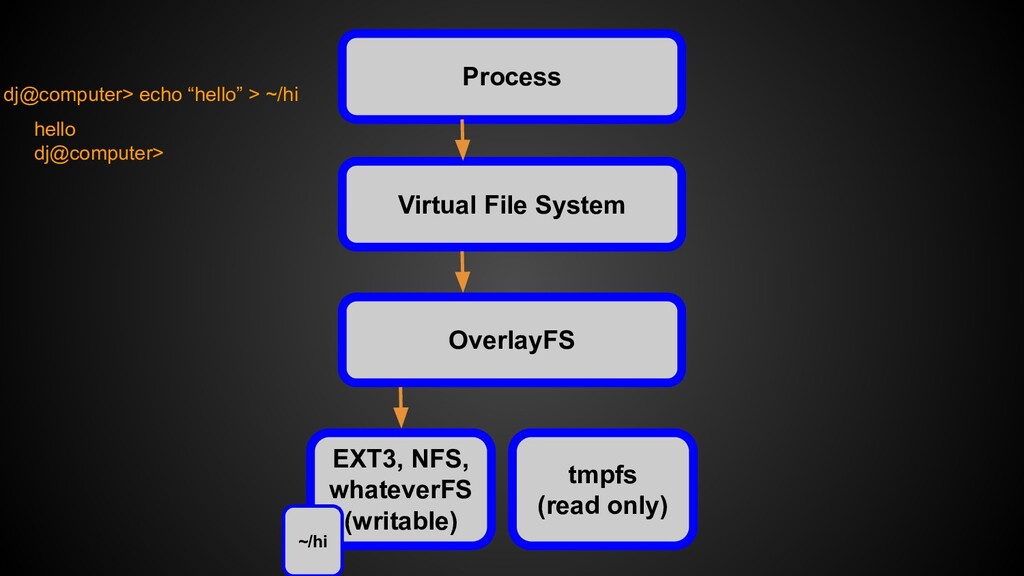

14. Process Virtual File System OverlayFS tmpfs (read only) EXT3, NFS, whateverFS (writable) dj@computer> echo “hello” > ~/hi hello dj@computer> ~/hi

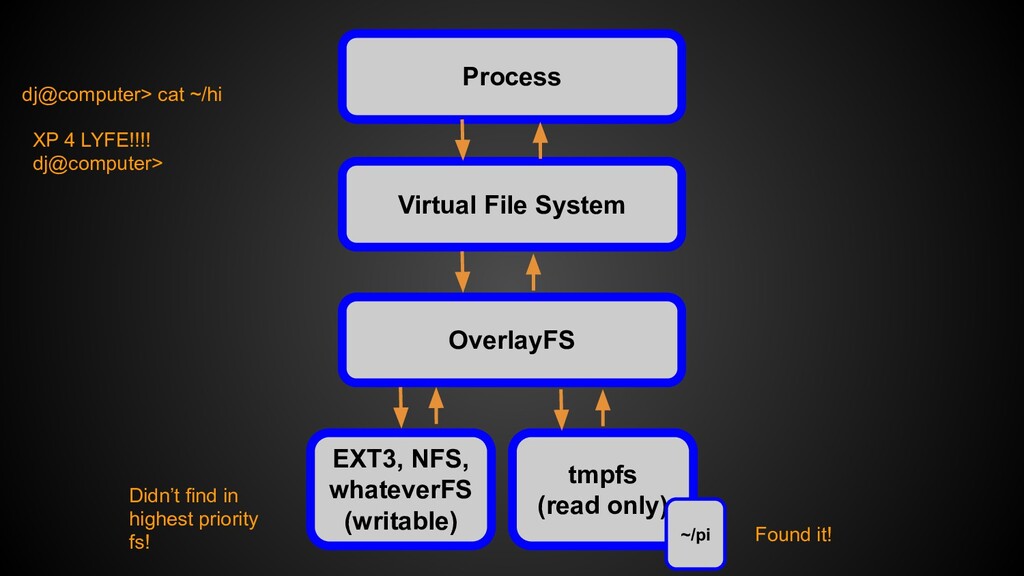

15. Process Virtual File System OverlayFS tmpfs (read only) EXT3, NFS, whateverFS (writable) dj@computer> cat ~/hi XP 4 LYFE!!!! dj@computer> ~/hi Found it!
16. Process Virtual File System OverlayFS tmpfs (read only) EXT3, NFS, whateverFS (writable) dj@computer> cat ~/hi XP 4 LYFE!!!! dj@computer> ~/pi Found it! Didn’t find in highest priority fs!
17. Containers Divorce OS provisioning from machine provisioning Divorces app environment provisioning from OS provisioning Virtual Machines
18. Containers Virtualized devices (network, disk) -different OS entirely -kernel modules for guest additions Moderated access to devices -same kernel as host Virtual Machines
19. Containers Provisioning: 10 minutes Resource intensive Snapshotting: Minutes, disk intensive Provisioning: <1 sec, no real resource drain Snapshotting: Seconds Virtual Machines

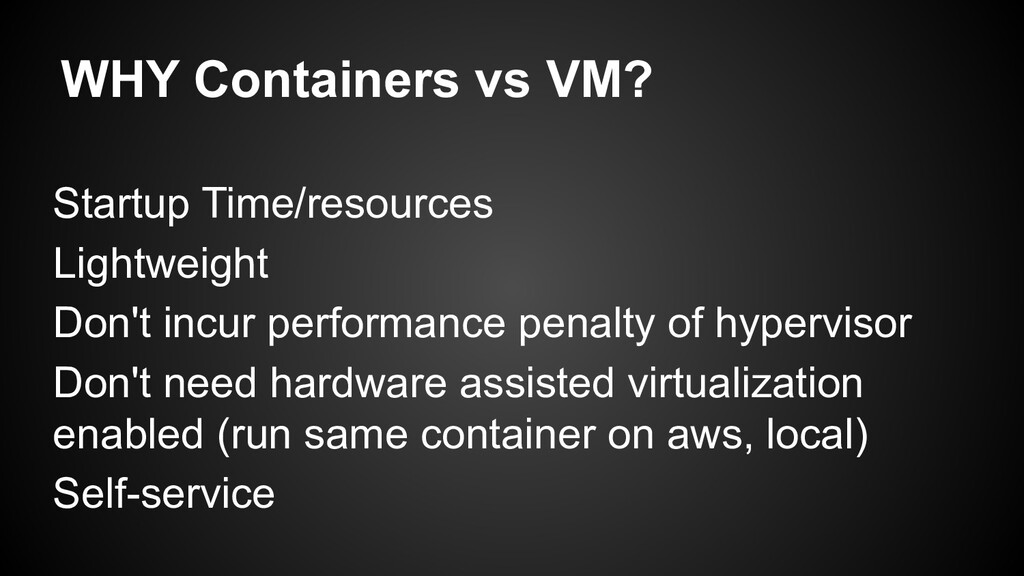

20. WHY Containers vs VM? Startup Time/resources Lightweight Don't incur performance penalty of hypervisor Don't need hardware assisted virtualization enabled (run same container on aws, local) Self-service

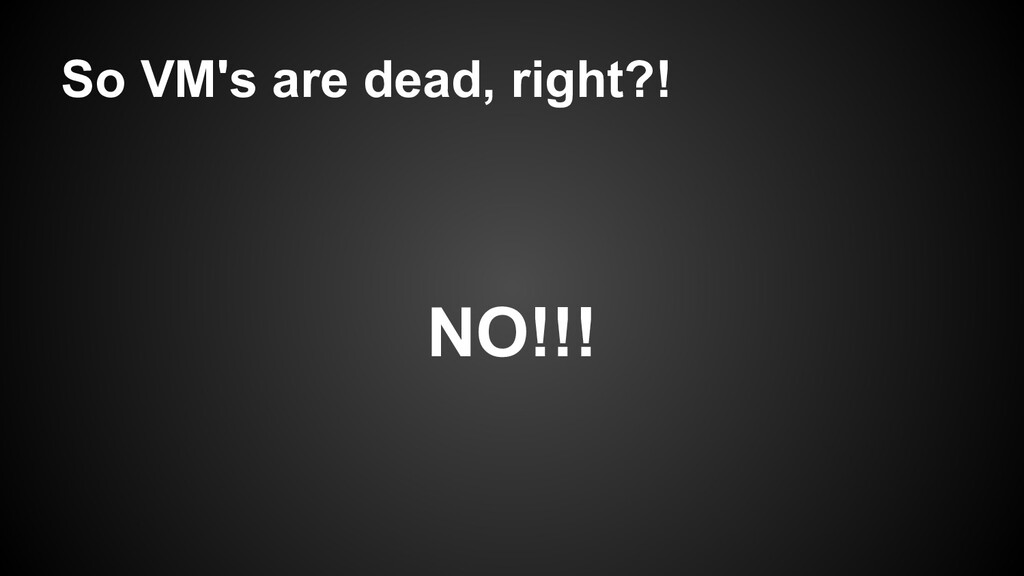

21. So VM's are dead, right?! NO!!!

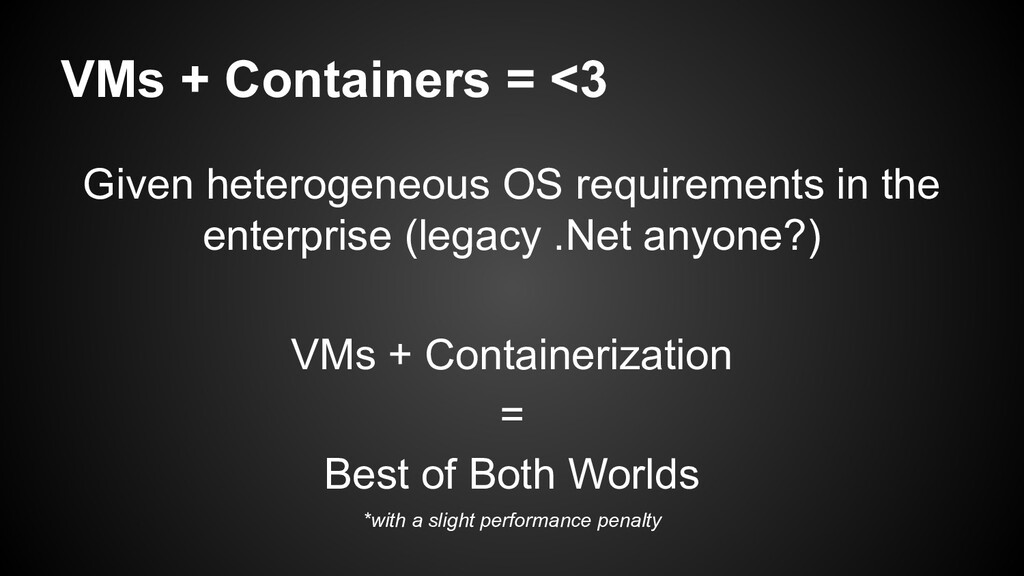

22. VMs + Containers = <3 Given heterogeneous OS requirements in the enterprise (legacy .Net anyone?) VMs + Containerization = Best of Both Worlds *with a slight performance penalty

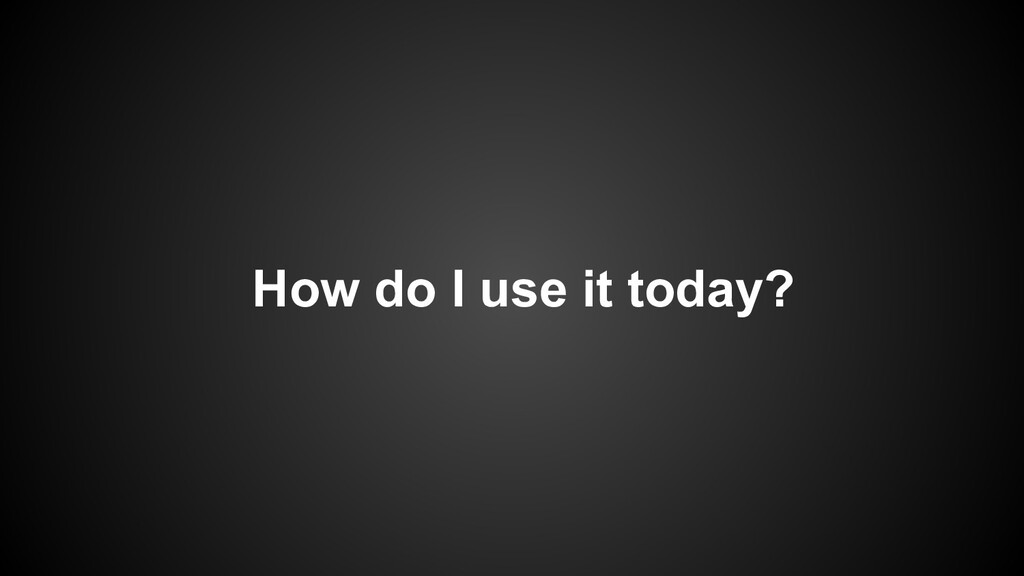

23. How do I use it today?
24. cf push

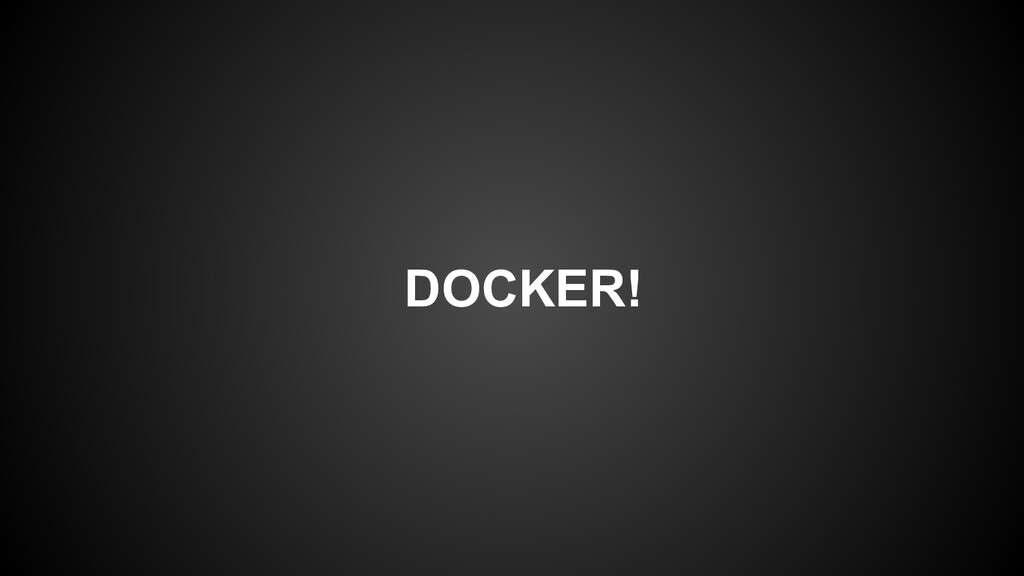

25. DOCKER!
26. Docker User Friendly Layer! LXC, Garden-Linux cgroups namespaces Union File System
27. Docker • Application-centric, not server-centric • User/Deployment Friendly: ◦ Versioned Images ◦ Central Image Repo ◦ Useful/Easy CLI ◦ easy to mount shared writable volumes ◦ easy to pass in env vars from host
28. Docker: Build an Image locally: >docker build myImage >docker tag myImage:v1 >docker push myImage:v1
29. Docker: Deploy On server: >docker pull myImage:v1 >docker run myImage -e SECRET=”sauce” \ -e COOL_ENV_VAR_FROM_SERVER
30. Use Case For TODAY Test/Build Infrastructure! • CI pulls/runs the same docker images that devs use locally • Self-Service CI- No more waiting on ops • Builds can do crazy destructive things in containers, who cares!

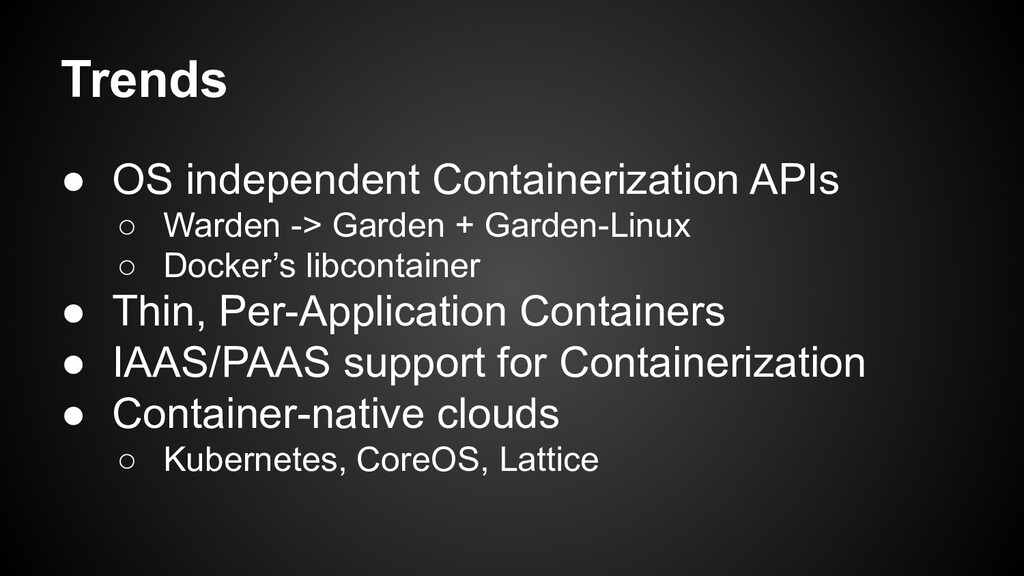

31. Trends • OS independent Containerization APIs ◦ Warden -> Garden + Garden-Linux ◦ Docker’s libcontainer • Thin, Per-Application Containers • IAAS/PAAS support for Containerization • Container-native clouds ◦ Kubernetes, CoreOS, Lattice
