1. Ruby Debugger API Dennis Ushakov or how I stopped worrying and wrote debugger core

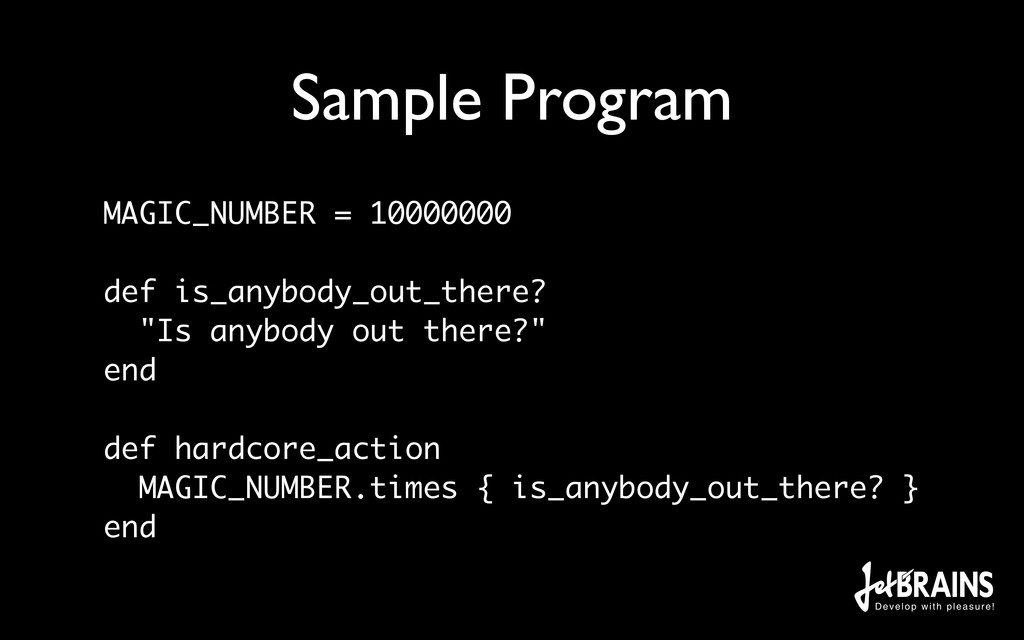

2. Sample Program MAGIC_NUMBER = 10000000 ! def is_anybody_out_there? "Is anybody out there?" end ! def hardcore_action MAGIC_NUMBER.times { is_anybody_out_there? } end

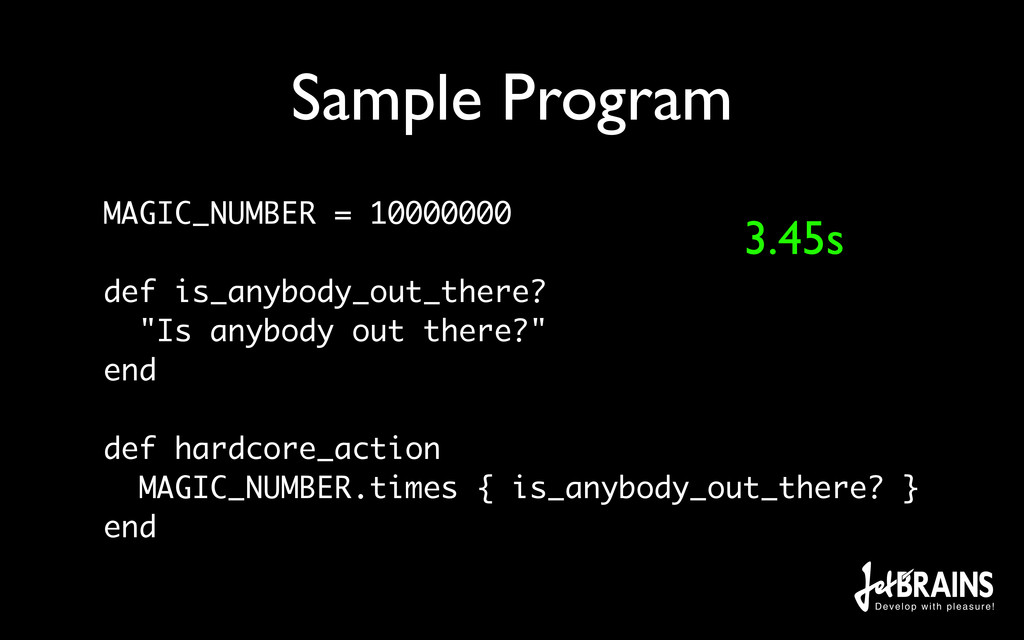

3. Sample Program MAGIC_NUMBER = 10000000 ! def is_anybody_out_there? "Is anybody out there?" end ! def hardcore_action MAGIC_NUMBER.times { is_anybody_out_there? } end 3.45s
4. set_trace_func set_trace_func proc {
 |event,file,line,id,binding,classname|
 }

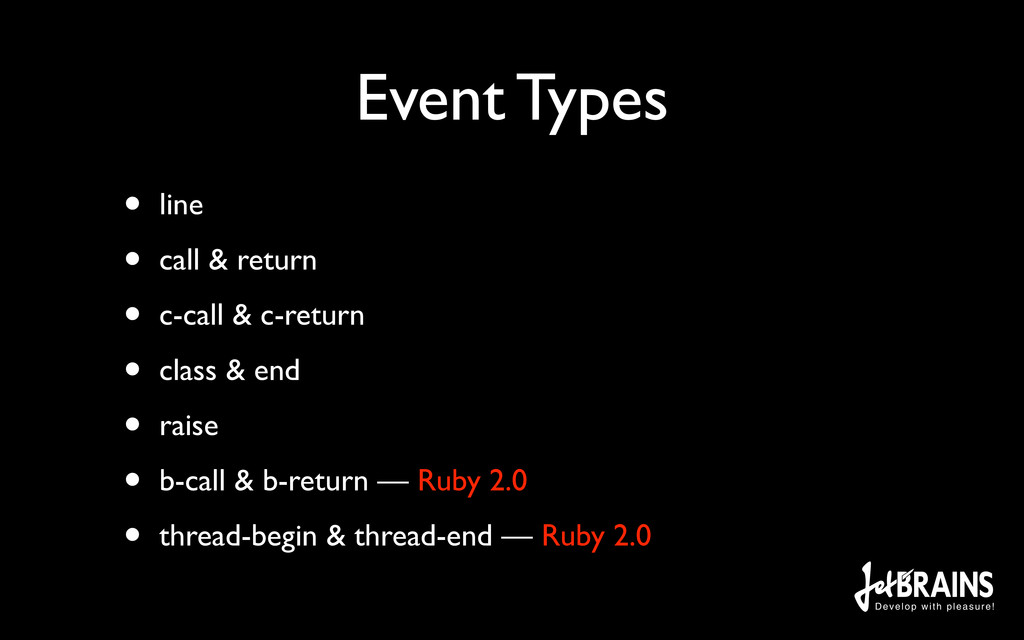

5. Event Types • line • call & return • c-call & c-return • class & end • raise • b-call & b-return — Ruby 2.0 • thread-begin & thread-end — Ruby 2.0

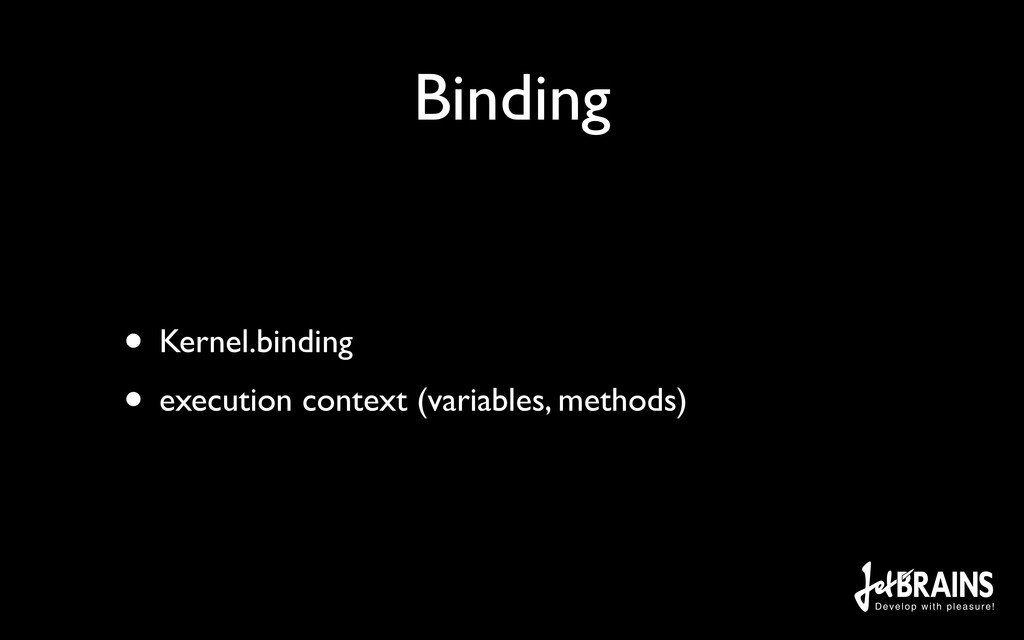

6. Binding • Kernel.binding • execution context (variables, methods)

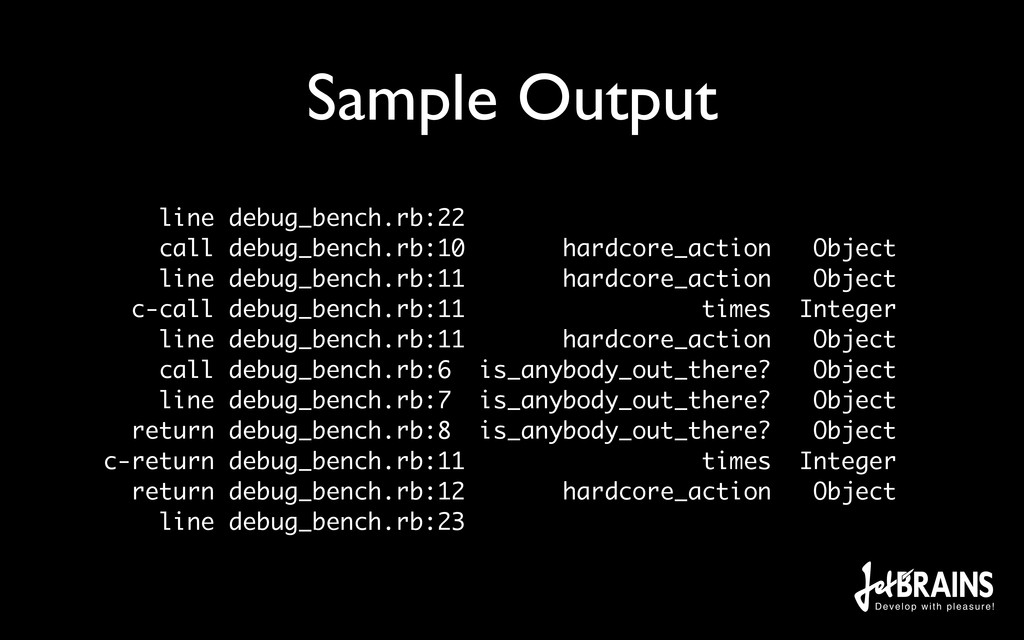

7. Sample Output line debug_bench.rb:22
 call debug_bench.rb:10 hardcore_action Object
 line debug_bench.rb:11 hardcore_action Object
 c-call debug_bench.rb:11 times Integer
 line debug_bench.rb:11 hardcore_action Object
 call debug_bench.rb:6 is_anybody_out_there? Object
 line debug_bench.rb:7 is_anybody_out_there? Object
 return debug_bench.rb:8 is_anybody_out_there? Object
 c-return debug_bench.rb:11 times Integer
 return debug_bench.rb:12 hardcore_action Object
 line debug_bench.rb:23

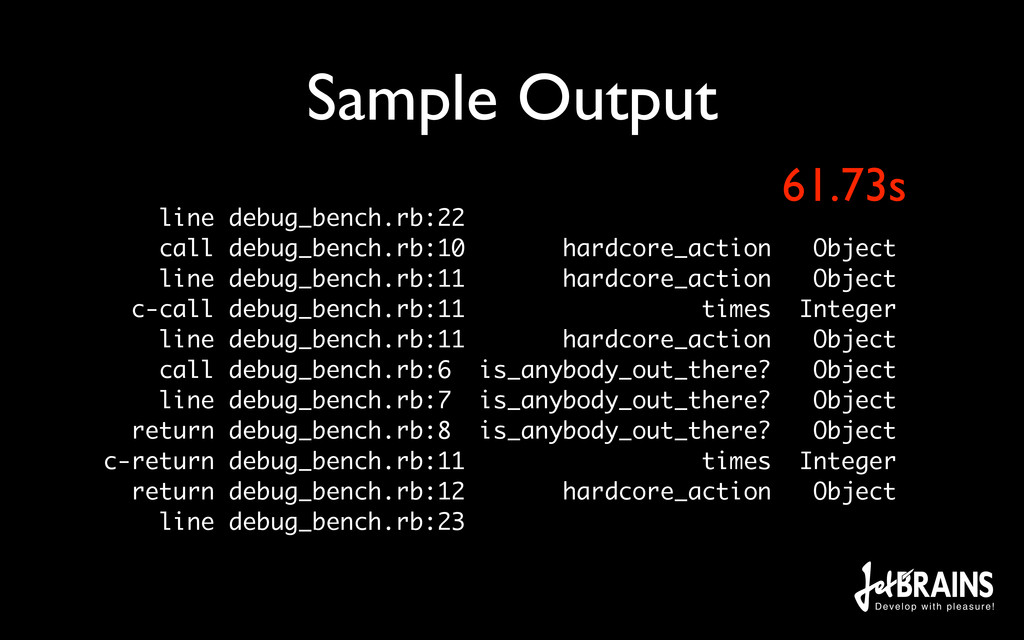

8. Sample Output line debug_bench.rb:22
 call debug_bench.rb:10 hardcore_action Object
 line debug_bench.rb:11 hardcore_action Object
 c-call debug_bench.rb:11 times Integer
 line debug_bench.rb:11 hardcore_action Object
 call debug_bench.rb:6 is_anybody_out_there? Object
 line debug_bench.rb:7 is_anybody_out_there? Object
 return debug_bench.rb:8 is_anybody_out_there? Object
 c-return debug_bench.rb:11 times Integer
 return debug_bench.rb:12 hardcore_action Object
 line debug_bench.rb:23 61.73s

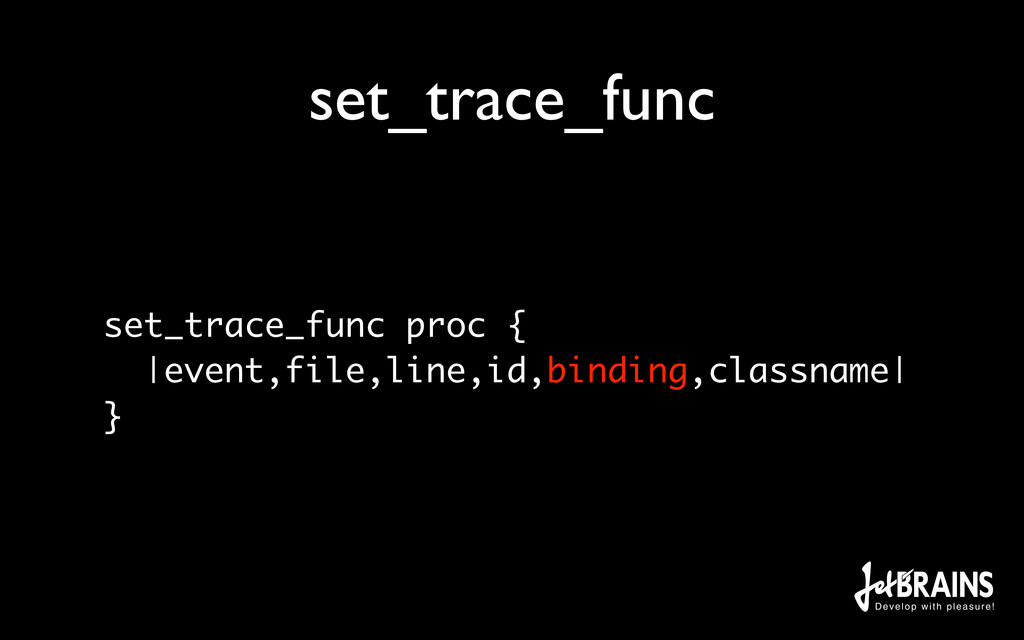

9. set_trace_func set_trace_func proc {
 |event,file,line,id,binding,classname|
 }

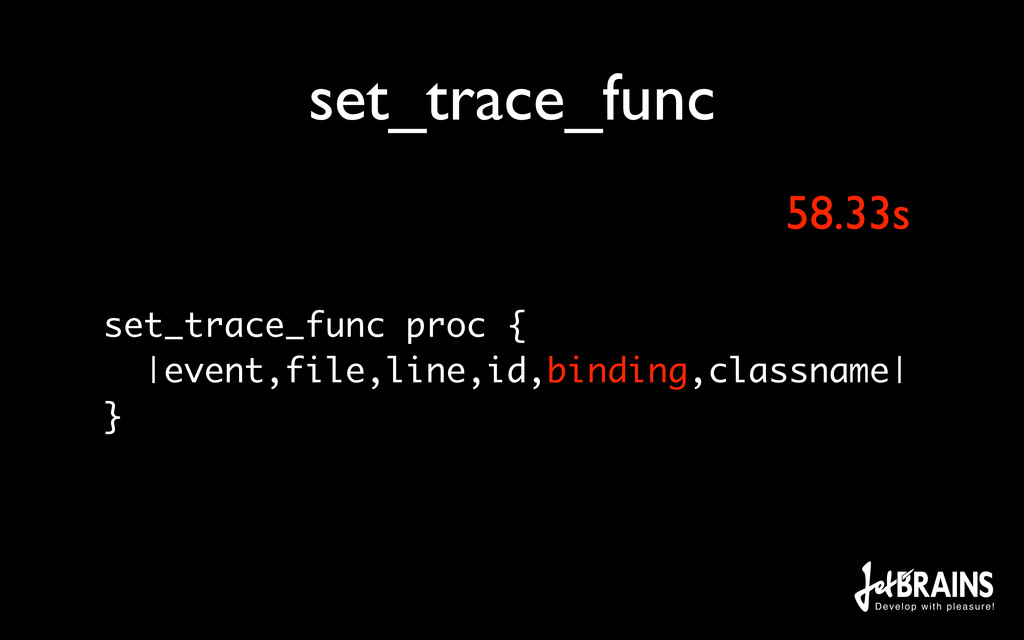

10. set_trace_func set_trace_func proc {
 |event,file,line,id,binding,classname|
 } 58.33s

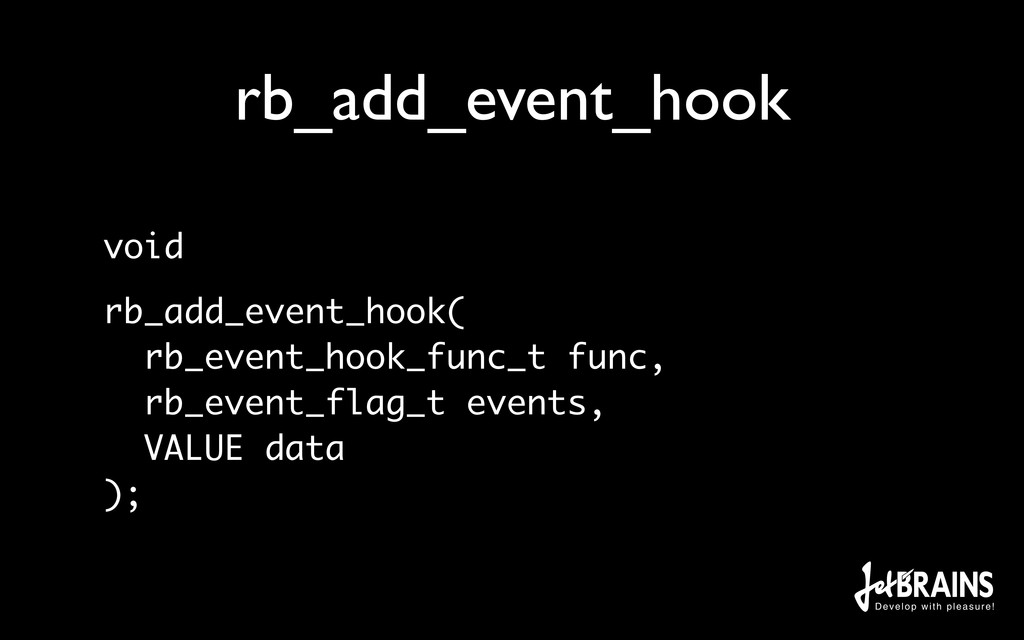

11. rb_add_event_hook void rb_add_event_hook(
 rb_event_hook_func_t func,
 rb_event_flag_t events,
 VALUE data
 );

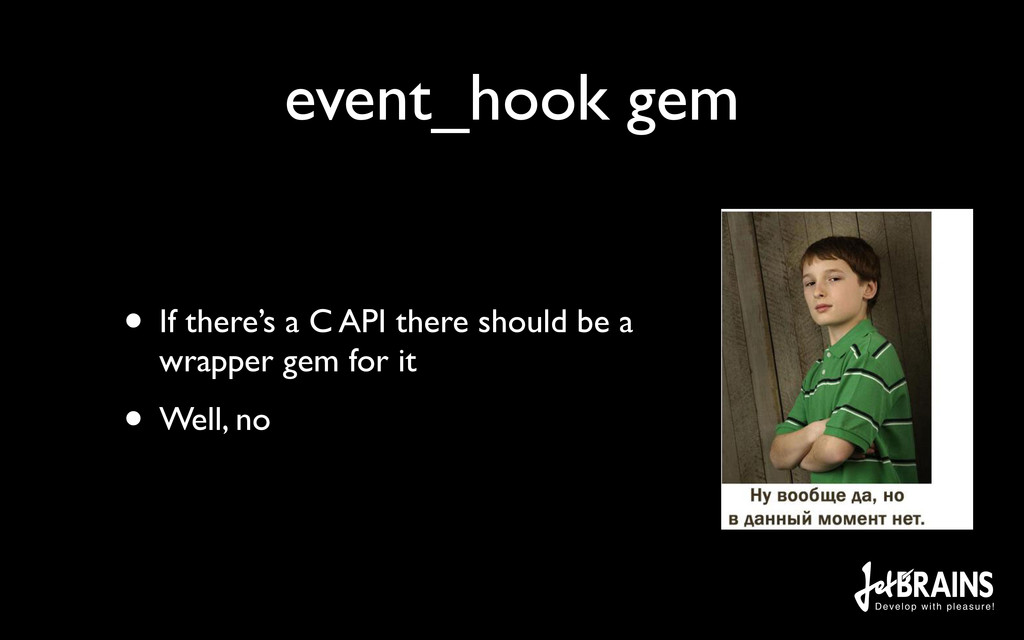

12. event_hook gem • If there’s a C API there should be a wrapper gem for it • Well, no

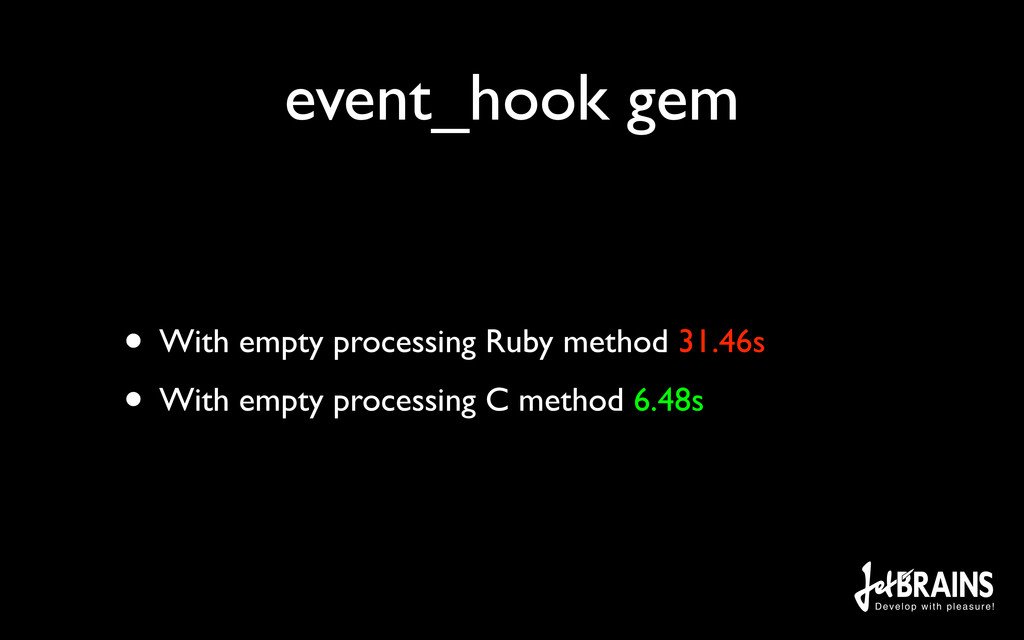

13. event_hook gem • With empty processing Ruby method 31.46s • With empty processing C method 6.48s

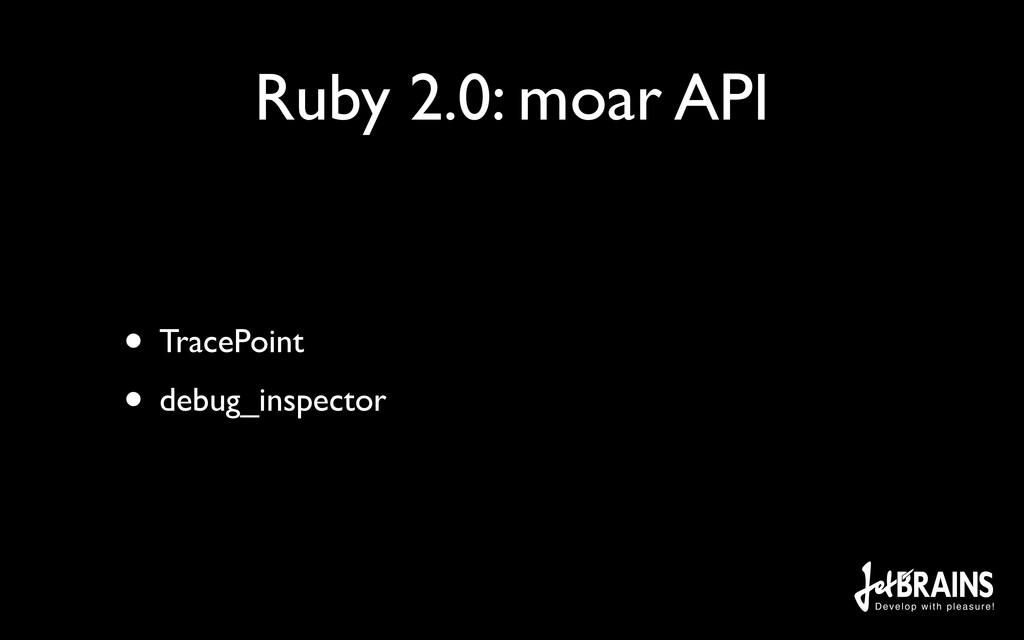

14. Ruby 2.0: moar API • TracePoint • debug_inspector

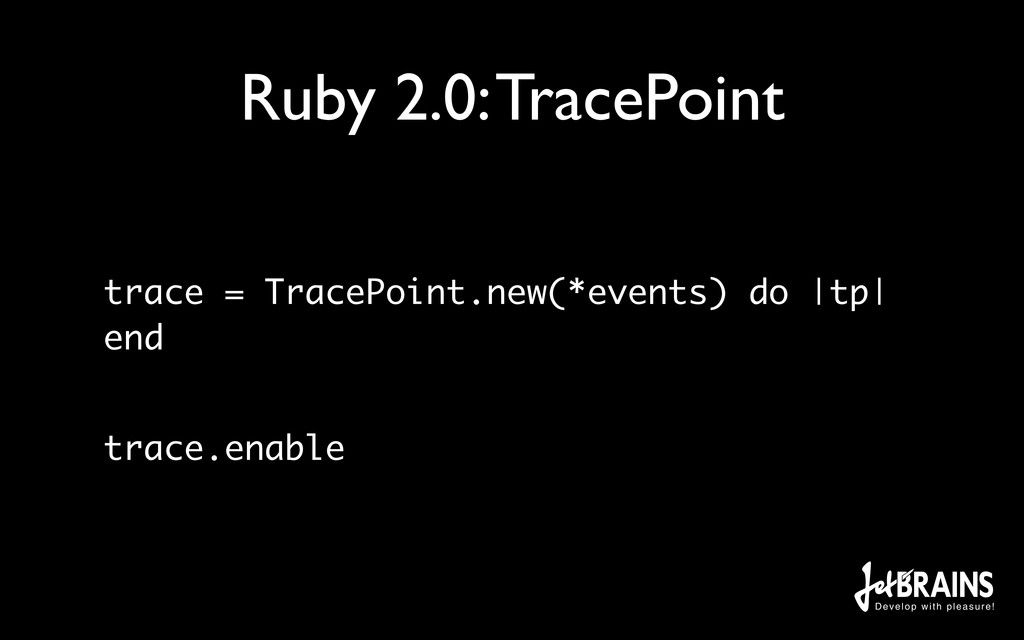

15. Ruby 2.0: TracePoint trace = TracePoint.new(*events) do |tp|
 end
 trace.enable

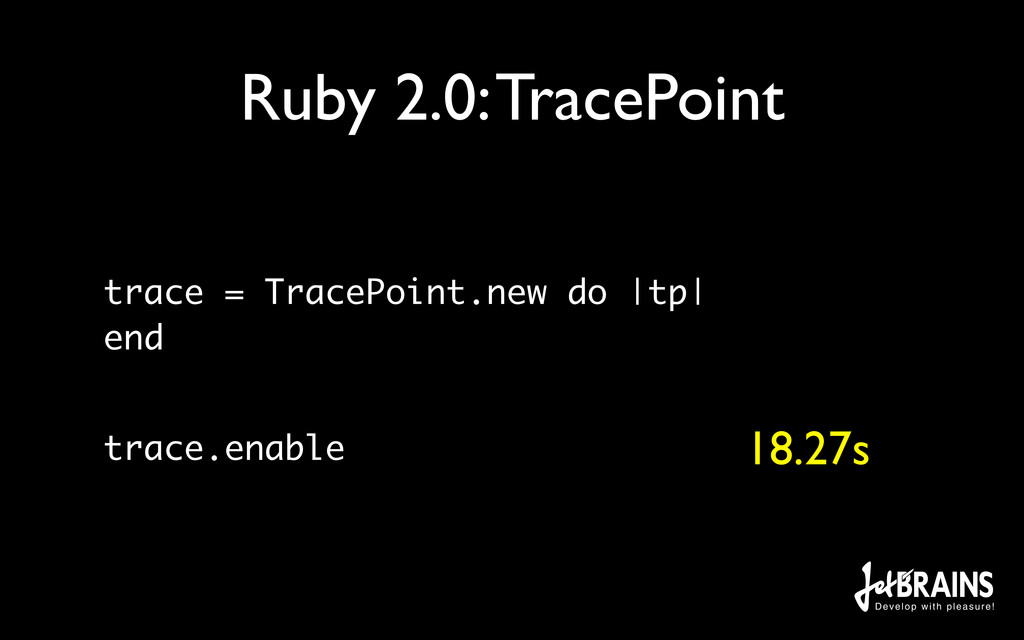

16. Ruby 2.0: TracePoint trace = TracePoint.new do |tp|
 end
 trace.enable 18.27s

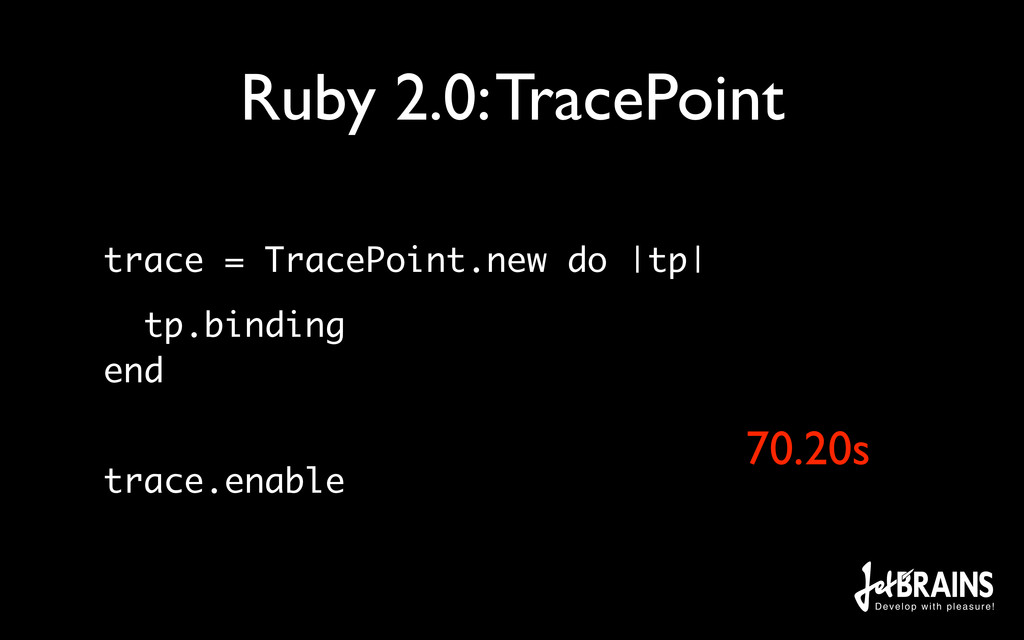

17. Ruby 2.0: TracePoint trace = TracePoint.new do |tp| tp.binding
 end
 trace.enable 70.20s

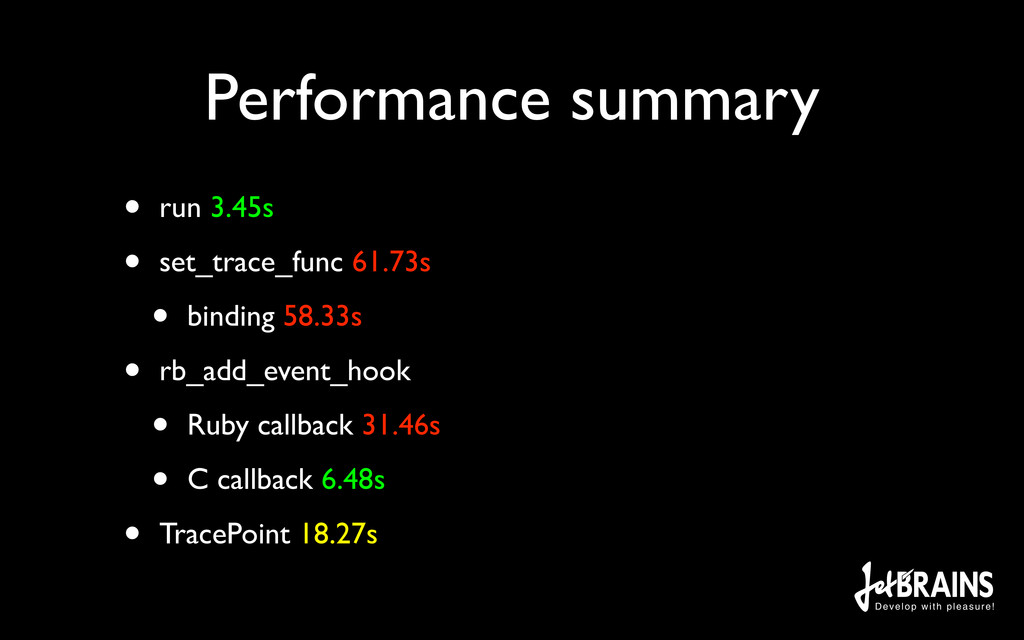

18. Performance summary • run 3.45s • set_trace_func 61.73s • binding 58.33s • rb_add_event_hook • Ruby callback 31.46s • C callback 6.48s • TracePoint 18.27s

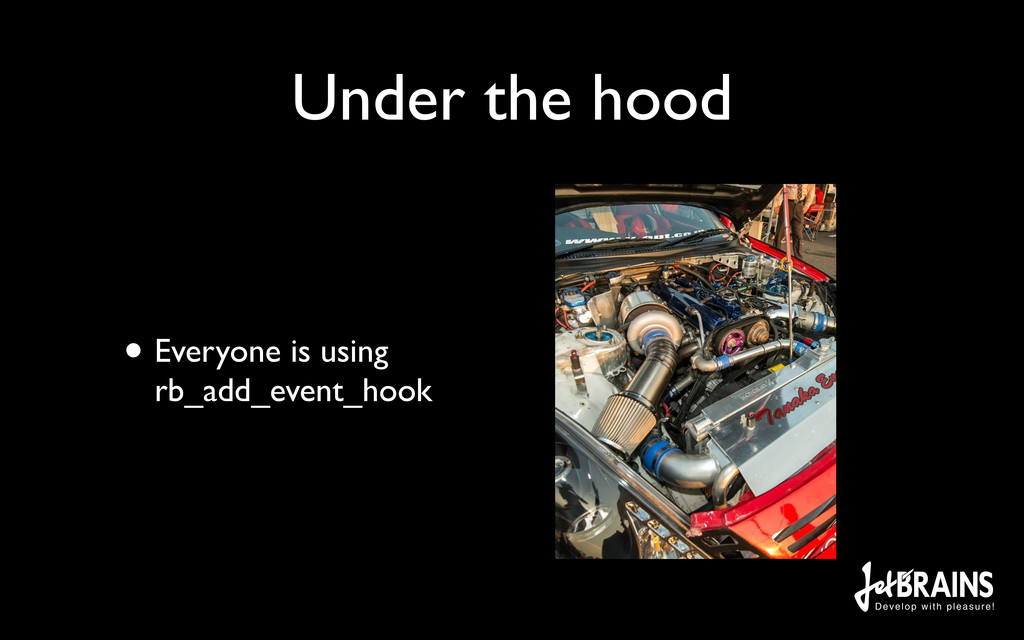

19. Under the hood • Everyone is using rb_add_event_hook

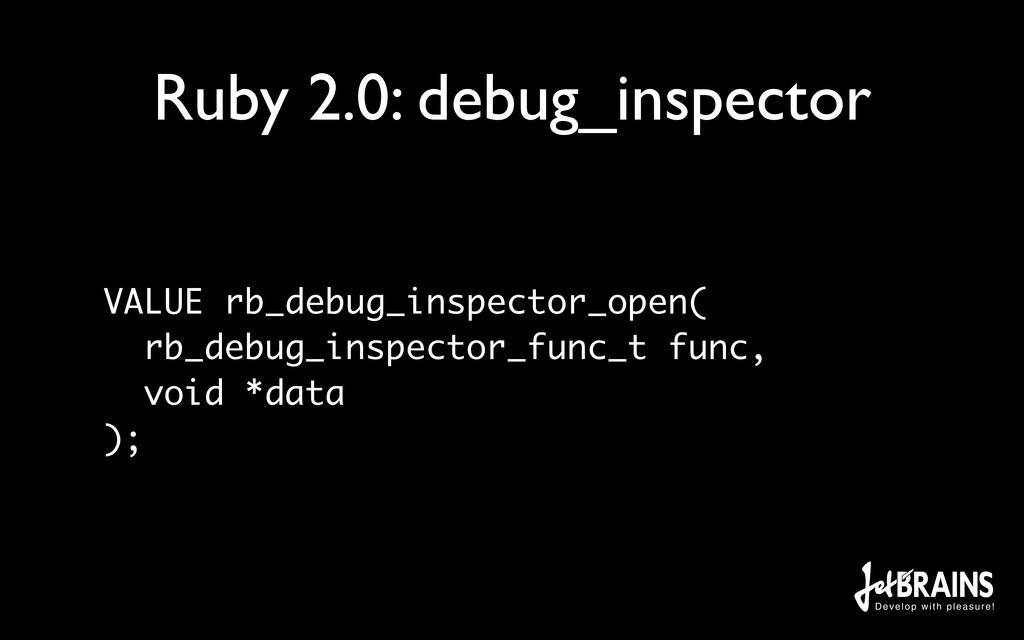

20. Ruby 2.0: debug_inspector VALUE rb_debug_inspector_open(
 rb_debug_inspector_func_t func,
 void *data
 );

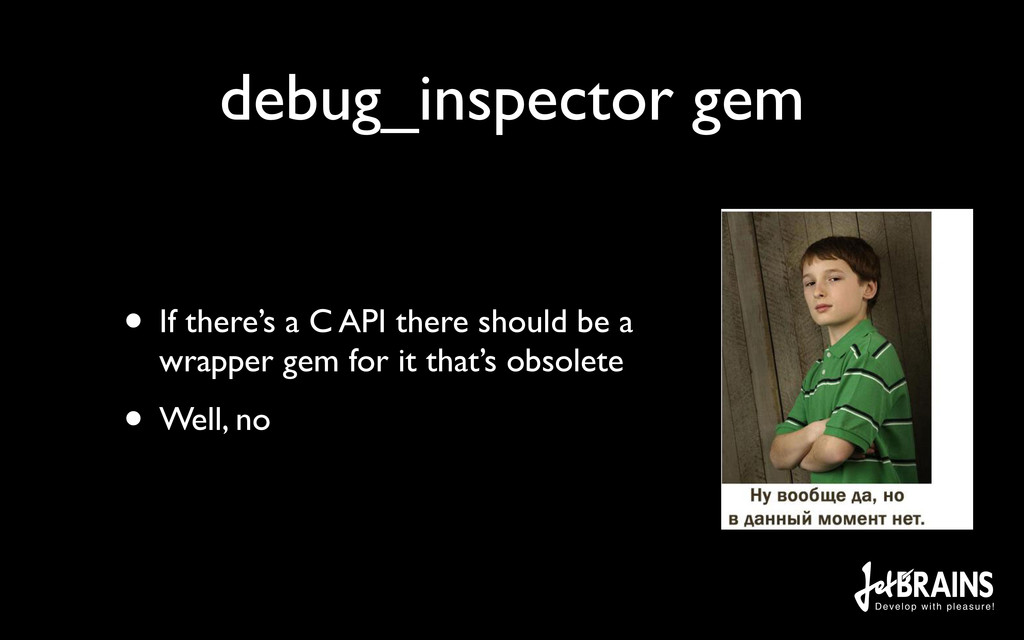

21. debug_inspector gem • If there’s a C API there should be a wrapper gem for it that’s obsolete • Well, no

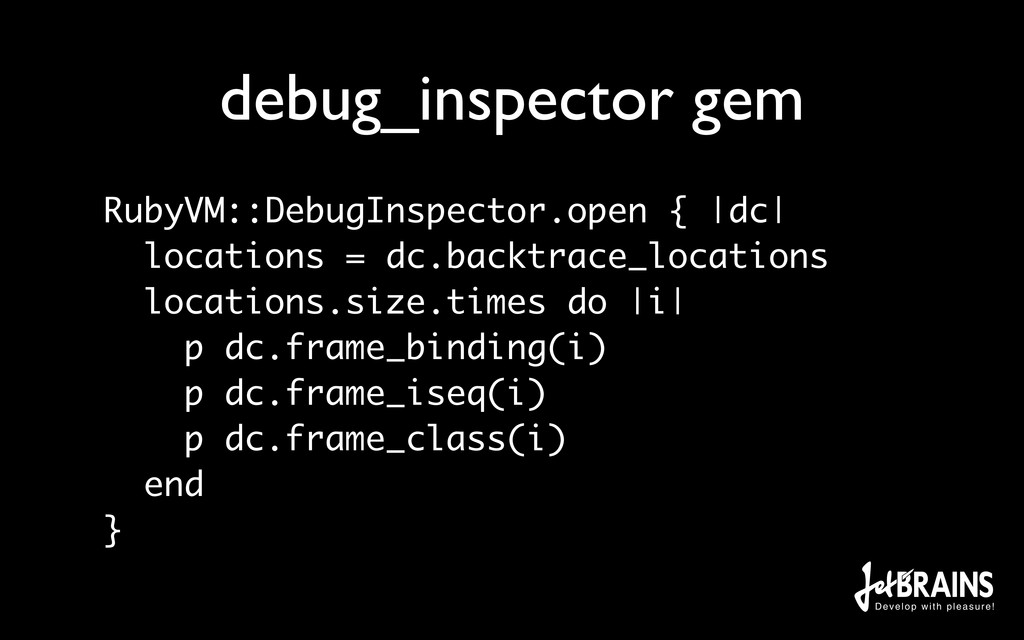

22. debug_inspector gem RubyVM::DebugInspector.open { |dc|
 locations = dc.backtrace_locations
 locations.size.times do |i|
 p dc.frame_binding(i)
 p dc.frame_iseq(i)
 p dc.frame_class(i)
 end
 }

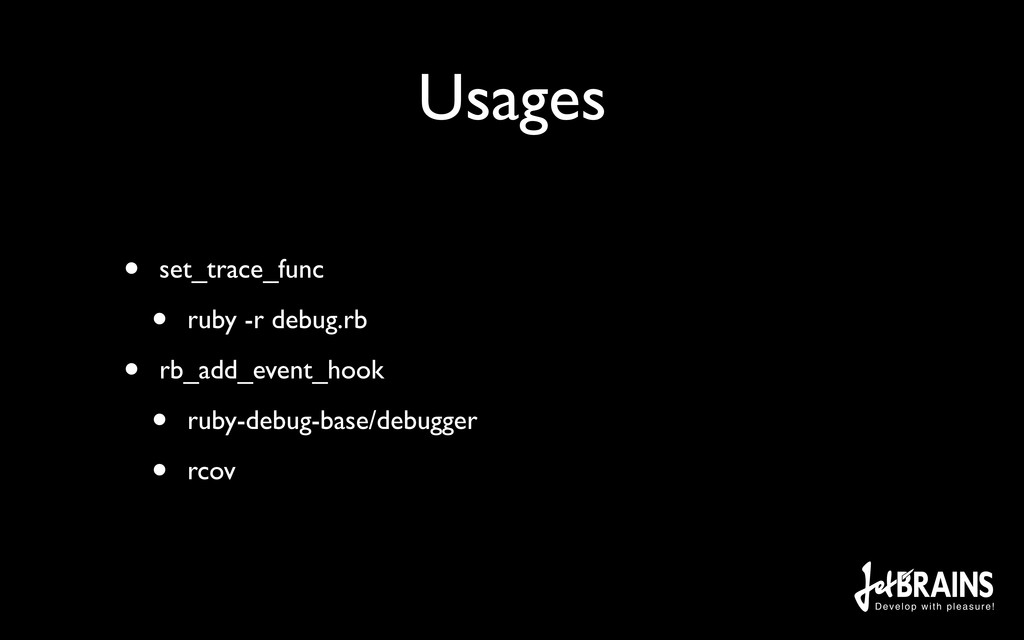

23. Usages • set_trace_func • ruby -r debug.rb • rb_add_event_hook • ruby-debug-base/debugger • rcov

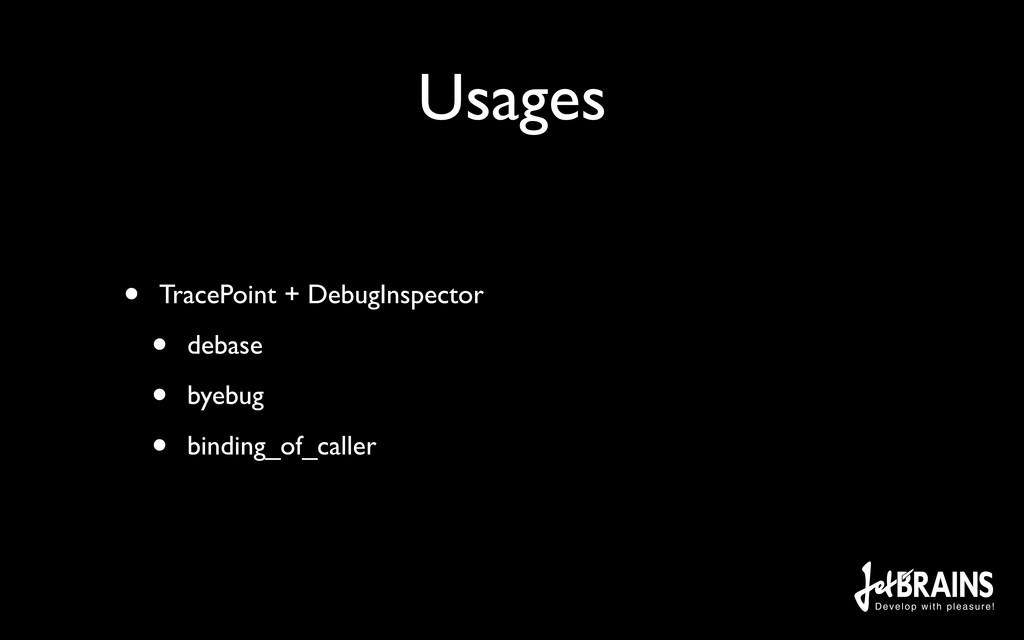

24. Usages • TracePoint + DebugInspector • debase • byebug • binding_of_caller
25. What seems to be the problem, officer?

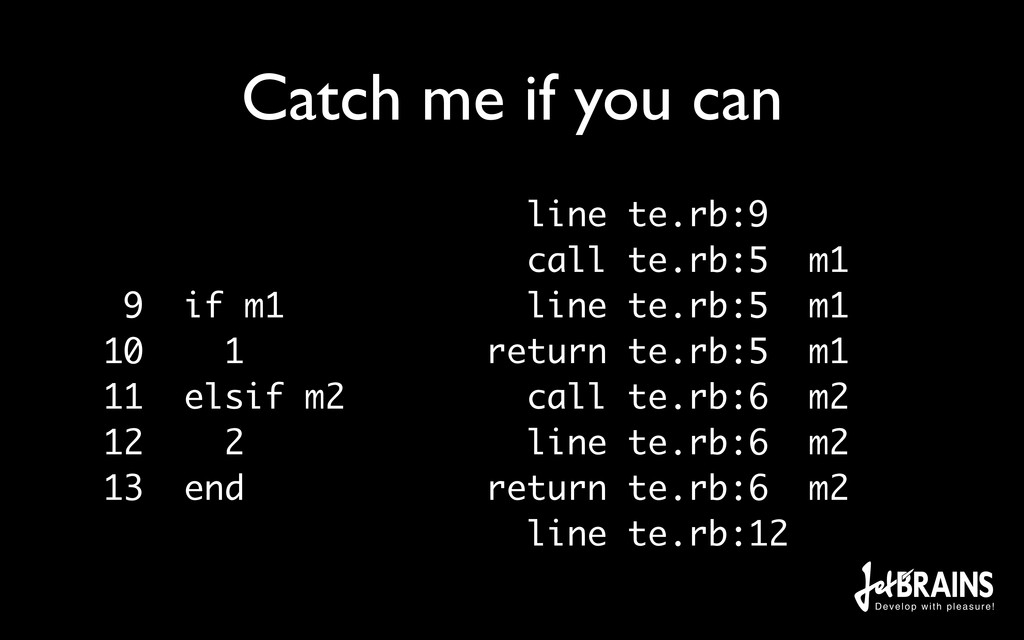

26. line te.rb:9 call te.rb:5 m1
 9 if m1 line te.rb:5 m1
 10 1 return te.rb:5 m1
 11 elsif m2 call te.rb:6 m2
 12 2 line te.rb:6 m2
 13 end return te.rb:6 m2
 line te.rb:12 Catch me if you can
27. That’s it
28. en_Dal dennis.ushakov@jetbrains.com denofevil

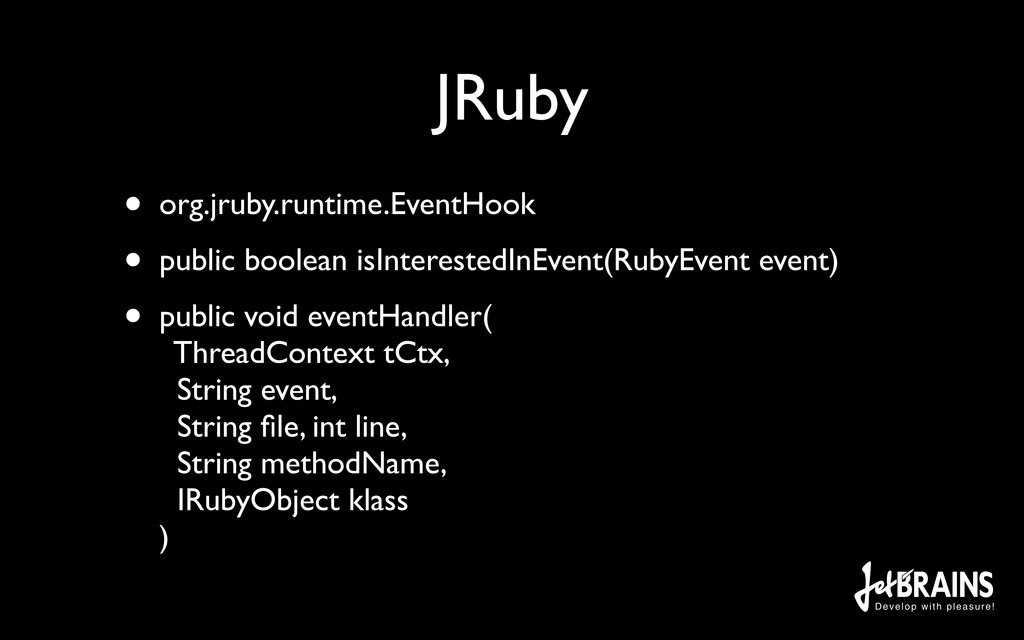

29. JRuby • org.jruby.runtime.EventHook • public boolean isInterestedInEvent(RubyEvent event) • public void eventHandler(
 ThreadContext tCtx,
 String event,
 String file, int line,
 String methodName,
 IRubyObject klass
 )
