Building Persona: federated and privacy-sensitive identity for the Web (Open Source Days 2013)

This talk explores the challenges of the existing Web identity solutions and introduce the choices that were made during the development of Persona (formerly BrowserID), a new Open Source federated identity solution from Mozilla, designed and built to respect user privacy.

Transcript

1. François Marier – @fmarier B u i l d i n g P e r s o n a federated & privacy-sensitive identity for the web
2. solving the password problem on the web
3. users: reduce number of passwords
4. users: reduce number of passwords developers: reduce implementation costs

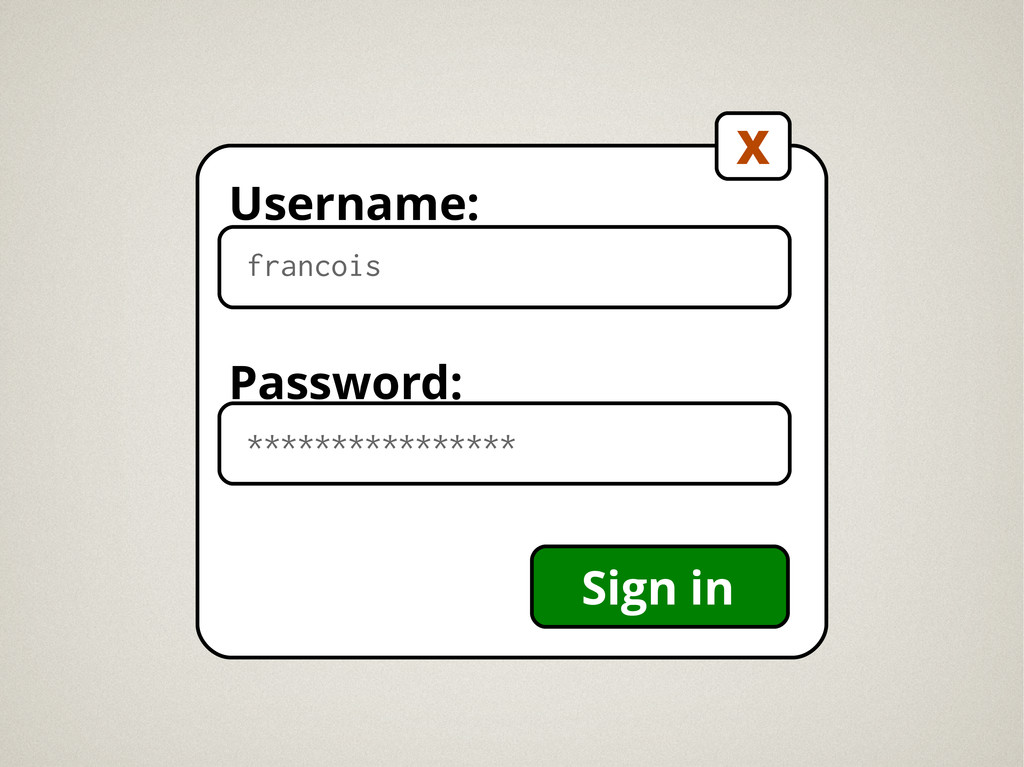

5. Username: francois Password: **************** X Sign in
6. security
15. bcrypt per-user salt site secret password & lockout policies secure recovery
16. bcrypt per-user salt site secret password & lockout policies secure recovery
17. bcrypt per-user salt site secret password & lockout policies secure recovery
18. bcrypt per-user salt site secret password & lockout policies secure recovery
19. bcrypt per-user salt site secret password & lockout policies secure recovery
20. bcrypt per-user salt site secret password & lockout policies secure recovery 2013 2013 password password guidelines guidelines
22. ALTER TABLE user DROP COLUMN password;
23. existing solutions
24. client certificates
25. “social” authentication
26. “People want a little dating before marriage.” Eric Vishria – Rockmelt
28. so... storing passwords is hard
29. so... storing passwords is hard no suitable alternatives
31. decentralized
32. privacy-sensitive decentralized
33. privacy-sensitive simple decentralized
34. privacy-sensitive simple open source decentralized
35. in your browser
36. how does it work?
38. francois@mozilla.com
39. <digital signatures 101>
40. private public
41. public
42. My name is François Marier and my email is too long to fit on one line.
43. My name is François Marier and my email is too long to fit on one line. private
44. My name is François Marier and my email is too long to fit on one line. public
45. sign verify
46. </digital signatures 101>
47. francois@mozilla.com
48. getting a proof of email ownership
49. authenticate?
50. authenticate? public key
51. authenticate? public key signed public key
52. you have a signed statement from your provider that you own your email address
60. logging into a 3rd party site
61. Valid for: 2 minutes linux.conf.au assertion
62. Valid for: 2 minutes linux.conf.au check audience assertion
63. Valid for: 2 minutes linux.conf.au check audience check expiry assertion
64. Valid for: 2 minutes linux.conf.au check audience check expiry check signature assertion
65. assertion Valid for: 2 minutes linux.conf.au public key
66. assertion Valid for: 2 minutes linux.conf.au
67. assertion session cookie
68. achieving that vision
70. email providers browser vendors
71. email providers
72. fmarier@gmail.com
73. fmarier@gmail.com
74. fallback identity provider
78. persona.org account
79. support for all email providers
80. browser vendors
81. navigator.id.*
85. js
86. support for all modern browsers >= 8
87. support for all modern browsers >= 8
88. live demo
89. using it on your site
90. no need to take notes these slides will be online ) (
92. <script src=”https://login.persona.org/include.js”> </script> </body></html>

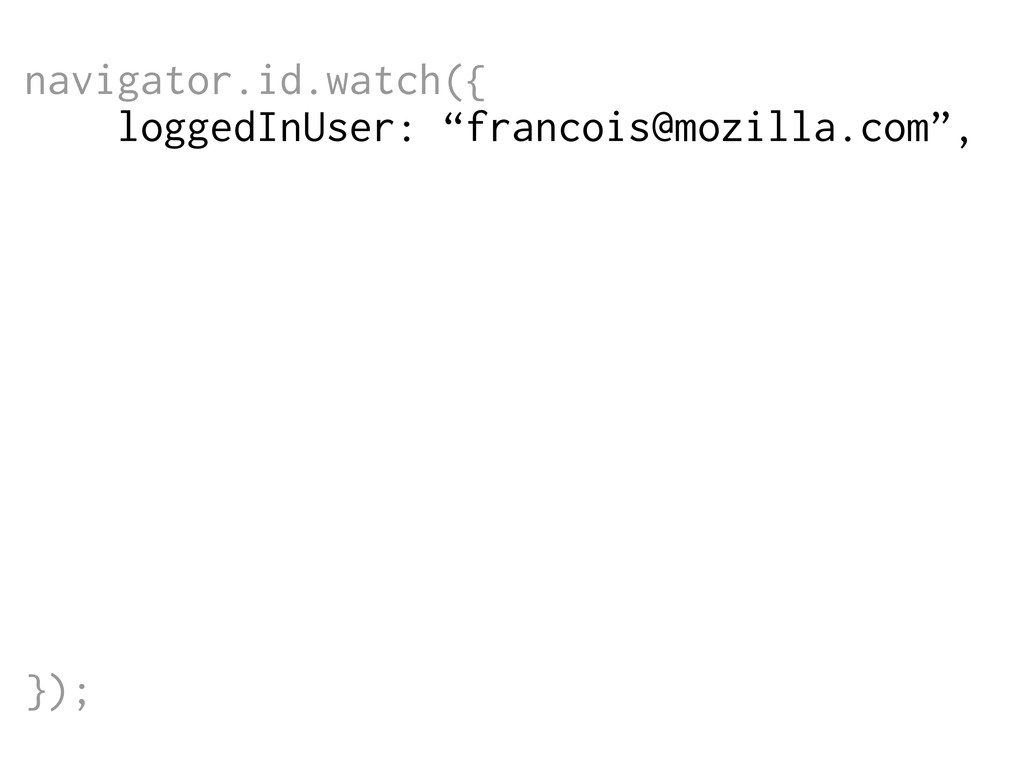

93. navigator.id.watch({ loggedInEmail: “francois@mozilla.com”, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { // do something } ); }, onlogout: function () { window.location = '/logout'; } });
94. navigator.id.watch({ loggedInUser: “francois@mozilla.com”, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { // do something } ); }, onlogout: function () { window.location = '/logout'; } });

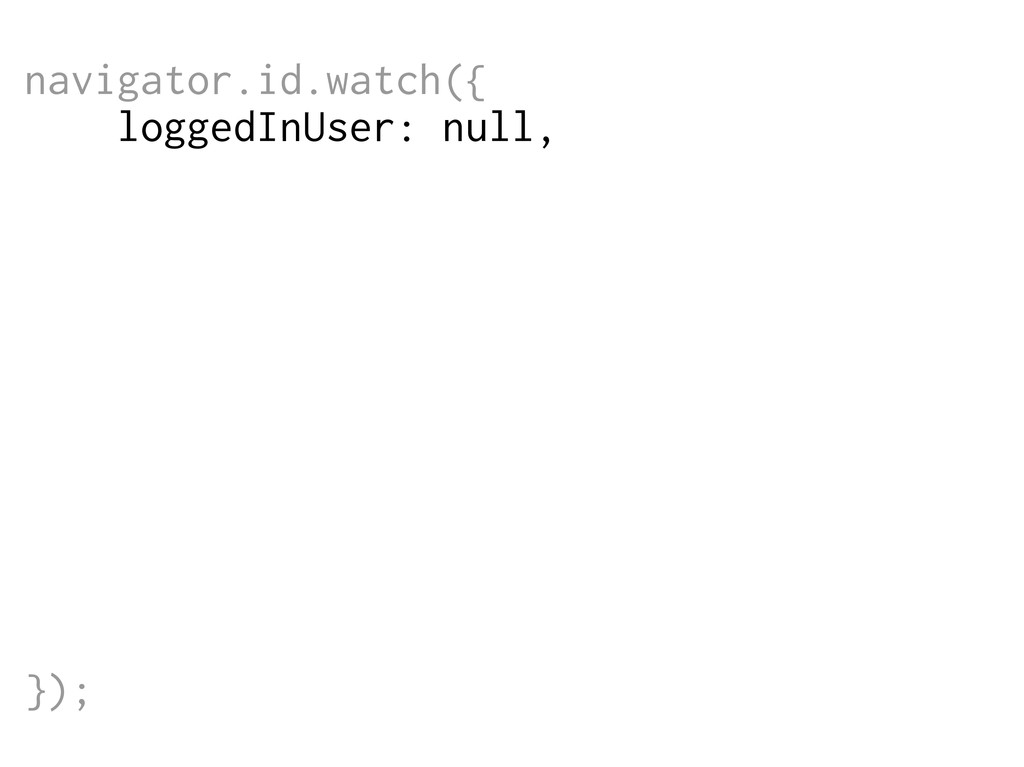

95. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { // do something } ); }, onlogout: function () { window.location = '/logout'; } });
96. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { // do something } ); }, onlogout: function () { window.location = '/logout'; } });
97. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { window.location = '/'; } ); }, onlogout: function () { window.location = '/logout'; } });
99. navigator.id.request()
103. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { window.location = '/'; } ); }, onlogout: function () { window.location = '/logout'; } });

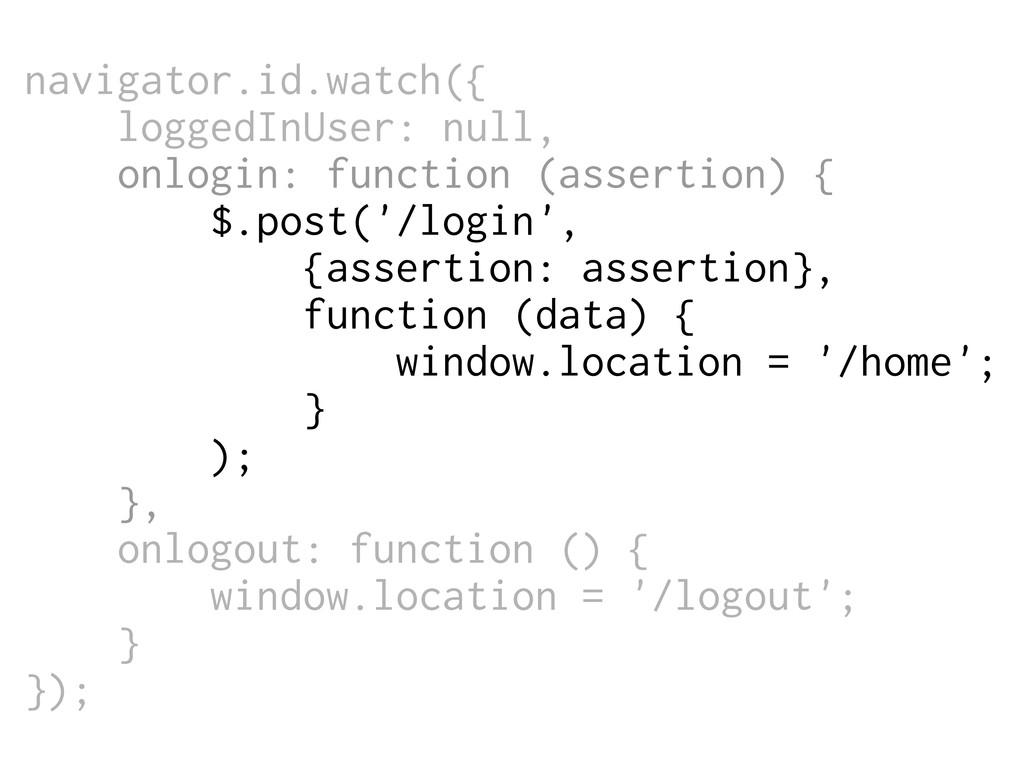

104. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { window.location = '/home'; } ); }, onlogout: function () { window.location = '/logout'; } });

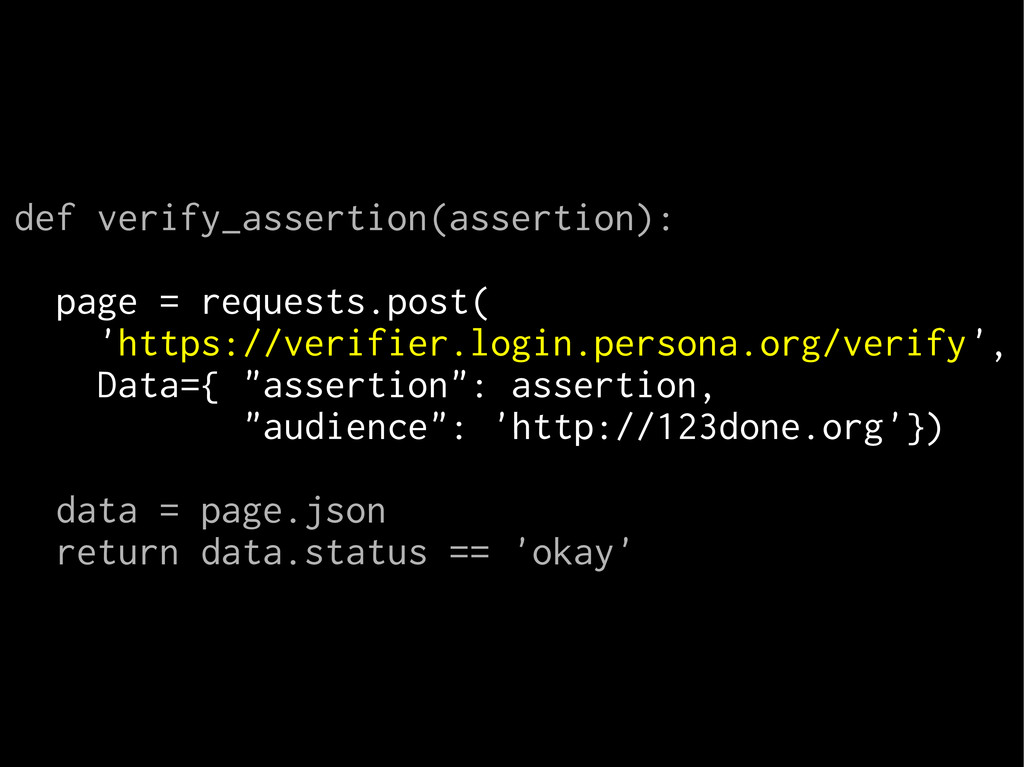

105. def verify_assertion(assertion): page = requests.post( 'https://verifier.login.persona.org/verify', Data={ "assertion": assertion, "audience": 'http://123done.org'}) data = page.json return data.status == 'okay'
106. def verify_assertion(assertion): page = requests.post( 'https://verifier.login.persona.org/verify', Data={ "assertion": assertion, "audience": 'http://123done.org'}) data = page.json return data.status == 'okay'
107. { status: “okay”, audience: “http://123done.org”, expires: 1344849682560, email: “francois@mozilla.com”, issuer: “login.persona.org” }
108. { status: “failed”, reason: “assertion has expired” }
112. navigator.id.logout()

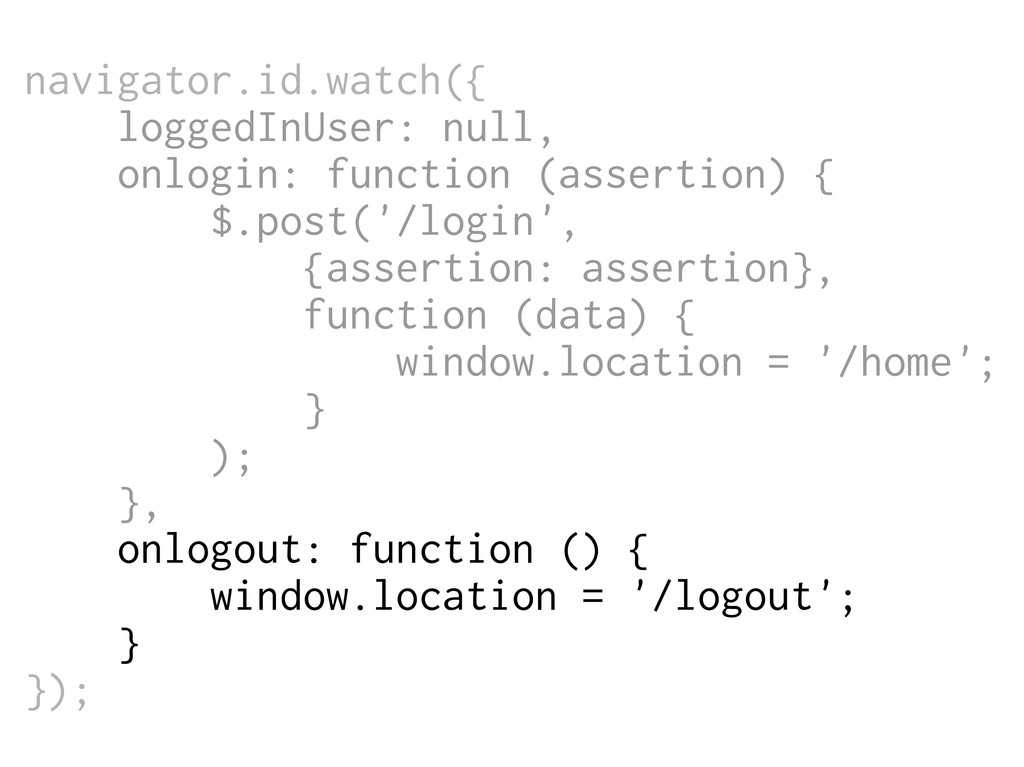

113. navigator.id.watch({ loggedInUser: null, onlogin: function (assertion) { $.post('/login', {assertion: assertion}, function (data) { window.location = '/home'; } ); }, onlogout: function () { window.location = '/logout'; } });
115. 1. load javascript library
116. 1. load javascript library 2. setup login & logout callbacks
117. 1. load javascript library 2. setup login & logout callbacks 3. add login and logout buttons
118. 1. load javascript library 2. setup login & logout callbacks 3. add login and logout buttons 4. verify proof of ownership
119. <?php if (!empty($_POST)) { $result = verify_assertion($_POST['assertion']); if ($result->status === 'okay') { print_header(); echo "<p>Logged in as: " . $result->email . "</p>"; echo '<p><a href="javascript:do_logout()">Logout</a></p>'; print_backLink(); print_footer($result->email); } else { print_header(); echo "<p>Error: " . $result->reason . "</p>"; print_backLink(); print_footer(); } } elseif (!empty($_GET['logout'])) { print_header(); echo "<p>You have logged out.</p>"; print_backLink(); print_footer(); } else { print_header(); echo "<p><a href=\"javascript:do_login()\">Login</a></p>"; print_footer(); } function print_header() { echo <<<EOF <!DOCTYPE html><html><head><meta charset="utf-8"></head> <body> <form id="login-form" method="POST"> <input id="assertion-field" type="hidden" name="assertion" value=""> </form> EOF; } function print_backLink() { echo "<p><a href=\"persona.php\">Back to login page</a></p>"; } function print_footer($email = 'null') { if ($email !== 'null') { $email = "'$email'"; } echo <<<EOF <script src="http://127.0.0.1:10002/include.orig.js"></script> <script> function do_login() { navigator.id.request(); } function do_logout() { navigator.id.logout(); } navigator.id.watch({ loggedInUser: $email, onlogin: function (assertion) { alert("onlogin: $email"); var assertion_field = document.getElementById("assertion-field"); assertion_field.value = assertion; var login_form = document.getElementById("login-form"); login_form.submit(); }, onlogout: function () { alert("onlogout: $email"); window.location = '?logout=1'; } }); </script></body></html> EOF; } function verify_assertion($assertion) { $audience = ($_SERVER['HTTPS'] === 'on' ? 'https://' : 'http://') . $_SERVER['SERVER_NAME'] . ':' . $_SERVER['SERVER_PORT']; $postdata = 'assertion=' . urlencode($assertion) . '&audience=' . urlencode($audience); $ch = curl_init(); curl_setopt($ch, CURLOPT_URL, "https://verifier.login.persona.org/verify"); curl_setopt($ch, CURLOPT_POST, true); curl_setopt($ch, CURLOPT_RETURNTRANSFER, true); curl_setopt($ch, CURLOPT_POSTFIELDS, $postdata); curl_setopt($ch, CURLOPT_SSL_VERIFYPEER, true); curl_setopt($ch, CURLOPT_SSL_VERIFYHOST, 2); $json = curl_exec($ch); curl_close($ch); $res = json_decode($json); $res->status = 'okay'; $res->email = 'francois@mozilla.com'; return $res; } ?>
120. wanna help us solve the password problem?
121. add Persona to your project/site tell us about your experience email one site asking for it
122. add Persona to your project/site tell us about your experience email one site asking for it
123. add Persona to your project/site tell us about your experience email one site asking for it
125. To learn more about Persona: https://login.persona.org/ http://identity.mozilla.com/ https://developer.mozilla.org/docs/Persona/Why_Persona https://developer.mozilla.org/docs/Persona/Quick_Setup https://github.com/mozilla/browserid-cookbook https://developer.mozilla.org/docs/Persona/Libraries_and_plugins http://123done.org/ https://wiki.mozilla.org/Identity#Get_Involved @fmarier http://fmarier.org
126. Who's using Persona?
127. identity provider API https://eyedee.me/.well-known/browserid: { "public-key": { "algorithm":"RS", "n":"8606...", "e":"65537" }, "authentication": "/browserid/sign_in.html", "provisioning": "/browserid/provision.html" }
128. https://eyedee.me/.well-known/browserid: { "public-key": { "algorithm":"RS", "n":"8606...", "e":"65537" }, "authentication": "/browserid/sign_in.html", "provisioning": "/browserid/provision.html" } identity provider API
129. https://eyedee.me/.well-known/browserid: { "public-key": { "algorithm":"RS", "n":"8606...", "e":"65537" }, "authentication": "/browserid/sign_in.html", "provisioning": "/browserid/provision.html" } identity provider API
130. https://eyedee.me/.well-known/browserid: { "public-key": { "algorithm":"RS", "n":"8606...", "e":"65537" }, "authentication": "/browserid/sign_in.html", "provisioning": "/browserid/provision.html" } identity provider API
131. https://eyedee.me/.well-known/browserid: { "public-key": { "algorithm":"RS", "n":"8606...", "e":"65537" }, "authentication": "/browserid/sign_in.html", "provisioning": "/browserid/provision.html" } identity provider API
132. identity provider API 1. check for your /.well-known/browserid 2. try the provisioning endpoint 3. show the authentication page 4. call the provisioning endpoint again
133. identity provider API 1. check for your /.well-known/browserid 2. try the provisioning endpoint 3. show the authentication page 4. call the provisioning endpoint again
134. identity provider API 1. check for your /.well-known/browserid 2. try the provisioning endpoint 3. show the authentication page 4. call the provisioning endpoint again
135. identity provider API 1. check for your /.well-known/browserid 2. try the provisioning endpoint 3. show the authentication page 4. call the provisioning endpoint again
136. © 2013 François Marier <francois@mozilla.com> This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 New Zealand License. Top 500 passwords: http://xato.net/passwords/more-top-worst-passwords/ Parchment: https://secure.flickr.com/photos/27613359@N03/6750396225/ Elephant in room: https://secure.flickr.com/photos/bitboy/246805948/ Cookie on tray: https://secure.flickr.com/photos/jamisonjudd/4810986199/ Uncle Sam: https://secure.flickr.com/photos/donkeyhotey/5666065982/ Danish passport: https://en.wikipedia.org/wiki/File:DK_Passport_Cover.jpg Restaurant dinner: https://secure.flickr.com/photos/yourdon/3977084094/ Photo credits:
