Building dynamic forms with JSONForms and Kotlin Multiplatform

Building dynamic forms is never an easy job, especially for those forms that need to adapt in real time according to the user-specific context of language, location, or any other key input. During this talk, we go one step further by integrating JSONForms, a standard maintained by the Eclipse Foundation. While that may be primarily in web development, JSONForms provides a structured approach for the generation of forms, and we're going to see how one could create a native implementation both for Android and iOS using this standard.

The special thing about this session is that the Android and iOS implementation we are going to provide will be based on Kotlin Multiplatform, which enables us to share all the core logics and JSONForms standard implementations between both platforms. You will see how KMP can be used in your development so as to enable you to have a single code base for complex form logic while providing a native experience on both platforms.

We will cover how to solve some of the most common problems that a mobile developer has to face: working with forms that must dynamically show or hide sections, validate fields using predefined lists, regular expressions, and custom rules. In this talk, JSONForms and Kotlin Multiplatform are used for cross-platform, dynamic form generation.

Transcript

1. gerard.paligot.com BUILDING DYNAMIC FORMS WITH JSONFORMS AND KMP

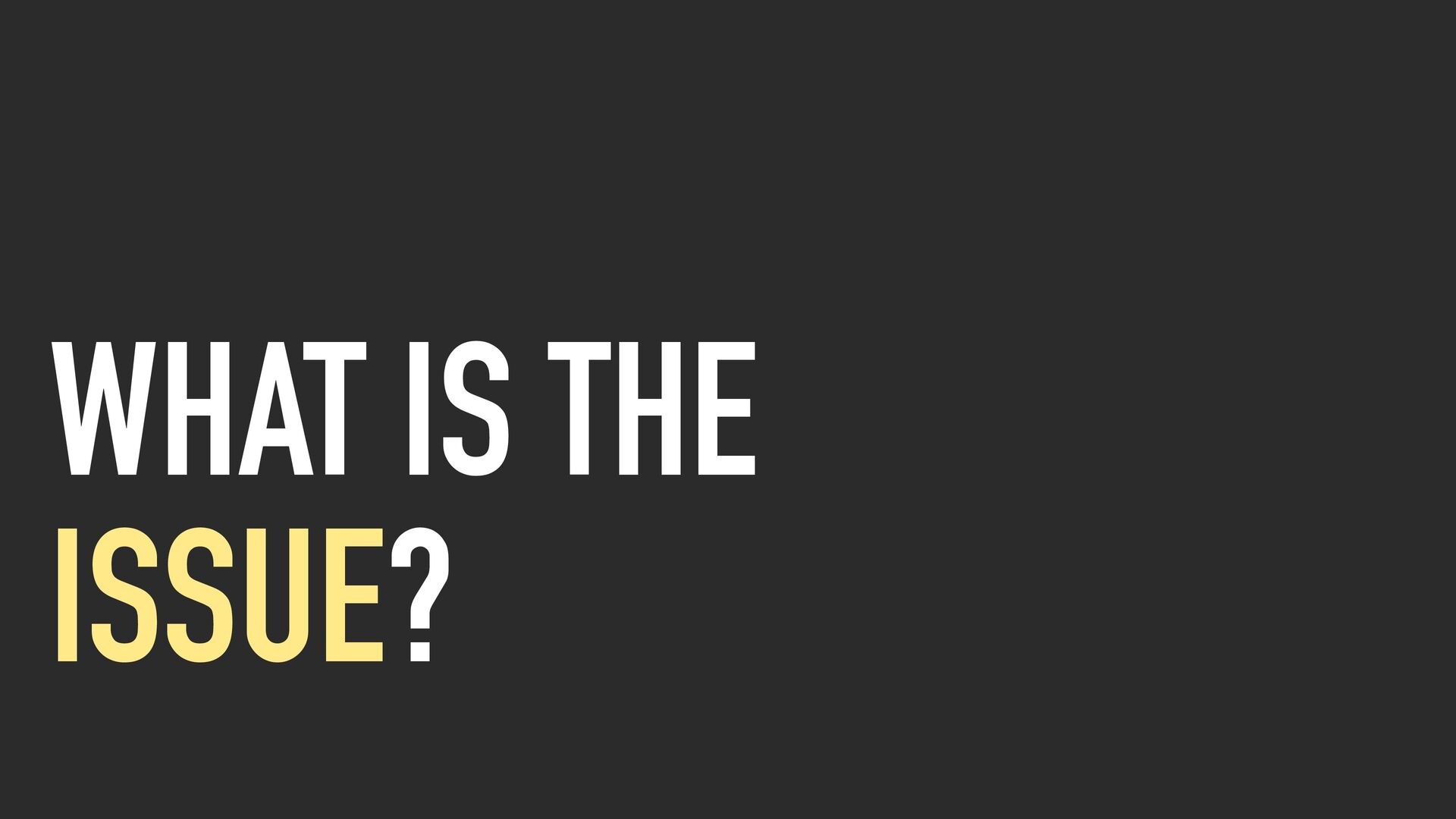

2. WHAT IS THE ISSUE?

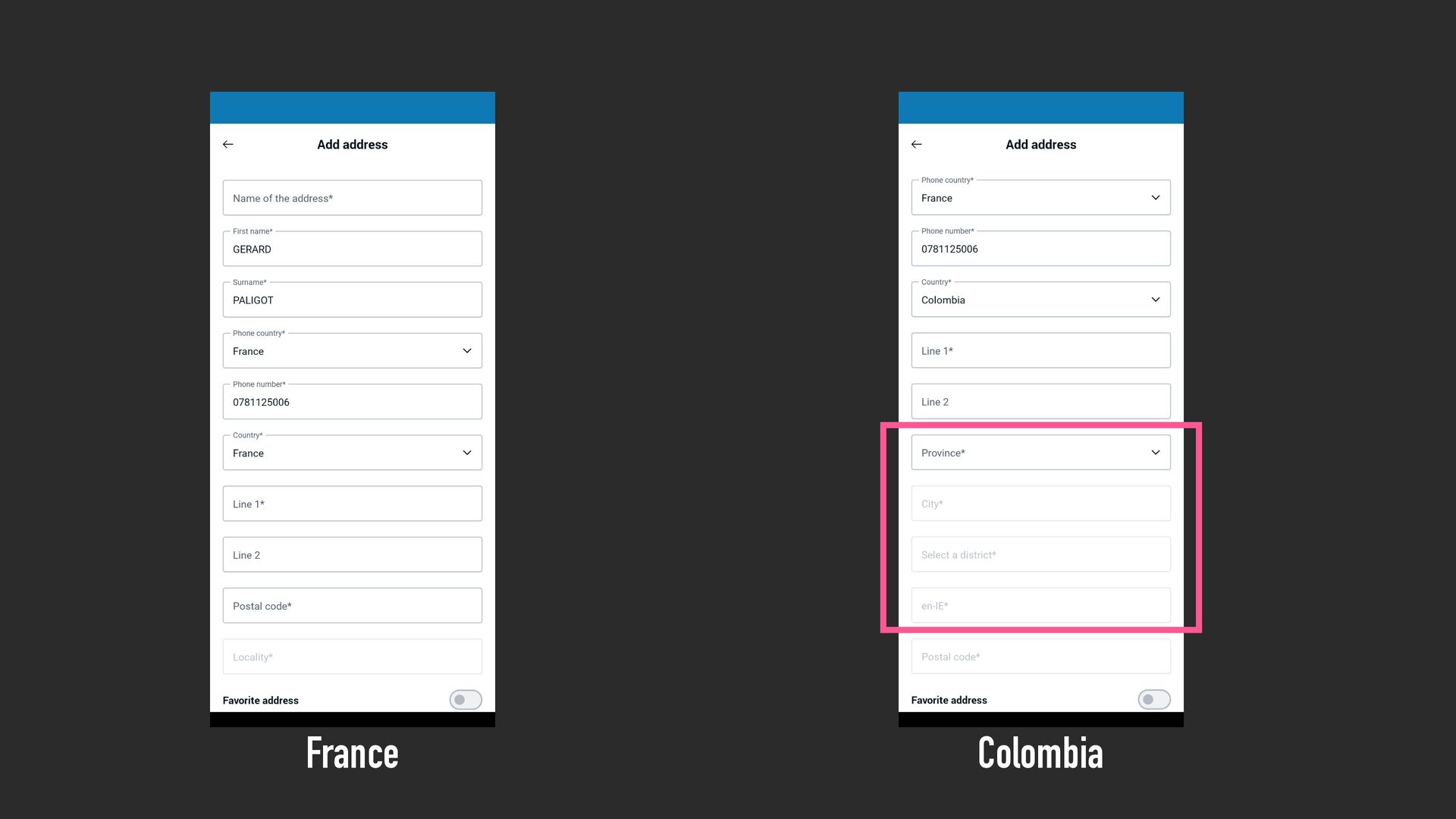

3. France Colombia

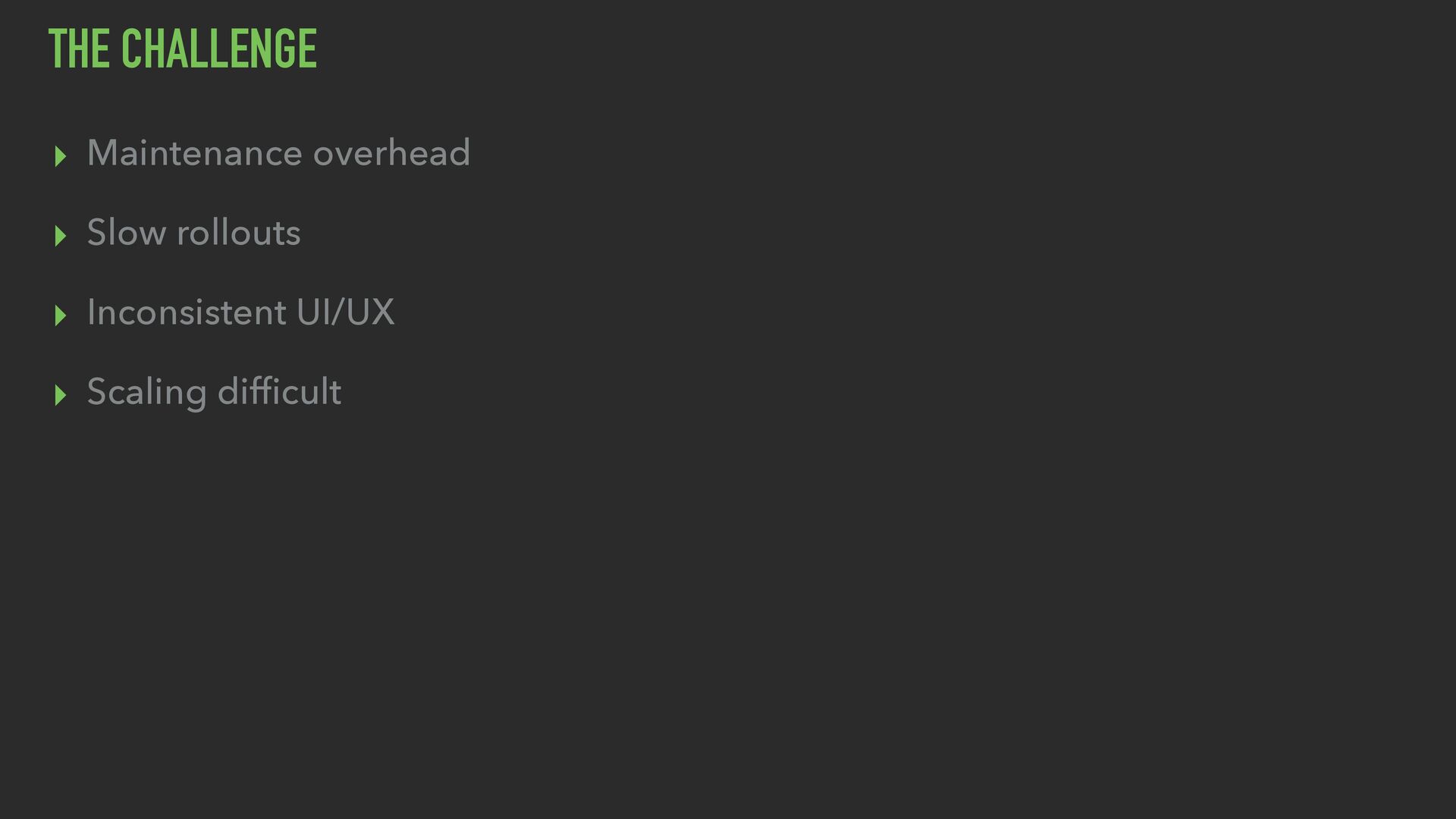

4. THE CHALLENGE ▸ Maintenance overhead ▸ Slow rollouts ▸ Inconsistent UI/UX ▸ Scaling difficult

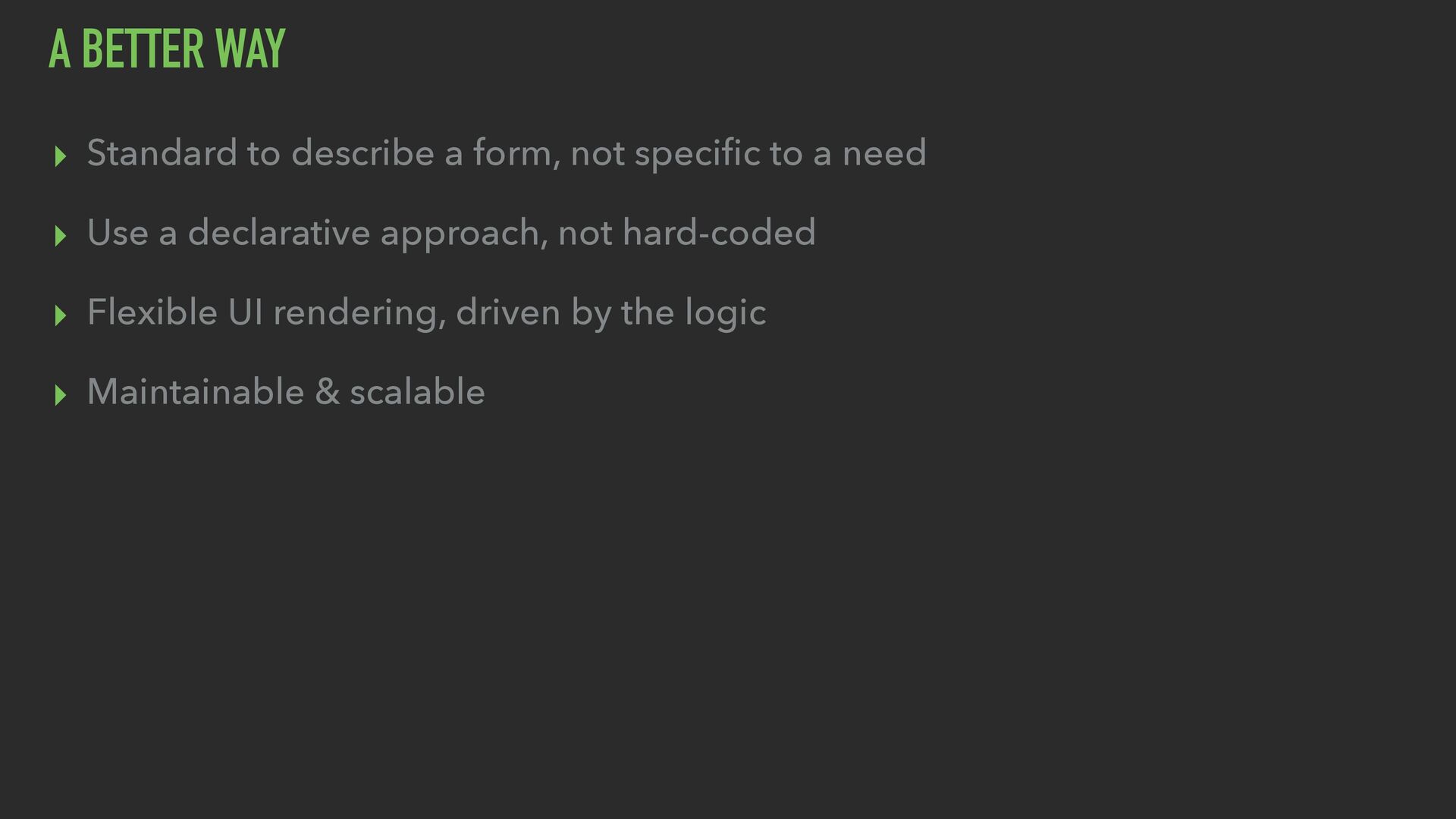

5. A BETTER WAY ▸ Standard to describe a form, not specific to a need ▸ Use a declarative approach, not hard-coded ▸ Flexible UI rendering, driven by the logic ▸ Maintainable & scalable
6. JSONFORMS PRESENTATION

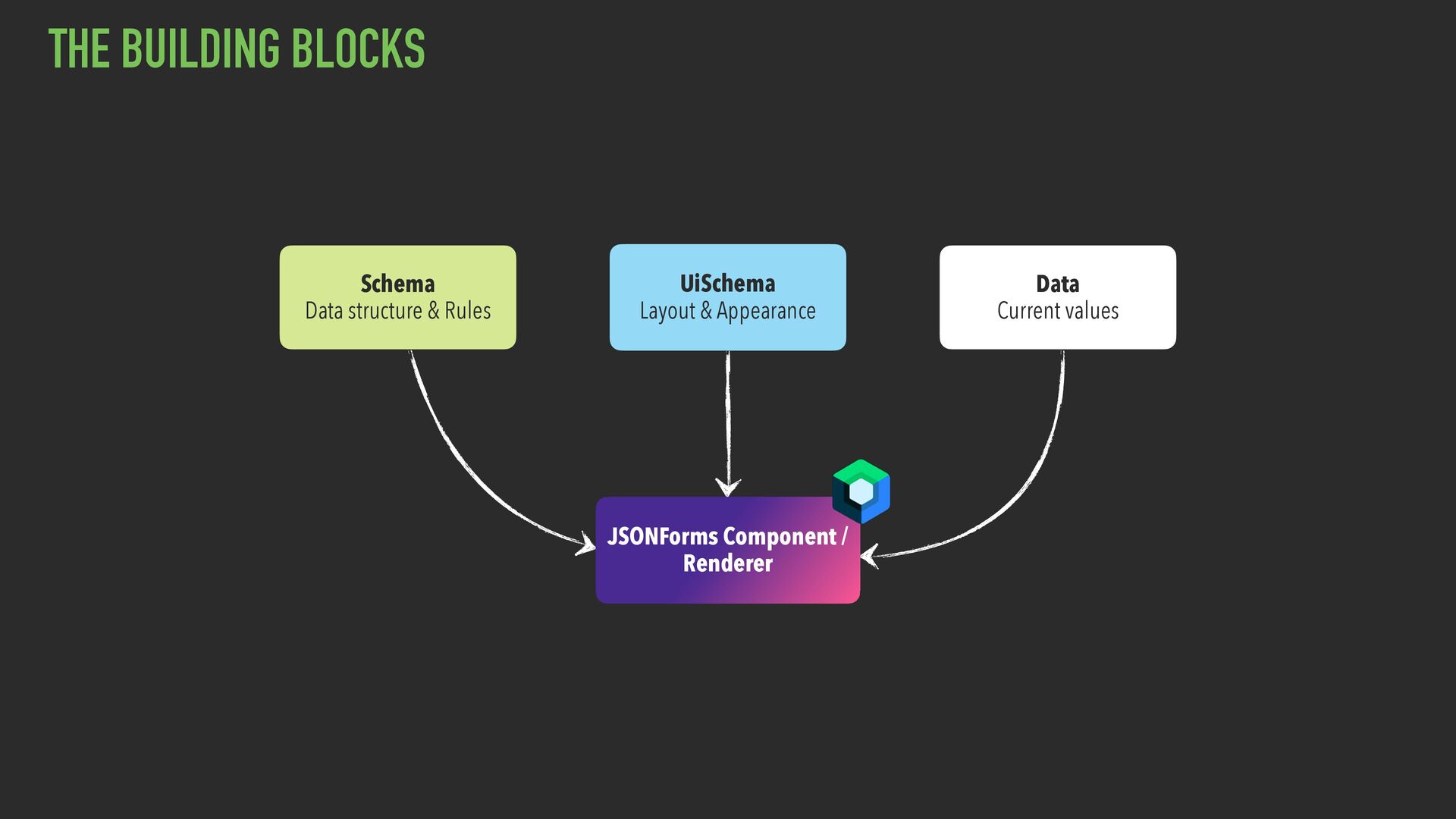

7. THE BUILDING BLOCKS Schema Data structure & Rules UiSchema Layout & Appearance Data Current values JSONForms Component / Renderer
8. LET’S BUILD A FORM!
9. EXPLORING FEATURES JSONFORMS

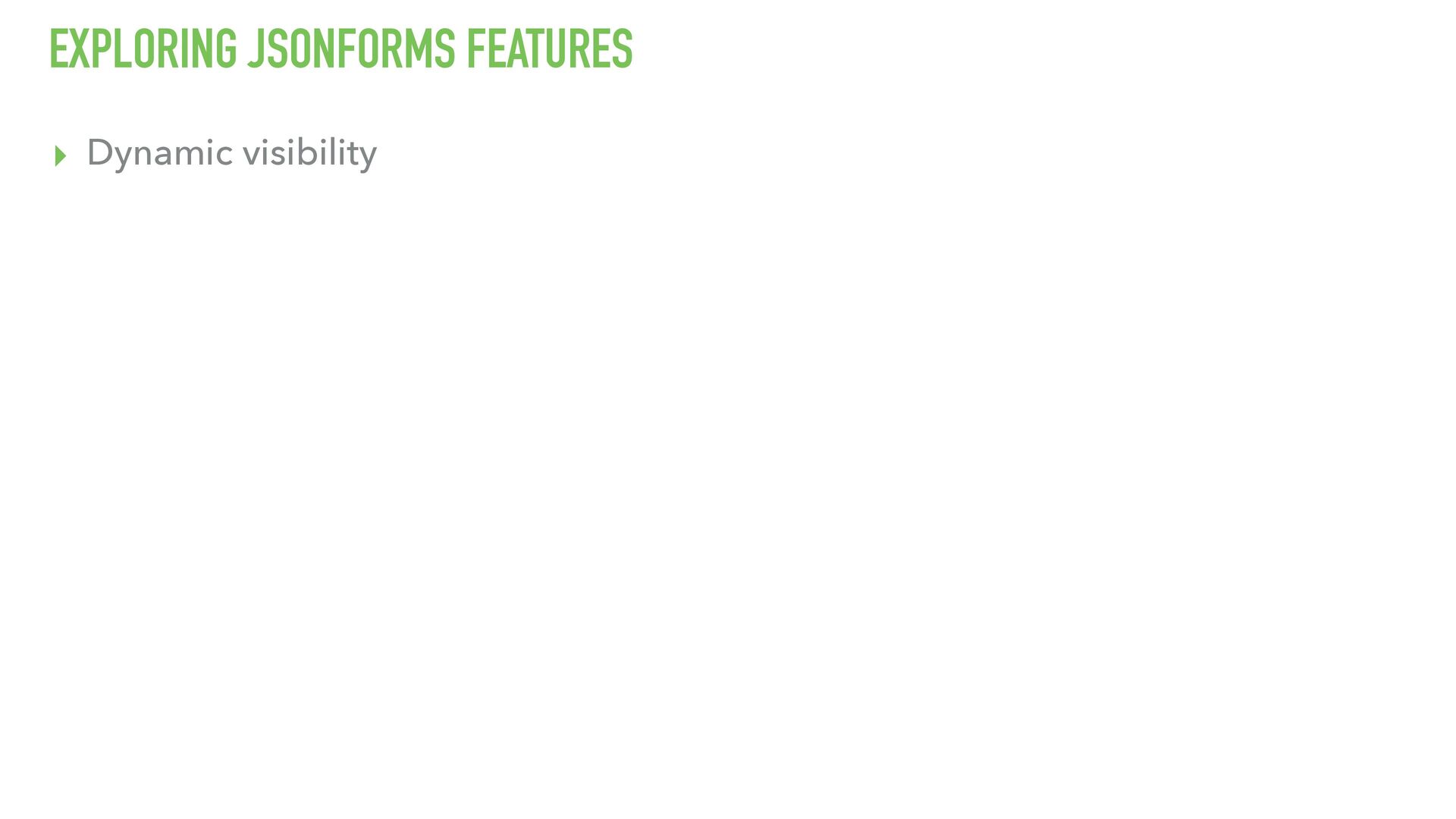

10. EXPLORING JSONFORMS FEATURES ▸ Dynamic visibility

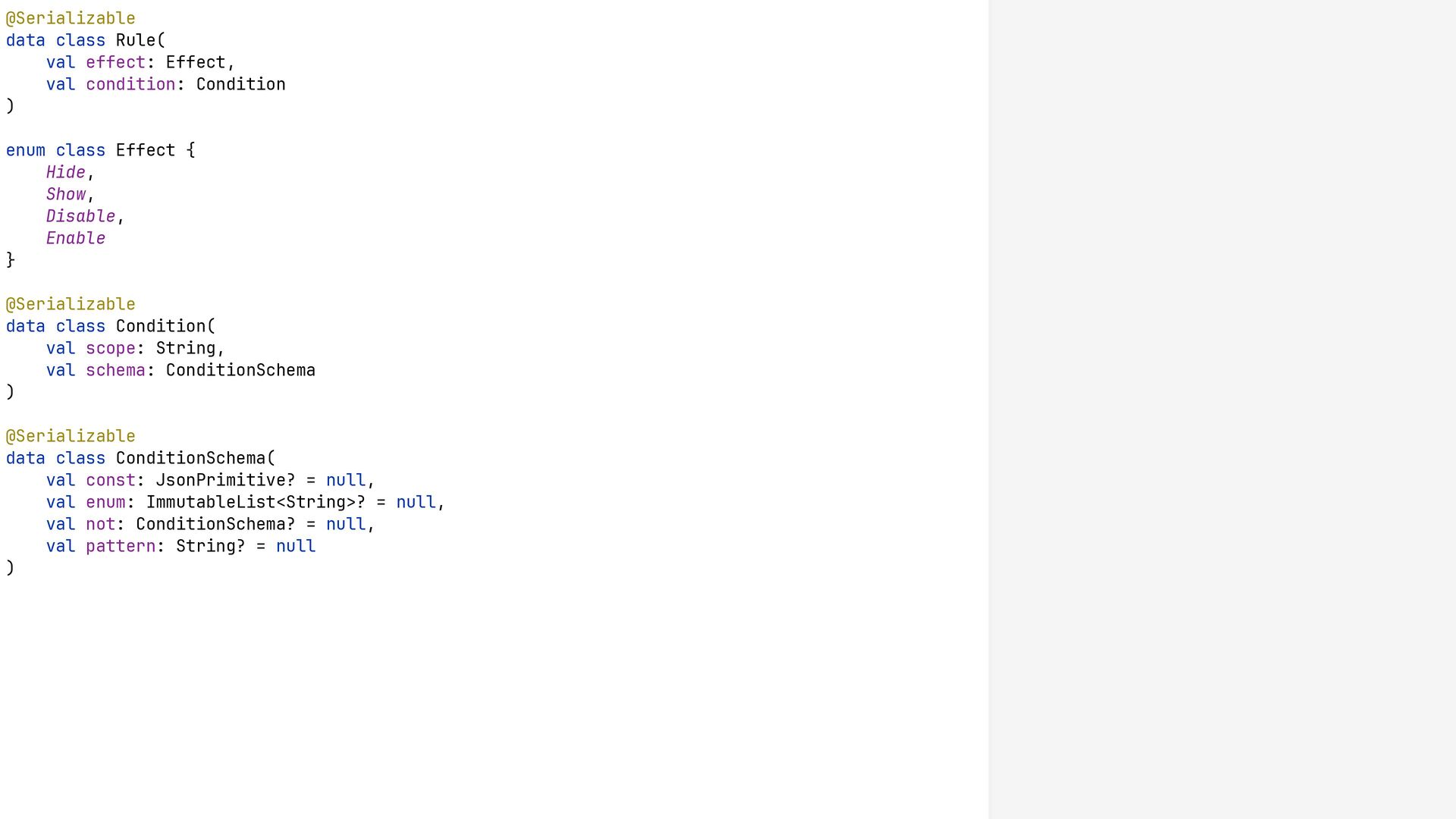

11. @Serializable data class Rule( val effect: Effect, val condition: Condition ) enum class Effect { Hide, Show, Disable, Enable } @Serializable data class Condition( val scope: String, val schema: ConditionSchema ) @Serializable data class ConditionSchema( val const: JsonPrimitive? = null, val enum: ImmutableList<String>? = null, val not: ConditionSchema? = null, val pattern: String? = null )
12. DEMO TIME

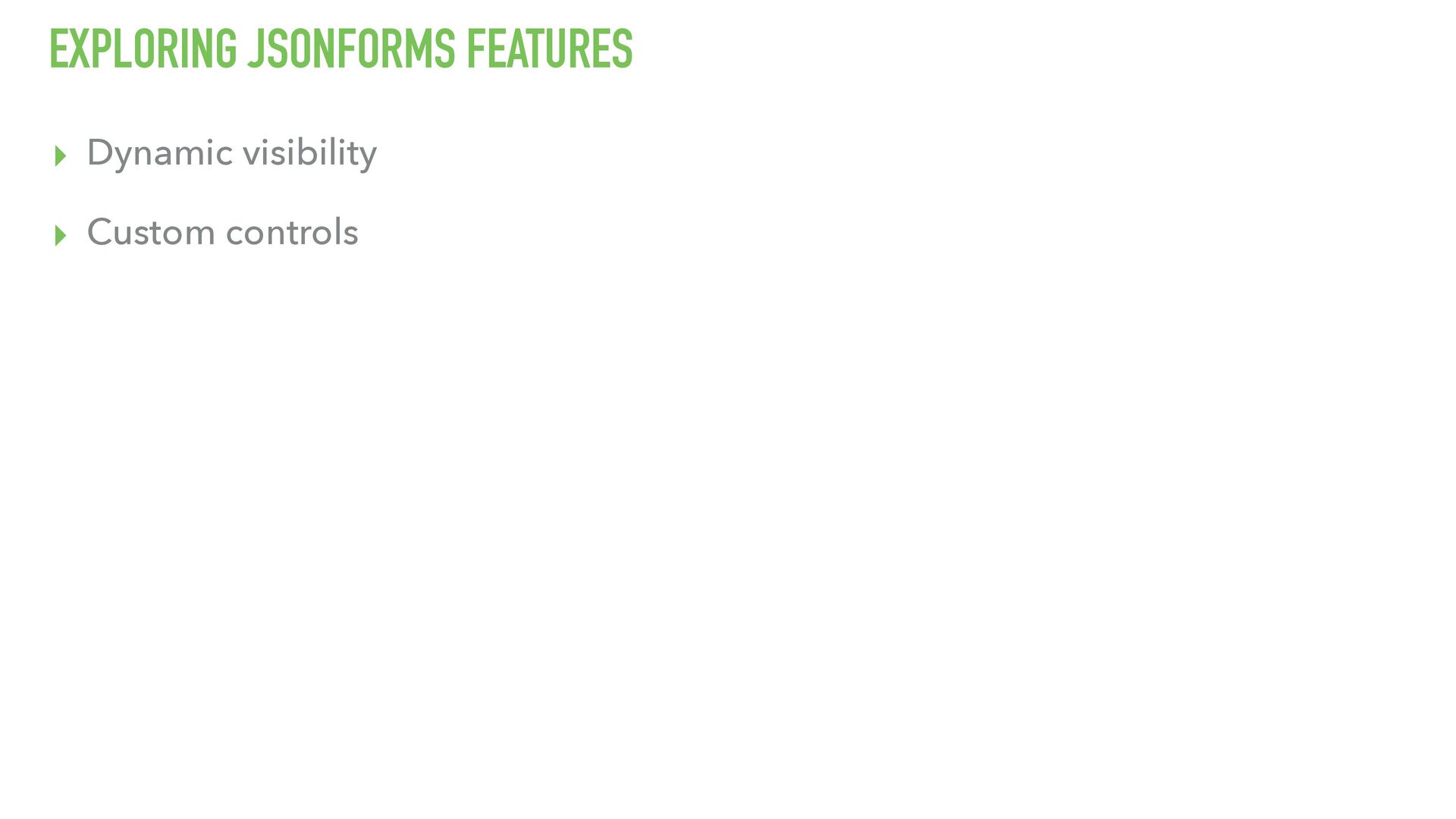

13. EXPLORING JSONFORMS FEATURES ▸ Dynamic visibility ▸ Custom controls

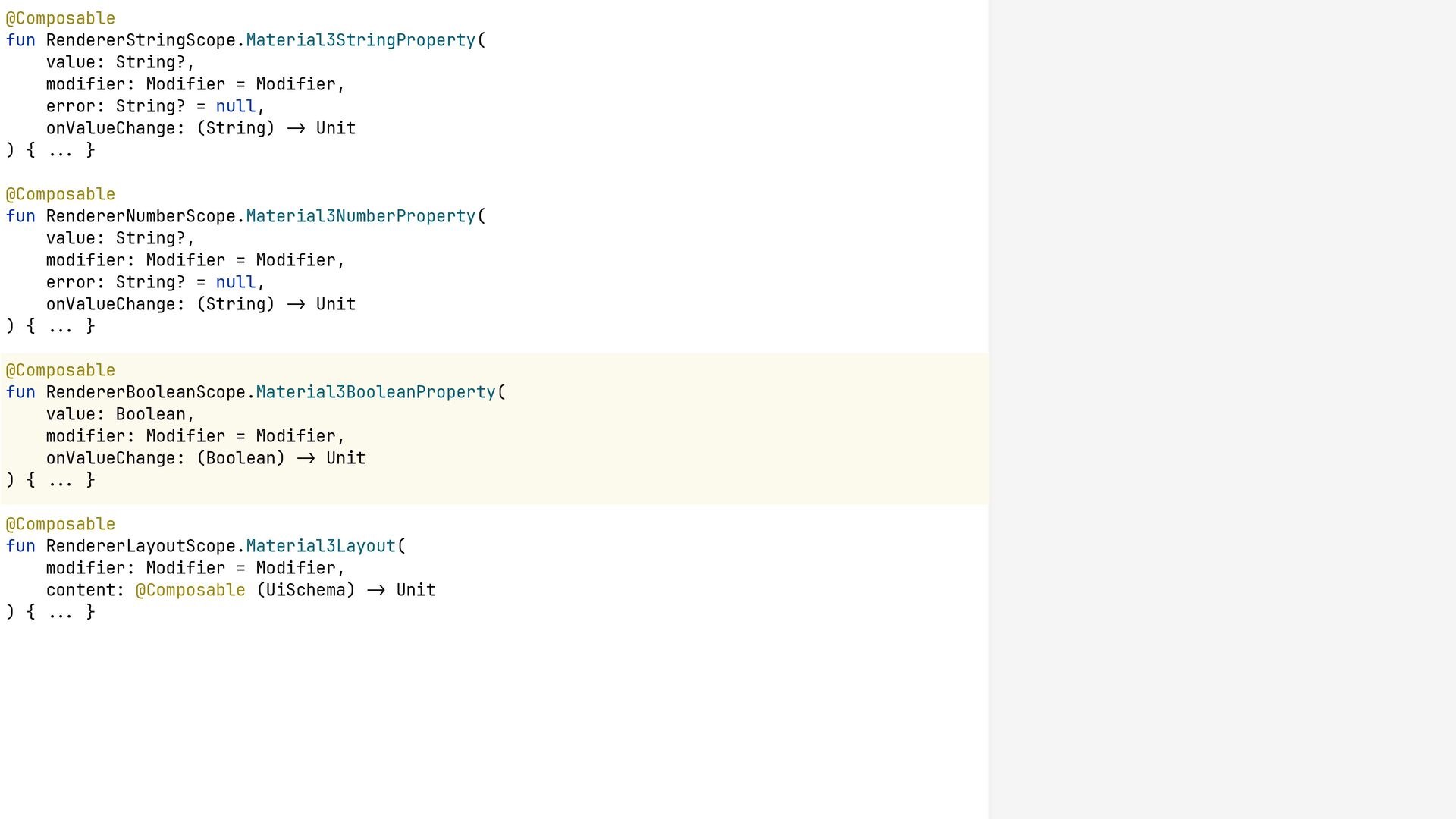

14. @Composable fun RendererStringScope.Material3StringProperty( value: String?, modifier: Modifier = Modifier, error: String? = null, onValueChange: (String) !" Unit ) { !!# } @Composable fun RendererNumberScope.Material3NumberProperty( value: String?, modifier: Modifier = Modifier, error: String? = null, onValueChange: (String) !" Unit ) { !!# } @Composable fun RendererBooleanScope.Material3BooleanProperty( value: Boolean, modifier: Modifier = Modifier, onValueChange: (Boolean) !" Unit ) { !!# } @Composable fun RendererLayoutScope.Material3Layout( modifier: Modifier = Modifier, content: @Composable (UiSchema) !" Unit ) { !!# }

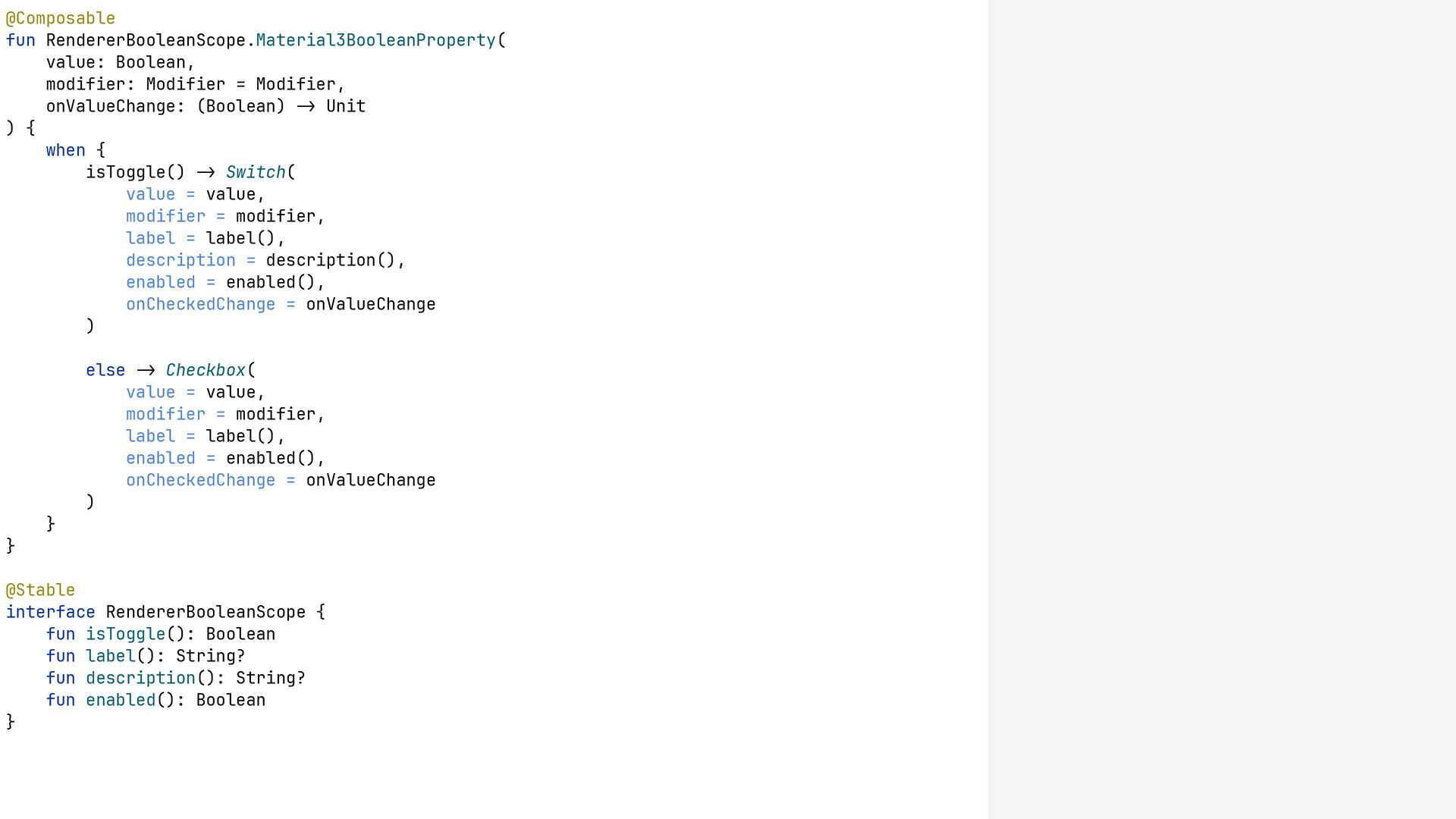

15. @Composable fun RendererBooleanScope.Material3BooleanProperty( value: Boolean, modifier: Modifier = Modifier, onValueChange: (Boolean) !" Unit ) { when { isToggle() !" Switch( value = value, modifier = modifier, label = label(), description = description(), enabled = enabled(), onCheckedChange = onValueChange ) else !" Checkbox( value = value, modifier = modifier, label = label(), enabled = enabled(), onCheckedChange = onValueChange ) } } @Stable interface RendererBooleanScope { fun isToggle(): Boolean fun label(): String? fun description(): String? fun enabled(): Boolean }

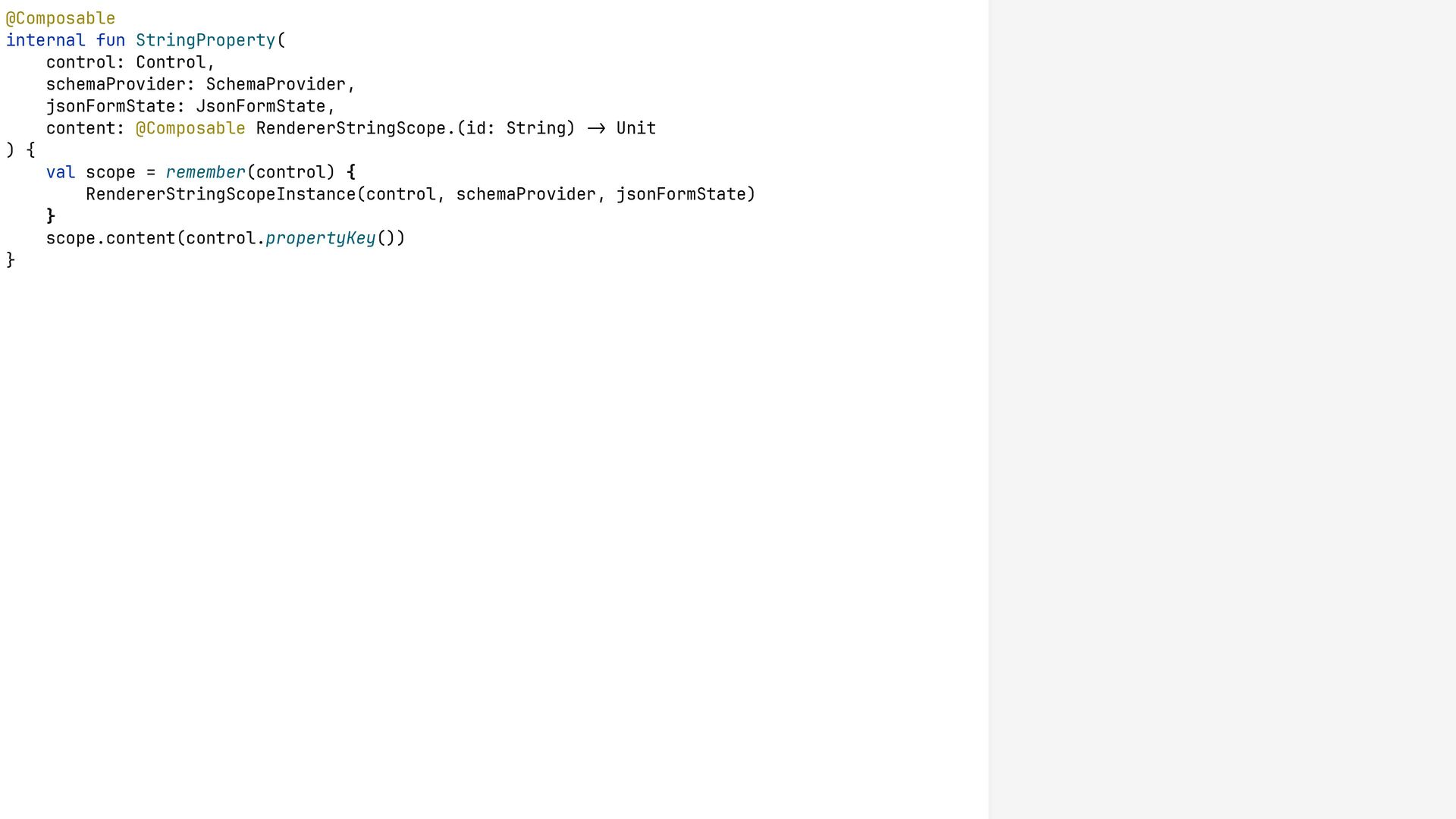

16. @Composable internal fun StringProperty( control: Control, schemaProvider: SchemaProvider, jsonFormState: JsonFormState, content: @Composable RendererStringScope.(id: String) !" Unit ) { val scope = remember(control) { RendererStringScopeInstance(control, schemaProvider, jsonFormState) } scope.content(control.propertyKey()) }

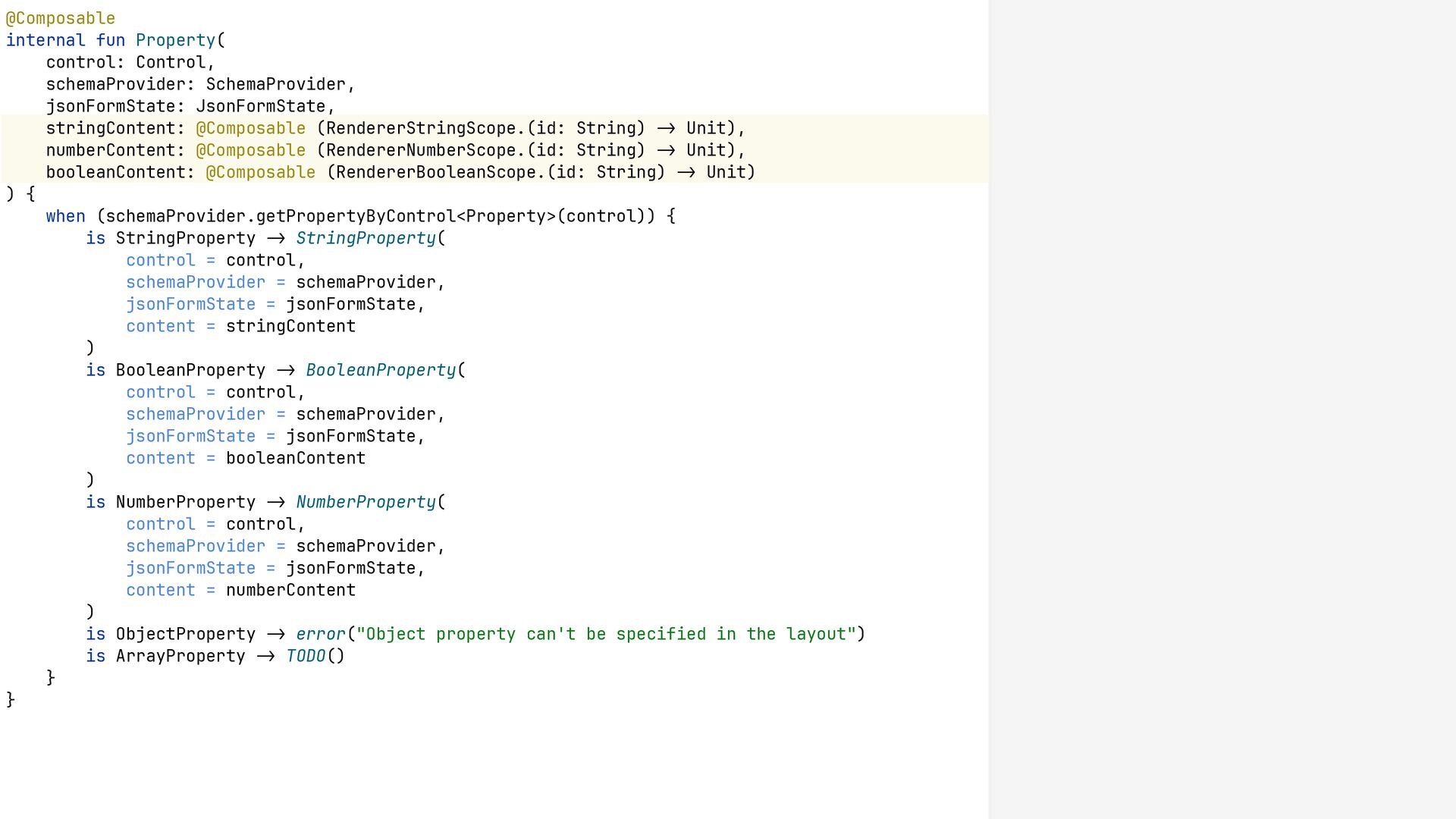

17. @Composable internal fun Property( control: Control, schemaProvider: SchemaProvider, jsonFormState: JsonFormState, stringContent: @Composable (RendererStringScope.(id: String) !" Unit), numberContent: @Composable (RendererNumberScope.(id: String) !" Unit), booleanContent: @Composable (RendererBooleanScope.(id: String) !" Unit) ) { when (schemaProvider.getPropertyByControl<Property>(control)) { is StringProperty !" StringProperty( control = control, schemaProvider = schemaProvider, jsonFormState = jsonFormState, content = stringContent ) is BooleanProperty !" BooleanProperty( control = control, schemaProvider = schemaProvider, jsonFormState = jsonFormState, content = booleanContent ) is NumberProperty !" NumberProperty( control = control, schemaProvider = schemaProvider, jsonFormState = jsonFormState, content = numberContent ) is ObjectProperty !" error("Object property can't be specified in the layout") is ArrayProperty !" TODO() } }

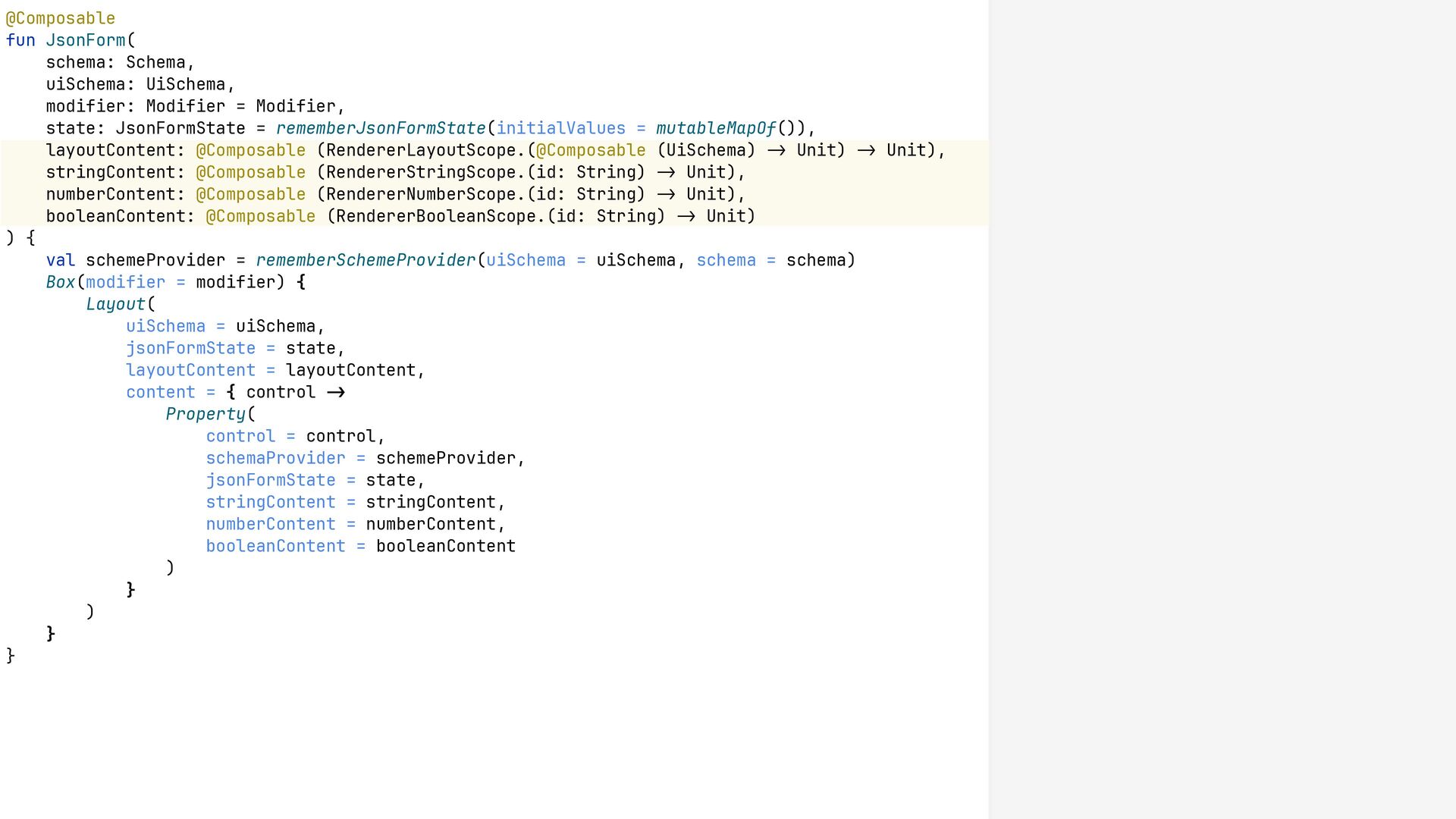

18. @Composable fun JsonForm( schema: Schema, uiSchema: UiSchema, modifier: Modifier = Modifier, state: JsonFormState = rememberJsonFormState(initialValues = mutableMapOf()), layoutContent: @Composable (RendererLayoutScope.(@Composable (UiSchema) !" Unit) !" Unit), stringContent: @Composable (RendererStringScope.(id: String) !" Unit), numberContent: @Composable (RendererNumberScope.(id: String) !" Unit), booleanContent: @Composable (RendererBooleanScope.(id: String) !" Unit) ) { val schemeProvider = rememberSchemeProvider(uiSchema = uiSchema, schema = schema) Box(modifier = modifier) { Layout( uiSchema = uiSchema, jsonFormState = state, layoutContent = layoutContent, content = { control !" Property( control = control, schemaProvider = schemeProvider, jsonFormState = state, stringContent = stringContent, numberContent = numberContent, booleanContent = booleanContent ) } ) } }

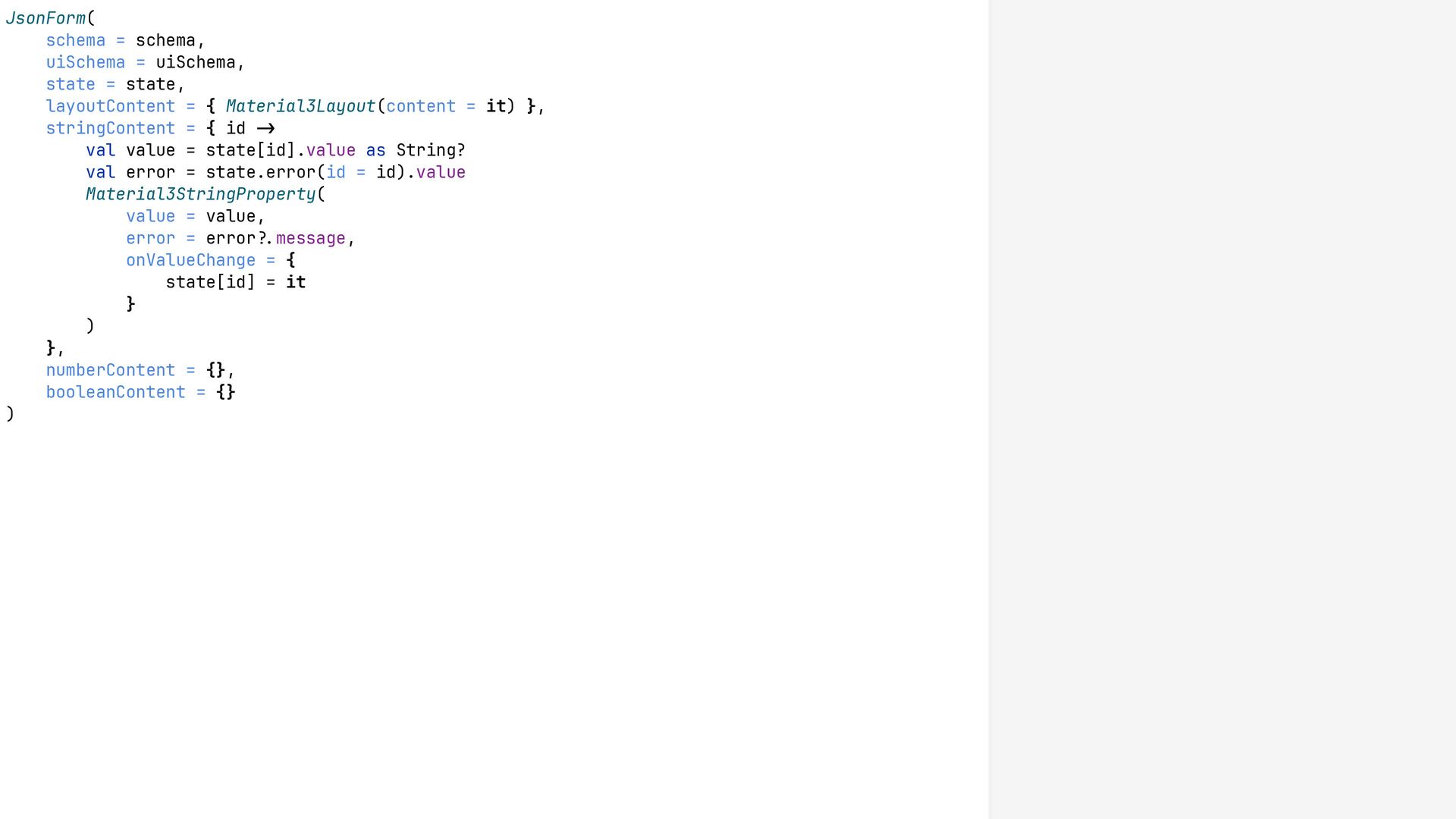

19. JsonForm( schema = schema, uiSchema = uiSchema, state = state, layoutContent = { Material3Layout(content = it) }, stringContent = { id !" val value = state[id].value as String? val error = state.error(id = id).value Material3StringProperty( value = value, error = error!$message, onValueChange = { state[id] = it } ) }, numberContent = {}, booleanContent = {} )
20. DEMO TIME

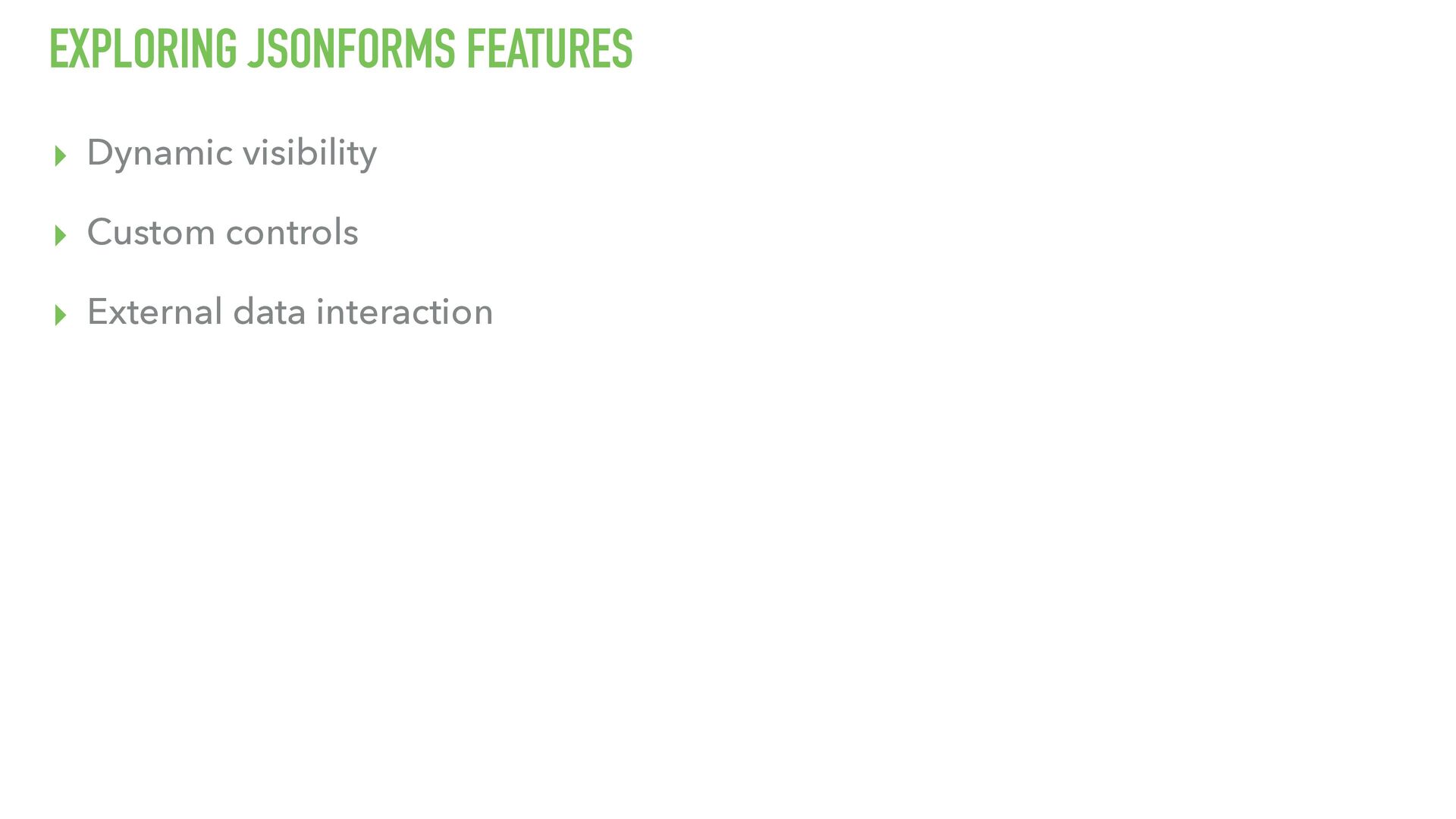

21. EXPLORING JSONFORMS FEATURES ▸ Dynamic visibility ▸ Custom controls ▸ External data interaction
22. DEMO TIME
23. JSONFORMS ARCHITECTURE

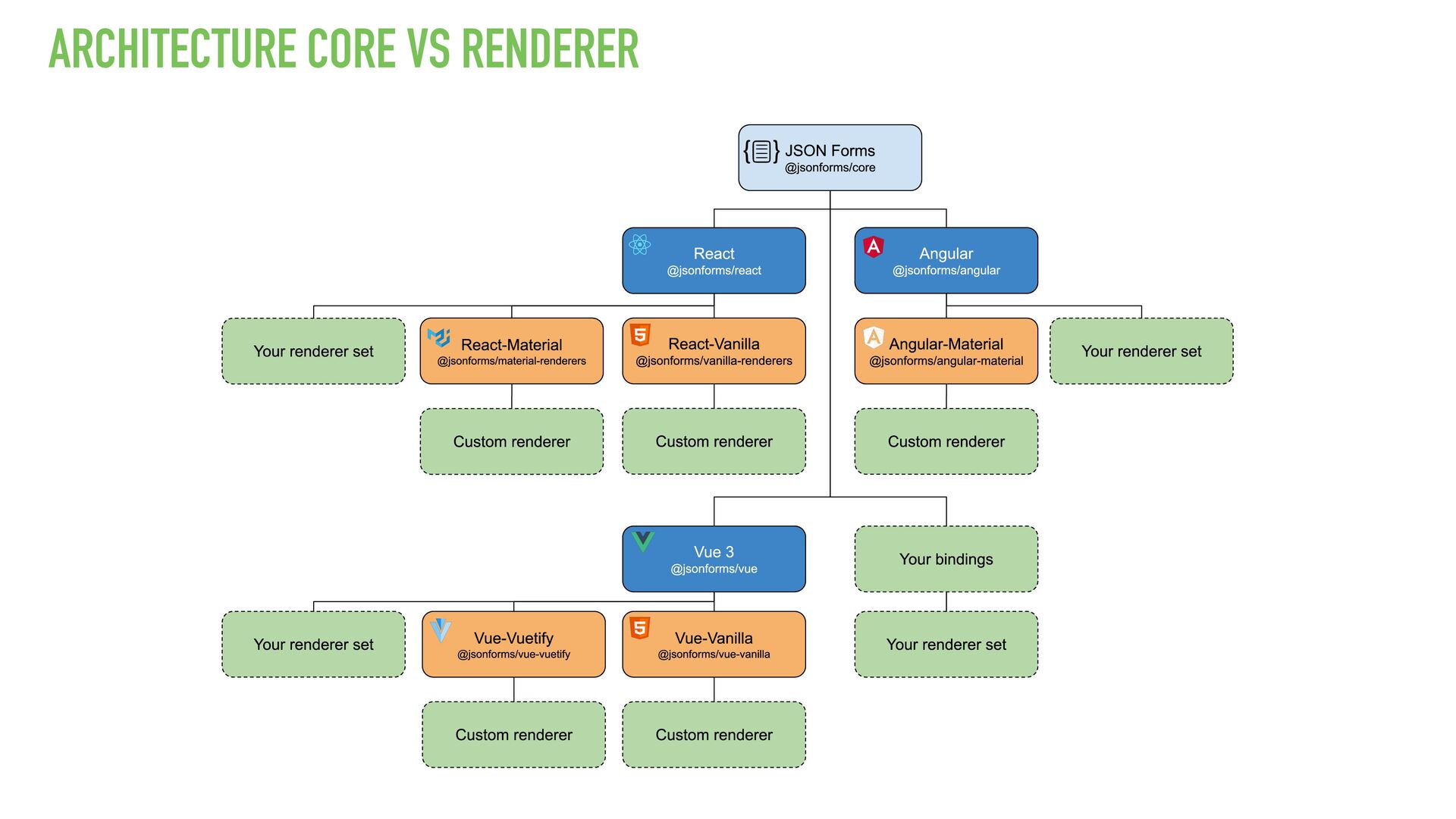

24. ARCHITECTURE CORE VS RENDERER

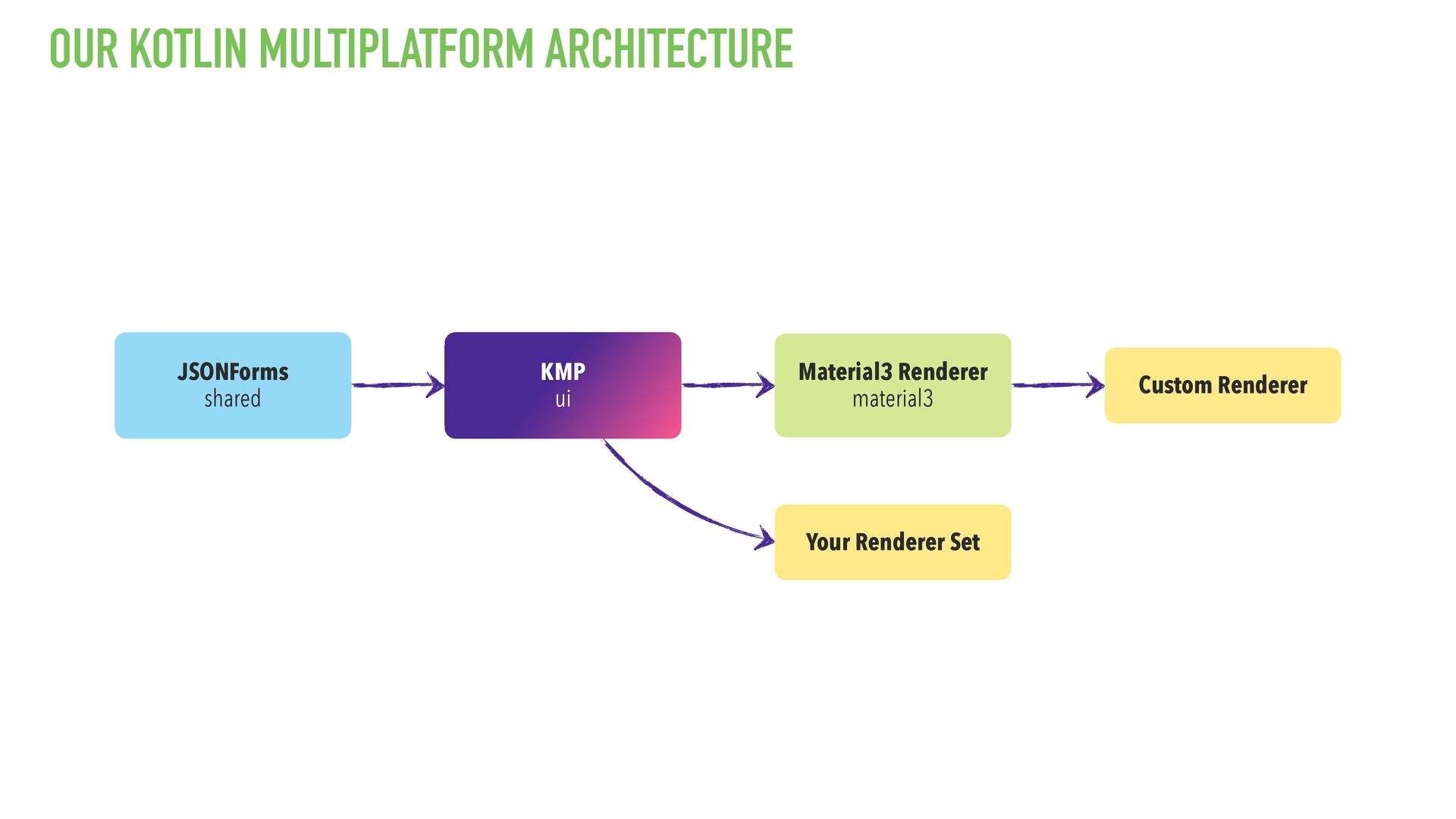

25. OUR KOTLIN MULTIPLATFORM ARCHITECTURE JSONForms shared KMP ui Material3 Renderer material3 Your Renderer Set Custom Renderer
26. ROAD TO COMPOSE MULTIPLATFORM WITH CUPERTINO RENDERER

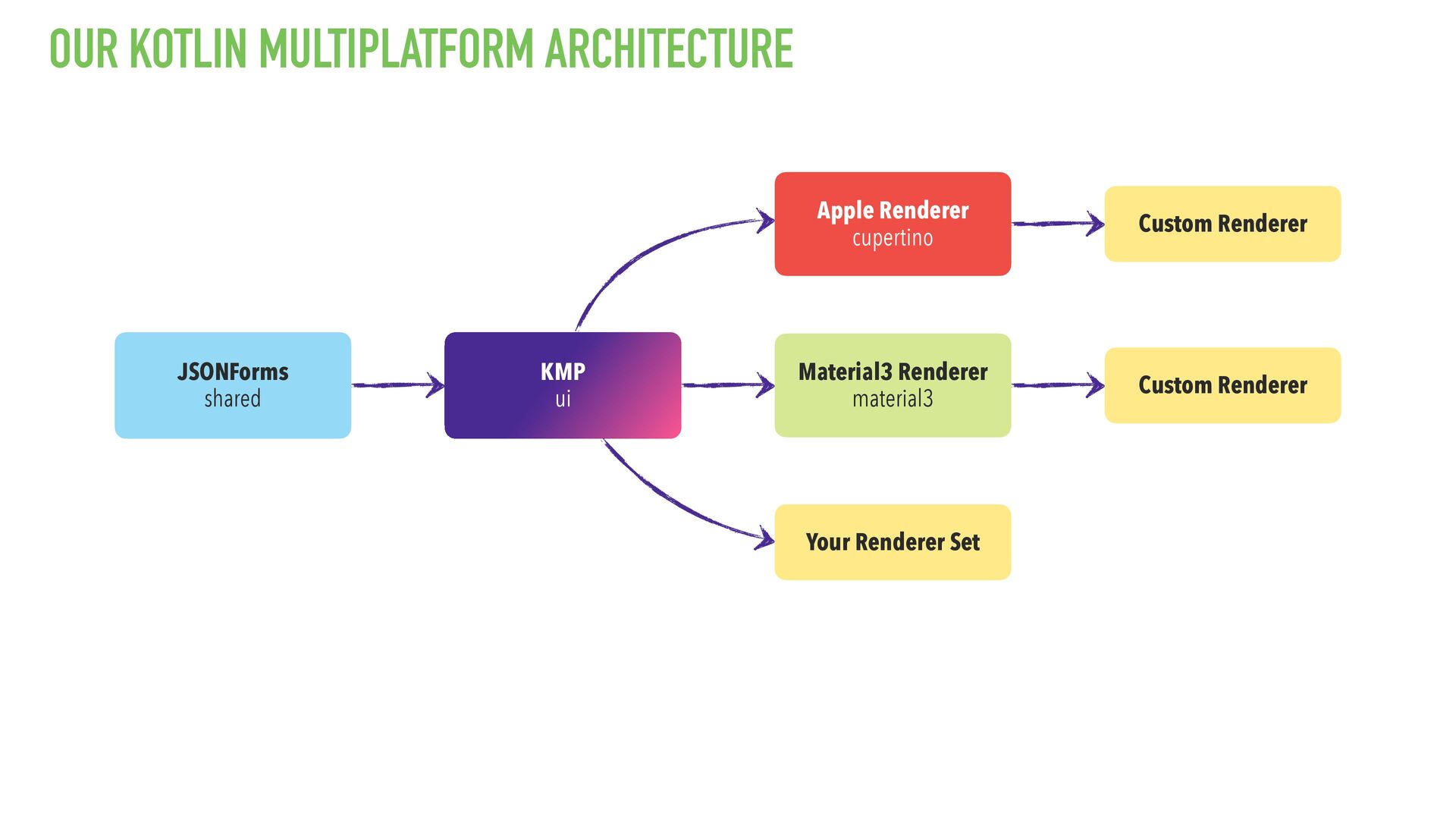

27. OUR KOTLIN MULTIPLATFORM ARCHITECTURE JSONForms shared KMP ui Material3 Renderer material3 Your Renderer Set Custom Renderer Apple Renderer cupertino Custom Renderer

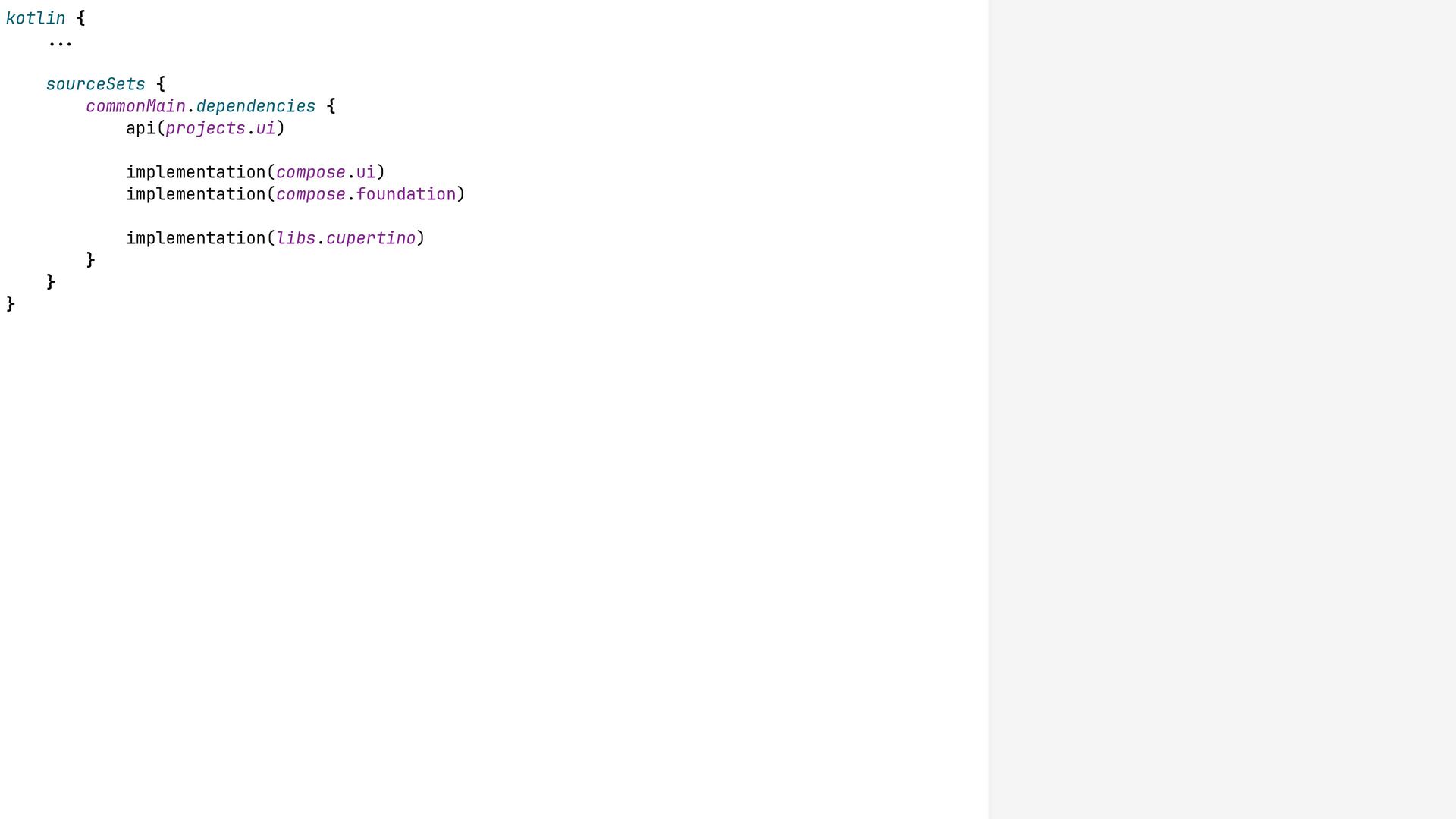

28. kotlin { !!# sourceSets { commonMain.dependencies { api(projects.ui) implementation(compose.ui) implementation(compose.foundation) implementation(libs.cupertino) } } }

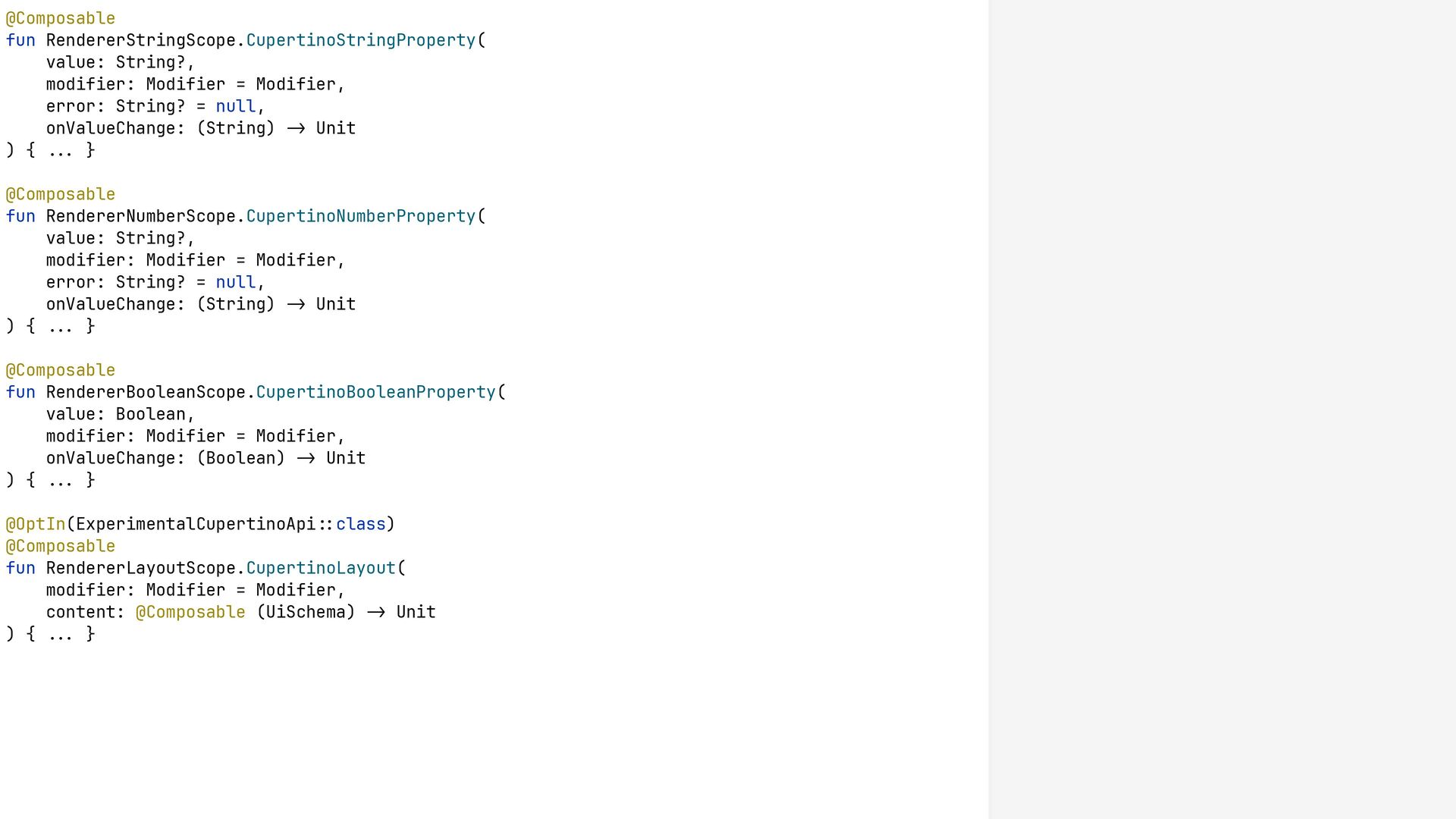

29. @Composable fun RendererStringScope.CupertinoStringProperty( value: String?, modifier: Modifier = Modifier, error: String? = null, onValueChange: (String) !" Unit ) { !!# } @Composable fun RendererNumberScope.CupertinoNumberProperty( value: String?, modifier: Modifier = Modifier, error: String? = null, onValueChange: (String) !" Unit ) { !!# } @Composable fun RendererBooleanScope.CupertinoBooleanProperty( value: Boolean, modifier: Modifier = Modifier, onValueChange: (Boolean) !" Unit ) { !!# } @OptIn(ExperimentalCupertinoApi!%class) @Composable fun RendererLayoutScope.CupertinoLayout( modifier: Modifier = Modifier, content: @Composable (UiSchema) !" Unit ) { !!# }

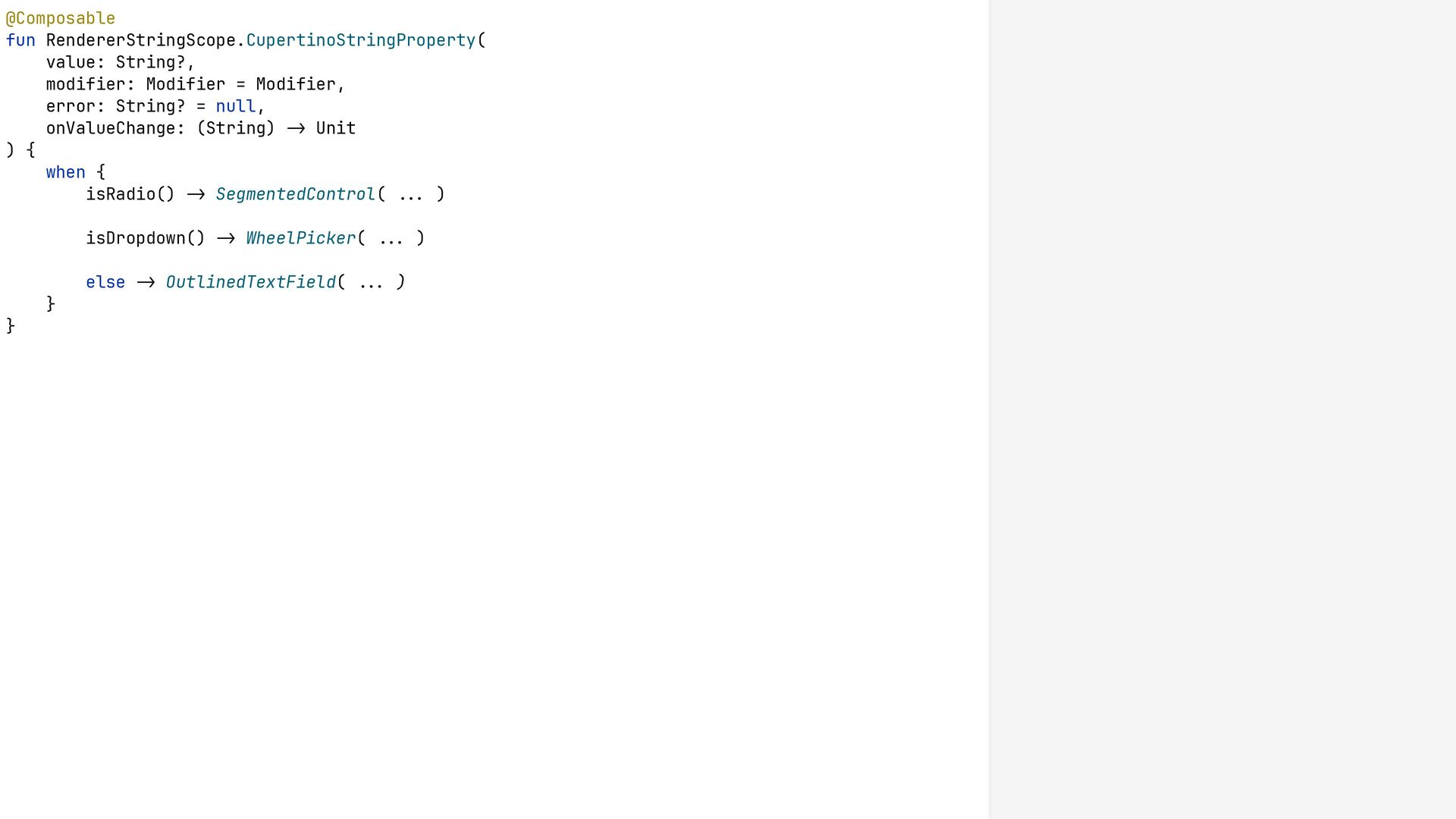

30. @Composable fun RendererStringScope.CupertinoStringProperty( value: String?, modifier: Modifier = Modifier, error: String? = null, onValueChange: (String) !" Unit ) { when { isRadio() !" SegmentedControl( !!# ) isDropdown() !" WheelPicker( !!# ) else !" OutlinedTextField( !!# ) } }

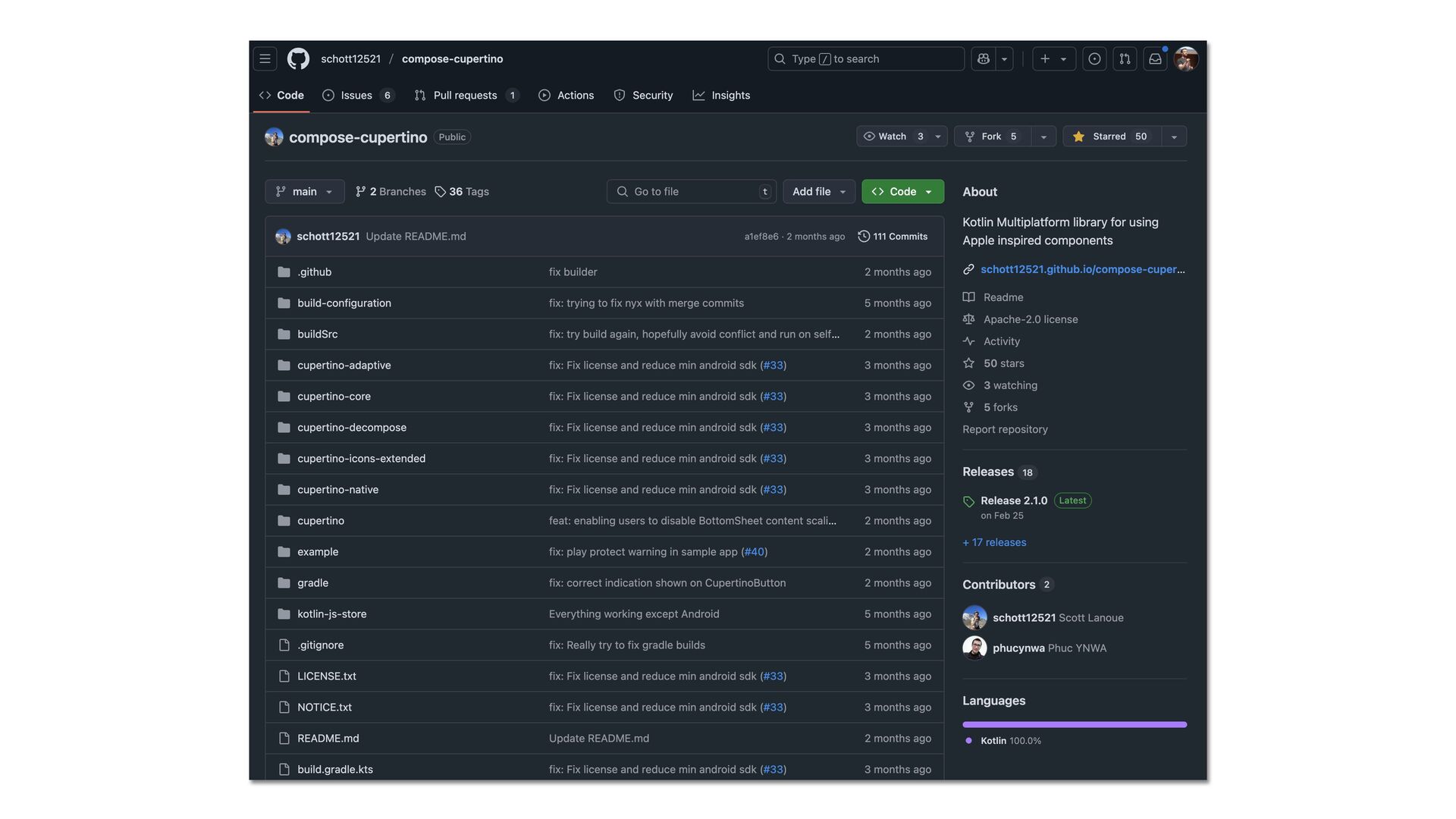

31. DEMO TIME
33. IN CONCLUSION

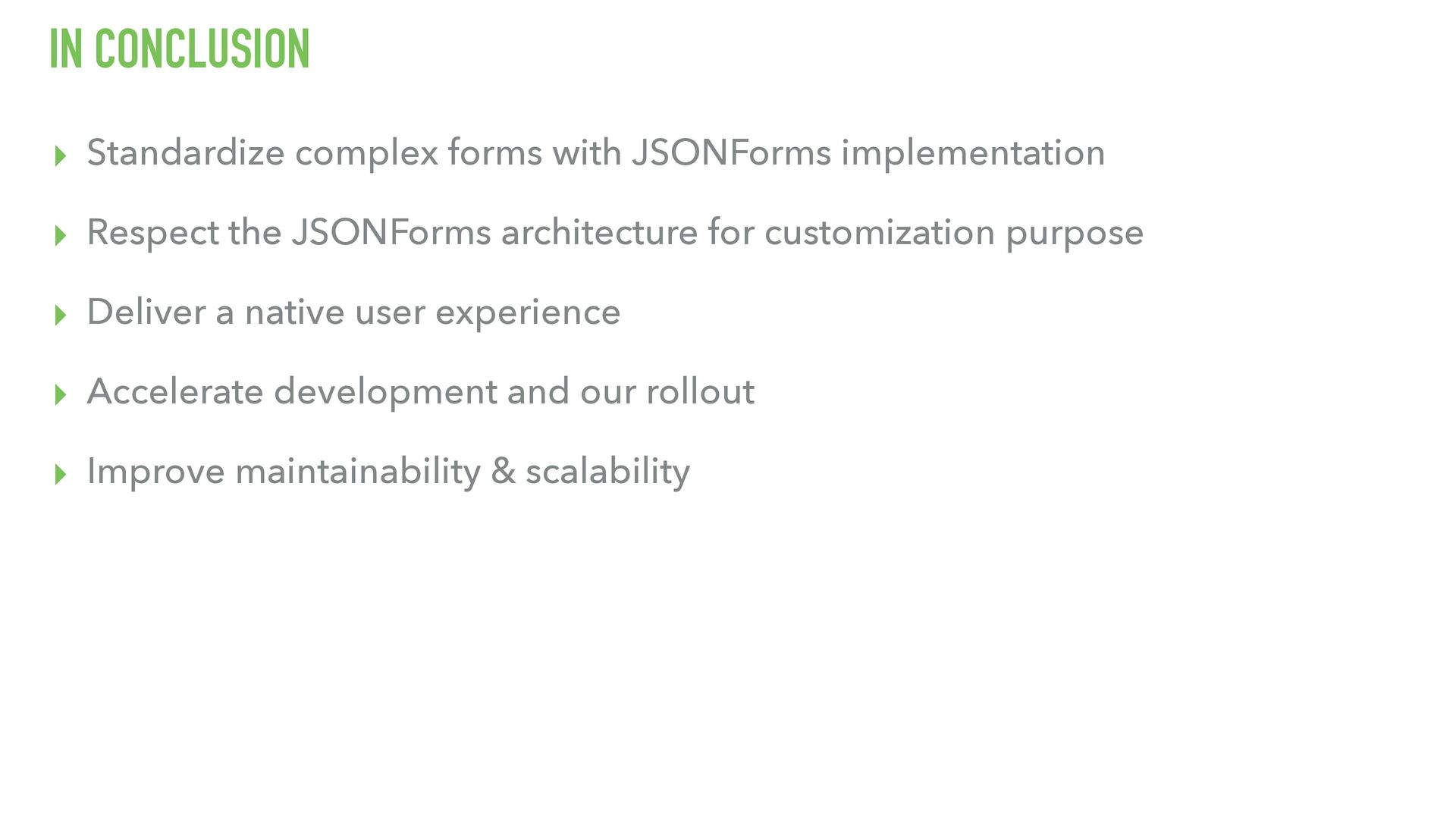

34. IN CONCLUSION ▸ Standardize complex forms with JSONForms implementation ▸ Respect the JSONForms architecture for customization purpose ▸ Deliver a native user experience ▸ Accelerate development and our rollout ▸ Improve maintainability & scalability

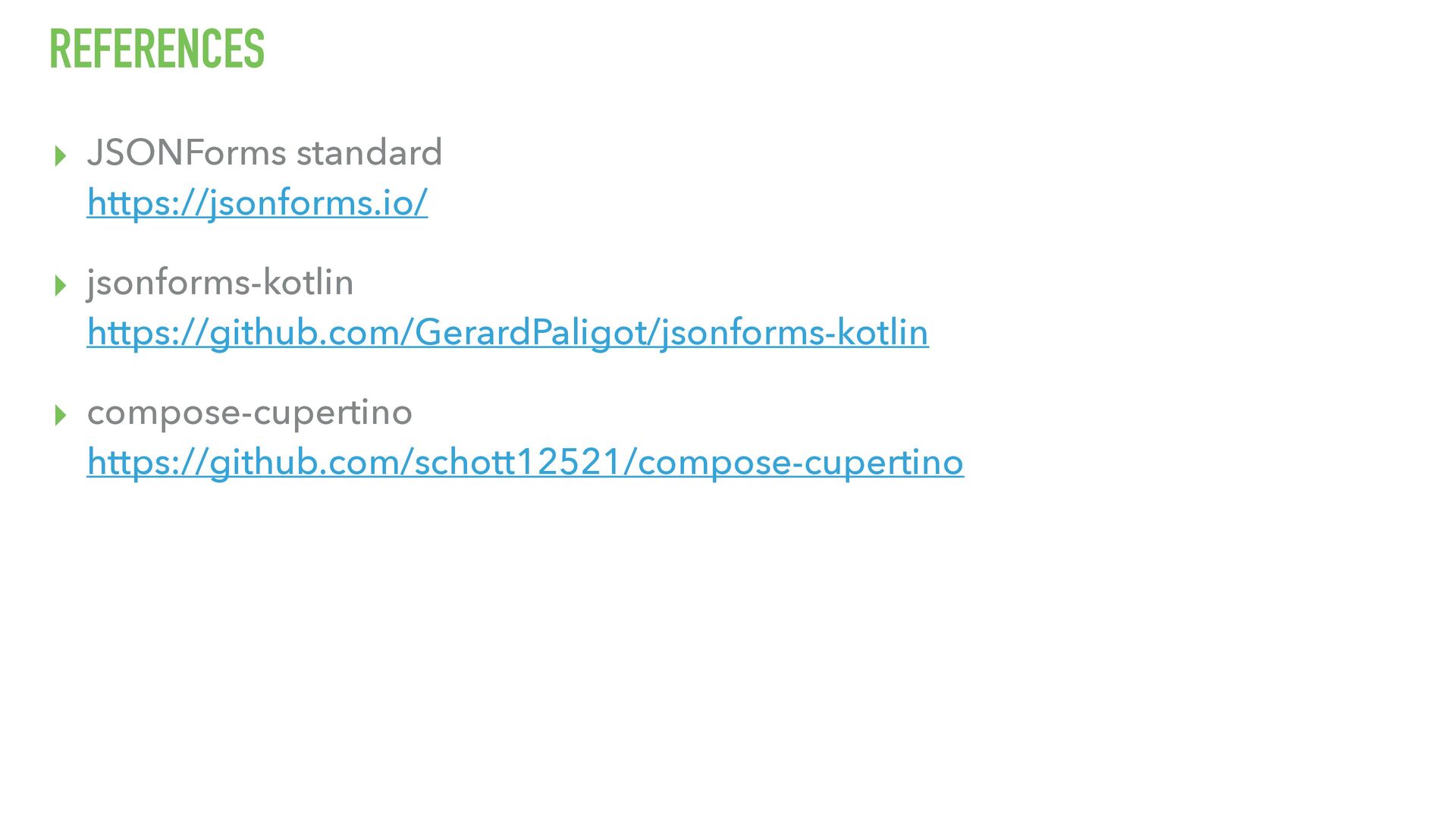

35. REFERENCES ▸ JSONForms standard https://jsonforms.io/ ▸ jsonforms-kotlin https://github.com/GerardPaligot/jsonforms-kotlin ▸ compose-cupertino https://github.com/schott12521/compose-cupertino
