Apache Kafka Data under Abstraction Layer - Kafka Data Characteristics and Stream processing

52d9c2096956a1fd886e1abe1cdf4db2?s=47 hashi
November 16, 2021

Apache Kafka Data under Abstraction Layer - Kafka Data Characteristics and Stream processing

Apache Hop Incubating - User Group Japan #1 登壇資料

Apache KafkaはApache Hop観点から見るとデータレイヤーにあたり、通常はApache Beam等のオーケストレーションレイヤーの抽象化によって実態を意識する必要はほぼありません。しかしながらApache Kafkaの扱うストリームは一般的なpub/subメッセージの集合ではなく、強いデータ整合性を保つストリームとなっています。本セッションではApache Kafkaの世界観で見るデータとストリームの扱い方と、間接的に処理する上で重要なExactly Once Semanticsについてご説明します。

52d9c2096956a1fd886e1abe1cdf4db2?s=128

hashi

November 16, 2021
Tweet

Transcript

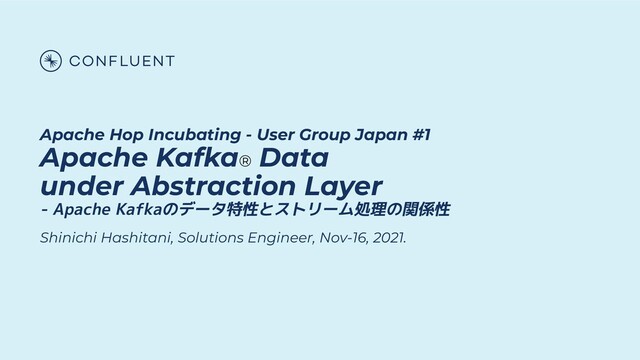

  1. Apache Hop Incubating - User Group Japan #1 Apache Kafka®

    Data under Abstraction Layer - Apache Kafkaのデータ特性とストリーム処理の関係性 Shinichi Hashitani, Solutions Engineer, Nov-16, 2021.
  2. Hop and Abstraction Layers Kafka and Data Stream-Table Duality

  3. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Managing Data Flow with Apache Hop 3 Database Kafka MQTT Clients Analytics Dashboard Splunk S3 neo4j Hop Runtime Apache Beam® OR Servers ‘N Stuff
  4. You can configure/run/test flow of data on Hop based on

    medatada. Everything else is abstracted away.
  5. Abstraction is a beautiful thing.

  6. But sometimes it obscures some important details.

  7. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Under the Abstraction Layer and Apache Kafka 7 Hop Runtime Apache Beam Google Dataflow Apache Spark® Apache Flink® YARN or Kubernetes or else All of those guys can talk to Kafka independently. Bare Metal VM Kafka runs on anywhere.
  8. Who is talking to Kafka and at where Kafka is

    hosted could impact how flows on Hop communicate with Kafka.
  9. Another subtle, but important detail.

  10. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. What is behind Kafka? 10 Database MQTT Clients Analytics Dashboard Splunk S3 neo4j All of those guys can talk to Kafka independently. Kafka can be an abstraction layer between Hop and sources/sinks.
  11. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Kafka Connect - A Native Way to Connect 11 • Fault tolerant • Exactly Once Semantics • Connect with configuration • Preserve data schema Kafka Connect defines API for connector implementation, handling all the plumbing to keep data consistency. It supports hundreds of data stores (MySQL, Postgres, Oracle, DB2, Cassandra, neo4j, BigQuery, S3, Salesforce, Splunk, etc.)
  12. Kafka Connect let you extract events out data stores, while

    keeping the data consistent.
  13. How does Kafka handles data?

  14. Hop and Abstraction Layers Kafka and Data Stream-Table Duality

  15. Data Abstraction

  16. Relational Database - Tables Data Lake (Hadoop) - Files Apache

    Kafka - Streams (Logs)
  17. Stream Log • Continuous • Logical • Infinite • Continuous

    • Physical • Finite
  18. Event Streams Event-Driven Architecture Event Sourcing Event Hub ...

  19. Events… Streams… Logs...

  20. Events and Streams

  21. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. 21 final Properties settings = new Properties(); settings.put(ProducerConfig.CLIENT_ID_CONFIG, driverId); settings.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "kafka:9092"); settings.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class); settings.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, KafkaAvroSerializer.class); settings.put(KafkaAvroSerializerConfig.SCHEMA_REGISTRY_URL_CONFIG, "http://schema-registry:8081"); final KafkaProducer<String, PositionValue> producer = new KafkaProducer<>(settings); ... final ProducerRecord<String, PositionValue> record = new ProducerRecord<>(“store-order”, key, value); producer.send(record); To Where? What?
  22. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. 22 final ProducerRecord<String, PositionValue> record = new ProducerRecord<>(“store-order”, key, value); Event for what? Event itself “store-order” is a Topic The only indicator to explain the event when sending it to Kafka. Kafka consolidates and manages event per topic.
  23. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Stream = Series of Events for a Particular Topic 23 customer login: abc order confirmed: #001 order updated: #002 customer login: efg order canceled: #003 package received: #a01 at dist center: #b02 left dist center: #a02 delivered: #a01 customer C: 0001 order U: 0003 payment U: 0002 payment C: 0003 customer U: 0002 store-order order confirmed: #001 order updated: #002 order canceled: #003 store-customer customer login: abc customer login: efg logistic package received: #a01 left dist center: #a02 delivered: #a01 at dist center: #b02 orderdb-c customer C: 0001 customer U: 0002 orderdb-o order U: 0003 orderdb-p payment C: 0003 payment U: 0002
  24. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Steam and Log 24 customer login: abc order confirmed: #001 order updated: #002 customer login: efg order canceled: #003 Append-Only Immutable 1 2 3 4 5 6 8 7 10 9 11 12 1 2 3 4 5 6 8 7 Old New
  25. - Events with the same topic are aggregated and stored.

    - Events are immutable. - New events are appended at the end. ∴ [Topic(Event)] = Stream ≒ Log
  26. [Topic(Event)] = Stream ≒ Log [Topic(Event)] = Stream Partition([Topic(Event)]) =

    Log
  27. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Stream and Partition 27 1 2 3 4 5 6 8 7 10 9 11 12 (“store-order”, key, value) Partition 1 Partition 0 Partition 2 hash(key) mod (Partition Count) = Partition # 3 7 9 10 11 16 17 1 2 12 18 22 4 5 6 13 14 15 20 19 21 23 8
  28. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Partition, Event Order, and Parallelism 28 Order of Events is guaranteed only within a given partition. # of Partition= Max number of threads (concurrency) 3 7 9 10 11 16 17 1 2 12 18 22 4 5 6 13 14 15 20 19 21 8
  29. Next: Data and Streams

  30. Hop and Abstraction Layers Kafka and Data Stream-Table Duality

  31. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Chess Game Play and Chessboard 31 “Streams and Tables in Apache Kafka: A Primer”, Michael Noll, Confluent Blog. A series of piece movement and the state of the board are different representations of the same data. • The chess board represents the complete state of the game, at the given timing. • Following each piece movement, one-by-one, in the exact order, allows the state to be reproduced on demand.
  32. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Relational Database Internals 32 All processes are performed in memory. All records required for computation are loaded into memory. Updates are synched back to physical device at certain timing. Each operation is recorded in log. When failure occurs during processing, the data can be recovered by processing all operations not synced back to the storage; one-by-one, in the exact order. fsync buffer load
  33. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Database Replication 33 Database Replication: • Write-Ahead Log is passed from Primary to Secondary, one-by-one, in the exact order. • Secondary processes the log one-by-one, in the exact order. “Postgres Replication and Automatic Failover Tutorial”, Abbas Butt, EDB.
  34. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Change Data Capture 34 After turn the data update into streams then you can: • Extract a part of it • Send into a different schema • Send to a different storage • Send to a cheap object storage By transferring update one-by-one in exact same order, the data can be send to different place for different use cases, while keeping the data intact. The DB
  35. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Stream-Table Duality 35
  36. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Stream-Table Duality 36 Stream (facts) Table (dims) alice Berlin bob Lima alice Berlin alice Rome bob Lima alice Paris bob Sydney alice Berlin alice Rome bob Lima alice Paris bob Sydney Change stream to a table Keeping the table up to date Stream and Table are different representation of same data. We call it “Stream-Table Duality”.
  37. Summary

  38. • Apache Kafka can be a layer of abstraction •

    Kafka can connect with a lot of sources/sinks via Kafka Connect • Kafka can provide you data in consistent manner
  39. Apache Kafka is Your Friend♥

  40. with a Bonus Content ♥

  41. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Hello! My Name is: 41 Established: 2014 CEO: Jay Kreps Opened Japan Office in 2021 Engineers@Japan Office Ayumu Aizawa Solutions Engineer Shinichi Hashitani Solutions Engineer Keigo Suda Solutions Architect Wei Ding Customer Success Technical Architect
  42. Copyright 2021, Confluent, Inc. All rights reserved. This document may

    not be reproduced in any manner without the express written permission of Confluent, Inc. Free Stuff! 42 I ♥ Logs by Jay Kreps eBook (pdf) Mastering Kafka Streams and ksqlDB by Mitch Seymour eBook (pdf) 200 USD Credit for 3 months! http://cnfl.io/mu-try-cloud
