Write the Docs Amsterdam: Test your API docs!

https://twitter.com/pronovix/status/963674018049150977

Transcript

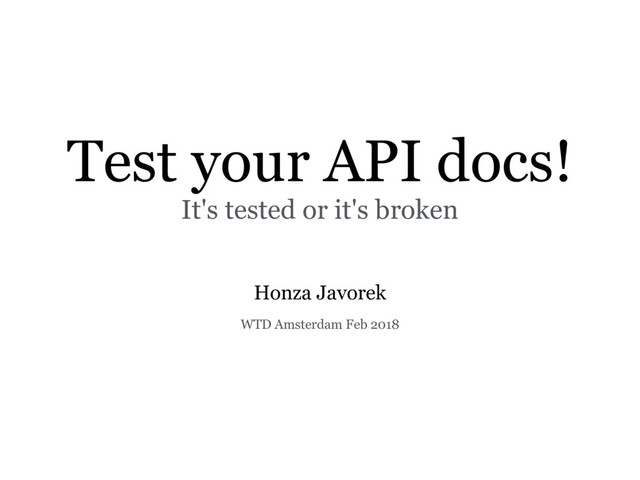

1. Test your API docs!
   It's tested or it's broken
   Honza Javorek
   WTD Amsterdam Feb 2018


   View Slide

2. Honza
   honzajavorek.cz
   @honzajavorek


   View Slide

3. View Slide

4. View Slide

5. pycon.cz
   @pyconcz


   View Slide

6. View Slide

7. Interface of libraries
   #!/usr/bin/env python
   import django


   View Slide

8. Interface of systems
   curl https://api.github.com/


   View Slide

9. Technical?


   View Slide

10. User interface!


    View Slide

11. import urllib2
    gh_url = 'https://api.github.com'
    req = urllib2.Request(gh_url)
    password_manager = urllib2.HTTPPasswordMgrWithDefaultRealm()
    password_manager.add_password(None, gh_url, 'user', 'pass')
    auth_manager = urllib2.HTTPBasicAuthHandler(password_manager)
    opener = urllib2.build_opener(auth_manager)
    urllib2.install_opener(opener)
    handler = urllib2.urlopen(req)
    print handler.getcode()
    print handler.headers.getheader('content-type')
    Do you like this interface?


    View Slide

12. Requests: HTTP for Humans


    View Slide

13. >>> r = requests.get('https://api.github.com/user',
    ... auth=('user', 'pass'))
    >>> r.status_code
    200
    >>> r.headers['content-type']
    'application/json; charset=utf8'
    >>> r.encoding
    'utf-8'
    >>> r.text
    '{"type":"User"...'
    >>> r.json()
    {'disk_usage': 368627, 'private_gists': 484, ...}
    Do you like this interface?


    View Slide

14. How do you design the
    interface?


    View Slide

15. Eating your own dog food


    View Slide

16. def test_basic_building():
    req = requests.Request()
    req.url = 'http://kennethreitz.org/'
    req.data = {'life': '42'}
    pr = req.prepare()
    assert pr.url == req.url
    assert pr.body == 'life=42'


    View Slide

17. Writing tests first
    helps to design the interface
    TDD


    View Slide

18. test > RED > implement > test > GREEN
    req = requests.Request()
    req.url = 'http://kennethreitz.org/'
    req.data = {'life': '42'}
    pr = req.prepare()
    assert pr.url == req.url
    assert pr.body == 'life=42'


    View Slide

19. Writing down behavior first
    helps to design the interface
    BDD


    View Slide

20. Feature: Status code
    Background:
    Given you expect HTTP status code "200"
    Scenario: Different real response status
    When real status code is "500"
    Then Gavel will set some error for "status code"
    And Request or Response is NOT valid
    Scenario: Response status code match
    When real status code is "200"
    Then Gavel will NOT set any errors for "status code"
    And Request or Response is valid
    Gherkin / Cucumber


    View Slide

21. Testable documentation!


    View Slide

22. 1. Design
    2. Test
    3. Implement


    View Slide

23. 1. Think, agree, promise
    2. Test the promise
    3. Fulfill the promise


    View Slide

24. How did Kenneth
    design requests?


    View Slide

25. View Slide

26. Before I start writing a single line of code,
    I write the README and fill it with usage
    examples. I pretend that the module I
    want to build is already written and
    available, and I write some code with it.
    “
    https://www.kennethreitz.org/essays/how-i-develop-things-and-why


    View Slide

27. RDD


    View Slide

28. RDD
    Readme Driven Development
    http://tom.preston-werner.com/2010/08/23/readme-driven-
    development.html


    View Slide

29. # Requests
    The `requests` library allows you to perform HTTP
    requests from your Python code.
    ## Example
    ```python
    >>> r = requests.get('https://github.com')
    >>> r.status_code
    200
    ```
    ## License
    MIT
    README.md


    View Slide

30. Readme Driven
    Development
    • chance to think through the project first
    • docs are ready - no need to write them retroactively
    • your team can use the interface before it exists
    • easy to discuss the interface with everyone


    View Slide

31. Interface in README
    =
    Essential interface user expects


    View Slide

32. README must not
    get out of sync with code


    View Slide

33. How do we ensure
    implementation
    matches the design?


    View Slide

34. python -m doctest README.md
    doctest


    View Slide

35. language: "python"
    python:
    - "3.6"
    script:
    - "python -m doctest README.md"
    Continuous Integration


    View Slide

36. 1. Think, agree, README
    2. Test the README
    3. Fulfill the README


    View Slide

37. What if we could design and
    test web APIs like this?


    View Slide

38. # Calendar API
    The API gives you various means to work with date and time.
    ## GET /now
    Provides you with current date and time.
    - Response 200 (application/json)
    ```json
    {
    "day": 29,
    "month": 2,
    "year": 2017,
    "hour": 11,
    "minute": 45,
    "second": 38
    }
    ```
    API.md


    View Slide

39. View Slide

40. View Slide

41. dredd API.md http://localhost:8000
    Dredd


    View Slide

42. View Slide

43. View Slide

44. View Slide

45. View Slide

46. View Slide

47. View Slide

48. View Slide

49. Go
    JavaScript
    Perl
    PHP
    Python Ruby
    Rust


    View Slide

50. language: "python"
    python:
    - "3.6"
    before_install:
    - "npm install -g dredd"
    script:
    - "dredd API.md http://localhost:8000"
    Continuous Integration


    View Slide

51. View Slide

52. View Slide

53. What about the OpenAPI Spec?
    (fka Swagger)


    View Slide

54. YAML


    View Slide

55. 1. Think, agree, API desc.
    2. Test the API desc.
    3. Fulfill the API desc.


    View Slide

56. Testing implementation against design
    allows you
    designing before implementing


    View Slide

57. Designing before implementing
    allows you
    better design


    View Slide

58. Dredd
    allows you
    better design


    View Slide

59. Remember
    • think first, design first, docs first, test first
    • discuss the the interface design before implementing
    • use the interface before implementing (mocks, tests)
    • have your interface design as a single source of truth
    • test implementation against the design


    View Slide

60. View Slide

61. github.com/apiaryio/dredd
    @honzajavorek


    View Slide
