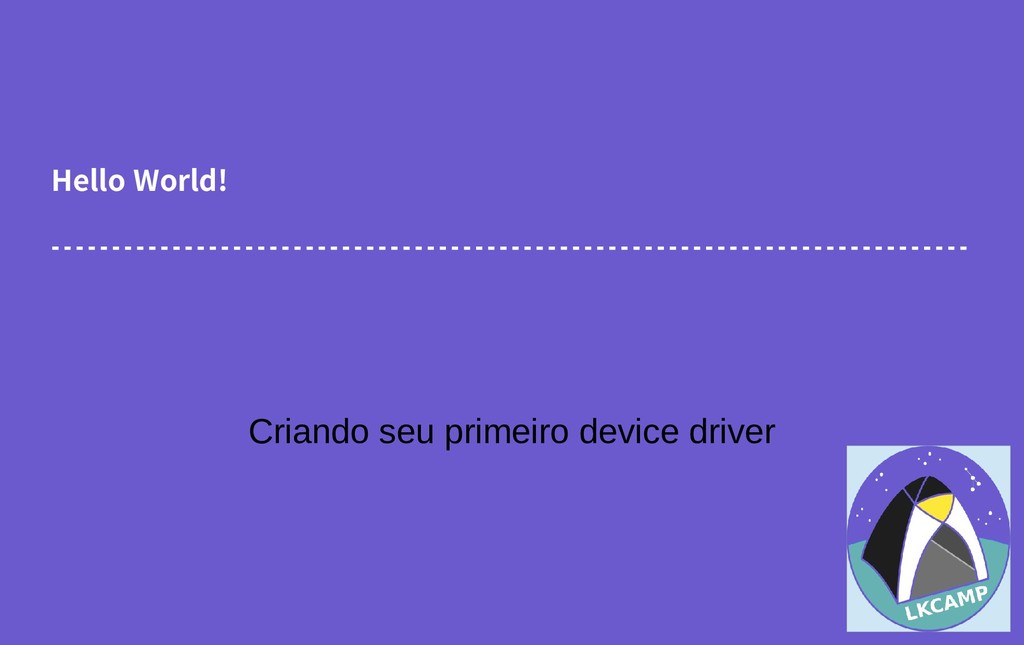

1. Hello World! Criando seu primeiro device driver

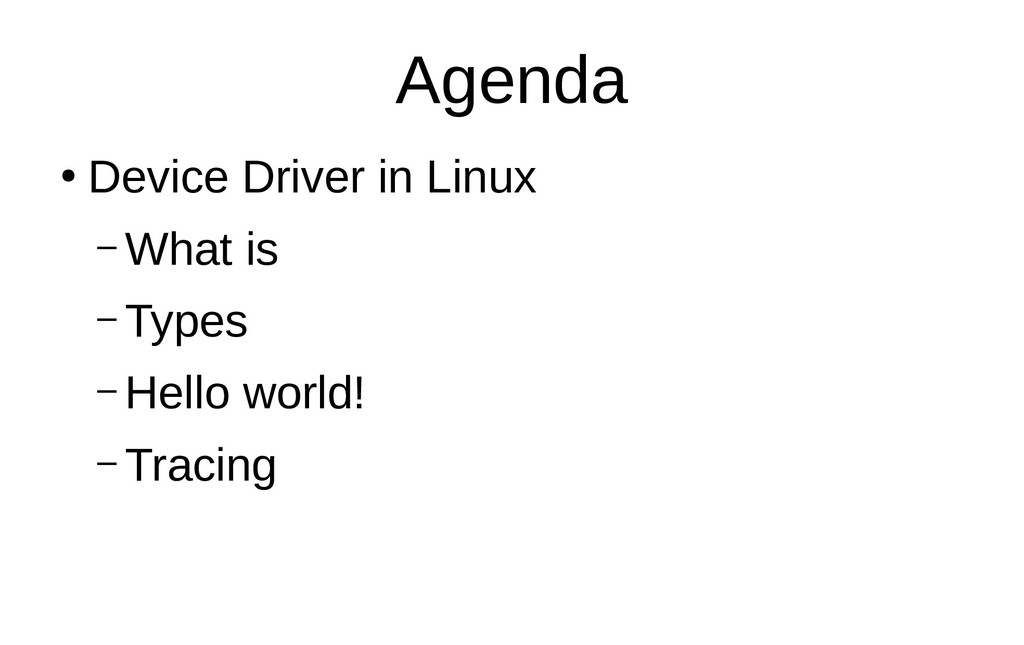

2. Agenda • Device Driver in Linux – What is – Types – Hello world! – Tracing

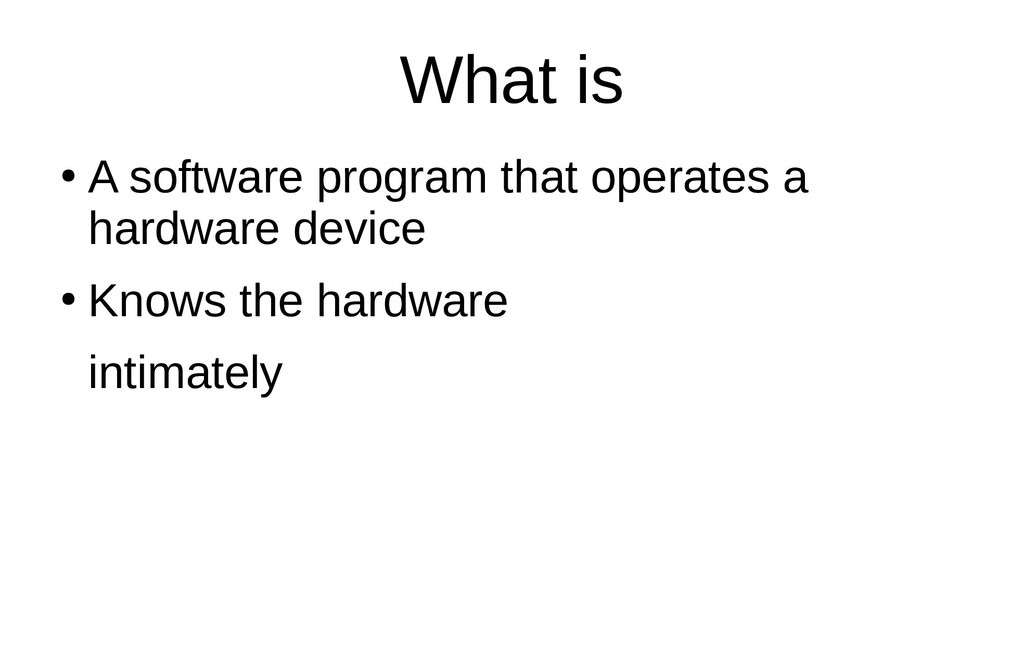

3. What is • A software program that operates a hardware device • Knows the hardware intimately

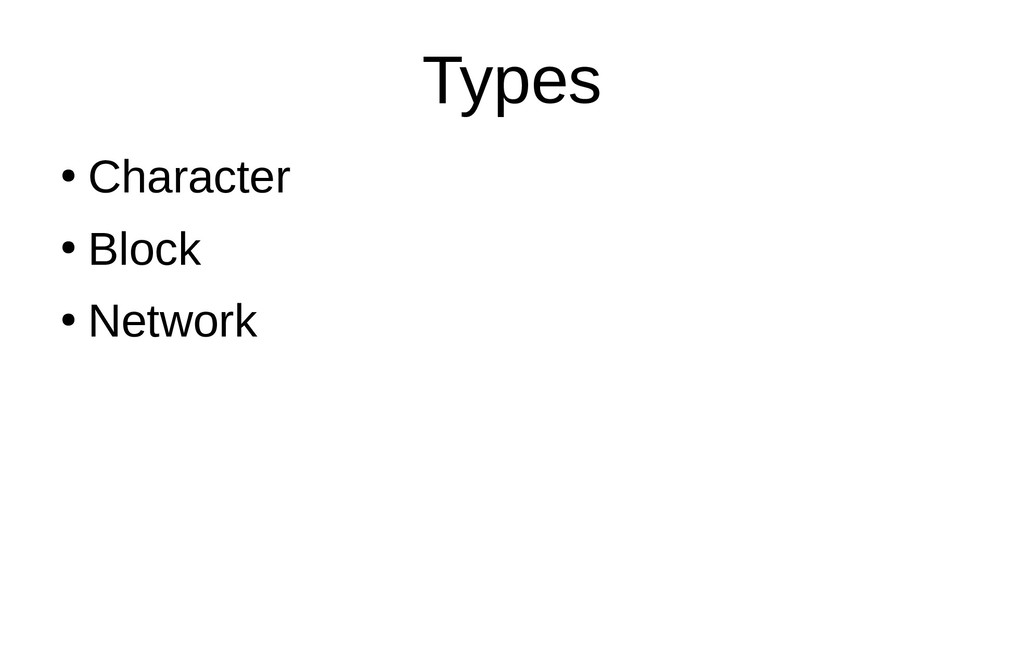

4. Types • Character • Block • Network

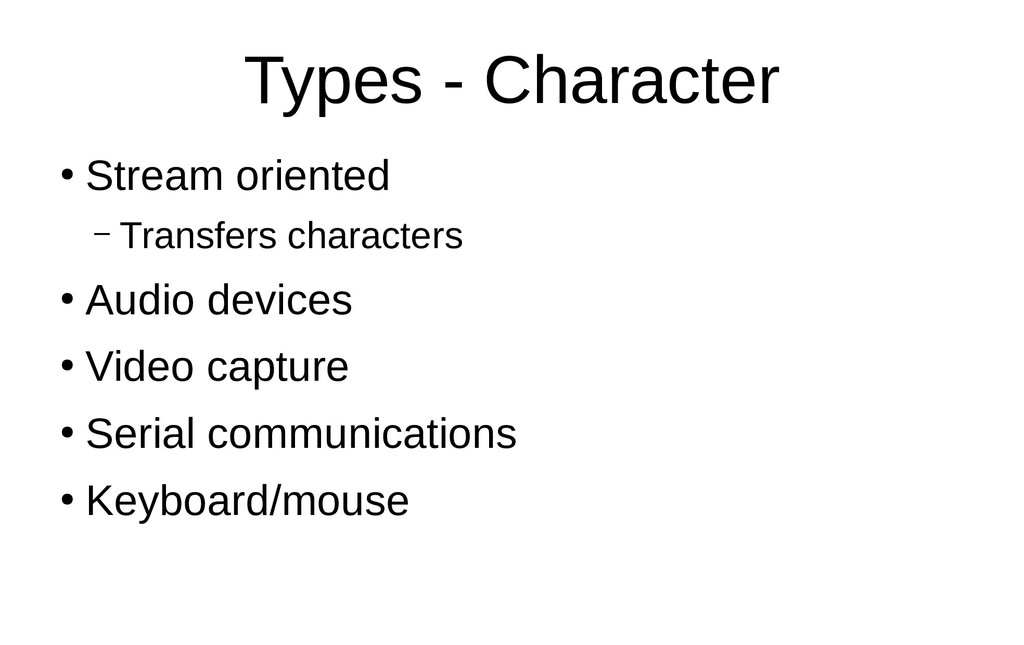

5. Types - Character • Stream oriented – Transfers characters • Audio devices • Video capture • Serial communications • Keyboard/mouse
6. Types - Character • ‘c’ character in /dev files • ls -l /dev crw------- 1 root root 10, 223 Jun 21 08:26 uinput crw-rw-rw- 1 root root 1, 9 Jun 21 08:26 urandom
7. Types - Block • Block oriented – Transfers fixed-size blocks, seekable • HDD/SSD • USB Sticks • CD-ROM

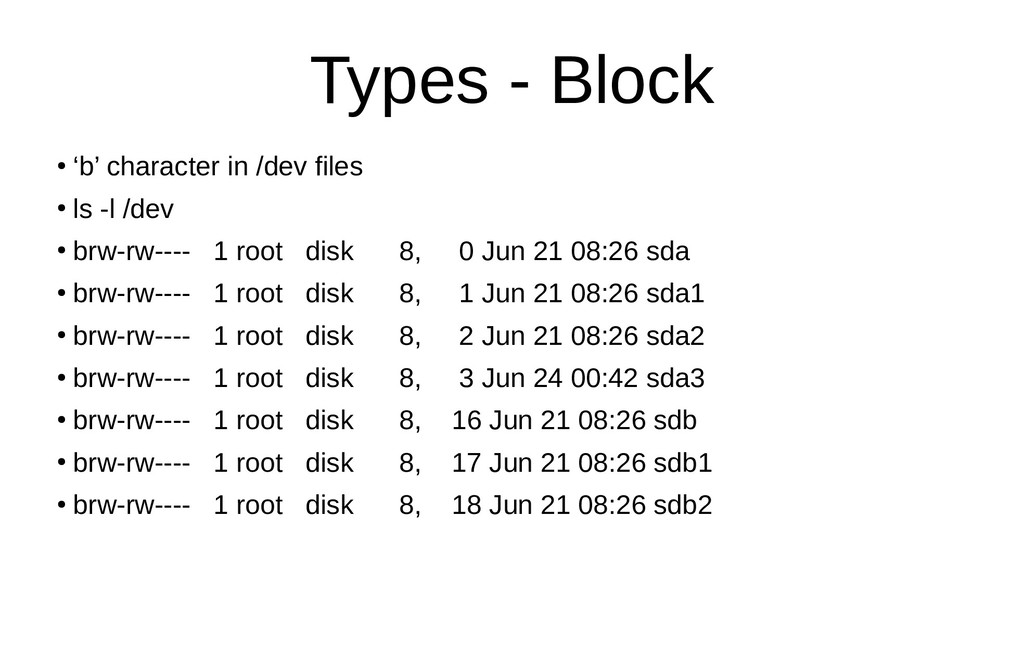

8. Types - Block • ‘b’ character in /dev files • ls -l /dev • brw-rw---- 1 root disk 8, 0 Jun 21 08:26 sda • brw-rw---- 1 root disk 8, 1 Jun 21 08:26 sda1 • brw-rw---- 1 root disk 8, 2 Jun 21 08:26 sda2 • brw-rw---- 1 root disk 8, 3 Jun 24 00:42 sda3 • brw-rw---- 1 root disk 8, 16 Jun 21 08:26 sdb • brw-rw---- 1 root disk 8, 17 Jun 21 08:26 sdb1 • brw-rw---- 1 root disk 8, 18 Jun 21 08:26 sdb2
9. Types - Network • Different from char and block – Don’t have a device file in /dev – Uses packet transmission, no read/write functions – Receives packets from outside asynchronously. There is no “request” as in block layer

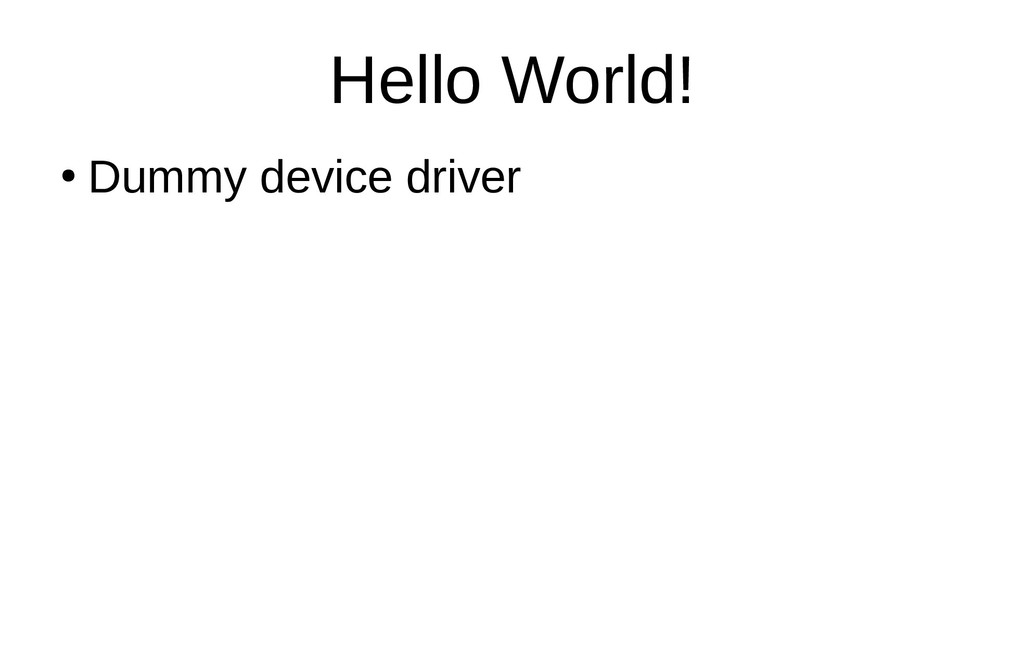

10. Hello World! • Dummy device driver

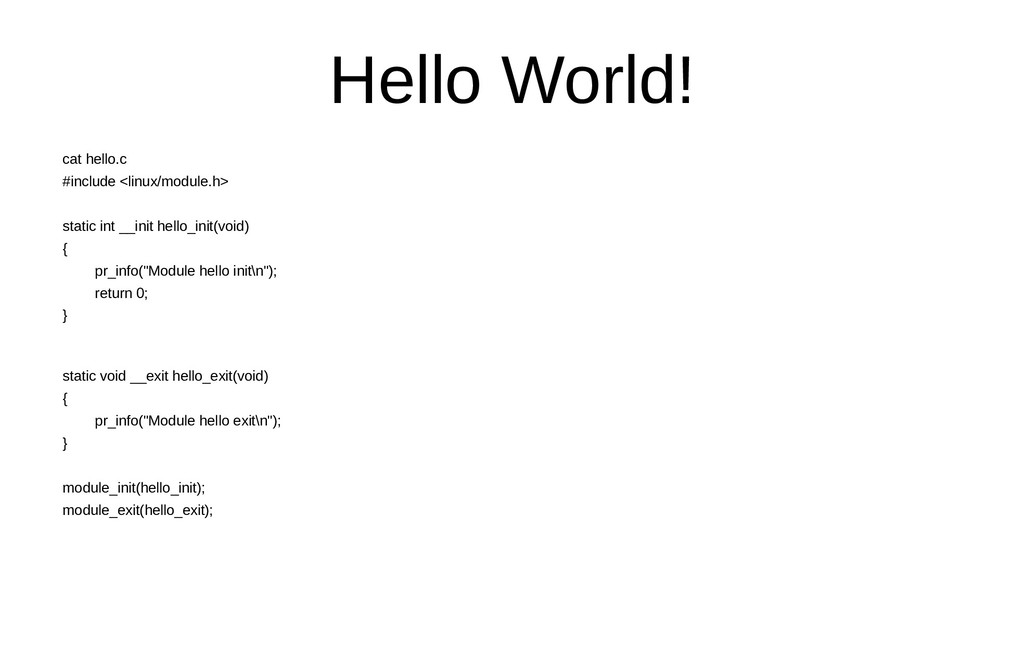

11. Hello World! cat hello.c #include <linux/module.h> static int __init hello_init(void) { pr_info("Module hello init\n"); return 0; } static void __exit hello_exit(void) { pr_info("Module hello exit\n"); } module_init(hello_init); module_exit(hello_exit);

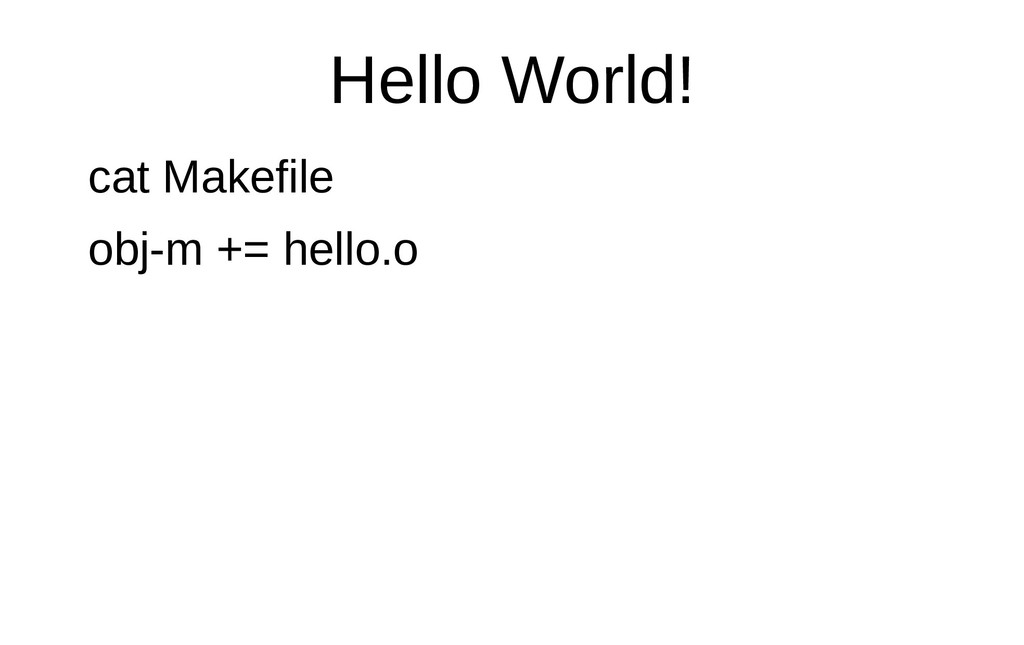

12. Hello World! cat Makefile obj-m += hello.o

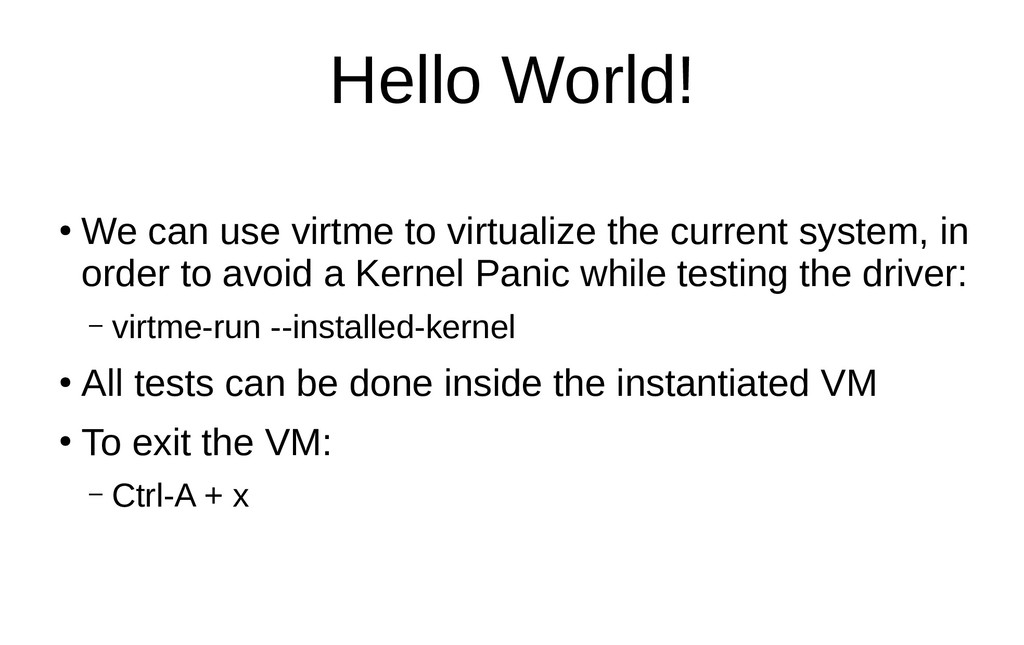

13. Hello World! • We can use virtme to virtualize the current system, in order to avoid a Kernel Panic while testing the driver: – virtme-run --installed-kernel • All tests can be done inside the instantiated VM • To exit the VM: – Ctrl-A + x

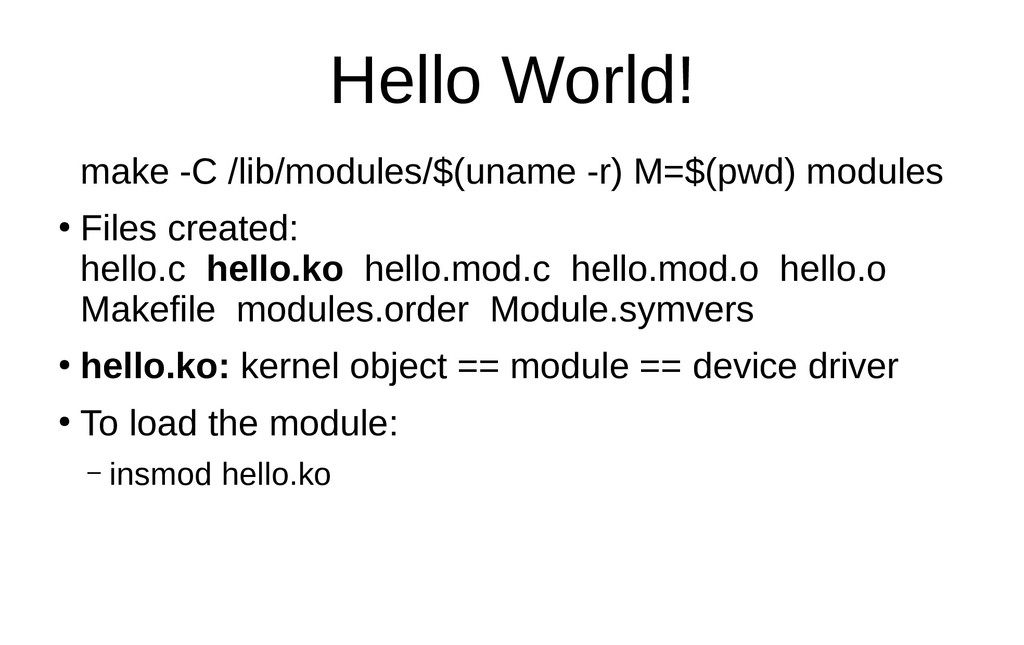

14. Hello World! make -C /lib/modules/$(uname -r) M=$(pwd) modules • Files created: hello.c hello.ko hello.mod.c hello.mod.o hello.o Makefile modules.order Module.symvers • hello.ko: kernel object == module == device driver • To load the module: – insmod hello.ko

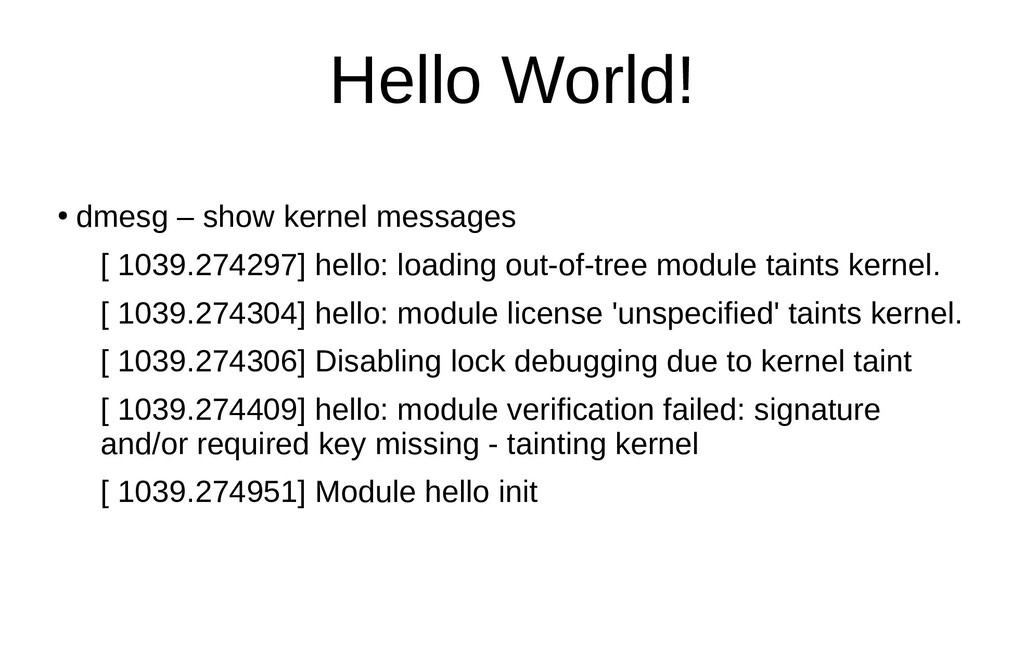

15. Hello World! • dmesg – show kernel messages [ 1039.274297] hello: loading out-of-tree module taints kernel. [ 1039.274304] hello: module license 'unspecified' taints kernel. [ 1039.274306] Disabling lock debugging due to kernel taint [ 1039.274409] hello: module verification failed: signature and/or required key missing - tainting kernel [ 1039.274951] Module hello init

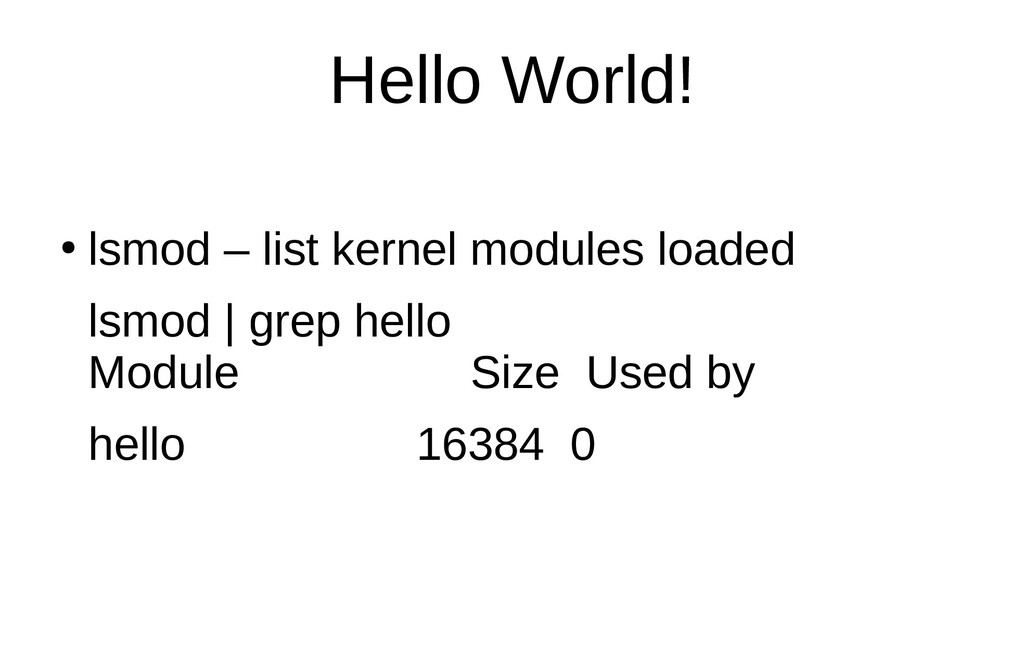

16. Hello World! • lsmod – list kernel modules loaded lsmod | grep hello Module Size Used by hello 16384 0

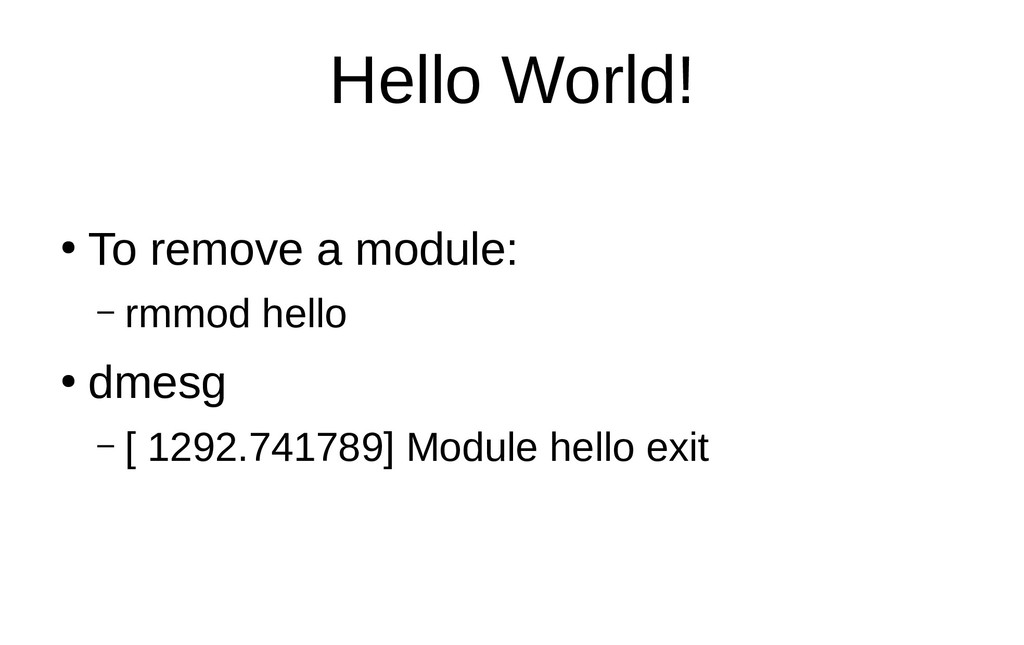

17. Hello World! • To remove a module: – rmmod hello • dmesg – [ 1292.741789] Module hello exit
18. Hello World! • Implementation of a char device driver using misc interface – Easy to implement – Can show how real world is like – Creates a device file in /dev automatically – Work done with less code

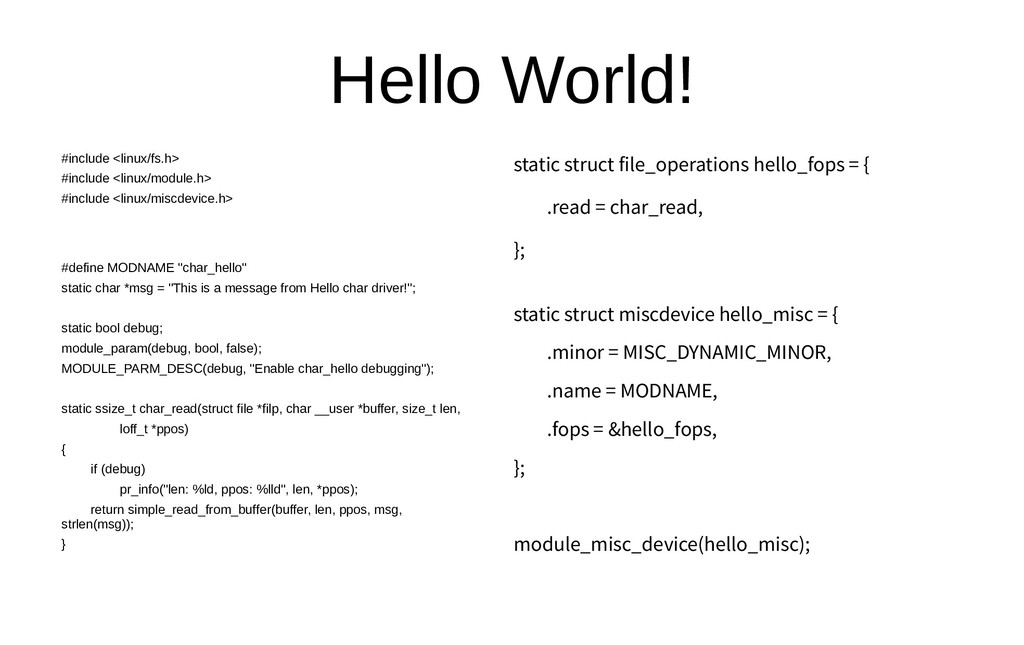

19. Hello World! #include <linux/fs.h> #include <linux/module.h> #include <linux/miscdevice.h> #define MODNAME "char_hello" static char *msg = "This is a message from Hello char driver!"; static bool debug; module_param(debug, bool, false); MODULE_PARM_DESC(debug, "Enable char_hello debugging"); static ssize_t char_read(struct file *filp, char __user *buffer, size_t len, loff_t *ppos) { if (debug) pr_info("len: %ld, ppos: %lld", len, *ppos); return simple_read_from_buffer(buffer, len, ppos, msg, strlen(msg)); } static struct file_operations hello_fops = { .read = char_read, }; static struct miscdevice hello_misc = { .minor = MISC_DYNAMIC_MINOR, .name = MODNAME, .fops = &hello_fops, }; module_misc_device(hello_misc);
20. Hello World! • insmod char_hello.ko • Using bash to read the first 3 characters read -n3 out </dev/char_hello [ 97.309243] opened! echo $out Thi
21. Hello World! • Using a custom program to test the driver, reading two characters per read – Shows how char drivers maintain the last read position
22. Hello World! #include <err.h> #include <stdio.h> #include <fcntl.h> #include <unistd.h> static void read_fd(int fd) { int i = 0; char buf[50] = {0}; while (read(fd, buf + i, 2) > 0) { printf("buf: %s\n", buf); i += 2; } } int main(void) { int i = 2, fd; while (i--) { fd = open("/dev/char_hello", O_RDONLY); if (fd == -1) err(fd, "failed to open"); read_fd(fd); close(fd); } return 0; }
23. Hello World! • ./test – buf: Th – buf: This – buf: This i – buf: This is – buf: This is a – buf: This is a me – ...

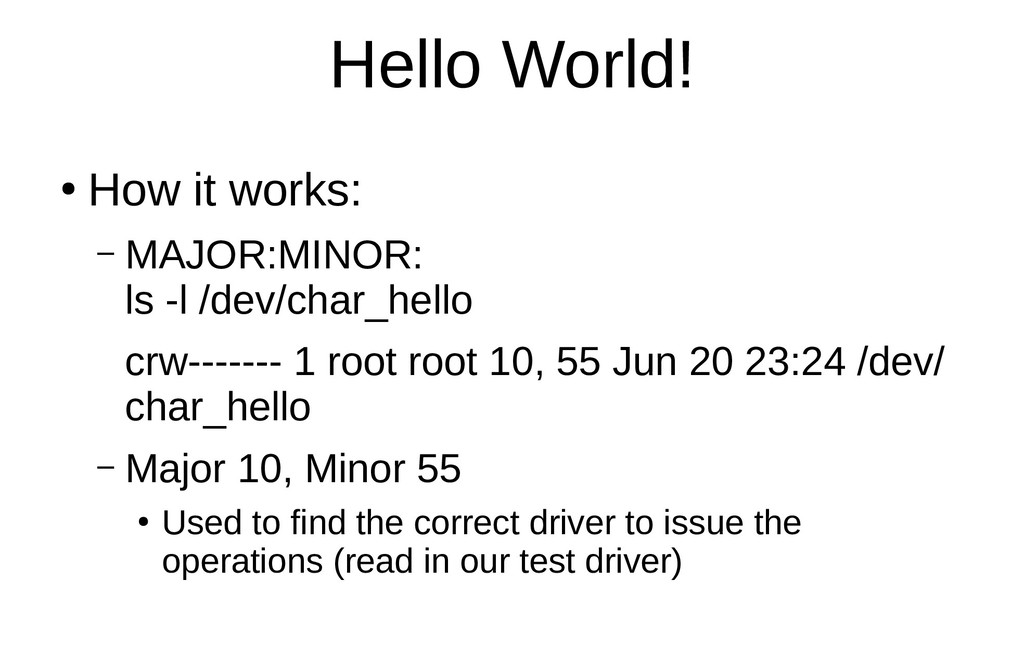

24. Hello World! • How it works: – MAJOR:MINOR: ls -l /dev/char_hello crw------- 1 root root 10, 55 Jun 20 23:24 /dev/ char_hello – Major 10, Minor 55 • Used to find the correct driver to issue the operations (read in our test driver)
25. Hello World! • How it works: – Major number 10 is related to MISC modules – Minor is used by the driver only, it is the identifier of the “instance” driver

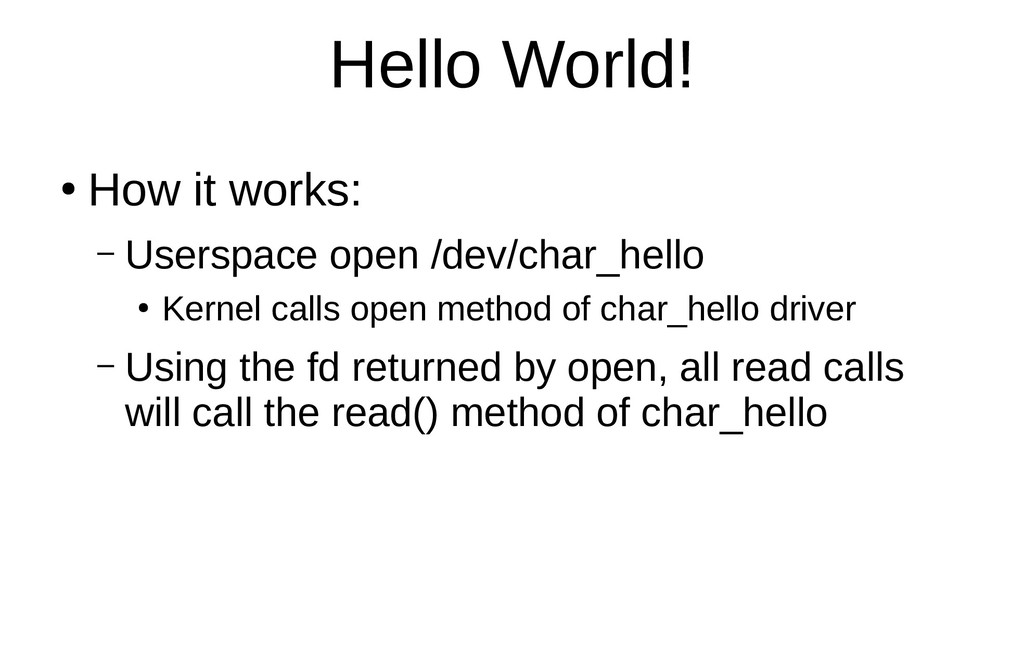

26. Hello World! • How it works: – Userspace open /dev/char_hello • Kernel calls open method of char_hello driver – Using the fd returned by open, all read calls will call the read() method of char_hello
27. Hello World! • How it works: – Strace is capable of showing how the program interacts with the kernel
28. Hello World! • strace ./test execve("./test", ["./test"], 0x7ffc7e20e0c0 /* 10 vars */) = 0 ... openat(AT_FDCWD, "/dev/char_hello", O_RDONLY) = 3 read(3, "Th", 2) = 2 fstat(1, {st_mode=S_IFCHR|0600, st_rdev=makedev(0x4, 0x40), ...}) = 0 ioctl(1, TCGETS, {B9600 opost isig icanon echo ...}) = 0 brk(NULL) = 0x1ba7000 brk(0x1bc8000) = 0x1bc8000 write(1, "buf: Th\n", 8buf: Th ) = 8 read(3, "is", 2) = 2 write(1, "buf: This\n", 10buf: This ) = 10 read(3, " i", 2) = 2 write(1, "buf: This i\n", 12buf: This i ) = 12 read(3, "s ", 2) = 2 write(1, "buf: This is \n", 14buf: This is ) = 14 ...

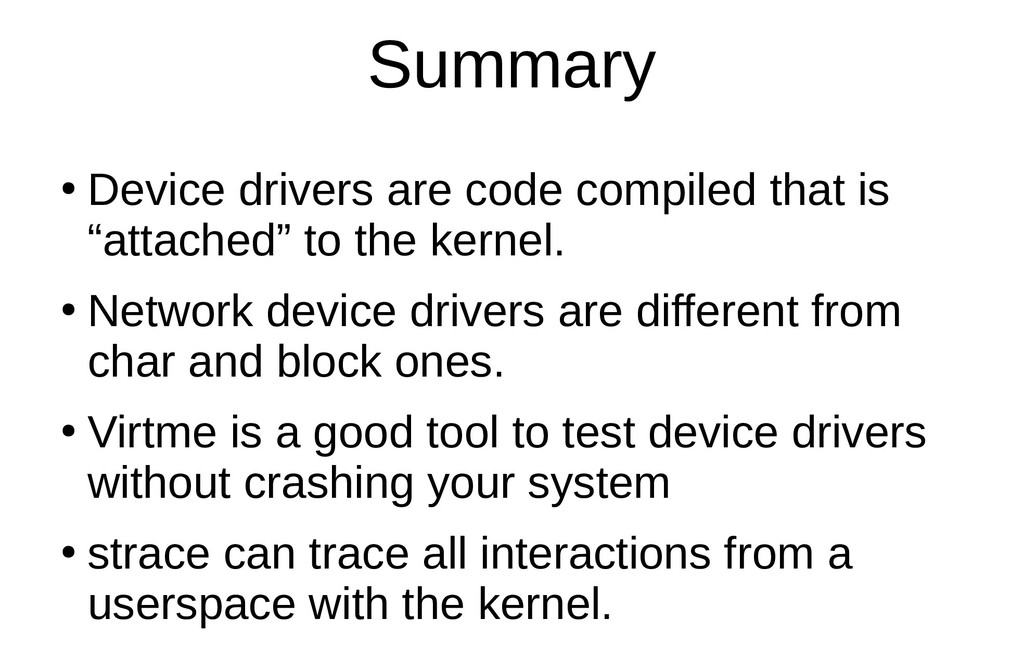

29. Summary • Device drivers are code compiled that is “attached” to the kernel. • Network device drivers are different from char and block ones. • Virtme is a good tool to test device drivers without crashing your system • strace can trace all interactions from a userspace with the kernel.
30. Summary • Character device drivers are “simple” – it’s just a stream of bytes • Block device drivers are request based – Always working in blocks • It’s easy to interact with device drivers from userspace
31. References • About Network Device Drivers docs.oracle.com/cd/E37670_01/E52461/ht ml/ch06s07.html • Linux Device Drivers, third version lwn.net/Kernel/LDD3

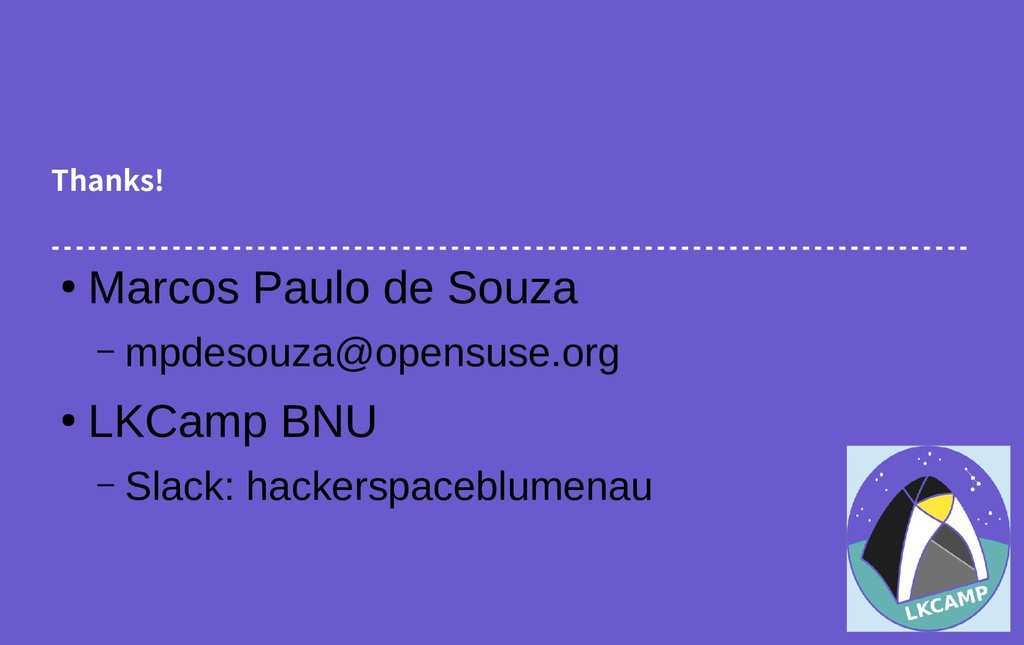

32. Thanks! • Marcos Paulo de Souza – mpdesouza@opensuse.org • LKCamp BNU – Slack: hackerspaceblumenau
