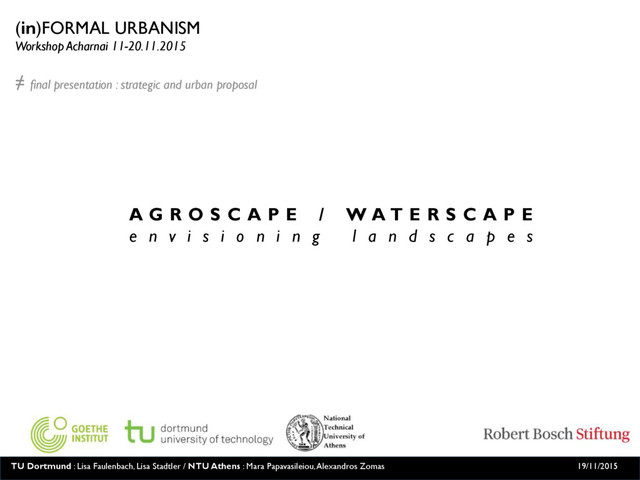

1. (in)FORMAL URBANISM Workshop Acharnai 11-20.11.2015 ≠ final presentation : strategic and urban proposal A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
2. T E R R I T O R I A L S C A L E hydraulic system of Attica _1.280 km : length of streams before 1945 _ 434 km length of streams by 2010 >>> decrease of 66,4%. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
3. T E R R I T O R I A L S C A L E Acharnes TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
4. T E R R I T O R I A L S C A L E First impressions TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
5. T E R R I T O R I A L S C A L E overall concept A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s How to introduce a g r i c u l t u r e as an element of a productive territory and a trigger of knowledge economy with tools such as: > u n i v e r s i t y o f i n n o v a t i v e a g r i c u l t u r e > e x p e r i m e n t a l u r b a n a g r i c u l t u r e l a b s > i n n o v a t i v e w a t e r m a n a g e m e n t s y s t e m > h o u s i n g t y p o l o g i e s b a s e d o n a g r i c u l t u r a l p l o t s TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
6. T E R R I T O R I A L S C A L E overall concept A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s ›› a vision for the territory of Acharnai TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
7. _ Territorial entity of Acharnai _ Powerful natural elements * Streams, * Parnitha _ Heavy manmade infrastructure * highway * railway * SKA * electric lines TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
8. _ Situating the New Agronomic Studies Unit _ Knowledge economy _ Acharnai as a networked laboratory TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _New Agronomic Studies Unit T E R R I T O R I A L S C A L E vision Acharnai
9. _ Different types of cultivations * flowers * aromatic herbs * therapeutic herbs TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
10. _Water management and irrigation * rainwater * grey water TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
11. _ Processing of first material of cultivations _ reusing the abandoned manufacturing units TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
12. _ Packaging procedure TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
13. _ Transportation via the big rail or highway axis TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
14. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
15. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai
16. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai _ innovative urban agriculture I cultivation
17. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai _ innovative water management
18. TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 T E R R I T O R I A L S C A L E vision Acharnai AGROSCAPE / WATERSCAPE e n v i s i o n i n g l a n d s c a p e s
19. U R B A N S C A L E Masterplan concept A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s ›› a vision for the neighborhood of Agios Ioannis Rossos TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s
20. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ build area and natural elements ≠ RECENT STATE
21. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ borders * high tension lines I water pipe * flooding area ≠ RECENT STATE
22. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ aims * redistribution ≠ RECENT STATE
23. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ redistribution _ densification ≠ TRANSFORMATION
24. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ additional landscape areas _ green corridors ≠ TRANSFORMATION
25. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ extension water system _ canalization for agriculture ≠ TRANSFORMATION

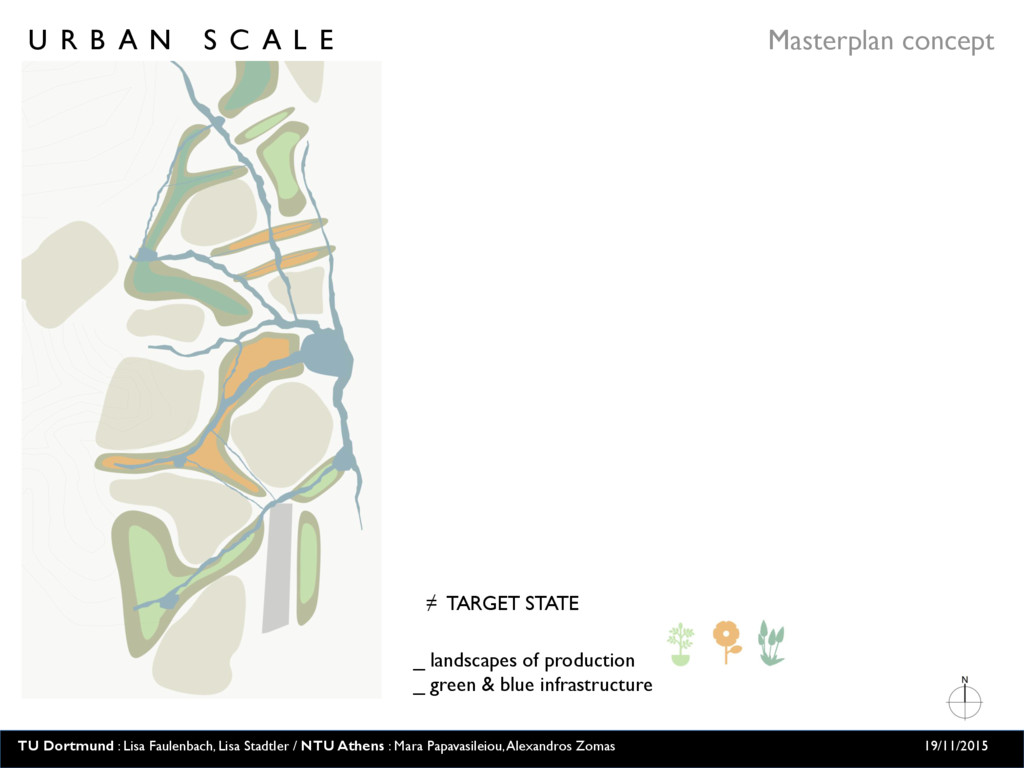

26. U R B A N S C A L E Masterplan concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015 _ landscapes of production _ green & blue infrastructure ≠ TARGET STATE
27. U R B A N S C A L E Masterplan concept A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s ›› mechanism of redistribution / densification and new housing typology TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
28. New housing typology U R B A N S C A L E _ redistribution of plots TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
29. New housing typology U R B A N S C A L E _existing typology TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
30. New housing typology U R B A N S C A L E _ redistribution of plots TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
31. New housing typology U R B A N S C A L E _ redistribution of plots TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
32. New housing typology U R B A N S C A L E _ densification TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
33. New housing typology U R B A N S C A L E _ densification TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
34. New housing typology U R B A N S C A L E _ cultivation scheme TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
35. New housing typology U R B A N S C A L E » new added value TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
36. overall concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
37. overall concept TU Dortmund : Lisa Faulenbach, Lisa Stadtler / NTU Athens : Mara Papavasileiou, Alexandros Zomas 19/11/2015
38. A G R O S C A P E / W A T E R S C A P E e n v i s i o n i n g l a n d s c a p e s t h a n k y o u !
