Александр Кошкин, Positive Technologies: Знай и люби свой CPython во имя луны и великой справедливости

Выступление на конференции PyCon Russia 2016

Transcript

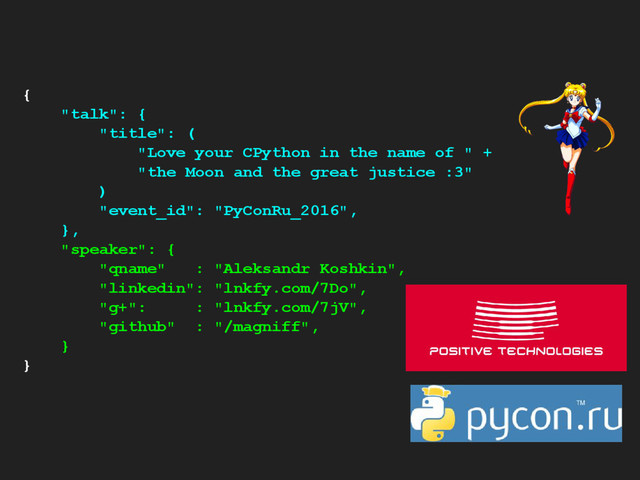

1. { "talk": { "title": ( "Love your CPython in the name of " + "the Moon and the great justice :3" ) "event_id": "PyConRu_2016", }, "speaker": { "qname" : "Aleksandr Koshkin", "linkedin": "lnkfy.com/7Do", "g+": : "lnkfy.com/7jV", "github" : "/magniff", } }
2. What this talk is up to Consider this talk as a little story about - short reminder of what the interpreter basically is - how did we get there - my thoughts and complaints Structure: - Know your python - Love (censored) your python
3. Part 0: Know your Python
4. ABC lang Extremely high level - Ridiculously user friendly - More theoretical then practical - Terribly inefficient PUT {} IN collection FOR line IN document: FOR word IN split line: IF word not.in collection: INSERT word IN collection RETURN collection
5. To be more ‘real-life’ programming lang Efficient due to the fact of C backend Should be very practical - Simple design (fairly primitive runtime) - Lots of corner cuts even at the expense of code architecture - Tailored for solving real problems (modules like grep and so on) - Higly extensible by C code BDFL (just Guido back then) started Python
6. - Relatively simple LL(1) grammar - Stack based virtual machine (iterative refinment) - Simple GC based on reference counting - Fairly simple object model - GIL - ... Simple design
7. -- result = value + “hello world” -- load_var “value” # from where, btw load_const “hello world” # consts you say? binary_summ # how to perform summ bind_to result # where to put result NOTE: This model does not allow any procedural decomposition, so frames appears on the stage Decompose: - Instructions out of context interface == code objects - Context interface out of context == frames Simple design
8. >>> factorial(3) current value: 3 current frame: <frame object at 0x0000000002FDE748> parent frame: <frame object at 0x0000000002FDEAC8> code object <code object factorial at 0x00000000028C1DB0> current value: 2 current frame: <frame object at 0x0000000002FDEC88> parent frame: <frame object at 0x0000000002FDE748> code object <code object factorial at 0x00000000028C1DB0> current value: 1 current frame: <frame object at 0x0000000002FDEE48> parent frame: <frame object at 0x0000000002FDEC88> code object <code object factorial at 0x00000000028C1DB0> Code and frames
9. - Frame represents running code - Code represents instructions and interface for context PyObject * PyEval_EvalFrameEx(PyFrameObject *f, int throwflag) { co = f->f_code; for (;;) { switch (opcode) { TARGET(LOAD_FAST) {\* implementation of LOAD_FAST *\} TARGET(LOAD_CONST) {\* implementation of LOAD_CONST *\} TARGET(STORE_FAST) {\* implementation of STORE_FAST *\} ... } } Frame evaluator
10. TARGET(BINARY_ADD) { PyObject *right = POP(); PyObject *left = TOP(); PyObject *sum; ... sum = PyNumber_Add(left, right); ... DISPATCH(); } C API
11. typedef struct _object { _PyObject_HEAD_EXTRA # expands to nothing in release Py_ssize_t ob_refcnt; struct _typeobject *ob_type; } PyObject; PyObject
12. typedef struct _typeobject { PyObject_VAR_HEAD # PyObject as well ... getattrofunc tp_getattro; # __getattribute__ setattrofunc tp_setattro; # __setattr__ ... PyObject *tp_dict; # cls.__dict__ initproc tp_init; # __init__ newfunc tp_new; # __new__ ... PyObject *tp_bases; # __bases__ ... } PyTypeObject; Types in Python
13. (gdb) call PyLong_FromLong(123) (PyObject *) 0x9836e0 (gdb) call PyLong_FromLong(456) (PyObject *) 0x7ffff7f64e50 (gdb) # Hmm, what is 0x9836e0 up to (gdb) call PyLong_Type->tp_as_number->nb_add( 0x9836e0, 0x7ffff7f64e50 ) (PyObject *) 0x7ffff7f64ea0 (gdb) call PyObject_Print(0x7ffff7f64ea0, stderr, 1) 579 # 123 + 456 == 579 No need of python
14. Part 1: Love your Python
15. Why should I care, again?
16. from github.username.project import module >>> sys.meta_path [ <class '_frozen_importlib.BuiltinImporter'>, <class '_frozen_importlib.FrozenImporter'>, <class '_frozen_importlib_external.PathFinder'> ] >>> sys.meta_path = [] >>> import re # cache lookup runs before hooks >>> import code # import machinery is ruined now ImportError: No module named 'code' Import hooks magic
17. __builtins__, __import__ and __build_class__ import magic # https://github.com/magniff/magic >>> def builder(default_builder, *args, **kwargs): ... print(args, kwargs) ... return default_builder(*args, **kwargs) ... >>> with magic.wonderland(builder): ... class MyAwesomeClass(int, metaclass=type): pass ... ( <function MyAwesomeClass at 0x7f1abf5cceb8>, 'MyAwesomeClass', <class 'int'> ) {'metaclass': <class 'type'>} >>> MyAwesomeClass <class '__main__.MyAwesomeClass'>
18. Attribute descriptors and whatnot The very essence of any ORM
19. Attribute descriptors and whatnot >>> def factorial(self): ... return 1 if not self else factorial(self-1)*self ... >>> ten_factorial = factorial.__get__(10, int) >>> ten_factorial() 3628800 >>> print(ten_factorial) <bound method factorial of 10> >>> (10).factorial AttributeError: 'int' object has no attribute 'factorial'
20. Descriptors and whatnot >>> s = SomeClass() >>> s.foo = 100 >>> s.__dict__ {‘foo’: 100} >>> SomeClass.__dict__['__dict__'].__get__(s, SomeClass) {‘foo’: 100}
21. Magic methods >>> class MagicClass: ... pass ... >>> MagicClass.__call__ = lambda self, value: value**2 >>> m = MagicClass() >>> m(10) # wow, but __call__ maps to tp_call 100
22. super() + c3 linearization class BaseClass: def foo(self): print('From BaseClass!!!') class DerivatedClass(BaseClass): pass >>> def foo(self): ... return super().foo() >>> DerivatedClass().foo() RuntimeError: super(): __class__ cell not found
23. All those things require magic eval + exec + compile function, ast module, dis module, Parser module, GC module CodeType, FrameType, memoryviews ... namedtuple, jinja2, greenlets ...
24. - Python code as a string - Python AST - Python CodeObject - Internal machinery written in C - Binary layout of objects So what are the points of interest
25. Lets hack some binary, shall we?
26. 00100000000100101000111100000000 00000000000000000000000000000000 10000000000100101000111100000000 00000000000000000000000000000000 00001111000000000000000000000000 00000000000000000000000000000000 11100000111001001000100100000000 00000000000000000000000000000000 00000001000000000000000000000000 00000000000000000000000000000000 01100100000000000000000000000000 Representation of int 100 on startup (352 bits)
27. import ctypes class LLReader: def __get__(self, obj, klass=None): return ctypes.cast( id(obj), ctypes.POINTER(ctypes.c_ubyte) ) def __set__(self, obj, value): pass # we actually need this method ctypes.cast( id(object)+type.__dictoffset__, ctypes.POINTER(ctypes.py_object) )[0]['dump'] = LLReader() >>> (100).dump[12]=200 # index varies from build to build >>> 100+100 400 # yep, 200+200 == 400 PyOM (Python Object Massacre)
28. >>> import sys >>> import hacky >>> int_100_memory = [ hacky.read_memory_in(id(100)+shift) for shift in range(sys.getsizeof(100)) ] >>> print(int_100_memory) [ 32, 18, 143, 0, 0, 0, 0, 0, # 9376288 # py_object(99) 128, 18, 143, 0, 0, 0, 0, 0, # py_object(101) 12, 0, 0, 0, 0, 0, 0, 0, # ob_refcnt 224, 228, 137, 0, 0, 0, 0, 0, # id(int) 1, 0, 0, 0, 0, 0, 0, 0, 100, 0, 0, 0 ] # 99 -> 100 -> 101 # 9376288 -> 9376336 -> 9376384 >>> hacky.write_memory_in(id(100)+40, 200) # ctypes.memset >>> 100 200 https://github.com/magniff/hacky
29. >>> "hello world".__class__ = type TypeError: __class__ assignment only supported for heap types or ModuleType subclasses >>> class VerboseModule(ModuleType): ... def __getattribute__(self, attr_name): ... print(“Looking up...”) # warning: recursion ... return super().__getattribute__(attr_name) ... >>> re.__class__ = VerboseModule >>> re Looking up attribute '__loader__' of module 're' Looking up attribute '__spec__' of module 're' <module 're' from '/home/magniff/workspace/cpython/Lib/re.py'> https://github.com/magniff/hacky
30. >>> class MyInt(int): ... def __repr__(self): ... return "This is %s." % self ... >>> hacky.set_class(100, MyInt) >>> 100 This is 100. >>> 50+50 This is 100. https://github.com/magniff/hacky
31. >>> class MyInt(int): ... def __get__(self, instance, klass): ... print("Running __get__ of instance %s." % self) ... return self ... def __set__(self, instance, value): ... print("No way, man!") ... >>> class Some: ... foo = 100 ... >>> s = Some() >>> hacky.set_class(100, MyInt) >>> s.foo Running __get__ of instance 100. 100 >>> s.foo = 200 No way, man! Ints as descriptors (wait what?)
32. >>> a = "hello world" >>> a[0] = "H" TypeError: 'str' object does not support item assignment >>> Mutable strings, for god`s sake
33. >>> a = "hello world" >>> ord("h") 104 # ascii code for “h” >>> ord("e") 101 >>> hacky.read_memory_in(id(a)+64) # this is “h” 104 >>> hacky.read_memory_in(id(a)+65) # this is “e” 101 # WHY 64, 65? You dont wanna know, trust me. Mutable strings, for god`s sake
34. >>> class MutableString(str): ... def __setitem__(self, index, item): ... if index < len(self): ... hacky.write_memory_in(id(self)+64+index, ord(item)) ... else: ... raise IndexError( ... "Object mutation out of boundary!" ... ) ... >>> a = "hello world" >>> hacky.set_class(a, MutableString) >>> type(a) <class '__main__.MutableString'> Mutable strings, for god`s sake
35. >>> a[0] = "H" >>> print(a) Hello world >>> a[100] = "H" IndexError: Object mutation out of boundary! Mutable strings, for god`s sake
36. >>> import types >>> class MyFunction(types.FunctionType): ... pass ... TypeError: type 'function' is not an acceptable base type >>> class MyBool(bool): pass TypeError: type 'bool' is not an acceptable base type $ grep "is not an acceptable base type" -rn * Objects/typeobject.c:1959 Objects/typeobject.c:2742 Inheritable types
37. ... if (!PyType_HasFeature(base, Py_TPFLAGS_BASETYPE)) { PyErr_Format( PyExc_TypeError, "type '%.100s' is not an acceptable base type", base->tp_name ); ... >>> bin(hacky.get_flags(bool) ^ hacky.get_flags(int)) 0b10000000010000000000 ^ Py_TPFLAGS_BASETYPE Inheritable types
38. >>> hacky.set_flags( types.FunctionType, hacky.get_flags(types.FunctionType) | (1<<10) ) >>> class MyFuction(types.FunctionType): pass ... >>> >>> hacky.set_flags(object, hacky.get_flags(object) ^ (1<<10)) >>> class T: pass TypeError: type 'object' is not an acceptable base type Inheritable types
39. Messing around with bytecode
40. Recursion >>> def factorial(value): ... return 1 if not value else value * factorial(value-1) ... >>> factorial(10) 3628800 >>> factorial(998) == factorial(997) * 998 # 999 leads to crash True >>> sys.getrecursionlimit() 1000
41. Disassembly >>> dis.dis(factorial) 2 0 LOAD_FAST 0 (value) 3 POP_JUMP_IF_TRUE 10 6 LOAD_CONST 1 (1) 9 RETURN_VALUE >> 10 LOAD_FAST 0 (value) 13 LOAD_GLOBAL 0 (factorial) 16 LOAD_FAST 0 (value) 19 LOAD_CONST 1 (1) 22 BINARY_SUBTRACT 23 CALL_FUNCTION 1 (blah blah) 26 BINARY_MULTIPLY 27 RETURN_VALUE
42. >>> import opcode >>> opcode.opmap["LOAD_FAST"] 124 >>> hacky.read_memory_in(id(factorial.__code__.co_code)+48) 124 >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+13, 9) >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+14, 9) >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+15, 9) O_O
43. >>> dis.dis(factorial) 2 0 LOAD_FAST 0 (value) 3 POP_JUMP_IF_TRUE 10 6 LOAD_CONST 1 (1) 9 RETURN_VALUE >> 10 LOAD_FAST 0 (value) 13 NOP 14 NOP 15 NOP 16 LOAD_FAST 0 (value) 19 LOAD_CONST 1 (1) 22 BINARY_SUBTRACT 23 CALL_FUNCTION 1 (blah blah) 26 BINARY_MULTIPLY 27 RETURN_VALUE O_O
44. >>> factorial(10) TypeError: 'int' object is not callable >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+23, 86) >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+24, 9) >>> hacky.write_memory_in(id(factorial.__code__.co_code)+48+25, 9) O_O
45. >>> dis.dis(factorial) 2 0 LOAD_FAST 0 (value) 3 POP_JUMP_IF_TRUE 10 6 LOAD_CONST 1 (1) 9 RETURN_VALUE >> 10 LOAD_FAST 0 (value) 13 NOP 14 NOP 15 NOP 16 LOAD_FAST 0 (value) 19 LOAD_CONST 1 (1) 22 BINARY_SUBTRACT 23 YIELD_VALUE 24 NOP 25 NOP 26 BINARY_MULTIPLY 27 RETURN_VALUE \(O_O)/
46. \(>_<)/ >>> factorial(10) 9 >>> factorial(10) 9 >>> def gen(): yield >>> gen.__code__.co_flags 99 >>> factorial.__code__.co_flags 67 >>> hacky.read_memory_in(id(factorial.__code__)+48) 67
47. |(+_+)| >>> hacky.write_memory_in(id(factorial.__code__)+48, 99) >>> factorial.__code__.co_flags 99 >>> factorial(3) <generator object factorial at 0x7f6ae975b0e0> >>> f_three = _ >>> next(f_three) 2 >>> f_three.send(2) StopIteration: 6 # result
48. |(+_+)| >>> f_ten = factorial(10) >>> hacky.write_memory_in( id(factorial.__code__.co_code)+48+27, 9 ) >>> f_ten = factorial(10) >>> next(f_ten) 9 >>> f_ten.send(1) SystemError: unknown opcode
49. https://github.com/magniff/endless def factorial(value): return 1 if value == 1 else value * factorial(value-1) @endless.make def factorial(value): return 1 if value == 1 else value * (yield {'value': value-1}) @endless.make def maccarthy91(value): # F(F(value)) == (yield (yield ...)) if value > 100: return value - 10 else: return (yield {'value': (yield {'value': value+11})})
50. Override internal machinery
51. There is nothing you can do, really
52. - Run the CPython in tracee mode (ptrace, beeaaah) - Hack the CPyhon`s binary before start (ugly) - Somehow hack CPyhon`s .data section at runtime (ugly and impossible) - Do some code injection from .so (dll) maybe (unstable) - Rework CPython to be more injection friendly - Then inject some C function from C extension - Pass control flow to Python code back Nevertheless
53. int PyRun_InteractiveLoopFlags(fp, filename_str, flags) { ... for (;;) { ret = PyRun_InteractiveOneObject(fp, filename, flags); _PY_DEBUG_PRINT_TOTAL_REFS(); if (ret == E_EOF) { err = 0; break; } ... } ... return err; } Custom REPL implementation
54. Console of a healthy person int PyRun_InteractiveOneObject(fp, filename, flags) { mod = PyParser_ASTFromFileObject( fp, filename, enc, Py_single_input, ps1, ps2, flags, &errcode, arena ); ... v = run_mod( mod, filename, main_module_dict, main_module_dict, flags, arena ); ... }
55. The __main__ module ~/workspace/cpython$ ./python >>> import __main__ >>> a = 1 >>> >>> __main__.a 1 >>>
56. Smoker console int PyRun_InteractiveOneObject(fp, filename, flags) { ... techno_module = PyImport_ImportModule("techno"); module_entry = PyObject_GetAttr( techno_module, PyUnicode_FromString("main_entry") ); read = getline(&line, &len, fp); # only oneliners will do ... line_object = PyUnicode_FromFormat(line); //REPL input PyObject_Call( module_entry, entry_args=PyTuple_Pack(1, line_object), NULL ); ... }
57. The techno module import __main__ import parser G = L = __main__.__dict__ DEFAULT_IMPLEMENTATION = ( lambda string: eval(parser.compilest(parser.suite(string)), G, L) ) IMPLEMENTATION = DEFAULT_IMPLEMENTATION def main_entry(string): global IMPLEMENTATION if string.strip() == 'reset': IMPLEMENTATION = DEFAULT_IMPLEMENTATION IMPLEMENTATION(string)
58. Little demo <magniff`s mode> print("PyCon Russia 2016!") PyCon Russia 2016! <magniff`s mode> import techno <magniff`s mode> variable = “Lets check context facility” <magniff`s mode> print(variable) Lets check context facility <magniff`s mode> <magniff`s mode> <magniff`s mode> techno.IMPLEMENTATION = ( ... lambda string: print(string.strip()[::-1] ... ) <magniff`s mode> print("PyCon Russia 2016!") )"!6102 aissuR noCyP"(tnirp <magniff`s mode> reset <magniff`s mode> print("PyCon Russia 2016!") PyCon Russia 2016! <magniff`s mode>
59. Little demo <magniff`s mode> import mybasic <magniff`s mode> # import hacks console evaluator <magniff`s mode> PROGRAM PYCON2016 <magniff`s mode> 10 LET msg = “HELLO WORLD!” <magniff`s mode> 20 PRINT “MSG WAS: “ + msg <magniff`s mode> 30 GOTO 20 <magniff`s mode> RUN PYCON2016 MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! MSG WAS: HELLO WORLD! ...
60. https://github.com/magniff/techno >>> import techno >>> techno.init() # hacks interpreter internals >>> Frames evaluated: 1 # even though the input is empty there still one empty frame to evaluate >>> import re Frames evaluated: 1 >>> import code # some module, that not been cached yet Frames evaluated: 5301
61. https://github.com/magniff/techno >>> import functools Frames evaluated: 1 >>> @functools.lru_cache(maxsize=None) ... def factorial(value): ... return 1 if not value else value * factorial(value-1) ... Frames evaluated: 4 >>> factorial(10) 3628800 Frames evaluated: 12 >>> factorial(10) 3628800 Frames evaluated: 1
62. https://github.com/magniff/techno >>> class A(): pass ... Frames evaluated: 2 >>> Point = collections.namedtuple("Point", ("x", "y", "z")) Frames evaluated: 15 >>> a = A() Frames evaluated: 1
63. https://github.com/magniff/techno >>> hello world Frames evaluated: 0 >>> import not_a_module ImportError: No module named 'not_a_module' Frames evaluated: 119 >>> techno.reset() # back to normal Frames evaluated: 1 >>> print("hello world") hello world >>>
64. :3
