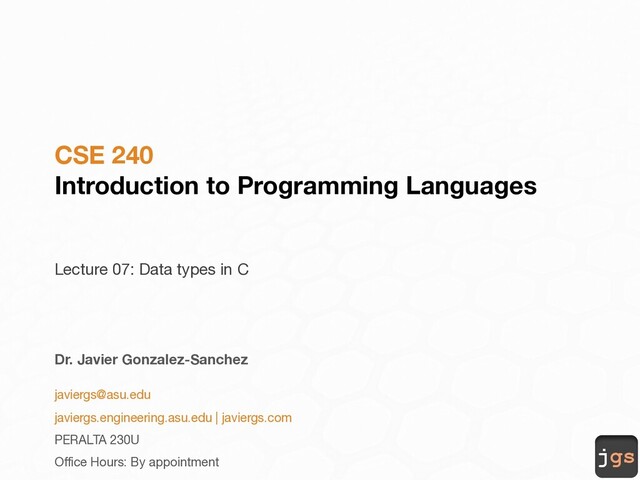

  1. jgs
    CSE 240
    Introduction to Programming Languages
    Lecture 07: Data types in C
    Dr. Javier Gonzalez-Sanchez
    [email protected]
    javiergs.engineering.asu.edu | javiergs.com
    PERALTA 230U
    Office Hours: By appointment

    View Slide

  2. jgs
    Previously …

    View Slide

  3. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 3
    jgs
    Output
    printf (control sequence, expressions);
    • The control sequence includes a
    constant string to be printed, e.g.,
    "Result: ", and control symbols to be
    used to convert variables from their
    numeric values that are stored in the
    computer to printing format.
    • The expressions is the list of
    expressions whose values are to be
    printed out. Each expression is
    separated by a comma. This is
    optional.
    // Java
    int x = 5;
    float y = 10.3f;
    System.out.println("hello " + x + " bye " + y);
    // C
    int x = 5;
    float y = 10.3;
    printf("hello %d bye %f", x, y);

    View Slide

  4. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 4
    jgs
    #include
    void main () {
    int i, n = 5;
    printf("Hi, please enter an integer: ");
    // input: scanf (control sequence, &variable1, ... &variablen);
    // &variable: address of the variable.
    scanf("%d", &i); // input function
    if (i > n)
    n = n + i;
    else
    n = n - i;
    printf("i = %d, n = %d\n", i, n); //output function
    }
    Input

    View Slide

  5. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 5
    jgs
    Control Statements
    These that you know, work in the same way
    § for, while, do/while
    § if/else, switch
    But, there are not boolean values. Zero is false and any other number is true.
    The following program is correct and print “Hello”

    View Slide

  6. jgs
    Primitive Data Types

    View Slide

  7. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 7
    jgs
    Primitive Data Types and Modifiers
    C defines five basic types
    § int - integer, a whole number.
    § float - floating point value i.e., a number with a fractional part.
    § double - a double-precision floating point value.
    § char - a single character.
    § void - valueless special purpose type which we will examine closely in later
    sections.
    C++ will add
    • bool – boolean values
    Primitive types can be modified using one or more of these modifiers
    § signed,
    § unsigned,
    § short,
    § long

    View Slide

  8. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 8
    jgs
    Type Guaranteed minimum range ³ bits
    char -127 to 127 or 0 to 255 8
    signed char -127 to 127 8
    unsigned char 0 to 255 8
    int -32,768 to 32,767 16,32
    signed int same as int 16,32
    unsigned int 0 to 65,535 16,32
    short int -32,768 to 32,767 16
    signed short int same as short int 16
    unsigned short int unsigned int 16
    long int ±2,147,483,647 32
    signed long int same as long int 32
    unsigned long int 0 to 4,294,967,295 32
    float 6 decimal digits of precision 32
    double 10 decimal digits of precision 64
    long double 10 decimal digits of precision 64
    bool (C++ only) true/false 1 (8)
    Basic Data Types and Ranges in C

    View Slide

  9. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 9
    jgs
    Type Guaranteed minimum range ³ bits
    char -127 to 127 or 0 to 255 8
    signed char -127 to 127 8
    unsigned char 0 to 255 8
    int -32,768 to 32,767 16,32
    signed int same as int 16,32
    unsigned int 0 to 65,535 16,32
    short int -32,768 to 32,767 16
    signed short int same as short int 16
    unsigned short int unsigned int 16
    long int ±2,147,483,647 32
    signed long int same as long int 32
    unsigned long int 0 to 4,294,967,295 32
    float 6 decimal digits of precision 32
    double 10 decimal digits of precision 64
    long double 10 decimal digits of precision 64
    bool (C++ only) true/false 1 (8)
    Basic Data Types and Ranges in C

    View Slide

  10. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 10
    jgs
    Basic Data Types and Ranges in C
    Type Guaranteed minimum range ³ bits
    char -127 to 127 or 0 to 255 8
    signed char -127 to 127 8
    unsigned char 0 to 255 8
    int -32,768 to 32,767 16
    signed int same as int 16
    unsigned int 0 to 65,535 16
    short int -32,768 to 32,767 16
    signed short int same as short int 16
    unsigned short int unsigned int 16
    long int ±2,147,483,647 32
    signed long int same as long int 32
    unsigned long int 0 to 4,294,967,295 32
    float 6 decimal digits of precision 32
    double 10 decimal digits of precision 64
    long double 10 decimal digits of precision 64
    bool (C++ only) true/false 1 (8)
    unsigned int x = 65000;
    int x = 32767;

    View Slide

  11. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 11
    jgs
    Type Guaranteed minimum range ³ bits
    char -127 to 127 or 0 to 255 8
    signed char -127 to 127 8
    unsigned char 0 to 255 8
    int -32,768 to 32,767 16
    signed int same as int 16
    unsigned int 0 to 65,535 16
    short int -32,768 to 32,767 16
    signed short int same as short int 16
    unsigned short int unsigned int 16
    long int ±2,147,483,647 32
    signed long int same as long int 32
    unsigned long int 0 to 4,294,967,295 32
    float 6 decimal digits of precision 32
    double 10 decimal digits of precision 64
    long double 10 decimal digits of precision 64
    bool (C++ only) true/false 1 (8)
    Basic Data Types and Ranges in C

    View Slide

  12. Javier Gonzalez-Sanchez | CSE240 | Spring 2018 | 12
    jgs
    Questions

    View Slide

  13. jgs
    CSE 240 Introduction to Programming Languages
    Javier Gonzalez-Sanchez, Ph.D.
    [email protected]
    Fall 2021
    Copyright. These slides can only be used as study material for the class CSE240 at Arizona State University.
    They cannot be distributed or used for another purpose.

    View Slide
