UP Lecture 28

Compilers
Intermediate Code V
(202605)

Transcript

1. jgs jgs Compilers Lecture 28: Intermediate Code V Dr. Javier Gonzalez-Sanchez jgonzalezs@up.edu.mx
2. Dr. Javier Gonzalez-Sanchez | Compilers | 3 jgs jgs GitHub Classroom Final Project: June 01 https://classroom.github.com/a/pTxhXv6V

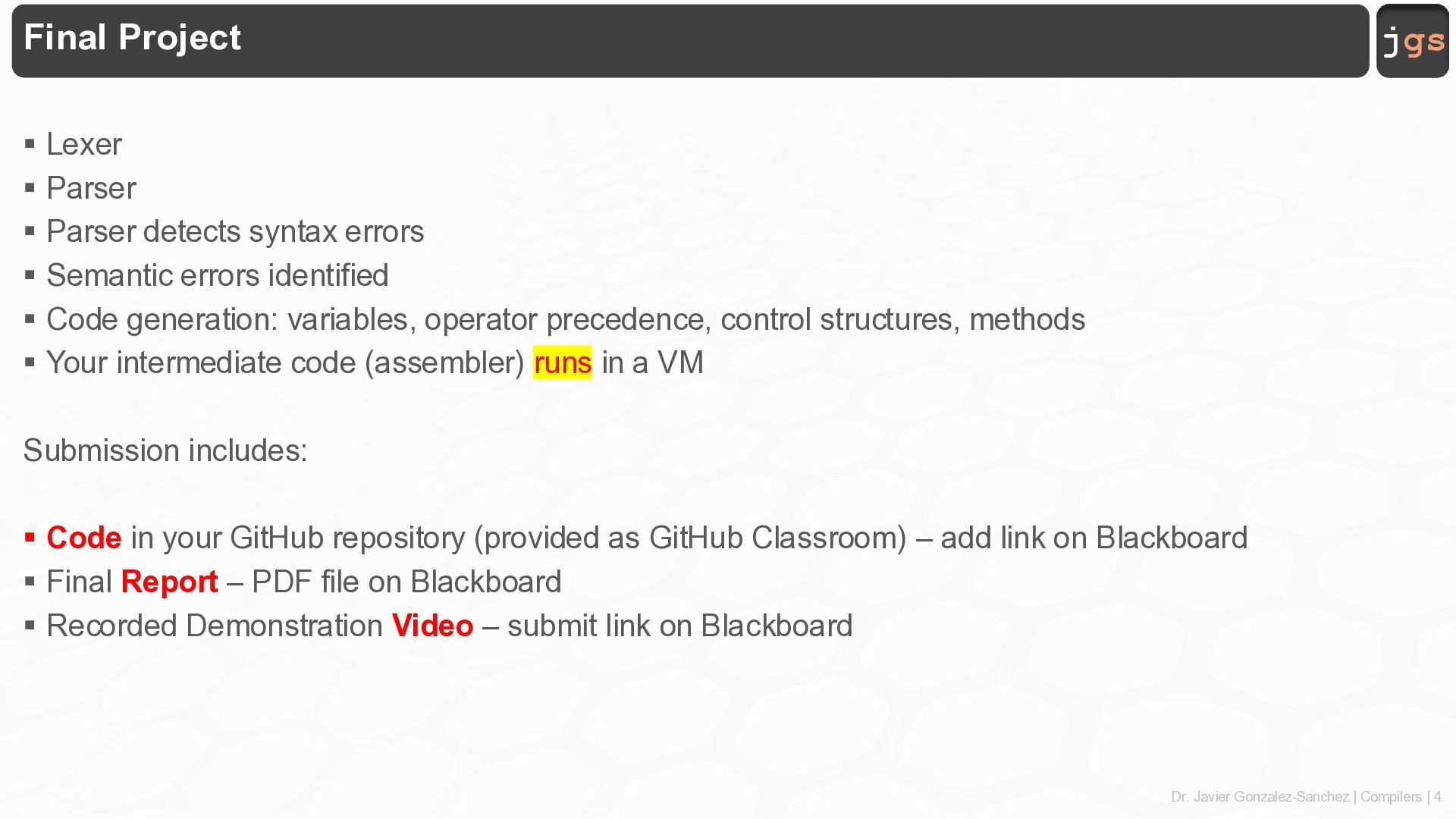

3. Dr. Javier Gonzalez-Sanchez | Compilers | 4 jgs jgs Final Project ▪ Lexer ▪ Parser ▪ Parser detects syntax errors ▪ Semantic errors identified ▪ Code generation: variables, operator precedence, control structures, methods ▪ Your intermediate code (assembler) runs in a VM Submission includes: ▪ Code in your GitHub repository (provided as GitHub Classroom) – add link on Blackboard ▪ Final Report – PDF file on Blackboard ▪ Recorded Demonstration Video – submit link on Blackboard

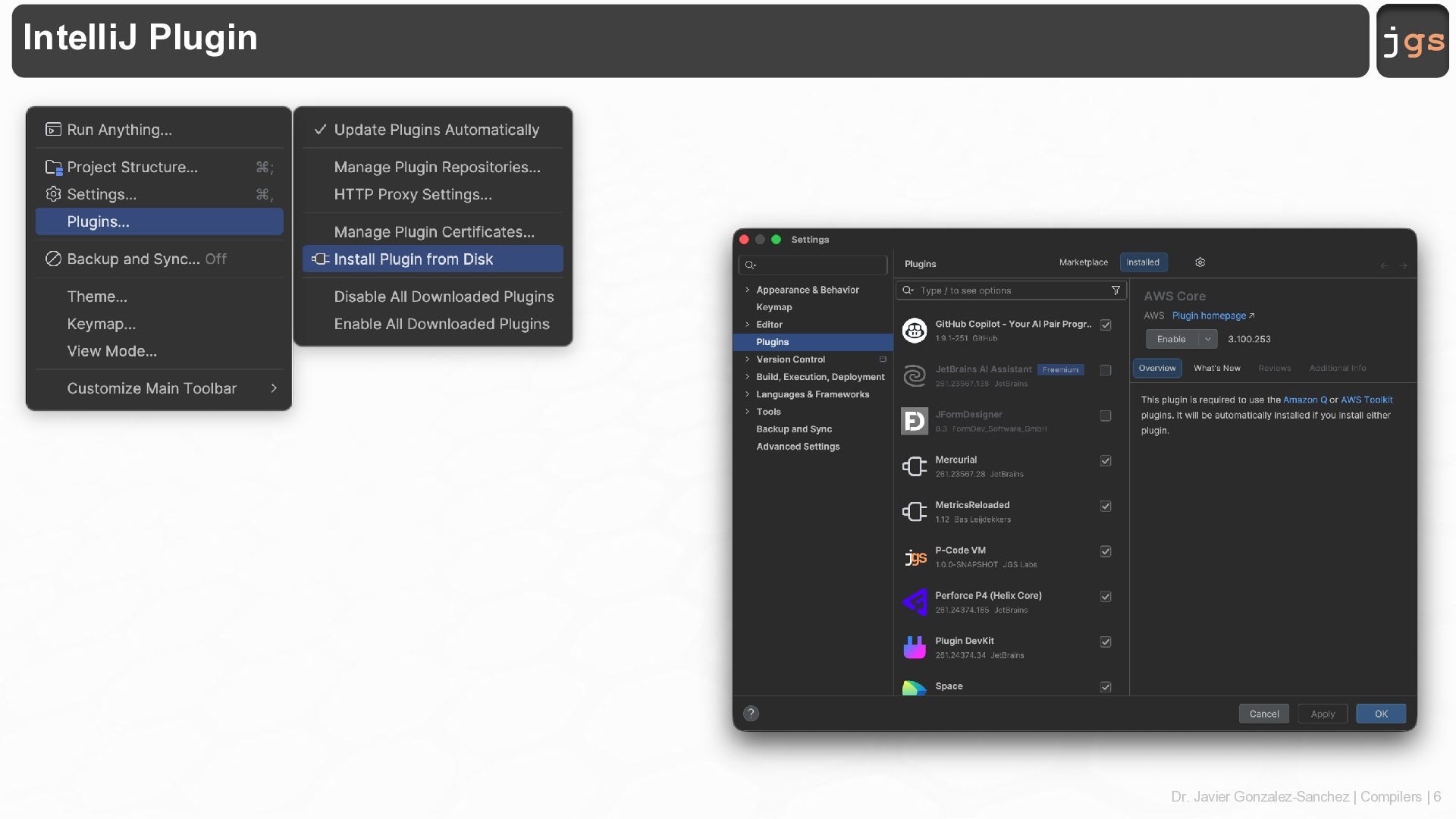

4. Dr. Javier Gonzalez-Sanchez | Compilers | 5 jgs jgs IntelliJ Plugin

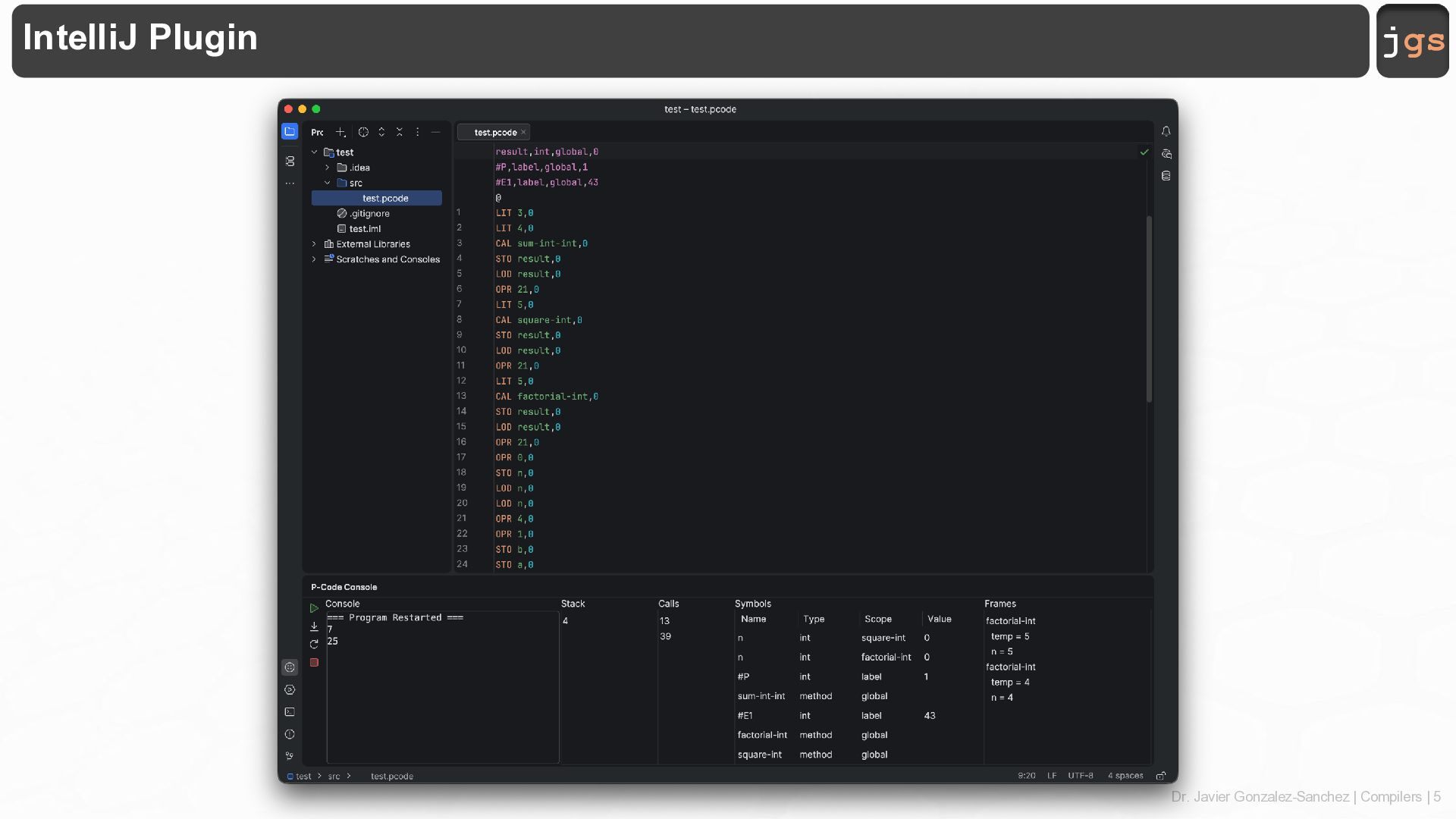

5. Dr. Javier Gonzalez-Sanchez | Compilers | 6 jgs jgs IntelliJ Plugin
6. jgs jgs Previously …

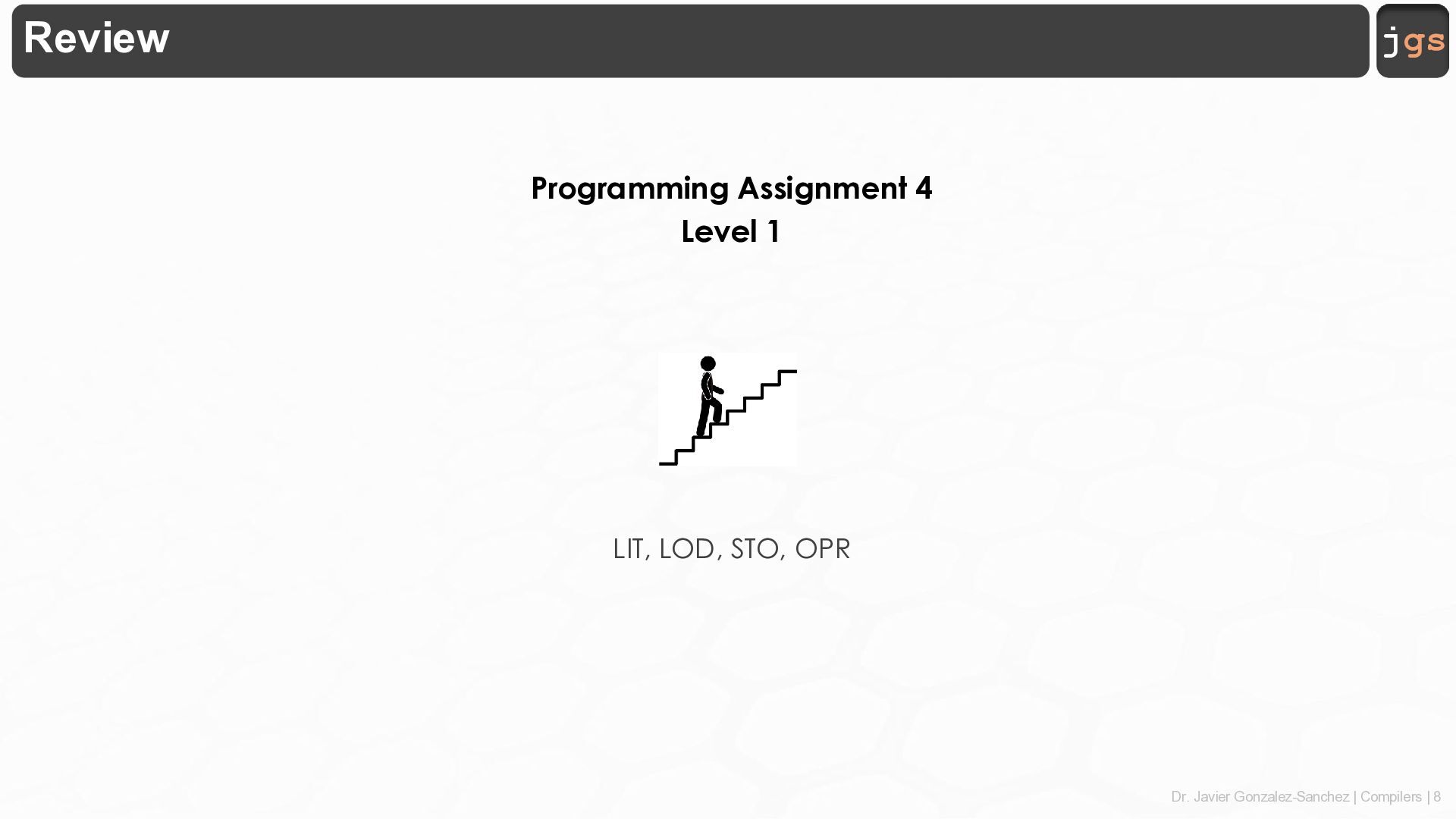

7. Dr. Javier Gonzalez-Sanchez | Compilers | 8 jgs jgs Review Programming Assignment 4 Level 1 LIT, LOD, STO, OPR

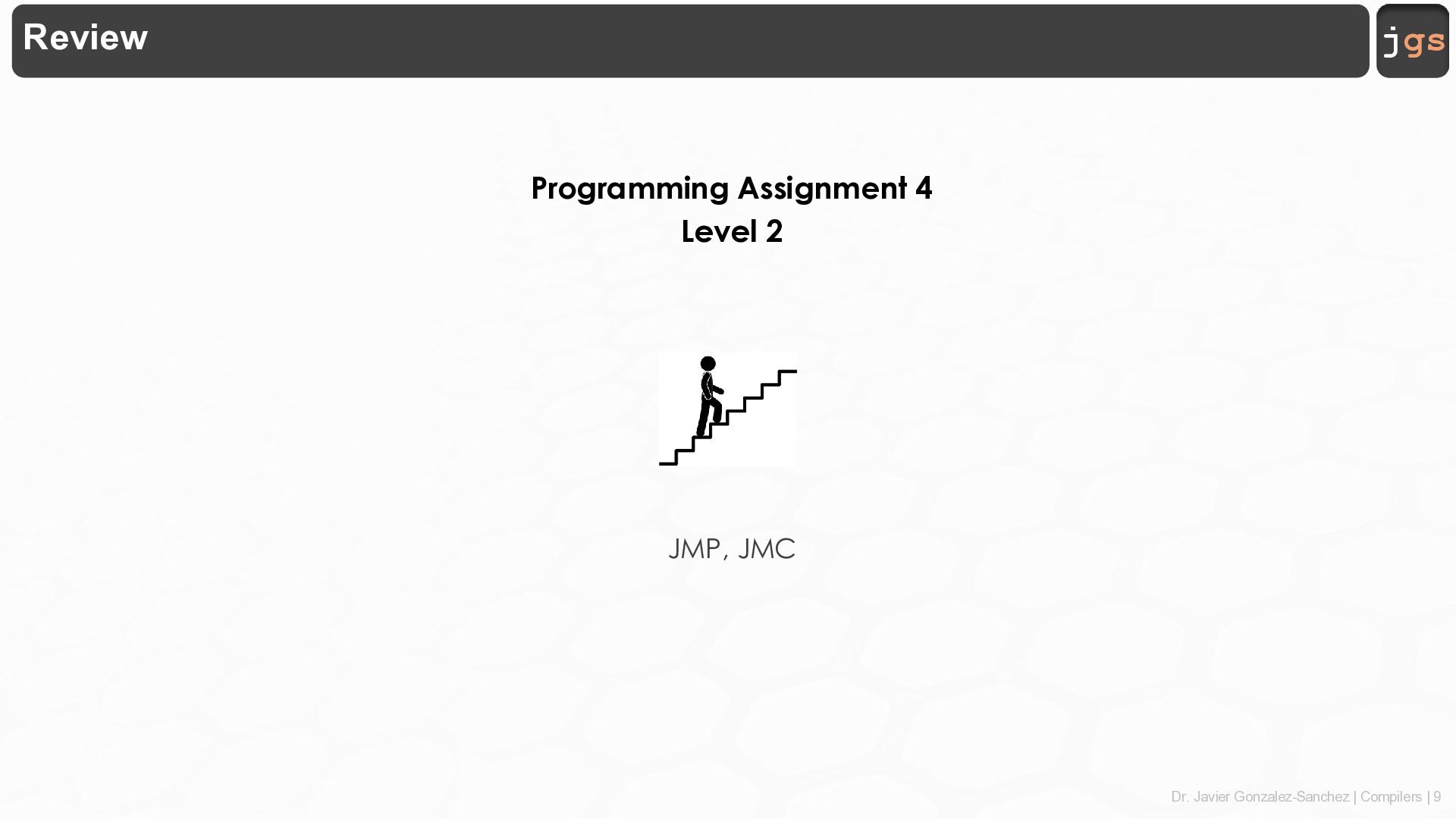

8. Dr. Javier Gonzalez-Sanchez | Compilers | 9 jgs jgs Review Programming Assignment 4 Level 2 JMP, JMC
9. Dr. Javier Gonzalez-Sanchez | Compilers | 10 jgs jgs Review Programming Assignment 4 Level 3 CAL

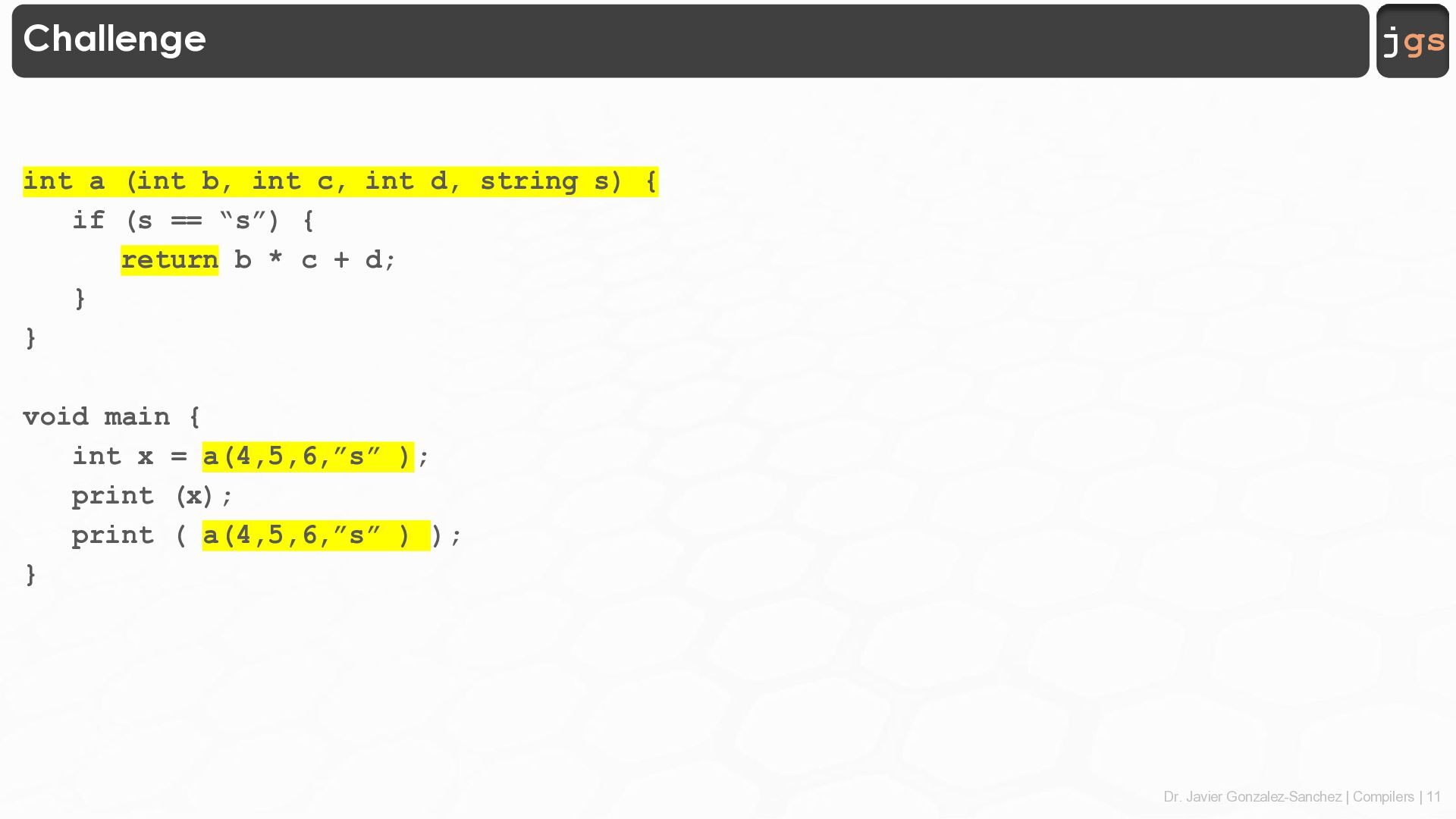

10. Dr. Javier Gonzalez-Sanchez | Compilers | 11 jgs jgs Challenge int a (int b, int c, int d, string s) { if (s == “s”) { return b * c + d; } } void main { int x = a(4,5,6,”s” ); print (x); print ( a(4,5,6,”s” ) ); }
11. Javier Gonzalez-Sanchez | SER332 | Spring 2018 | 12 jgs jgs int a (int b, int c, int d, string s) { if (s == “s”) { return b * c + d; } } void main { print ( a(4,5,6,”s”) ); }

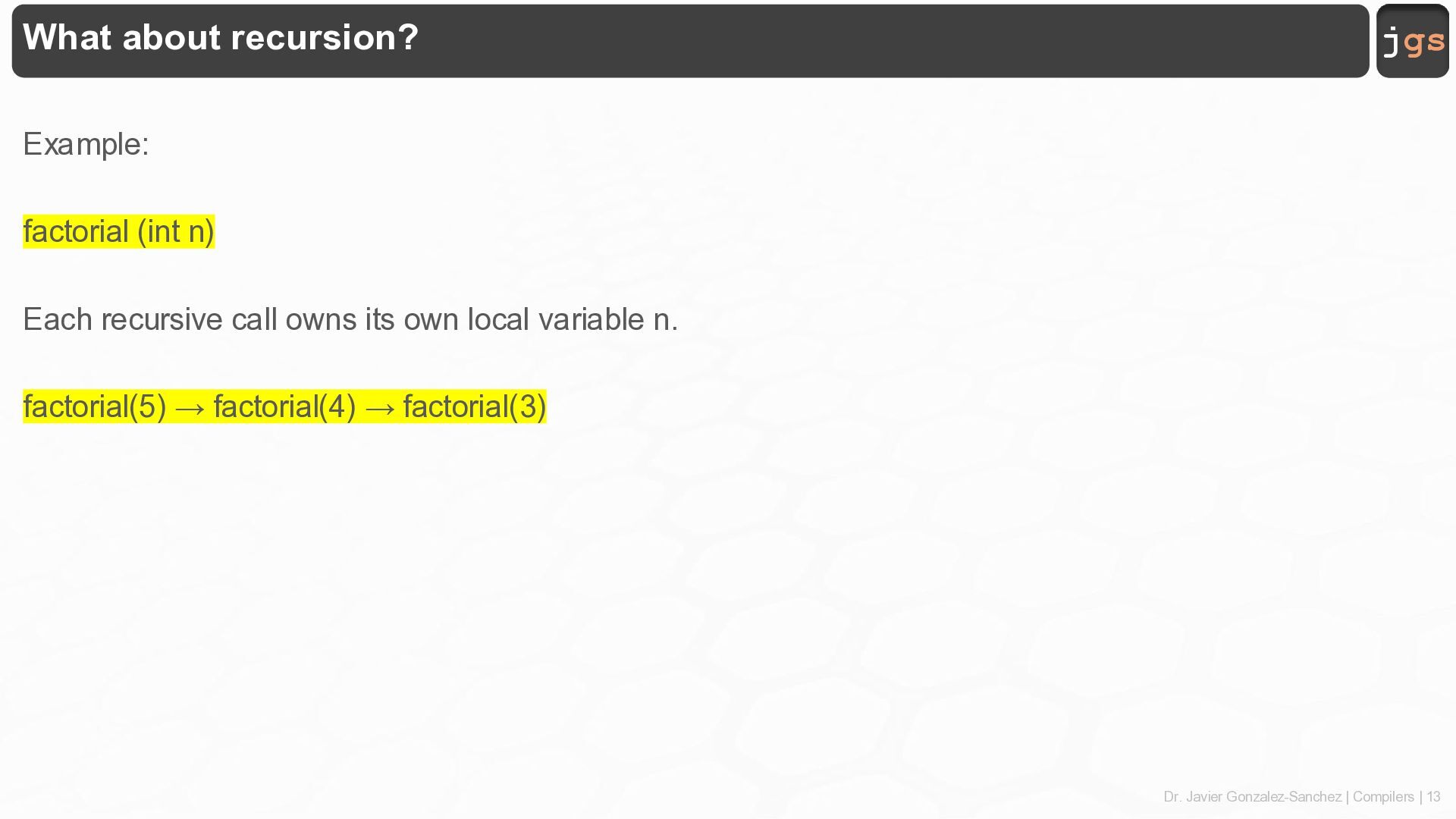

12. Dr. Javier Gonzalez-Sanchez | Compilers | 13 jgs jgs What about recursion? Example: factorial (int n) Each recursive call owns its own local variable n. factorial(5) → factorial(4) → factorial(3)

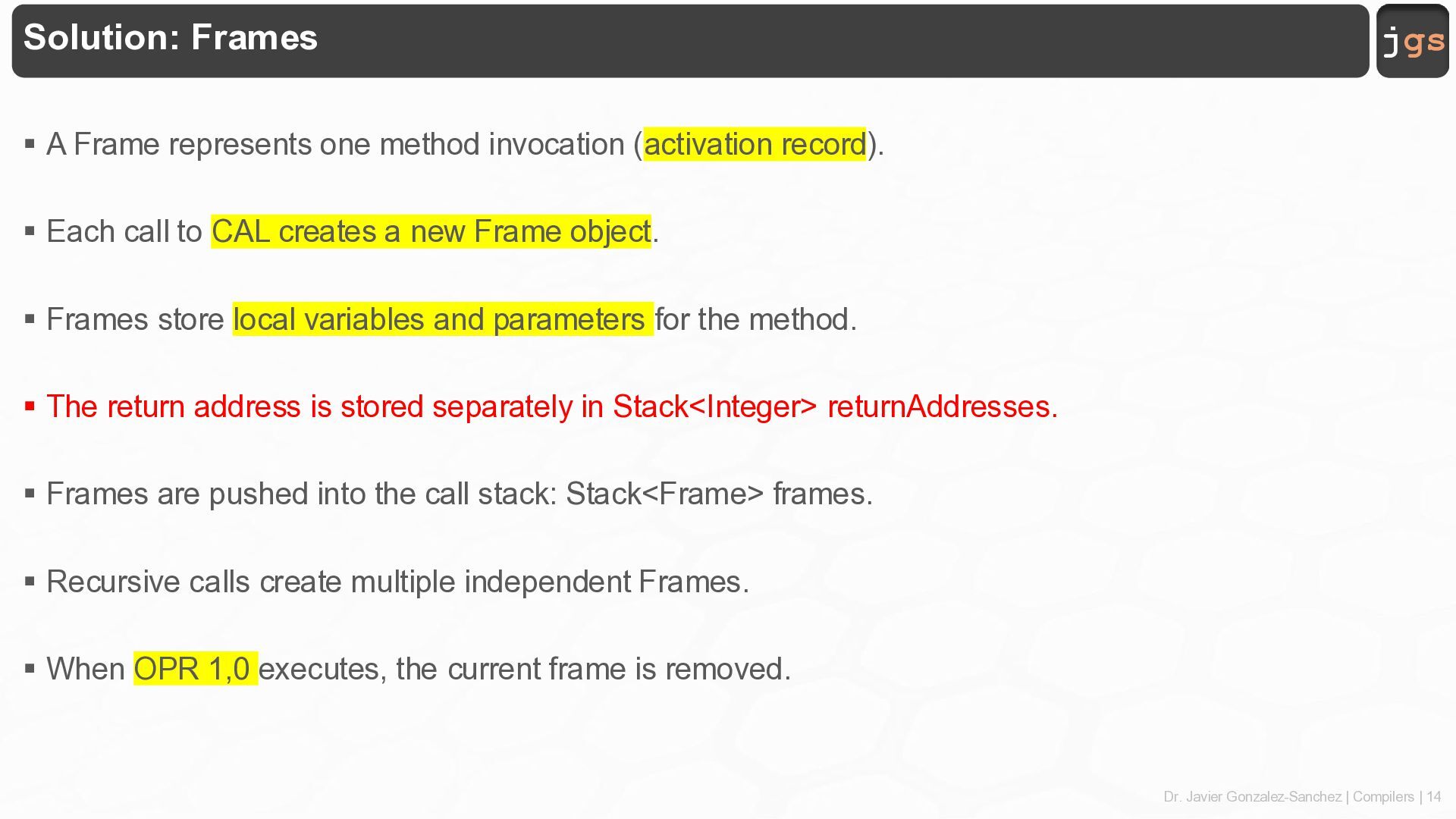

13. Dr. Javier Gonzalez-Sanchez | Compilers | 14 jgs jgs Solution: Frames ▪ A Frame represents one method invocation (activation record). ▪ Each call to CAL creates a new Frame object. ▪ Frames store local variables and parameters for the method. ▪ The return address is stored separately in Stack<Integer> returnAddresses. ▪ Frames are pushed into the call stack: Stack<Frame> frames. ▪ Recursive calls create multiple independent Frames. ▪ When OPR 1,0 executes, the current frame is removed.

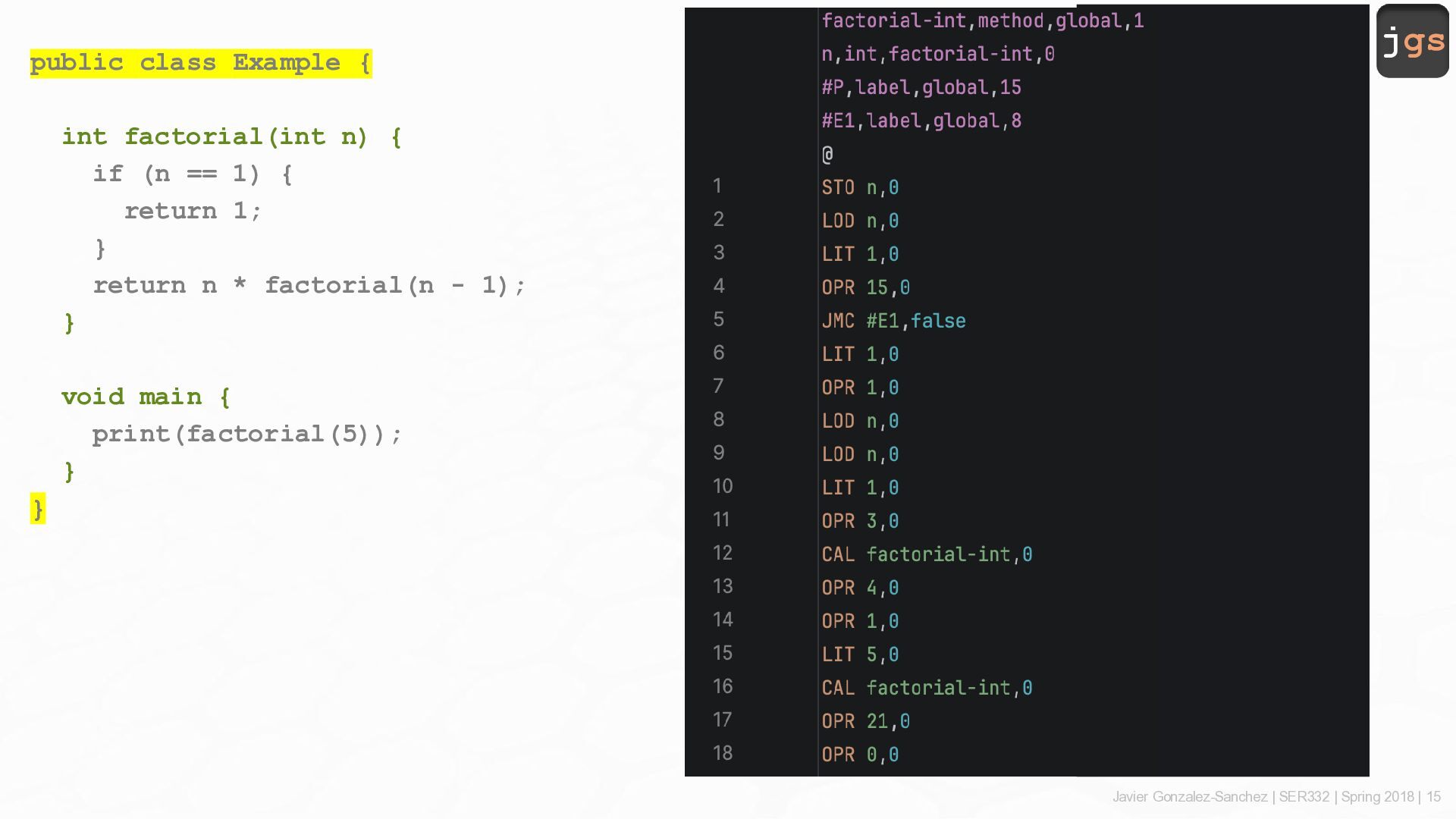

14. Javier Gonzalez-Sanchez | SER332 | Spring 2018 | 15 jgs jgs public class Example { int factorial(int n) { if (n == 1) { return 1; } return n * factorial(n - 1); } void main { print(factorial(5)); } }

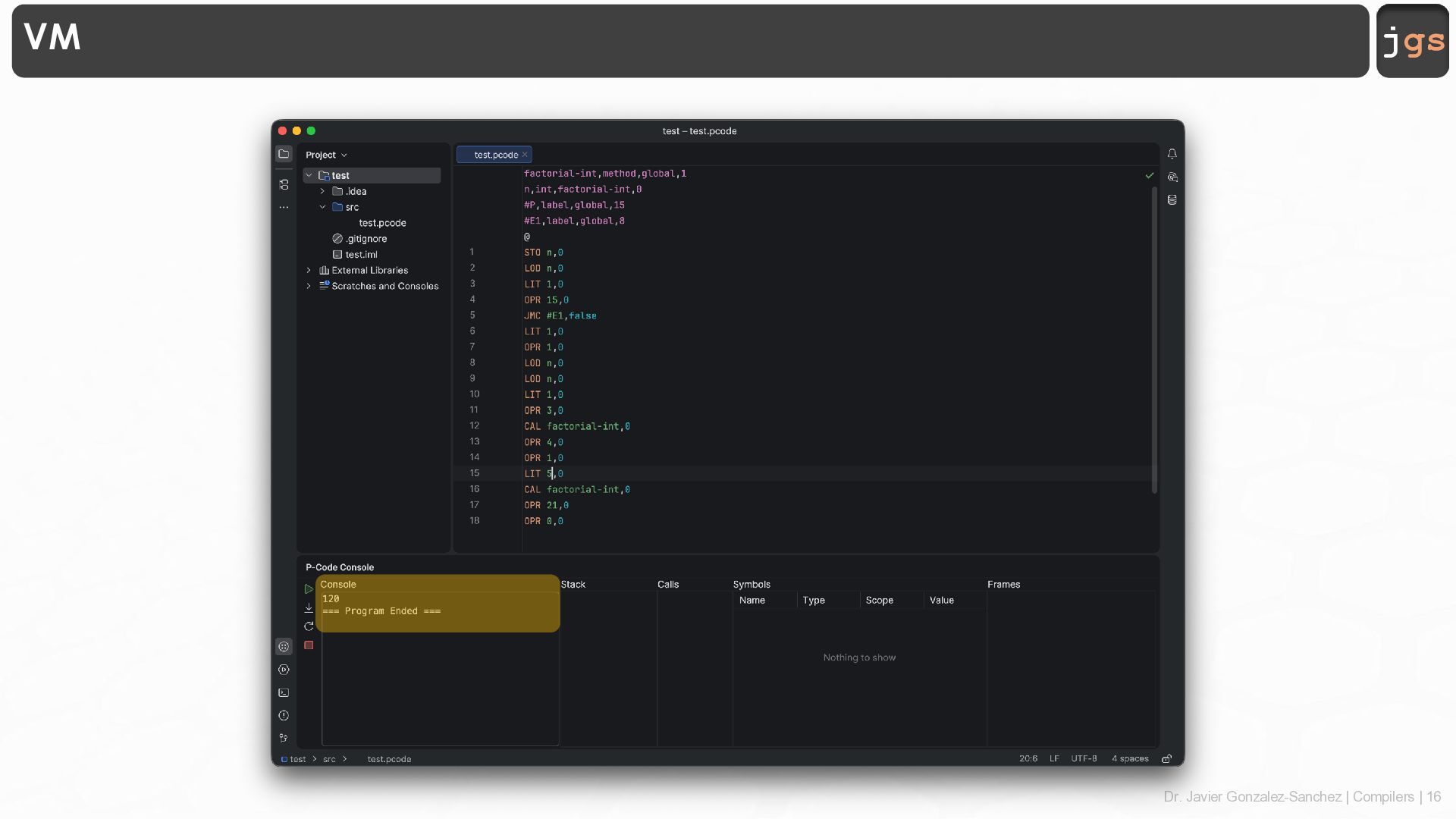

15. Dr. Javier Gonzalez-Sanchez | Compilers | 16 jgs jgs VM
16. Dr. Javier Gonzalez-Sanchez | Compilers | 17 jgs jgs Questions
17. jgs jgs Compilers Javier Gonzalez-Sanchez, Ph.D. jgonzalezs@up.edu.mx Spring 2025 Copyright. These slides can only be used as study material for the Compilers course at Universidad Panamericana. They cannot be distributed or used for another purpose.
