Ansible Automation Case Studies: F5 BIG-IP Landscape Transformations

This presentation demonstrated how management of complex infrastructure systems can be efficiently managed using automation tools like Ansible. While the cases presented focused primarily on managing F5 BIG-IP systems, the concepts covered also apply to other areas of network, server, and application management.

Michigan State University has recently transitioned management of the BIG-IP landscape to the Application Services team, with a primary focus on improving integration with the applications delivered via the F5, and improvements to processes. Theses improvements are being undertaken using Ansible in a process automation paradigm.

Central Michigan University recently undertook a major transformation in their BIG-IP landscape. Starting with a simple pair of LTM+APM appliances on their main campus with a highly-customized Access Policy for web application SSO, they've moved to a multiple-location environment with BIG-IP DNS with Multi-Factor authentication used with APM, with an eye toward IPv6 deployment in the near future, all without additional resources. This transformation was enabled using Ansible in a configuration-as-code paradigm.

Transcript

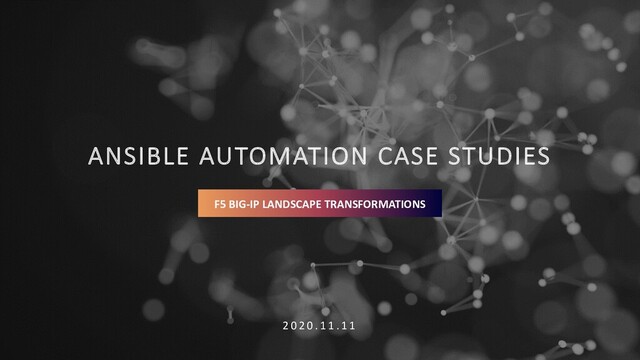

1. ANSIBLE AUTOMATION CASE STUDIES 2 0 2 0 . 1 1 . 1 1 F5 BIG-IP LANDSCAPE TRANSFORMATIONS
2. AGENDA • I n t ro d u c t i o n • M S U – P ro c e s s I m p ro v e m e n t & A u t o m a t i o n • C M U – C o n f i g u ra t i o n a s C o d e • B r i n g i n g i t a l l To g e t h e r • Q & A 2
3. 3 INTRODUCTION W h o a m I ? • MTU & CMU Alumnus • ADC Engineer @ MSU • Networking Education • Application Administration Experience 3
4. 4 W h a t i s t h i s ? 4 • Axiom: Automation is good for IT • How do we get there? • Specific examples • General Concepts INTRODUCTION
5. MSU P R O C E S S A U T O M A T I O N 5
6. 6 6 • Redundant VIPRIONs hosting multiple redundant vCMP pairs • Segregation by app tier • 800+ Applications proxied ENVIRONMENT OVERVIEW
7. 7 P R O C E S S I M P R O V E M E N T & U S E R E N A B L E M E N T 7 • Frequent API Onboardings • Too much overhead in request & fulfilment processes • Prone to errors PROBLEM 1: API GATEWAY
8. 8 8 • Request Simplification • Ansible Playbook • AWX Survey • User Enablement SOLUTION 1: API GATEWAY
9. 9 F U L L P R O C E S S A U T O M AT I O N 9 • 800 CA-signed certificates on BIG-IP devices • 15 engineer-minutes to update each certificate • Annual renewals • 5 engineer-weeks/year lost to renewals PROBLEM 2: TLS CERT RENEWAL
10. 10 10 • Fully-Automated • Periodic Execution • ACME • Re-usable components SOLUTION 2: TLS CERT RENEWAL
11. CMU C O N F I G U R AT I O N A S C O D E 11
12. 12 12 • Major architectural change • Start: 2 LTM+APM appliances + 3 non-prod VMs, all on-campus • Finish: • 2 LTM+APM appliances on-campus, 1 off-site • 1 BIG-IP DNS appliance on-campus, 1 off-site • 4 non-prod VMs on-campus, 3 off-site • 225+ Applications supported ENVIRONMENT OVERVIEW
13. 13 13 • New Architecture • Resolve Inconsistencies • Apply Best Practices • Prepare for the Future REFACTORING
14. 14 C O N F I G U R AT I O N A S C O D E 14 • Too much to configure by hand • Too much risk of inconsistencies • Poor change visibility • Poor implementation and backout processes THE PROBLEMS
15. 15 C O N F I G U R AT I O N A S C O D E 15 • Single playbook • Configurations maintained in git repository • Error handling & backout • All problems addressed… THE SOLUTION
16. 16 C O N F I G U R AT I O N A S C O D E 16 • Long runtime • Difficult removals • Scaling Issues • No BIG-IP DNS NEW PROBLEMS
17. 17 17 • Based on Ansible roles • Selective execution • Straightforward removals • Better scaling • BIG-IP DNS • AWX & IPAM THE REFINEMENT
18. BRINGING IT ALL TOGETHER A U T O M A T I O N F O R E V E R Y O N E 18
