Reactive Slick at Scala User Group Vienna May 20 2015

The Principles behind Slick 3

The code shown in the talk (not on the slides) was mostly from https://www.typesafe.com/activator/template/hello-slick-3.0

Transcript

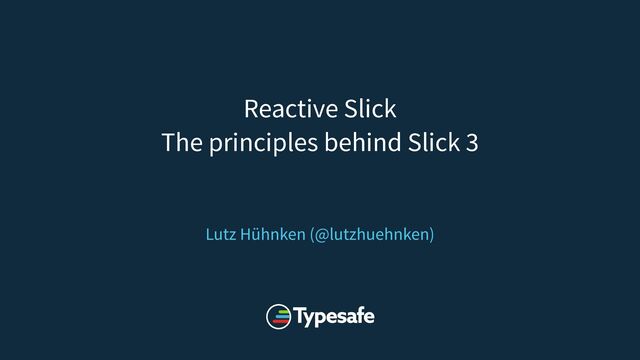

1. Reactive Slick The principles behind Slick 3 Lutz Hühnken (@lutzhuehnken)
2. JDBC try { // make the connection Class.forName(driver) connection = DriverManager.getConnection(url, username, password) // create the statement, and run the select query val statement = connection.createStatement() val resultSet = statement.executeQuery("SELECT host, user FROM user") while ( resultSet.next() ) { val host = resultSet.getString("host") val user = resultSet.getString("user") println("host, user = " + host + ", " + user) } } catch { case e => e.printStackTrace } connection.close() } 2
3. Reactive Slick JDBC The problem with that code • well there are probably many, style etc. But the problem: • Synchronous I/O • Will block the thread it’s running on. • This is true not only for JDBC, but any DB lib running on top of JDBC, Slick included. We like to avoid that. Why? 3
4. Reactive Slick Digression: Concurrency model Java EE: Threads. Servlet API: Thread per Request 4 Note: This is a snapshot at one point in time, not a sequence of events.
5. Reactive Slick Problems with Threads • Context Switching is expensive • Memory overhead per thread • Lock contention when communicating between threads (if you have shared mutable state, which is likely..) 5
6. Reactive Slick Digression: Concurrency model 6 Source: John Rose, Java VM Architect, JFokus, Stockholm, February 2015
7. Reactive Slick Task level concurrency This does not mean: „no threads“. It means: Threads should not be the finest level of concurrency. Not be the level the application developer works on. 7
8. Reactive Slick Digression: Concurrency model Reactive: Sub-Thread. Play: n threads per m requests 8 Note: This is a snapshot at one point in time, not a sequence of events.
9. Reactive Slick Solution: Use Future / blocking combo • Put blocking database calls in Future(blocking( ... )) • Contention for Connections (but may be limited by the ExecutionContext) • A saturated thread pool blocks everything. 9
10. Reactive Slick Better solution: Isolation 10 Note: This is a snapshot at one point in time, not a sequence of events.
11. Reactive Slick New Question: Size Idea: number of threads <= number of connections in pool, so getConnection never blocks. Given you want to handle 10.000 concurrent clients.. what size should your connection pool be? • 10 • 100 • 1.000 • 10.000 11
12. Reactive Slick It was a trick question… A formula which has held up pretty well across a lot of benchmarks for years is that for optimal throughput the number of active connections should be somewhere near ((core_count * 2) + effective_spindle_count). Core count should not include HT threads, even if hyperthreading is enabled. Effective spindle count is zero if the active data set is fully cached, and approaches the actual number of spindles as the cache hit rate falls. ... There hasn't been any analysis so far regarding how well the formula works with SSDs. 12 (From PostgreSQL)
13. Reactive Slick Example: Quad-core server 13 Image by Stefan Zeiger
14. Reactive Slick The difference 14 Image by Stefan Zeiger
15. Reactive Slick Slick Every Database contains an AsyncExecutor that manages the thread pool for asynchronous execution of Database I/O Actions. 15 mydb = { dataSourceClass = "org.postgresql.ds.PGSimpleDataSource" properties = { databaseName = "mydb" user = "myuser" password = "secret" } numThreads = 10 }
16. Switch to code
17. Reactive Slick JDBC (again, it’s the same slide) try { // make the connection Class.forName(driver) connection = DriverManager.getConnection(url, username, password) // create the statement, and run the select query val statement = connection.createStatement() val resultSet = statement.executeQuery("SELECT host, user FROM user") while ( resultSet.next() ) { val host = resultSet.getString("host") val user = resultSet.getString("user") println("host, user = " + host + ", " + user) } } catch { case e => e.printStackTrace } connection.close() } 17
18. Reactive Streams
19. Reactive Slick Reactive Streams Overview • How do we: • Handle potentially infinite streams of data? • Handle data in a reactive manner? • Achieve asynchronous non-blocking data flow? • Avoid out of memory errors? 19
20. Reactive Slick Supply and Demand • Data Items Flow Downstream • Demand Flows Upstream • Data Items flow only when there is demand. 20
21. Reactive Slick Reactive Streams Specification • Interface Specification • Java interfaces for implementations • TCK • Test Harness to validate implementations • Specification Website • http://www.reactive-streams.org/ 21
22. Reactive Slick Publisher package org.reactivestreams; public interface Publisher<T> { public void subscribe<T>( Subscriber<T> subscriber); } 22
23. Reactive Slick Subscriber public interface Subscriber<T> { public void onSubscribe( Subscription subscription); public void onNext(T element); public void onComplete(); public void onError(Throwable cause); } 23
24. Reactive Slick Subscription public interface Subscription { public void cancel(); public void request(long elements); } 24
25. Reactive Slick Dynamic Push-Pull • “Push” behavior when consumer is faster • “Pull” behavior when producer is faster • Switches automatically between these • Batching demand allows batching data 25
26. Reactive Slick Linear Transformations 26 Demand Source Sink map …
27. Reactive Slick Linear Transformations 27 Source Deman Sink drop map
28. Reactive Slick Linear Stream Transformations • Deterministic (like for collections) • map, filter, collect, grouped, drop, take, groupBy, ... • Time-Based • takeWithin, dropWithin, groupedWithin, ... • Rate-Detached • expand, conflate, buffer, ... • asynchronous • mapAsync, mapAsyncUnordered, ... 28
29. Reactive Slick Non-linear Stream Transformations • Fan-In • merge, concat, zip • Fan-Out • broadcast, route, unzip 29
30. Reactive Slick Fan In 30
31. Reactive Slick Fan Out 31
32. Reactive Slick Materialization • Akka Streams separate the what from the how • declarative Source/Flow/Sink DSL to create blueprint • FlowMaterializer turns this into running Actors 32
33. Switch to code
34. Reactive Slick Try it yourself! 34
35. Reactive Slick Thank You Further information: http://slick.typesafe.com Contact: lutz.huehnken@typesafe.com Twitter: @lutzhuehnken 35
