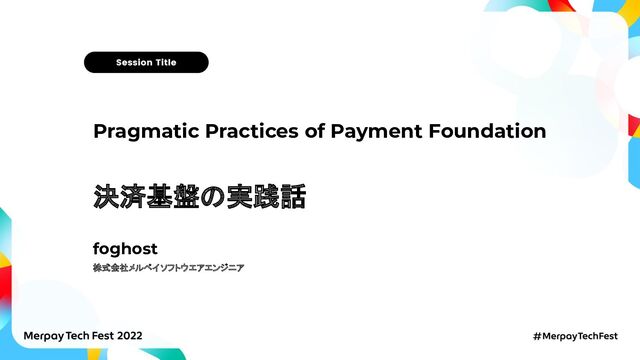

決済基盤の実践話 / Pragmatic Practices of Payment Foundation

mercari
August 25, 2022

決済基盤の実践話 / Pragmatic Practices of Payment Foundation

メルペイリリース時からメルカリグループの各事業を支えられる決済基盤が作られてきました。本セッションでは、決済基盤の構成から、各ドメインコンポネントの紹介、技術観点の課題などを含めてご紹介します。また、プロダクトチームに選ばれる基盤を目指すには日々進化していかないといけないので、今現在チャレンジしていることとこれからの方向性についてもお話したいと思います。
------
