1. POWER & DISTRIBUTION TRANSFORMERS IN NIGERIA Elsan Transformers Ltd "Powering Nigeria's Future" IEC 60076 CERTIFIED ISO 9001 • 14001 • 45001 25 kVA – 50 MVA ALL 36 STATES + FCT www.elsantransformer.com.ng Exclusive Authorised Dealer — Elsan Transformer (Turkey) • Nigerian & West African Power Market

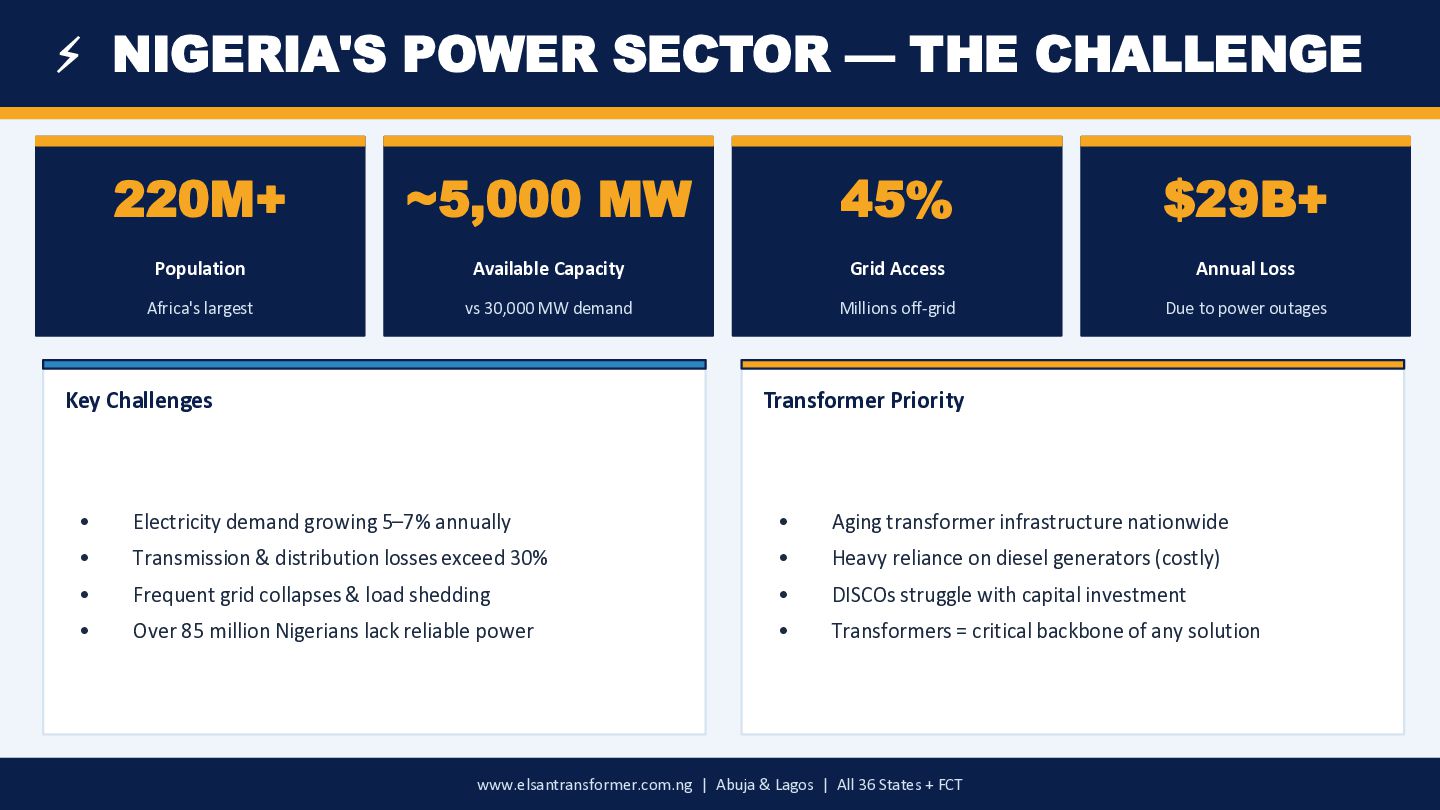

2. ⚡ NIGERIA'S POWER SECTOR — THE CHALLENGE 220M+ Population Africa's largest ~5,000 MW Available Capacity vs 30,000 MW demand 45% Grid Access Millions off-grid $29B+ Annual Loss Due to power outages Key Challenges • Electricity demand growing 5–7% annually • Transmission & distribution losses exceed 30% • Frequent grid collapses & load shedding • Over 85 million Nigerians lack reliable power Transformer Priority • Aging transformer infrastructure nationwide • Heavy reliance on diesel generators (costly) • DISCOs struggle with capital investment • Transformers = critical backbone of any solution www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

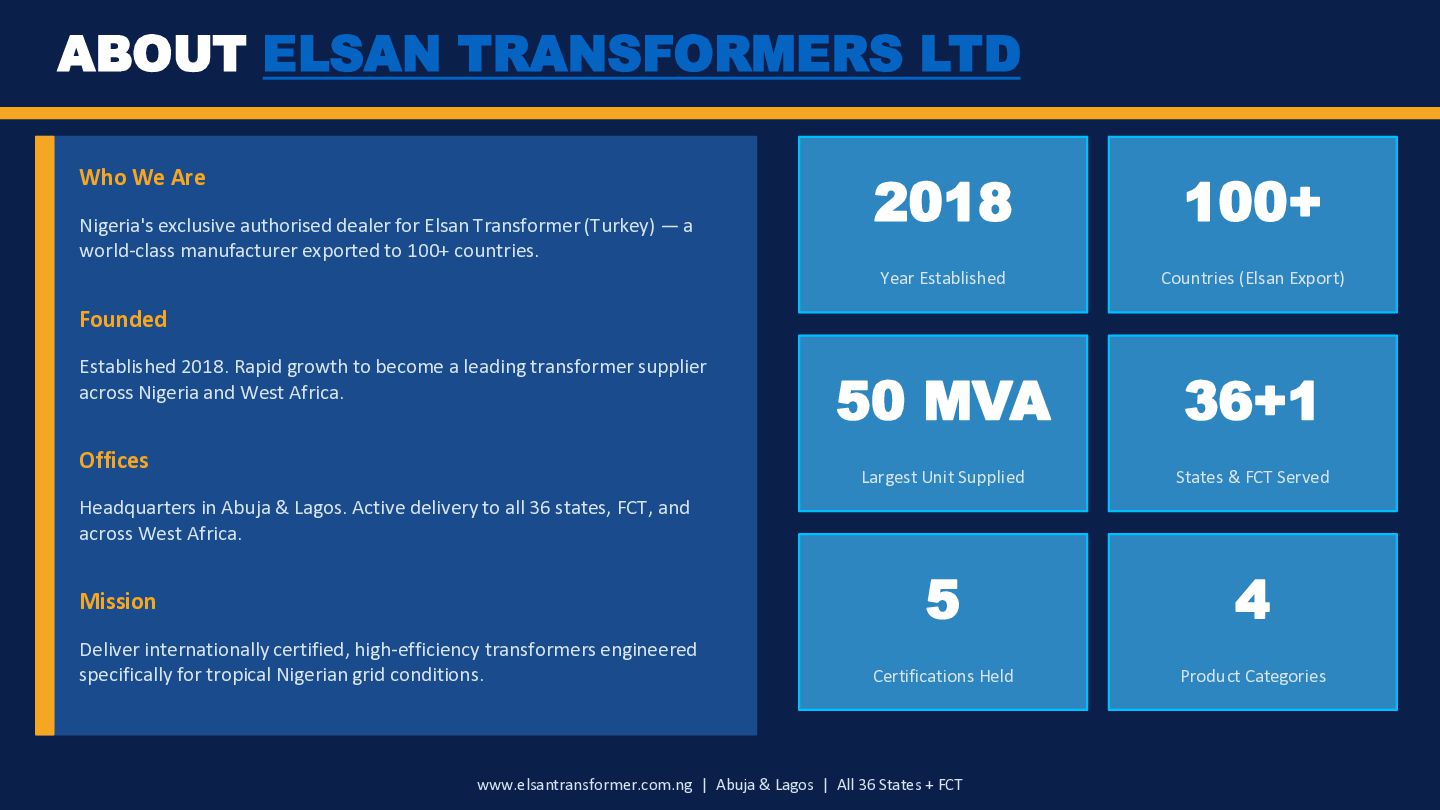

3. ABOUT ELSAN TRANSFORMERS LTD Who We Are Nigeria's exclusive authorised dealer for Elsan Transformer (Turkey) — a world-class manufacturer exported to 100+ countries. Founded Established 2018. Rapid growth to become a leading transformer supplier across Nigeria and West Africa. Offices Headquarters in Abuja & Lagos. Active delivery to all 36 states, FCT, and across West Africa. Mission Deliver internationally certified, high-efficiency transformers engineered specifically for tropical Nigerian grid conditions. 2018 Year Established 100+ Countries (Elsan Export) 50 MVA Largest Unit Supplied 36+1 States & FCT Served 5 Certifications Held 4 Product Categories www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

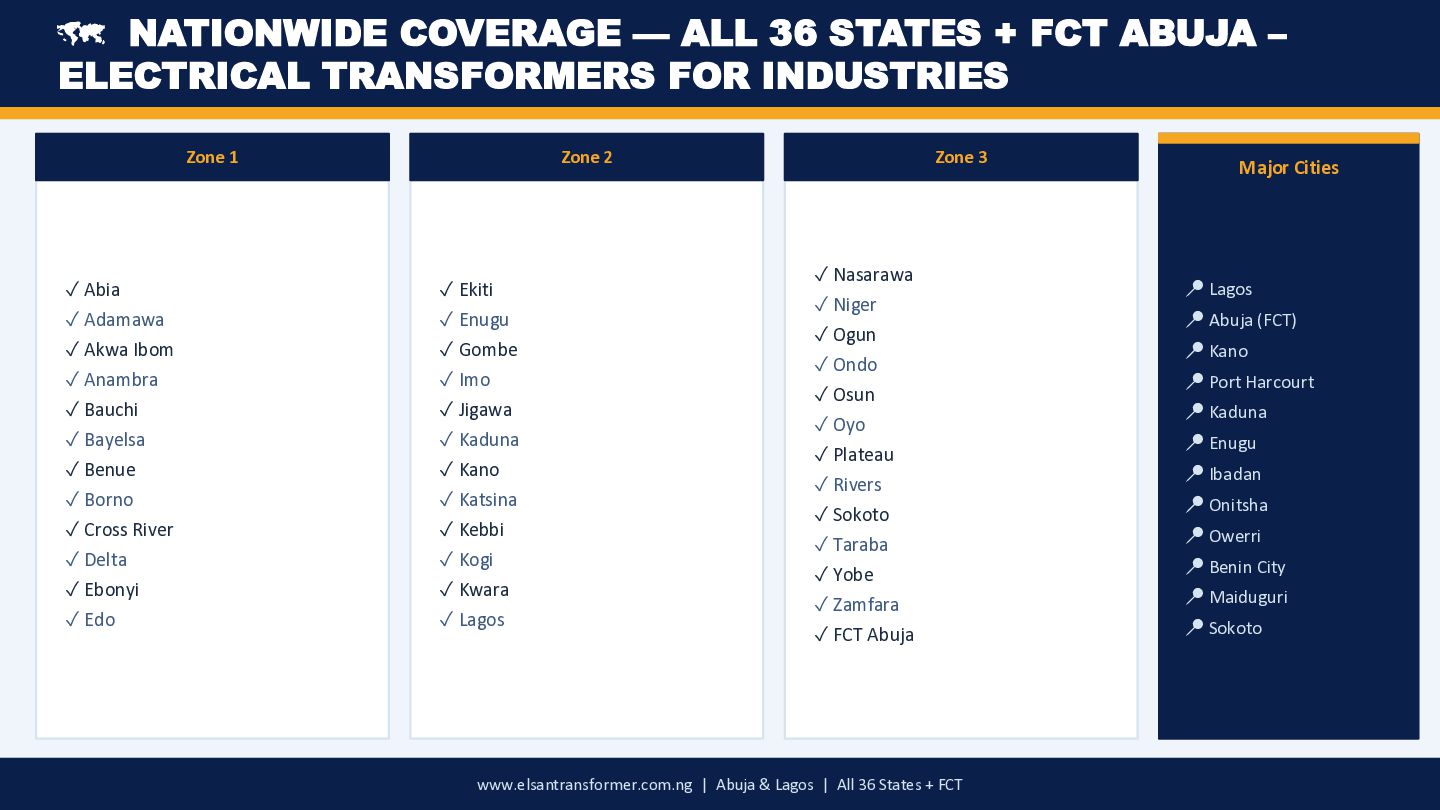

4. 🗺 NATIONWIDE COVERAGE — ALL 36 STATES + FCT ABUJA – ELECTRICAL TRANSFORMERS FOR INDUSTRIES Zone 1 ✓ Abia ✓ Adamawa ✓ Akwa Ibom ✓ Anambra ✓ Bauchi ✓ Bayelsa ✓ Benue ✓ Borno ✓ Cross River ✓ Delta ✓ Ebonyi ✓ Edo Zone 2 ✓ Ekiti ✓ Enugu ✓ Gombe ✓ Imo ✓ Jigawa ✓ Kaduna ✓ Kano ✓ Katsina ✓ Kebbi ✓ Kogi ✓ Kwara ✓ Lagos Zone 3 ✓ Nasarawa ✓ Niger ✓ Ogun ✓ Ondo ✓ Osun ✓ Oyo ✓ Plateau ✓ Rivers ✓ Sokoto ✓ Taraba ✓ Yobe ✓ Zamfara ✓ FCT Abuja Major Cities 📍 Lagos 📍 Abuja (FCT) 📍 Kano 📍 Port Harcourt 📍 Kaduna 📍 Enugu 📍 Ibadan 📍 Onitsha 📍 Owerri 📍 Benin City 📍 Maiduguri 📍 Sokoto www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

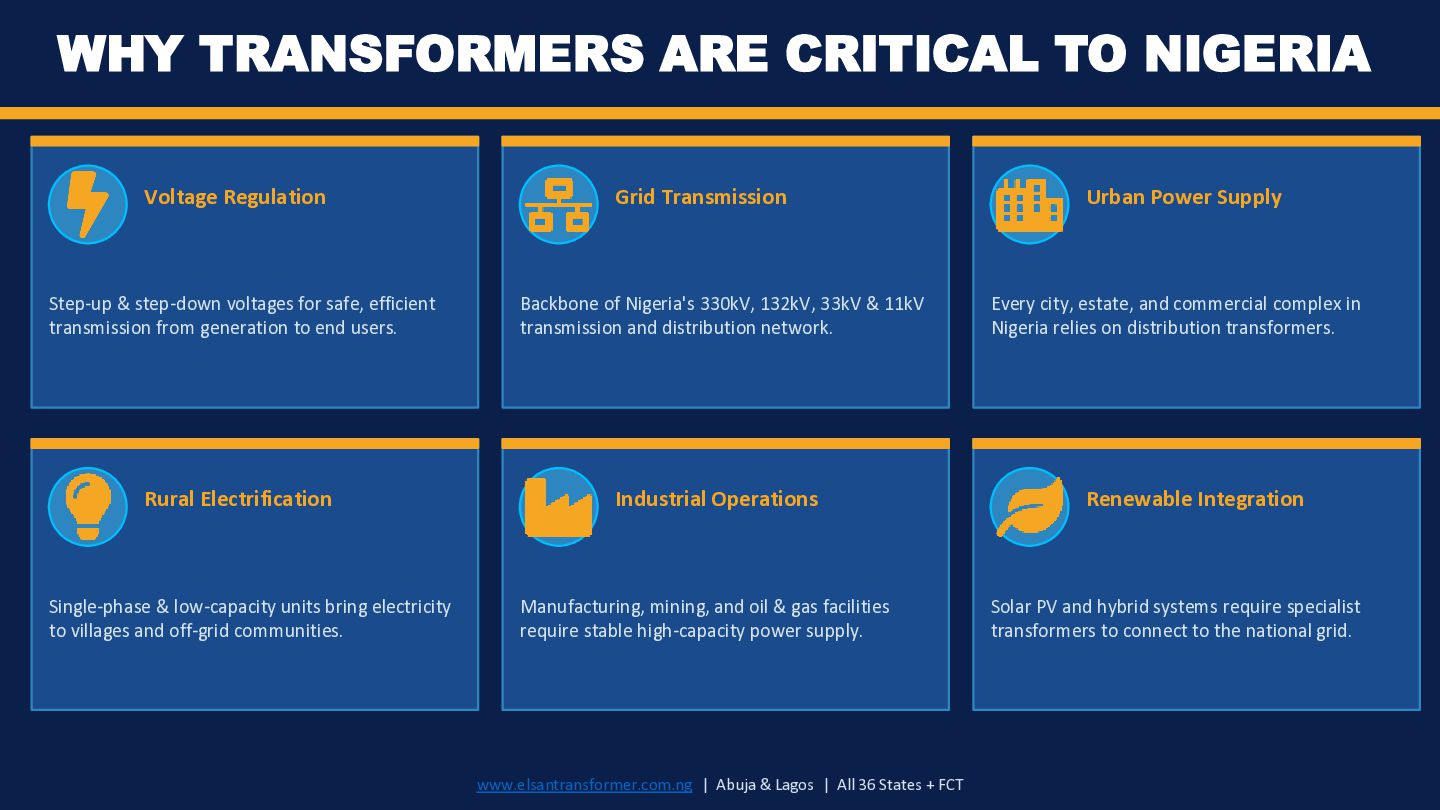

5. WHY TRANSFORMERS ARE CRITICAL TO NIGERIA Voltage Regulation Step-up & step-down voltages for safe, efficient transmission from generation to end users. Grid Transmission Backbone of Nigeria's 330kV, 132kV, 33kV & 11kV transmission and distribution network. Urban Power Supply Every city, estate, and commercial complex in Nigeria relies on distribution transformers. Rural Electrification Single-phase & low-capacity units bring electricity to villages and off-grid communities. Industrial Operations Manufacturing, mining, and oil & gas facilities require stable high-capacity power supply. Renewable Integration Solar PV and hybrid systems require specialist transformers to connect to the national grid. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

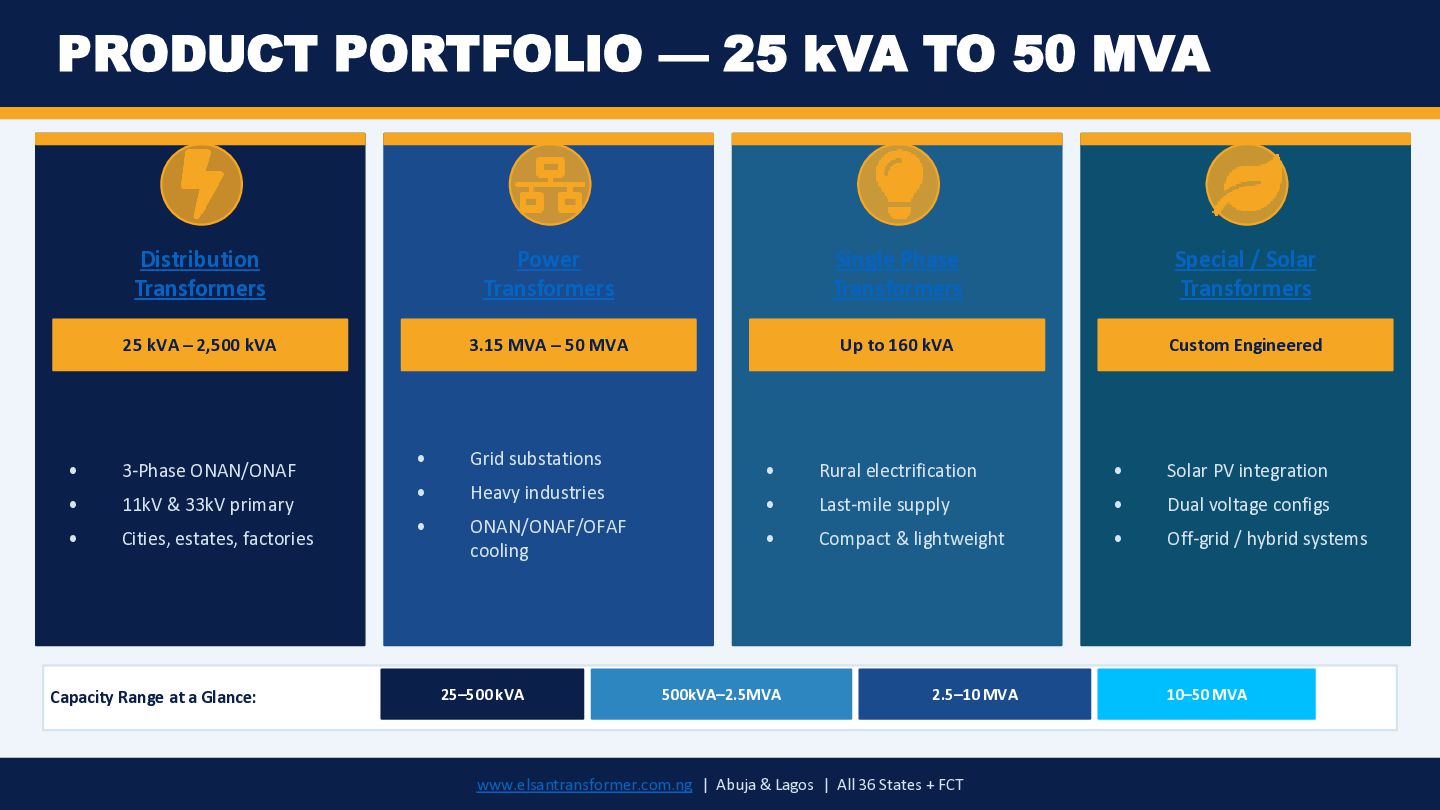

6. PRODUCT PORTFOLIO — 25 kVA TO 50 MVA Capacity Range at a Glance: 25–500 kVA 500kVA–2.5MVA 2.5–10 MVA 10–50 MVA Distribution Transformers 25 kVA – 2,500 kVA • 3-Phase ONAN/ONAF • 11kV & 33kV primary • Cities, estates, factories Power Transformers 3.15 MVA – 50 MVA • Grid substations • Heavy industries • ONAN/ONAF/OFAF cooling Single Phase Transformers Up to 160 kVA • Rural electrification • Last-mile supply • Compact & lightweight Special / Solar Transformers Custom Engineered • Solar PV integration • Dual voltage configs • Off-grid / hybrid systems www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

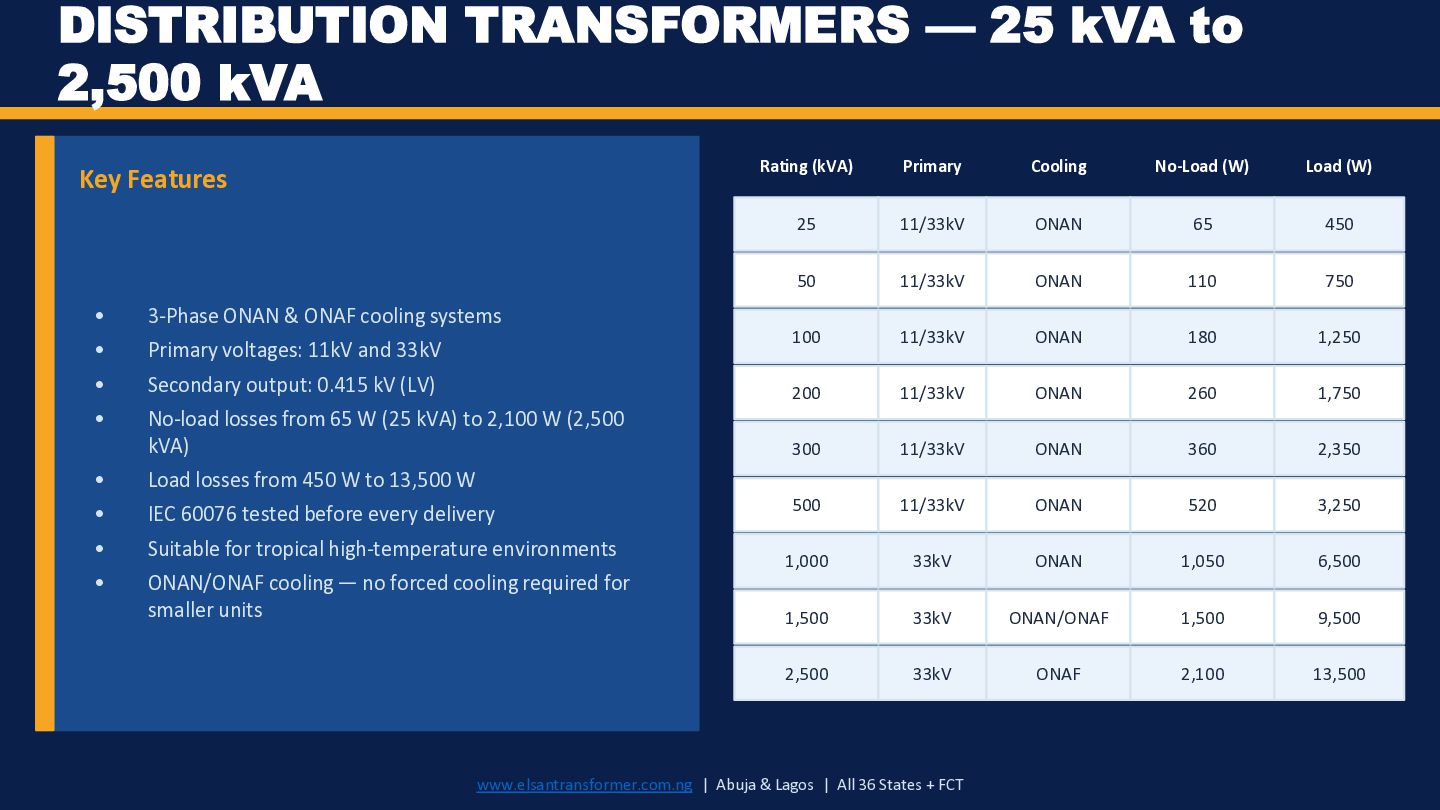

7. DISTRIBUTION TRANSFORMERS — 25 kVA to 2,500 kVA Key Features • 3-Phase ONAN & ONAF cooling systems • Primary voltages: 11kV and 33kV • Secondary output: 0.415 kV (LV) • No-load losses from 65 W (25 kVA) to 2,100 W (2,500 kVA) • Load losses from 450 W to 13,500 W • IEC 60076 tested before every delivery • Suitable for tropical high-temperature environments • ONAN/ONAF cooling — no forced cooling required for smaller units Rating (kVA) Primary Cooling No-Load (W) Load (W) 25 11/33kV ONAN 65 450 50 11/33kV ONAN 110 750 100 11/33kV ONAN 180 1,250 200 11/33kV ONAN 260 1,750 300 11/33kV ONAN 360 2,350 500 11/33kV ONAN 520 3,250 1,000 33kV ONAN 1,050 6,500 1,500 33kV ONAN/ONAF 1,500 9,500 2,500 33kV ONAF 2,100 13,500 www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

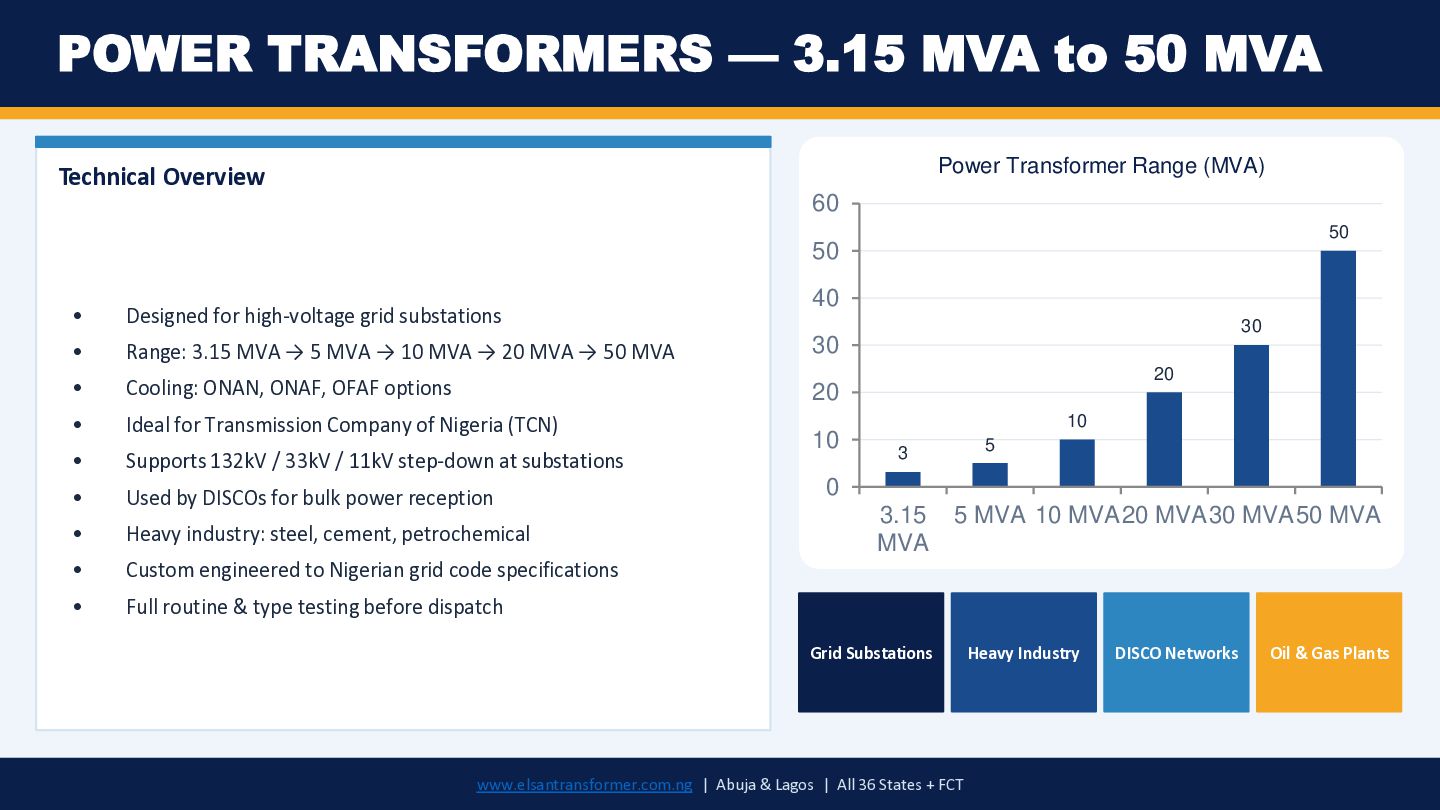

8. POWER TRANSFORMERS — 3.15 MVA to 50 MVA Technical Overview • Designed for high-voltage grid substations • Range: 3.15 MVA → 5 MVA → 10 MVA → 20 MVA → 50 MVA • Cooling: ONAN, ONAF, OFAF options • Ideal for Transmission Company of Nigeria (TCN) • Supports 132kV / 33kV / 11kV step-down at substations • Used by DISCOs for bulk power reception • Heavy industry: steel, cement, petrochemical • Custom engineered to Nigerian grid code specifications • Full routine & type testing before dispatch 3 5 10 20 30 50 0 10 20 30 40 50 60 3.15 MVA 5 MVA 10 MVA20 MVA30 MVA50 MVA Power Transformer Range (MVA) Grid Substations Heavy Industry DISCO Networks Oil & Gas Plants www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT
9. SINGLE PHASE TRANSFORMERS — Up to 160 kVA Rural Electrification Ideal for low-density communities, villages, and agricultural areas where 3-phase supply is impractical. Last-Mile Distribution Final connection between distribution network and individual residential or commercial consumers. Compact Design Lightweight, easy to install on poles or pads — suited for Nigeria's diverse terrain and remote locations. IEC 60076 Compliant Same international manufacturing standards as larger 3-phase units — no compromise on quality. Up to 160 kVA Covers a wide range of single-phase load requirements from small households to light commercial applications. Tropical Engineered Designed specifically for high ambient temperatures and the unique voltage profile of Nigeria's LV network. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

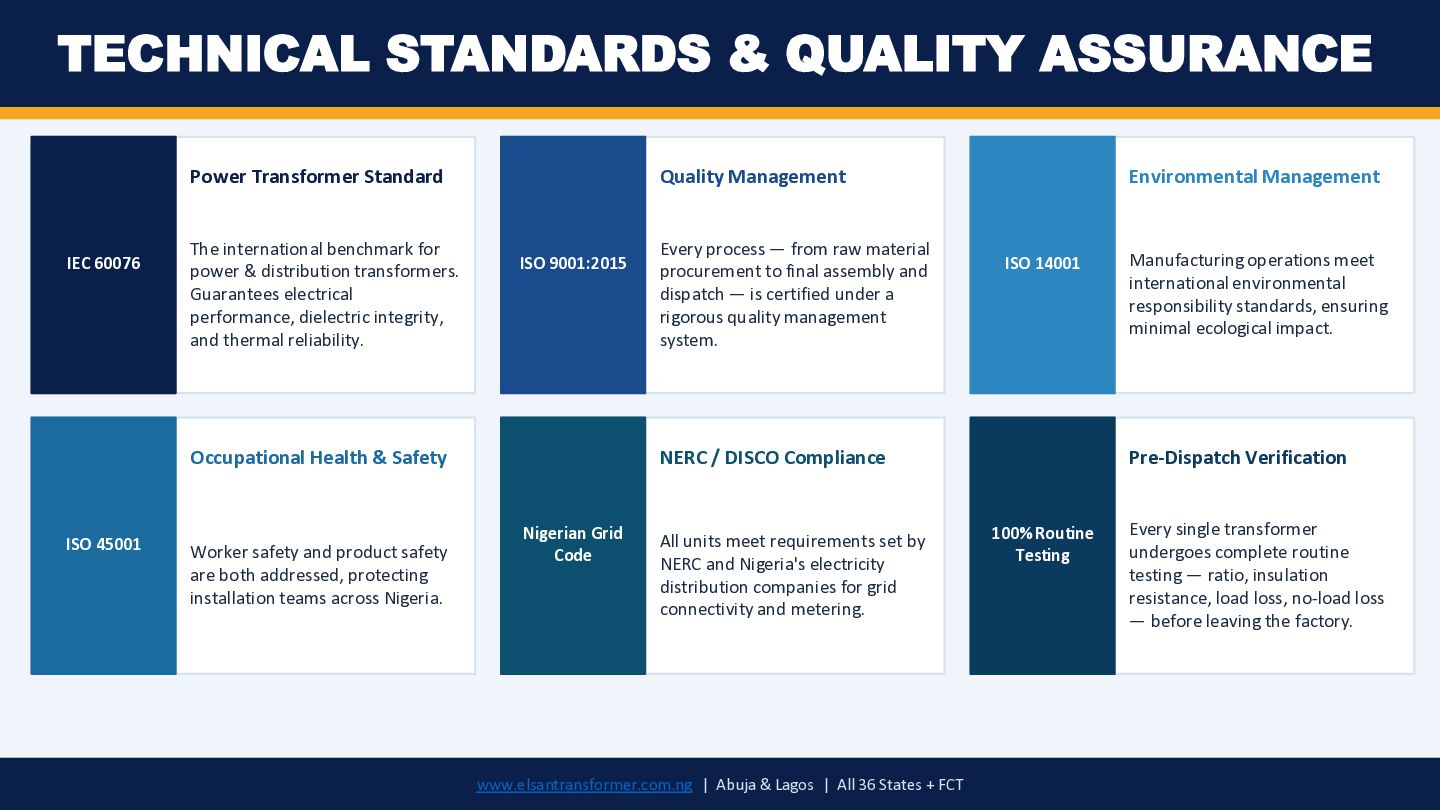

10. TECHNICAL STANDARDS & QUALITY ASSURANCE IEC 60076 Power Transformer Standard The international benchmark for power & distribution transformers. Guarantees electrical performance, dielectric integrity, and thermal reliability. ISO 9001:2015 Quality Management Every process — from raw material procurement to final assembly and dispatch — is certified under a rigorous quality management system. ISO 14001 Environmental Management Manufacturing operations meet international environmental responsibility standards, ensuring minimal ecological impact. ISO 45001 Occupational Health & Safety Worker safety and product safety are both addressed, protecting installation teams across Nigeria. Nigerian Grid Code NERC / DISCO Compliance All units meet requirements set by NERC and Nigeria's electricity distribution companies for grid connectivity and metering. 100% Routine Testing Pre-Dispatch Verification Every single transformer undergoes complete routine testing — ratio, insulation resistance, load loss, no-load loss — before leaving the factory. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

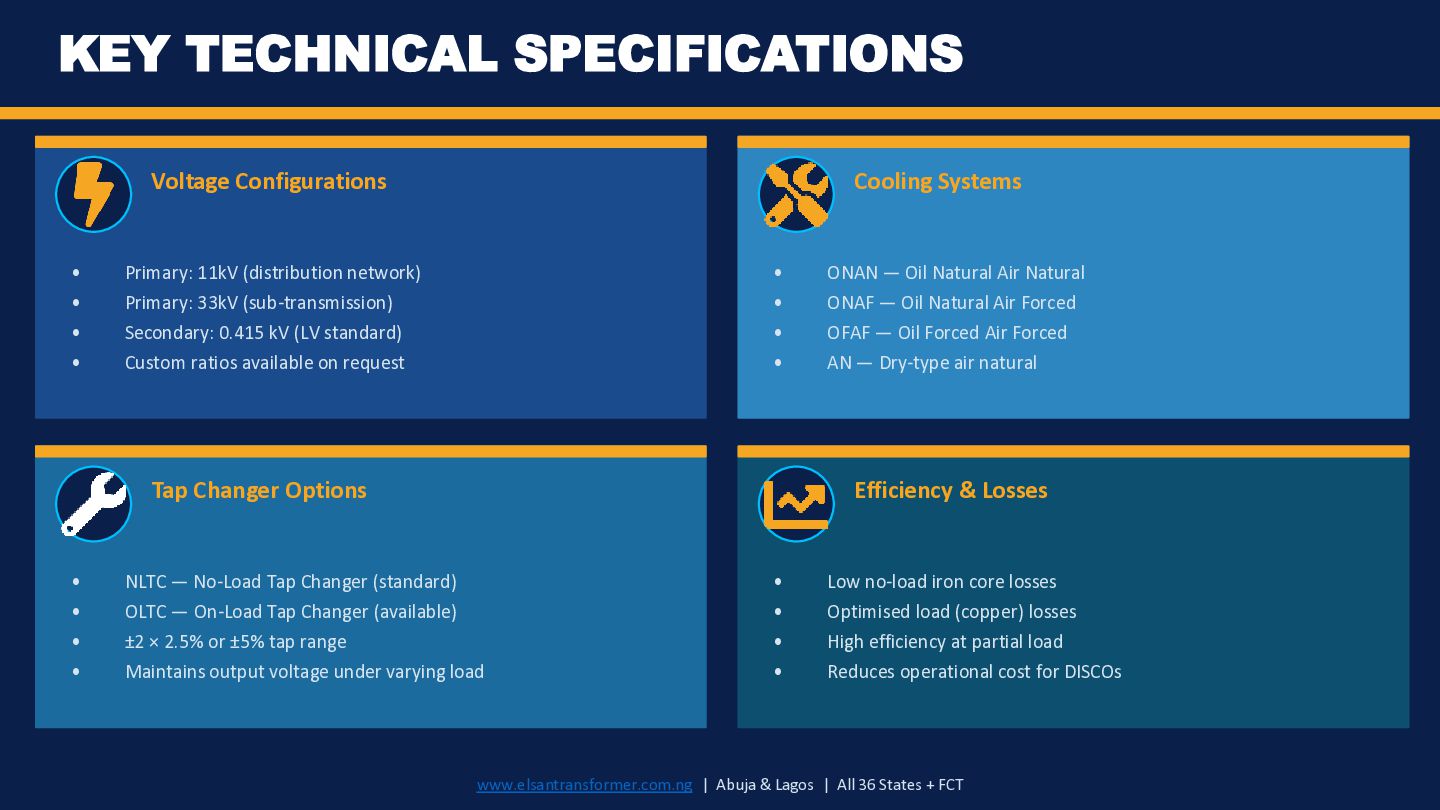

11. KEY TECHNICAL SPECIFICATIONS Voltage Configurations • Primary: 11kV (distribution network) • Primary: 33kV (sub-transmission) • Secondary: 0.415 kV (LV standard) • Custom ratios available on request Cooling Systems • ONAN — Oil Natural Air Natural • ONAF — Oil Natural Air Forced • OFAF — Oil Forced Air Forced • AN — Dry-type air natural Tap Changer Options • NLTC — No-Load Tap Changer (standard) • OLTC — On-Load Tap Changer (available) • ±2 × 2.5% or ±5% tap range • Maintains output voltage under varying load Efficiency & Losses • Low no-load iron core losses • Optimised load (copper) losses • High efficiency at partial load • Reduces operational cost for DISCOs www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

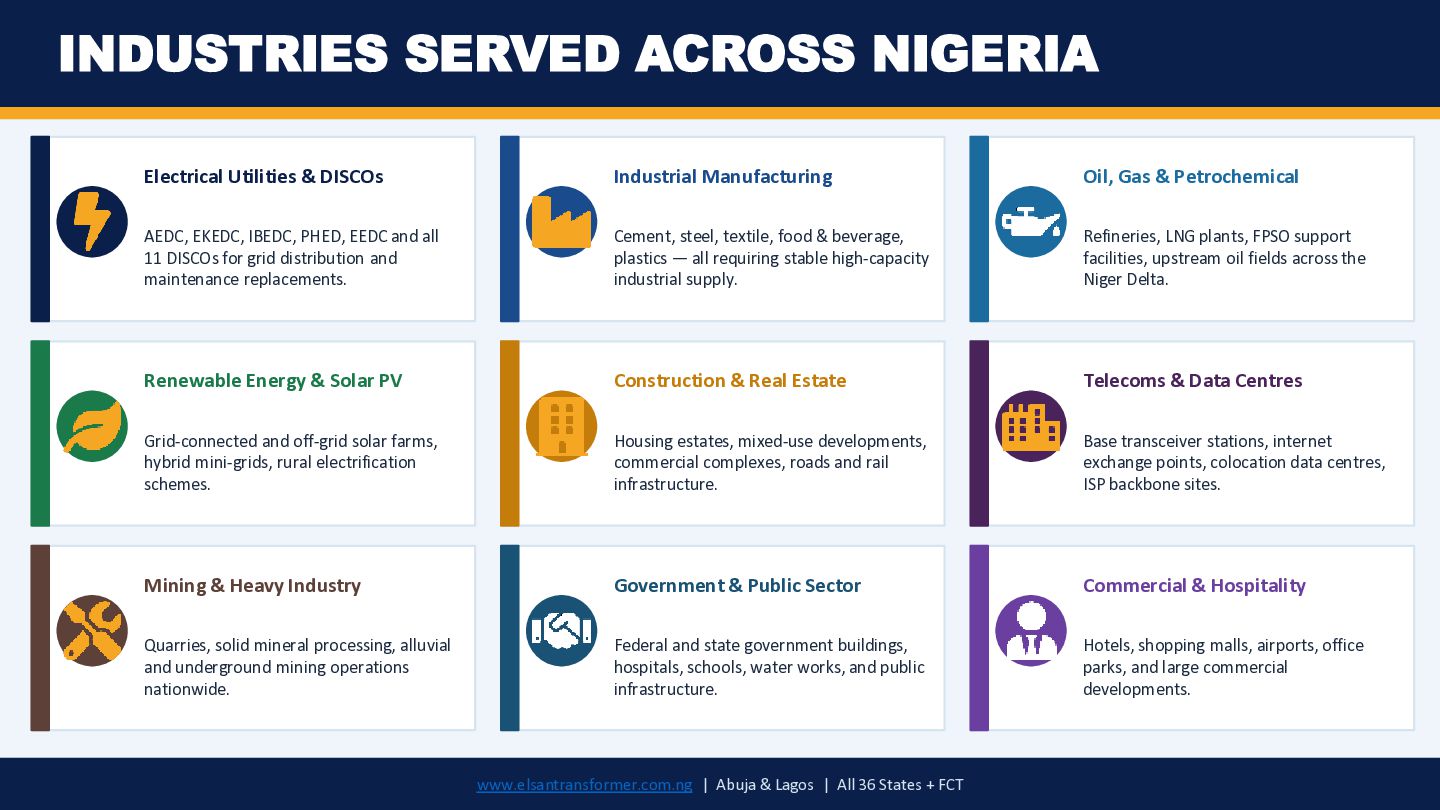

12. INDUSTRIES SERVED ACROSS NIGERIA Electrical Utilities & DISCOs AEDC, EKEDC, IBEDC, PHED, EEDC and all 11 DISCOs for grid distribution and maintenance replacements. Industrial Manufacturing Cement, steel, textile, food & beverage, plastics — all requiring stable high-capacity industrial supply. Oil, Gas & Petrochemical Refineries, LNG plants, FPSO support facilities, upstream oil fields across the Niger Delta. Renewable Energy & Solar PV Grid-connected and off-grid solar farms, hybrid mini-grids, rural electrification schemes. Construction & Real Estate Housing estates, mixed-use developments, commercial complexes, roads and rail infrastructure. Telecoms & Data Centres Base transceiver stations, internet exchange points, colocation data centres, ISP backbone sites. Mining & Heavy Industry Quarries, solid mineral processing, alluvial and underground mining operations nationwide. Government & Public Sector Federal and state government buildings, hospitals, schools, water works, and public infrastructure. Commercial & Hospitality Hotels, shopping malls, airports, office parks, and large commercial developments. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

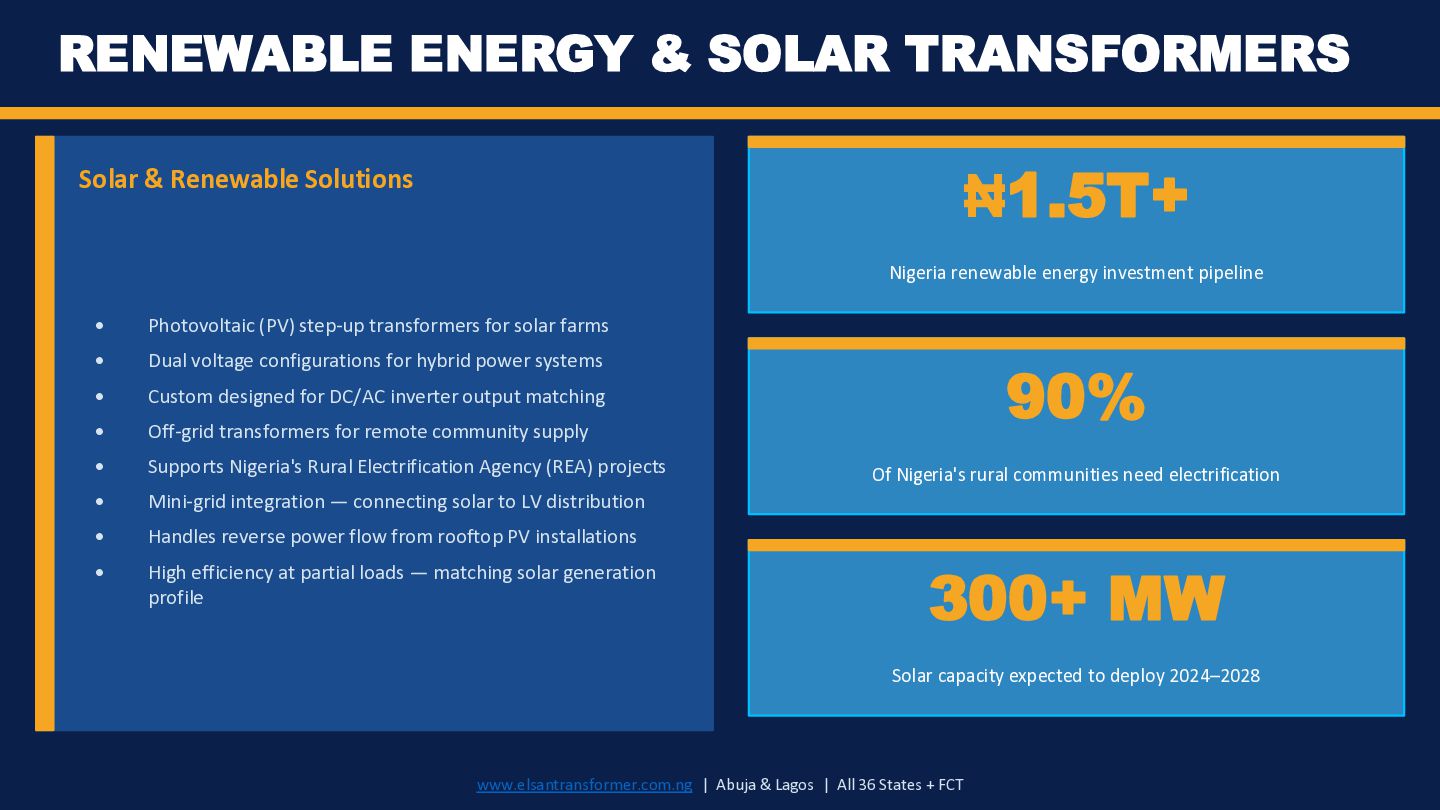

13. RENEWABLE ENERGY & SOLAR TRANSFORMERS Solar & Renewable Solutions • Photovoltaic (PV) step-up transformers for solar farms • Dual voltage configurations for hybrid power systems • Custom designed for DC/AC inverter output matching • Off-grid transformers for remote community supply • Supports Nigeria's Rural Electrification Agency (REA) projects • Mini-grid integration — connecting solar to LV distribution • Handles reverse power flow from rooftop PV installations • High efficiency at partial loads — matching solar generation profile ₦1.5T+ Nigeria renewable energy investment pipeline 90% Of Nigeria's rural communities need electrification 300+ MW Solar capacity expected to deploy 2024–2028 www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

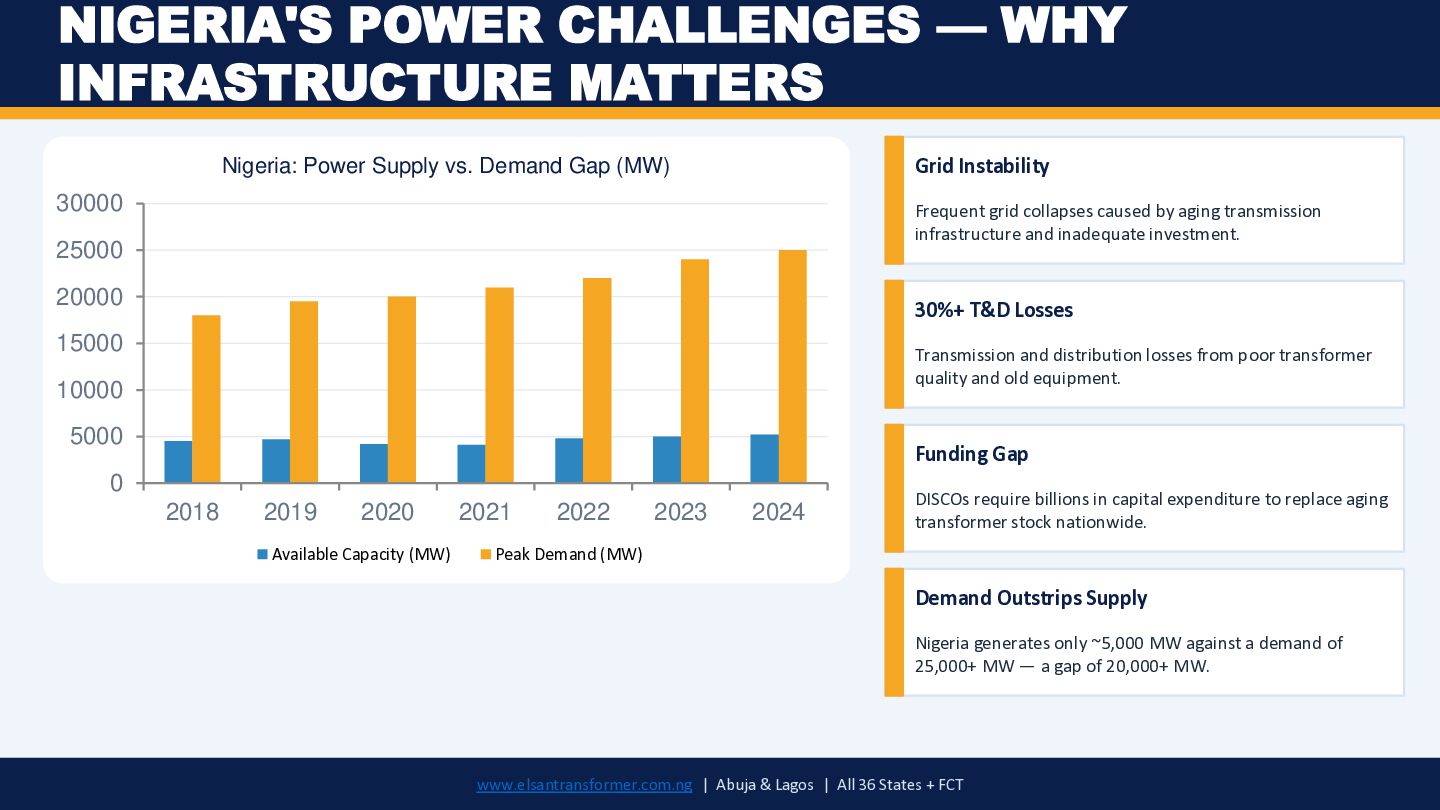

14. NIGERIA'S POWER CHALLENGES — WHY INFRASTRUCTURE MATTERS 0 5000 10000 15000 20000 25000 30000 2018 2019 2020 2021 2022 2023 2024 Nigeria: Power Supply vs. Demand Gap (MW) Available Capacity (MW) Peak Demand (MW) Grid Instability Frequent grid collapses caused by aging transmission infrastructure and inadequate investment. 30%+ T&D Losses Transmission and distribution losses from poor transformer quality and old equipment. Funding Gap DISCOs require billions in capital expenditure to replace aging transformer stock nationwide. Demand Outstrips Supply Nigeria generates only ~5,000 MW against a demand of 25,000+ MW — a gap of 20,000+ MW. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

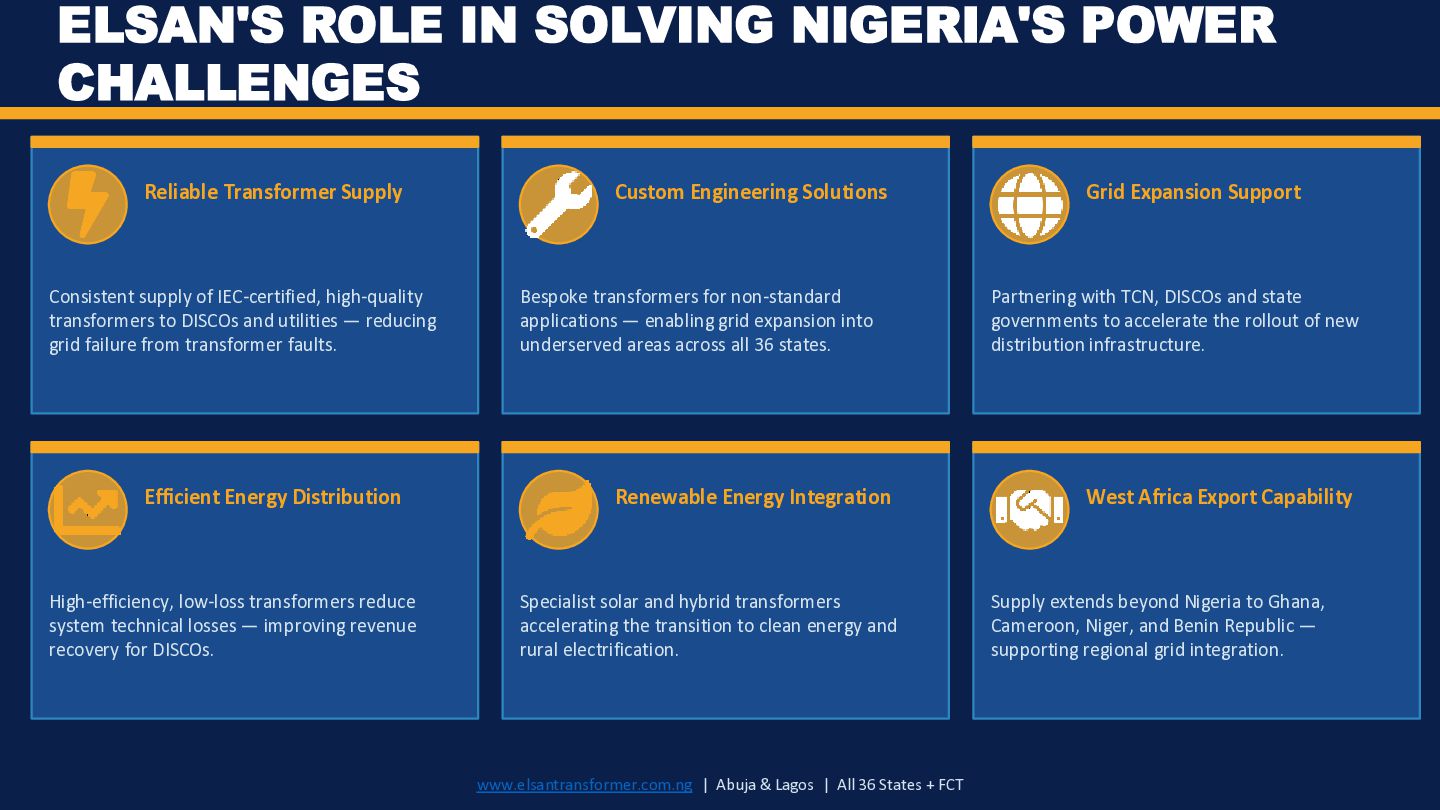

15. ELSAN'S ROLE IN SOLVING NIGERIA'S POWER CHALLENGES Reliable Transformer Supply Consistent supply of IEC-certified, high-quality transformers to DISCOs and utilities — reducing grid failure from transformer faults. Custom Engineering Solutions Bespoke transformers for non-standard applications — enabling grid expansion into underserved areas across all 36 states. Grid Expansion Support Partnering with TCN, DISCOs and state governments to accelerate the rollout of new distribution infrastructure. Efficient Energy Distribution High-efficiency, low-loss transformers reduce system technical losses — improving revenue recovery for DISCOs. Renewable Energy Integration Specialist solar and hybrid transformers accelerating the transition to clean energy and rural electrification. West Africa Export Capability Supply extends beyond Nigeria to Ghana, Cameroon, Niger, and Benin Republic — supporting regional grid integration. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

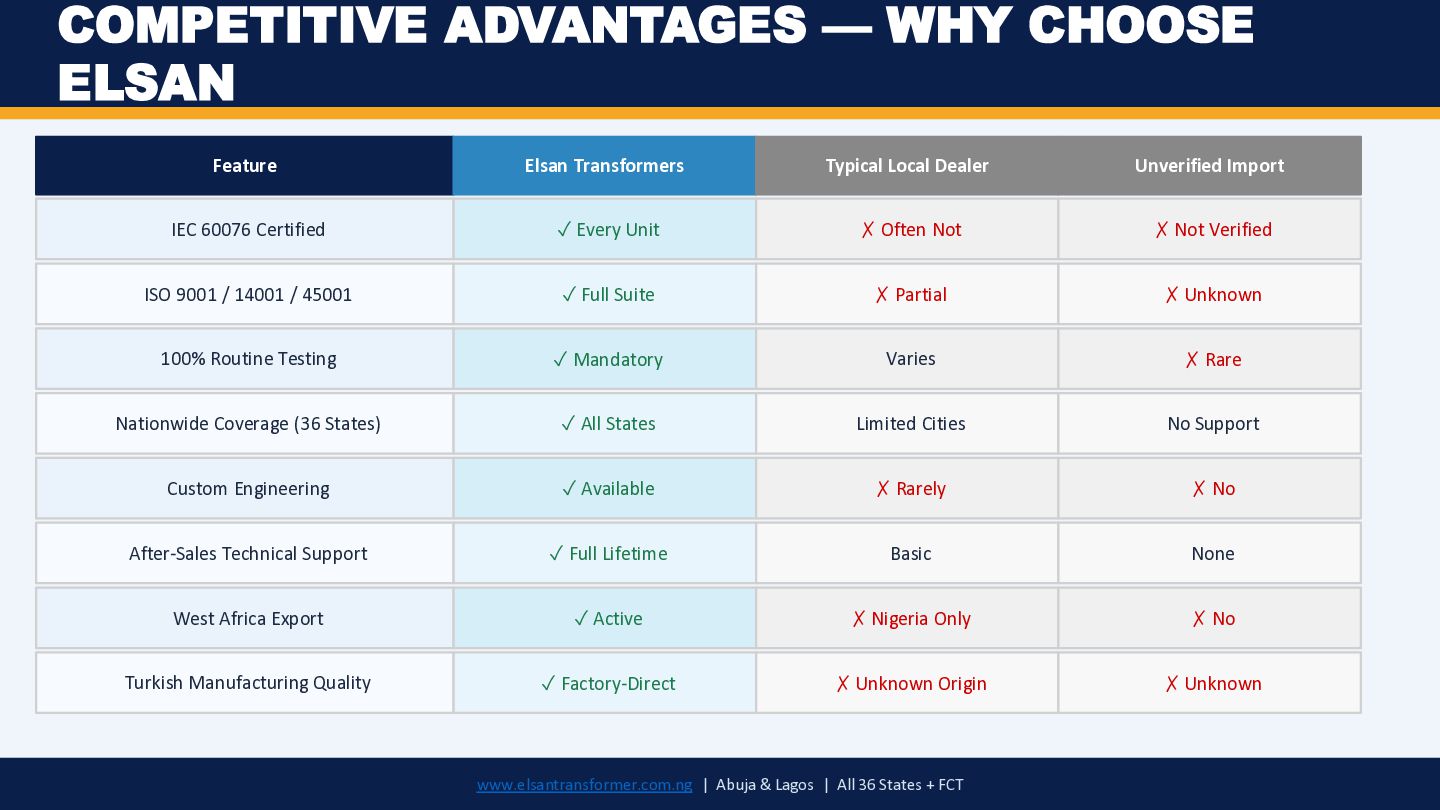

16. COMPETITIVE ADVANTAGES — WHY CHOOSE ELSAN Feature Elsan Transformers Typical Local Dealer Unverified Import IEC 60076 Certified ✓ Every Unit ✗ Often Not ✗ Not Verified ISO 9001 / 14001 / 45001 ✓ Full Suite ✗ Partial ✗ Unknown 100% Routine Testing ✓ Mandatory Varies ✗ Rare Nationwide Coverage (36 States) ✓ All States Limited Cities No Support Custom Engineering ✓ Available ✗ Rarely ✗ No After-Sales Technical Support ✓ Full Lifetime Basic None West Africa Export ✓ Active ✗ Nigeria Only ✗ No Turkish Manufacturing Quality ✓ Factory-Direct ✗ Unknown Origin ✗ Unknown www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT
17. REAL-WORLD APPLICATIONS ACROSS NIGERIA DISCO Network Upgrade 📍 Multiple States Replacement of aged 500 kVA and 1,000 kVA distribution transformers on 33/0.415 kV feeders to reduce outages and technical losses. Residential Estate Supply 📍 Lagos & Abuja 100 kVA – 500 kVA units for gated estates and housing developments requiring dedicated, stable low-voltage supply. Oil & Gas Processing Facility 📍 Niger Delta 3.15 MVA – 10 MVA power transformers supplying substations for upstream oil field operations and gas processing plants. Solar Mini-Grid Project 📍 Rural Communities Special solar PV transformers connecting 200 kW – 1 MW solar farms to village-level distribution networks off the main grid. Cement & Manufacturing Plant 📍 Kogi / Ogun State 10 MVA – 20 MVA power transformers providing reliable bulk supply to energy-intensive cement grinding and clinker production. Commercial Tower / Mall 📍 Lagos / Kano 300 kVA – 1,000 kVA distribution transformers as part of dedicated substation supply for commercial high-rise and retail developments. www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT

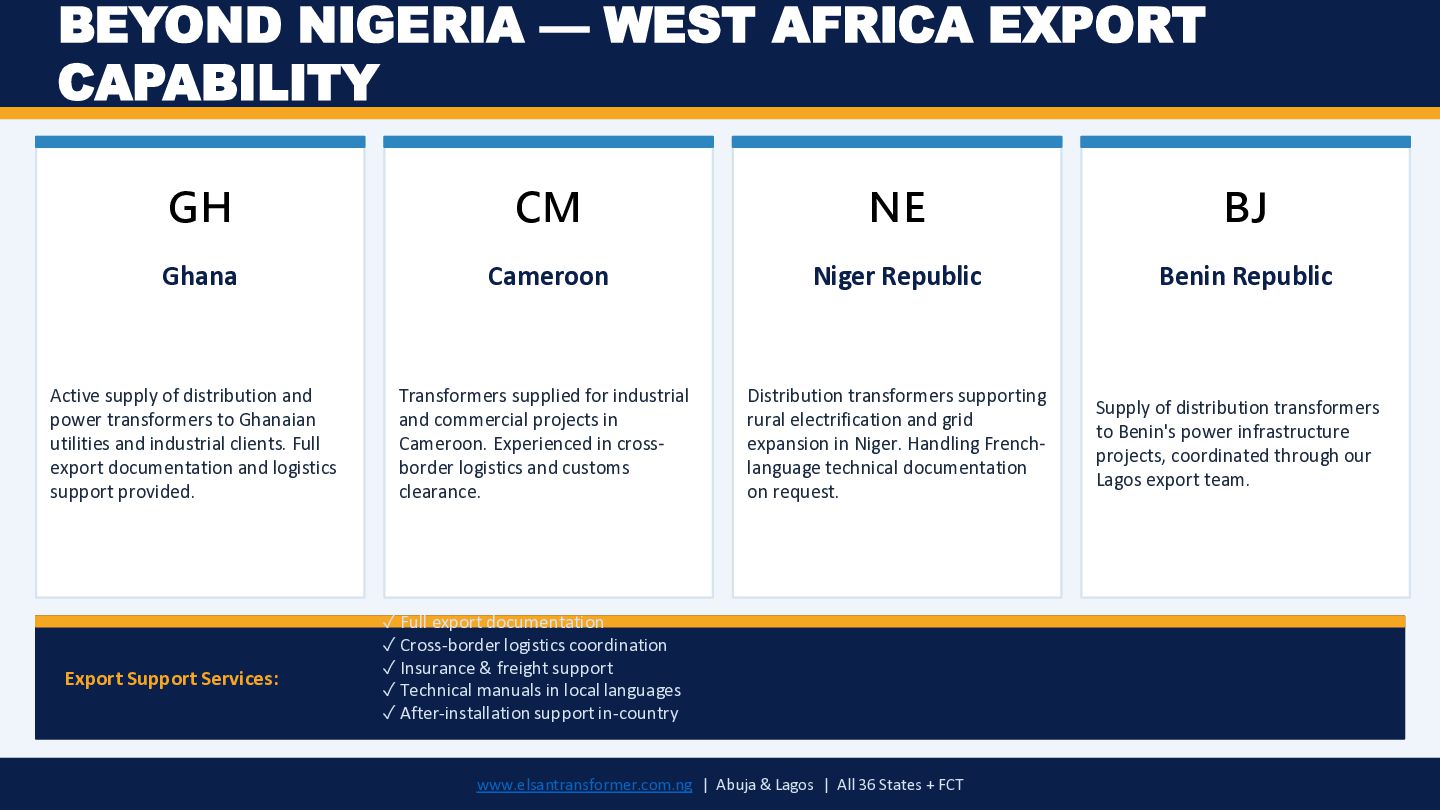

18. BEYOND NIGERIA — WEST AFRICA EXPORT CAPABILITY 🇬🇭 Ghana Active supply of distribution and power transformers to Ghanaian utilities and industrial clients. Full export documentation and logistics support provided. 🇨🇲 Cameroon Transformers supplied for industrial and commercial projects in Cameroon. Experienced in cross- border logistics and customs clearance. 🇳🇪 Niger Republic Distribution transformers supporting rural electrification and grid expansion in Niger. Handling French- language technical documentation on request. 🇧🇯 Benin Republic Supply of distribution transformers to Benin's power infrastructure projects, coordinated through our Lagos export team. Export Support Services: ✓ Full export documentation ✓ Cross-border logistics coordination ✓ Insurance & freight support ✓ Technical manuals in local languages ✓ After-installation support in-country www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT
19. THE FUTURE OF NIGERIA'S POWER SECTOR 2024–2026 Grid Expansion Drive Federal Government accelerating CAPEX into TCN and DISCO infrastructure. New 33kV feeders and substation upgrades across all regions. 2026–2028 Renewable Scale-Up Target: 2,000 MW+ of solar and wind. Mini-grid rollout to 1,000+ communities. Specialist transformer demand surges. 2028–2030 Smart Grid Pilots IoT-enabled smart transformers, remote monitoring, automated switching. Elsan positioned to supply next-generation units. 2030+ Universal Access Goal Nigeria's target of near-universal electricity access requires 50,000+ new transformers across the distribution network. Elsan Transformers Ltd — Your Strategic Partner for Nigeria's Power Infrastructure Growth www.elsantransformer.com.ng | Abuja & Lagos | All 36 States + FCT
20. C O N C L U S I O N TRANSFORMERS = BACKBONE OF NIGERIA'S POWER FUTURE • Nigeria's demand gap requires immediate & large-scale transformer investment • Elsan Transformers Ltd — Nigeria's most trusted, reliable certified supplier • IEC 60076 & ISO certified — no compromise on international standards • Nationwide reach: all 36 states + FCT, cities, and rural communities • Complete product range: 25 kVA distribution to 50 MVA power transformers • Custom solutions for renewables, oil & gas, manufacturing, and DISCOs GET IN TOUCH TODAY 🌐 www.elsantransformer.com.ng 📍 Abuja (HQ) & Lagos | All 36 States + FCT 📧 Contact via online enquiry form for same-day response
