Git vs Subversion: ¿Cuando elegir uno u otro?

Git vs Subversion: ¿Cuando elegir uno u otro?

Javahispano y Paradigma Tecnológico organizan un un seminario sobre una comparativa de sistemas de versionado: Subversion vs. Git.
Seminario presentado por Mariano Navas el 29 de Mayo de 2013 en UPM.

Dentro del mundo de los sistemas de control de versiones tenemos dos grandes grupos: los centralizados y los distribuidos. Subversion es en buena medida el representante más notable en el grupo de los centralizados. En los distribuidos git se está imponiendo como la tendencia.

Paradigma

May 29, 2013
Tweet

More Decks by Paradigma

Other Decks in Technology

Transcript

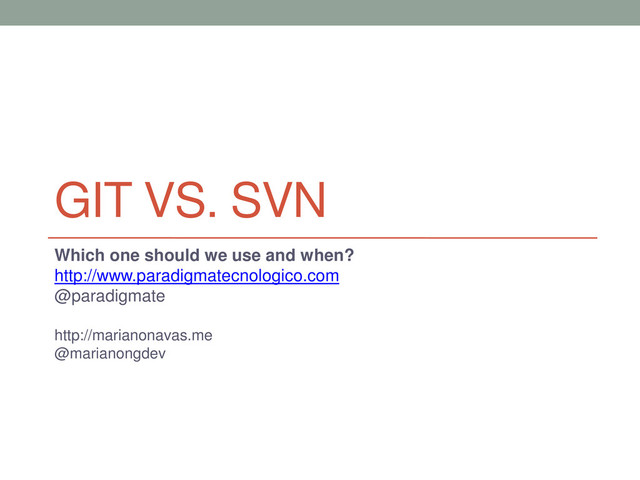

  1. GIT VS. SVN Which one should we use and when?

    http://www.paradigmatecnologico.com @paradigmate http://marianonavas.me @marianongdev
  2. What is a CVS for? • Allow team work together

    and collaborate • Have some kind of time machine in our code • Allow CI
  3. Approaches (architectural models) • Local • Rcs (Mac OS Developer

    Tools) • Centralized • Subversion • CVS • Perforce • Distributed • Git • Mercurial
  4. Approaches (architectural models) • Local • Rcs (Mac OS Developer

    Tools) • Centralized • Subversion • CVS • Perforce • Distributed • Git • Mercurial
  5. Very good resource

  6. Centralized CVS

  7. Distributed CVS

  8. Centralized • Pros • Looks simple • We know it

    well; we've been using it for a long time • Good mainstream IDEs integration • It works  • Cons • We cannot commit offline (well, we can, but …) • We cannot integrate in our development toolset more than one repository • Dificult to collaborate if team is large (i.e. open source projects) • We are encouraged to avoid branches by the system.
  9. Distributed • Pros • Allow offline work • Easy collaboration

    model • Can link as many repositories as we might need • Almost every operation is local • Complete copy of the repository in each machine • Easy installation on server, and plenty of hosting services (free and paid) • Cons • More complex workflow (or not?) • Difficult to learn • ?????
  10. Internal representation of data; SVN

  11. Branching in SVN

  12. Branching in SVN Quotes taken from official svn website •

    "For projects that have a large number of contributors, it's common for most people to have working copies of the trunk. Whenever someone needs to make a long-running change that is likely to disrupt the trunk, a standard procedure is to create a private branch and commit changes there until all the work is complete" • "The bad news is that it's very easy to drift too far apart (...) it may be near-impossible to merge your changes back into the trunk without a huge number of conflicts" • "Subversion gives you the ability to selectively “copy” changes between branches. And when you're completely finished with your branch, your entire set of branch changes can be copied back into the trunk. In Subversion terminology, the general act of replicating changes from one branch to another is called merging, and it is performed using various invocations of the svn merge subcommand”
  13. Branching in SVN I (typical workflow) • Checkout from trunk.

    • Add a new file to working copy • Check status (svn st). • Track new file in svn (svn add). • Commit the new file (svn ci). • Modify the file, and check status again (svn st). • Commit the new change. • Modify again and let it remain modified.
  14. Branching in SVN II (branch & merge) • Svn copy

    at server level. • Check current working copy remote path (svn info). • Switch to new location (svn switch [remote] .) • Check remote again (svn info). • Commit some change to the branch. • Switch again to trunk. • Merge trunk with [myNewBranch] (svn merge [source@rev] .). Note that we do it with the working copy first to merge conflicts locally. • Commit to finish merge (we’ve done it locally in the previous step). • Again with a non-conflicting change in the same file. • Again with a conflicting change.
  15. Internal representation of data; svn • Repository: the main idea

    • Working copy • Revisions, which are deltas of a base state • The server has to workout deltas to resolve the concrete state of a revision (commit) • Each revision gets a unique (secuential) id. This is possible because it's centralized • Branches: are light copies of complete working trees • Summary: branch=copy.
  16. Drawbacks I: only one remote

  17. Drawbacks II: branch & merge sucks • Recall branch &

    merge procedure: • Copy trunk in branch directory in remote server • Checkout (or switch) locally. • Inspect revision we want to merge with, if not last. • Call svn merge. • Resolve conflicts (if any). • Commit the whole thing. • In practice we feel encouraged to not create branches (bad, bad, bad …).
  18. Drawback III: cleanliness • What if I want to merge

    my branch just to get up to date with our trunk, but I don’t want to make it public yet (incomplete feature or just playing around)?
  19. Drawback IV: privacy • Do I have to publish my

    code to a remote/public server to have version control? What if I’m doing some experiments I don’t want other people to see, or I just don’t want to mess up our central repository with something I don’t know if it’s going to work?
  20. Internal representation of data; git

  21. Git – file status lifecycle

  22. Git internal storage structure: directed acyclic graph (DAG) • http://eagain.net/articles/git-for-computer-scientists/

  23. Branching in git

  24. Deeper insight in git DAG internal structure

  25. Another view of git objects I

  26. Another view of git objects II

  27. Another view of git objects III

  28. Details on how git stores that in disk • http://git-scm.com/book/en/Git-Internals-Git-Objects

  29. Branches and HEAD

  30. More on git internal representation of data • http://eagain.net/articles/git-for-computer-scientists/ •

    http://en.wikipedia.org/wiki/Directed_acyclic_graph • Due to its distributed nature unique ids for commits are generated as SHA-1 digest to ensure unicity • Explanation • Snapshots, not deltas • Commits: blobs • Branches: references to commits • Repeat: branch = pointer • Current branch: HEAD pointer • Detached heads: careful
  31. SVN branch & merge summary • SVN has no branch

    concept. It's just another working copy with a common history • We can only merge two branches at a time • SVN allow you to merge even not at all related trees (error prone) • Refactor and moving things around; svn doesn't manage this kind of merges very well • Only allows interaction one repository at a time.
  32. Git branch & merge summary • It’s trivial to create

    a new branch from any point. • Git prevents us from deleting unmerged branches. • We can clean up obsolete branches keeping commits. • We can move a branch around (recreate it from any starting point). • We can merge more than one branch at a time (3 or even more!!!). • Git understands moved and renamed files. • This model encourage best practices: branch-per-feature, local branches for testing and experiments, git-flow …
  33. Git allow us to manage branching well

  34. Git integration with SVN

  35. Interesting git resource • http://git-scm.com • http://git-scm.com/docs/gittutorial • http://eagain.net/articles/git-for-computer-scientists/ •

    http://try.github.io/levels/1/challenges/1 • http://www.vogella.com/articles/Git/article.html • https://help.github.com/articles/ • http://gitimmersion.com
  36. Wich CVS should I choose and when?
