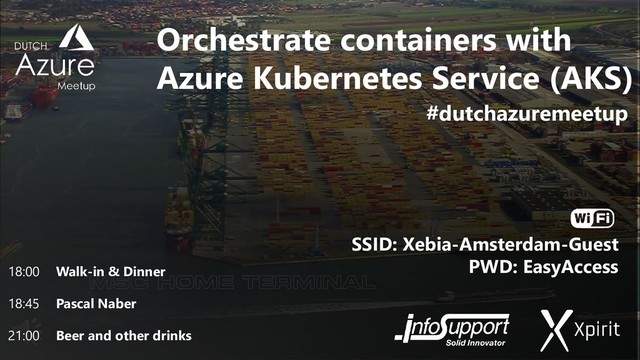

1. Think ahead. Act now. 18:00 Walk-in & Dinner 18:45 Pascal Naber 21:00 Beer and other drinks Orchestrate containers with Azure Kubernetes Service (AKS) #dutchazuremeetup SSID: Xebia-Amsterdam-Guest PWD: EasyAccess
2. Welcome Your Hosts Pascal Naber Marco Mansi Sander Molenkamp
3. Next Meetups 8 Nov Smack your batch up! Everything about Azure Batch 12 Dec Building Awesome 8-bit Adventure Games with Microsoft Bot Framework 24 Jan DevOps with Azure
4. €100.00 discount for attendees first (24 hrs): https://techoramanl.eventbrite.nl/?discount= meetupdutchazureQz280T
5. Feedback board Topics & Speakers next time Tell us what you think about this meetup
6. Think ahead. Act now.
7. Think ahead. Act now. Containers Solves Portable Fast Isolated
8. Moving to production Scaling, load balancing, fault tolerance, etc.
9. Scaling, Load balancing & Fault tolerance Server Frontend Backend
10. Scaling, Load balancing & Fault tolerance Server
11. Scaling, Load balancing & Fault tolerance Server Server Server Container orchestration
12. Server Scaling, Load balancing & Fault tolerance Server Server Container orchestration
13. Container orchestrators Cluster High Availability Hyper-Scale Hybrid Operations High Density Rolling Upgrades Stateful services Low Latency Fast startup & shutdown Container Orchestration & lifecycle management Replication & Failover Load balancing Self-healing Automated Rollback Health Monitoring Placement Constraints Microservices Service Fabric
14. Orchestrators cluster Node (Worker) Node (Worker) Master
15. Kubernetes Kubernetes cluster Node (Minion) Node (Minion) Master
16. History of Kubernetes June 2014 First commit September 2014 July 2015 March 2018 Announced Kubernetes v1 CNCF 1st Graduate
17. Kubernetes K8s OOS Extensible Facilitates declarative configuration and automation Large, rapidly growing ecosystem Κυβερνήτης -- Greek: meaning helmsman or pilot 1 2 3 4 5 6 7 8
18. Hosting of Kubernetes Local Minikube Docker for Windows (Edge) Docker for Mac (Edge) Raspberry Pi Private datacenter Public Cloud GKE (26-8-2015) EKS (5-6-2018) ACS (19-4-2016) AKS (13-6-2018)
19. Think ahead. Act now. Partly managed Kubernetes Only pay for worker nodes Upgrades managed by Azure Workers are Managed IaaS Azure Kubernetes Service (AKS) Azure Kubernetes
20. Think ahead. Act now. Announced Azure OpenShift Azure
21. Think ahead. Act now. Missing pieces? Deploy to Production
22. Install AKS ARM Ansible Terraform Portal
23. Install AKS using CLI ## Create resourcegroup az group create --name aksmeetup --location eastus ## Create Kubernetes cluster az aks create -g aksmeetup -n aksmeetup --generate-ssh-keys ## Create Kubernetes cluster az aks create --resource-group aksmeetup --name aksmeetup --kubernetes-version 1.11.2 --node-vm-size Standard_DS4_v2 --node-count 10 --ssh-key-value "C:\repos\pascal\ssh\public.pub" --service-principal d6e55af7-17fc-4cf5-b140-8b37729da10e --client-secret 94bCIHcSuniCvjq9 --enable-addons http_application_routing
24. Azure resources for AKS aksdemo
25. Azure resources for AKS MC_clouddemo_gamingcluster_eastus clouddemo
26. Kubernetes architecture Master API Server Scheduler Controller Manager Node (Minion) etcd kubelet Kube- Proxy cAdvisor Pod Pod Pod Kubectl (CLI) Dashboard (UI) REST client (Code)
27. Deployment flow Create Docker Images Apply K8s deployments Push Docker Images to registry 1 2 3
28. Think ahead. Act now. ## download & install kubectl az aks install-cli ## download credentials az aks get-credentials --resource-group aksmeetup --name aksmeetup Post Install steps
29. Think ahead. Act now. Assignment 1 Preparation https://github.com/DutchAzureMeetup/orchestrate-containers-with-aks Config file: https://xpir.it/aksmeetup
30. Kubernetes concepts
31. Namespaces Environment within Kubernetes Across teams, projects Name scope Divide cluster resources with Resource quota
32. Think ahead. Act now. Assignment 2 Namespace https://github.com/DutchAzureMeetup/orchestrate-containers-with-aks
33. Pod Group of 1 or more containers Shared Storage Shared Network Same IP-address and port Pod 10.0.0.1 Storage Pod 10.0.0.2 Storage Port 80 Port 8080 Port 80
34. leaderboard-api.yaml Pod Pod Pod Replica Set Deployment Label: backend Selector Label: backend Label: backend Label: backend Label: backend Selector Label: backend C:> kubectl apply –f leaderboard-api.yaml
35. Think ahead. Act now. Assignment 3 & 4 Dashboard Pod
36. Think ahead. Act now. C:> kubectl apply –f secret.yaml ## Create Secret to access Azure Container Registry kubectl create secret docker-registry clouddemoimages --docker-server=https://clouddemo.azurecr.io --docker-username=clouddemo --docker-password=kD98ddl$= --docker-email=pnaber@xpirit.com Secrets: Base64 encoded values Environment variables & Secrets
37. Think ahead. Act now. Assignment 5 Environment variables
38. C:> kubectl apply –f update.yaml Zero-downtime deployment Can be rolled back Rolling updates
39. Think ahead. Act now. Assignment 6 Rolling update
40. Health checks livenessProbe Indicates whether the Container is running Restart in case of failure Container: https://www.app-metrics.io/ HealthChecks library https://github.com/dotnet-architecture/HealthChecks readinessProbe Indicates whether the Container is ready to service requests No traffic is routed to the Pod C:> kubectl apply –f leaderboard-api.yaml
41. Resource Management requests: Minimum required resources limits: Capped resource usage 100m = 0.1 cpu 500m = 0.5 cpu 64Mi = 64 MB memory 128Mi = 128 MB memory C:> kubectl apply –f leaderboard-api.yaml
42. Horizontal Pod Autoscaler Required: Resource requests & limit Heapster Scaling based on 1 or multiple items CPU Memory Custom Metrics C:> kubectl apply –f leaderboard-api.yaml
43. Horizontal Pod Autoscaler Required: Resource requests & limit Heapster C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 0% / 50% 1 10 1 9m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 218% / 50% 1 10 1 10m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 218% / 50% 1 10 4 10m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 44% / 50% 1 10 7 13m C:\kubectl get hpa NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE autoscaler leaderboard-api 51% / 50% 1 10 6 21m
44. How to access the Pods? From inside and outside the cluster
45. Think ahead. Act now. Node 1 Pod Label: backend 10.0.0.2 Pod Label: backend 10.0.0.3 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 Pods are mortal
46. Service Service Type: ClusterIP Selector Label: backend Node 1 Pod Label: backend 10.0.0.2 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 192.168.0.1
47. Service Service Type: LoadBalancer Selector Label: backend Node 1 Pod Label: backend 10.0.0.2 Node 0 Pod Label: backend 10.0.0.1 Node 2 Pod Label: backend 10.0.0.4 Pod Label: backend 10.0.0.5 Public ip address: 192.168.0.1 192.168.0.2
48. Frontend Backend Pod Pod Pod Pod Pod Pod Pod Pod Service Type: ClusterIP Service Type: LoadBalancer Public ip address: 37.17.208.21 C:> kubectl apply –f leaderboard-service.yaml C:> kubectl apply –f gamingwebapp.yaml 192.168.0.2 192.168.0.1
49. Too many ip-addresses. Now what? Or: I want to access all my services through the same ip-address
50. Ingress Pod 10.0.0.1 Pod 10.0.0.2 Pod 10.0.0.3 Service Type: ClusterIP Pod 10.0.0.4 Pod 10.0.0.5 Pod 10.0.0.6 Service Type: ClusterIP Pod 10.0.0.7 Pod 10.0.0.8 Pod 10.0.0.9 Service Type: ClusterIP Service Type: LoadBalancer Public ip address: 37.17.208.21 Pod quay.io/kubernetes-ingress-controller/ nginx-ingress-controller:0.15.0 Selector Label: ingresscontroller Label: ingresscontroller Ingress host: gaming.intelligentcloud.cf serviceName: gamingwebapp Ingress host: erp. intelligentcloud.cf serviceName: erpsvc Ingress host: www.intelligentcloud.cf/crm serviceName: crmsvc nginx.conf gaming.mydomain.com 10.0.0.1 10.0.0.2 10.0.0.3 erp.mydomain.com 10.0.0.4 10.0.0.5 10.0.0.6 /crm 10.0.0.7 10.0.0.8 10.0.0.9 Automatically generated Label: erp Label: frontend Label: crm
51. Think ahead. Act now. Assignment 7 Ingress-httprouting
52. + = Kubeflow Azure Dev Spaces ecosystem Cert manager
53. Helm Helm is a tool for managing packages of pre-configured Kubernetes resources https://github.com/kubernetes/helm Linkerd Logstash Magento Mariadb Mongodb Mssql-linux Mysql Neo4j Newrelic Openvpn Postgresql Presto Prometheus Rabbitmq Redis Selenium Sonarqube Spinnaker Sysdig Tensorflow Traefik Wordpress Artifactory Cert-manager Consul Cassandra Couchdb Datadog Docker-registry Drupal Elasticsearch Ethereum fluentd Gitlab Grafana Hadoop Heapster Jenkins Joomla Kafka Kibana Kong Kubeless Lamp
54. Helm # Download Helm https://github.com/kubernetes/helm/releases # To install Tiller on the cluster run helm init # Get latest version of the stable charts helm repo update # Install a chart helm install --name monitor stable/Prometheus helm install --name dashboard stable/grafana -f "C:\Demos\monitoring\values.yaml"
55. Think ahead. Act now. Assignment 8 Helm
56. Monitoring + AKS container health on Azure (preview) https://docs.microsoft.com/azure/monitoring/monitoring-container-health
57. Think ahead. Act now. Starts in seconds No VM Management Billed per second Linux and Windows containers Azure Container Instances (ACI) Azure Azure Container Instances (ACI) Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod
58. Kubernetes Kubernetes cluster Node (Minion) Node (Minion) Master
59. Kubernetes on Azure Kubernetes cluster Master Azure Container Instances (ACI) Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod Pod
60. The future of infrastructure is happening now
61. Deployment Replica set Pod Label Rolling update Health check Environment variables Secret Resource management Horizontal Pod Autoscaler Namespace Service Ingress Annotation Affinity Persistent Volume Cron Job Deamon Set Job Stateful Set Config Map
62. Wrap up Docker Delivery of production images instead of code ready to ship Environment agnostic Development Azure Kubernetes Services Managed Master + Managed IaaS for workers Provides scaling, rolling updates, fault tolerant
63. Think ahead. Act now. P4l Naber Coding Azure Architect Xpirit Netherlands @pascalnaber http://pascalnaber.wordpress.com https://pages.xpirit.com/magazine2018 https://github.com/DutchAzureMeetup/orchestrate-containers-with-aks
