PyConZA 2015: "A little scripting goes a long way: automating data processing in science" by Adrianna Pińska

When we think about scientific programming, we often focus on complex high-performance applications for performing simulations of chemical processes, or on data analysis tools. It is easy to overlook the gaps between tools, such as format conversions, which may be simple for a programmer to automate, but require hours of tedious work for a researcher without programming experience.

In this talk I will present a specific example of an application which fills such a gap in a medical research laboratory, where readings of chemical samples are used to measure the response of TB-causing bacteria to various drugs. The readings must be converted from the raw format produced by the instrument in the laboratory into a format suitable for uploading into an online tool for further analysis.

I will also discuss more broadly how research institutions can improve efficiency by collaborating with programmers and by encouraging researchers to acquire basic programming skills.

Transcript

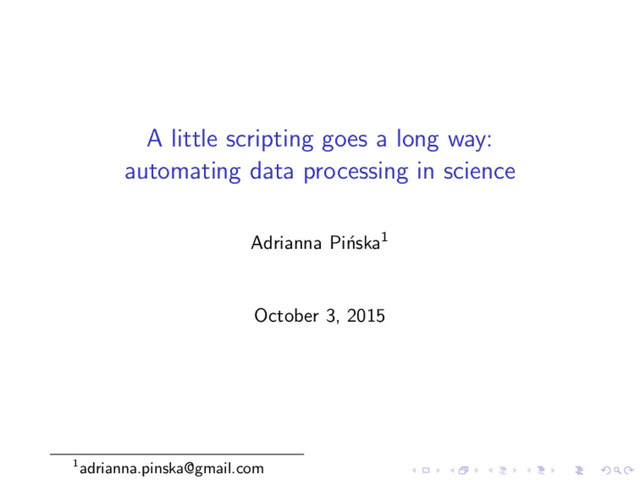

1. A little scripting goes a long way: automating data processing in science Adrianna Pi´ nska1 October 3, 2015 1adrianna.pinska@gmail.com
2. 2 2http://www.eresearch.uct.ac.za/
3. TB drug discovery A plate reader detects properties of chemical samples e.g. how bacteria respond to different concentrations of drugs CDD Vault: a web portal for sharing and analysis of data 3 e.g. dose-response curves 3https://www.collaborativedrug.com/buzz/2015/09/15/cdd-spotlight- interview-with-ronnett-seldon-university-of-cape-town-south-africa/
4. One end: plate reader output 96-well plate reader (8 rows, 12 columns) spits out readings with no metadata in xlsx file cell layout corresponds to plate wells metadata stored in a separate file created by the researcher
5. Other end: CDD import format csv file, one row per well data and metadata combined
6. Spreadsheet viewing interlude This slide intentionally left blank.
7. How to get from here to there If you’re a programmer? Simple. If you aren’t? Not so simple.
8. The previous solution Excel macro Still requires lots of manual editing Creation of ”platemap” – the layout of compounds on each plate Copying and pasting of readings and metadata into macro, one plate at a time
9. Basic automation strategy The only thing that varies is the list of compounds to be tested The plate layout, concentrations and control are all fixed Everything can be generated from a list of compounds and the readings No GUI for now; just a command-line interface
10. Some refinements Generate intermediate platemap file CSV: can subsequently be used instead of a compound file HTML: for printing and use in the lab Generate a compound registration file for CDD Futureproof: design in a way that allows for other plate layouts, etc.. Unit tests!
11. Tools Python (obviously) the built-in csv module openpyxl for xlsx support py.test for testing
12. A brief tour of the code This slide intentionally left blank.
13. The results A bit of a learning curve to use the command-line If the tool is adopted more widely, a GUI may be a good idea Researcher says that the script saves her ”almost two days a week” We want to release the code as open source 4 4when we do, this repo should become public: https://bitbucket.org/eresearchapplicationops/plate reader data converter
14. What is this talk really about? Scientific programming isn’t all HPC and/or domain-specific Sometimes simple data processing is a crucial step For a non-programmer this can be hours of tedious work Researchers shouldn’t waste time doing things a computer can do better and faster
15. How can we fix this? Training: teach everyone basic scripting skills Support: connect programmers and researchers A little scripting goes a long way!
16. Software Carpentry International organisation teaching programming skills to researchers 5 Workshop this weekend! 6 5https://software-carpentry.org/ 6http://za.pycon.org/swc
17. Questions?
