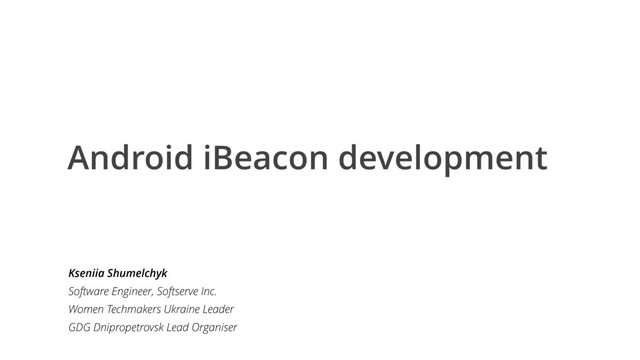

  1. Android iBeacon development Kseniia Shumelchyk Software Engineer, Softserve Inc. Women

    Techmakers Ukraine Leader GDG Dnipropetrovsk Lead Organiser
  2. iBeacons

  3. iBeacon - iBeacon is a protocol standardised by Apple and

    introduced at the WWDC in 2013 - Based on top of BLE - BLE works starting from 4S on Apple - BLE works starting from 4.3 on Android
  4. Internal structure

  5. Typical Beacon usage

  6. What is BLE? Bluetooth low energy (Bluetooth Smart) is a

    wireless personal area network technology aimed for novel applications in the healthcare, fitness, beacons, security, and home entertainment industries
  7. What is BLE? - Not backward-compatible (with classic Bluetooth protocol)

    - Uses same radio frequencies - 2.4 GGZ - 1 Mbps (1-3 Mbps with regular bluetooth) - Embedded devices & wearables
  8. Specification Technical Specification Classic Bluetooth technology Bluetooth Smart technology Distance/Range

    (theoretical max.) 100 m (330 ft) >100 m (>330 ft) Over the air data rate 1–3 Mbit/s 1 Mbit/s Active slaves 7 Not defined; implementation dependent Minimum total time to send data 100 ms 3 ms Power consumption 1 W as the reference 0.01 to 0.5 W (depending on use case)
  9. Generic Attribute Profile (GATT) - Client - A device that

    initiates GATT commands and requests, and accepts responses, for example a computer or smartphone - Server - A device that receives GATT commands and requests, and returns responses, for example a temperature sensor. - Characteristic - A data value transferred between client and server, for example the current battery voltage.
  10. Generic Attribute Profile (GATT) - Service - A collection of

    related characteristics, which operate together to perform a particular function. For instance, the Health Thermometer service includes characteristics for a temperature measurement value, and a time interval between measurements. - Descriptor - A descriptor provides additional information about a characteristic. For instance, a temperature value characteristic may have an indication of its units (e.g. Celsius), and the maximum and minimum values which the sensor can measure.
  11. GATT Operations - Discover UUIDs for all primary services -

    Find a service with a given UUID - Find secondary services for a given primary service - Discover all characteristics for a given service - Find characteristics matching a given UUID - Read all descriptors for a particular characteristic
  12. Internals

  13. Beacon’s Advertisement - Beacon advertises a data package called the

    Scan Response Data - This Data can be up to 31 bytes. - The scan response is divided into AD structures
  14. Packet structure (1) Ad Structure 1 0x02 0x01 0x1A Remaining

    length AD Type Data 2 Flags Flag
  15. Packet structure (2) Ad Structure 2 0x1B 0xFF 0xE0 0x00

    0xBE 0xAC Remaining length AD Type Manufacturer ID Beacon prefix 27 Manufacturer specific 224 (Google)
  16. Packet structure (2) Ad Structure 2 0x0C […] 0xBB 0x00

    0x09 0x00 0x06 0xBA UUID (16 bytes) Major Minor TX Power 9 6 -70
  17. Internals 02 01 06 1A FF 4C 00 02 15:

    prefix (fixed except for 3rd byte - flags) B9 40 7F 30 F5 F8 46 6E AF F9 25 55 6B 57 FE 6D: UUID 00 49: major 00 0A: minor C5: measured TX power
  18. None
  19. Android - Built in support for Android 4.3+ - Central

    & peripheral roles - GATT server & GATT client - android.hardware.bluetooth_le feature
  20. Android 4.3 & iBeacons

  21. Android 4.3 for Beacons detection (1) <uses-permission android:name="android.permission.BLUETOOTH"/> <uses-permission android:name="android.permission.BLUETOOTH_ADMIN"/>

    Check for permission <uses-feature android:name="android.hardware.bluetooth_le" android:required="true"/> Check for hardware
  22. Android 4.3 for Beacons detection (2) ENTER FILENAME/LANG final BluetoothManager

    bluetoothManager = (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE); mBluetoothAdapter = bluetoothManager.getAdapter(); Get the BluetoothAdapter if (mBluetoothAdapter == null || !mBluetoothAdapter.isEnabled()) { Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE); startActivityForResult(enableBtIntent, REQUEST_ENABLE_BT); } 4. Enable Bluetooth
  23. Android 4.3 for Beacons detection (3) private LeScanCallback mLeScanCallback =

    new LeScanCallback() { @Override public void onLeScan(final BluetoothDevice device, int rssi, byte[] scanRecord) { … // Parsing beacon data }); } }; Define callback mBluetoothAdapter.startLeScan(mLeScanCallback); Start BLE scanning
  24. Android 5+ & iBeacons

  25. Android 5.0+ for Beacons detection - New api to work

    with BLE devices - Background scanning - Filtering possibility - SCAN_MODE_LOW_POWER mode - SCAN_MODE_LOW_LATENCY mode
  26. LOW_POWER LOW_LATENCY Test duration 134 minutes 152 minutes Battery Level

    Change -13% -25% Battery Drain Rate 268mA 454mA Relative Battery Savings 41% -- Typical time between detections 4400 ms 100 ms http://developer.radiusnetworks.com/2014/10/28/android-5.0-scanning.html
  27. Android 5.0 for Beacons detection (1) private void setScanFilter() {

    ScanFilter.Builder mBuilder = new ScanFilter.Builder(); ByteBuffer mManufacturerData = ByteBuffer.allocate(23); ByteBuffer mManufacturerDataMask = ByteBuffer.allocate(24); byte[] uuid = getIdAsByte(UUID.fromString("0CF052C297CA407C84F8B62AAC4E9020"); mManufacturerData.put(0, (byte)0xBE); mManufacturerData.put(1, (byte)0xAC); for (int i=2; i<=17; i++) { mManufacturerData.put(i, uuid[i-2]); } for (int i=0; i<=17; i++) { mManufacturerDataMask.put((byte)0x01); } mBuilder.setManufacturerData(224, mManufacturerData.array(), mManufacturerDataMask.array()); mScanFilter = mBuilder.build(); } Creating filter for scanning
  28. Android 5.0 for Beacons detection (2) ENTER FILENAME/LANG private void

    setScanSettings() { ScanSettings.Builder mBuilder = new ScanSettings.Builder(); mBuilder.setReportDelay(0); mBuilder.setScanMode(ScanSettings.SCAN_MODE_LOW_POWER); mScanSettings = mBuilder.build(); } Setting scanner settings
  29. Android 5.0 for Beacons detection (3) ENTER FILENAME/LANG protected ScanCallback

    mScanCallback = new ScanCallback() { @Override public void onScanResult(int callbackType, ScanResult result) { ScanRecord mScanRecord = result.getScanRecord(); int[] manufacturerData = mScanRecord.getManufacturerSpecificData(224); int mRssi = result.getRssi(); } } Setting up callback
  30. Android 5.0 for Beacons detection (4) ENTER FILENAME/LANG mBluetoothLeScanner.startScan(Arrays.asList(mScanFilter), mScanSettings,

    mScanCallback); Start scanning
  31. Android iBeacon emitter

  32. Android Beacon emitter - Works starting from 5.0 - Currently

    only Nexus 6, Nexus 9 and later models supported - BluetoothLeAdvertiser & AdvertiseData & AdvertiseSettings support classes - Different levels of transmitter power
  33. Android iBeacon emitter (1) ENTER FILENAME/LANG protected void setAdvertiseData() {

    AdvertiseData.Builder mBuilder = new AdvertiseData.Builder() ByteBuffer mManufacturerData = ByteBuffer.allocate(24); byte[] uuid = getIdAsByte(UUID.fromString("0CF052C297CA407C84F8B62AAC4E9020")); mManufacturerData.put(0, (byte)0xBE); // Beacon Identifier mManufacturerData.put(1, (byte)0xAC); // Beacon Identifier for (int i=2; i<=17; i++) { mManufacturerData.put(i, uuid[i-2]); // adding the UUID } mManufacturerData.put(18, (byte)0x00); // first byte of Major mManufacturerData.put(19, (byte)0x09); // second byte of Major mManufacturerData.put(20, (byte)0x00); // first minor mManufacturerData.put(21, (byte)0x06); // second minor mManufacturerData.put(22, (byte)0xB5); // txPower mBuilder.addManufacturerData(224, mManufacturerData.array()); mAdvertiseData = mBuilder.build(); } Setting emitter
  34. Android iBeacon emitter (2) ENTER FILENAME/LANG protected void setAdvertiseSettings() {

    AdvertiseSettings.Builder mBuilder = new AdvertiseSettings.Builder(); mBuilder.setAdvertiseMode(AdvertiseSettings.ADVERTISE_MODE_LOW_POWER); mBuilder.setConnectable(false); mBuilder.setTimeout(0); mBuilder.setTxPowerLevel(AdvertiseSettings.ADVERTISE_TX_POWER_MEDIUM); mAdvertiseSettings = mBuilder.build(); } Setting up setting
  35. Good to go, we can start advertising :) Good to

    go, we can start advertising :-D ENTER FILENAME/LANG mBluetoothLeAdvertiser.startAdvertising(mAdvertiseSettings, mAdvertiseData, mAdvertiseCallback); Start advertising
  36. Use cases

  37. On track - for runners

  38. Shopping molls

  39. Indoor navigation

  40. Museums

  41. Clinics

  42. Hotel check-in & check-out

  43. For disabled people

  44. Thank you! Questions? G+ KseniiaShumelchyk Fb Kseniya.Shumelchyk @ kshum@softserveinc.com
