From PaperPoint to MindXpres - Towards Enhanced Presentation Tools

Presentation given at Education Thursday, December, 2014

Related publications:
PaperPoint: https://www.academia.edu/175439/
MindXpres: https://www.academia.edu/7719770/

Transcript

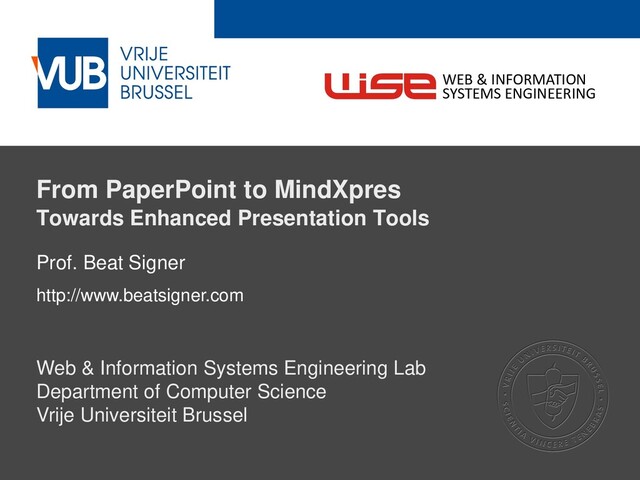

1. 2 December 2005 From PaperPoint to MindXpres Towards Enhanced Presentation Tools Prof. Beat Signer http://www.beatsigner.com Web & Information Systems Engineering Lab Department of Computer Science Vrije Universiteit Brussel WEB & INFORMATION SYSTEMS ENGINEERING
2. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 2 October 9, 2016 What is Wrong with Slideware? ▪ Simulation of physical slides ▪ limited space due to the slide concept ▪ linear navigation from slide to slide ▪ difficult to reuse content and embed rich media types ▪ MindXpres addresses these issues ▪ unlimited canvas with zoomable user interface ▪ non-linear navigation and associative linking ▪ content-based approach with automatic visualisation
3. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 3 October 9, 2016 PaperPoint Presentation Tool ▪ Mobile PowerPoint presentation Tool ▪ interactive PowerPoint paper handouts ▪ Support for non-linear presentations ▪ refer back to previous slides ▪ dynamically integrate slides ▪ skip slides B. Signer and M.C. Norrie, PaperPoint: A Paper- based Presentation and Interactive Paper Proto- typing Tool, Proceedings of TEI 2007, Baton Rouge, USA, February 2007 Global Information Systems Group, ETH Zurich
4. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 4 October 9, 2016 PaperPoint Features ▪ Enhanced mobility during presentations ▪ Improved presentation overview for the presenter ▪ see content of current and nearby slides (orientation) ▪ Support for non-linear presentations ▪ refer back to previous slides ▪ dynamically integrate optional (backup) slides at runtime ▪ skip slides (e.g. if running out of time) ▪ Annotation of static slide content ▪ highlighting of content ▪ dynamic creation of new content at presentation time E.I. Reuss, B. Signer and M.C. Norrie, PowerPoint Multimedia Presentations in Computer Science Education: What do Users Need?, Proceedings of USAB 2008, Graz, Austria, November 2008
5. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 5 October 9, 2016 PaperPoint Features ... ▪ Annotation of static slide content … ▪ brings back functionality of blackboard or overhead projector ▪ potential recording and playback of annotations and presentations ▪ handwritten notes that are not visible to the audience - reminders about specific things to be mentioned - slides to be shown in non-linear order - comments and questions from the audience ▪ Improved control of embedded media (e.g. video) ▪ Digital whiteboard ▪ Multi-pen support ▪ collaborative presentations ▪ brainstorming
6. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 6 October 9, 2016 Navigation, Context and Annotation [http://www.nexus-wallpaper.com/wp-content/uploads/2013/12/chalkboard-lecture.jpg]
7. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 7 October 9, 2016 Flexible Handout Layouts
8. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 8 October 9, 2016 Video Controls
9. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 9 October 9, 2016 Digital Whiteboard
10. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 10 October 9, 2016 PaperPoint Architecture
11. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 11 October 9, 2016 MindXpres Presentation Tool ▪ Extensible prototyping platform for novel presen- tation concepts ▪ content-based approach - separation of content and pre- sentation (automatic visualisation) ▪ cross-media content reuse ▪ non-linear navigation via zoomable user interface ▪ connectivity and interactivity R. Roels and B. Signer, MindXpres: An Extensible Content-driven Cross-Media Presentation Platform, Proceedings of WISE 2014, Thessaloniki, Greece, October, 2014
12. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 12 October 9, 2016 MindXpres Platform ▪ MindXpres presentations are currently represented in the XML-based MindXpres document format ▪ Compiler (node.js application) translates XML to HTML ▪ Presentation engine based on HTML5 and related APIs ▪ e.g. WebSockets for connectivity
13. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 13 October 9, 2016 MindXpres Presentation Tool ... Reinout Roels
14. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 14 October 9, 2016 Example Slide
15. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 15 October 9, 2016 Vannevar Bush
16. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 16 October 9, 2016 MindXpres Plug-in Architecture ▪ Avoid hardcoded functionality via three types of plug-ins ▪ components - image, source code, graph, video, ... ▪ containers - slide, image gallery, ... ▪ structures - grid, clustered, graph, ...
17. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 17 October 9, 2016 MindXpres Communication Platform R. Roels, C. Vermeylen and B. Signer, A Unified Communication Platform for Enriching and Enhancing Presentations with Active Learning Components, Proceedings of ICALT 2014, Athens, Greece, July 2014
18. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 18 October 9, 2016 Navigation Mirroring Plug-in
19. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 19 October 9, 2016 Polls and Quizzes Plug-in
20. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 20 October 9, 2016 Content Discussion Plug-in
21. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 21 October 9, 2016 Interactive Source Code Plug-in Paul Mestereaga
22. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 22 October 9, 2016 Interactive Data Visualisation
23. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 23 October 9, 2016 Interactive Data Visualisation ...
24. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 24 October 9, 2016 Enhanced Video Player Plug-in
25. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 25 October 9, 2016 Conclusions ▪ PaperPoint offers more flexible and dynamic ways of delivering PowerPoint presentations ▪ future directions - interactive handouts for the audience with annotation recording and sharing ▪ MindXpres is an extensible prototyping platform for investigating innovative presentation concepts ▪ extensible architecture based on HTML5 and related technologies ▪ content-driven approach with content reuse (transclusion) ▪ future directions - central content repository and visual authoring tool - rich media plug-ins - collaborative annotations and information sharing - new forms of multimodal interaction (e.g. integration of PaperPoint concepts)
26. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 26 October 9, 2016 Acknowledgements ▪ PaperPoint has originally been developed in the Global Information Systems group at ETH Zurich in collabo- ration and with direct or indirect contributions from the following individuals ▪ Prof. Moira C. Norrie ▪ Prof. Nadir Weibel ▪ Dr. Adriana Ispas ▪ Dr. Elke I. Reuss
27. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 27 October 9, 2016 References ▪ B. Signer and M.C. Norrie, PaperPoint: A Paper- based Presentation and Interactive Paper Prototyping Tool, Proceedings of the First International Conference on Tangible and Embedded Interaction (TEI 2007), Baton Rouge, USA, February 2007 ▪ http://beatsigner.com/publications/signer_TEI2007.pdf ▪ B. Signer, Fundamental Concepts for Interactive Paper and Cross-Media Information Spaces, ISBN 978-3-8370-2713-6, May 2008
28. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 28 October 9, 2016 References ... ▪ E.I. Reuss, B. Signer and M.C. Norrie, PowerPoint Multimedia Presentations in Computer Science Education: What do Users Need?, Proceedings of USAB 2008, 4th Symposium on Usability & HCI for Education and Work, Graz, Austria, November 2008 ▪ http://beatsigner.com/publications/reuss_USAB2008.pdf ▪ R. Roels and B. Signer, MindXpres: An Extensible Content-driven Cross-Media Presentation Platform, Proceedings of WISE 2014, Thessaloniki, Greece, October, 2014 ▪ http://beatsigner.com/publications/roels_WISE2014.pdf
29. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 29 October 9, 2016 References ... ▪ R. Roels, C. Vermeylen and B. Signer, A Unified Communication Platform for Enriching and Enhancing Presentations with Active Learning Components, Proceedings of ICALT 2014, Athens, Greece, July 2014 ▪ http://beatsigner.com/publications/roels_ICALT2014.pdf ▪ R. Roels, P. Mestereaga and B. Signer, An Interactive Source Code Visualisation Plug-in for the MindXpres Presentation Platform, Communications in Computer and Information Science (CCIS), 583, 2016 ▪ http://beatsigner.com/publications/roels_CCIS2016.pdf
30. Beat Signer - Department of Computer Science - bsigner@vub.ac.be 30 October 9, 2016 References ... ▪ R. Roels, Y. Baeten and B. Signer, An Interactive Data Visualisation Approach for Next Generation Presentation Tools: Towards Rich Presentation-based Data Exploration and Storytelling, Proceedings of CSEDU 2016, Rome, Italy, April, 2016 ▪ http://beatsigner.com/publications/roels_CSEDU2016.pdf ▪ PaperPoint ▪ http://www.beatsigner.com/paperPoint.html ▪ MindXpres ▪ http://mindxpres.com
