i3 - Recent iServer, iPaper and iGesture Developments

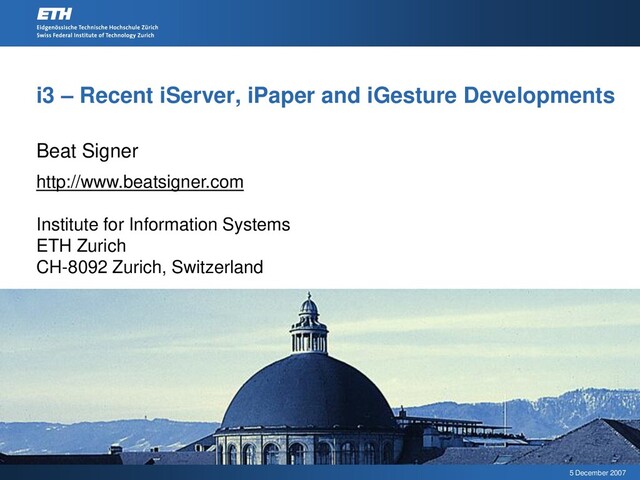

5 December 2007 i3 – Recent iServer, iPaper and iGesture
Developments Beat Signer http://www.beatsigner.com Institute for Information Systems ETH Zurich CH-8092 Zurich, Switzerland

5 December 2007 Beat Signer / Institute for Information Systems
/ [email protected] 2 iServer Extensions and Modifications  RSL (resource-selector-link) model is the new name for the underlying iServer model  Context Resolver  Layers  Structural Links

/ [email protected] 3 3 RSL Context Resolver

/ [email protected] 4 4 RSL Layers

/ [email protected] 5 5 RSL Structural Links

/ [email protected] 6 RSL Structural Links …  Structure over data  structural relationship of different resources  e.g. regular document (chapters, sections, ...)  possible to reuse the same resource in different structures  transclusion (Ted Nelson)  context-dependant structures based on context resolver concept

/ [email protected] 7 RSL Structural Links …  Structure over structures  reuse of complete substructures  structural composition of data and substructures can be combined  Structure over links  put different navigational links in relation to each other  e.g. single structural link to define linear order over set of links  trails and tours

/ [email protected] 8 8 Links Users Layers Plug-ins Structure Active Content

/ [email protected] RSL Metamodel Beat Signer and Moira C. Norrie, As We May Link: A General Metamodel for Hypermedia Systems, In Proceedings of ER 2007, 26th International Conference on Conceptual Modeling, Auckland, New Zealand, November 2007

/ [email protected] 10 10 Digital Link Authoring Tool

/ [email protected] 11 Digital Link Authoring Tool …  Extension of iServer authoring tool, Adriana  Integration of earlier student projects (e.g. active component authoring tool)  Focus on the iPaper authoring plug-in but later other plug-ins may be integrated

/ [email protected] 12 iPaper Templates  Links that occur on multiple pages (e.g. controls, headers, footers) should not have to be repeated  Templates can be defined on document or individual page level  Multiple templates can be combined (page and document level)  PaperPoint currently uses a single template to define the functionality available on all slides

/ [email protected] iServer / iPaper Infrastructure  Resource plug-in management  Application management  Pattern space management, Monica Frisoni  I/O pen connector (Bluetooth), Claudio Hatz  ... 13

/ [email protected] 14 PaperPoint v0.5  New design / functionality  colours, pointer types, …  Single step printing process  User studies, Elke  interviews  lab sessions  long term usage

/ [email protected] PaperPoint v0.5 Beat Signer and Moira C. Norrie, PaperPoint: A Paper-Based Presentation and Interactive Paper Prototyping Tool, In Proceedings of TEI 2007, First International Conference on Tangible and Embedded Interaction, Baton Rouge, USA, February 2007

/ [email protected] 16 Interactive Table (iTable) Pen-Based Google Earth Browser Pen-Based Drawing Tool Photo Browser Photo Browser (Slider)

/ [email protected] Interactive Table (iTable) …

/ [email protected] 18 Interactive Table (iTable) …  Extension of iTable interface, Matthias Geel  calibration of beamer and input area  general desktop control active components  Applications  Pen-based Google Earth Explorer  Pen-based Drawing Tool  Photo Browser  …

/ [email protected] 19 19 19 Rough Guide

/ [email protected] Query by Sketching (QbS)  Pen-based sketching interface  University of Basel  GlobIS group Michael Springmann, Adriana Ispas, Heiko Schuldt, Moira C. Norrie and Beat Signer, Towards Query by Sketch, Second DELOS Conference on Digital Libraries, Pisa, Italy, December 2007  Start date: October 2007 (2 year project), Adriana

/ [email protected] PaperWeb  Automatic authoring of active areas  all hyperlinks become interactive on the printout version 21

/ [email protected] Remote Sketching on Paper  Integration of Skype and paper-based remote sketching, Hermann Hofstetter  HCI group University of Konstanz, H. Reiterer  GlobIS group

/ [email protected] Powerwall, Konstanz  Facts  5.20 m x 2.5 m  8 beamers  4640 x 1920 pixels  soft-edge-blending  Visualisation of large data sets  Input devices  3D tracker, laser "pen", mouse  iPaper as a new input device?

/ [email protected] 24 Wellness Game Project, Shanghai  Science, Technology & Culture Festival, May 2008  Projects  Thai Chi, Native Systems Group, Dennis Majoe  China Gates, Native Systems Group, Art Clay  Real Time Panorama, Native Systems Group, Jürg Gutknecht  iPaper Project, GlobIS Group, Moira C. Norrie

/ [email protected] 25 Multi Digital, LZ Medien

/ [email protected] 26 26 26 PaperProof  Planned user studies, Nadir & Elke  Definition of new gestures for edit commands? Nadir Weibel, Adriana Ispas, Beat Signer and Moira C. Norrie, PaperProof: A Paper-Digital Proof-Editing System, Proceedings of CHI 2008, 26th International Conference on Human Factors in Computing Systems (Interactivity Track), Florence, Italy, April 2008

/ [email protected] 27 iGesture Framework  http://www.igesture.org  Open Source (Apache 2.0)  initial release February 2007  1682 downloads  Presented at ICDAR 2007  FKI Group, University of Berne  DFKI, Germany  Computer Vision Center, Barcelona

/ [email protected] iGesture Framework …  New input handler for graphics tablets and Tablet PCs, Michele Croci Beat Signer, Ueli Kurmann and Moira C. Norrie, iGesture: A General Gesture Recognition Framework, Proceedings of ICDAR 2007, 9th International Conference on Document Analysis and Recognition, Curitiba, Brazil, September 2007 Beat Signer, Moira C. Norrie and Ueli Kurmann, iGesture: A Java Framework for the Development and Deployment of Stroke-Based Online Gesture Recognition Algorithms, Technical Report ETH Zurich, TR561, September 2007

/ [email protected] Geco (Gesture Control)  Mapping of gestures (iGesture gesture sets), Michele Croci  hotkeys  command line calls  …  Initial release (freeware) planned within next month

/ [email protected] Department Events  Maturandentage 2008  January 8/9  PaperProof and PaperPoint  Jahr der Informatik  visit different locations  PaperPoint as presentation tool?

/ [email protected]

/ [email protected] 36 iServer layer |Layers| layer Active Layers resource Containers activeComponent Active Com- ponents medium Media medium Movies medium Images medium Webpages OnLayer Contains (1,1) (1,1) (0,*) (0,*) document Documents (0,*) shape Shapes partition (2,*) (0,*) rectangle Rectangles ellipse Ellipses polygon Polygons circle Circles complexShape Complex Shapes HasShapes page Pages OnPage Contains Pages (0,*) (1,1) (1,1) (0,*) Resources parameter Preferences link Links user Users group Groups individual Individuals HasMembers HasTarget (0,*) (0,*) (0,*) (0,*) (0,*) (0,*) (0,*) (1,*) (0,*) (0,*) (1,1) (0,*) partition partition (1,*) CreatedBy RefersTo Has Preferences parameter Properties selector Selectors resource Resources HasSource (0,*) AccessibleTo InaccessibleTo (0,*) (0,*) entity Entities HasProperties Users Plug-ins Links (0,*) Layers iPAPER iSERVER
