PaperPoint: A Paper-based Presentation and Interactive Paper Prototyping Tool

Presentation given at TEI 2007, 1st International Conference on Tangible and Embedded Interaction.

ABSTRACT: Recent developments in digital pen and paper solutions enable, not only the digital capture of handwriting, but also pa-per to be used as an interactive medium that links to digital information and services. We present a tool that builds on technologies for interactive paper to enable PowerPoint presentations to be controlled from printed slide handouts.Furthermore, slides can be easily annotated during presentations by simply drawing on the printed version of the slide.As well as discussing the advantages of such a paper-based interface and initial findings on its use, we describe how we were also able to exploit it to provide a general prototyping tool for interactive paper applications.

Research paper: https://beatsigner.com/publications/paperpoint-a-paper-based-presentation-and-interactive-paperp-prototyping-tool.pdf

Beat Signer
PRO

February 15, 2007
Tweet

More Decks by Beat Signer

Other Decks in Science

Transcript

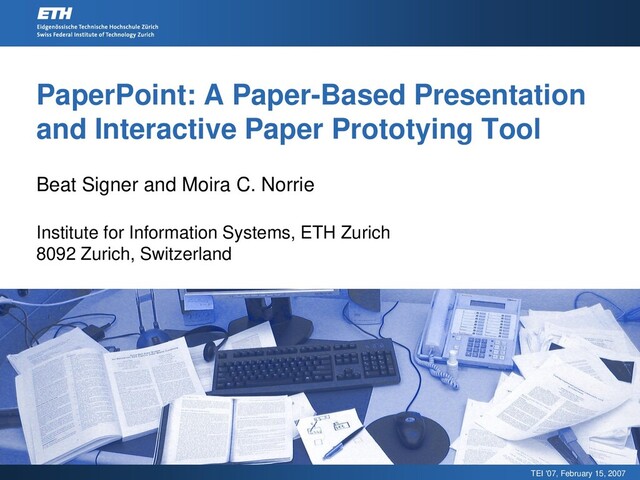

  1. TEI '07, February 15, 2007
    PaperPoint: A Paper-Based Presentation
    and Interactive Paper Prototying Tool
    Beat Signer and Moira C. Norrie
    Institute for Information Systems, ETH Zurich
    8092 Zurich, Switzerland

    View Slide

  2. TEI '07, February 15, 2007 Beat Signer, [email protected] 2
    PaperPoint

    View Slide

  3. TEI '07, February 15, 2007 Beat Signer, [email protected] 3
    Anoto Technologies
    ▪ Virtual paper space
    of 60 million km2
    ▪ Pen manufacturers
    ▪ Maxel
    ▪ Logitech
    ▪ Nokia
    ▪ Sony Ericsson

    View Slide

  4. TEI '07, February 15, 2007 Beat Signer, [email protected] 4
    PaperPoint Features
    ▪ Presentation overviews
    ▪ Non-linear presentations
    ▪ Annotation and content production
    ▪ Paper handouts for note taking
    ▪ Collaborative presentations or brainstormings
    ▪ Mobility
    ▪ …

    View Slide

  5. TEI '07, February 15, 2007 Beat Signer, [email protected] 5
    PaperPoint Architecture

    View Slide

  6. TEI '07, February 15, 2007 Beat Signer, [email protected] 6
    Active Paper Areas

    View Slide

  7. TEI '07, February 15, 2007 Beat Signer, [email protected] 7
    Active Content
    Active Component
    A
    Active Component
    B
    Active Component
    C
    iServer
    AC Manager
    Server
    Request Sender
    Active Component
    Stub B
    AC Names
    ACS Manager
    Client Device
    AC Names
    Client
    HTTP
    ▪ Execute code (active component) on the client
    and/or on the server side

    View Slide

  8. TEI '07, February 15, 2007 Beat Signer, [email protected] 8
    PaperPoint Active Component



    Show slide 1


    org.ximtec.iserver.ac:command
    showSlide


    org.ximtec.iserver.ac:slide
    1


    PAPERPOINT_CONTROL

    ...

    PAPERPOINT_CONTROL
    Show slide 1
    command showSlide
    slide 1

    View Slide

  9. TEI '07, February 15, 2007 Beat Signer, [email protected] 9
    Active Components
    Button
    Slider
    Slider2D
    DateSelector
    Browser
    MapSelector
    Rating
    Capture
    CaptureAndSpeak
    Sound
    Movie
    SQLClient
    XCMRequest
    ClientCtrlRequest
    PaperPointControl
    PaperPointAnnotate
    ...

    View Slide

  10. TEI '07, February 15, 2007 Beat Signer, [email protected] 10
    PaperPoint Printing Process

    View Slide

  11. TEI '07, February 15, 2007 Beat Signer, [email protected] 11
    PaperPoint Stickers
    ▪ Empty Stickers linked to specific PowerPoint slides
    ▪ Digital information (text, movies, ...) embedded in slides
    ▪ Rapid prototyping of interactive paper applications

    View Slide

  12. TEI '07, February 15, 2007 Beat Signer, [email protected] 12
    Discussion
    ▪ Preparation of presentations
    ▪ content authoring for non-linear presentations
    ▪ printing
    ▪ Fixed buttons versus gesture-based commands
    ▪ Cross-application functionality
    ▪ Powerpoint as authoring tool for interactive
    paper mockups

    View Slide

  13. TEI '07, February 15, 2007 Beat Signer, [email protected]
    Further Information
    ▪ http://www.ipaper.inf.ethz.ch
    ▪ Fundamental Concepts for
    Interactive Paper and
    Cross-Media Information
    Spaces, Beat Signer,
    ISBN 978-3-8370-2713-6,
    May 2008
    http://www.amazon.de/Fundamental-Concepts-Interactive-Cross-Media-Information/dp/3837027139
