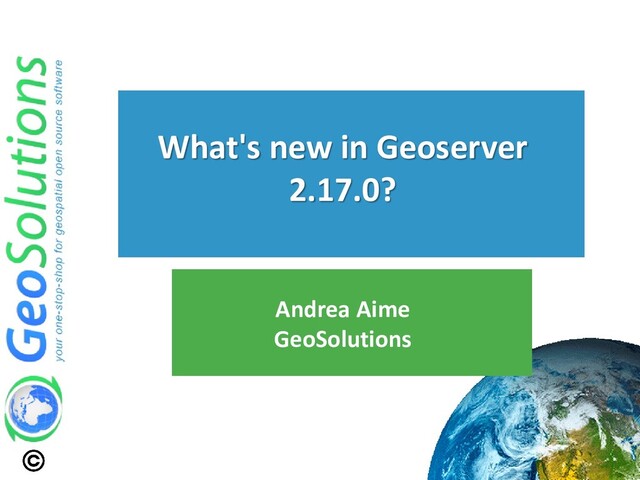

  1. Andrea Aime GeoSolutions What's new in Geoserver 2.17.0?

  2. Quick overview

  3. GeoServer 2.17.0 ⚫ Released April 21st 2020 along with GeoTools

    23.0 ⚫ First release of the 2.17.x series ⚫ 2.17.x get 5 more releases ⚫ In "stable status" until September 2020, with some new features getting backported ⚫ In "maintenance" status until March 2021, mostly with bug fixes ⚫ Can run on Java 8 or Java 11
  4. GeoServer 2.17.0 - extensions

  5. GeoServer 2.17.0 - community https://build.geoserver.org/geoserver/2.17.x/community-latest/

  6. Map rendering news

  7. Mapbox GL Styles plugin ⚫ Can apply Mapbox GL styles

    server side ⚫ Graduated from community to extension status ⚫ Use cases: ⚫ Re-use existing Mapbox GL styles on the server side ⚫ Edit styles with external editor (e.g., Maputnik) ⚫ Setup a hybrid rendering solution GeoServer Data Mapbox GL Classic OGC client Mapbox client WMTS/PNG WMTS/MVT
  8. Mapbox GL Styles plugin ⚫ Received significant QA work, 18

    tickets resolved ⚫ Increased rendering fidelity (e.g. better match of zoom related functions, improved font matching) ⚫ Increased behavior match (e.g. icons and labels showing up together, or disappearing together)
  9. Mapbox GL Styles plugin ⚫ Example rendering OpenMapTiles GL Bright

  10. Map engine improvements ⚫ The Mapbox GL work required new

    functionality, made available in all style languages. ⚫ Other functionalities added as well, independent of the Mapbox GL work ⚫ In particular: ⚫ Background fill ⚫ Associate symbol with label, make them show either together, or none ⚫ Automatic font shrinking to fit labels in polygons ⚫ Drape symbol along a line (vs just repeating it)
  11. Background fill ⚫ Specify a "fill" at the SLD UserStyle

    level, fills the background of the map
  12. Offset label shield ⚫ Label shield functionality allows to center

    a label and a background graphic. ⚫ Meant to be used for road shields ⚫ New "graphicPlacement" vendor option ⚫ "label" centers with the label ⚫ "independent" centers with the original point + offset/anchor ⚫ Allows to setup point/label combos that are stacked, and yet display as a single entity
  13. Offset label shield Label/icon disappearing due to conflict resolution, road

    names having higher priority <VendorOption name="graphicPlacement"> independent </VendorOption>
  14. Auto-shrink polygon labels ⚫ Make an effort to fit labels

    inside polygons ⚫ Shrink them down to a min target size, rather than making them overflow or disappear
  15. Auto-shrink polygon labels <TextSymbolizer> <Label> <ogc:PropertyName>label</ogc:PropertyName> </Label> <Font> <CssParameter name="font-family">Bitstream

    Vera Sans</CssParameter> <CssParameter name="font-size">16</CssParameter> </Font> <LabelPlacement> <PointPlacement> <AnchorPoint> <AnchorPointX>0.5</AnchorPointX> <AnchorPointY>0.5</AnchorPointY> </AnchorPoint> </PointPlacement> </LabelPlacement> <VendorOption name="fontShrinkSizeMin">6</VendorOption> <VendorOption name="goodnessOfFit">1</VendorOption> </TextSymbolizer>
  16. Drape line symbol along a line ⚫ LineSybolizer allow to

    repeat a symbol along a line ⚫ The result is normally dis-continuous at line vertices markAlongLine=true markAlongLine=false
  17. Drape line symbol along a line <?xml version="1.0"?> <LineSymbolizer> <Stroke>

    <GraphicStroke> <Graphic> <Mark> <WellKnownName> wkt://LINESTRING (0 0, 0 -0.5, 0.5 -0.5, 0.5 0.5, 1 0.5, 1 0) </WellKnownName> <Stroke> <CssParameter name="stroke">0xFF0000 </CssParameter> <CssParameter name="stroke-width">2</CssParameter> <CssParameter name="stroke-linecap">round</CssParameter> </Stroke> </Mark> <Size>20</Size> </Graphic> </GraphicStroke> </Stroke> <VendorOption name="markAlongLine">true</VendorOption> </LineSymbolizer>
  18. Data sources and formats

  19. Mbtiles + Vector tiles data source ⚫ A MBTiles file

    is a SQLite tile storage ⚫ One main table called "tiles" ⚫ One support table called "metadata" ⚫ Limited to the web Mercator tile matrix set ⚫ Tiles can be filled with images, but also with Mapbox Vector Tiles (MVT) ⚫ The metadata table provides, among others, a schema for them CREATE TABLE tiles (zoom_level integer, tile_column integer, tile_row integer, tile_data blob); CREATE TABLE metadata (name text, value text);
  20. MBTiles + Vector tiles data source ⚫ Multiple layers contained

    in a single tile ⚫ Polygons/lines split among tiles ⚫ Clients typically don't stitch back data (expensive) ⚫ Each tile contains a buffer of extra data around to avoid rendering artifacts https://blog.cyclemap.link/2020-01-25-tilebuffer/
  21. MBTiles + Vector tiles data source ⚫ The store provides

    access to the layers separately (usual data model for GeoServer) ⚫ Rendering OpenMapTiles data + MB GL Styles
  22. WMS cascading improved ⚫ Choose which remote styles to use

    and expose ⚫ Choose format used for cascading ⚫ Limit cascading to a scale range and declared BBOX
  23. JSON-LD community module ⚫ Generate JSON-LD via templates { "@context":

    { "gsp": "http://www.opengis.net/ont/geosparql#", "sf": "http://www.opengis.net/ont/sf#", "schema": "https://schema.org/", "dc": "http://purl.org/dc/terms/", "Feature": "gsp:Feature", "FeatureCollection": "schema:Collection", "Point": "sf:Point", "wkt": "gsp:asWKT", "features": { "@container": "@set", "@id": "schema:hasPart" }, "geometry": "sf:geometry", "description": "dc:description", "title": "dc:title", "name": "schema:name" }, "type": "FeatureCollection", "features": [ { "$source": "gsml:MappedFeature" }, → Continued in next slide
  24. JSON-LD community module { "@id": "${@id}", "@type": [ "Feature", "gsml:MappedFeature",

    "http://vocabulary.odm2.org/samplingfeaturetype/mappedFeature" ], "name": "${gml:name}", "gsml:positionalAccuracy": { "type": "gsml:CGI_NumericValue", "value": "${gsml:positionalAccuracy/gsml:CGI_NumericValue/gsml:principalValue}" }, "gsml:GeologicUnit": { "$source": "gsml:specification/gsml:GeologicUnit", "@id": "${@id}", "description": "${gml:description}", "gsml:geologicUnitType": "urn:ogc:def:nil:OGC::unknown", "gsml:composition": [ { "$source": "gsml:composition" }, { "gsml:compositionPart": [ { "$source": "gsml:CompositionPart" }, { "gsml:role": { "value": "${gsml:role}", "@codeSpace": "urn:cgi:classifierScheme:Example:CompositionPartRole" }, ……….
  25. Service news

  26. OGC API – Marching on! ⚫ The OGC API community

    modules keep improving: ⚫ Updated OGC API - Features API to latest spec ⚫ Added filtering and CRS extensions ⚫ OGC API – Tiles ⚫ OGC API – Styles
  27. FlatGeoBuf community module ⚫ FlatGeoBuf is "a performant binary encoding

    for geographic data based on flatbuffers …" ⚫ WFS (OGC API – Features) output format ⚫ New community module ⚫ Performance comparison, shapefile as reference
  28. GeoWebCache

  29. Faster startup ⚫ 30% faster GWC layer loading during startup

    ⚫ Improved CPU consumption ⚫ Test loading 1 million layers, with 1 million cached layers associated, over the past releases Version Released Startup GWC_startup 2.14.4 2019-06-13 9m 5s 39s 2.15.0 2019-02-27 <killed after 2 hours> 2.15.2 2019-06-28 6m 45s 40s 2.16.0 2019-09-18 6m 05s 34s 2.16.2 2020-01-20 6m 45s 34s 2.17.0 2020-04-19 6m 33s 22s Data courtesy of Gabriel Roldan
  30. Faster tile layer listing ⚫ The tile layer page could

    get pretty slow ⚫ Sped up by orders of magnitude in 2.17.0
  31. Configure XYZ layout on disk ⚫ GWC disk layout is

    optimized to keep directory listings short, but cannot be used to setup a static tile cache ⚫ In 2.17.0 one can create a ZYX/Z(-Y)X layout, seed it, and move to static file serving
  32. More tolerant seed ⚫ Traditionally GWC seeding threads would stop

    at the first map building error encountered. Now tolerance can be configured on a per job basis.
  33. Configuration improvements

  34. Resource browser extension ⚫ Access contents of the data directory

    directly from the GUI ⚫ Useful for remote servers, mandatory if one is not storing the config on the file system
  35. Edit security from resource pages ⚫ Alternative focus on the

    single resource, rather than the full set of security rules
  36. Track last resource change ⚫ Ever wondered if "something changed"?

    ⚫ Now you can check.
  37. Custom dimensions for vector layers ⚫ WMS dimension ⚫ Time

    ⚫ Elevation ⚫ Custom ⚫ Custom used to be supported by raster data only ⚫ Now supported by vector data too
  38. Enabled/advertised for Groups ⚫ Enabled/advertised controls were available for layers

    only ⚫ Now available for layer groups too
  39. That’s all! https://www.geosolutionsgroup.com/contacts/
