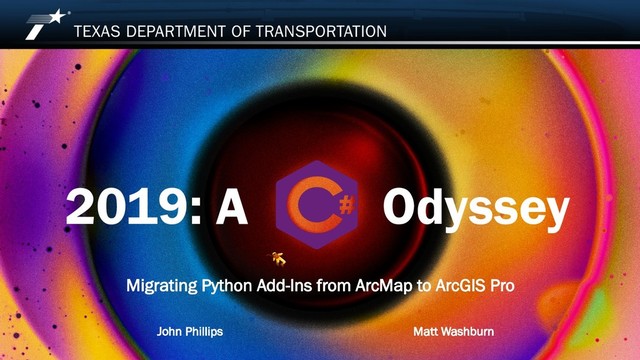

  1. 2019 Texas GIS Forum October 23, 2019 Date 2019: A

    Odyssey Migrating Python Add-Ins from ArcMap to ArcGIS Pro John Phillips Matt Washburn
  2. 2019 Texas GIS Forum October 23, 2019 Roadmap 2 §

    BP (Before Pro) – Why Pro? – Python Add-Ins – Choosing the Right Tools § The Journey – Learning C# – Dev Summit – Practice, Collaboration and Testing § Your Turn: Getting Started § Scenarios – Simple: Launch a native GP tool using C# – Hybrid: Launch a custom python script and run in command shell – Advanced: Completely rewrite tool in C# – C# Wiz: Customize the UI using WPF (dock panes!) § Lessons Learned
  3. 2019 Texas GIS Forum October 23, 2019 BP (Before Pro)

    Time Period – Why Pro? 3 § Geospatial Roadway Inventory Database (G.R.I.D) – Custom database application – Roadway Geometry and assets § Custom and built-in Editing, ETL and Linear Referencing Tools – Set From/To Measures – Identify Route Locations
  4. 2019 Texas GIS Forum October 23, 2019 BP (Before Pro)

    Time Period – Why Pro? 4 § End of ArcMap Era in sight § ArcGIS Pro – Multi-threaded/64-bit – C# .NET architecture – Dark Mode!! § Development of tools not on Pro roadmap or locked behind extension (Roads and Highways)
  5. 2019 Texas GIS Forum October 23, 2019 BP (Before Pro)

    Time Period – Python Add-Ins 5 § Python Add-In Wizard § Mostly limited to launching GP Tools, external python scripts § Tried to write LRS tools for Pro in python, but results weren’t consistent
  6. 2019 Texas GIS Forum October 23, 2019 6 § Customization

    Patterns: – Configure UI through settings, and workflows through Tasks (Backstage Tab, limited, no code) – Automate using geoprocessing and Python. (arcpy and arcgis API) – Extend with your own custom tools and solutions using the Pro SDK. (C# Add-Ins) – https://github.com/esri/arcgis-pro- sdk/wiki/ProConcepts-Migrating-to-ArcGIS-Pro § C# Patterns – Custom Add-Ins – Managed Configurations – Tons of options (dropdowns, context menus, dockpanes, map tools, sounds, etc) BP (Before Pro) Time Period – Choosing the Right Tools
  7. 2019 Texas GIS Forum October 23, 2019 The Journey –

    Learning C# 7 § Used Esri credits to bring out teachers – 2-Day ArcGIS Pro Course – 4-Day Extending ArcGIS Pro with Addins (EAPA) Course § Beginner/Intermediate knowledge of C# recommended for EAPA § ‘Firehose’ of information/Big learning curve § Previous programming experience helps! § After the C# course we were developing perfect add-ins with no problems!***
  8. 2019 Texas GIS Forum October 23, 2019 BP (Before Pro)

    Time Period 8
  9. 2019 Texas GIS Forum October 23, 2019 BP (Before Pro)

    Time Period 9 I’m sorry John, I’m afraid I can’t do that
  10. 2019 Texas GIS Forum October 23, 2019 The Journey –

    Dev Summit 10 § Esri Developer Summit – Developers of API teach sessions – One on one questions and feedback – Dodgeball!
  11. 2019 Texas GIS Forum October 23, 2019 The Journey –

    Practice, Collaboration and Testing 11 § Weekly learning sessions working through guide together § Esri Documentation – API/SDK Page – Community Samples – Pro Snippets – GeoNet § Testing team and bug fixes § Practice!
  12. 2019 Texas GIS Forum October 23, 2019 Your Turn: Getting

    Started 12 § Visual Studio 2017 (Community Edition is free) § ArcGIS Pro (Not free) § ArcGIS Pro SDK (Software Development Kit) – Downloaded through Visual Studio – Inserts code templates – IntelliSense
  13. 2019 Texas GIS Forum October 23, 2019 Four Scenarios §

    “Simple”: Launch a native GP tool using C# § Hybrid: Launch a custom python script and run in command shell § Advanced: Completely rewrite tool in C# § C# Wiz: Customize the UI using WPF 13
  14. 2019 Texas GIS Forum October 23, 2019 “Simple” Scenario §

    Want to run GP tool with one click § Useful for quick, commonly used operations § Control over where button is placed (context menu) § Call using C# § Example: Calculate Geometry 14
  15. 2019 Texas GIS Forum October 23, 2019 “Simple” Scenario §

    Create new VS project and add button using Pro SDK § Set path to GP tool using its alias § Set arguments based on Python documentation § Construct value array and pass those args to ExecuteToolAsync() 15
  16. 2019 Texas GIS Forum October 23, 2019 “Simple” Scenario §

    Add reference to button in the DAML (markup file) § Controls where the button is located in the application § Default is on “Add In” tab along top ribbon § Customized to add to specific context menu § Can add anywhere 16
  17. 2019 Texas GIS Forum October 23, 2019 Hybrid Scenario §

    Want to launch custom Python script with button § Pass args to script and run externally in command shell § Useful when working with legacy (i.e. 2.x) Python scripts § Allows migration to Pro without rewriting entire codebase § Example: Hello World 17
  18. 2019 Texas GIS Forum October 23, 2019 Hybrid Scenario 18

  19. 2019 Texas GIS Forum October 23, 2019 Hybrid Scenario 19

    § Script launches, accepting input from user § Passes input as args in script § Could be OIDs, map selection, attributes, etc. § Useful for getting up and running quickly § Familiar Python prog patterns § Use existing scripts
  20. 2019 Texas GIS Forum October 23, 2019 Advanced Scenario §

    Need to completely rewrite Python script in C# § Not only is syntax different, not always a corresponding method § C# more verbose, many, many more ways to do one thing § Example: Jump To Google/Jump To Streetview 20
  21. 2019 Texas GIS Forum October 23, 2019 Advanced Scenario §

    Same logic, syntax and methods different § Save time/sanity by reading documentation FIRST! § Ex: Camera property accesses Scale § Use original script as pseudocode 21
  22. 2019 Texas GIS Forum October 23, 2019 C# Wiz §

    Fully customize UI with MVVM(Model View-View Model) patterns – Dockpanes – Managed Configurations – CIM Editing § Example: Dockpane! 22
  23. 2019 Texas GIS Forum October 23, 2019 C# Wiz §

    Create Dockpane using SDK template § Declare in DAML § Design layout and bind to data with XAML § Add logic in C# files 23
  24. 2019 Texas GIS Forum October 23, 2019 Lessons Learned 24

    § Versioned Releases § Log Bugs – Spreadsheet, Trello, Bug Software § Testing – Test scripts (learn from our mistakes) § Try/Catch Statements – Very important to prevent frequent crashes § Breakpoints/Debugging/Object Explorer § Communication/Collaboration! (GitHub)
  25. 2019 Texas GIS Forum October 23, 2019 Date Questions? John

    Phillips Matt Washburn
