• U-Net ◦ 生命医科学用に開発された画像認識モデル ◦ 細胞がどこにあるか検出 • PhaseNet ◦ U-Netを地震動検出に応用
◦ P・S波の立ち上がりを検出 ◦ U-Netのバリエーションを PhaseNetに活用できるかも? そもそもU-Netってなに? -
• Convolutional Neural Network(CNN) ◦ 画像データ ◦ 圧縮して特徴を抽出 • Recurrent
Neural Network(RNN) ◦ 時系列データ ◦ 時刻 t のデータを もとに時刻 t + 1 の 値を計算 • Recurrent CNN(RCNN) ◦ t0:もとの画像 → CNN ◦ t1:もとの画像 + t0 → CNN ◦ t2:もとの画像 + t1 → CNN …… ◦ もとの画像 ≠ 時系列データ 使われている技術 ① -
• Residual Network ◦ 層の前にあるデータを足し合わせる ◦ 学習が簡単になる ◦ スキップ コネクション
使われている技術 ② • Recurrent Residual CNN(RRCNN) ◦ Recurrent + Residual ◦ 精度が良い ◦ 学習しやすい • Attention ◦ どこに「注目」すべきか分かる ◦ 離れた要素間でも関係性を学習 差分であるF(x)だけ学習すればよい (xを学習しなくてよい) -
U-Netとは? • U-Net ◦ U字型アーキテクチャ ◦ 画像認識モデル ◦ Encoder・Decoderで構成 ◦
スキップコネクションをもつ • Encoder ◦ ダウンサンプリング ◦ 畳み込み ◦ 特徴量抽出 • Decoder ◦ アップサンプリング ◦ 逆畳み込み ◦ 特徴量のマッピング 特徴量抽出 特徴量のマッピング 逆畳み込み 畳み込み -

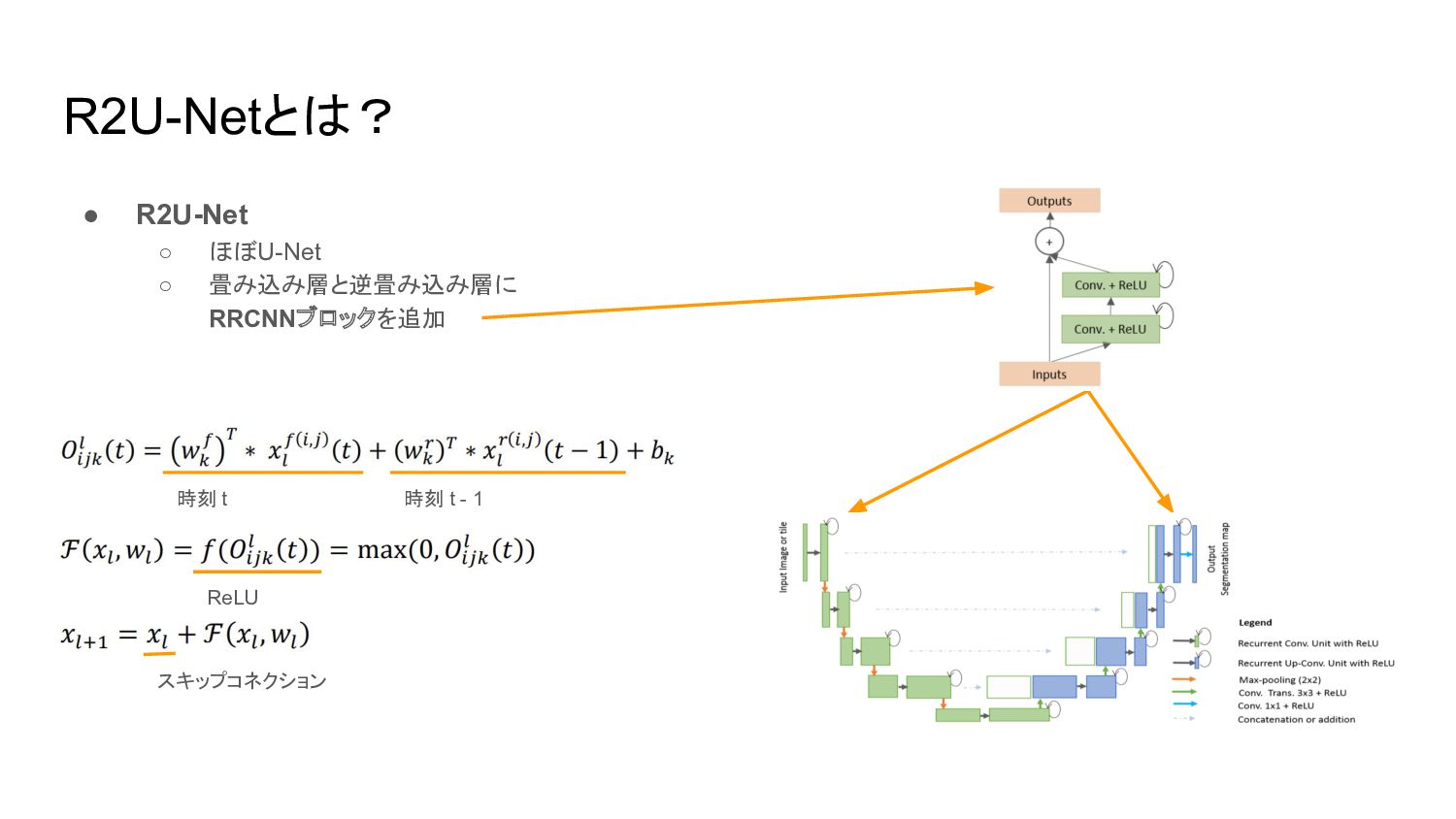

R2U-Netとは? • R2U-Net ◦ ほぼU-Net ◦ 畳み込み層と逆畳み込み層に RRCNNブロックを追加 時刻 t
- 1 時刻 t ReLU スキップコネクション -
Attention U-Netとは? • Attention U-Net ◦ 逆畳み込み層の前に Attention Gate(AG)を追加 ◦
Encoderの出力とDecoderの出力の 関係性に「注目」 • QueryとKeyを対応させる • Key・QueryとValueを対応させる Query Value Key Encoder Decoder -
結果:皮膚病変のセグメンテーション • データ:2594枚 ◦ トレーニングデータ:1815枚 ◦ バリデーションデータ:259枚 ◦ テストデータ:520枚 ◦
サイズ:700 × 900 → 256 × 256 TP:真陽性 FP:偽陽性 Recall: 再現性 Precision: 適合率 -
結果:網膜血管セグメンテーション • 元データ:565 × 584, 40枚 ◦ パッチに分割:64 × 64,
380,000パッチ • トレーニングデータ:171,000パッチ • バリデーションデータ:19,000パッチ • テストデータ:190,000パッチ TP:真陽性 FP:偽陽性 Recall: 再現性 Precision: 適合率 -
結果:肺のセグメンテーション • 元データ:512 × 512, 267枚 ◦ トレーニングデータ:134枚 ◦ バリデーションデータ:54枚
◦ テストデータ:79枚 TP:真陽性 FP:偽陽性 Recall: 再現性 Precision: 適合率 -
参考資料 • U-Net: Convolutional Networks for Biomedical Image Segmentation, arxiv,
Olaf Ronneberger et al., 2015 • Recurrent Residual Convolutional Neural Network based on U-Net (R2U-Net) for Medical Image Segmentation, arxiv, Md Zahangir Alom et al., 2018 • Attention U-Net: Learning Where to Look for the Pancreas, arxiv, Ozan Oktay et al., 2018 • R2AU-Net: Attention Recurrent Residual Convolutional Neural Network for Multimodal Medical Image Segmentation, Hindawi, Qiang Zuo et al., 2021 • PhaseNet: a deep-neural-network-based seismic arrival-time picking method, Geophysical Journal International, Weiqiang Zhu et al., 2019 • Attention Is All You Need, arxiv, Ashish Vaswani et al., 2017 • pytorch Implementation of U-Net, R2U-Net, Attention U-Net, Attention R2U-Net, GitHub, LeeJunHyun
