Dissecting TLS [HackSoc]

Introduction to and overview of the SSL/TLS protocols. Given at Abertay Ethical Hacking Society at some point.

Transcript

1. Dissecting TLS Michael Jack

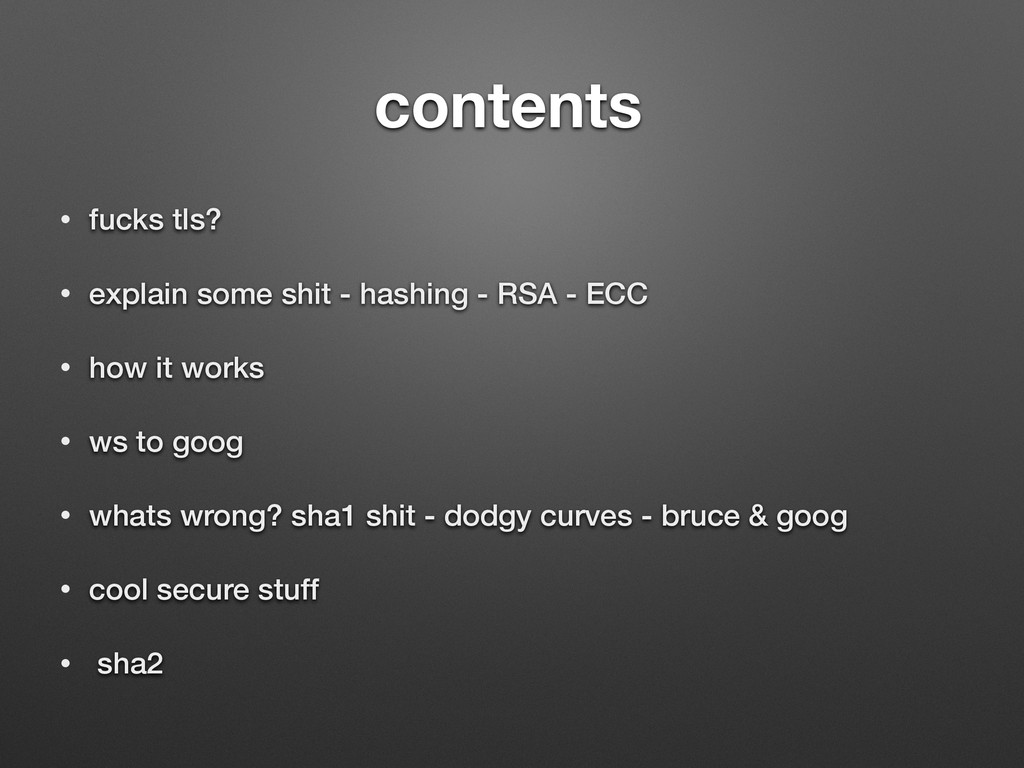

2. contents • fucks tls? • explain some shit - hashing - RSA - ECC • how it works • ws to goog • whats wrong? sha1 shit - dodgy curves - bruce & goog • cool secure stuff • sha2

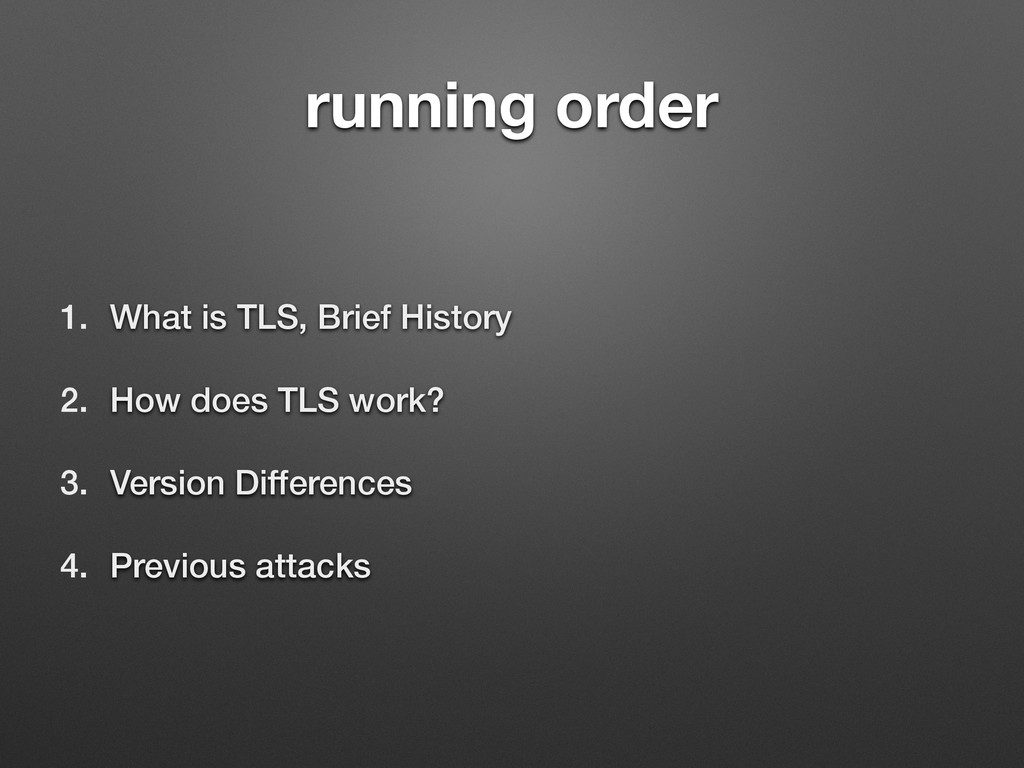

3. running order 1. What is TLS, Brief History 2. How does TLS work? 3. Version Differences 4. Previous attacks
4. Intro

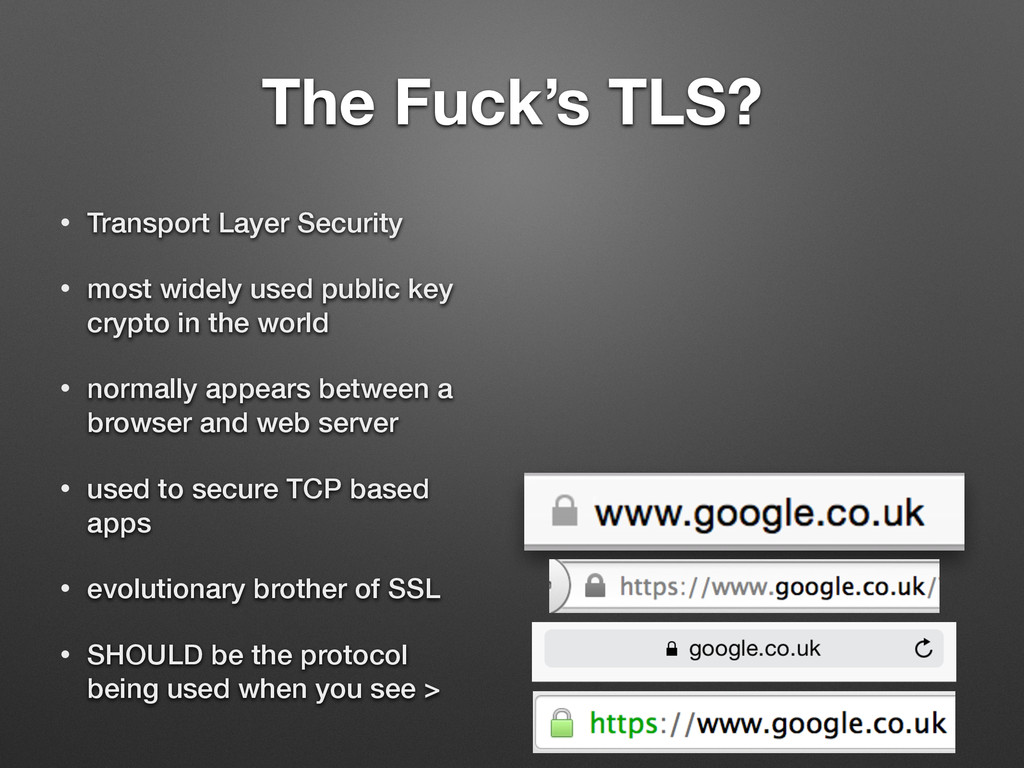

5. • Transport Layer Security • most widely used public key crypto in the world • normally appears between a browser and web server • used to secure TCP based apps • evolutionary brother of SSL • SHOULD be the protocol being used when you see > The Fuck’s TLS?

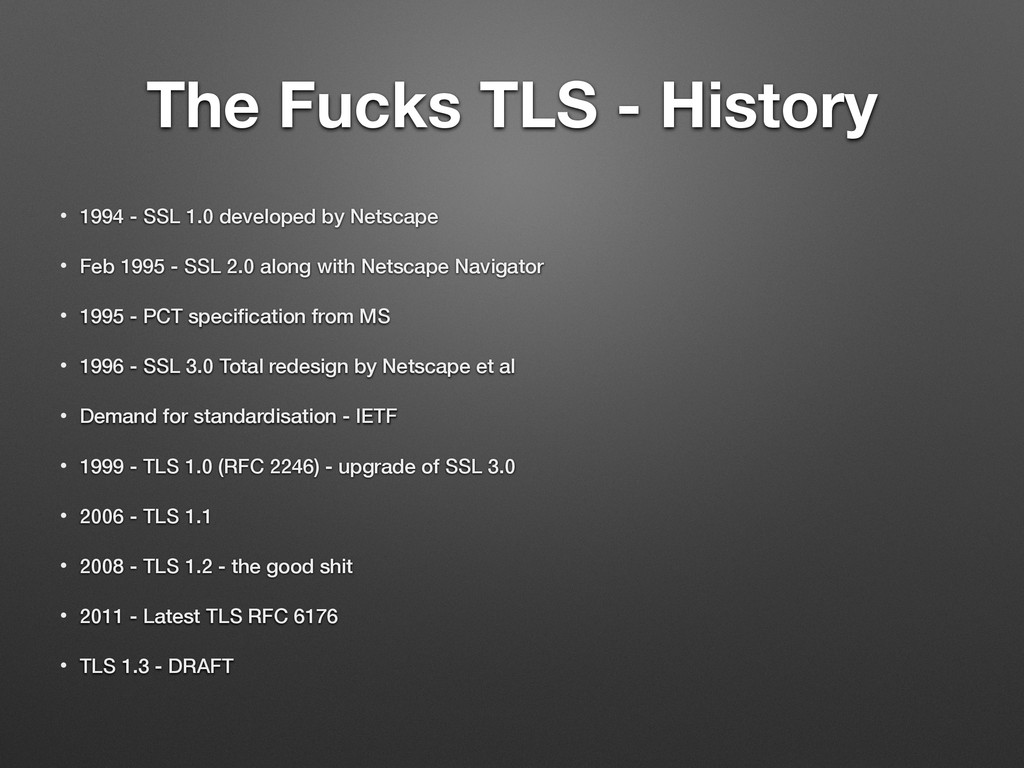

6. The Fucks TLS - History • 1994 - SSL 1.0 developed by Netscape • Feb 1995 - SSL 2.0 along with Netscape Navigator • 1995 - PCT specification from MS • 1996 - SSL 3.0 Total redesign by Netscape et al • Demand for standardisation - IETF • 1999 - TLS 1.0 (RFC 2246) - upgrade of SSL 3.0 • 2006 - TLS 1.1 • 2008 - TLS 1.2 - the good shit • 2011 - Latest TLS RFC 6176 • TLS 1.3 - DRAFT

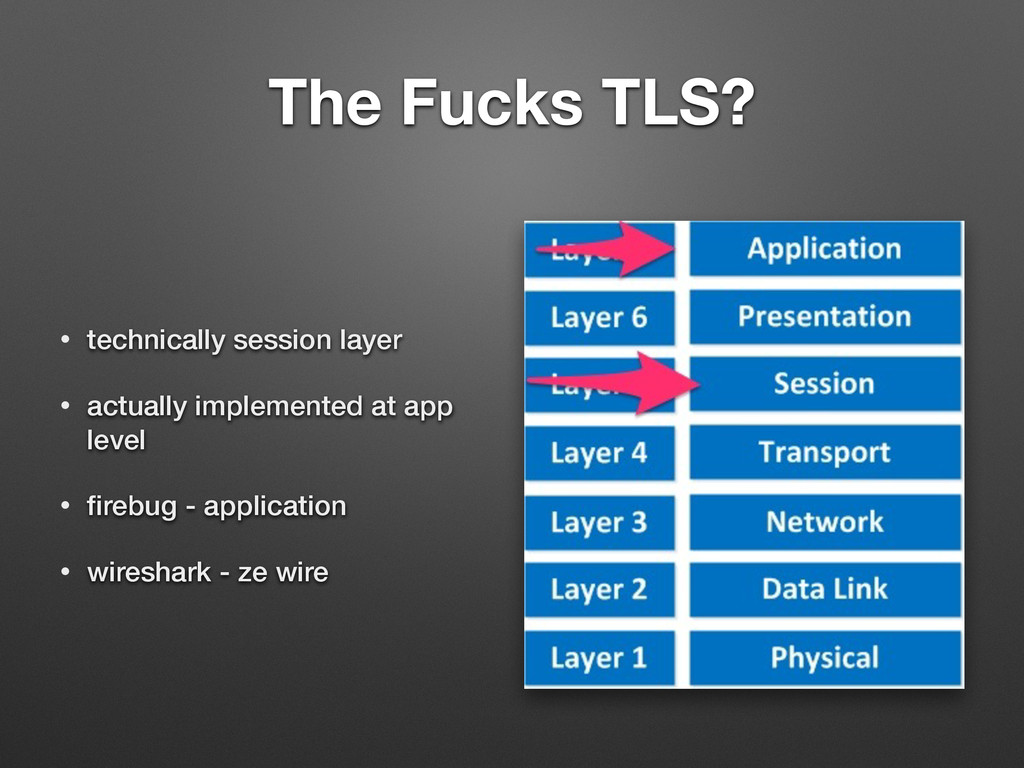

7. The Fucks TLS? • technically session layer • actually implemented at app level • firebug - application • wireshark - ze wire

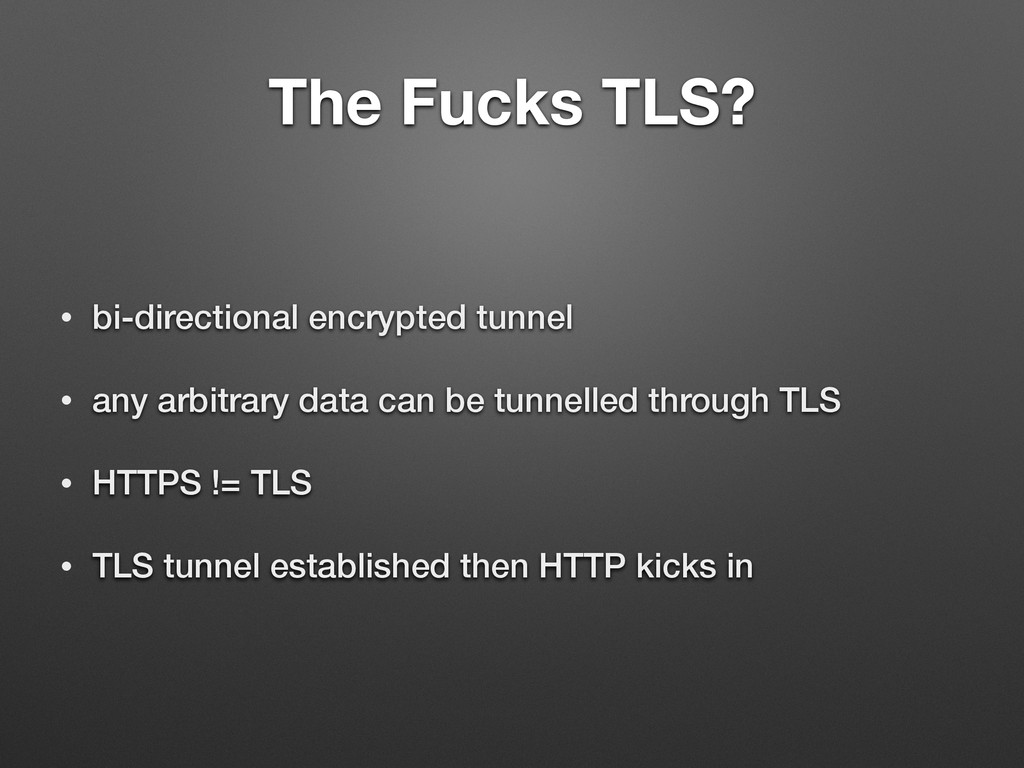

8. • bi-directional encrypted tunnel • any arbitrary data can be tunnelled through TLS • HTTPS != TLS • TLS tunnel established then HTTP kicks in The Fucks TLS?
9. TLS - The Magic

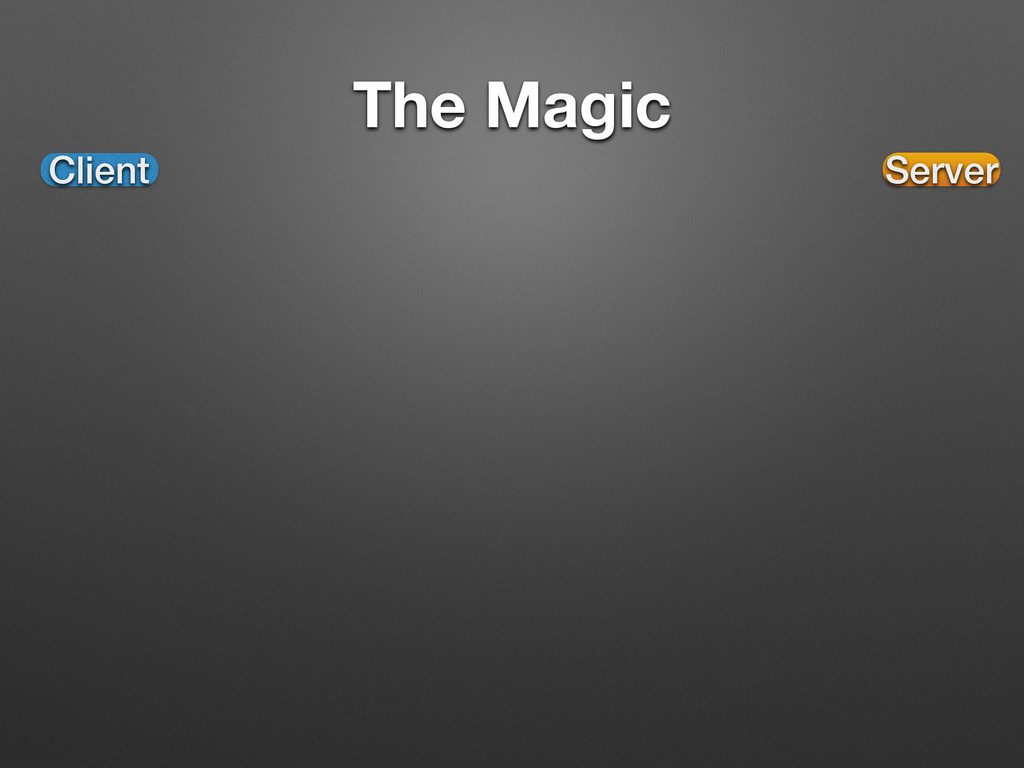

10. The Magic Client Server

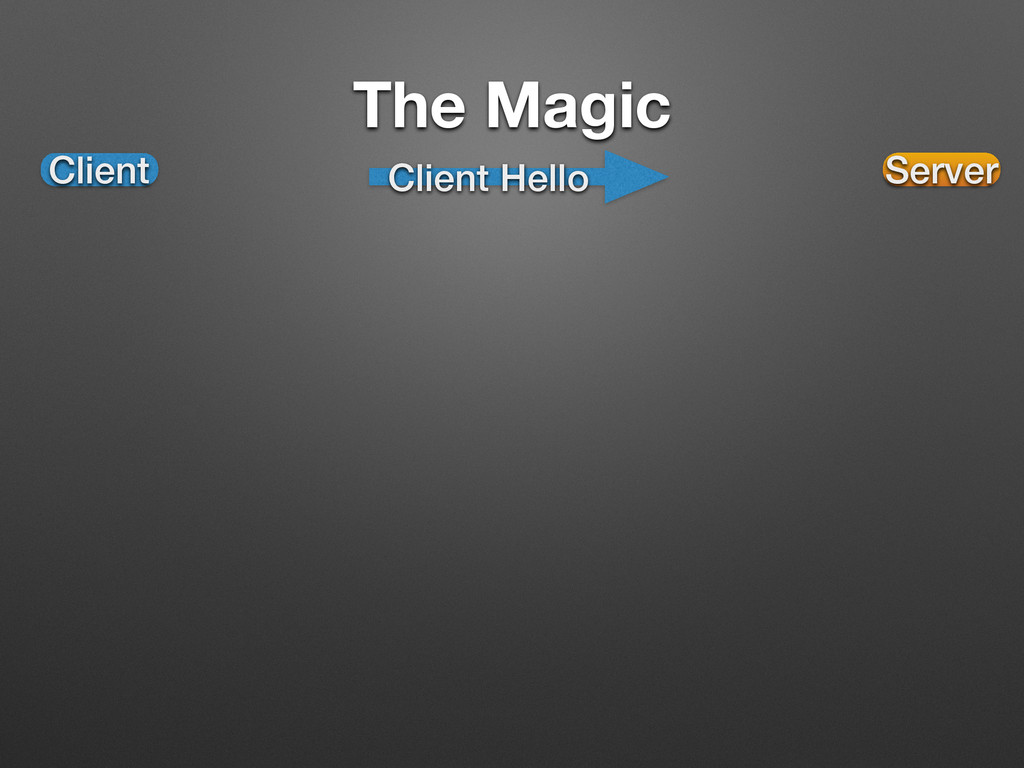

11. The Magic Client Server Client Hello

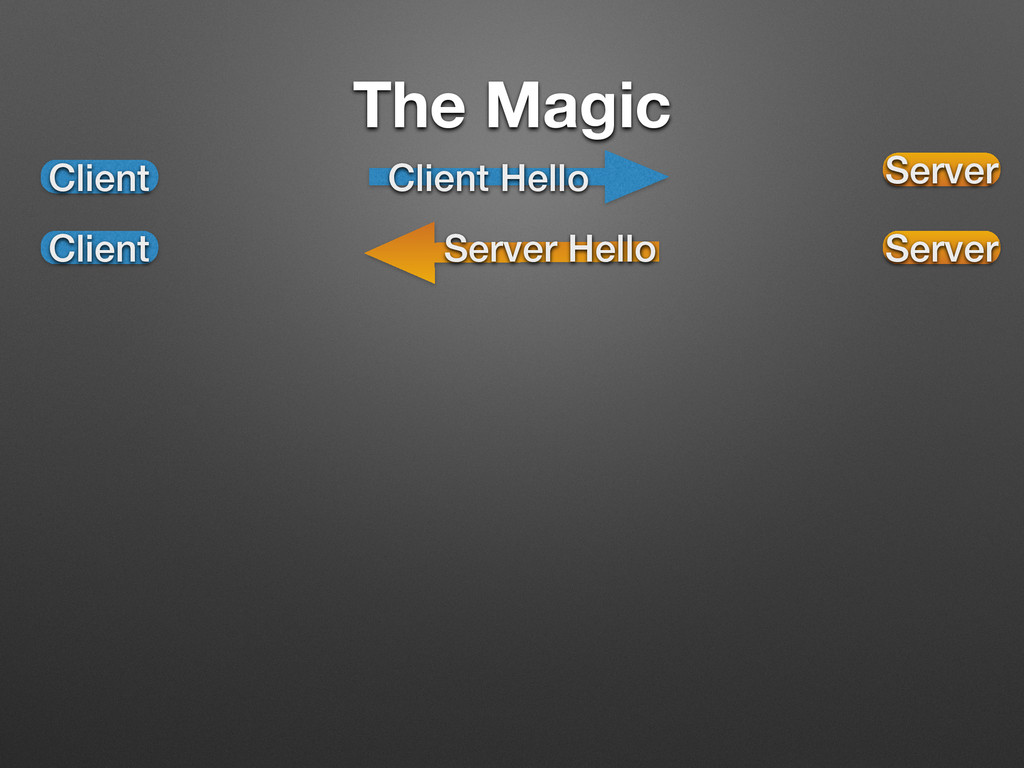

12. The Magic Client Server Server Client Client Hello Server Hello

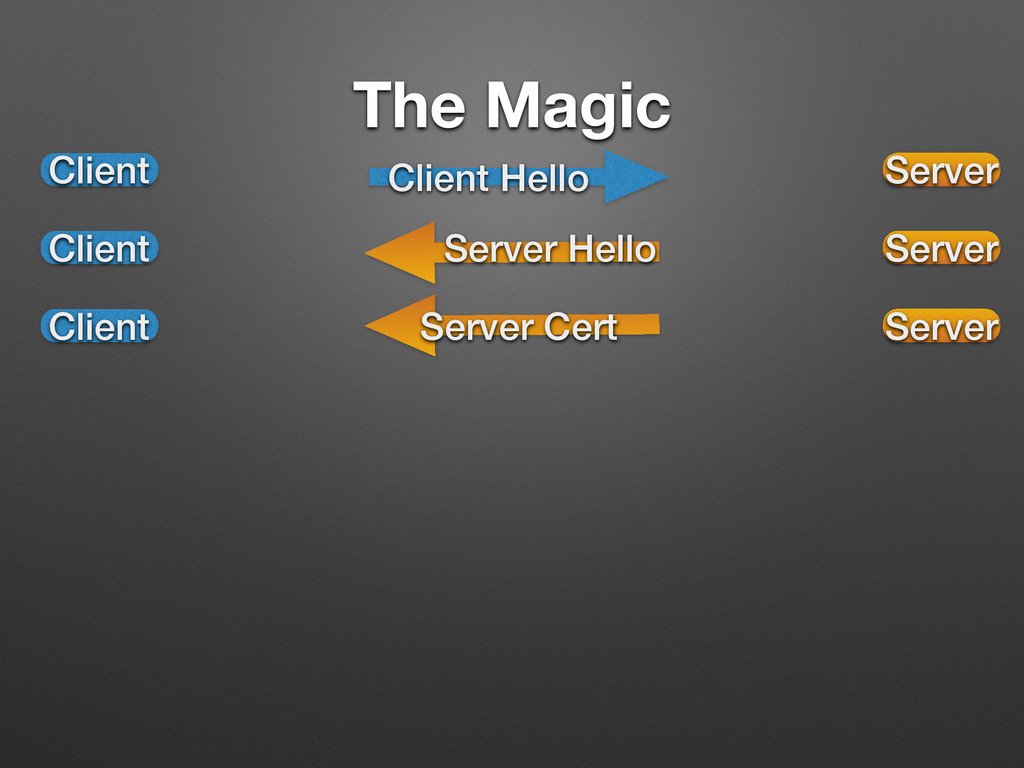

13. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert

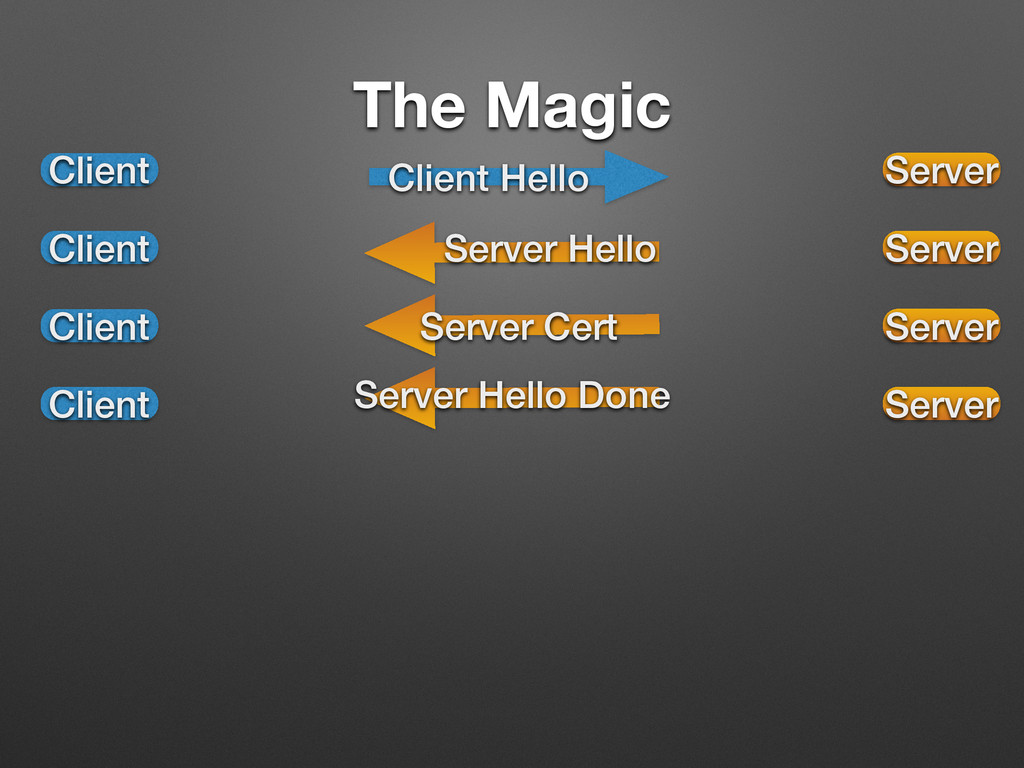

14. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done

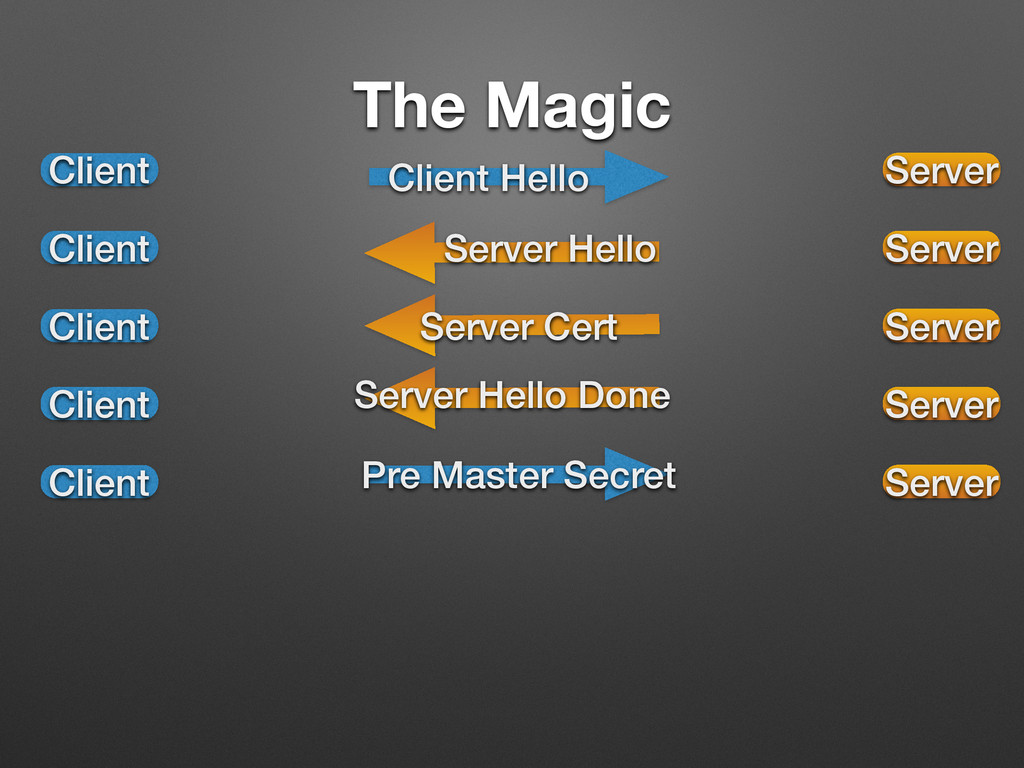

15. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done Client Server Pre Master Secret

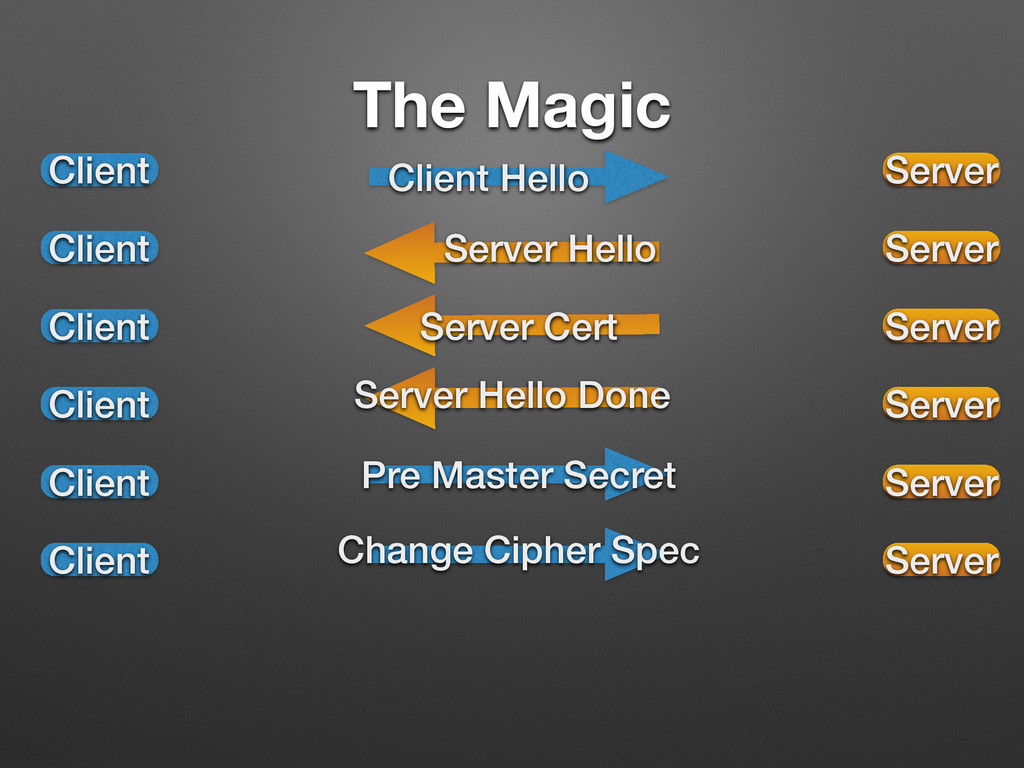

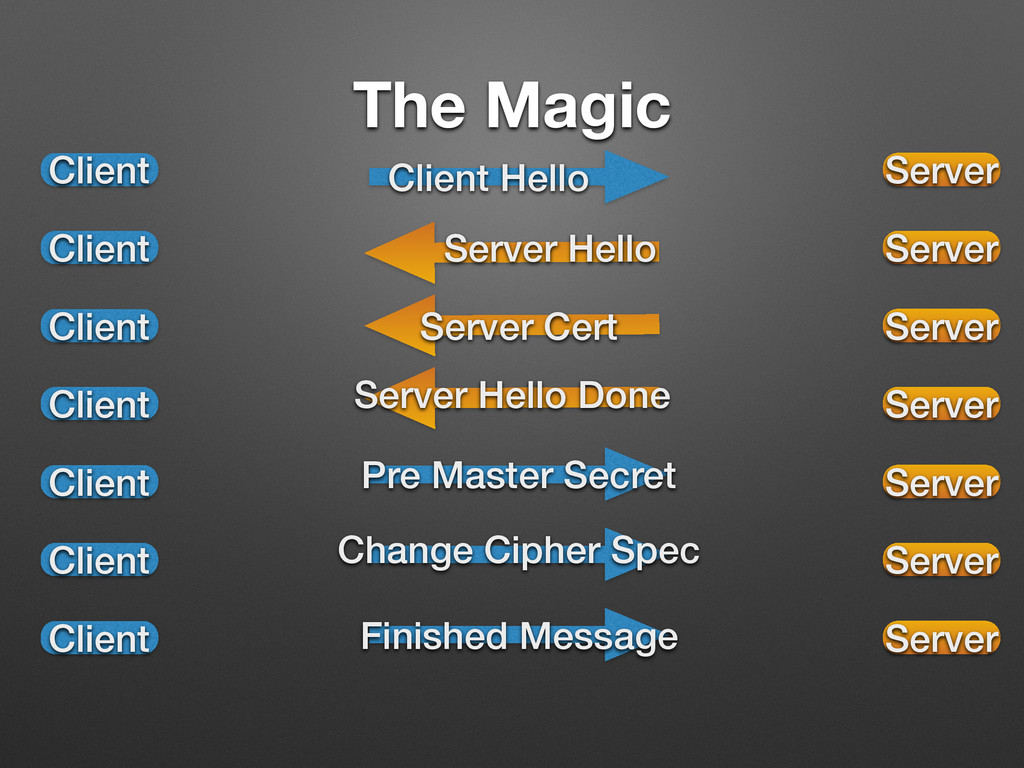

16. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done Client Server Pre Master Secret Client Server Change Cipher Spec
17. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done Client Server Pre Master Secret Client Server Client Server Change Cipher Spec Finished Message

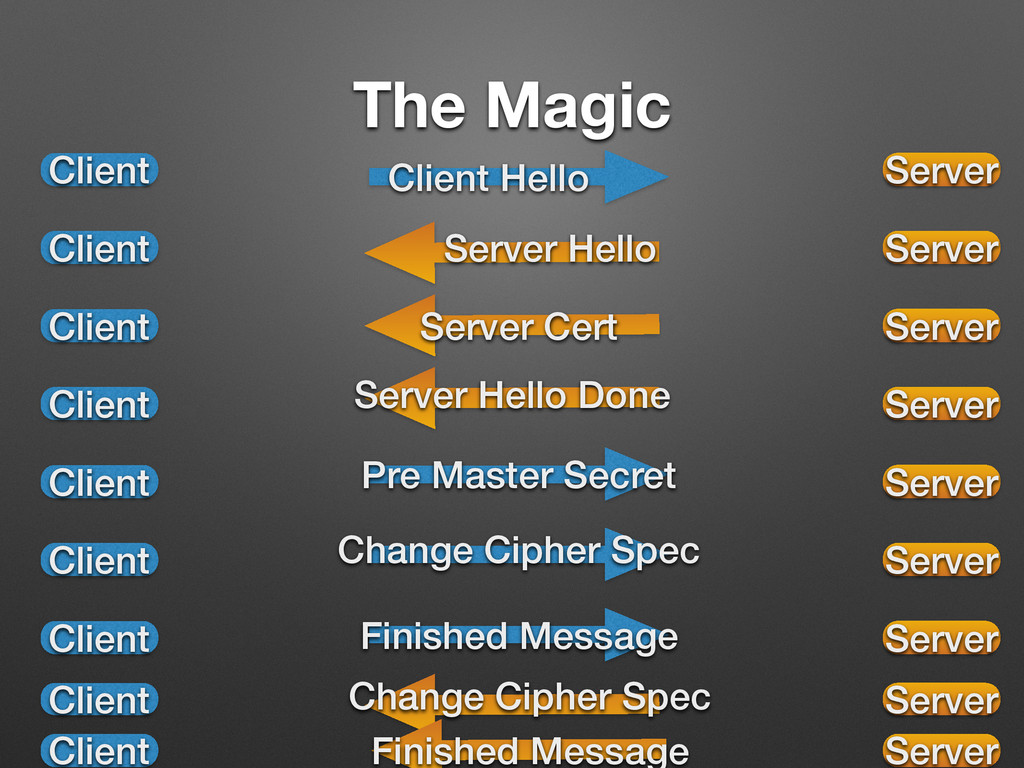

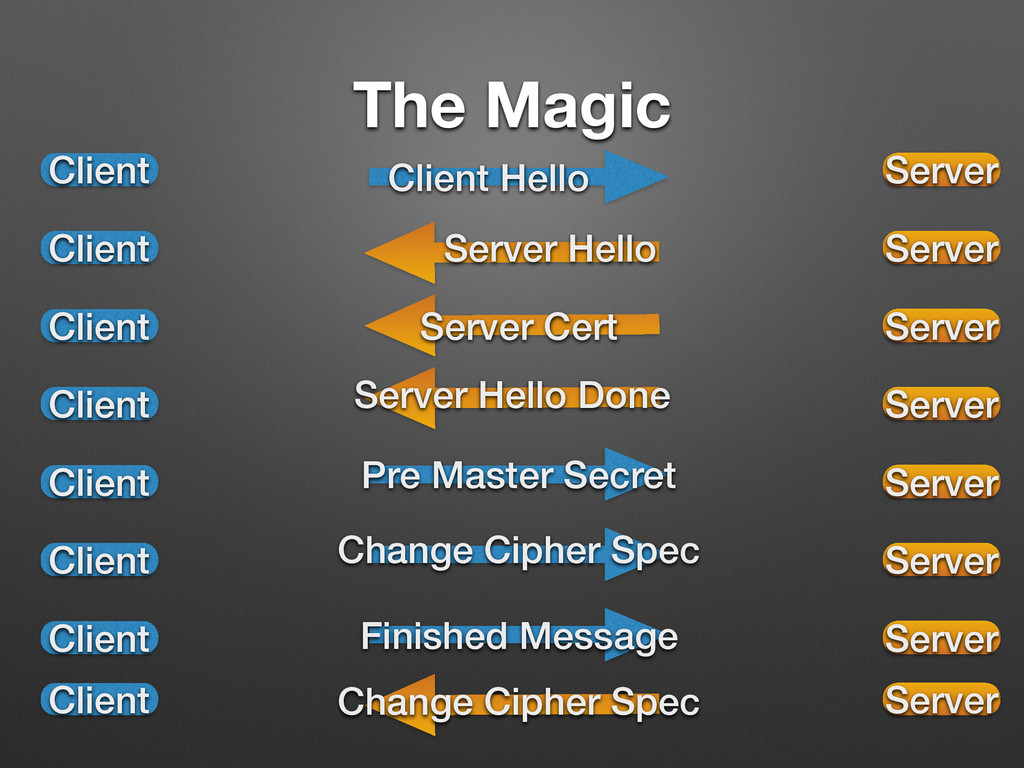

18. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done Client Server Pre Master Secret Client Server Client Server Change Cipher Spec Finished Message Client Server Change Cipher Spec
19. The Magic Client Server Server Client Client Hello Server Hello Client Server Server Cert Client Server Server Hello Done Client Server Pre Master Secret Client Server Client Server Change Cipher Spec Finished Message Client Server Change Cipher Spec Client Server Finished Message

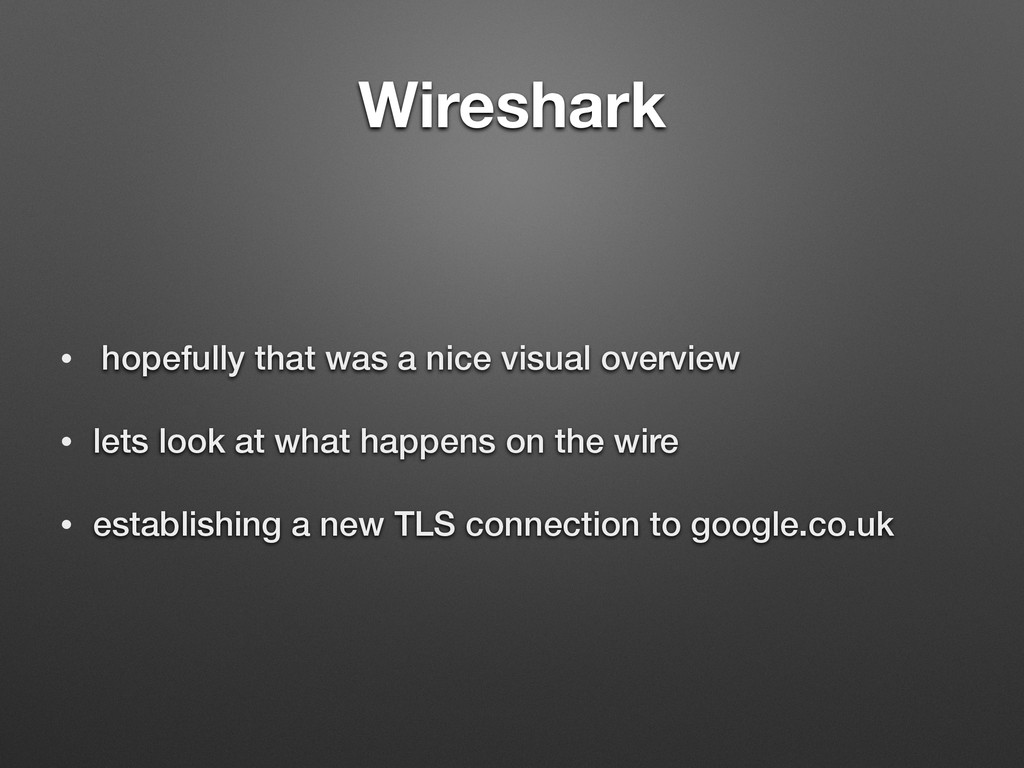

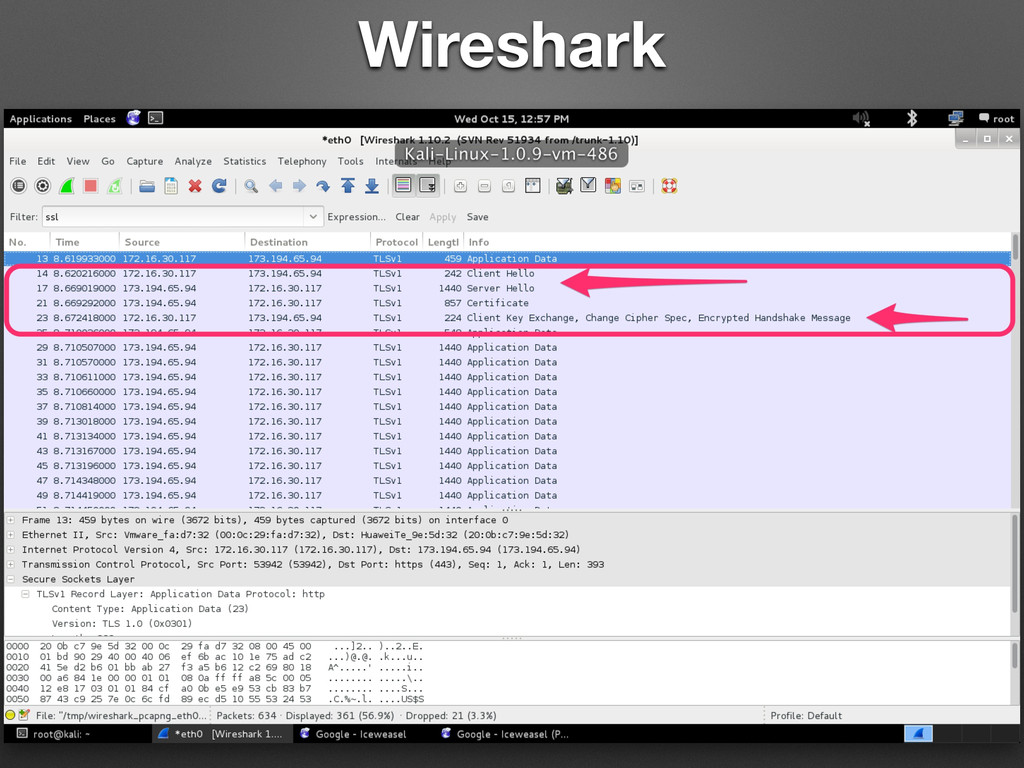

20. Wireshark • hopefully that was a nice visual overview • lets look at what happens on the wire • establishing a new TLS connection to google.co.uk

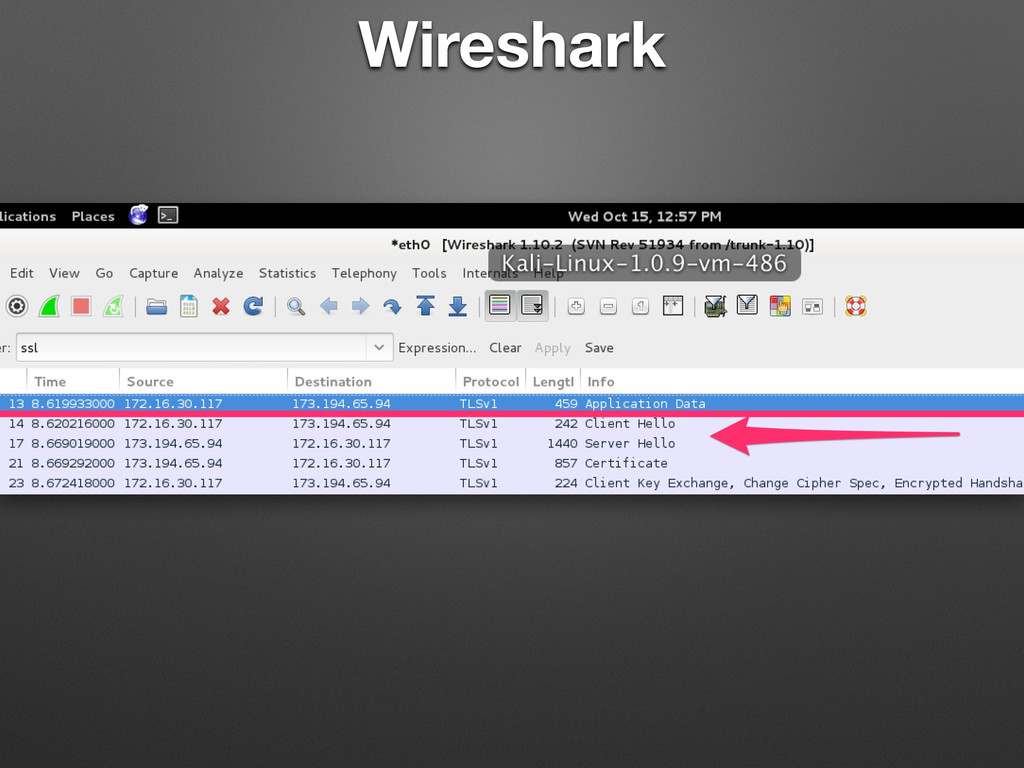

21. Wireshark
22. Wireshark

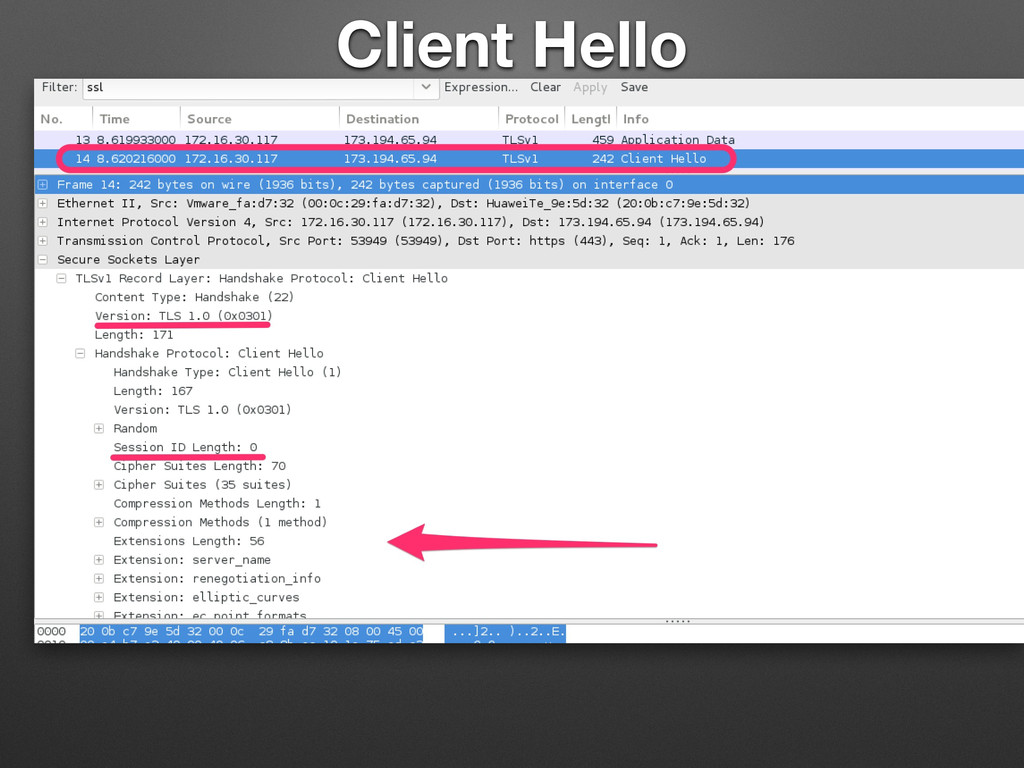

23. Client Hello
24. Server Hello

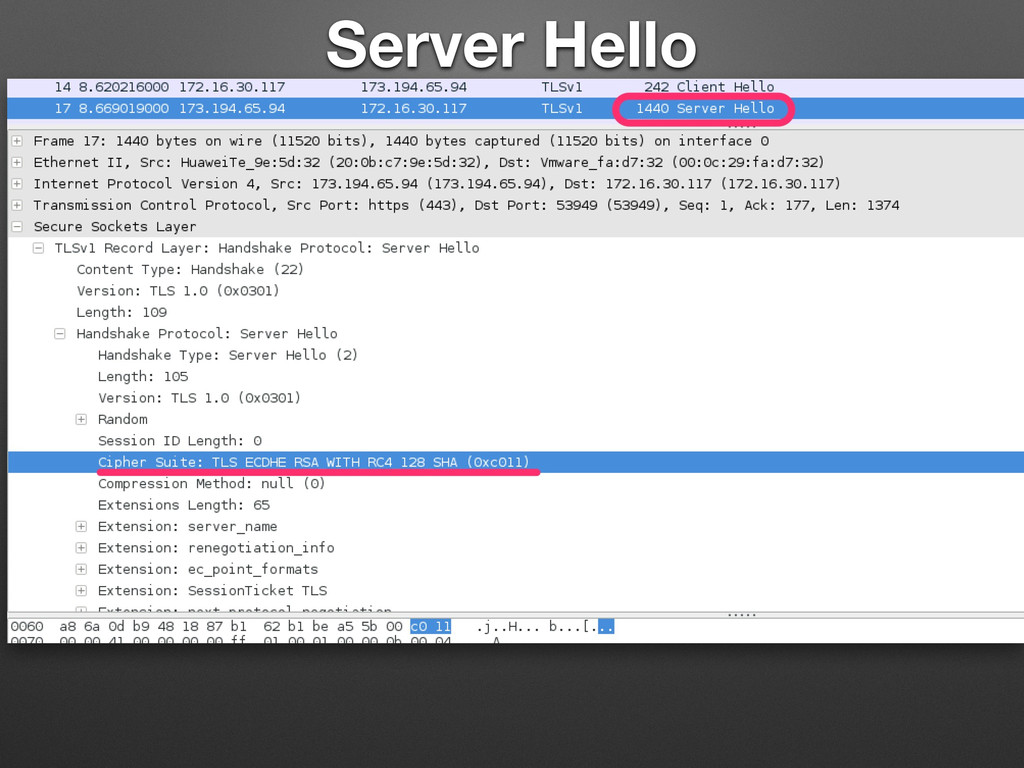

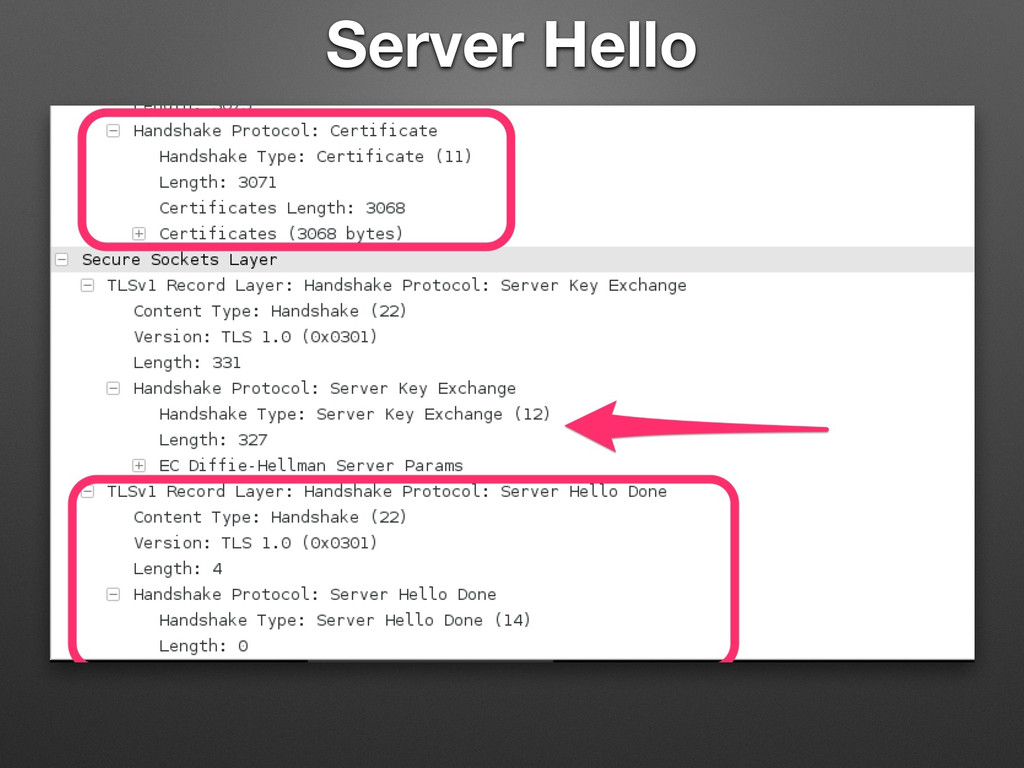

25. Server Hello

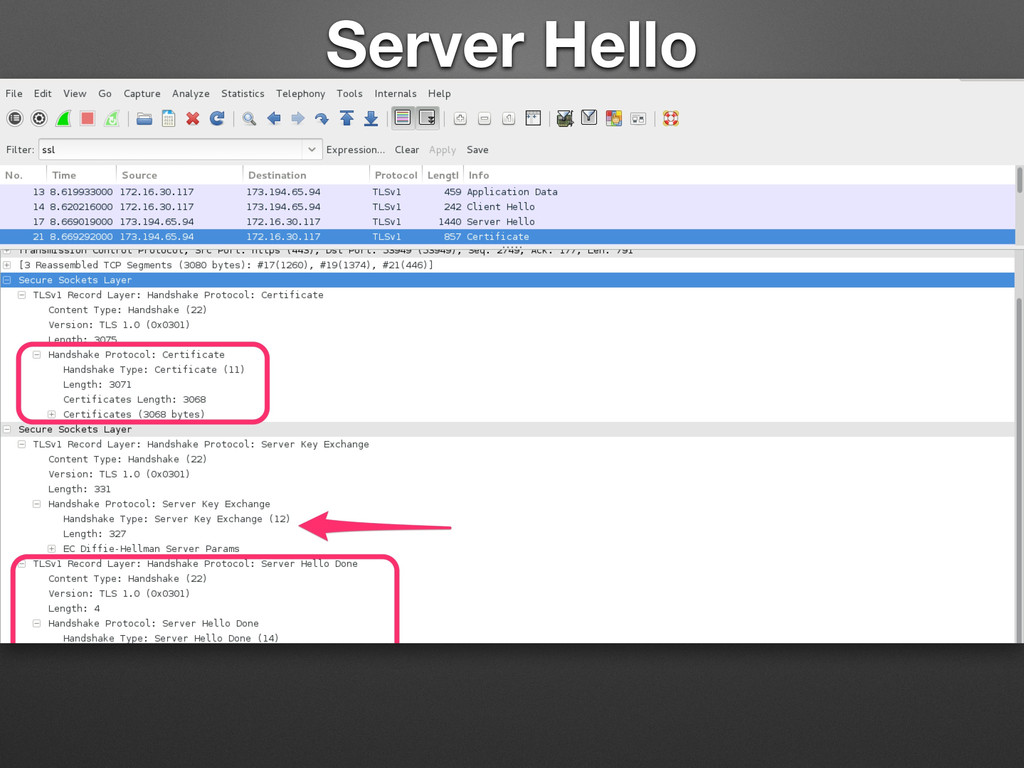

26. Server Hello

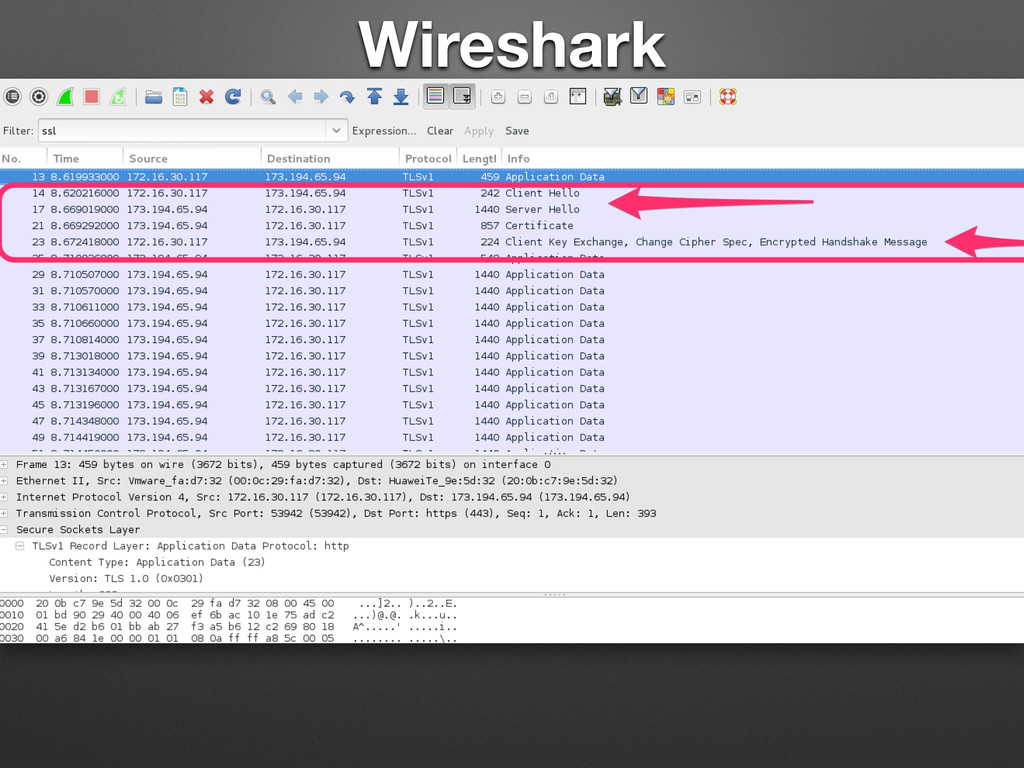

27. Wireshark
28. SSL/ TLS Security History
29. SSL V1 (1994)

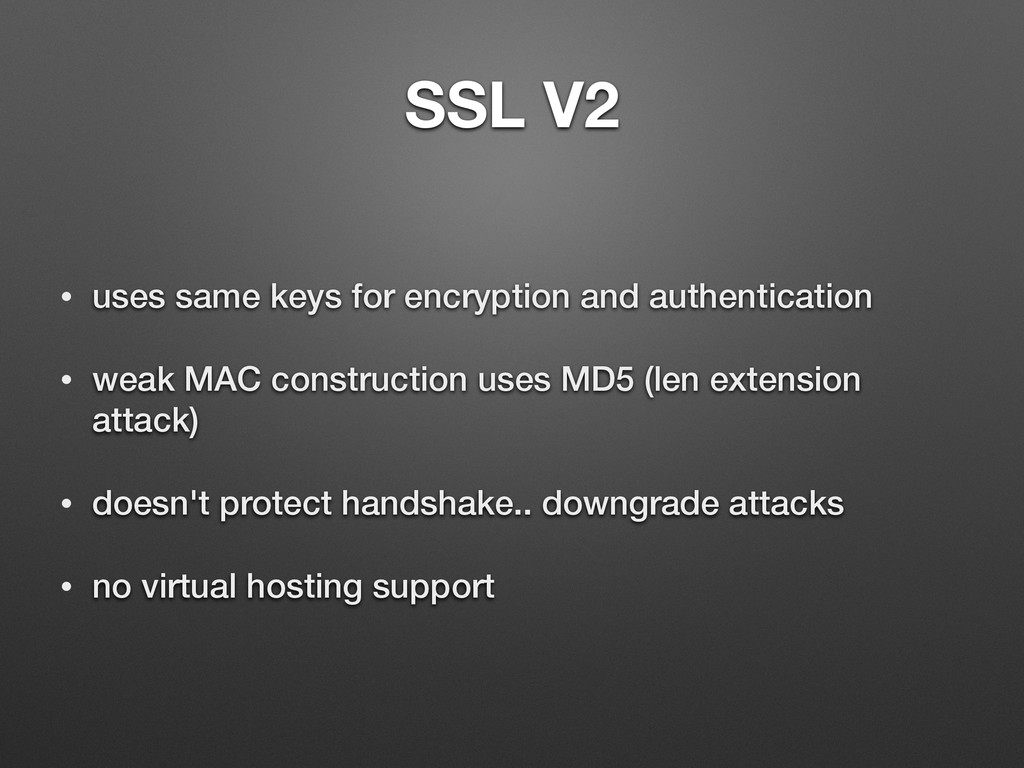

30. SSL V2 • uses same keys for encryption and authentication • weak MAC construction uses MD5 (len extension attack) • doesn't protect handshake.. downgrade attacks • no virtual hosting support

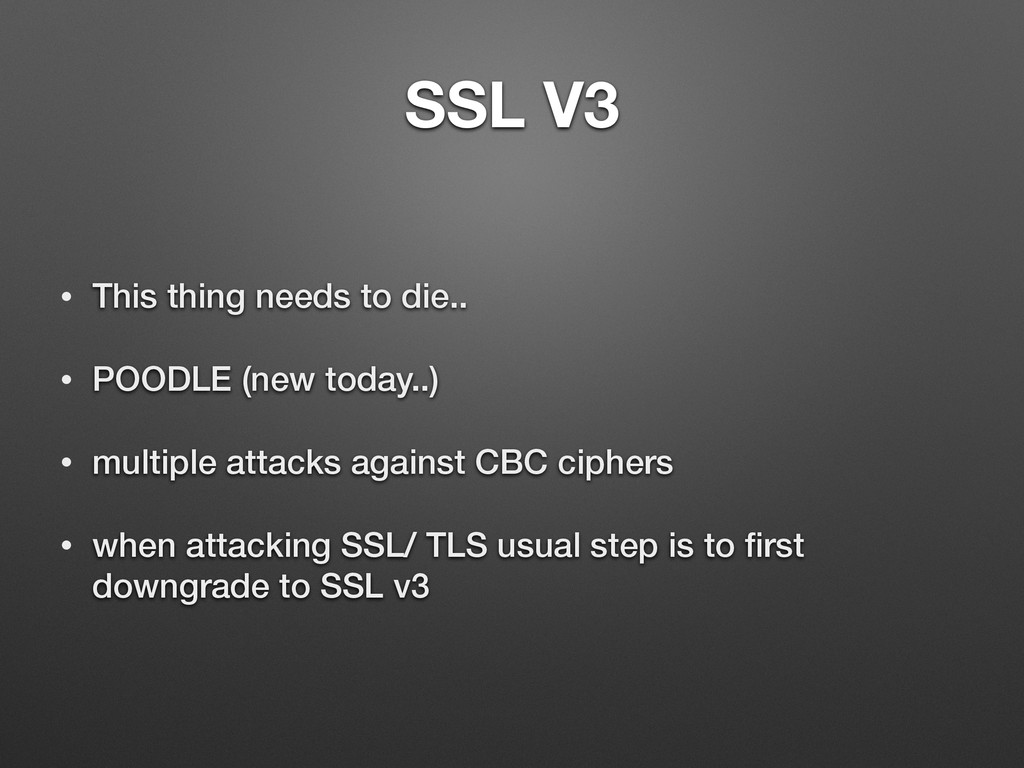

31. SSL V3 • This thing needs to die.. • POODLE (new today..) • multiple attacks against CBC ciphers • when attacking SSL/ TLS usual step is to first downgrade to SSL v3

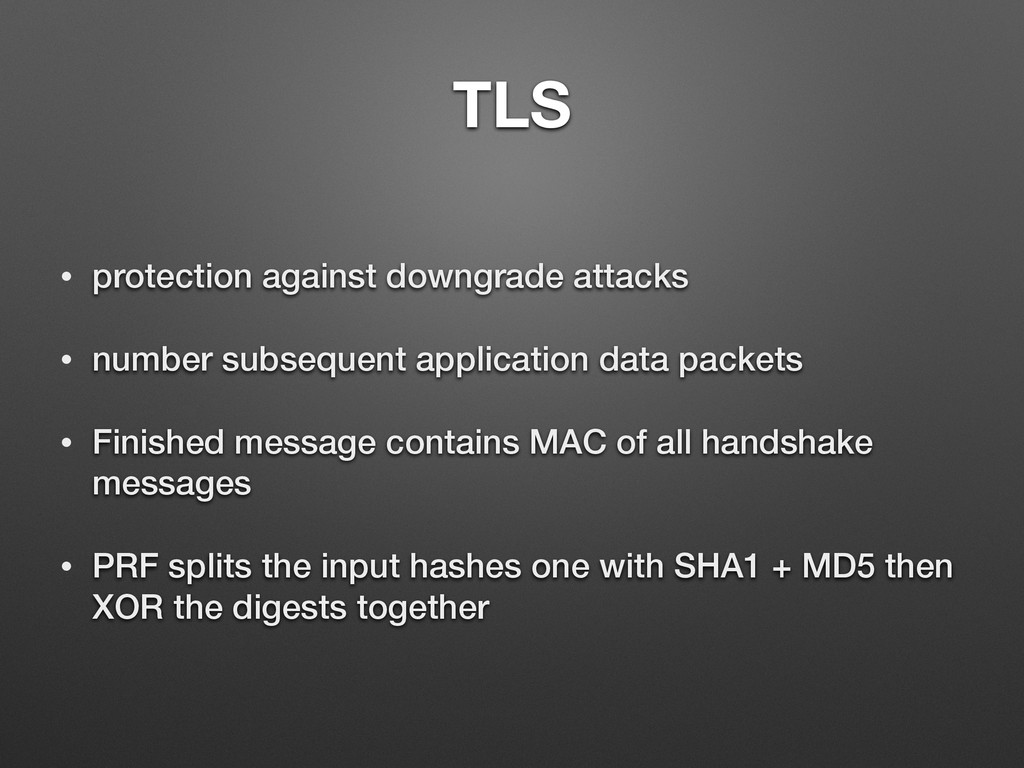

32. TLS • protection against downgrade attacks • number subsequent application data packets • Finished message contains MAC of all handshake messages • PRF splits the input hashes one with SHA1 + MD5 then XOR the digests together

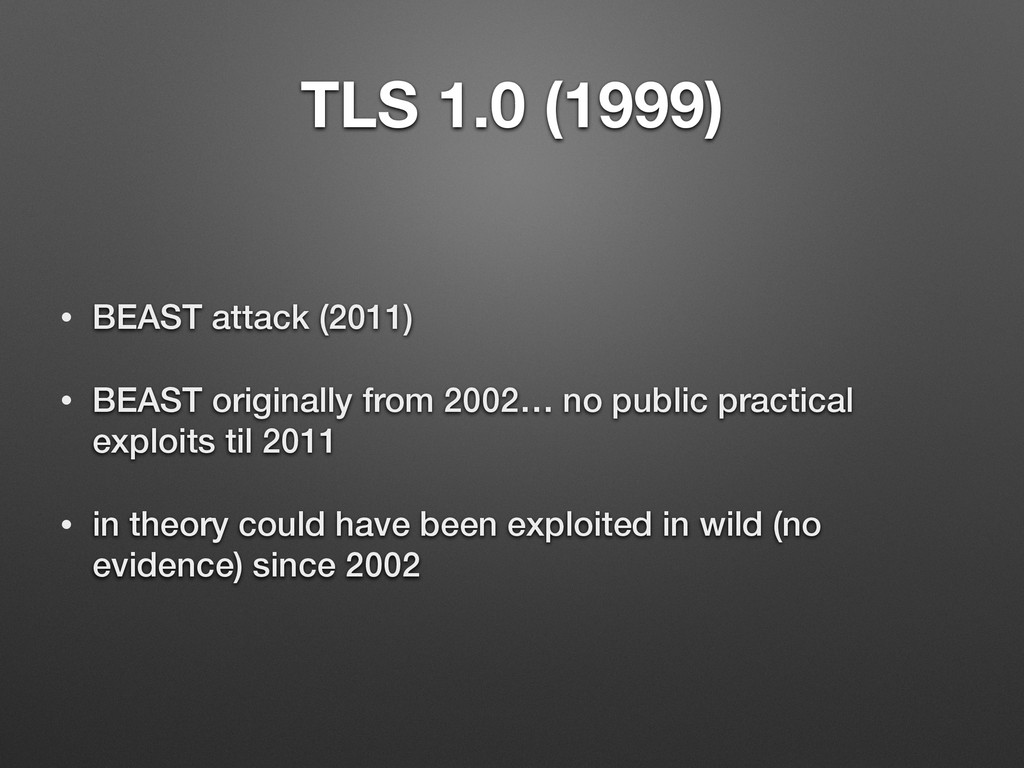

33. TLS 1.0 (1999) • BEAST attack (2011) • BEAST originally from 2002… no public practical exploits til 2011 • in theory could have been exploited in wild (no evidence) since 2002

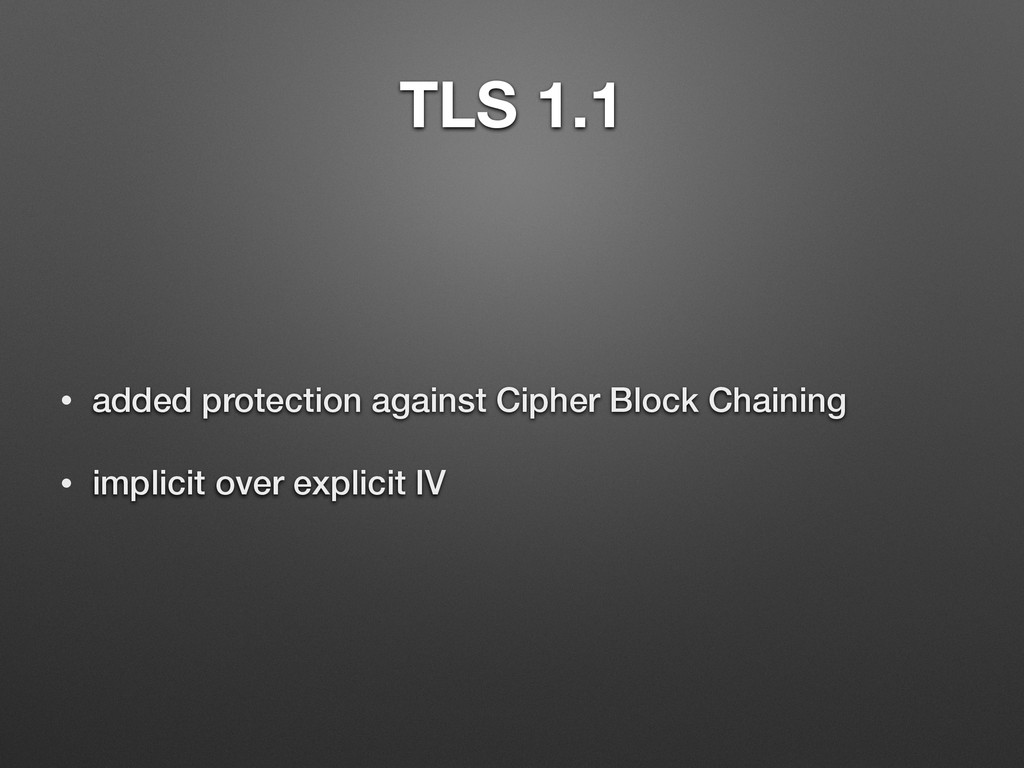

34. TLS 1.1 • added protection against Cipher Block Chaining • implicit over explicit IV

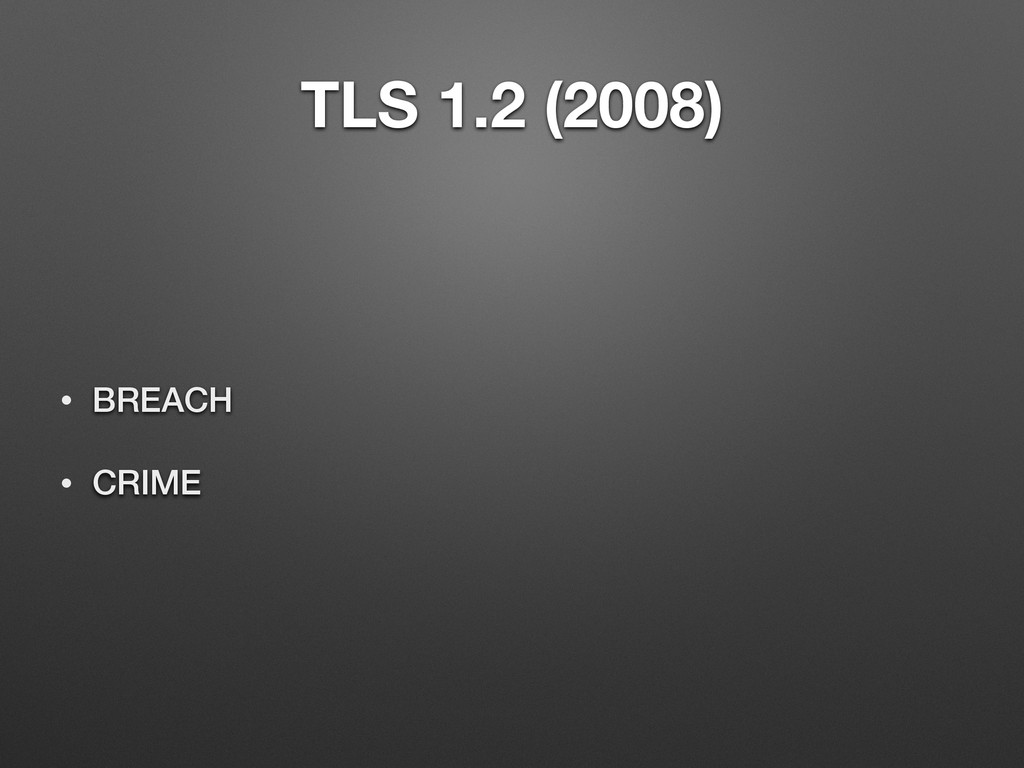

35. TLS 1.2 (2008) • BREACH • CRIME
36. Securing TLS

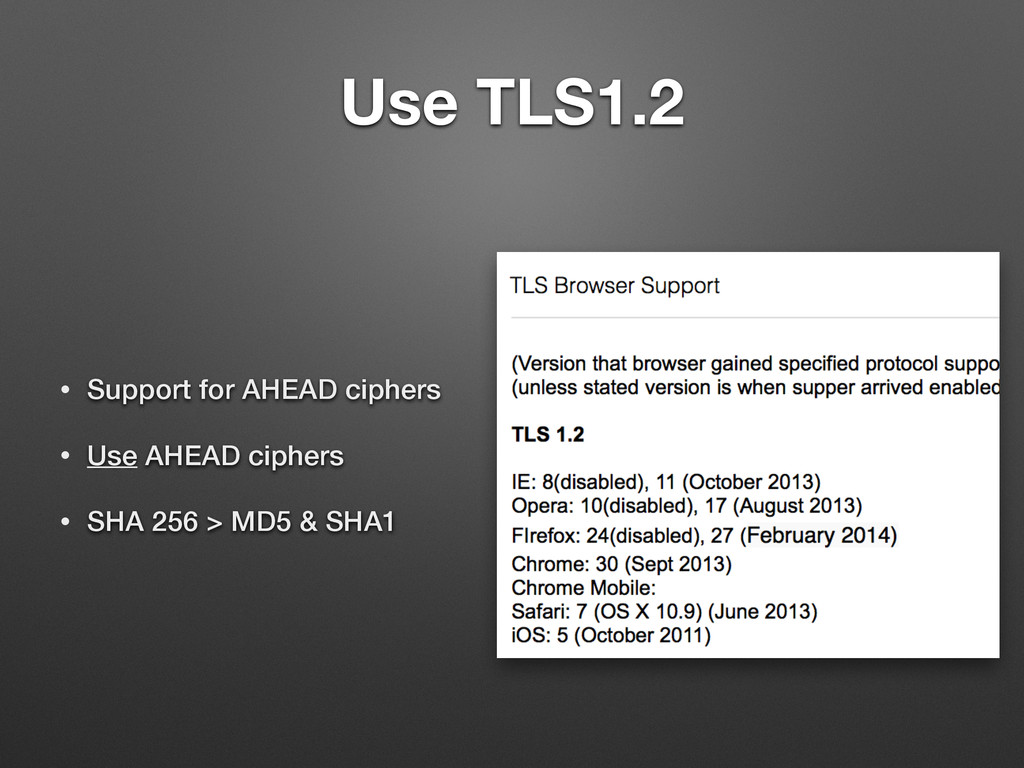

37. Use TLS1.2 • Support for AHEAD ciphers • Use AHEAD ciphers • SHA 256 > MD5 & SHA1

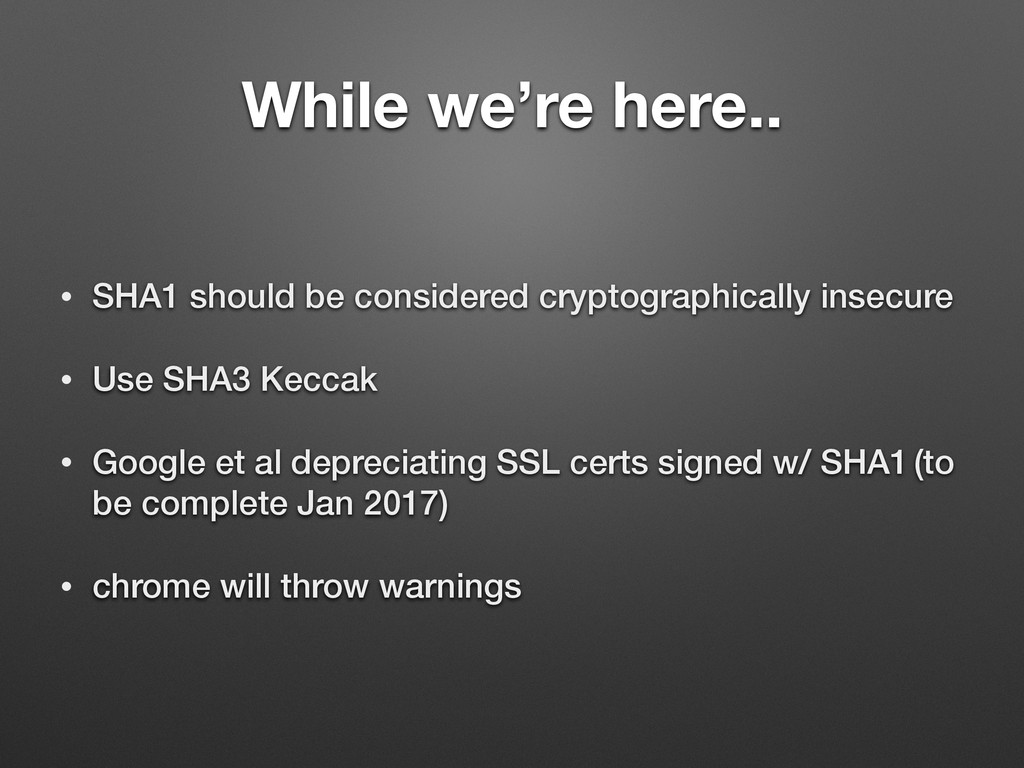

38. While we’re here.. • SHA1 should be considered cryptographically insecure • Use SHA3 Keccak • Google et al depreciating SSL certs signed w/ SHA1 (to be complete Jan 2017) • chrome will throw warnings

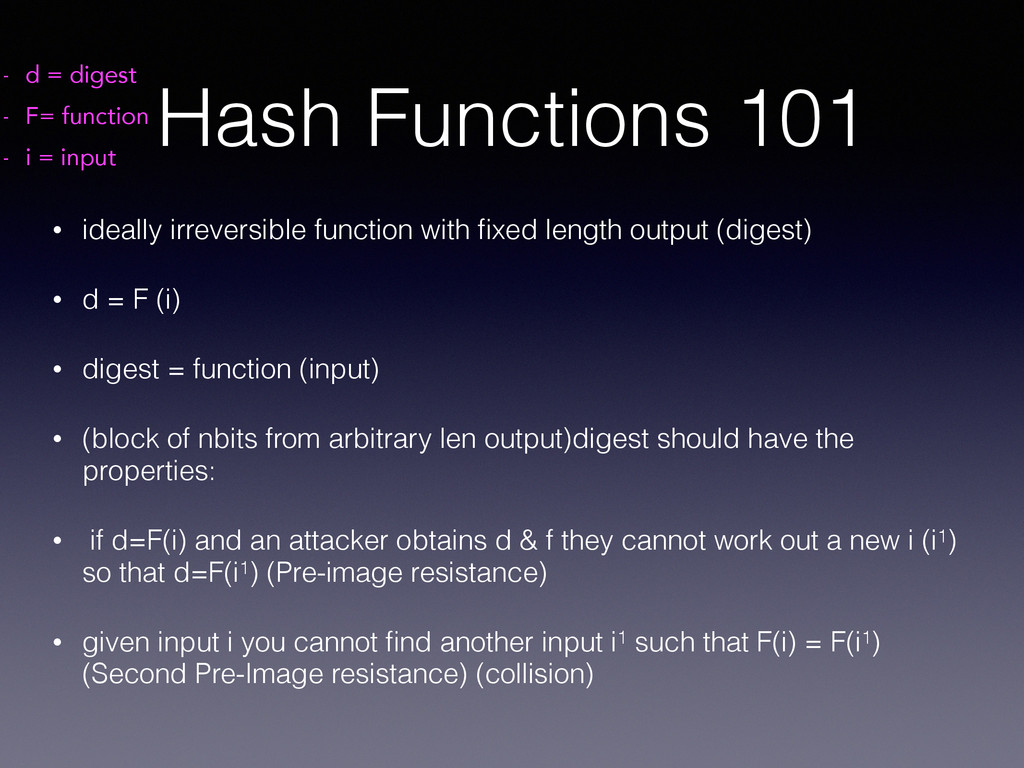

39. Hash Functions 101 • ideally irreversible function with fixed length output (digest) • d = F (i) • digest = function (input) • (block of nbits from arbitrary len output)digest should have the properties: • if d=F(i) and an attacker obtains d & f they cannot work out a new i (i1) so that d=F(i1) (Pre-image resistance) • given input i you cannot find another input i1 such that F(i) = F(i1) (Second Pre-Image resistance) (collision) - d = digest - F= function - i = input

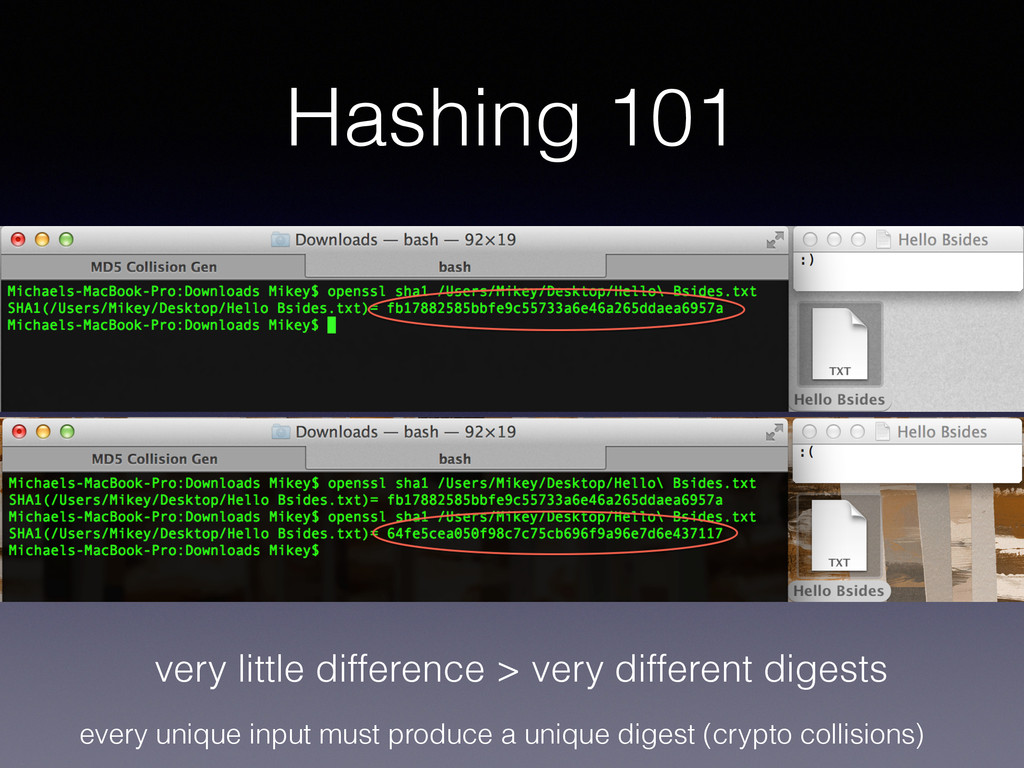

40. Hashing 101 every unique input must produce a unique digest (crypto collisions) very little difference > very different digests

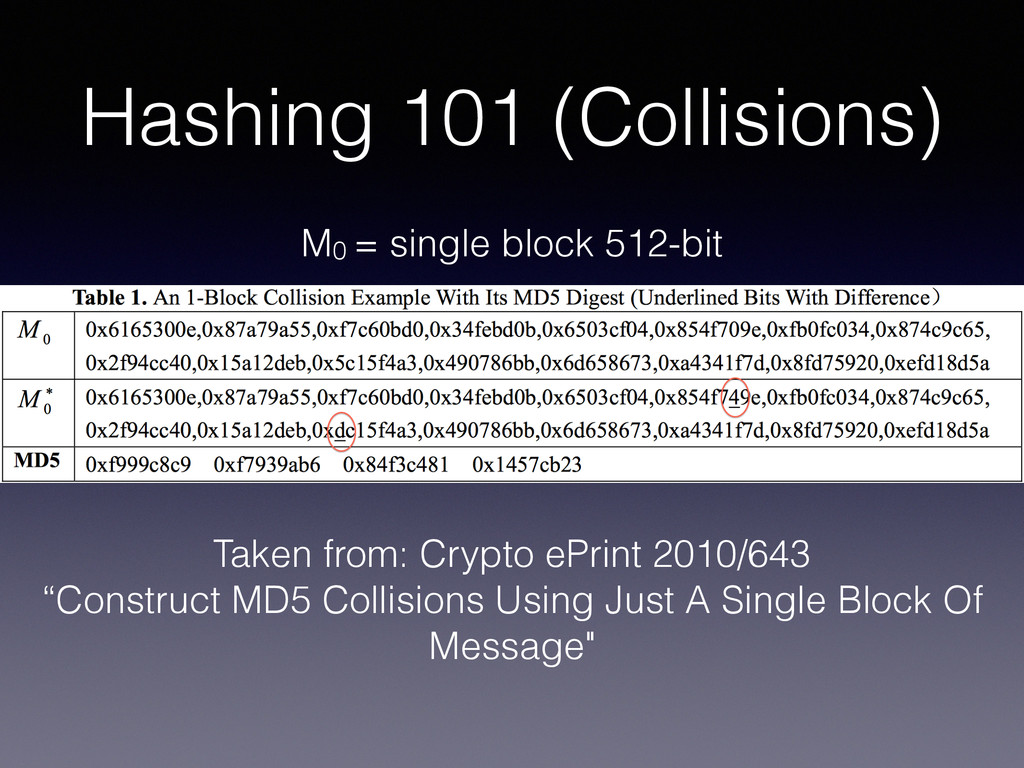

41. Hashing 101 (Collisions) Taken from: Crypto ePrint 2010/643 “Construct MD5 Collisions Using Just A Single Block Of Message" M0 = single block 512-bit

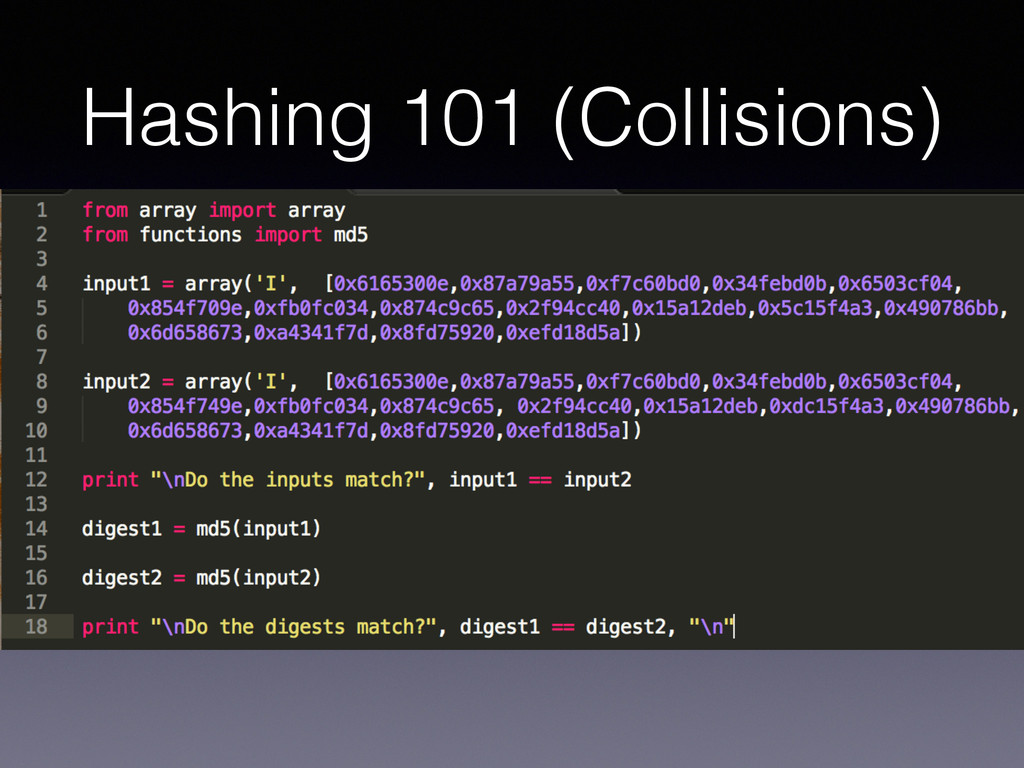

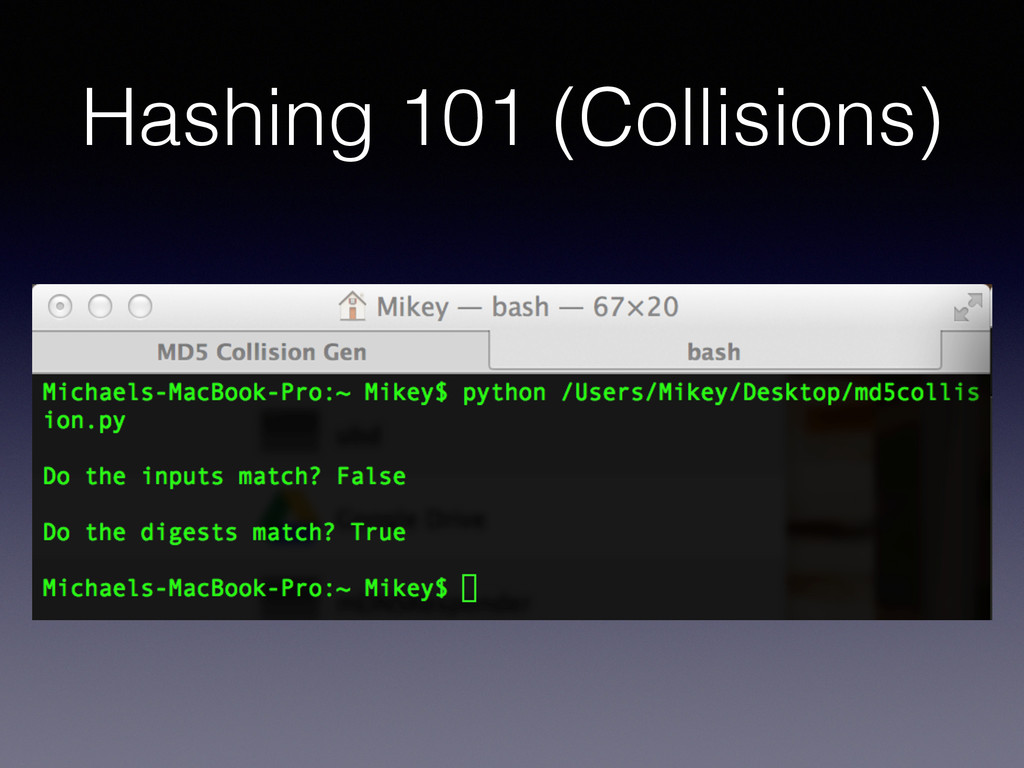

42. Hashing 101 (Collisions)
43. Hashing 101 (Collisions)

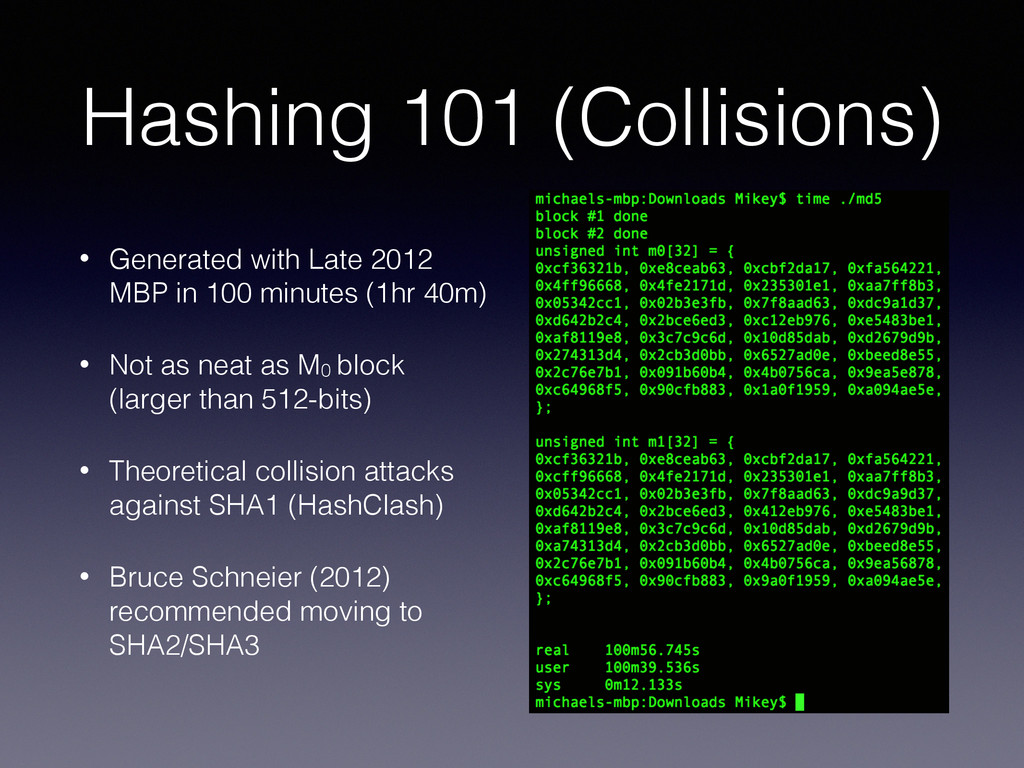

44. Hashing 101 (Collisions) • Generated with Late 2012 MBP in 100 minutes (1hr 40m) • Not as neat as M0 block (larger than 512-bits) • Theoretical collision attacks against SHA1 (HashClash) • Bruce Schneier (2012) recommended moving to SHA2/SHA3
45. PFS & HSTS • ‘Perfect’ Forward Secrecy • HTTPS Strick Transport Security

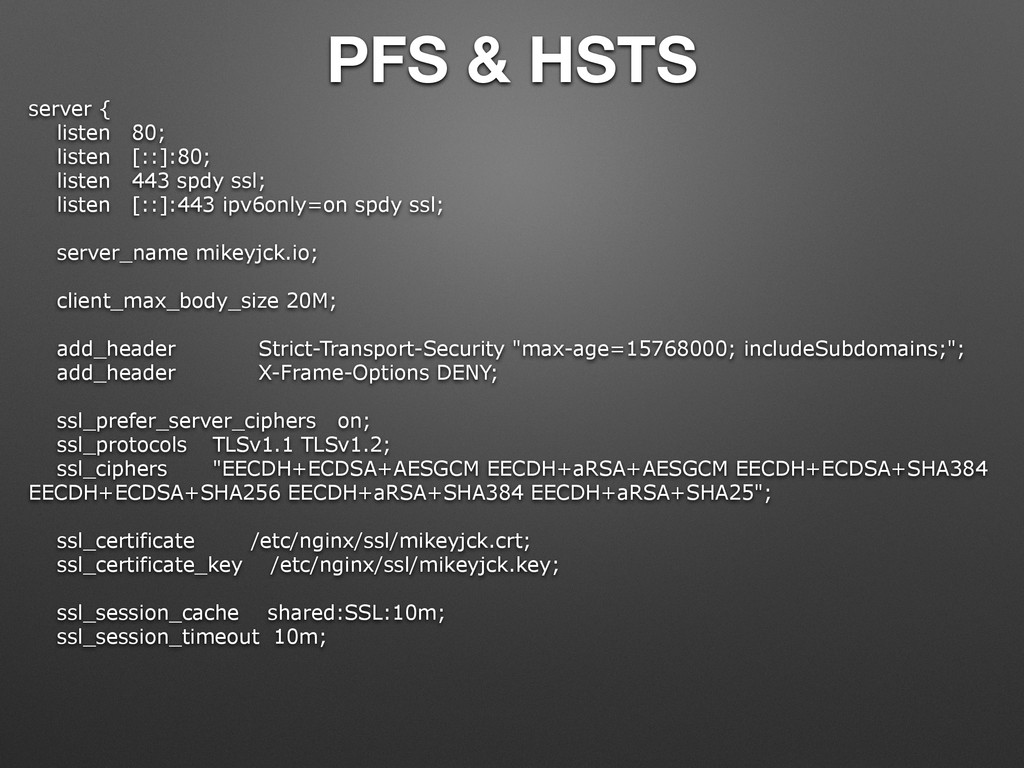

46. PFS & HSTS server { listen 80; listen [::]:80; listen 443 spdy ssl; listen [::]:443 ipv6only=on spdy ssl; server_name mikeyjck.io; client_max_body_size 20M; add_header Strict-Transport-Security "max-age=15768000; includeSubdomains;"; add_header X-Frame-Options DENY; ssl_prefer_server_ciphers on; ssl_protocols TLSv1.1 TLSv1.2; ssl_ciphers "EECDH+ECDSA+AESGCM EECDH+aRSA+AESGCM EECDH+ECDSA+SHA384 EECDH+ECDSA+SHA256 EECDH+aRSA+SHA384 EECDH+aRSA+SHA25"; ssl_certificate /etc/nginx/ssl/mikeyjck.crt; ssl_certificate_key /etc/nginx/ssl/mikeyjck.key; ssl_session_cache shared:SSL:10m; ssl_session_timeout 10m;

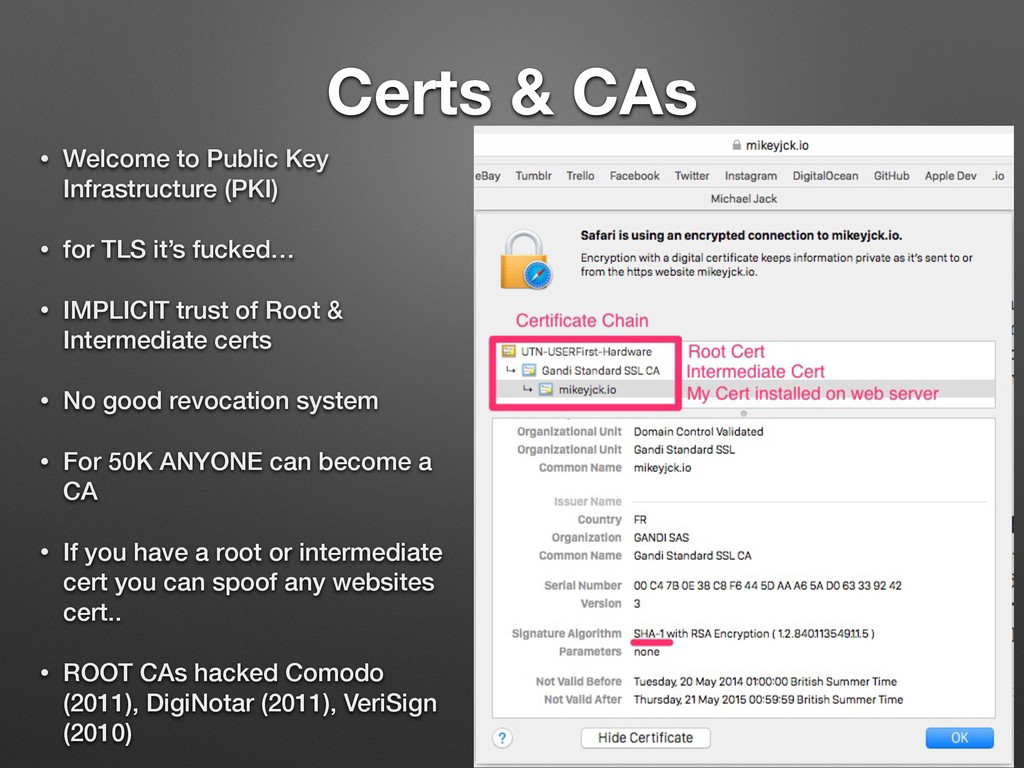

47. Certs & CAs • Welcome to Public Key Infrastructure (PKI) • for TLS it’s fucked… • IMPLICIT trust of Root & Intermediate certs • No good revocation system • For 50K ANYONE can become a CA • If you have a root or intermediate cert you can spoof any websites cert.. • ROOT CAs hacked Comodo (2011), DigiNotar (2011), VeriSign (2010)

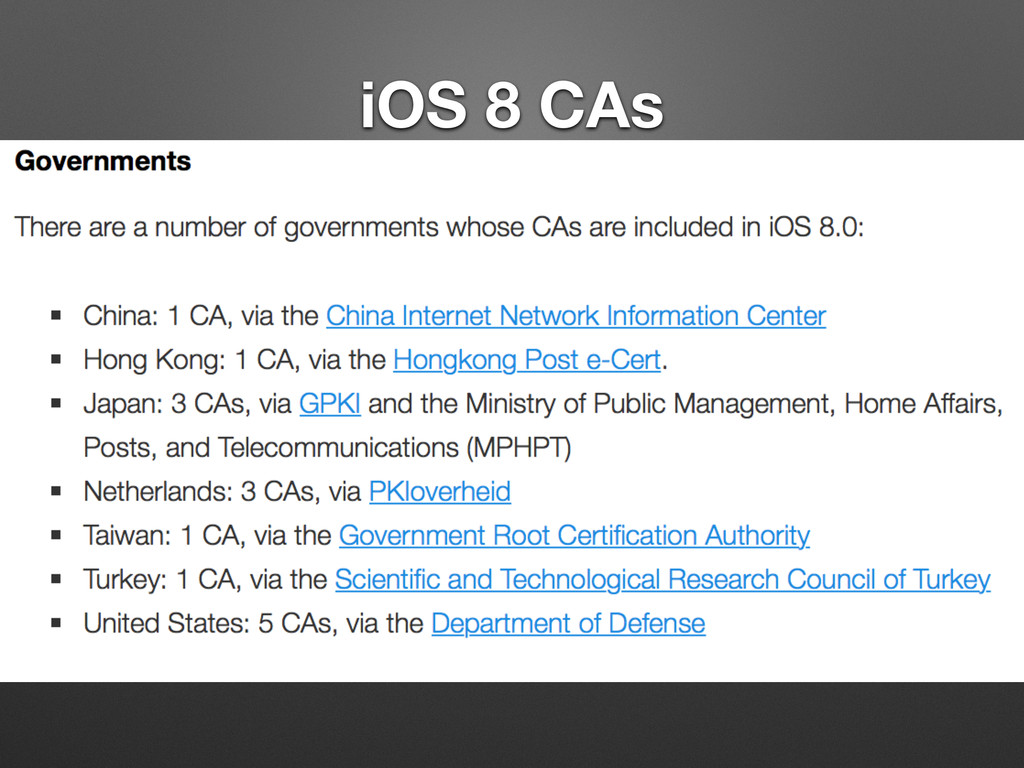

48. iOS 8 CAs

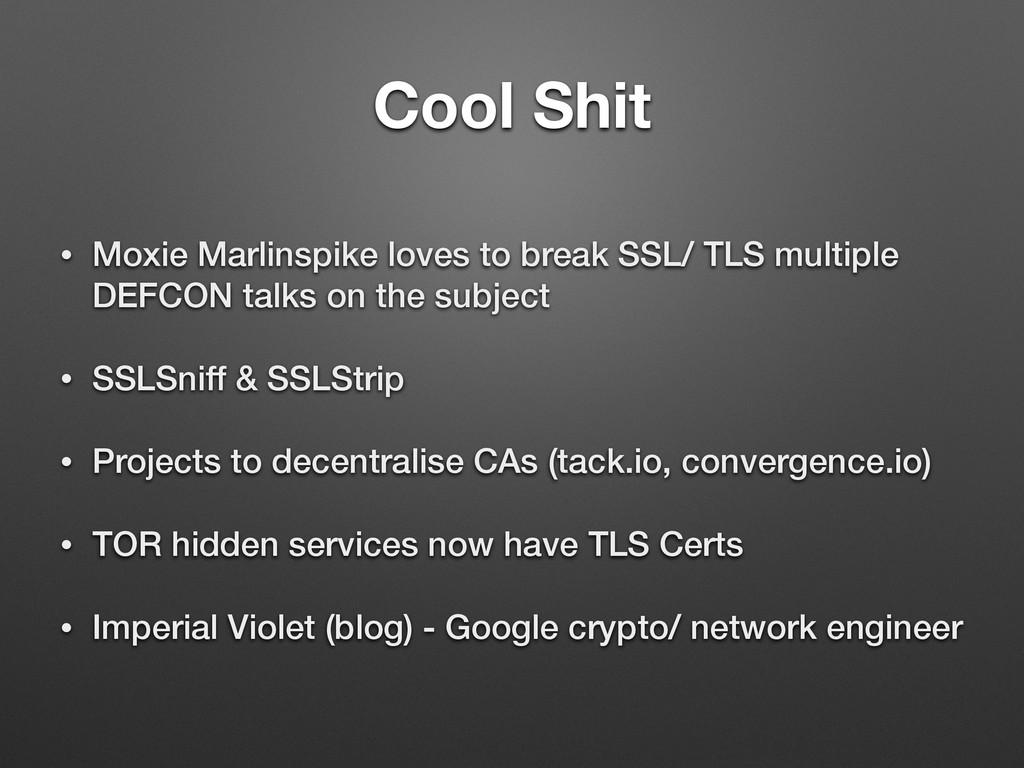

49. Cool Shit • Moxie Marlinspike loves to break SSL/ TLS multiple DEFCON talks on the subject • SSLSniff & SSLStrip • Projects to decentralise CAs (tack.io, convergence.io) • TOR hidden services now have TLS Certs • Imperial Violet (blog) - Google crypto/ network engineer
50. Questions?
