1. Aaron Parecki • May 2025 • MCP Dev Summit OAuth for MCP
2. Raise your hand if you're building... an MCP server an MCP client an OAuth server
3. Specs are not good tutorials!

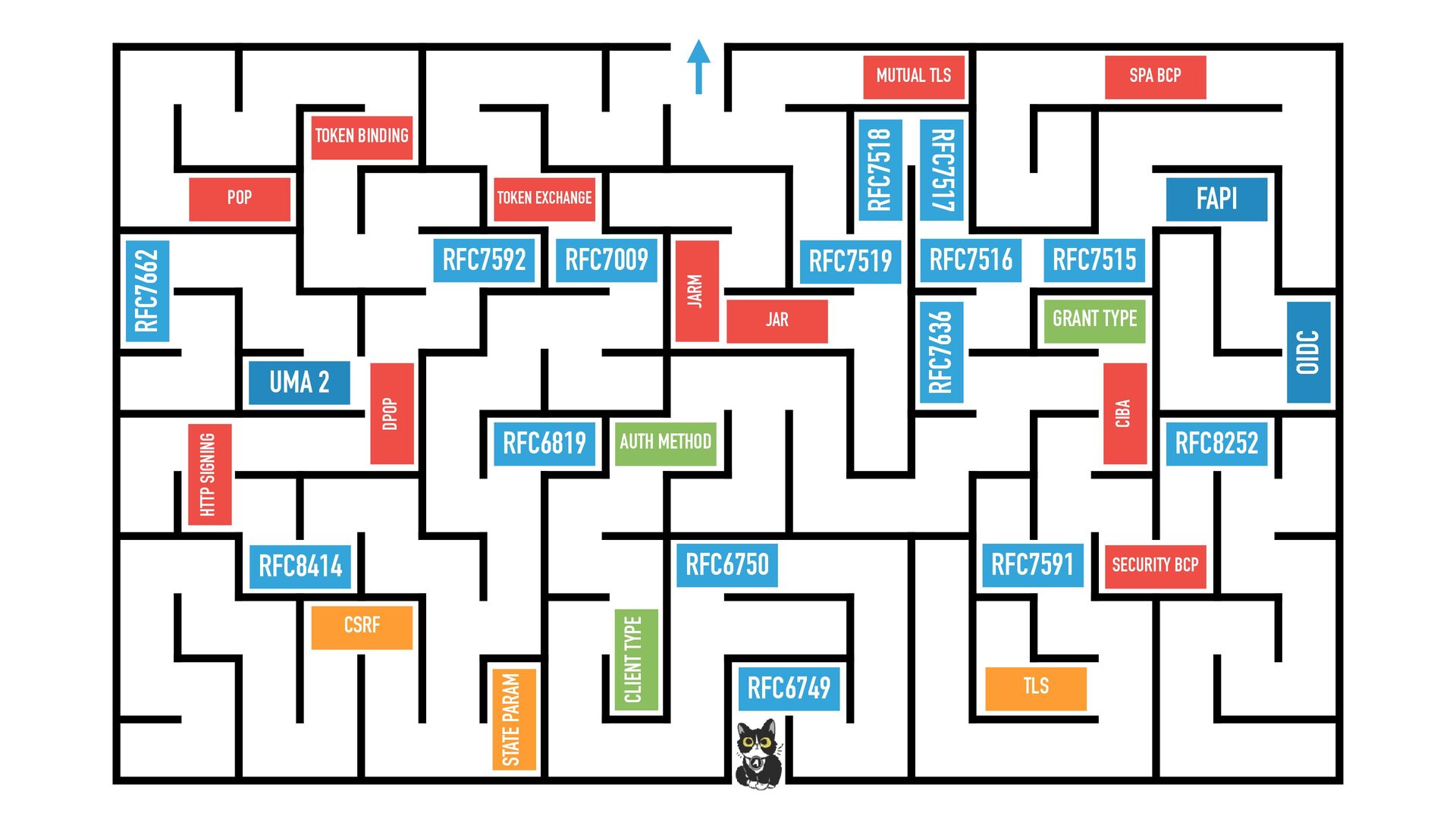

4. RFC6749 RFC6750 CLIENT TYPE AUTH METHOD GRANT TYPE RFC6819 RFC7009 RFC7592 RFC7662 RFC7636 RFC7591 RFC7519 RFC8252 OIDC RFC8414 STATE PARAM TLS CSRF UMA 2 FAPI RFC7515 RFC7516 RFC7517 RFC7518 TOKEN BINDING POP SECURITY BCP CIBA HTTP SIGNING MUTUAL TLS SPA BCP JARM JAR TOKEN EXCHANGE DPOP

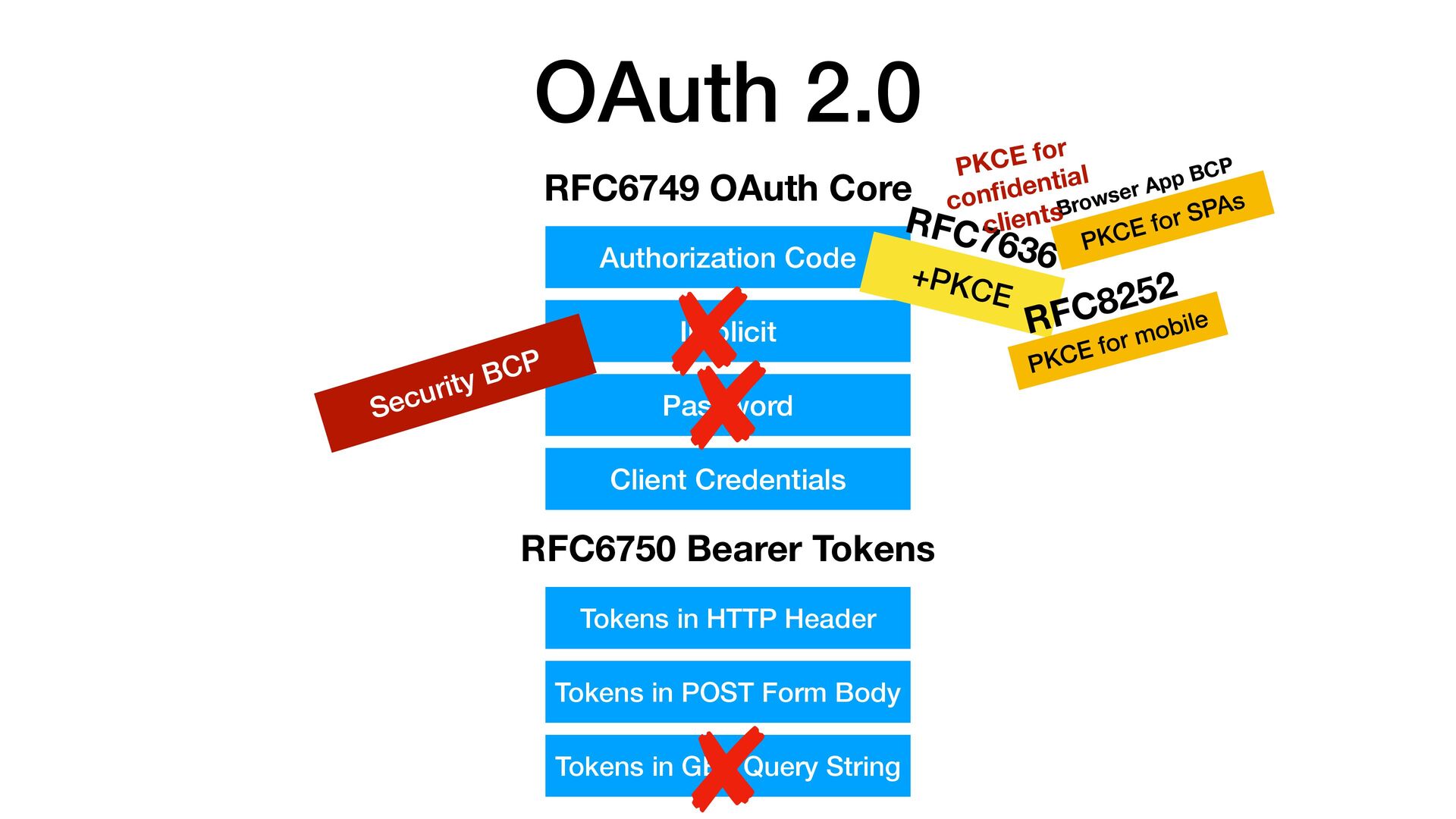

5. OAuth 2.0 RFC6749 OAuth Core Authorization Code Implicit Password Client Credentials RFC6750 Bearer Tokens Tokens in HTTP Header Tokens in POST Form Body Tokens in GET Query String RFC7636 +PKCE RFC8252 PKCE for mobile Browser App BCP PKCE for SPAs PKCE for con fi dential clients Security BCP

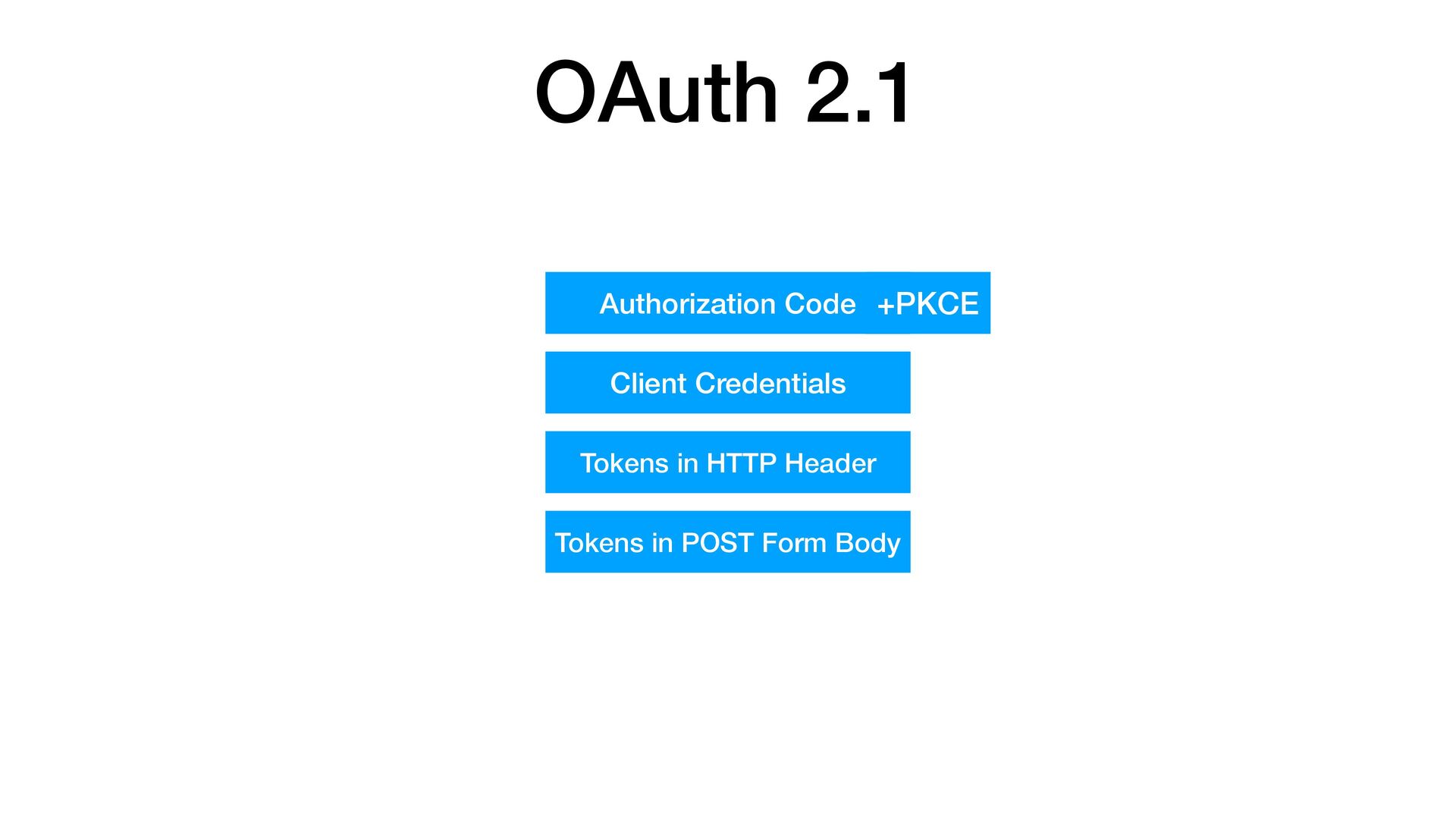

6. OAuth 2.1 Authorization Code Client Credentials +PKCE Tokens in HTTP Header Tokens in POST Form Body

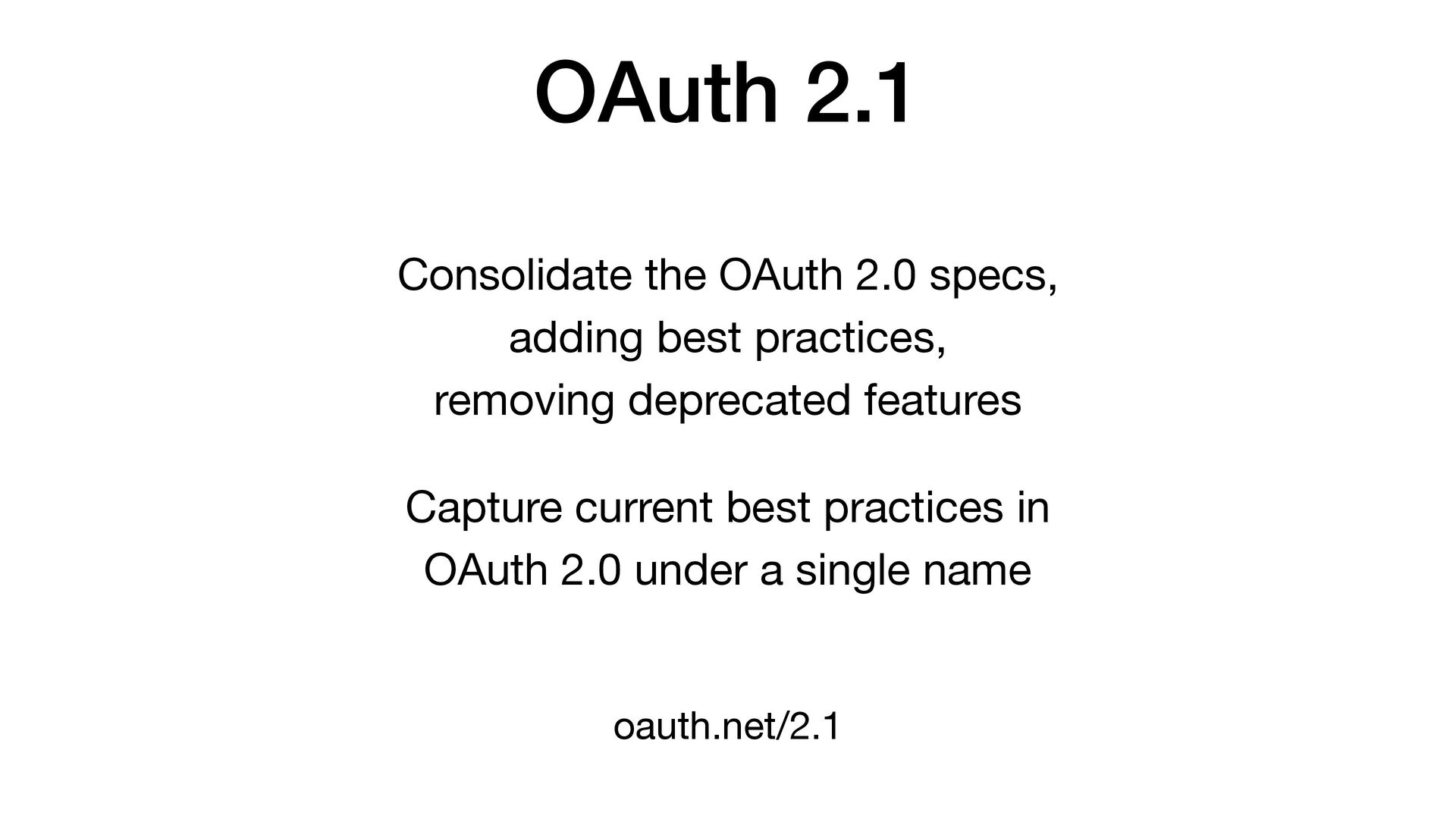

7. OAuth 2.1 Consolidate the OAuth 2.0 specs,
 adding best practices,
 removing deprecated features Capture current best practices in OAuth 2.0 under a single name oauth.net/2.1

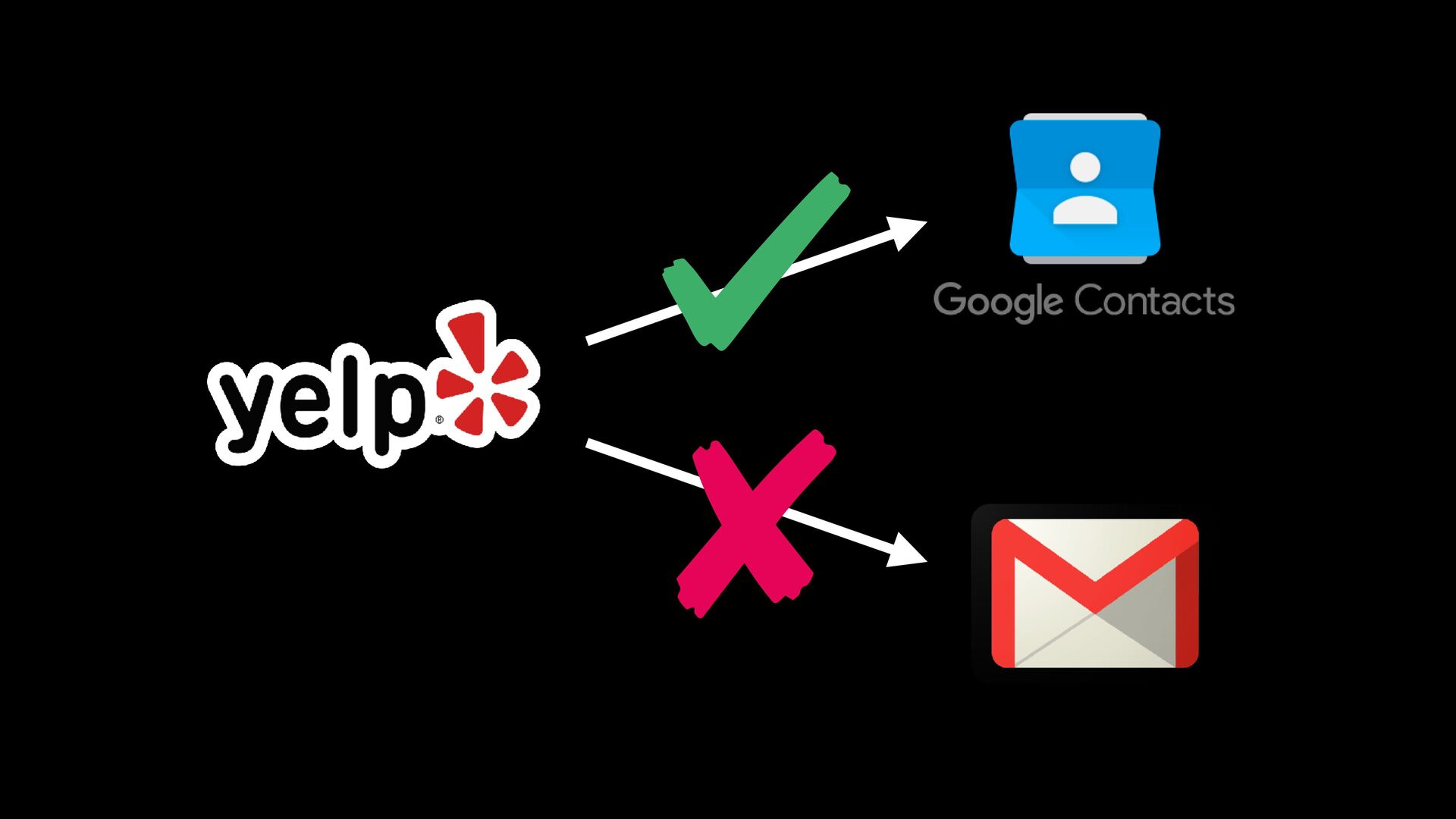

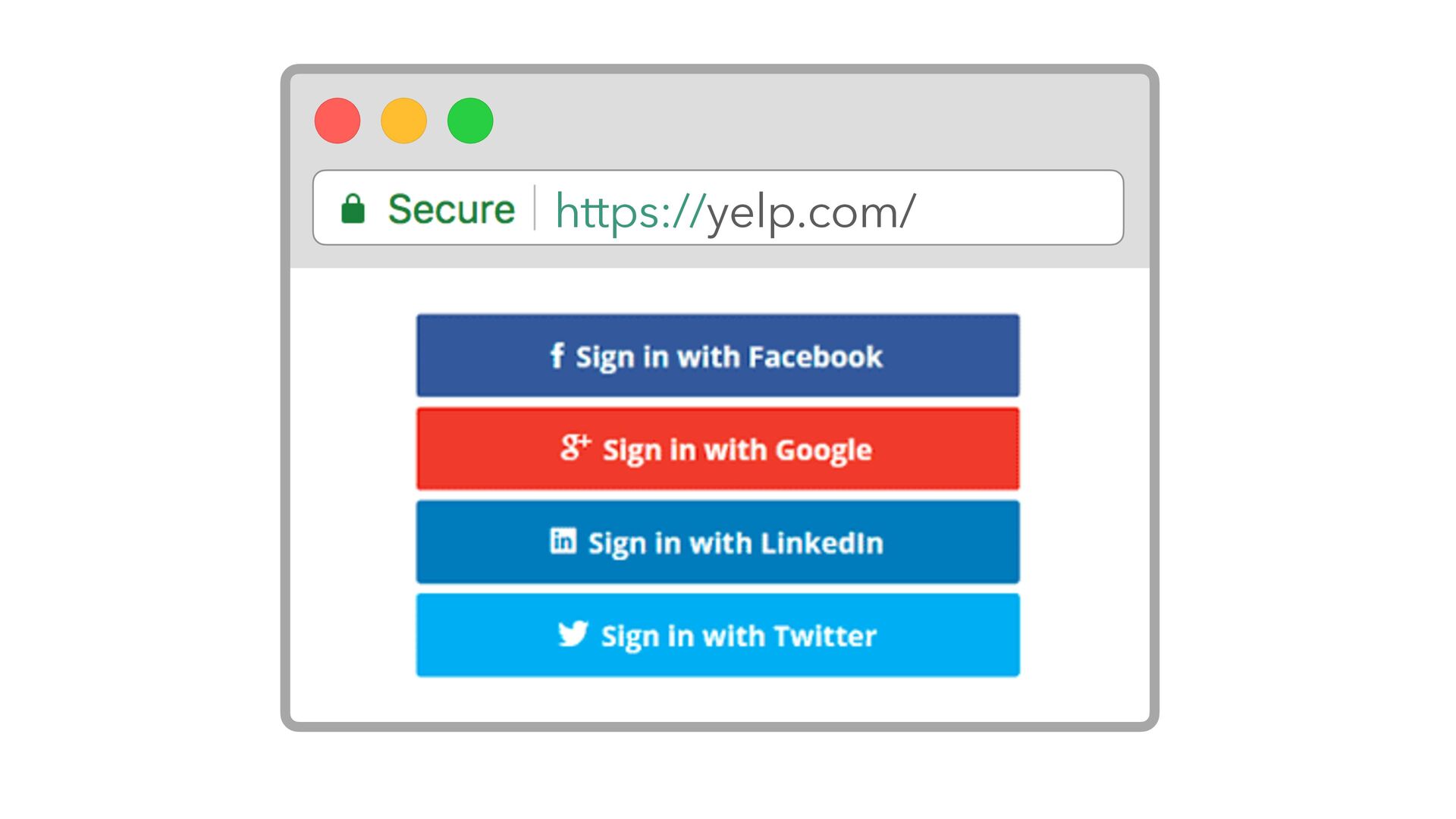

8. https://yelp.com/

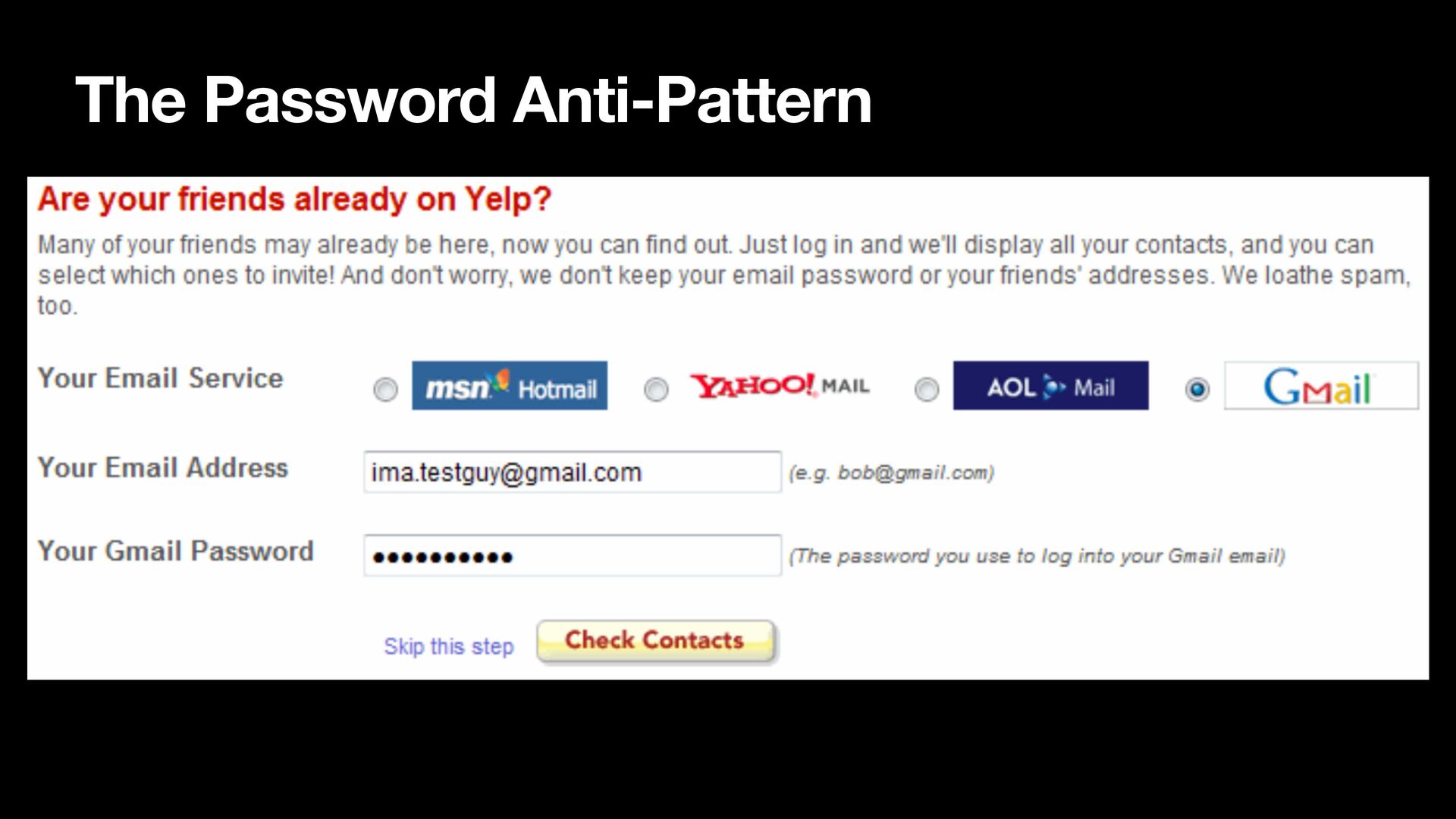

9. The Password Anti-Pattern

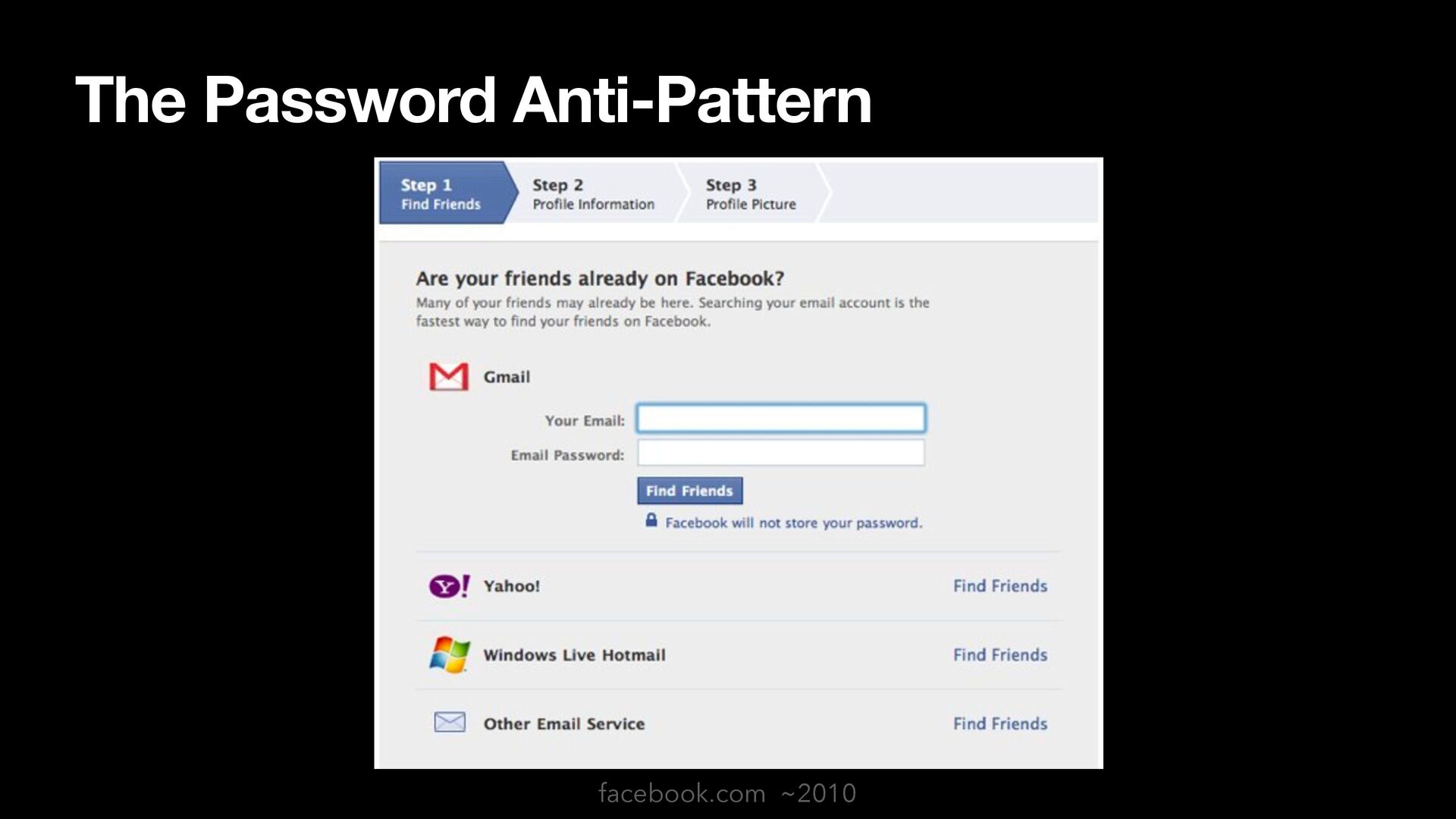

10. The Password Anti-Pattern facebook.com ~2010

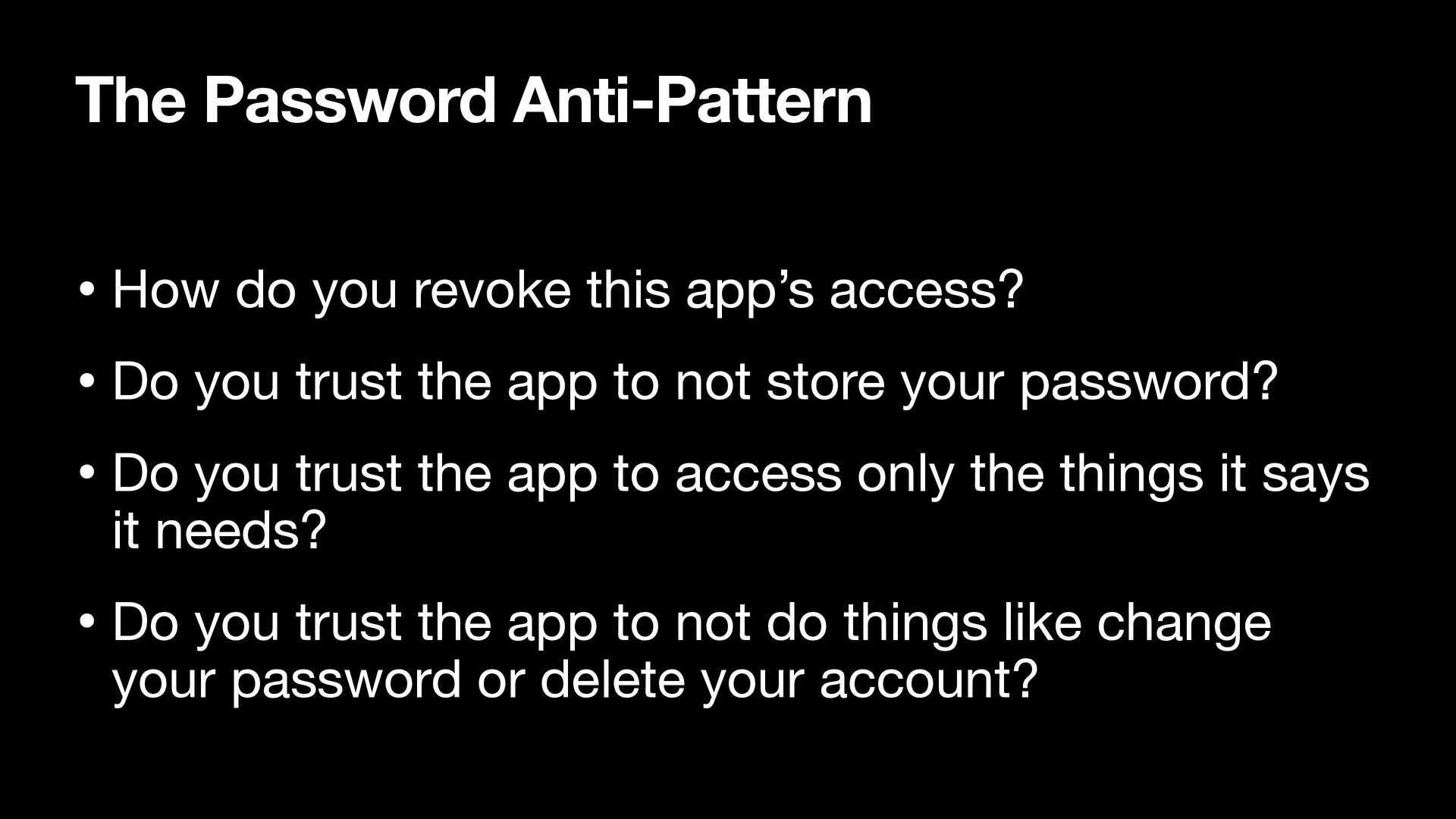

11. The Password Anti-Pattern • How do you revoke this app’s access? • Do you trust the app to not store your password? • Do you trust the app to access only the things it says it needs? • Do you trust the app to not do things like change your password or delete your account?
13. how can I let an app access my data without giving it my password?

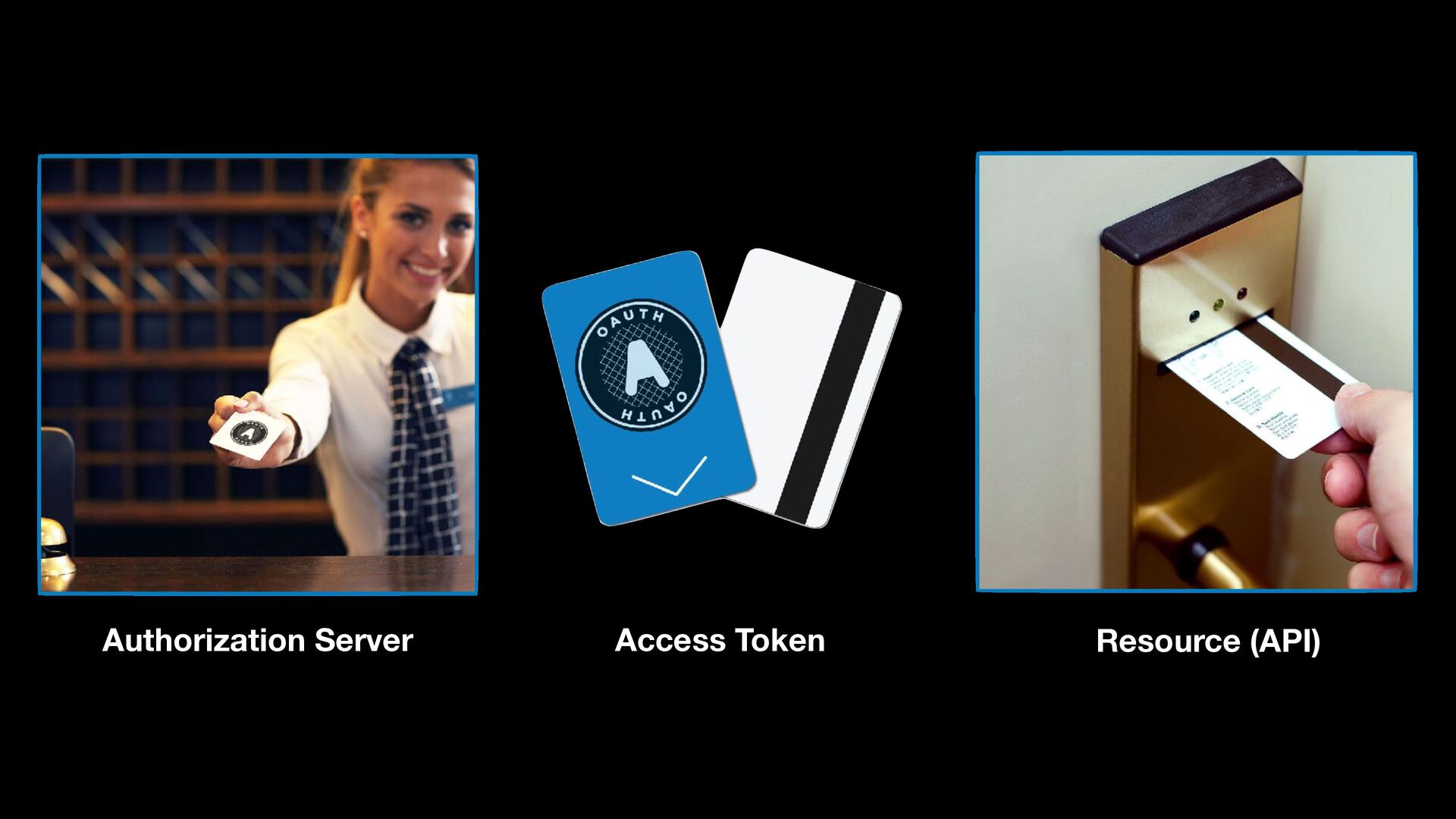

14. Authorization Server Access Token Resource (API)
15. https://unsplash.com/photos/GJY1eAw6tn8
17. Application OAuth Server

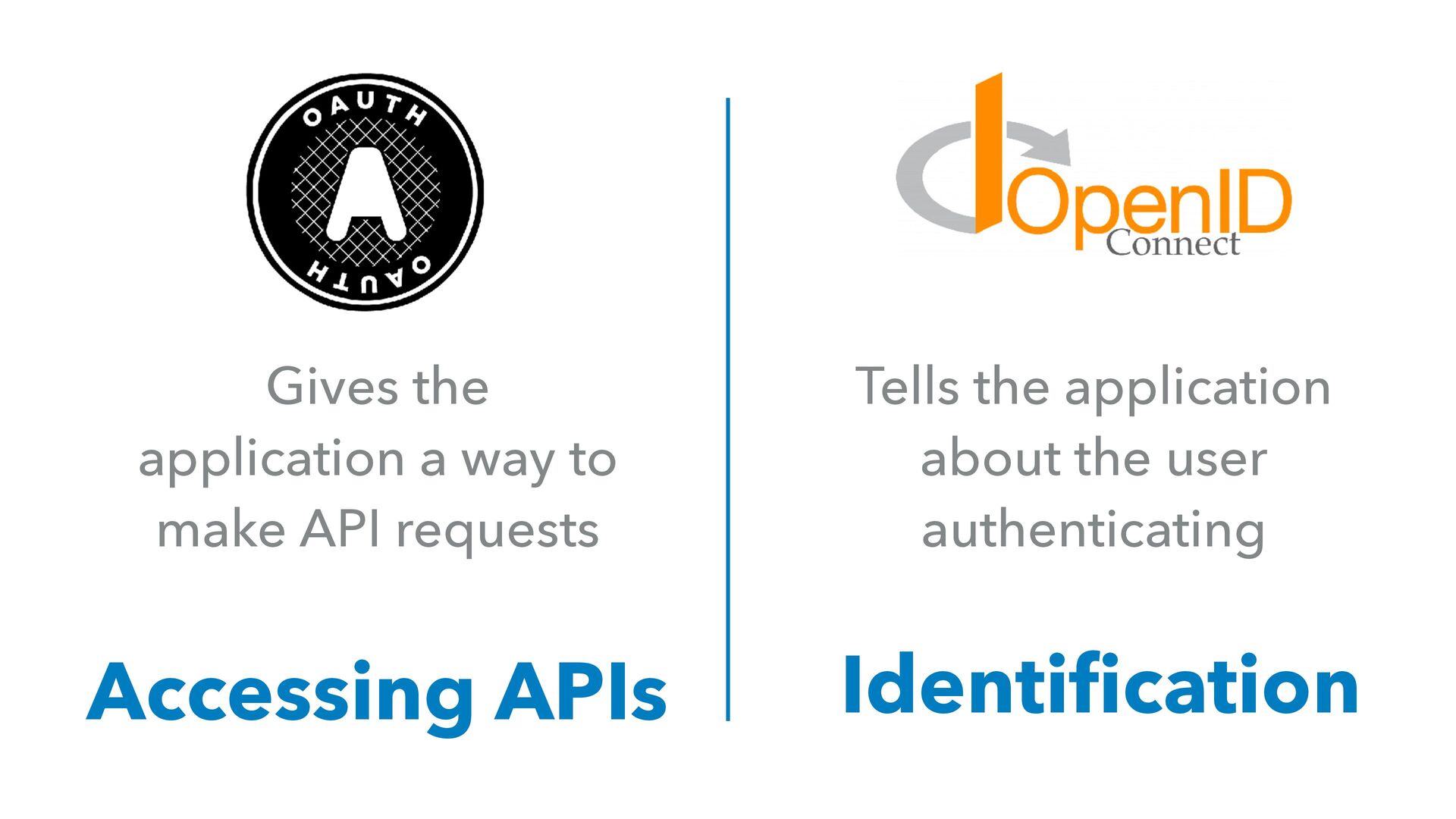

19. Identification Accessing APIs Tells the application about the user authenticating Gives the application a way to make API requests

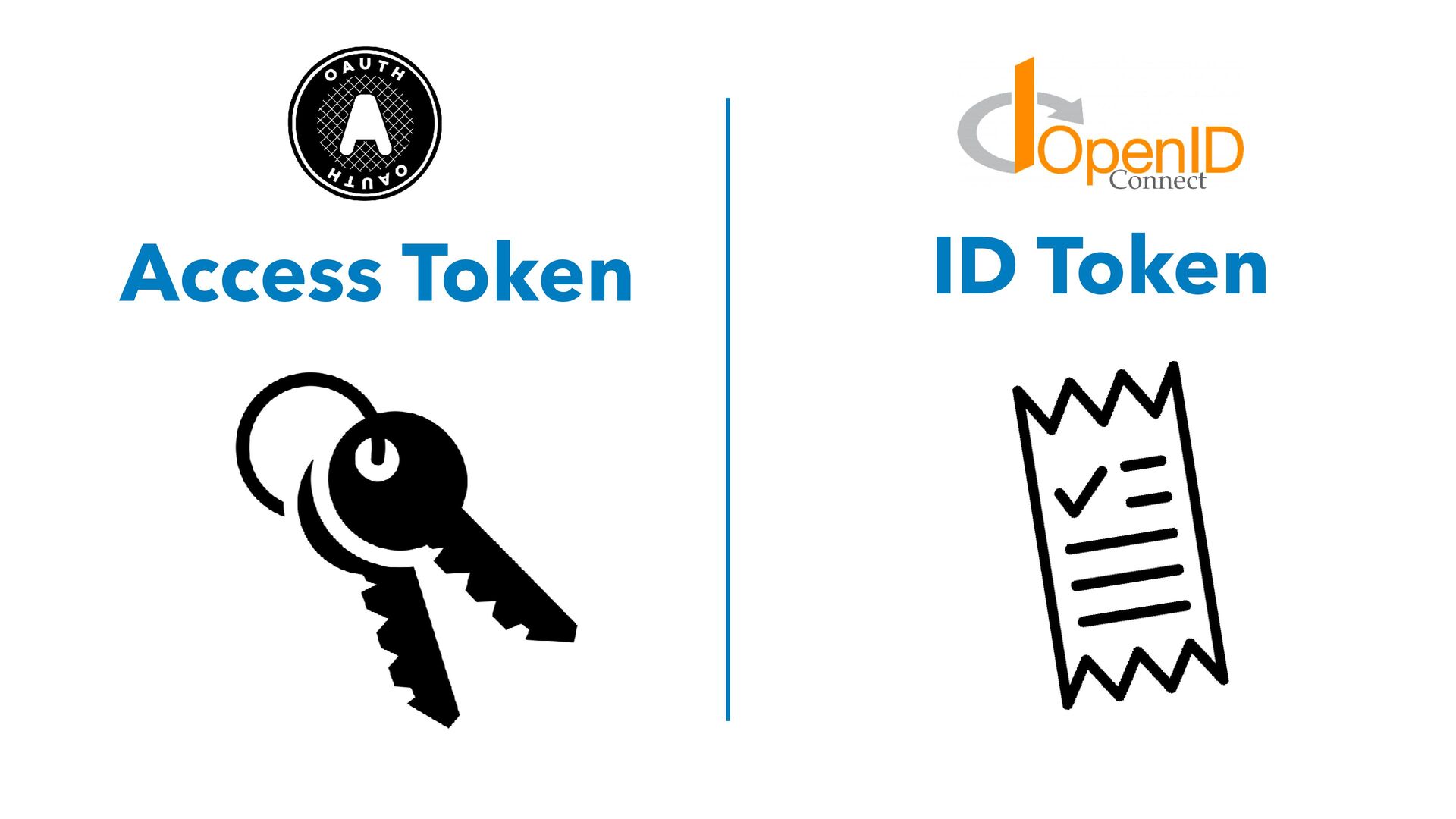

20. Tells the application about the user authenticating Gives the application a way to make API requests ID Token Access Token

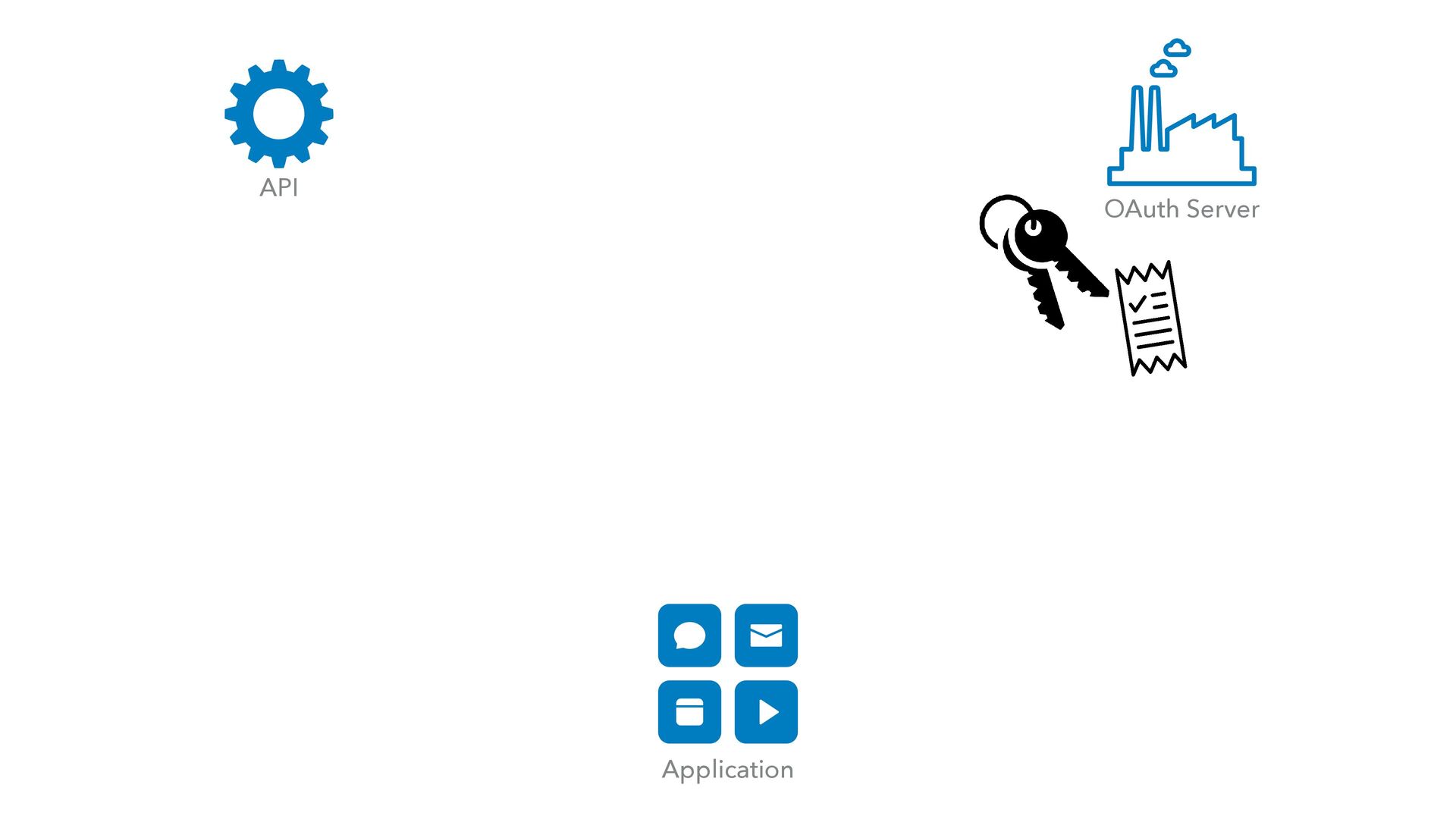

21. ID Token Access Token
22. OAuth Server Application API

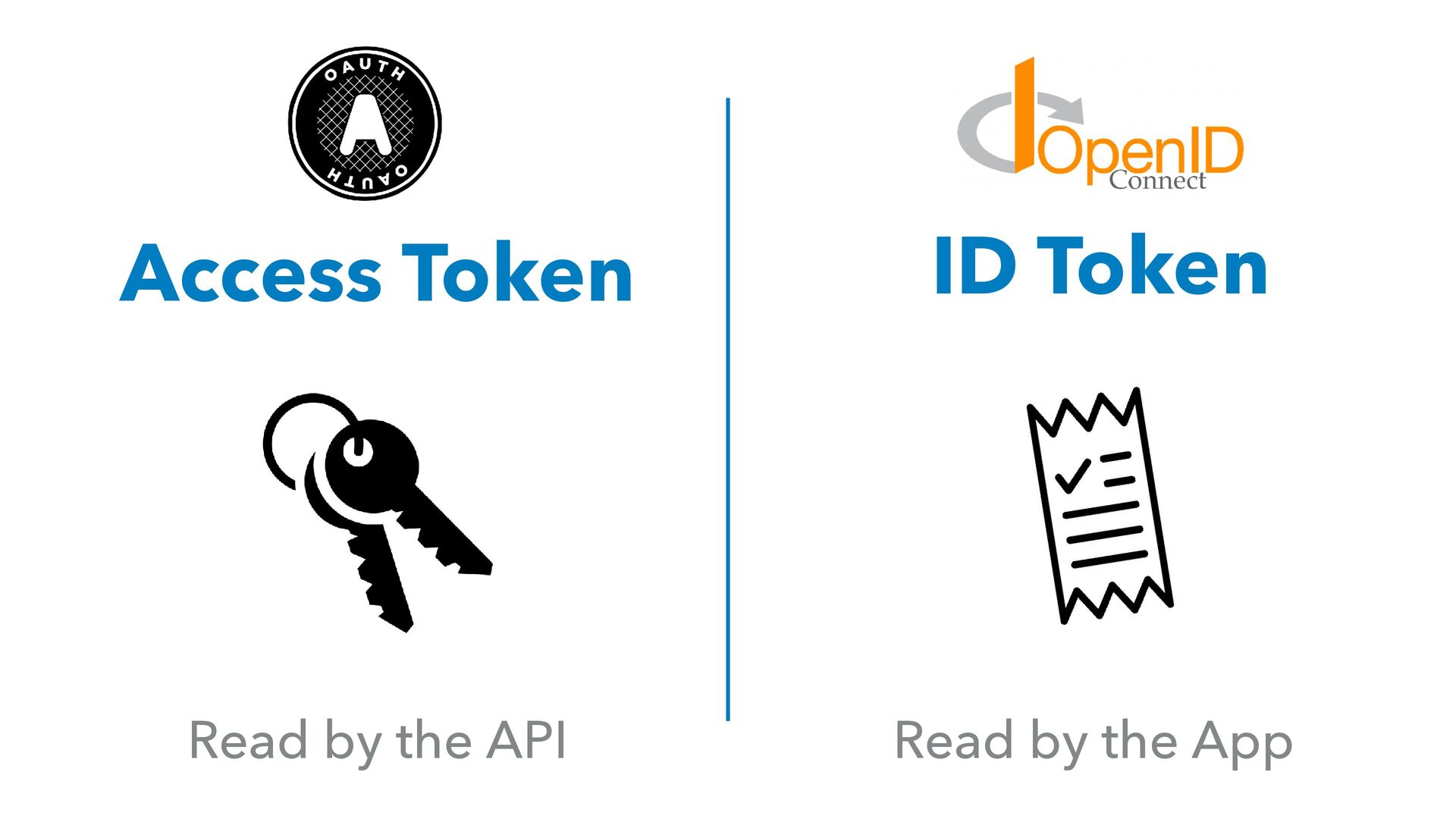

23. ID Token Access Token Read by the App Read by the API

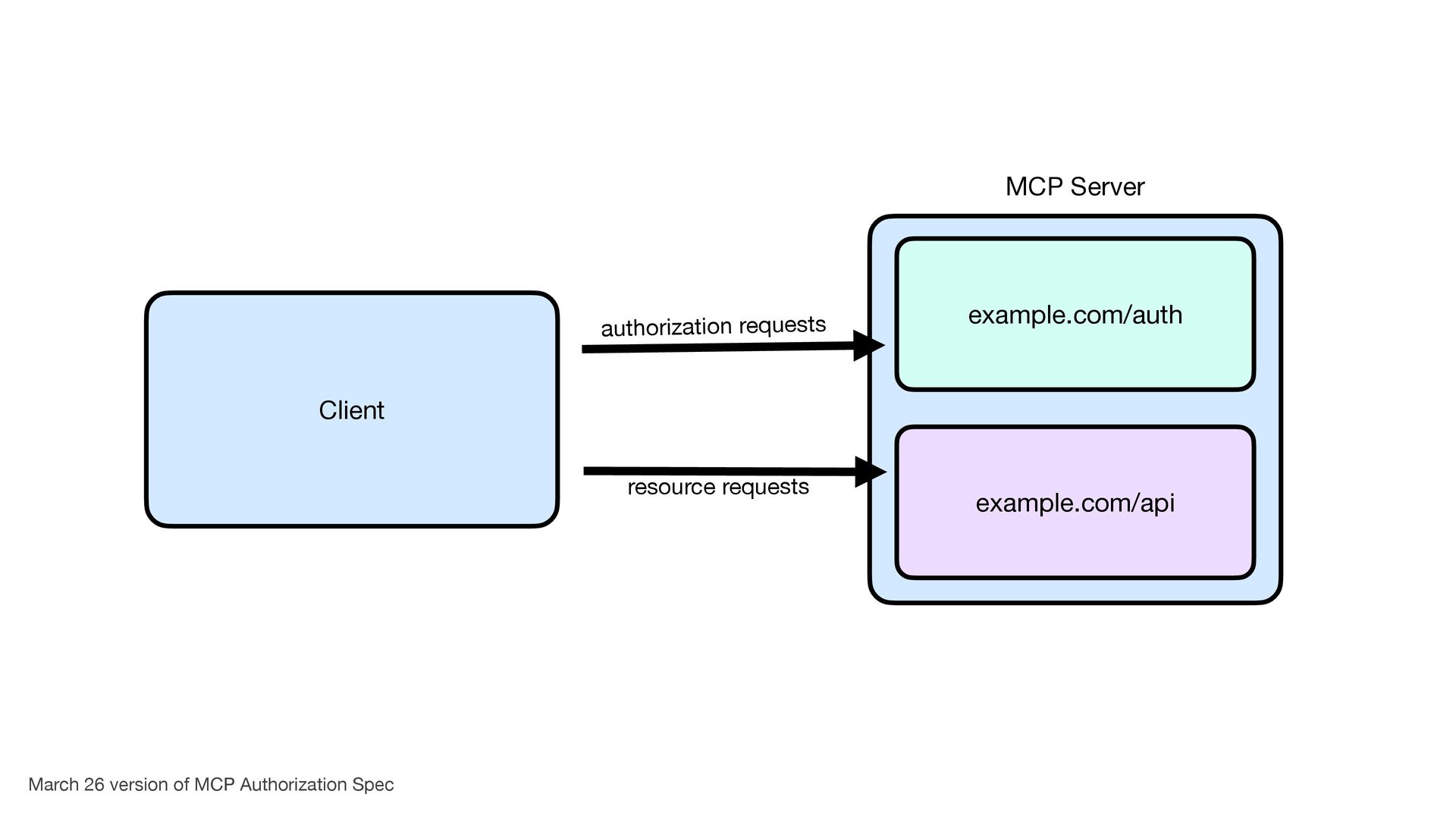

24. example.com/auth example.com/api Client authorization requests resource requests MCP Server March 26 version of MCP Authorization Spec

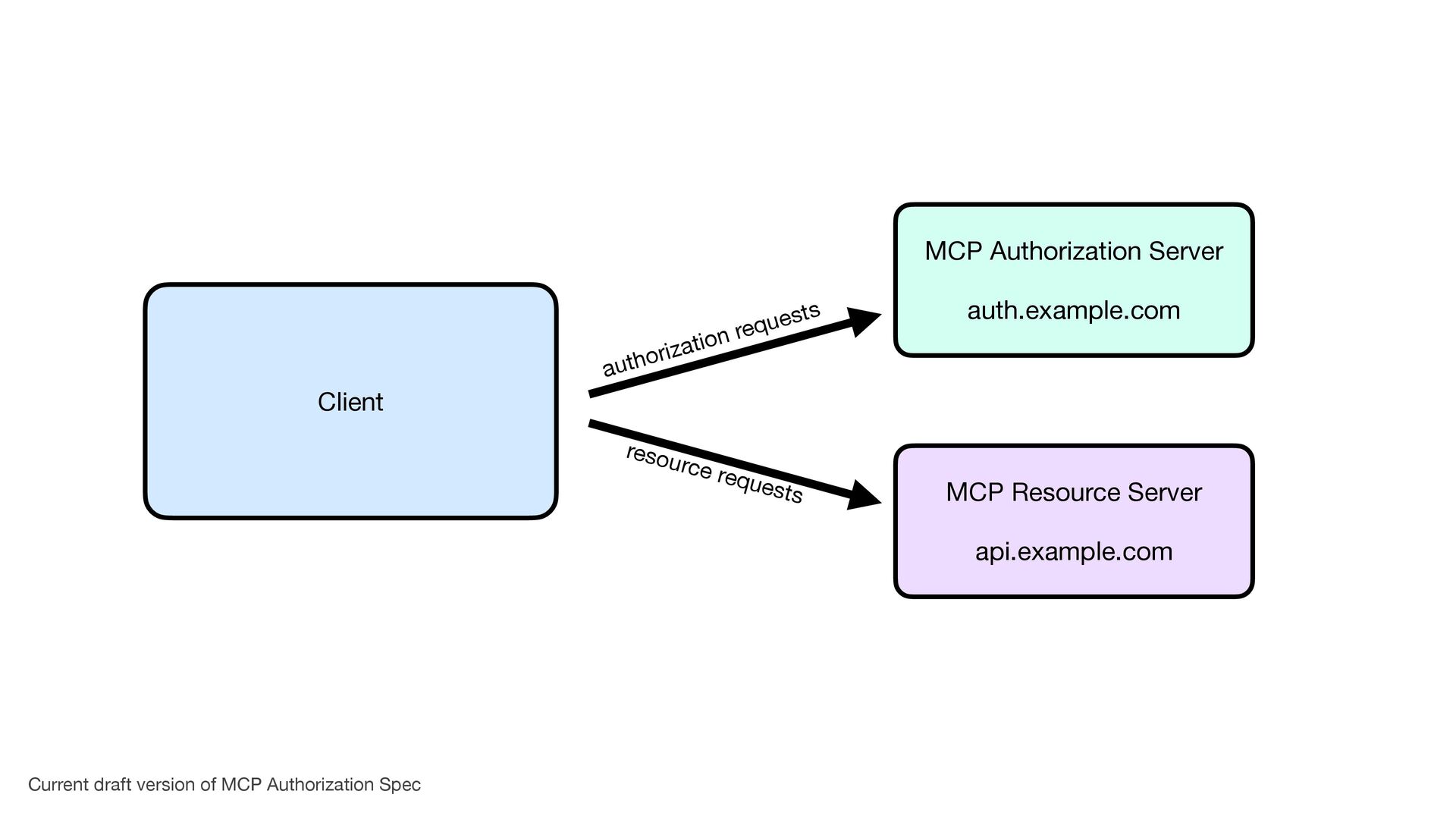

25. MCP Authorization Server auth.example.com MCP Resource Server api.example.com Client authorization requests resource requests Current draft version of MCP Authorization Spec

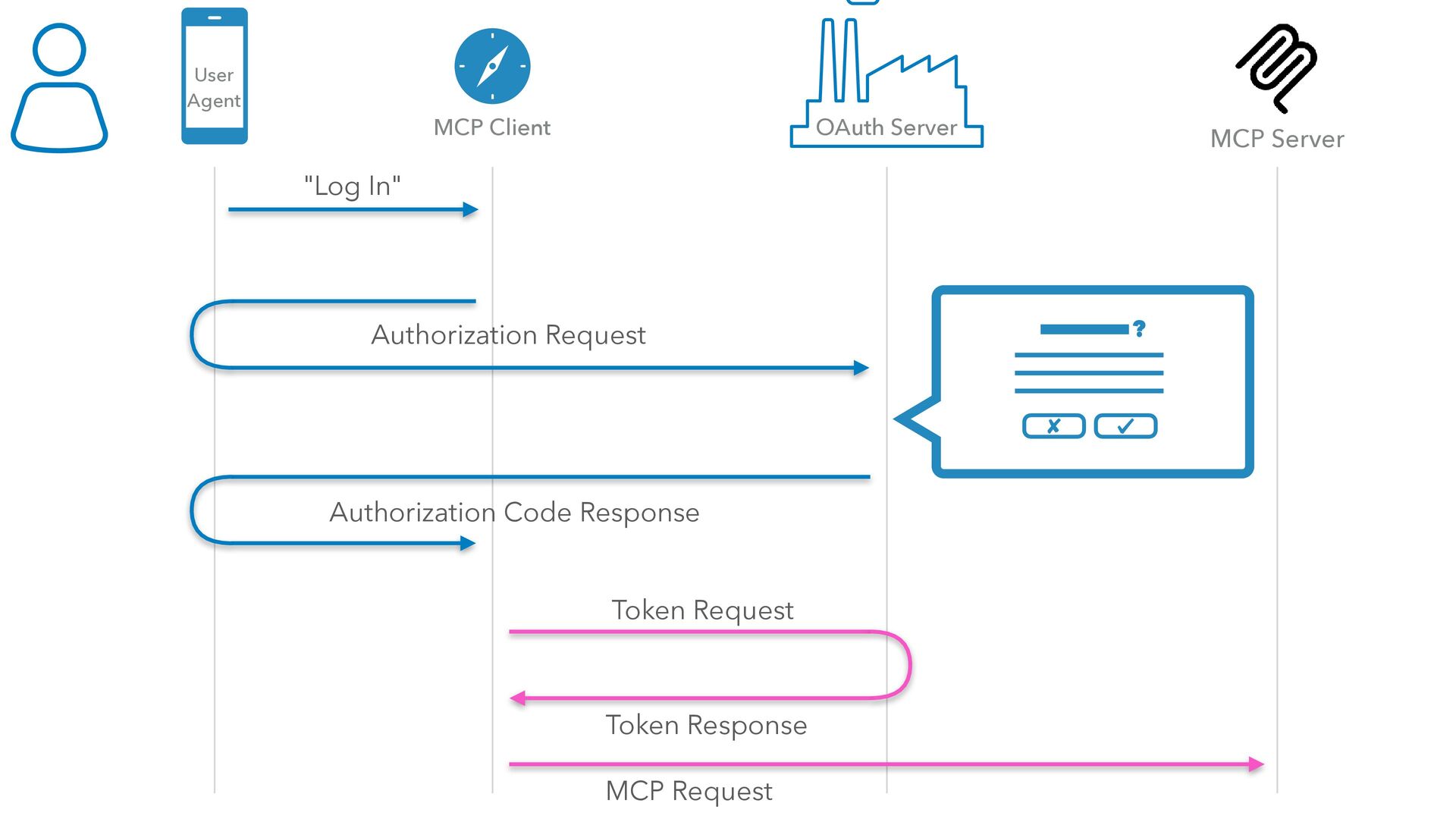

26. User Agent MCP Client OAuth Server MCP Server ? Authorization Request Authorization Code Response Token Request Token Response "Log In" MCP Request

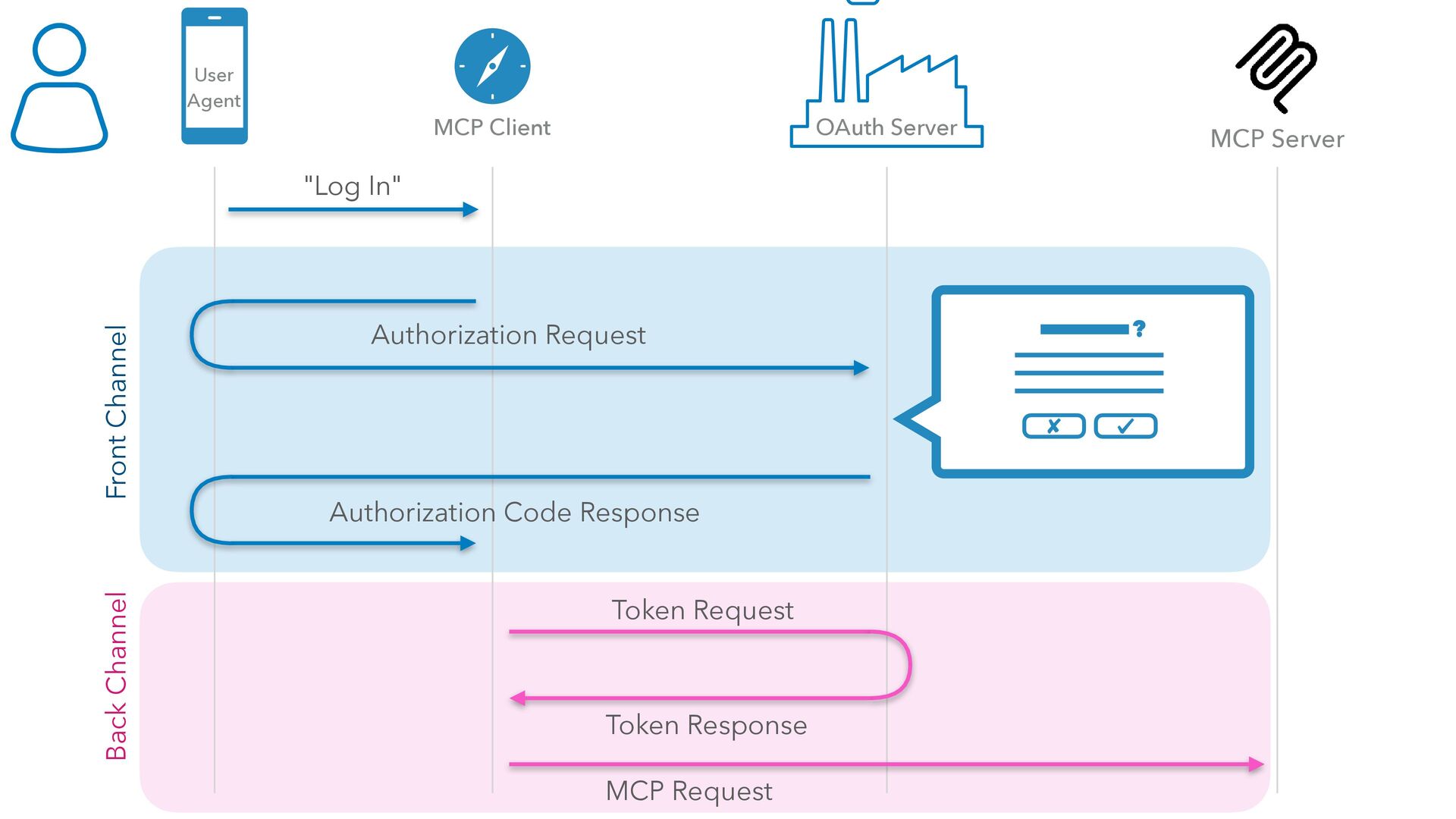

27. User Agent OAuth Server Authorization Request Authorization Code Response Token Request Token Response "Log In" Front Channel Back Channel MCP Request MCP Client MCP Server ?

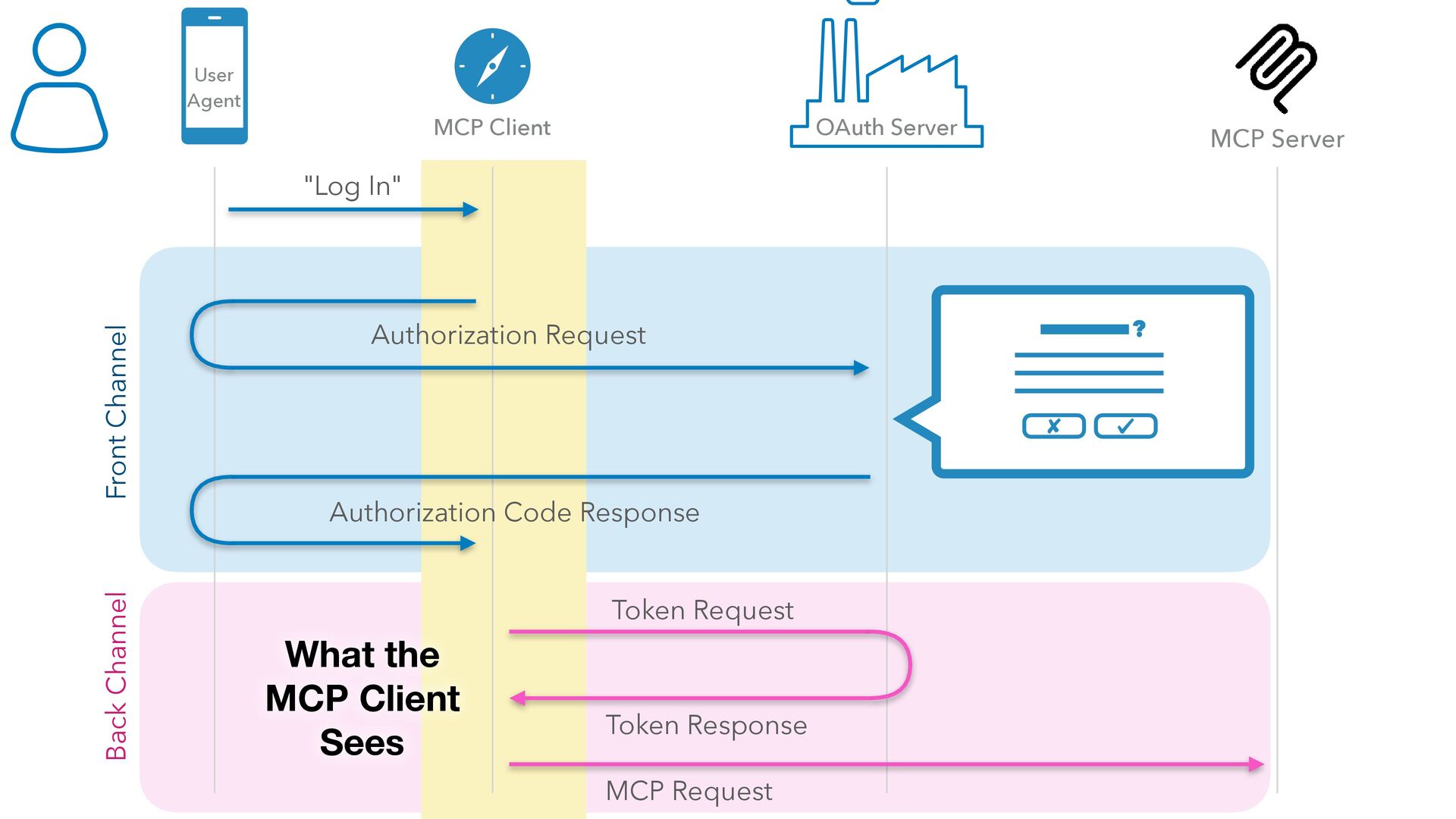

28. User Agent OAuth Server Authorization Request Authorization Code Response Token Request Token Response "Log In" Front Channel Back Channel MCP Request MCP Client MCP Server What the
 MCP Client Sees ?

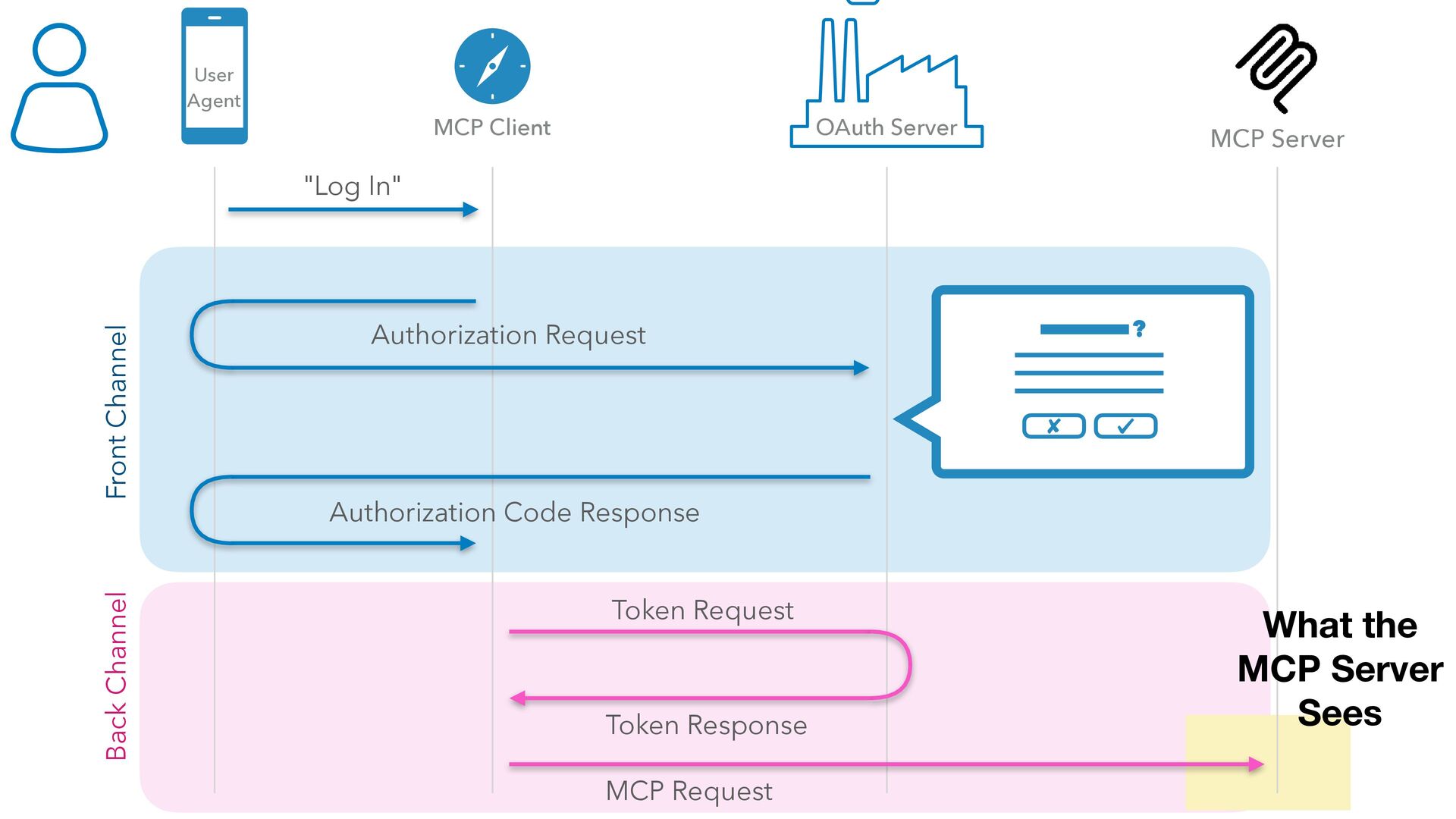

29. User Agent OAuth Server ? Authorization Request Authorization Code Response Token Request Token Response "Log In" Front Channel Back Channel MCP Request MCP Client MCP Server What the
 MCP Server Sees

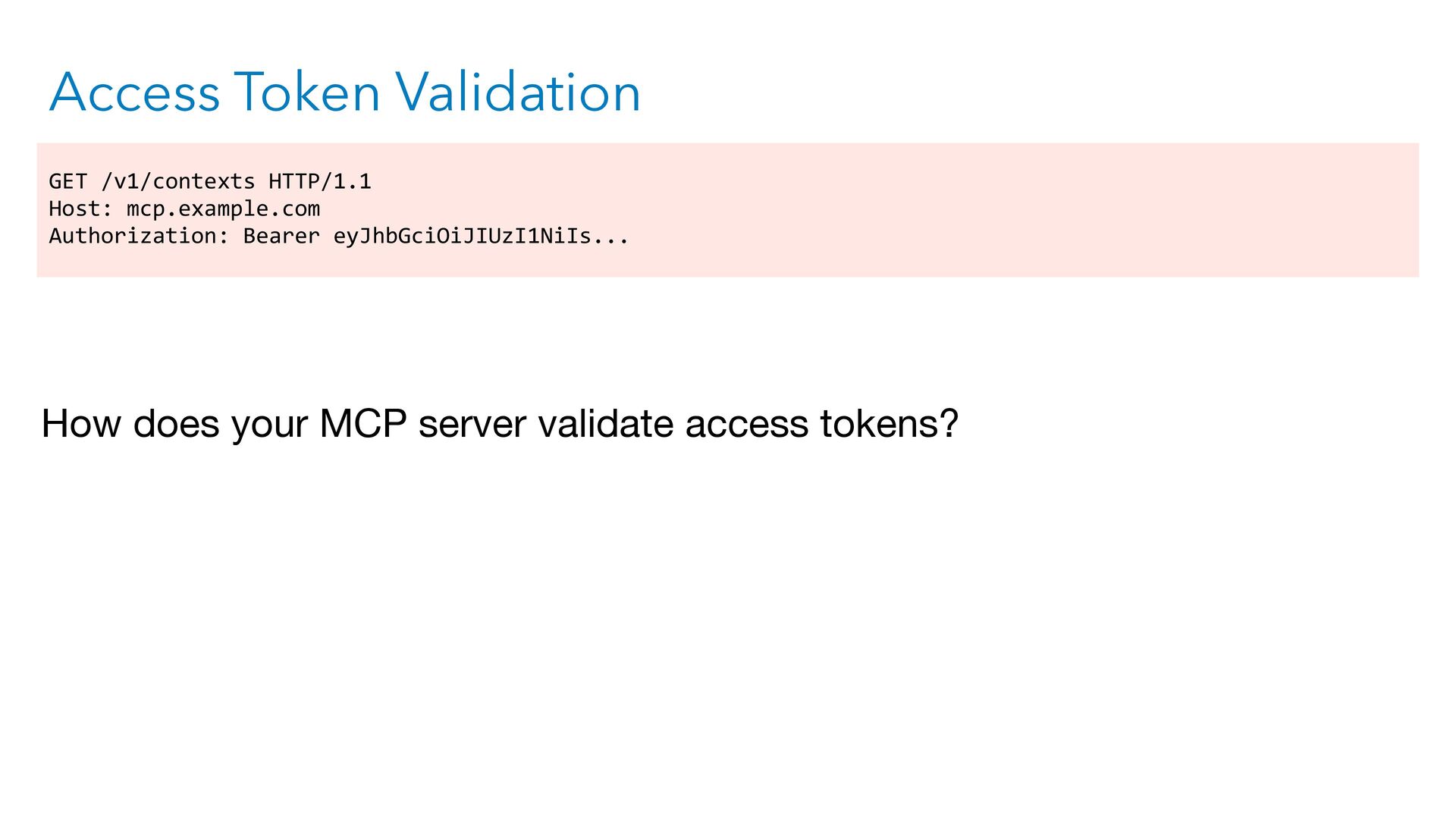

30. Access Token Validation GET /v1/contexts HTTP/1.1 Host: mcp.example.com Authorization: Bearer eyJhbGciOiJIUzI1NiIs... How does your MCP server validate access tokens?

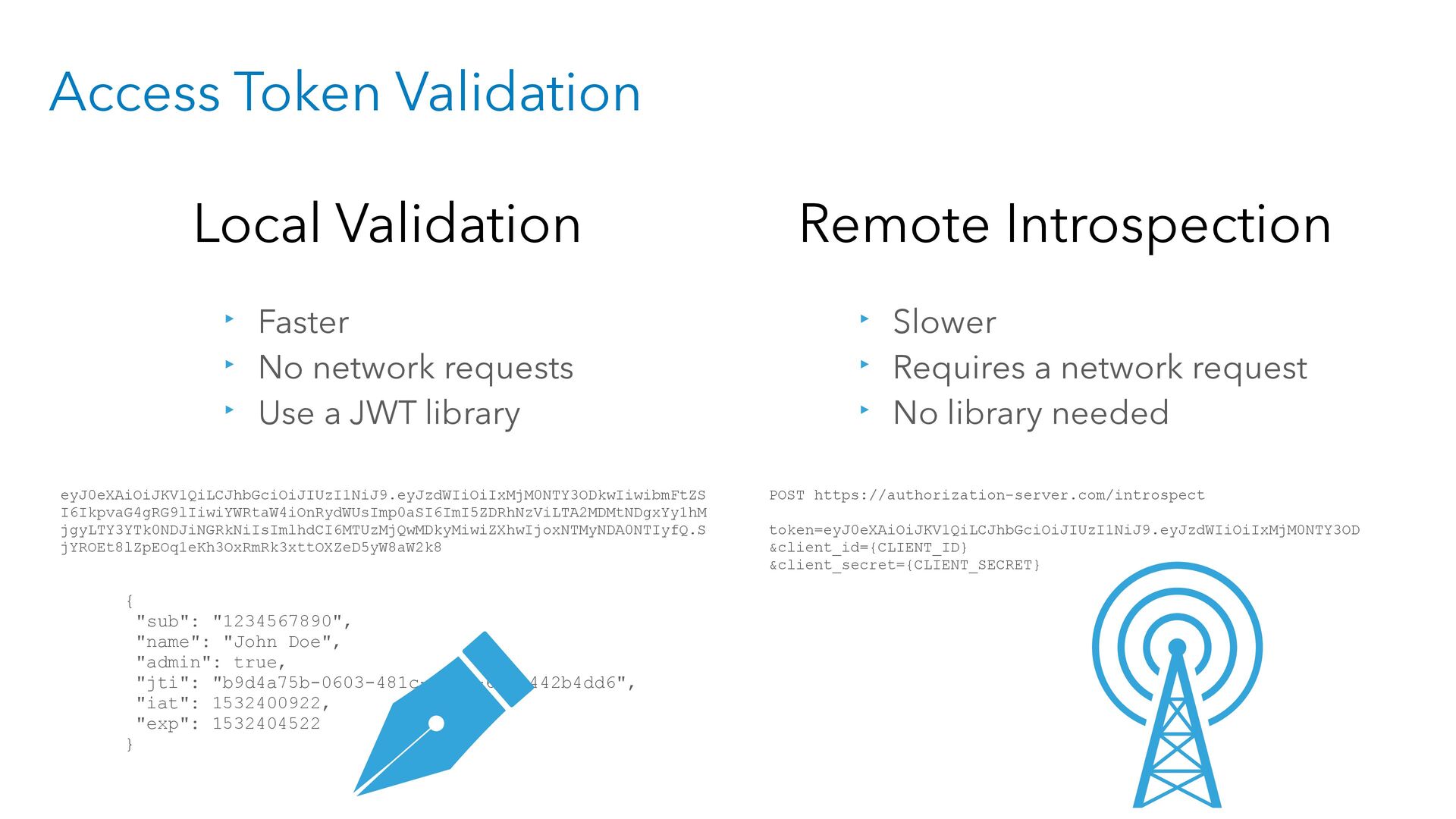

31. Access Token Validation Local Validation Remote Introspection ‣ Faster ‣ No network requests ‣ Use a JWT library ‣ Slower ‣ Requires a network request ‣ No library needed eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZS I6IkpvaG4gRG9lIiwiYWRtaW4iOnRydWUsImp0aSI6ImI5ZDRhNzViLTA2MDMtNDgxYy1hM jgyLTY3YTk0NDJiNGRkNiIsImlhdCI6MTUzMjQwMDkyMiwiZXhwIjoxNTMyNDA0NTIyfQ.S jYROEt8lZpEOq1eKh3OxRmRk3xttOXZeD5yW8aW2k8 { "sub": "1234567890", "name": "John Doe", "admin": true, "jti": "b9d4a75b-0603-481c-a282-67a9442b4dd6", "iat": 1532400922, "exp": 1532404522 } POST https://authorization-server.com/introspect token=eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJzdWIiOiIxMjM0NTY3OD &client_id={CLIENT_ID} &client_secret={CLIENT_SECRET}

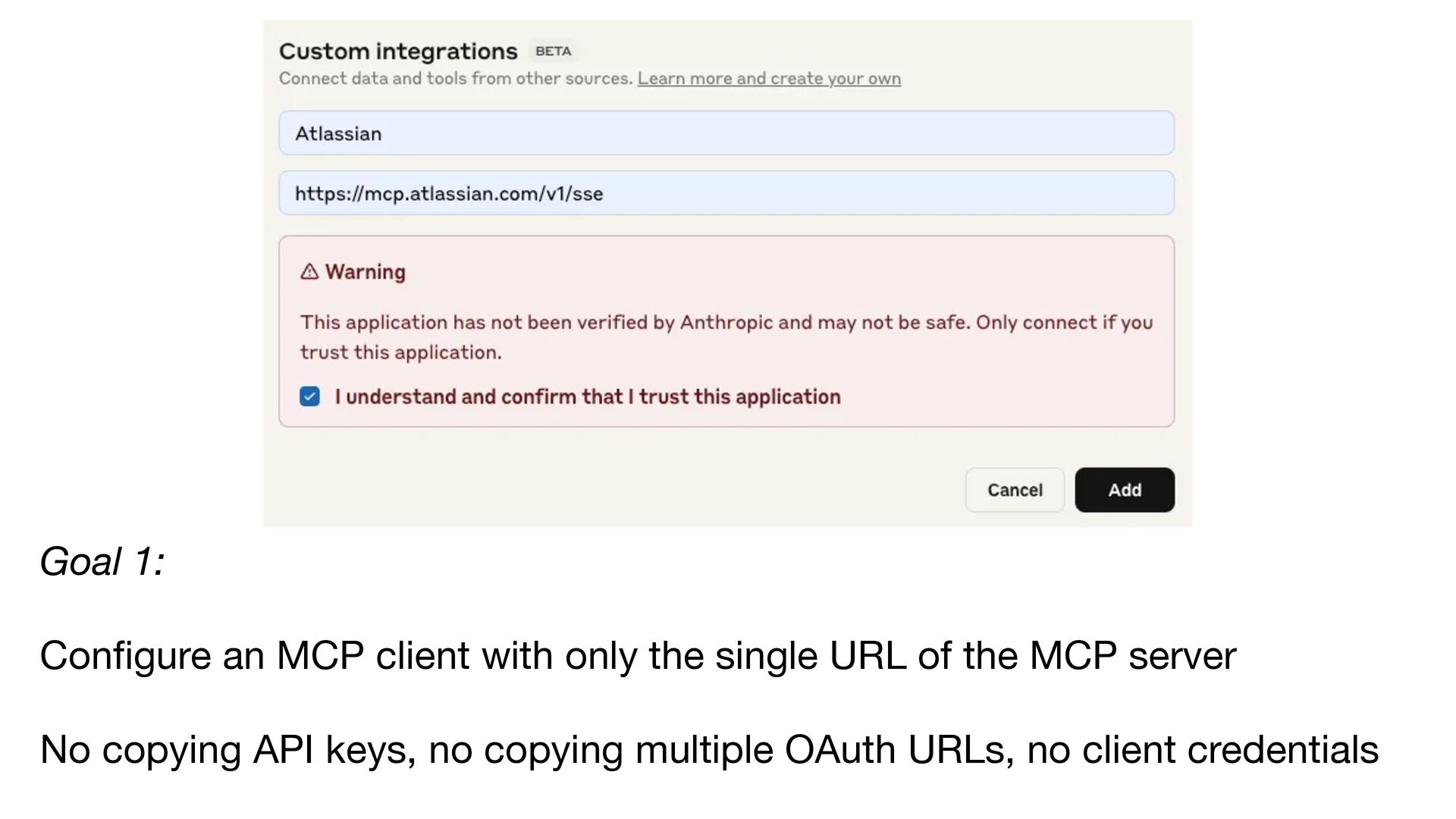

32. Goal 1: Con fi gure an MCP client with only the single URL of the MCP server No copying API keys, no copying multiple OAuth URLs, no client credentials
33. PROTECTED RESOURCE METADATA RFC 9728

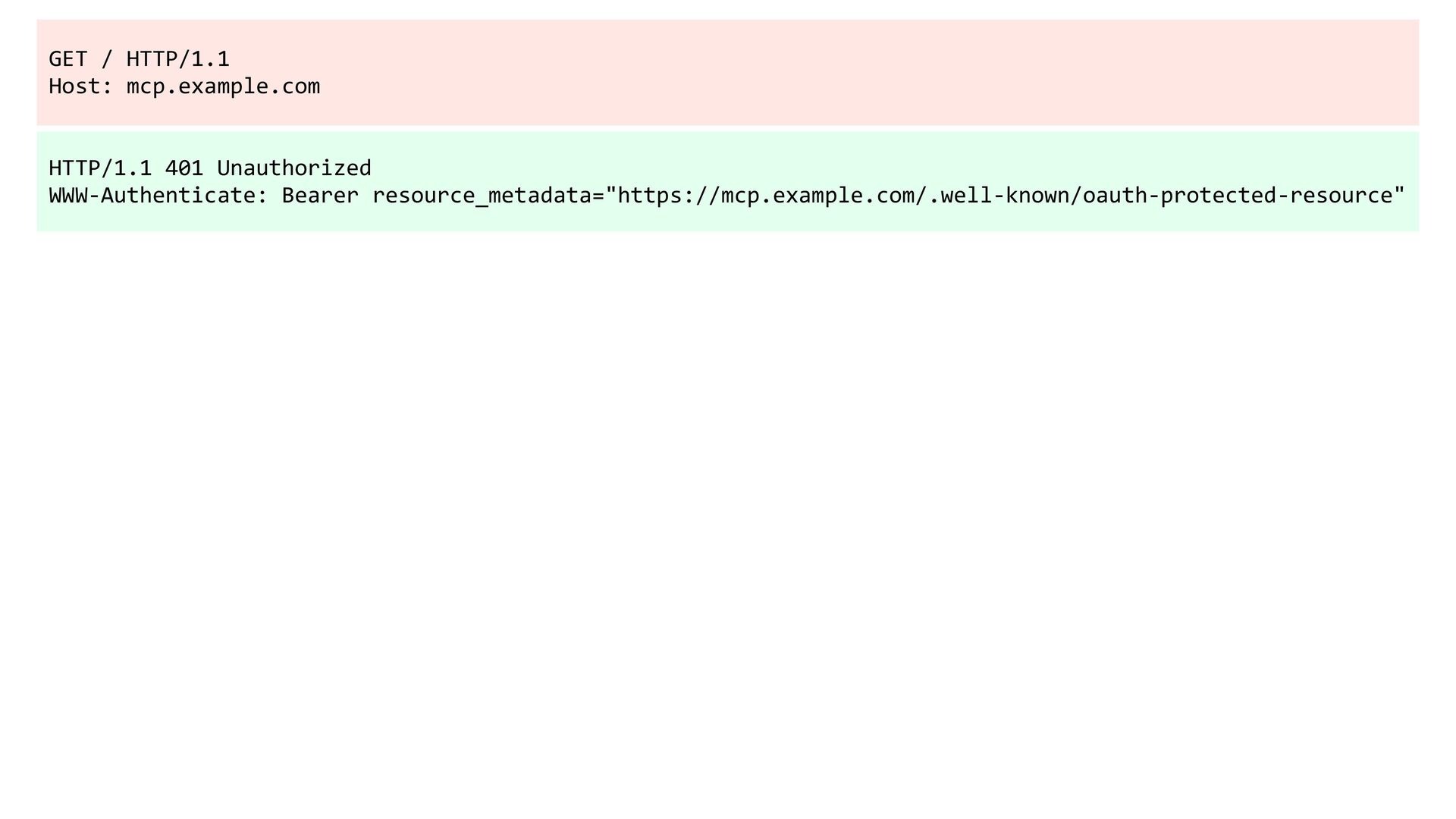

34. GET / HTTP/1.1 Host: mcp.example.com HTTP/1.1 401 Unauthorized WWW-Authenticate: Bearer resource_metadata="https://mcp.example.com/.well-known/oauth-protected-resource"

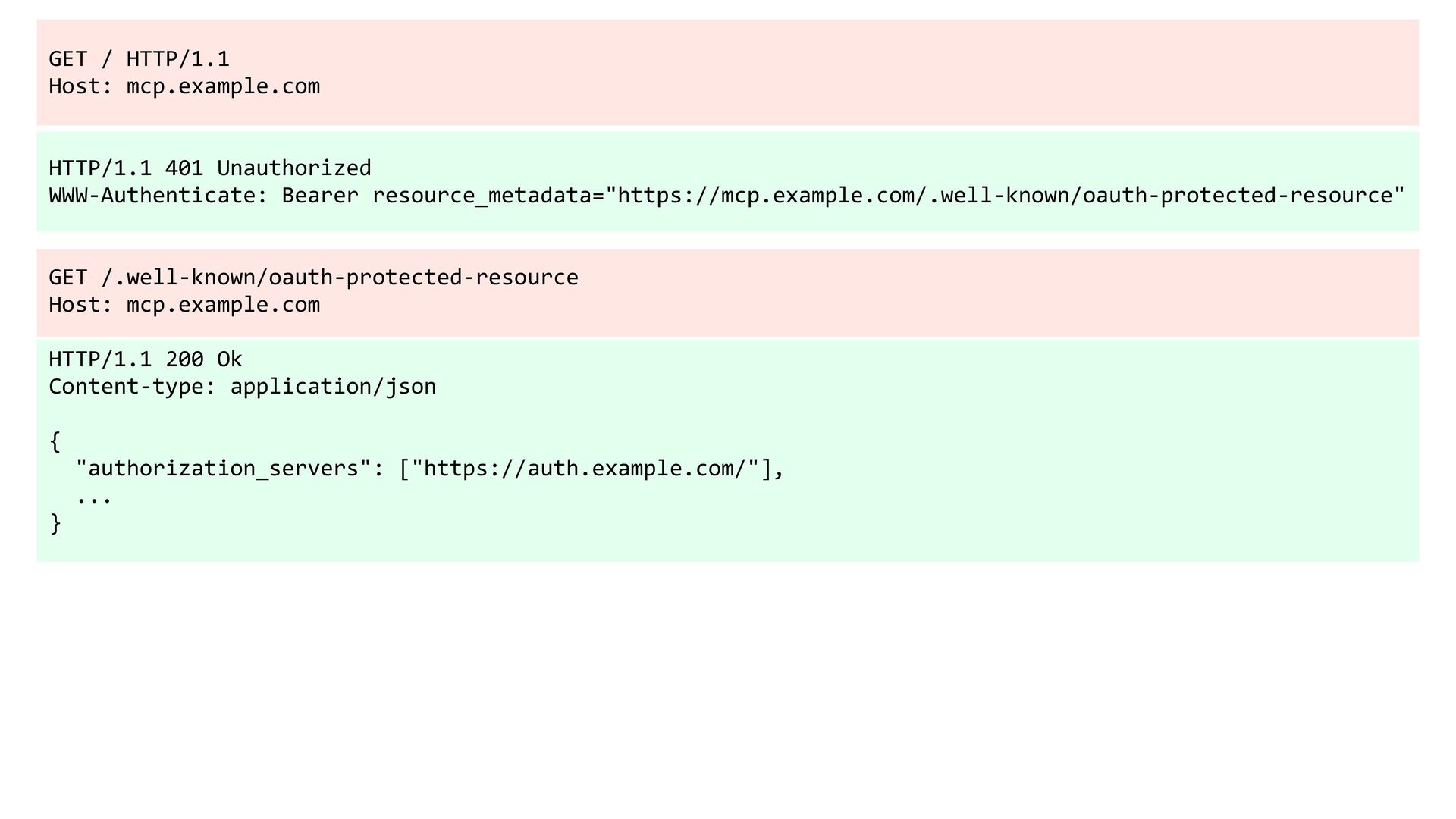

35. GET / HTTP/1.1 Host: mcp.example.com HTTP/1.1 401 Unauthorized WWW-Authenticate: Bearer resource_metadata="https://mcp.example.com/.well-known/oauth-protected-resource" GET /.well-known/oauth-protected-resource Host: mcp.example.com HTTP/1.1 200 Ok Content-type: application/json { "authorization_servers": ["https://auth.example.com/"], ... }

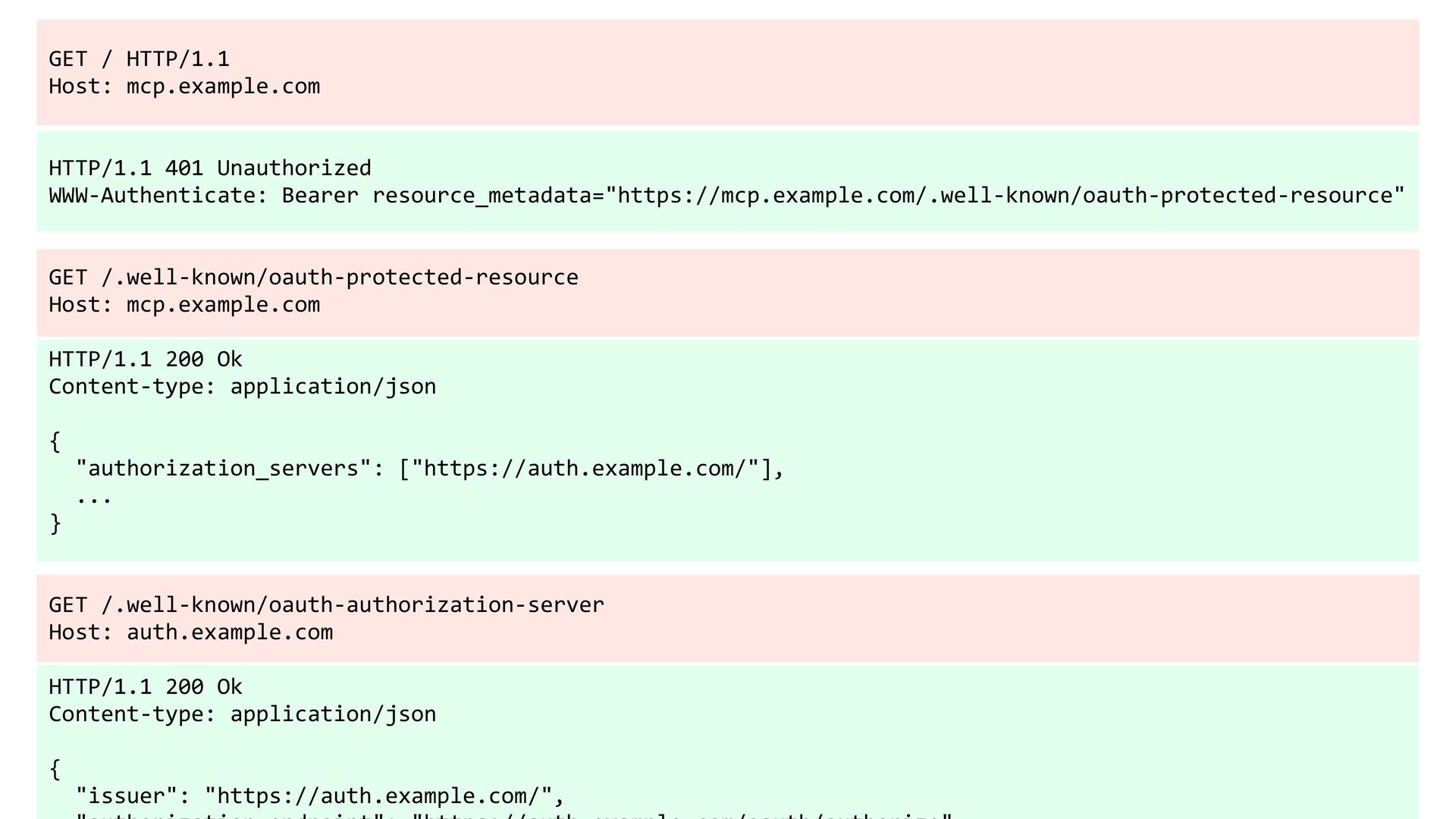

36. GET / HTTP/1.1 Host: mcp.example.com HTTP/1.1 401 Unauthorized WWW-Authenticate: Bearer resource_metadata="https://mcp.example.com/.well-known/oauth-protected-resource" GET /.well-known/oauth-protected-resource Host: mcp.example.com HTTP/1.1 200 Ok Content-type: application/json { "authorization_servers": ["https://auth.example.com/"], ... } GET /.well-known/oauth-authorization-server Host: auth.example.com HTTP/1.1 200 Ok Content-type: application/json { "issuer": "https://auth.example.com/",

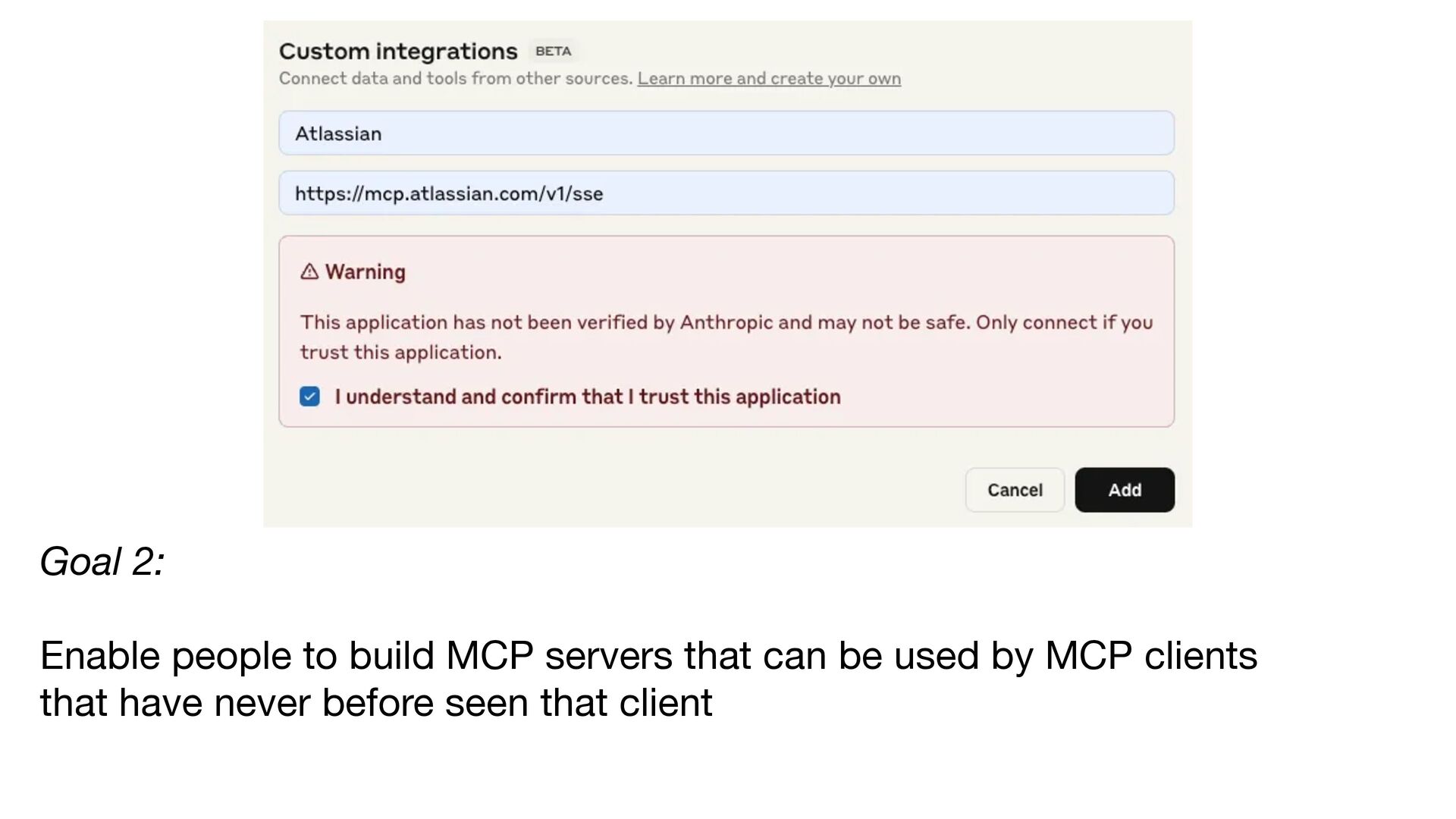

37. Goal 2: Enable people to build MCP servers that can be used by MCP clients
 that have never before seen that client
38. DYNAMIC CLIENT REGISTRATION RFC 7591
39. POST /oauth/register HTTP/1.1 Host: auth.example.com Content-Type: application/json { "client_name": "Claude", "logo_uri": "https://claude.ai/logo.png", "redirect_uris": ["https://auth.example.com/redirect"] ... } HTTP/1.1 201 Created Content-Type: application/json { "client_id": "ad2669221ba94de0ee0", "client_secret": "6a58a307937e98c459be3bfe8e19af3a", ... }

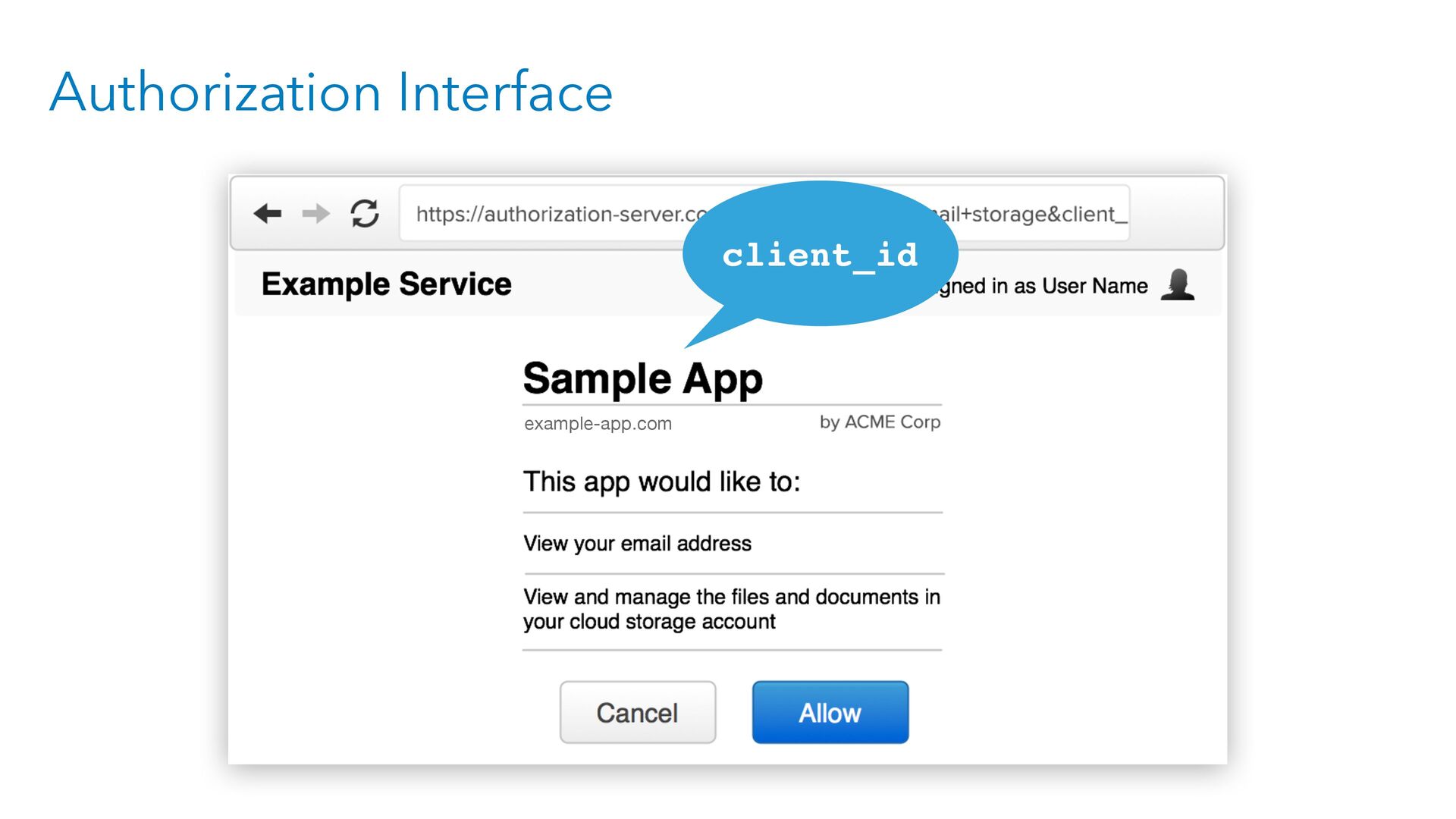

41. Authorization Interface client_id example-app.com
42. ENTERPRISE-READY MCP

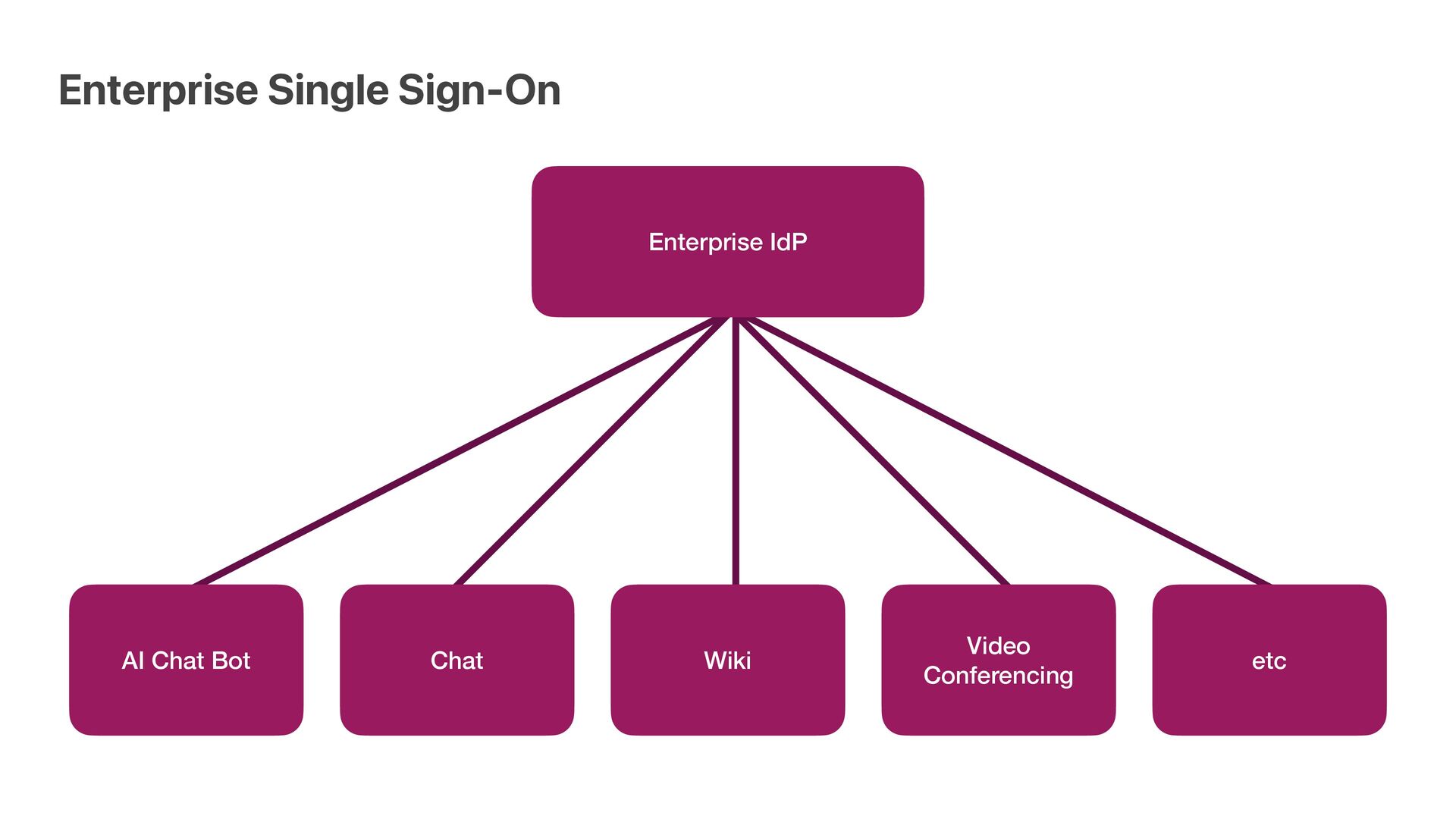

43. Enterprise IdP AI Chat Bot Chat Wiki Video Conferencing etc Enterprise Single Sign-On
44. Logging in to Claude with SSO 1. Login Screen 2. Redirect to IdP 3. Logged In

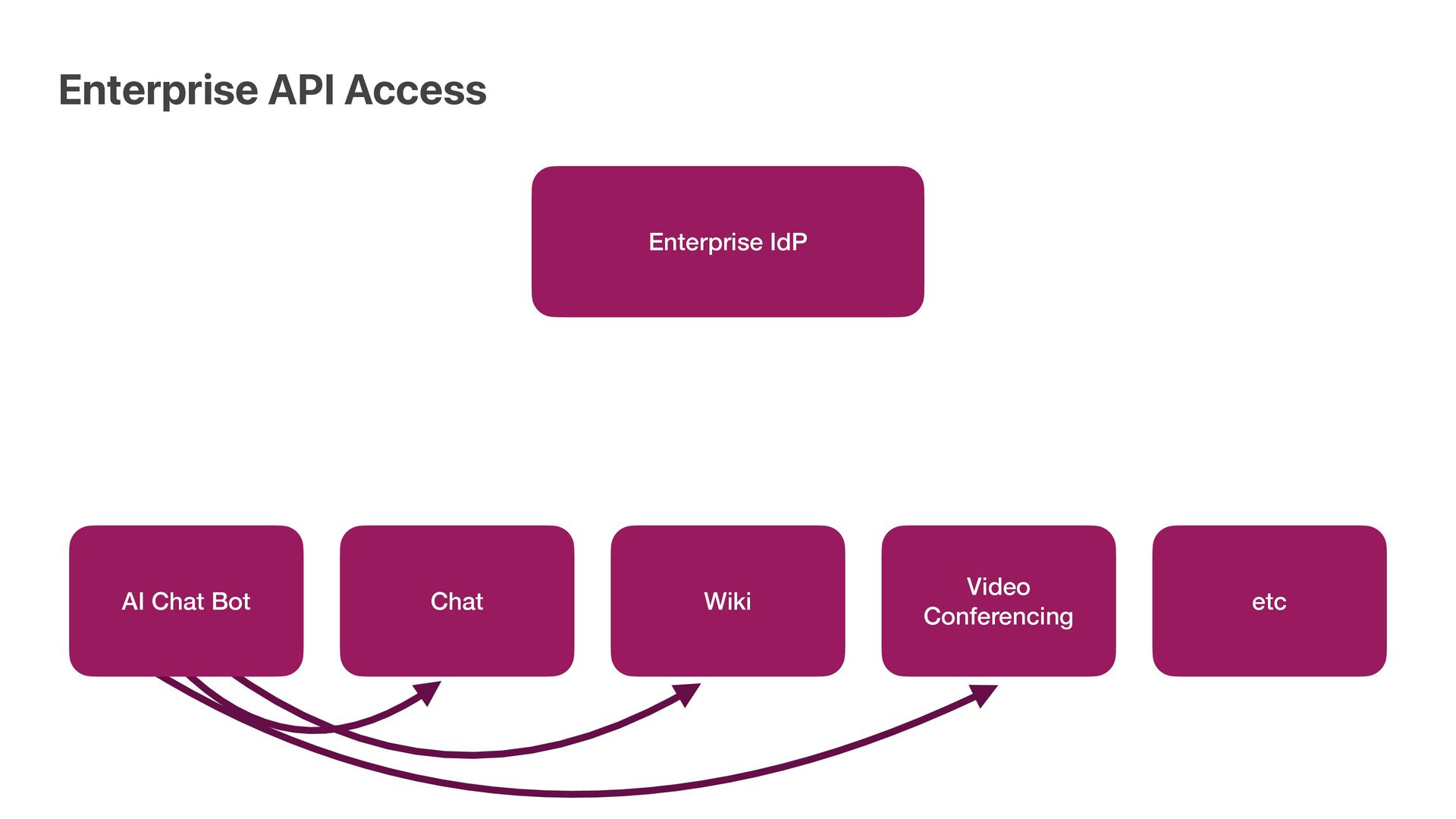

45. Enterprise IdP AI Chat Bot Chat Wiki Video Conferencing etc Enterprise API Access

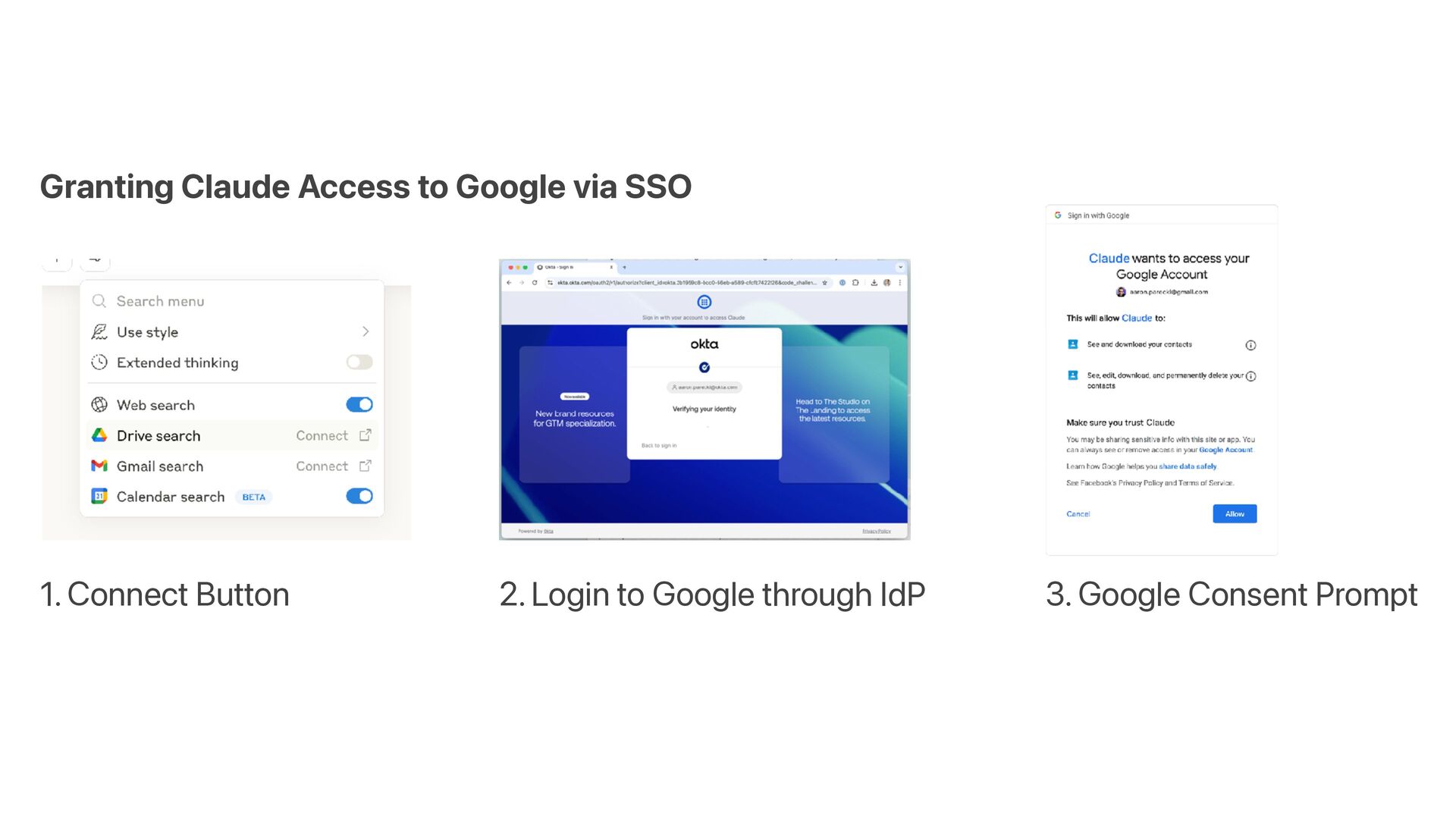

46. Granting Claude Access to Google via SSO 1. Connect Button 2. Login to Google through IdP 3. Google Consent Prompt
47. Terrible UX for Employees No control or visibility by the enterprise IT admin

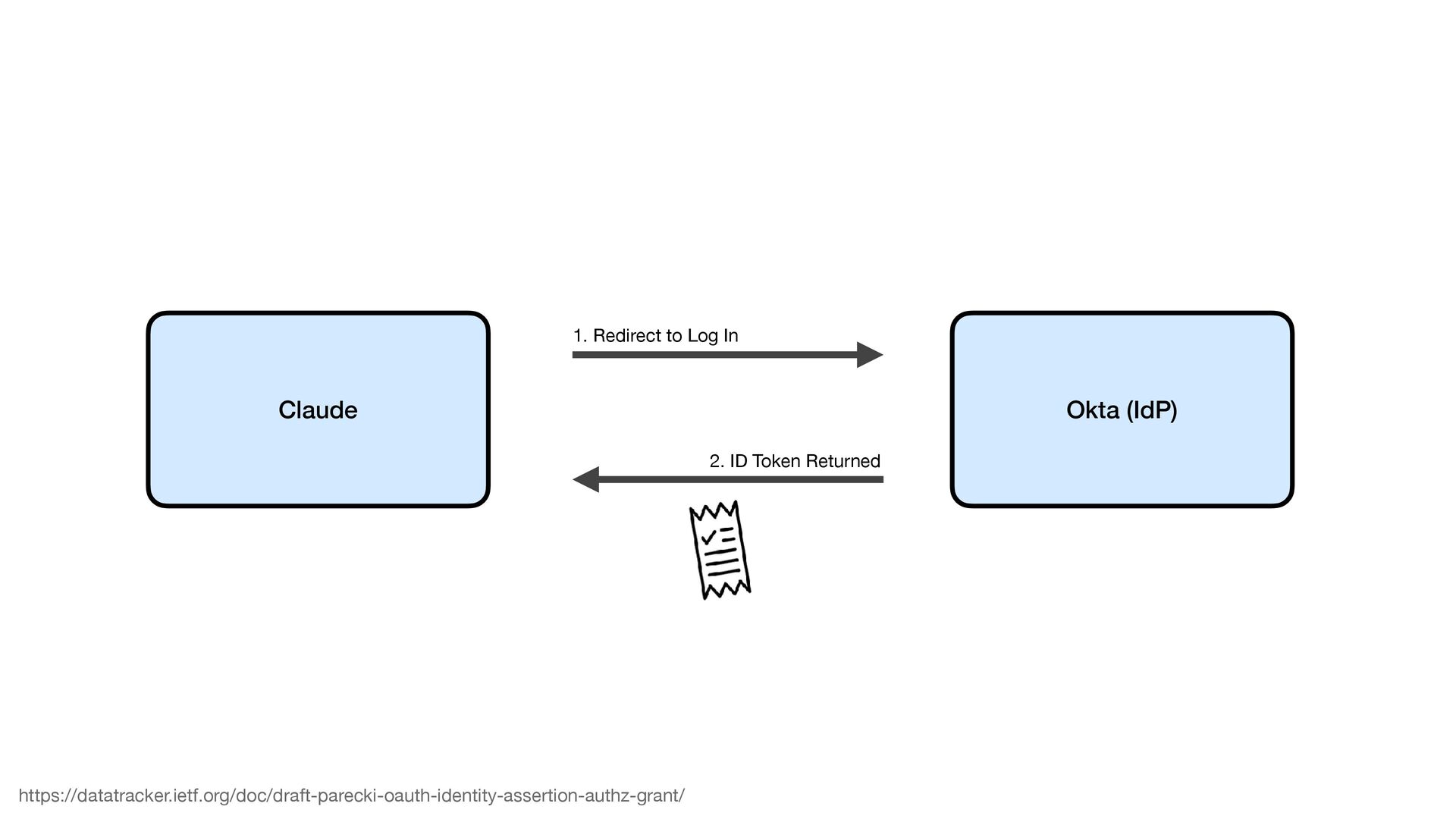

48. Claude Okta (IdP) 1. Redirect to Log In 2. ID Token Returned https://datatracker.ietf.org/doc/draft-parecki-oauth-identity-assertion-authz-grant/

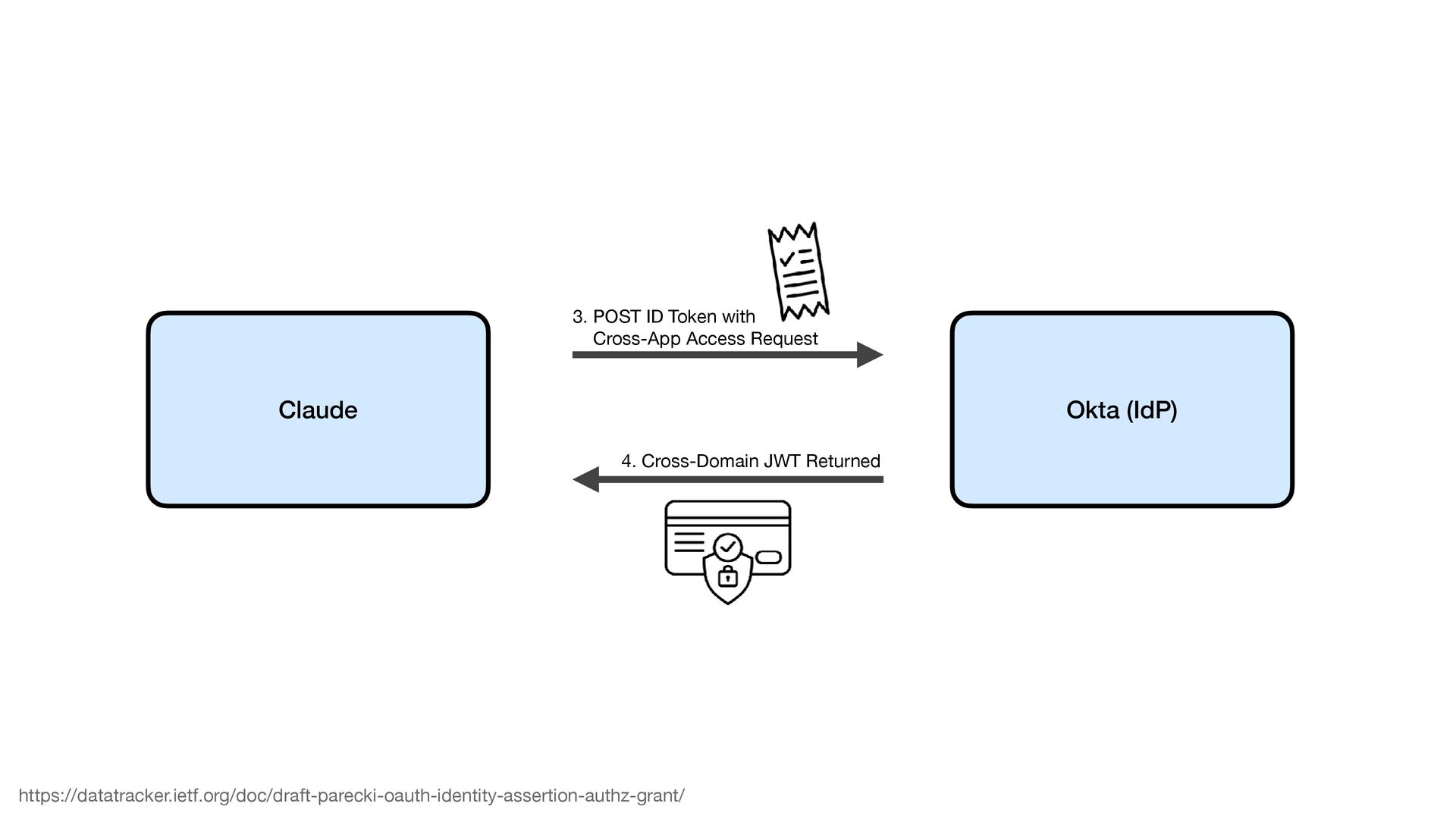

49. Claude Okta (IdP) 3. POST ID Token with
 Cross-App Access Request 4. Cross-Domain JWT Returned https://datatracker.ietf.org/doc/draft-parecki-oauth-identity-assertion-authz-grant/

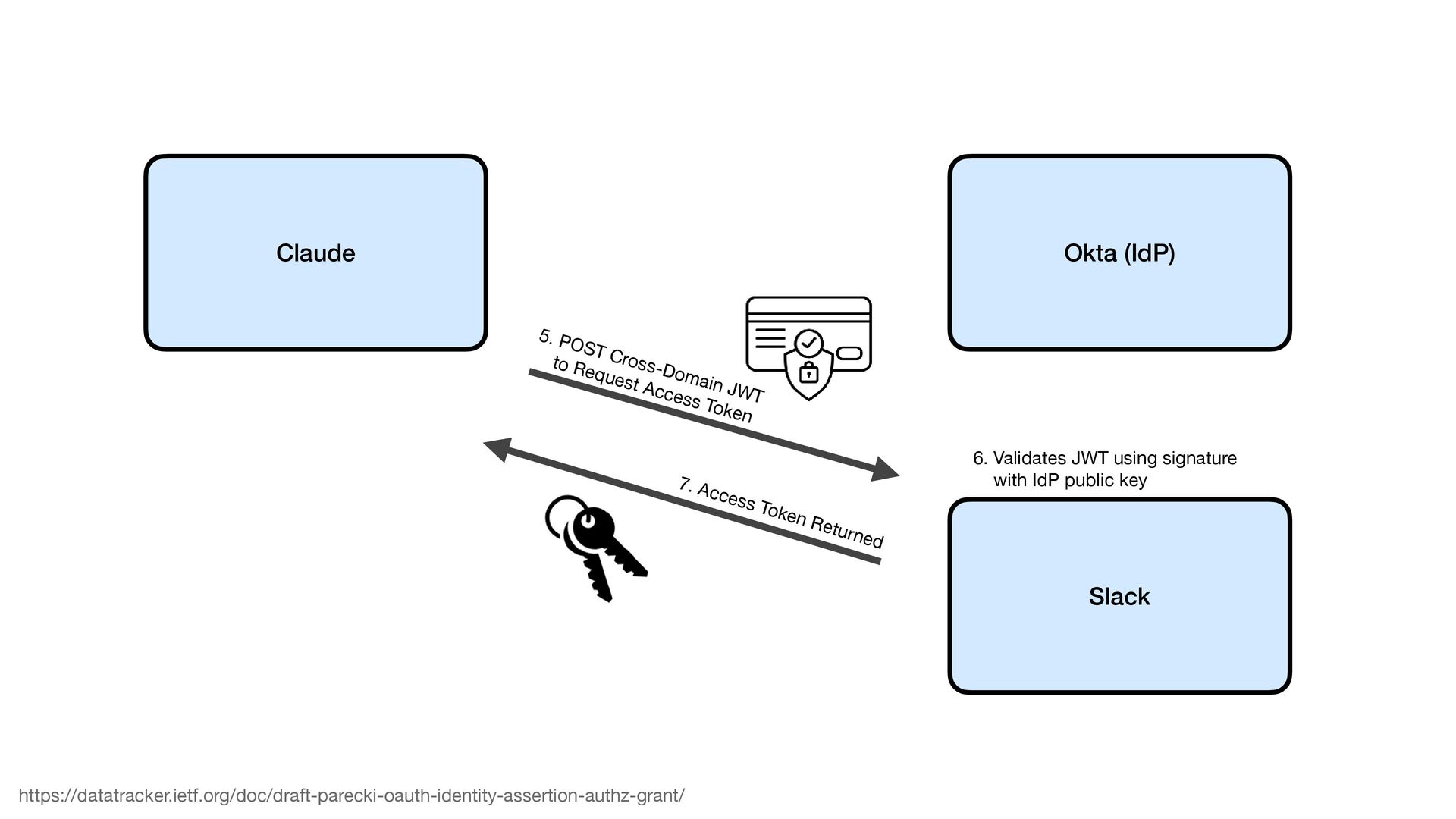

50. Claude Okta (IdP) 5. POST Cross-Domain JWT to Request Access Token 7. Access Token Returned Slack 6. Validates JWT using signature with IdP public key https://datatracker.ietf.org/doc/draft-parecki-oauth-identity-assertion-authz-grant/

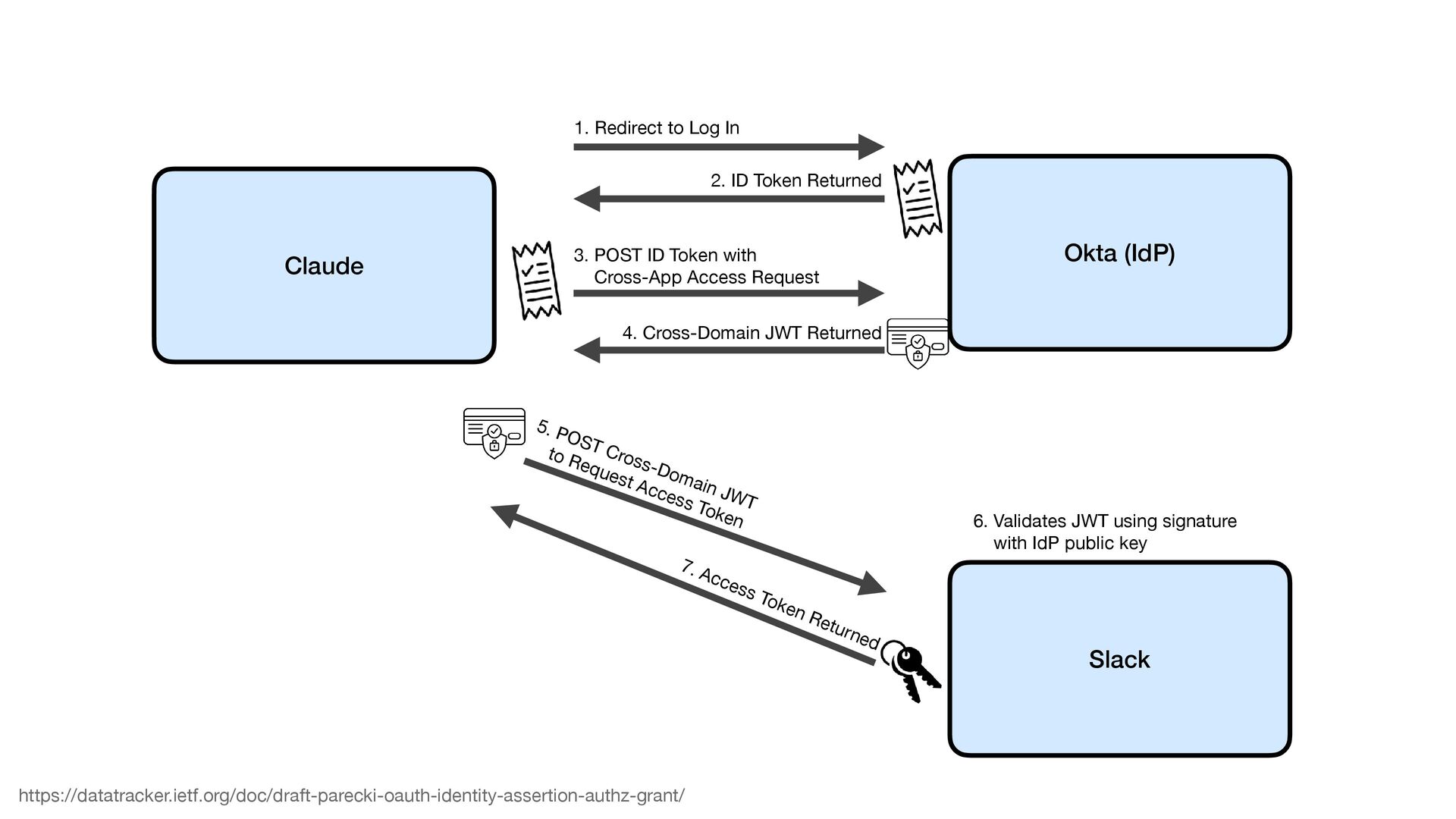

51. Claude Okta (IdP) 5. POST Cross-Domain JWT to Request Access Token 7. Access Token Returned Slack 6. Validates JWT using signature with IdP public key 1. Redirect to Log In 2. ID Token Returned 3. POST ID Token with
 Cross-App Access Request 4. Cross-Domain JWT Returned https://datatracker.ietf.org/doc/draft-parecki-oauth-identity-assertion-authz-grant/
52. aaronpk.com/mcp
53. aaronpk.com oauth.wtf oauth.net
