Industrial Air Compressors & Batch Coding Printers Catalog - Aerolith Nepal

Comprehensive product brochure and technical catalog for industrial pneumatic systems and packaging machinery in Nepal.

Key Machinery Covered:
- PM VFD Rotary Screw Air Compressors (Energy-efficient, low maintenance)
- Refrigerated Compressed Air Dryers and Certified Air Receiver Tanks
- Thermal Inkjet (TIJ) Batch Coding Printers (Online and Handheld)

Serving manufacturing, pharmaceutical, food processing, and packaging plants across Kathmandu, Butwal, Bhairahawa, Birgunj, and Biratnagar.

Official Website: https://aerolithmachinery.com/
Company: Aerolith Pneumatics Services Private Limited
Location: Bhairahawa, Rupandehi, Nepal
Inquiries / WhatsApp: +977 9806922190

Transcript

1. SCREW AIR COMPRESSOR Rotary Air Compressors Refrigerated Air Dryer Compressed Air Storage & Filtration Power : 7.5 - 315 kW, Pressure : 1.5 - 40 BAR, Output : 30 - 3000 CFM

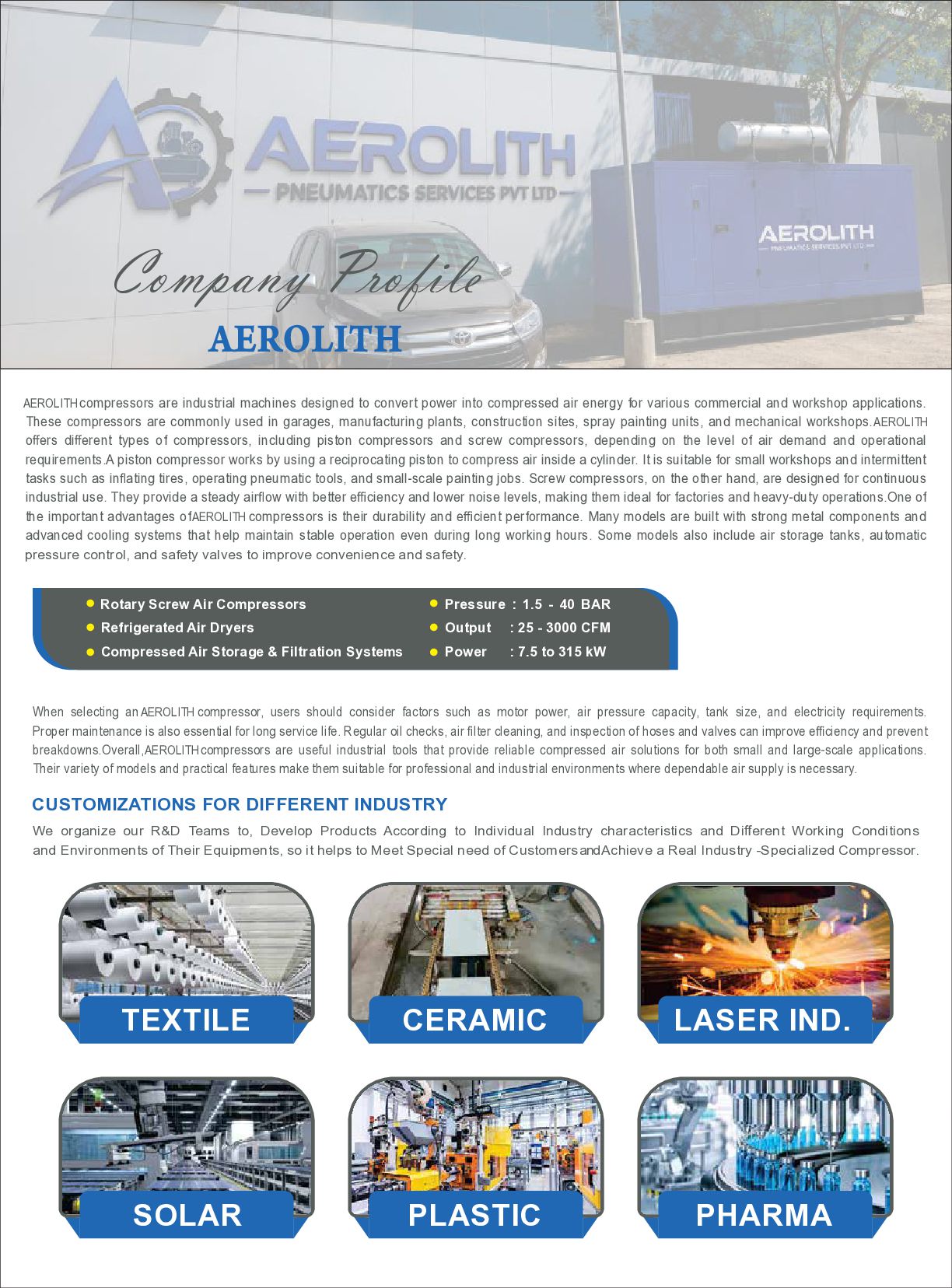

2. Company Profile AEROLITH AEROLITH compressors are industrial machines designed to convert power into compressed air energy for various commercial and workshop applications. These compressors are commonly used in garages, manufacturing plants, construction sites, spray painting units, and mechanical workshops. AEROLITH offers different types of compressors, including piston compressors and screw compressors, depending on the level of air demand and operational requirements.A piston compressor works by using a reciprocating piston to compress air inside a cylinder. It is suitable for small workshops and intermittent tasks such as inflating tires, operating pneumatic tools, and small-scale painting jobs. Screw compressors, on the other hand, are designed for continuous industrial use. They provide a steady airflow with better efficiency and lower noise levels, making them ideal for factories and heavy-duty operations.One of the important advantages of AEROLITH compressors is their durability and efficient performance. Many models are built with strong metal components and advanced cooling systems that help maintain stable operation even during long working hours. Some models also include air storage tanks, automatic pressure control, and safety valves to improve convenience and safety. Rotary Screw Air Compressors Pressure : 1.5 - 40 BAR Refrigerated Air Dryers Output : 25 - 3000 CFM Compressed Air Storage & Filtration Systems Power : 7.5 to 315 kW When selecting an AEROLITH compressor, users should consider factors such as motor power, air pressure capacity, tank size, and electricity requirements. Proper maintenance is also essential for long service life. Regular oil checks, air filter cleaning, and inspection of hoses and valves can improve efficiency and prevent breakdowns.Overall, AEROLITH compressors are useful industrial tools that provide reliable compressed air solutions for both small and large-scale applications. Their variety of models and practical features make them suitable for professional and industrial environments where dependable air supply is necessary. CUSTOMIZATIONS FOR DIFFERENT INDUSTRY We organize our R&D Teams to, Develop Products According to Individual Industry characteristics and Different Working Conditions and Environments of Their Equipments, so it helps to Meet Special need of Customers and Achieve a Real Industry -Specialized Compressor. TEXTILE CERAMIC LASER IND. SOLAR PLASTIC PHARMA

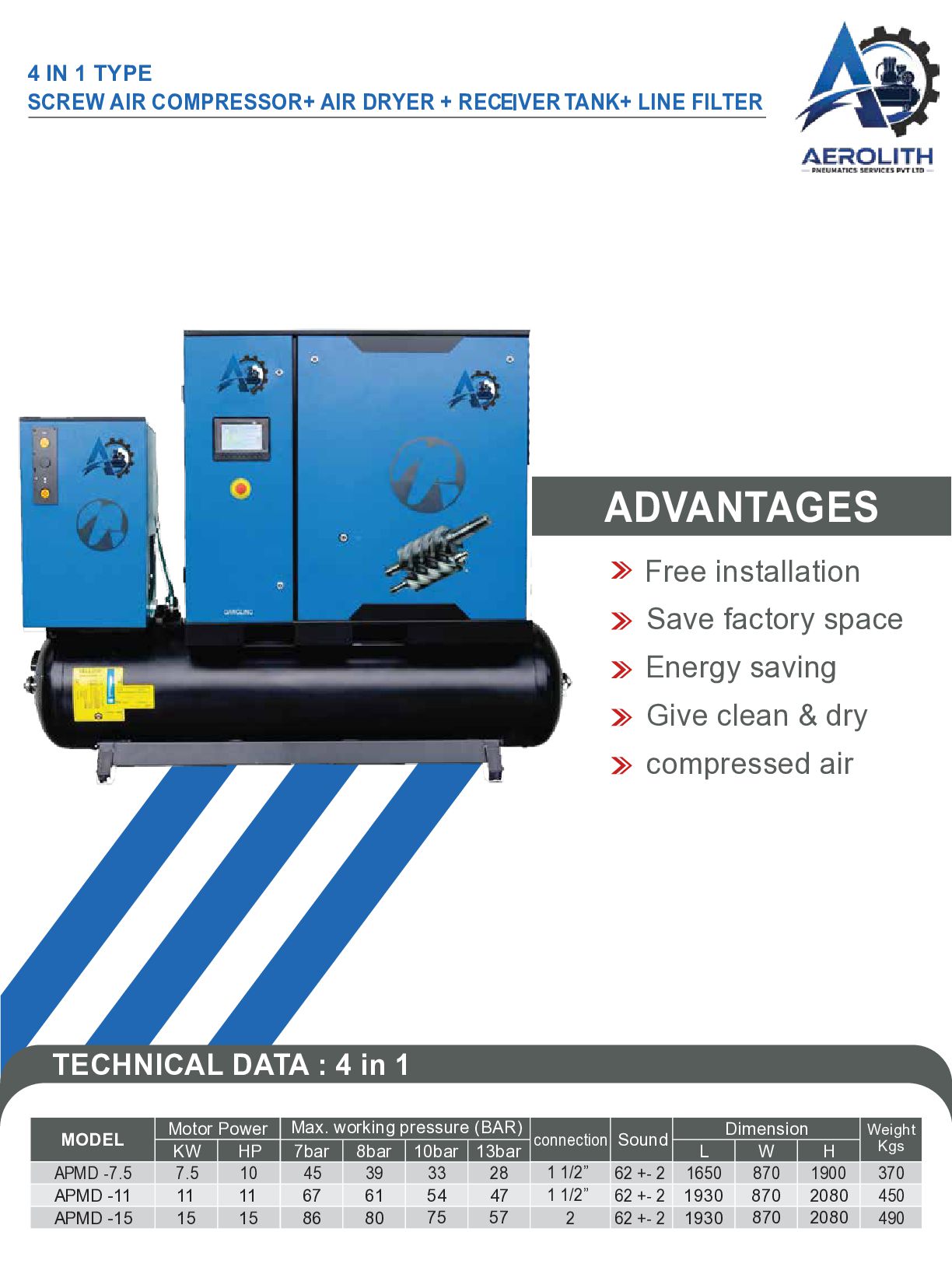

3. 4 IN 1 TYPE SCREW AIR COMPRESSOR+ AIR DRYER + RECEIVER TANK+ LINE FILTER ADVANTAGES Free installation Save factory space Energy saving Give clean & dry compressed air TECHNICAL DATA : 4 in 1 MODEL APMD -7.5 APMD -11 APMD -15 Motor Power KW HP 7.5 10 11 11 15 15 Max. working pressure (BAR) Dimension connection Sound L W H 8bar 10bar 13bar 7bar 1 1/2” 45 39 33 28 62 +- 2 1650 870 1900 1 1/2” 54 870 67 61 47 62 +- 2 1930 2080 75 57 870 2080 86 80 62 +- 2 1930 2 Weight Kgs 370 450 490

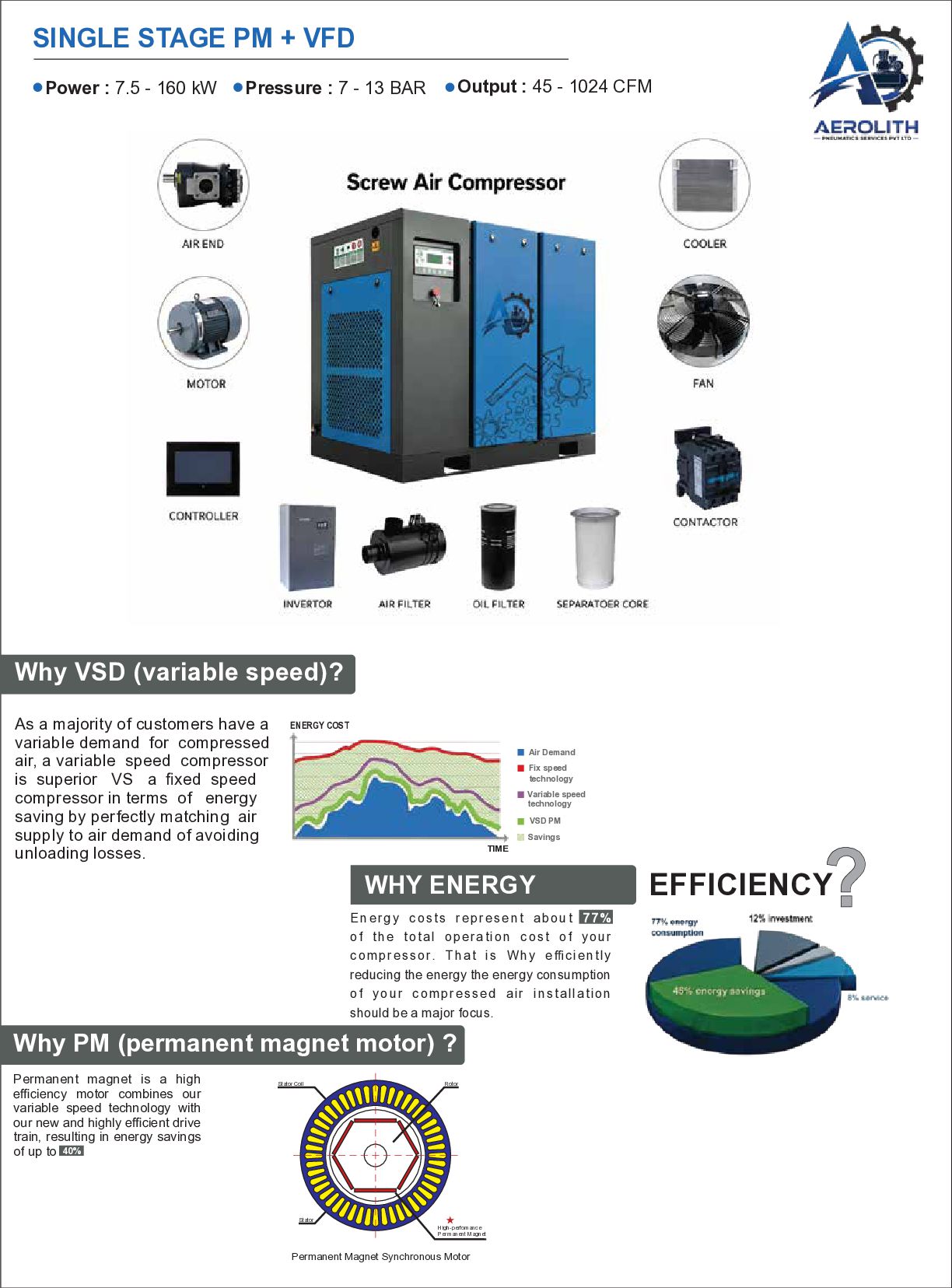

4. SINGLE STAGE PM + VFD Power : 7.5 - 160 kW Output : 45 - 1024 CFM Pressure : 7 - 13 BAR Why VSD (variable speed)? As a majority of customers have a variable demand for compressed air, a variable speed compressor is superior VS a fixed speed compressor in terms of energy saving by perfectly matching air supply to air demand of avoiding unloading losses. ENERGY COST Air Demand Fix speed technology Variable speed technology VSD PM TIME Savings WHY ENERGY Energy costs represent about 77% of the total operation cost of your c o m p r e s s o r. T h a t i s W h y e ffi c i e n t l y reducing the energy the energy consumption of your compressed air installation should be a major focus. Why PM (permanent magnet motor) ? Permanent magnet is a high efficiency motor combines our variable speed technology with our new and highly efficient drive train, resulting in energy savings of up to 40% Stator Coil Rotor Stator High-perfomance Permanent Magnet Permanent Magnet Synchronous Motor ? EFFICIENCY

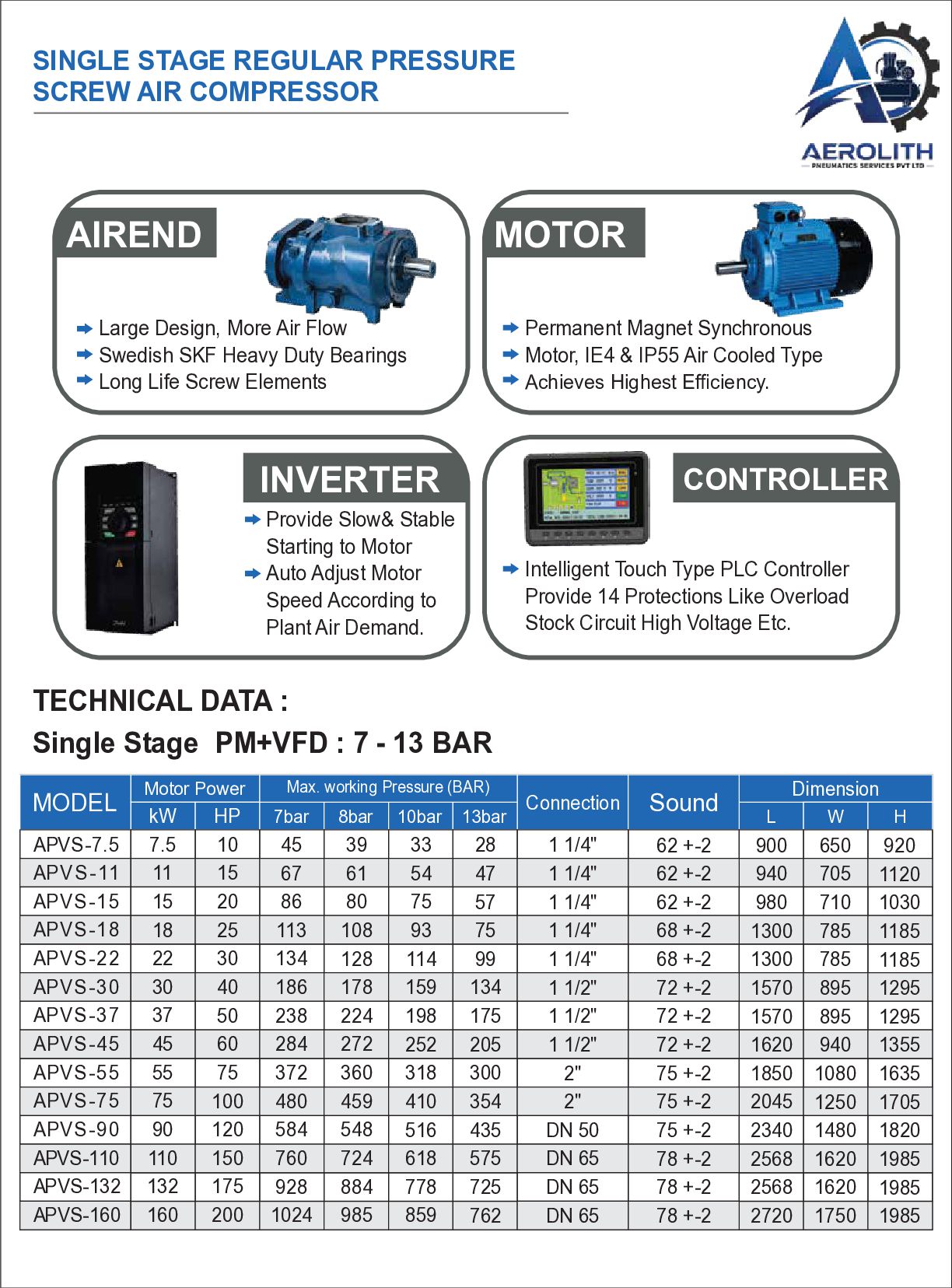

5. SINGLE STAGE REGULAR PRESSURE SCREW AIR COMPRESSOR AIREND MOTOR Large Design, More Air Flow Swedish SKF Heavy Duty Bearings Long Life Screw Elements Permanent Magnet Synchronous Motor, IE4 & IP55 Air Cooled Type Achieves Highest Efficiency. INVERTER CONTROLLER Provide Slow& Stable Starting to Motor Auto Adjust Motor Speed According to Plant Air Demand. Intelligent Touch Type PLC Controller Provide 14 Protections Like Overload Stock Circuit High Voltage Etc. TECHNICAL DATA : Single Stage PM+VFD : 7 - 13 BAR MODEL APVS-7.5 APVS-11 APVS-15 APVS-18 APVS-22 APVS-30 APVS-37 APVS-45 APVS-55 APVS-75 APVS-90 APVS-110 APVS-132 APVS-160 Motor Power kW 7.5 11 15 18 22 30 37 45 55 75 90 110 132 160 HP 10 15 20 25 30 40 50 60 75 100 120 150 175 200 Max. working Pressure (BAR) 7bar 8bar 10bar 13bar 45 67 86 113 134 186 238 284 372 480 584 760 928 1024 39 61 80 108 128 178 224 272 360 459 548 724 884 985 33 54 75 93 114 159 198 252 318 410 516 618 778 859 28 47 57 75 99 134 175 205 300 354 435 575 725 762 Dimension Connection Sound L W H 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/2" 1 1/2" 1 1/2" 2" 2" DN 50 DN 65 DN 65 DN 65 62 +-2 62 +-2 62 +-2 68 +-2 68 +-2 72 +-2 72 +-2 72 +-2 75 +-2 75 +-2 75 +-2 78 +-2 78 +-2 78 +-2 900 940 980 1300 1300 1570 1570 1620 1850 2045 2340 2568 2568 2720 650 705 710 785 785 895 895 940 1080 1250 1480 1620 1620 1750 920 1120 1030 1185 1185 1295 1295 1355 1635 1705 1820 1985 1985 1985

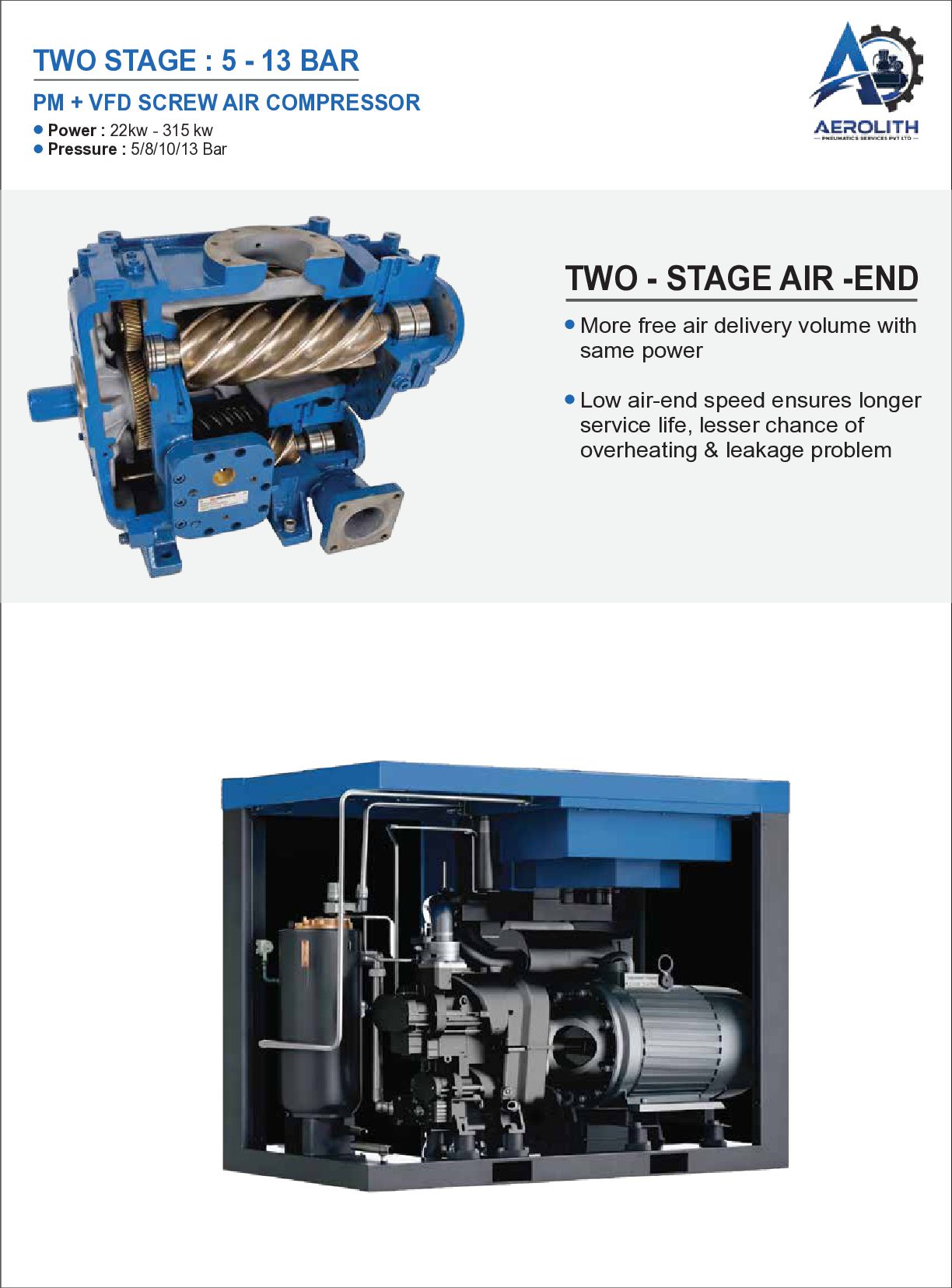

6. TWO STAGE : 5 - 13 BAR PM + VFD SCREW AIR COMPRESSOR Power : 22kw - 315 kw Pressure : 5/8/10/13 Bar TWO - STAGE AIR -END More free air delivery volume with same power Low air-end speed ensures longer service life, lesser chance of overheating & leakage problem

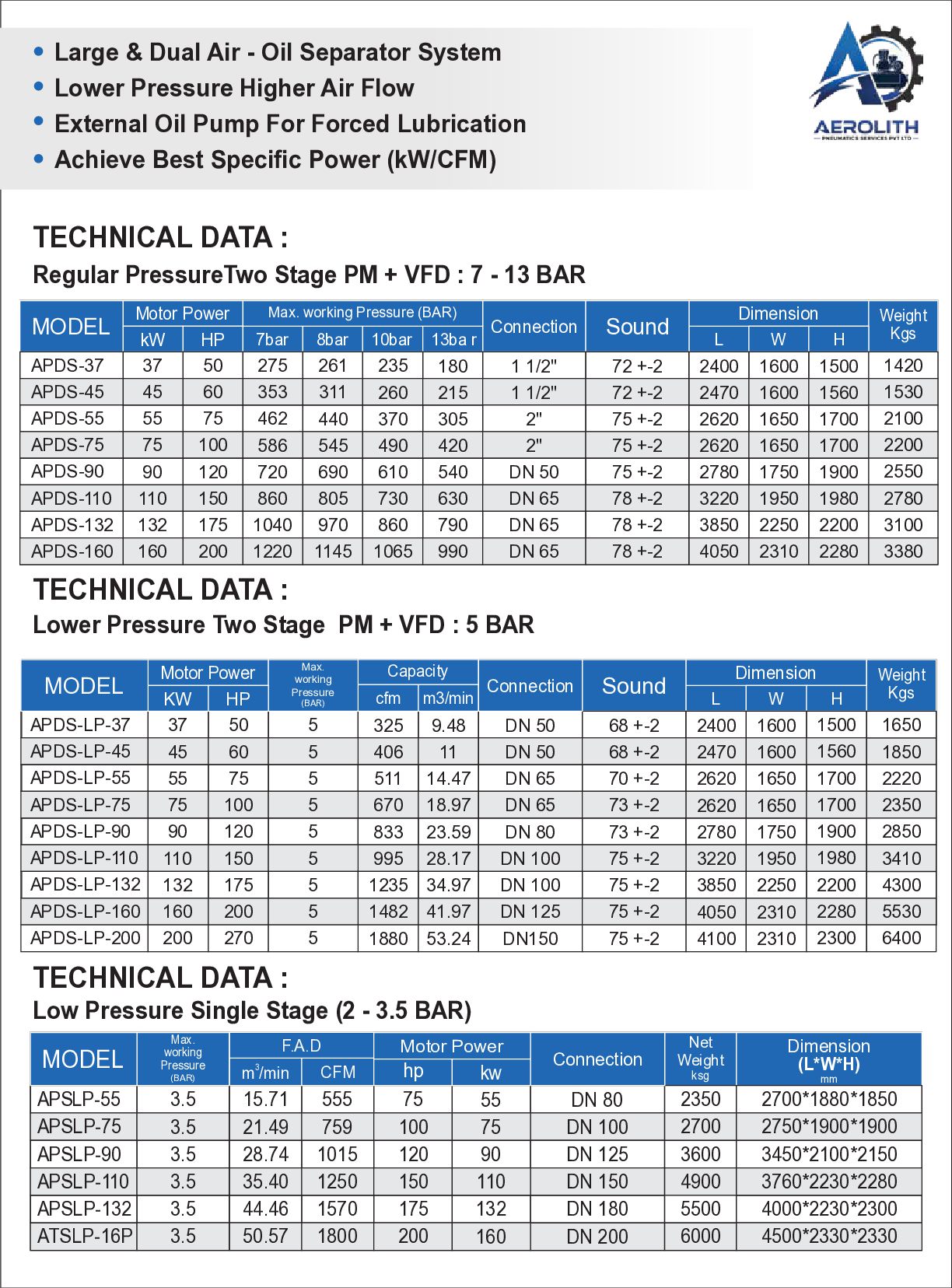

7. Large & Dual Air - Oil Separator System Lower Pressure Higher Air Flow External Oil Pump For Forced Lubrication Achieve Best Specific Power (kW/CFM) TECHNICAL DATA : Regular PressureTwo Stage PM + VFD : 7 - 13 BAR MODEL APDS-37 APDS-45 APDS-55 APDS-75 APDS-90 APDS-110 APDS-132 APDS-160 Motor Power kW 37 45 55 75 90 110 132 160 HP 50 60 75 100 120 150 175 200 Max. working Pressure (BAR) 7bar 8bar 10bar 13ba r 275 353 462 586 720 860 1040 1220 261 311 440 545 690 805 970 1145 235 260 370 490 610 730 860 1065 180 215 305 420 540 630 790 990 Dimension Connection Sound L W H Weight Kgs 1 1/2" 1 1/2" 2" 2" DN 50 DN 65 DN 65 DN 65 72 +-2 72 +-2 75 +-2 75 +-2 75 +-2 78 +-2 78 +-2 78 +-2 2400 2470 2620 2620 2780 3220 3850 4050 1600 1600 1650 1650 1750 1950 2250 2310 1500 1560 1700 1700 1900 1980 2200 2280 1420 1530 2100 2200 2550 2780 3100 3380 TECHNICAL DATA : Lower Pressure Two Stage PM + VFD : 5 BAR MODEL APDS-LP-37 APDS-LP-45 APDS-LP-55 APDS-LP-75 APDS-LP-90 APDS-LP-110 APDS-LP-132 APDS-LP-160 APDS-LP-200 Max. working Pressure Motor Power KW 37 45 55 75 90 110 132 160 200 HP 50 60 75 100 120 150 175 200 270 Capacity (BAR) cfm m3/min 5 5 5 5 5 5 5 5 5 325 406 511 670 833 995 1235 1482 1880 9.48 11 14.47 18.97 23.59 28.17 34.97 41.97 53.24 Dimension Connection Sound L W H Weight Kgs DN 50 DN 50 DN 65 DN 65 DN 80 DN 100 DN 100 DN 125 DN150 68 +-2 68 +-2 70 +-2 73 +-2 73 +-2 75 +-2 75 +-2 75 +-2 75 +-2 2400 2470 2620 2620 2780 3220 3850 4050 4100 1600 1600 1650 1650 1750 1950 2250 2310 2310 1500 1560 1700 1700 1900 1980 2200 2280 2300 1650 1850 2220 2350 2850 3410 4300 5530 6400 TECHNICAL DATA : Low Pressure Single Stage (2 - 3.5 BAR) MODEL Max. working Pressure (BAR) m /min CFM hp APSLP-55 APSLP-75 APSLP-90 APSLP-110 APSLP-132 ATSLP-16P 3.5 3.5 3.5 3.5 3.5 3.5 15.71 21.49 28.74 35.40 44.46 50.57 555 759 1015 1250 1570 1800 75 100 120 150 175 200 F.A.D 3 Motor Power kw 55 75 90 110 132 160 Connection Net Weight Dimension DN 80 DN 100 DN 125 DN 150 DN 180 DN 200 2350 2700 3600 4900 5500 6000 2700*1880*1850 2750*1900*1900 3450*2100*2150 3760*2230*2280 4000*2230*2300 4500*2330*2330 ksg (L*W*H) mm

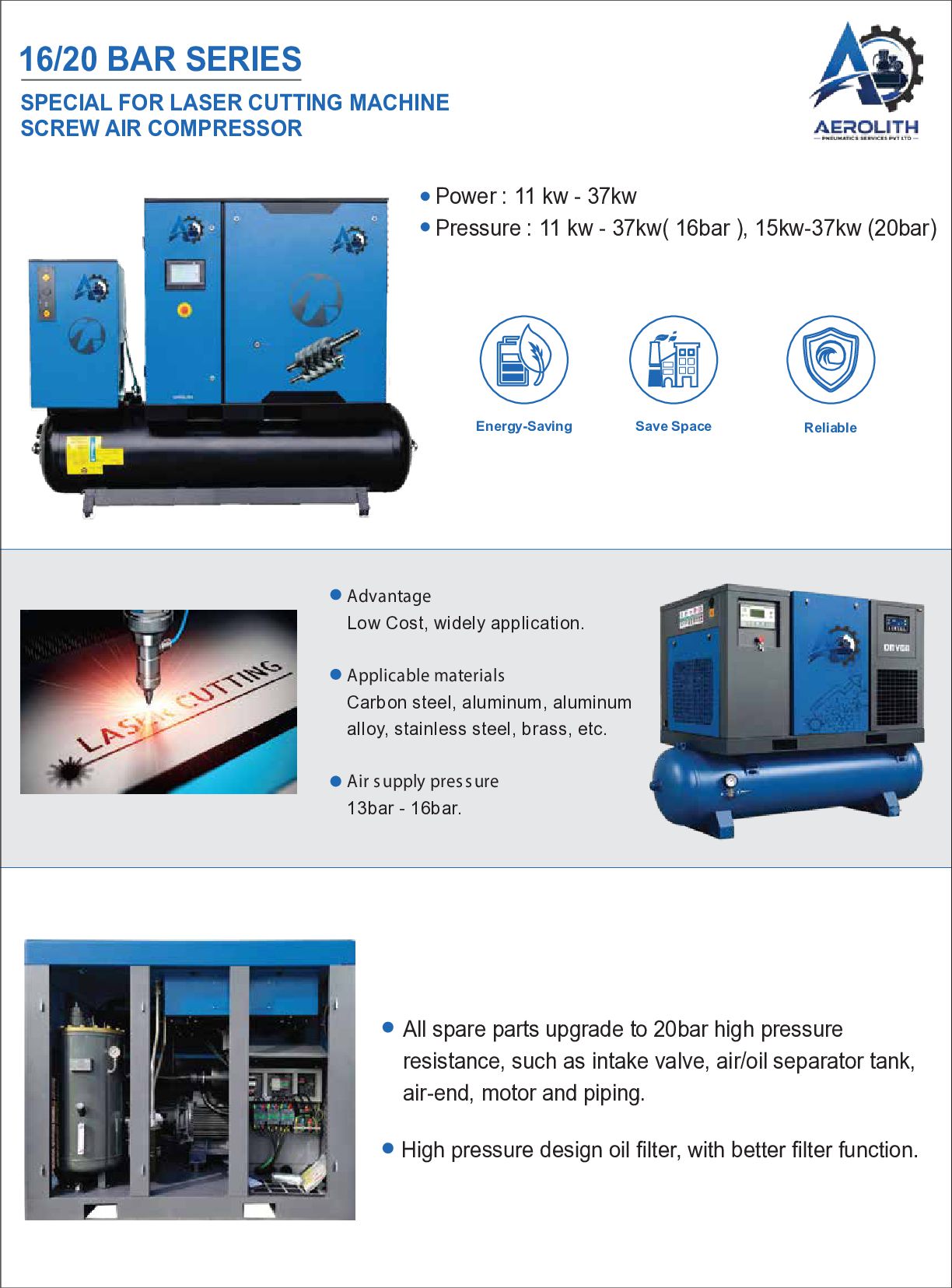

8. 16/20 BAR SERIES SPECIAL FOR LASER CUTTING MACHINE SCREW AIR COMPRESSOR Power : 11 kw - 37kw Pressure : 11 kw - 37kw( 16bar ), 15kw-37kw (20bar) Energy-Saving Save Space Reliable Advantage Low Cost, widely application. Applicable materials Carbon steel, aluminum, aluminum alloy, stainless steel, brass, etc. Air s upply pres s ure 13bar - 16bar. All spare parts upgrade to 20bar high pressure resistance, such as intake valve, air/oil separator tank, air-end, motor and piping. High pressure design oil filter, with better filter function.

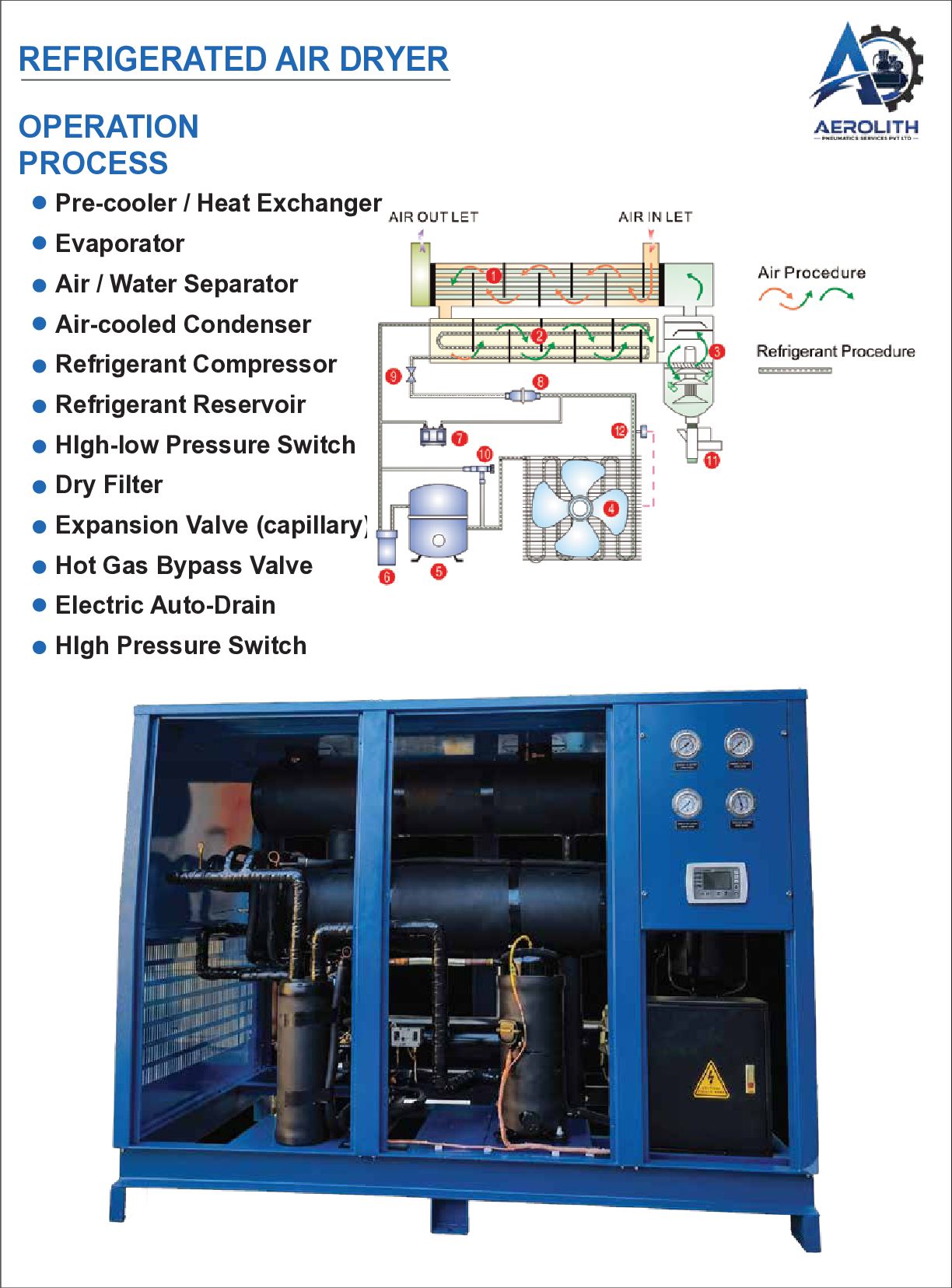

9. REFRIGERATED AIR DRYER OPERATION PROCESS Pre-cooler / Heat Exchanger Evaporator Air / Water Separator Air-cooled Condenser Refrigerant Compressor Refrigerant Reservoir HIgh-low Pressure Switch Dry Filter Expansion Valve (capillary) Hot Gas Bypass Valve Electric Auto-Drain HIgh Pressure Switch

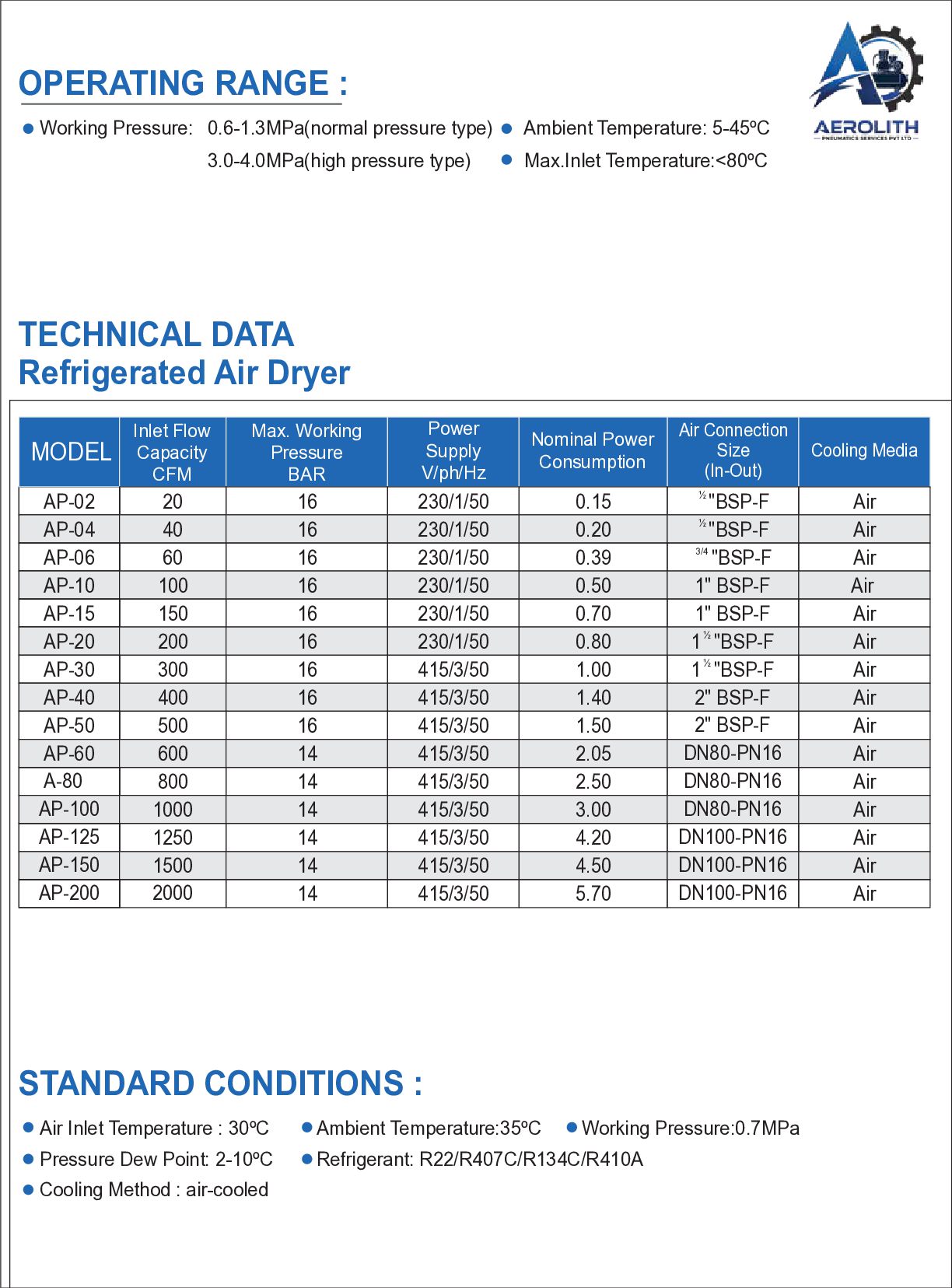

10. OPERATING RANGE : Working Pressure: 0.6-1.3MPa(normal pressure type) 3.0-4.0MPa(high pressure type) Ambient Temperature: 5-45ºC Max.Inlet Temperature:<80ºC TECHNICAL DATA Refrigerated Air Dryer MODEL AP-02 AP-04 AP-06 AP-10 AP-15 AP-20 AP-30 AP-40 AP-50 AP-60 A-80 AP-100 AP-125 AP-150 AP-200 Inlet Flow Capacity CFM 20 40 60 100 150 200 300 400 500 600 800 1000 1250 1500 2000 Max. Working Pressure BAR 16 16 16 16 16 16 16 16 16 14 14 14 14 14 14 Power Supply V/ph/Hz Nominal Power Consumption Air Connection Size (In-Out) Cooling Media 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 415/3/50 415/3/50 415/3/50 415/3/50 415/3/50 415/3/50 415/3/50 415/3/50 415/3/50 0.15 0.20 0.39 0.50 0.70 0.80 1.00 1.40 1.50 2.05 2.50 3.00 4.20 4.50 5.70 "BSP-F "BSP-F 3/4 "BSP-F 1" BSP-F 1" BSP-F 1 ½ "BSP-F ½ 1 "BSP-F 2" BSP-F 2" BSP-F DN80-PN16 DN80-PN16 DN80-PN16 DN100-PN16 DN100-PN16 DN100-PN16 Air Air Air Air Air Air Air Air Air Air Air Air Air Air Air ½ ½ STANDARD CONDITIONS : Air Inlet Temperature : 30ºC Ambient Temperature:35ºC Pressure Dew Point: 2-10ºC Refrigerant: R22/R407C/R134C/R410A Cooling Method : air-cooled Working Pressure:0.7MPa

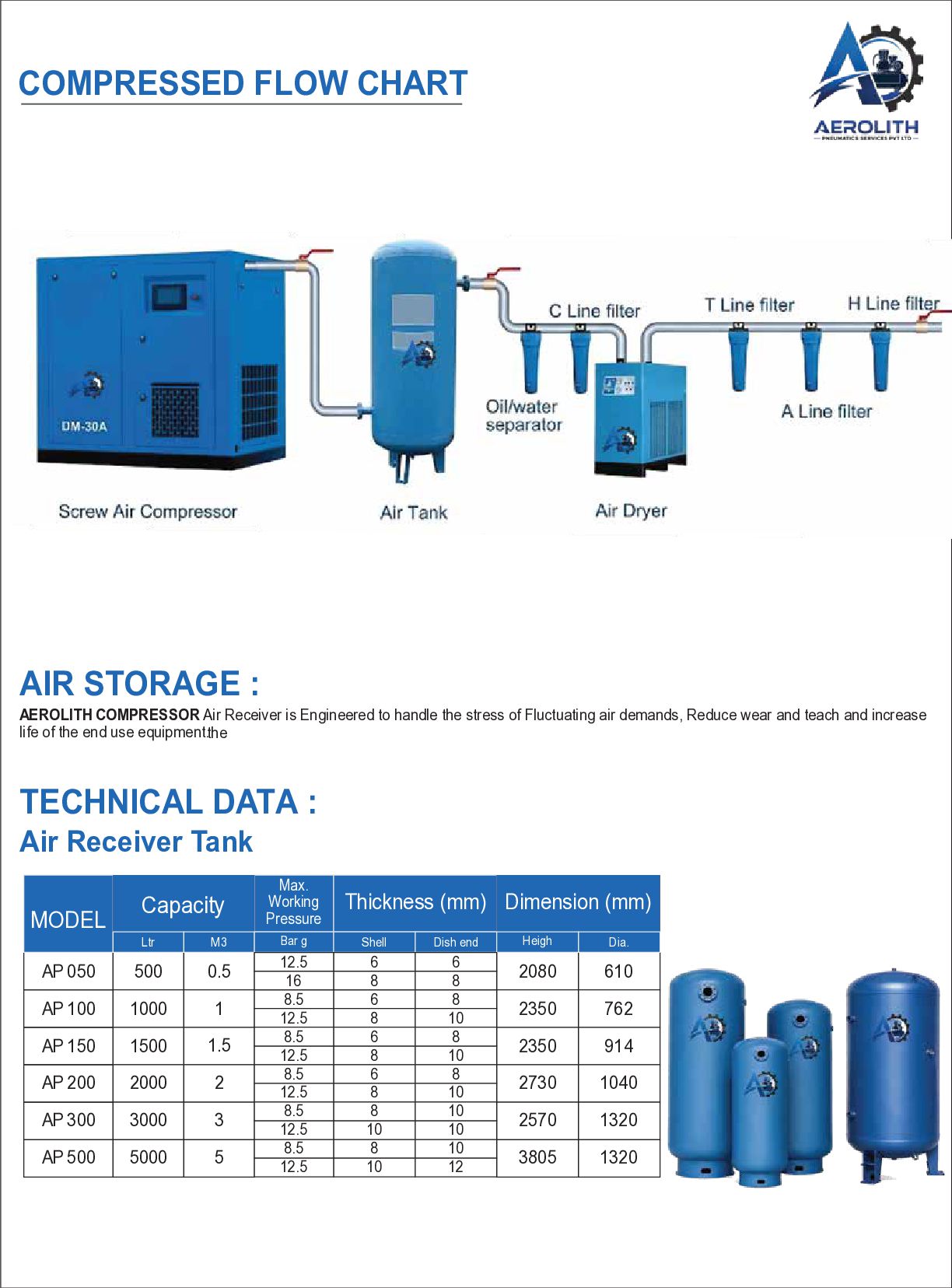

11. COMPRESSED FLOW CHART AIR STORAGE : AEROLITH COMPRESSOR Air Receiver is Engineered to handle the stress of Fluctuating air demands, Reduce wear and teach and increase life of the end use equipment.the TECHNICAL DATA : Air Receiver Tank MODEL Capacity Ltr M3 AP 050 500 0.5 AP 100 1000 1 AP 150 1500 1.5 AP 200 2000 2 AP 300 3000 3 AP 500 5000 5 Max. Working Pressure Thickness (mm) Dimension (mm) Bar g Shell Dish end 12.5 16 8.5 12.5 8.5 12.5 8.5 12.5 8.5 12.5 8.5 12.5 6 8 6 8 6 8 6 8 8 10 8 10 6 8 8 10 8 10 8 10 10 10 10 12 Heigh Dia. 2080 610 2350 762 2350 914 2730 1040 2570 1320 3805 1320

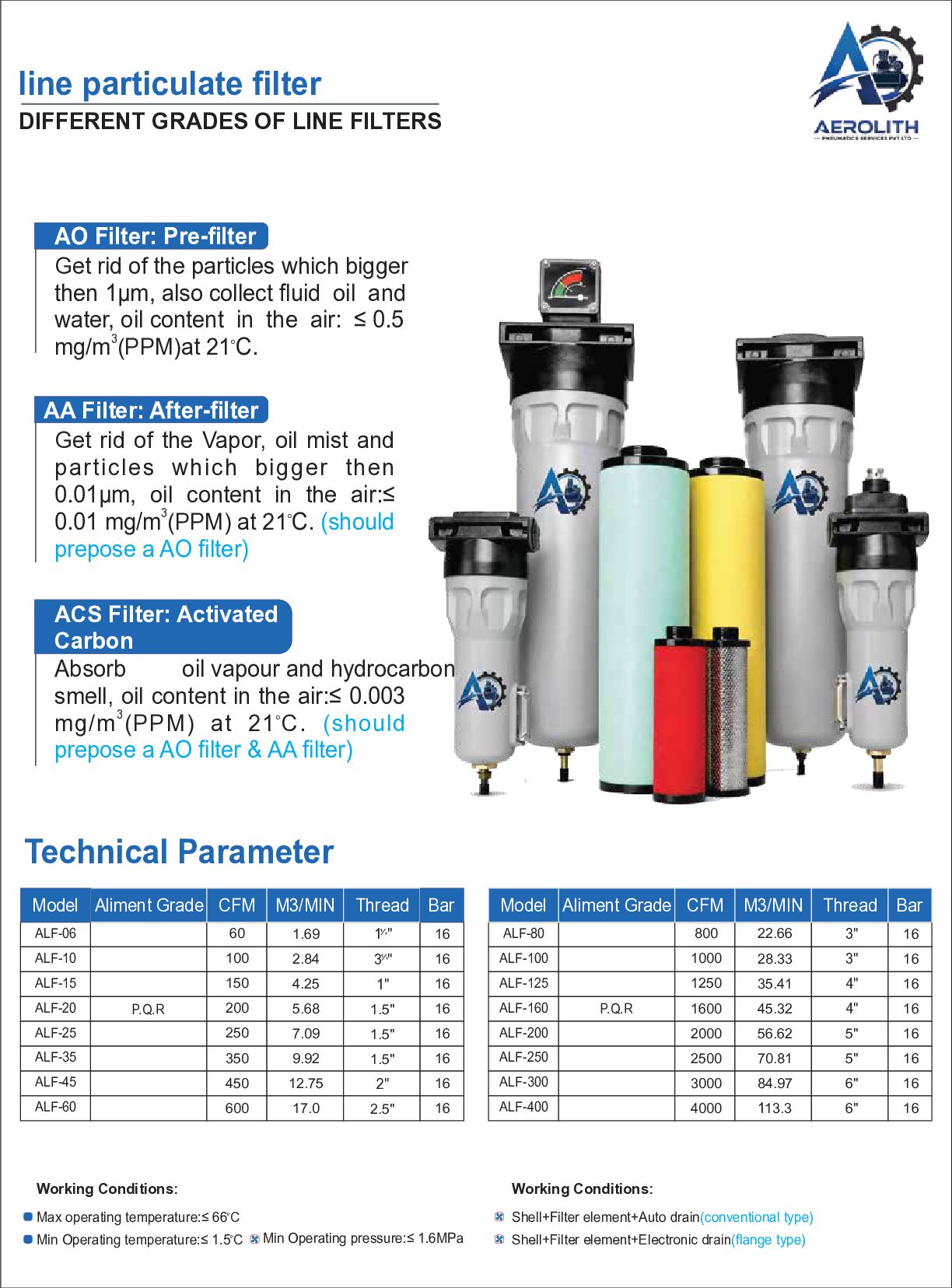

12. line particulate filter DIFFERENT GRADES OF LINE FILTERS AO Filter: Pre-filter Get rid of the particles which bigger then 1µm, also collect fluid oil and water, oil content in the air: ≤ 0.5 mg/m3(PPM)at 21ₒC. AA Filter: After-filter Get rid of the Vapor, oil mist and particles which bigger then 0.01µm, oil content in the air:≤ 0.01 mg/m3(PPM) at 21ₒC. (should prepose a AO filter) ACS Filter: Activated Carbon Absorb oil vapour and hydrocarbon smell, oil content in the air:≤ 0.003 3 ₒ mg/m (PPM) at 21 C. (should prepose a AO filter & AA filter) Technical Parameter Model Aliment Grade CFM M3/MIN Thread Bar Model Aliment Grade CFM M3/MIN Thread Bar ALF-06 60 1.69 1" 4 16 ALF-80 800 22.66 3" 16 ALF-10 100 2.84 3" 4 16 ALF-100 1000 28.33 3" 16 ALF-15 150 4.25 1" 16 ALF-125 1250 35.41 4" 16 200 5.68 1.5" 16 ALF-160 1600 45.32 4" 16 ALF-25 250 7.09 1.5" 16 ALF-200 2000 56.62 5" 16 ALF-35 350 9.92 1.5" 16 ALF-250 2500 70.81 5" 16 ALF-45 450 12.75 2" 16 ALF-300 3000 84.97 6" 16 ALF-60 600 17.0 2.5" 16 ALF-400 4000 113.3 6" 16 ALF-20 P.Q.R Working Conditions: P.Q.R Working Conditions: Max operating temperature:≤ 66 C Shell+Filter element+Auto drain(conventional type) ₒ Min Operating temperature:≤ 1.5 C ₒ Min Operating pressure:≤ 1.6MPa Shell+Filter element+Electronic drain(flange type)

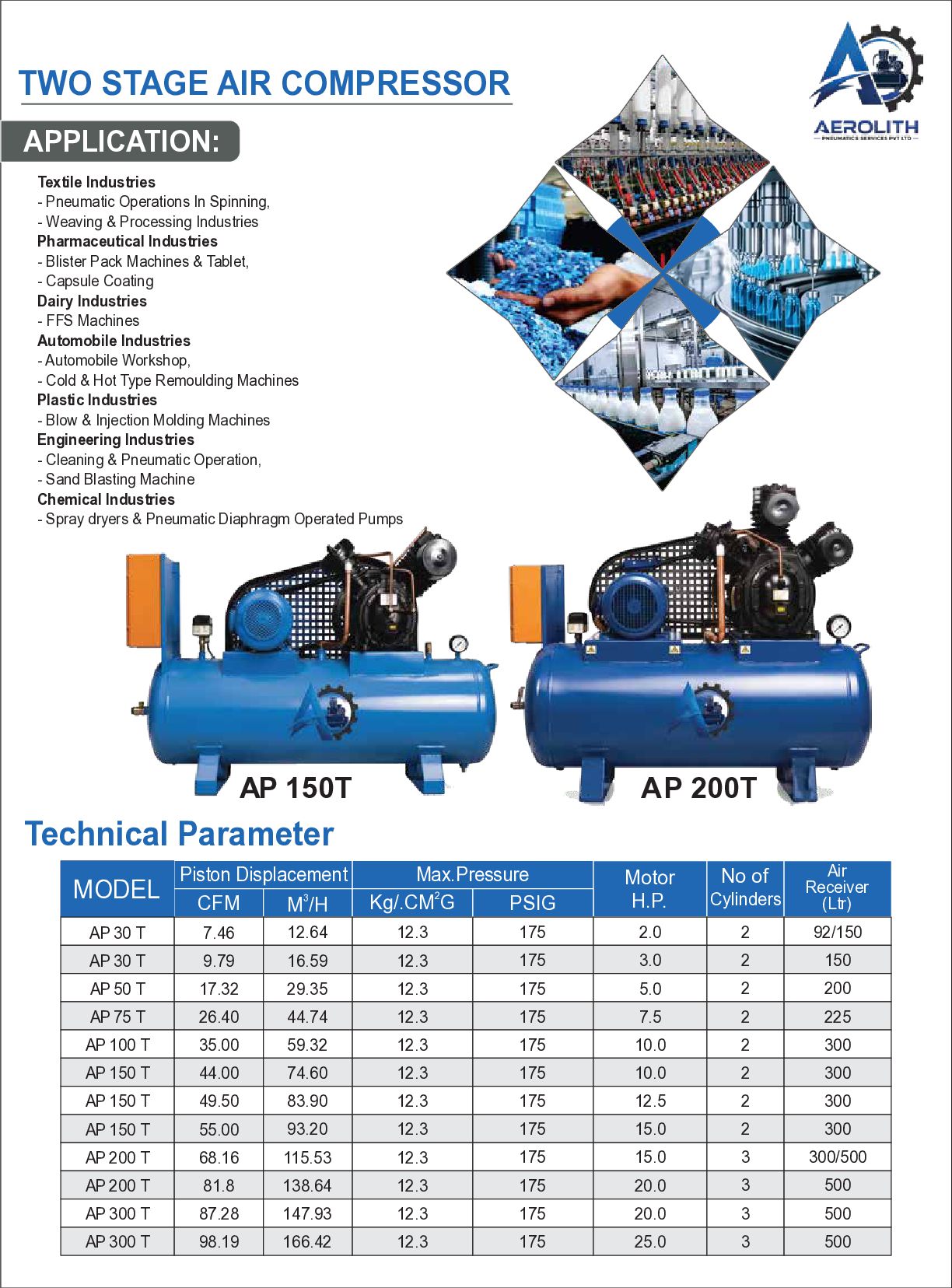

13. TWO STAGE AIR COMPRESSOR APPLICATION: Textile Industries - Pneumatic Operations In Spinning, - Weaving & Processing Industries Pharmaceutical Industries - Blister Pack Machines & Tablet, - Capsule Coating Dairy Industries - FFS Machines Automobile Industries - Automobile Workshop, - Cold & Hot Type Remoulding Machines Plastic Industries - Blow & Injection Molding Machines Engineering Industries - Cleaning & Pneumatic Operation, - Sand Blasting Machine Chemical Industries - Spray dryers & Pneumatic Diaphragm Operated Pumps AP 150T AP 200T Technical Parameter Piston Displacement Max.Pressure No of Cylinders Air Receiver (Ltr) CFM M /H 3 Kg/.CM2G PSIG Motor H.P. AP 30 T 7.46 12.64 12.3 175 2.0 2 92/150 AP 30 T 9.79 16.59 12.3 175 3.0 2 150 AP 50 T 17.32 29.35 12.3 175 5.0 2 200 AP 75 T 26.40 44.74 12.3 175 7.5 2 225 AP 100 T 35.00 59.32 12.3 175 10.0 2 300 AP 150 T 44.00 74.60 12.3 175 10.0 2 300 AP 150 T 49.50 83.90 12.3 175 12.5 2 300 AP 150 T 55.00 93.20 12.3 175 15.0 2 300 AP 200 T 68.16 115.53 12.3 175 15.0 3 300/500 AP 200 T 81.8 138.64 12.3 175 20.0 3 500 AP 300 T 87.28 147.93 12.3 175 20.0 3 500 AP 300 T 98.19 166.42 12.3 175 25.0 3 500 MODEL

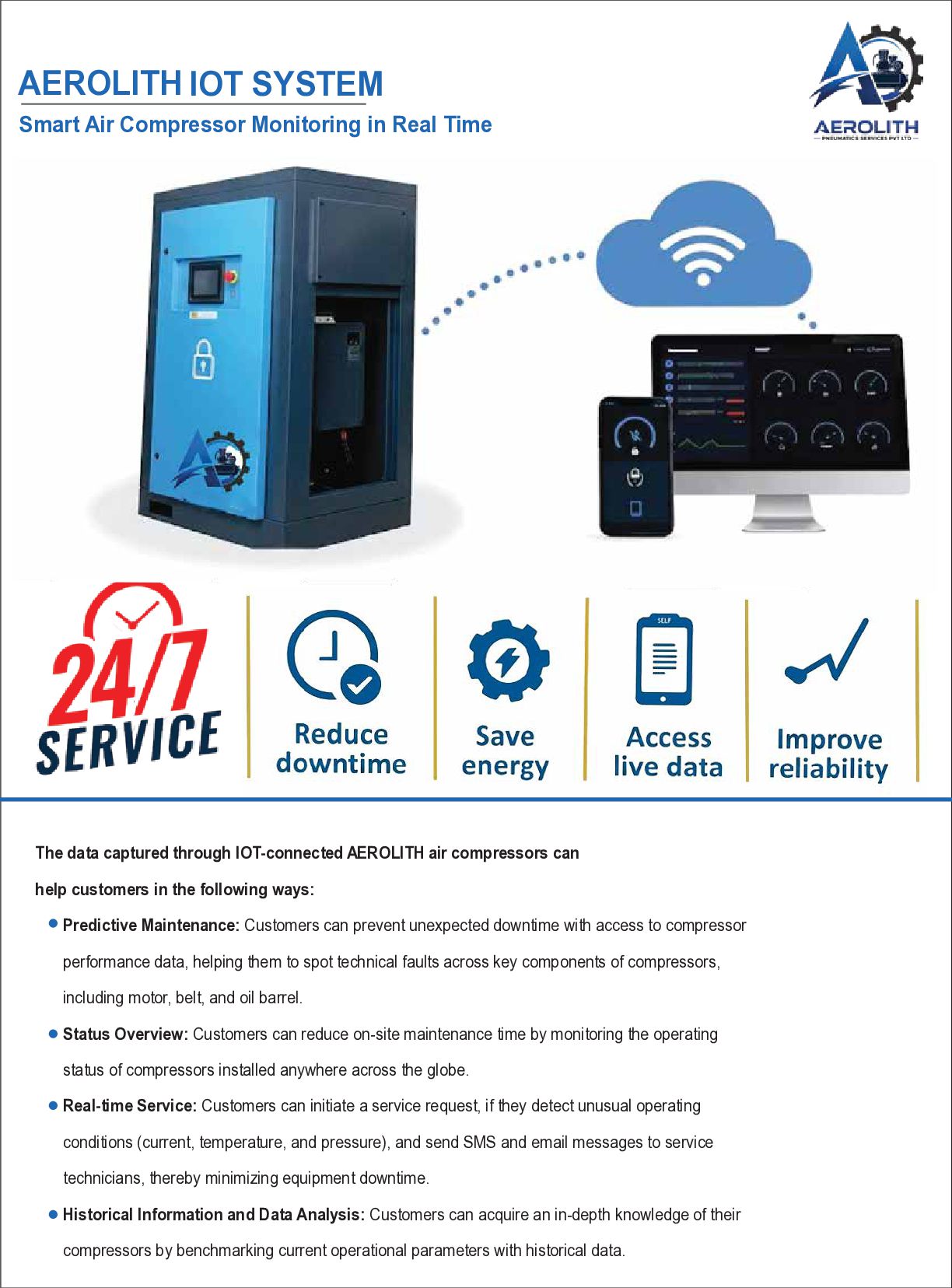

14. AEROLITH IOT SYSTEM Smart Air Compressor Monitoring in Real Time The data captured through IOT-connected AEROLITH air compressors can help customers in the following ways: Predictive Maintenance: Customers can prevent unexpected downtime with access to compressor performance data, helping them to spot technical faults across key components of compressors, including motor, belt, and oil barrel. Status Overview: Customers can reduce on-site maintenance time by monitoring the operating status of compressors installed anywhere across the globe. Real-time Service: Customers can initiate a service request, if they detect unusual operating conditions (current, temperature, and pressure), and send SMS and email messages to service technicians, thereby minimizing equipment downtime. Historical Information and Data Analysis: Customers can acquire an in-depth knowledge of their compressors by benchmarking current operational parameters with historical data.
15. Trusted by Comapnies for Air Compressor Solutions
16. AEROLITH COMPRESSOR Air of Trust Excellence Performance Mob : +977-9806922190 Main Office : Rupadehi Bhirahawa Nepal. OTHER BRANCH : Kathmandu, Pokhara, BIrgunj, Bhairahawa, Biratnagar AEROLITH Pneumatics Services PVT Ltd
