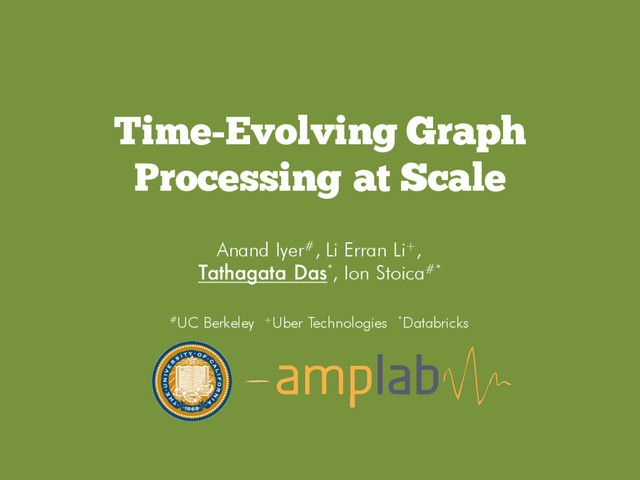

  1. Time-Evolving Graph
    Processing at Scale
    Anand Iyer#, Li Erran Li+,
    Tathagata Das*, Ion Stoica#*
    #UC Berkeley +Uber Technologies *Databricks

    View full-size slide

  2. Motivation
    Dynamically evolving graphs prevalent in many domains
    – Social networks (e.g., Twitter, Facebook)
    – Communication networks (e.g. cellular networks)
    – Internet-of-Things

    View full-size slide

  3. Motivation
    Many applications need to leverage the
    evolution characteristics
    – Product recommendations
    – Network troubleshooting
    – Real-time ad placement

    View full-size slide

  4. Motivation
    Lots of interest in distributed graph processing…
    – GraphX, Girafe, Powergraph, GraphLab, GraphChi,
    Chaos, …
    …but existing graph processing engines offer
    little support for dynamic graphs
    – Some specialized systems exist. E.g., Kineograph,
    Chronos, not generic enough

    View full-size slide

  5. Challenges
    • Consistent & fault-tolerant snapshot
    generation
    • Co-ordinate snapshot generation and
    computation
    • Window operations on snapshots
    • Mix data and graph parallel computations
    Existing solutions do
    not satisfy all the requirements

    View full-size slide

  6. GraphTau
    Abstraction
    Computational
    Model
    b
    d
    c
    e
    a
    d
    0.556
    2.39
    0.557
    0.557
    0.968
    0.977
    Iteration N
    b
    d
    c
    e
    a
    d
    0.556
    2.39
    0.557
    0.557
    0.968
    0.977
    Pause & Shift
    b
    d
    c
    e
    a
    d
    0.502
    2.07
    0.502
    0.849
    1.224
    0.849
    Continue from N
    a b
    c
    d
    e
    a d
    x b
    c
    d
    e
    b d
    Use vertex state
    a
    e
    d
    c
    a b
    e
    d
    c
    a b
    e
    d
    c f

    View full-size slide

  7. GraphTau
    a
    e
    d
    c
    a b
    e
    d
    c f
    a b
    e
    d
    c
    t1
    t2
    t3
    GraphTau represents time-evolving graphs as a
    series of consistent graph snapshots

    View full-size slide

  8. New Computational Models
    Two new models for processing
    time-evolving graphs
    Pause Shift Resume
    Online Rectification

    View full-size slide

  9. Pause-Shift-Resume
    Many graph algorithms robust to changes in graph
    before convergence
    E.g. PageRank: pause iterating, update snapshot, continue iterating
    b
    d
    c
    e
    a
    d
    0.556
    2.39
    0.557
    0.557
    0.968
    0.977
    Iteration N
    b
    d
    c
    e
    a
    d
    0.556
    2.39
    0.557
    0.557
    0.968
    0.977
    Pause & Shift
    b
    d
    c
    e
    a
    d
    0.502
    2.07
    0.502
    0.849
    1.224
    0.849
    Continue from N

    View full-size slide

  10. Pause-Shift-Resume
    B C
    A D
    F E
    A D
    D
    B C
    D
    E
    A
    A
    F
    B C
    A D
    F E
    A D
    D
    B C
    D
    E
    A
    A
    F
    Transition
    (0.977, 0.968)
    (X , Y): X is 10 iteration PageRank
    Y is 23 iteration PageRank
    After 11 iteration on graph 2,
    Both converge to 3-digit precision
    (0.977, 0.968)
    (0.571, 0.556)
    1.224
    0.849
    0.502
    (2.33, 2.39) 2.07
    0.849
    0.502
    (0.571, 0.556)
    (0.571, 0.556)

    View full-size slide

  11. Online Rectification Model
    Many graph algorithms not resilient to changes
    Need to keep per-vertex state to handle changes
    Connected components on an evolving graph
    can be done if each vertex stores its component
    a b
    c
    d
    e
    a d
    x b
    c
    d
    e
    b d
    Use vertex state

    View full-size slide

  12. Abstraction
    GraphStream[V,E]:
    Represents a series of Graph[V,E]
    snapshots where V = vertices, E = edges
    Graph[V
    ,E]
    @ T = 1
    Graph[V
    ,E]
    @ T = 2
    Graph[V
    ,E]
    @ T = 3
    Graph[V
    ,E]
    @ T = 4
    GraphStream[V,E]

    View full-size slide

  13. Operations: transform
    class GraphStream {
    def transform(func: Graph => Graph): GraphStream
    }
    func: User provided function to do bulk operations
    on vertices and edges to create a new graph,
    allows aggregations over vertices and edges
    transform:Applies func over each snapshot Graphs in
    a GraphStream

    View full-size slide

  14. Operations: transform
    class GraphStream {
    def transform(func: Graph => Graph): GraphStream
    }
    T = 1 T = 2 T = 3 T = 4
    Original
    GraphStream
    Transformed
    GraphStream
    func func func func

    View full-size slide

  15. Operations: sliding windows
    T = 1 T = 2 T = 3 T = 4
    Original
    GraphStream
    Windowed
    GraphStream
    class GraphStream {
    def mergeWindows(
    aggregationFuncs,
    windowLength,
    slidingInterval): GraphStream
    }
    aggregationFuncs
    windowLen
    slidingInterval

    View full-size slide

  16. Differential Computation:
    Pause-shift-resume and Online Rectification
    incorporated into an efficient Pregel-style
    computation implementation
    Effectively an extension of the Pregel iterative
    processing model for time-evolving graphs

    View full-size slide

  17. Operations: StreamingBSP
    GraphStream
    Apply Pregel
    iterationFunc
    until next snapshot
    is available
    T = 1
    class GraphStream {
    def StreamingBSP(..., iterationFunc, ...): GraphStream
    }
    Combine previous
    results with new
    snaphot, continue
    iterating
    T = 2 T =
    3
    Continue until
    convergence

    View full-size slide

  18. PageRank using StreamingBSP
    PageRank computation on streaming graphs
    easily achieved by a simple call
    def pageRankEvolGraph(gs: GraphStream) = {
    def vprog(v: VertexId, msgSum: double) = 0.15+0.85*msgSum
    return gs.StreamingBSP(1, 100, EdgeDirection.Out, "10s")
    (vprog,
    triplet => triplet.src.pr/triplet.src.outDeg,
    (msgA, msgB) => msgA+msgB)
    }
    Listing 3: Page Rank Computation on Time-Evolving Graphs
    4.4 Live Graph State Tracking
    Streaming graph applications may want to keep track of live graph
    state. For example, social network applications may keep track of
    Faster convergence than running
    PageRank from scratch on every snapshot

    View full-size slide

  19. Operations: updateLocalState
    class GraphStream {
    def updateLocalState (stateUpdateFunc, initialState): LocalStateStream
    }
    GraphStream
    T = 1
    initialState
    T = 2 T = 3
    stateUpdateFunc
    Keep updating non-graph "state" as graph evolves

    View full-size slide

  20. Implementation
    Implemented on Apache Spark platform
    - Spark Streaming: stream processing engine
    - GraphX: graph processing engine
    GraphTau implemented by combining Spark
    Streaming and Graphx
    - Novel optimizations to implement the GraphStream
    abstraction

    View full-size slide

  21. Other Benefits
    Spark Streaming, GraphX built on Spark's RDDs
    RDDs guarantees fault-tolerance and consistency
    of datasets
    In addition, allows mixing data and graph
    parallel computations in GraphStream

    View full-size slide

  22. Preliminary Results
    • Algorithms:
    – PageRank
    – Connected Components
    • Setup: 16 Amazon EC2 instances
    • Datasets:
    – Twitter follow graph: 41M vertices, ~1.5B edges
    – Live LTE network: 2M vertices, variable edges

    View full-size slide

  23. Preliminary Results: PageRank
    Dataset: Twitter Graph broken in to parts:
    - 1 part = full graph
    - 5 parts = 20% of graph in each part
    Comparison:
    - Time to complete PageRank in GraphX on full graph
    - Time to complete streaming PageRank in GraphTau
    when the graph is streamed in parts

    View full-size slide

  24. Preliminary Results: PageRank
    ��
    ����
    ����
    ����
    ����
    �����
    �� �� �� �� ���
    ��������������������
    ������������������������������������������
    ������
    �����
    ������
    �����

    GraphXon whole
    graph could not
    converge!
    GraphTau converged fast
    when 20% of the graph is
    streamed at a time
    Smaller batches lead
    to faster convergence

    View full-size slide

  25. Preliminary Results: Cell IQ
    CellIQ (NSDI 2015): Prior work
    - Detection of persistent hotspots using incremental
    connected components
    - Built specialized system to do temporal analysis
    Re-implemented on general system GraphTau
    - Uses mergeByWindow for sliding window analysis
    - Strawman (baseline) runs non-incremental
    connected components on whole window of
    snapshots

    View full-size slide

  26. Preliminary Results: Cell IQ
    0
    2
    4
    6
    8
    0 2 4 6 8 10 12
    Analysis Time (s)
    Window Size (m)
    Strawman GraphTau CellIQ
    GraphTau managed to get performance comparable to
    specialized system, without domain specific optimizations

    View full-size slide

  27. Takeways
    GraphTau
    General purpose processing engine for
    time-evolving graphs
    GraphStream abstraction that provides
    Consistent & fault-tolerant snapshot generation
    Co-ordinate snapshotting and computation
    Sliding window operations
    Mix data and graph parallel computations

    View full-size slide
