Leveraging OSGi to Create Extensible Plugins for Liferay 6.2

Recording: https://www.youtube.com/watch?v=6WQNDm8780o#t=16

Transcript

1. Leveraging OSGi to Create Extensible Plugins for Liferay 6.2 Eduardo García edupgv @ Julio Camarero juliocamarero @ Core Engineers at Liferay, Inc Milen Dyankov milendyankov @ Senior Consultant at Liferay, Inc
2. OSGi is about modularity
3. ... and Liferay already allowed for modularity ...
4. Portlets Portlets Hooks Hooks Themes Themes Layouts Layouts ... ...
5. ... but modules are not modular !!!
6. OSGi brings into Liferay modularity of modules !!!
8. ...
9. Microservices Supported in Liferay marketplace
10. Let’s see an example… A Shipping Cost Calculator https://github.com/epgarcia/liferay-plugins/commits/LRNAS2014.OSGI

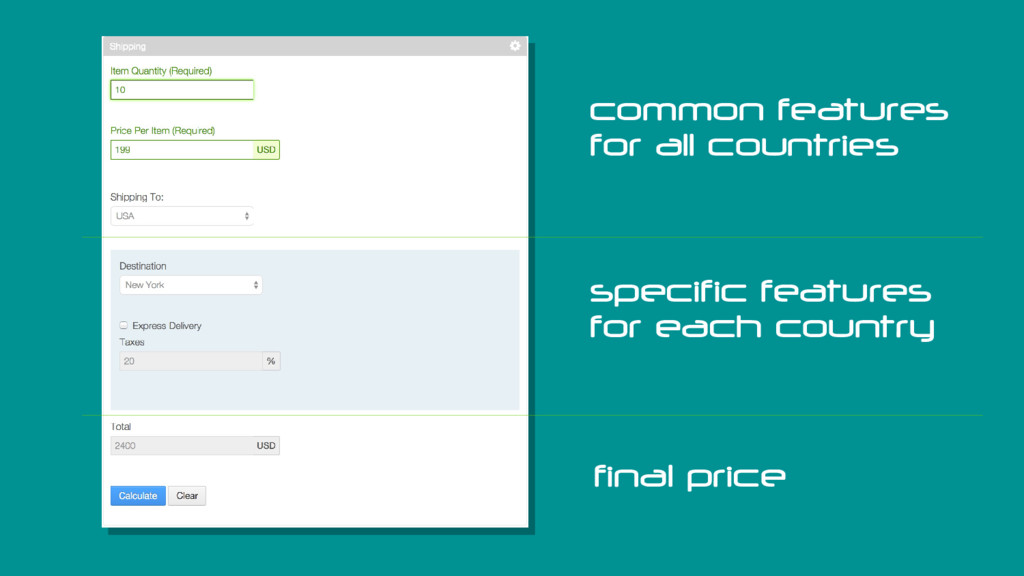

11. final price common features for all countries specific features for each country
12. we could… Develop a very complex and laborious application that covers all possible cases Release a new version every time any shipping cost algorithm changes or we add new countries Develop a simple core application that covers only the common features Make the application extensible with country modules “ ” If a shipping algorithm changes, our core application remains the same and only that specific extension must be changed
13. will be the future of all Liferay 7 applications ...
14. ... because it’s all advantages! improves maintainability maximizes reusability simplification of releases (independent) new market opportunities (extensions)

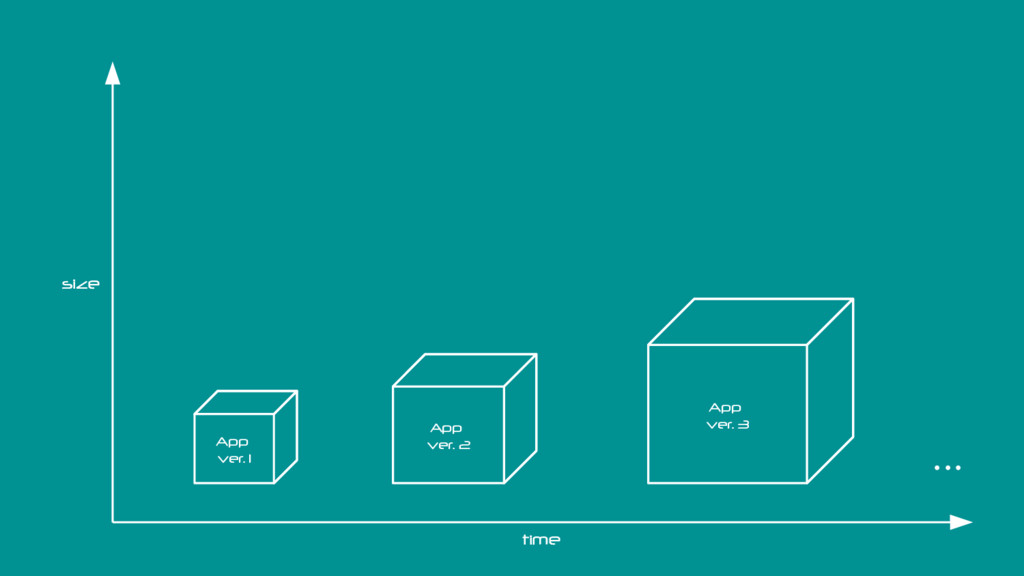

15. App ver. 1 App ver. 2 App ver. 3 time size ...

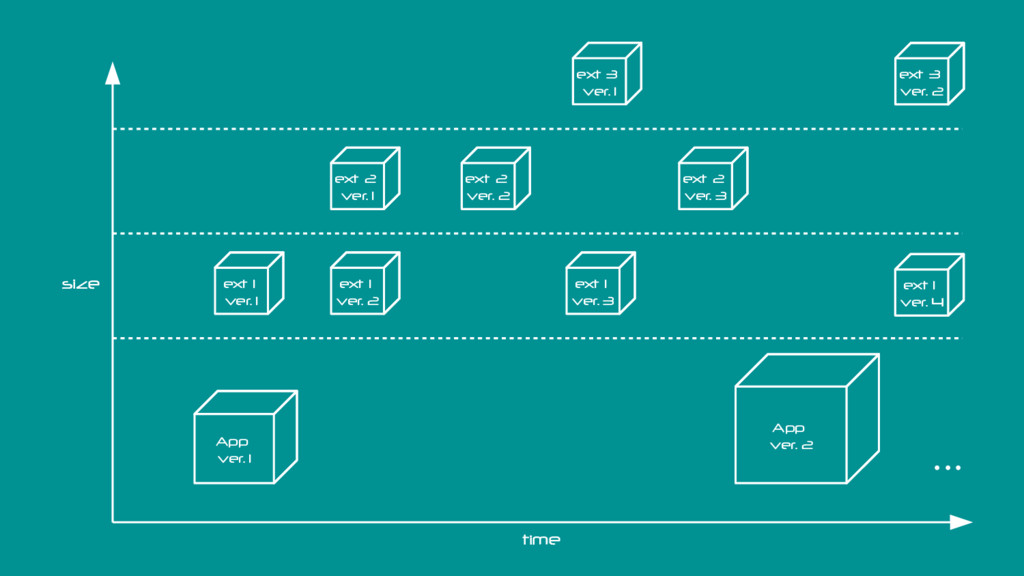

16. App ver. 1 App ver. 2 time size ... ext 1 ver. 1 ext 1 ver. 2 ext 1 ver. 3 ext 2 ver. 3 ext 2 ver. 1 ext 2 ver. 2 ext 3 ver. 1 ext 1 ver. 4 ext 3 ver. 2
17. But OSGi makes this possible already in Liferay 6.2 !
18. In fact, Audience Targeting, the first Liferay 6.2 application following this approach, is already available on Marketplace!
19. Sounds great, but I have no idea about OSGi…
20. OSGi basic concepts in 3 minutes! (or what you need to understand before we continue)

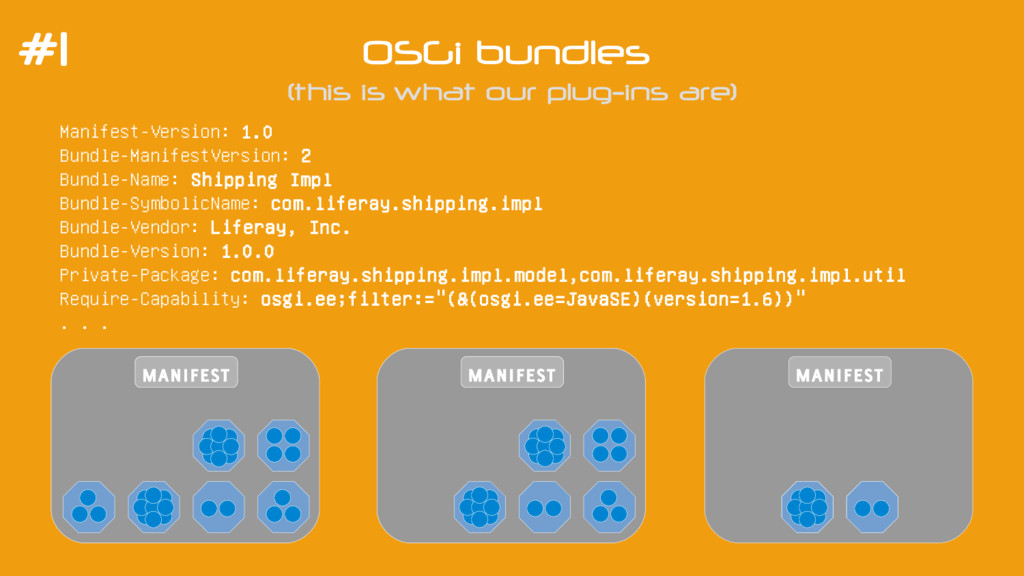

21. OSGi bundles (this is what our plug-ins are) manifest manifest manifest manifest manifest Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Bundle-Name: Shipping Impl Bundle-SymbolicName: com.liferay.shipping.impl Bundle-Vendor: Liferay, Inc. Bundle-Version: 1.0.0 Private-Package: com.liferay.shipping.impl.model,com.liferay.shipping.impl.util Require-Capability: osgi.ee;filter:="(&(osgi.ee=JavaSE)(version=1.6))" . . . #1

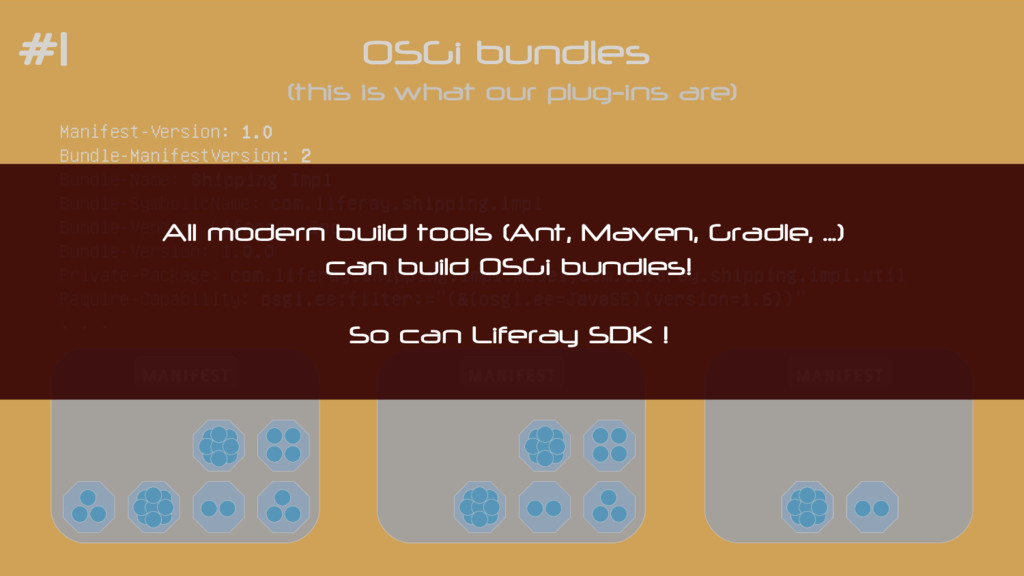

22. #1 OSGi bundles (this is what our plug-ins are) manifest manifest manifest manifest manifest Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Bundle-Name: Shipping Impl Bundle-SymbolicName: com.liferay.shipping.impl Bundle-Vendor: Liferay, Inc. Bundle-Version: 1.0.0 Private-Package: com.liferay.shipping.impl.model,com.liferay.shipping.impl.util Require-Capability: osgi.ee;filter:="(&(osgi.ee=JavaSE)(version=1.6))" . . . All modern build tools (Ant, Maven, Gradle, ...) can build OSGi bundles! So can Liferay SDK !

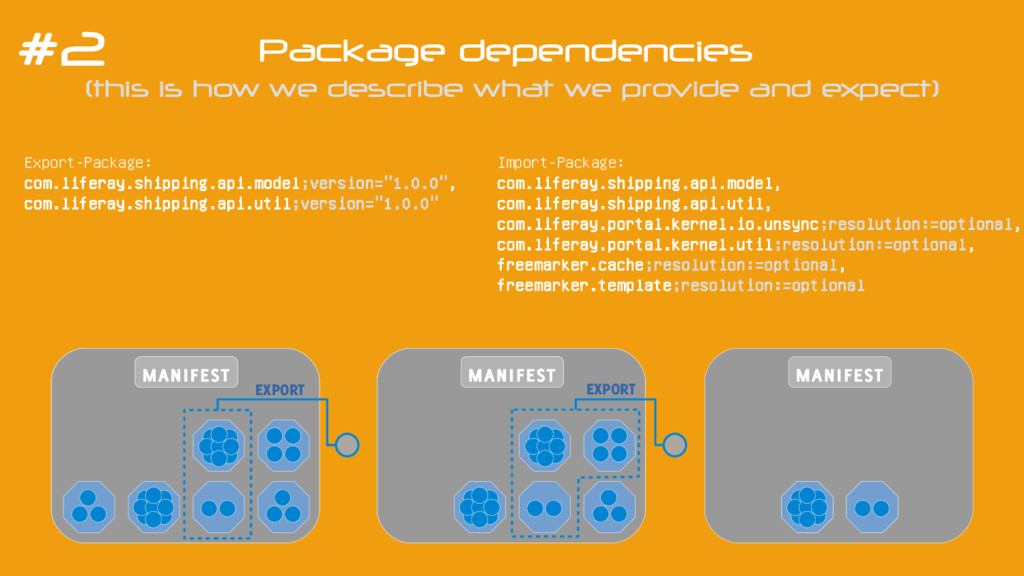

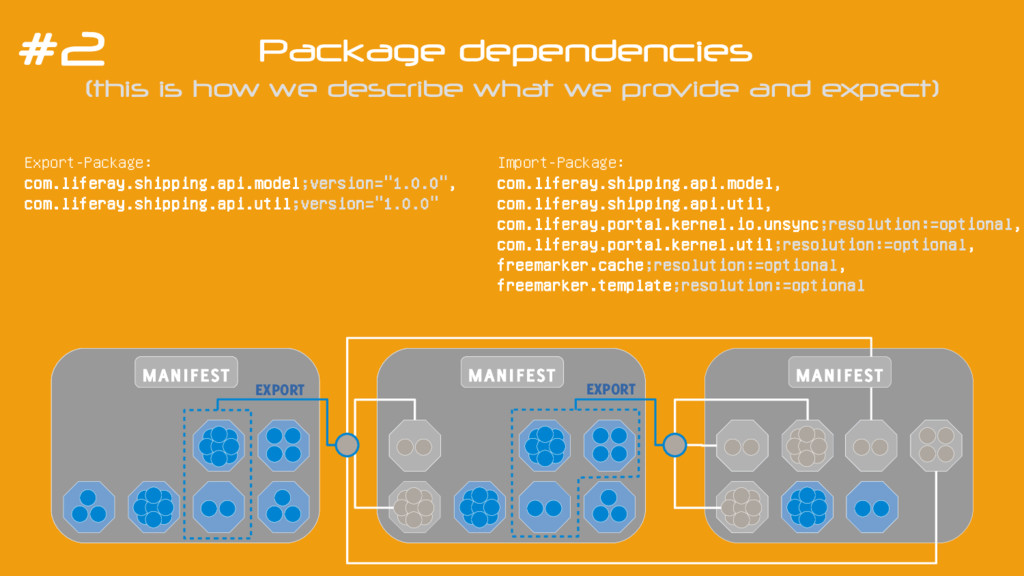

23. Package dependencies (this is how we describe what we provide and expect) Import-Package: com.liferay.shipping.api.model, com.liferay.shipping.api.util, com.liferay.portal.kernel.io.unsync;resolution:=optional, com.liferay.portal.kernel.util;resolution:=optional, freemarker.cache;resolution:=optional, freemarker.template;resolution:=optional Export-Package: com.liferay.shipping.api.model;version="1.0.0", com.liferay.shipping.api.util;version="1.0.0" manifest manifest manifest manifest manifest EXPORT EXPORT #2
24. manifest manifest manifest manifest manifest EXPORT EXPORT Package dependencies (this is how we describe what we provide and expect) Import-Package: com.liferay.shipping.api.model, com.liferay.shipping.api.util, com.liferay.portal.kernel.io.unsync;resolution:=optional, com.liferay.portal.kernel.util;resolution:=optional, freemarker.cache;resolution:=optional, freemarker.template;resolution:=optional Export-Package: com.liferay.shipping.api.model;version="1.0.0", com.liferay.shipping.api.util;version="1.0.0" #2

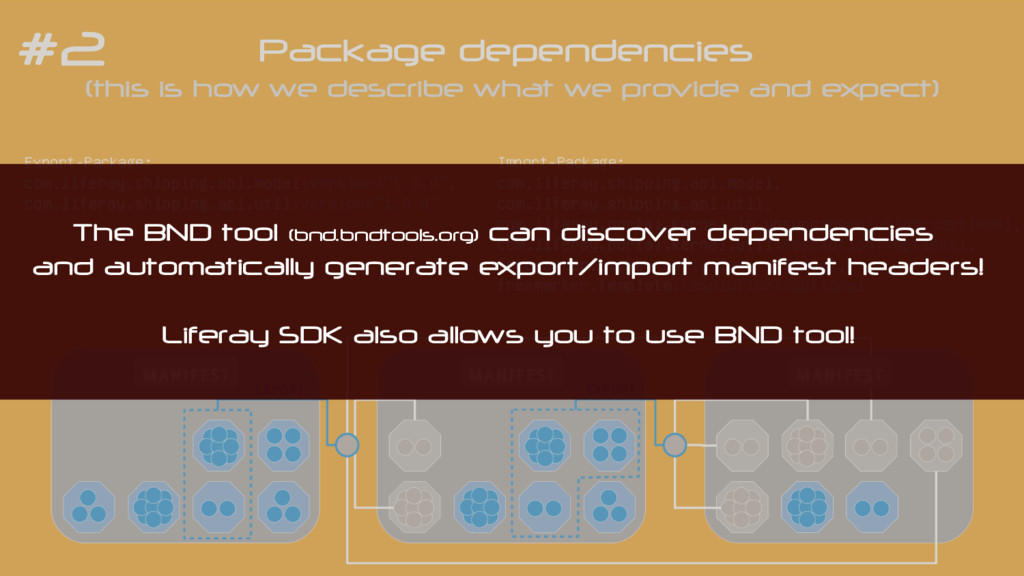

25. #2 manifest manifest manifest manifest manifest EXPORT EXPORT Package dependencies (this is how we describe what we provide and expect) Import-Package: com.liferay.shipping.api.model, com.liferay.shipping.api.util, com.liferay.portal.kernel.io.unsync;resolution:=optional, com.liferay.portal.kernel.util;resolution:=optional, freemarker.cache;resolution:=optional, freemarker.template;resolution:=optional Export-Package: com.liferay.shipping.api.model;version="1.0.0", com.liferay.shipping.api.util;version="1.0.0" The BND tool (bnd.bndtools.org) can discover dependencies and automatically generate export/import manifest headers! Liferay SDK also allows you to use BND tool!

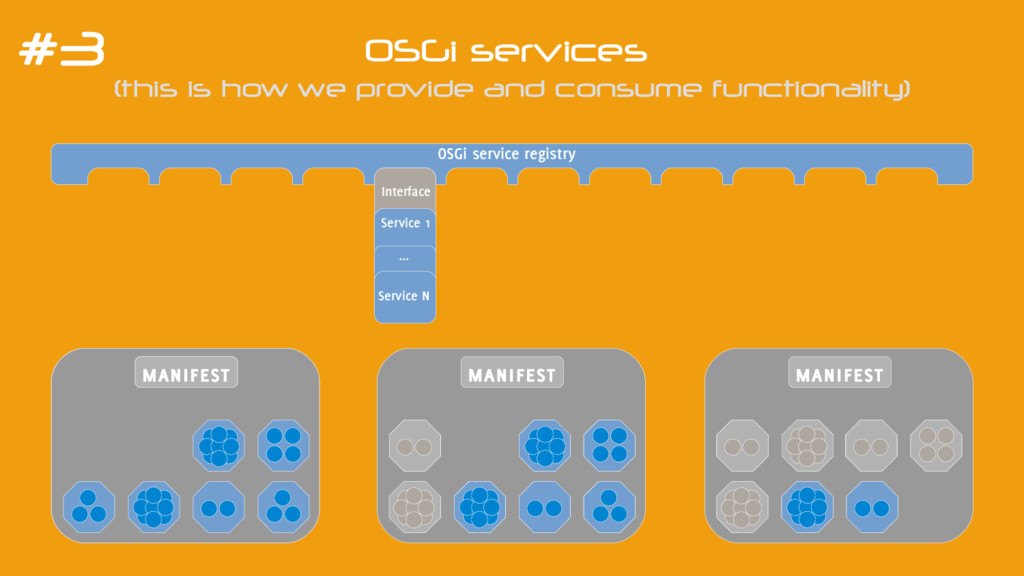

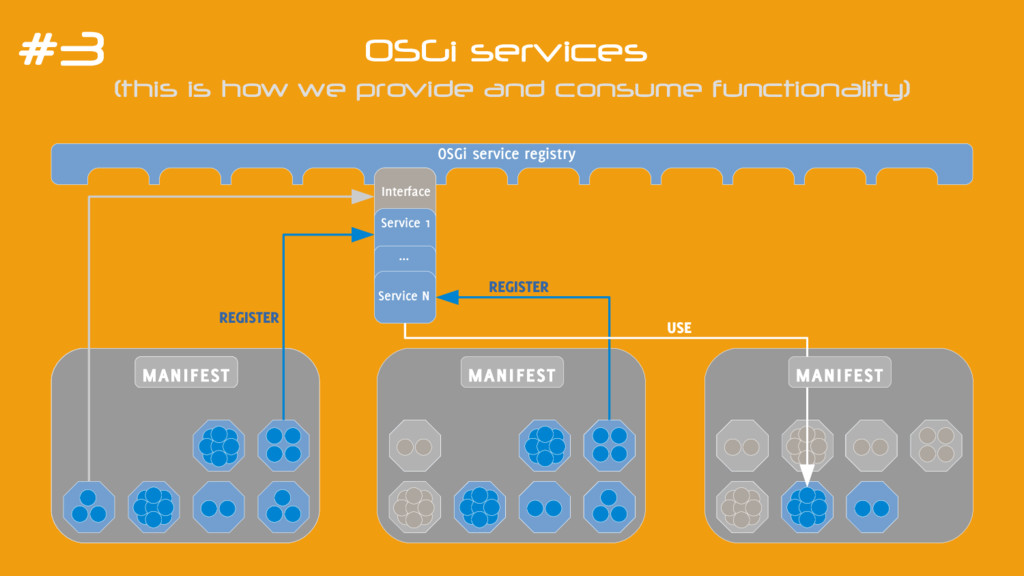

26. OSGi services (this is how we provide and consume functionality) manifest manifest manifest manifest OSGi service registry Interface Service 1 ... Service N #3
27. OSGi services (this is how we provide and consume functionality) manifest manifest manifest OSGi service registry Interface Service 1 ... Service N REGISTER REGISTER USE manifest #3
28. #3 OSGi services (this is how we provide and consume functionality) manifest manifest manifest OSGi service registry Interface Service 1 ... Service N REGISTER REGISTER USE manifest There are number of component frameworks on top of OSGi (Declarative Services and Blueprint being part of the specs) which greatly simplify the usage of services!
29. Sounds great, but how OSGi fits into Liferay ?

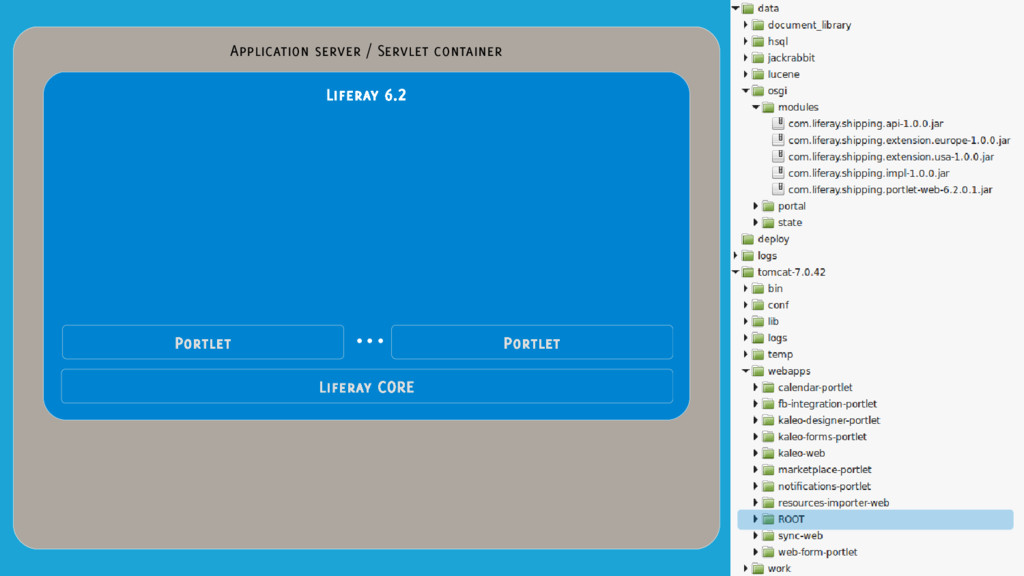

30. Application server / Servlet container Liferay 6.2 Liferay CORE Portlet Portlet ...

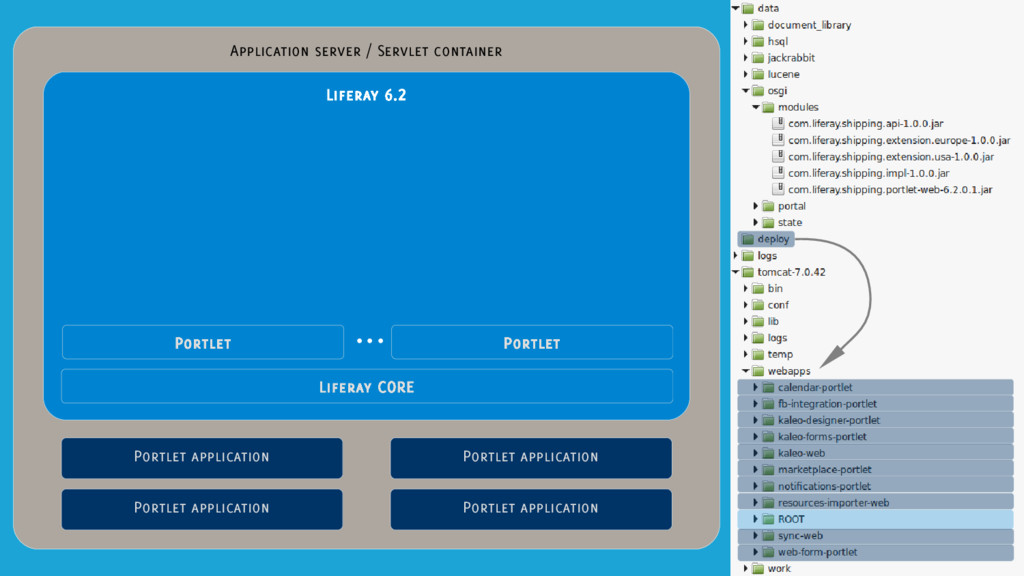

31. Application server / Servlet container Liferay 6.2 Portlet application Portlet application Portlet application Portlet application Liferay CORE Portlet Portlet ...

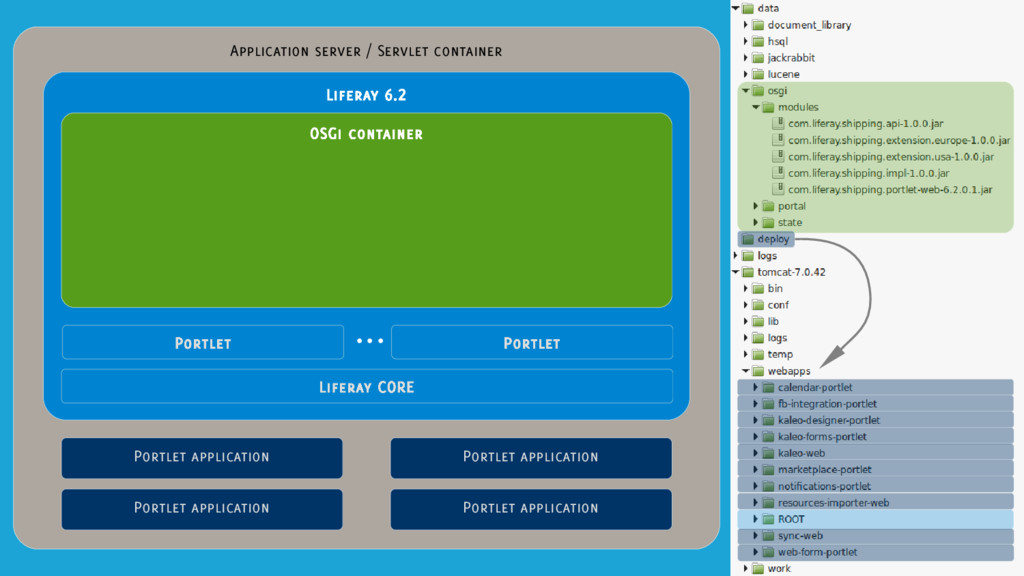

32. Application server / Servlet container Liferay 6.2 Portlet application Portlet application Portlet application Portlet application Liferay CORE Portlet Portlet OSGi container ...
33. Application server / Servlet container Liferay 6.2 Portlet application Portlet application Portlet application Portlet application Liferay CORE Portlet Portlet OSGi container OSGi core services HTTP Service Configuration Admin Service ... ... Liferay core OSGi services

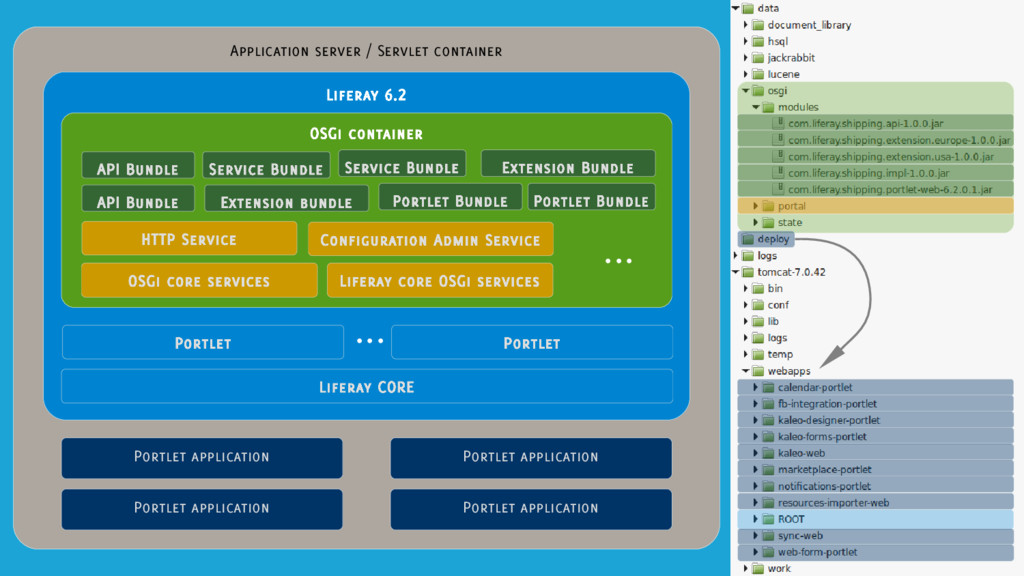

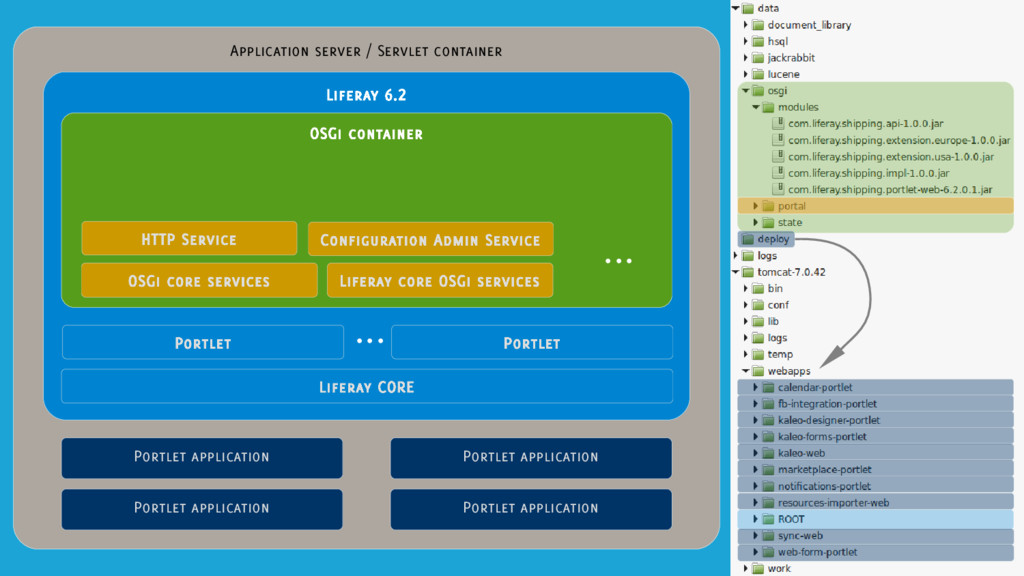

34. Application server / Servlet container Liferay 6.2 Portlet application Portlet application Portlet application Portlet application Liferay CORE Portlet Portlet OSGi container API Bundle API Bundle Service Bundle Extension bundle Service Bundle Portlet Bundle Extension Bundle Portlet Bundle OSGi core services HTTP Service Configuration Admin Service ... ... Liferay core OSGi services

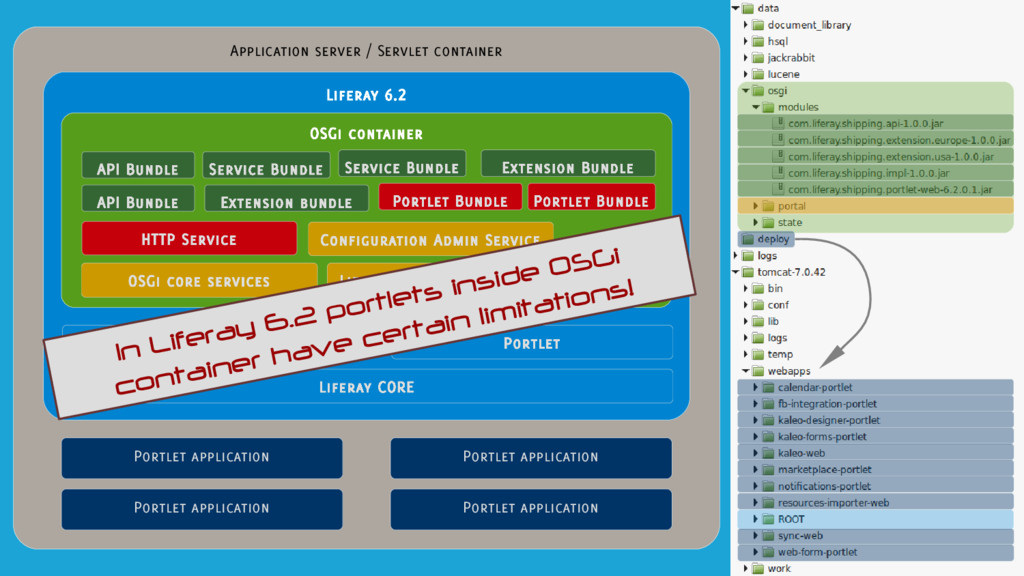

35. Application server / Servlet container Liferay 6.2 Portlet application Portlet application Portlet application Portlet application Liferay CORE Portlet Portlet OSGi container API Bundle API Bundle Service Bundle Extension bundle Service Bundle Portlet Bundle Extension Bundle Portlet Bundle OSGi core services HTTP Service Configuration Admin Service ... ... Liferay core OSGi services In Liferay 6.2 portlets inside OSGi container have certain limitations!

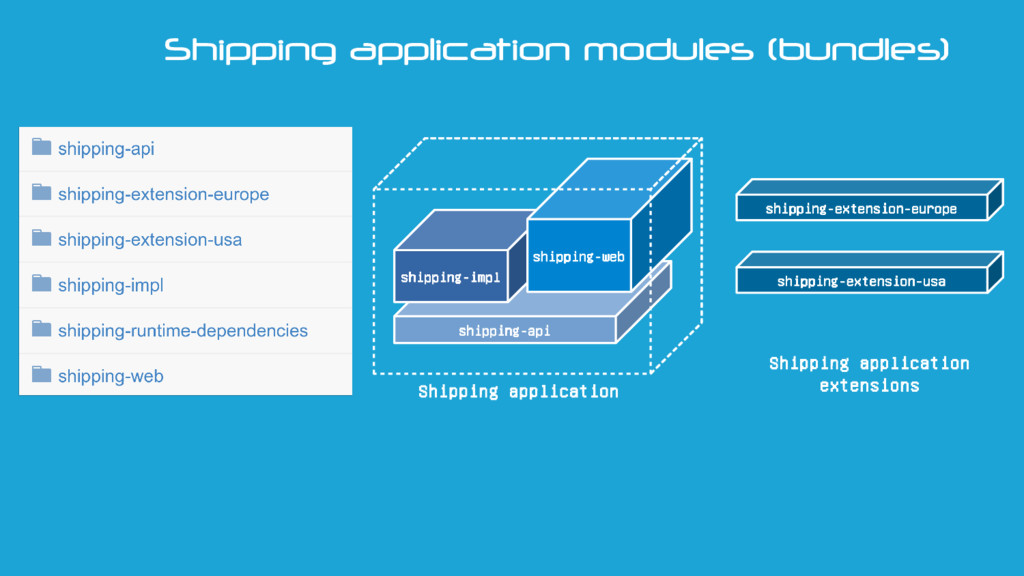

36. shipping-api shipping-impl shipping-web Shipping application shipping-extension-europe shipping-extension-usa Shipping application extensions Shipping application modules (bundles)

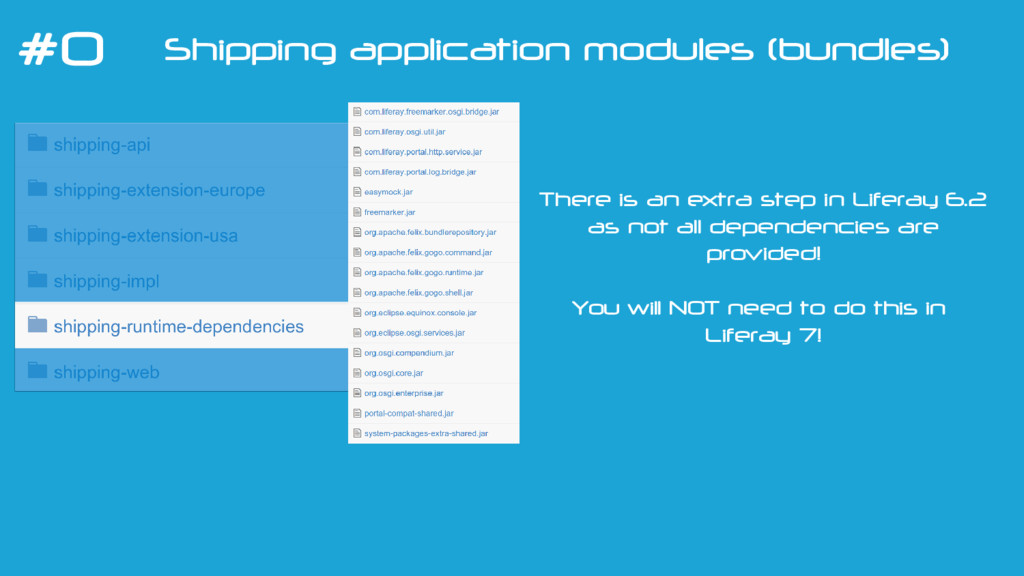

37. There is an extra step in Liferay 6.2 as not all dependencies are provided! You will NOT need to do this in Liferay 7! #0 Shipping application modules (bundles)

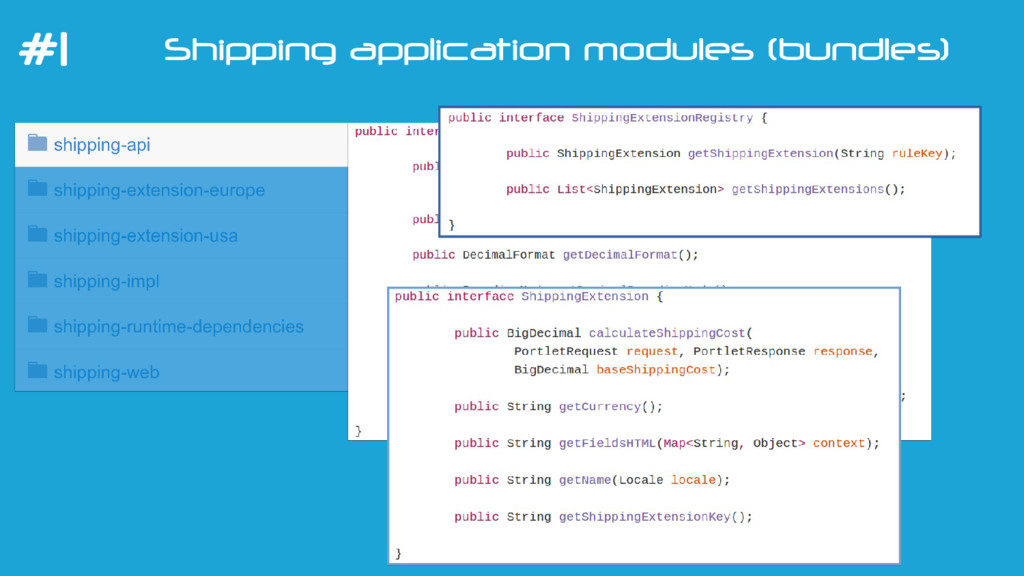

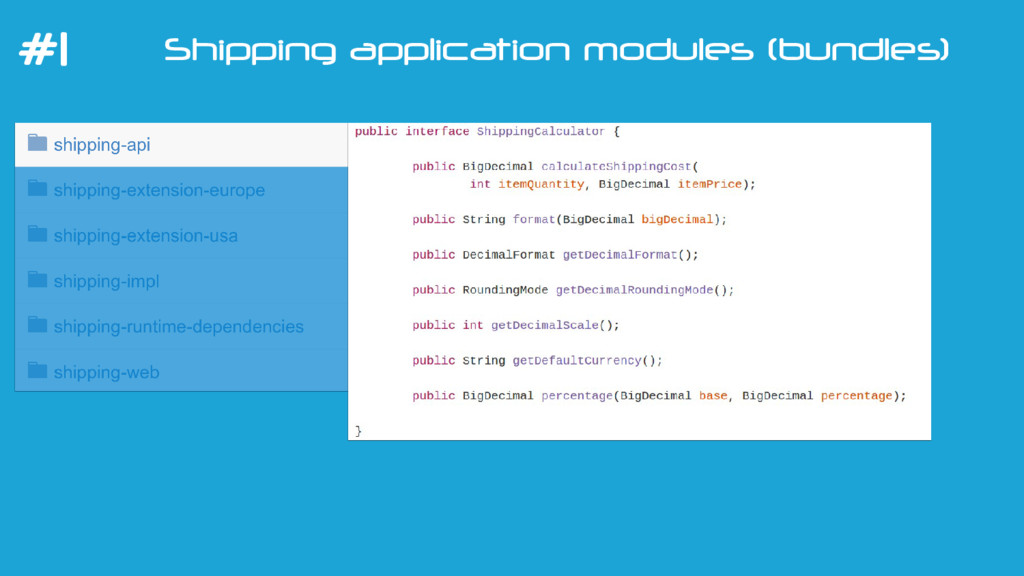

38. #1 Shipping application modules (bundles)

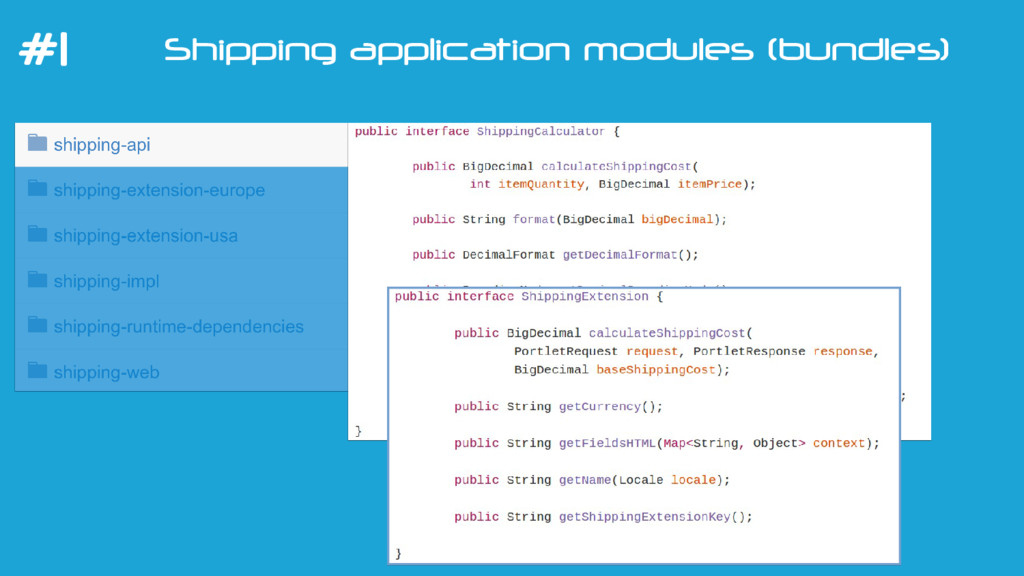

39. #1 Shipping application modules (bundles)

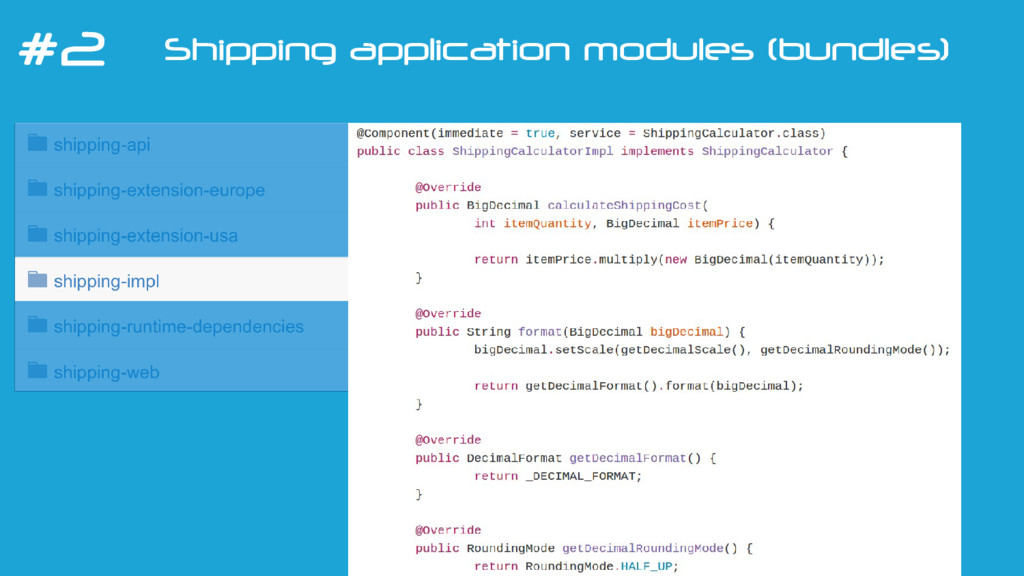

40. #1 Shipping application modules (bundles)

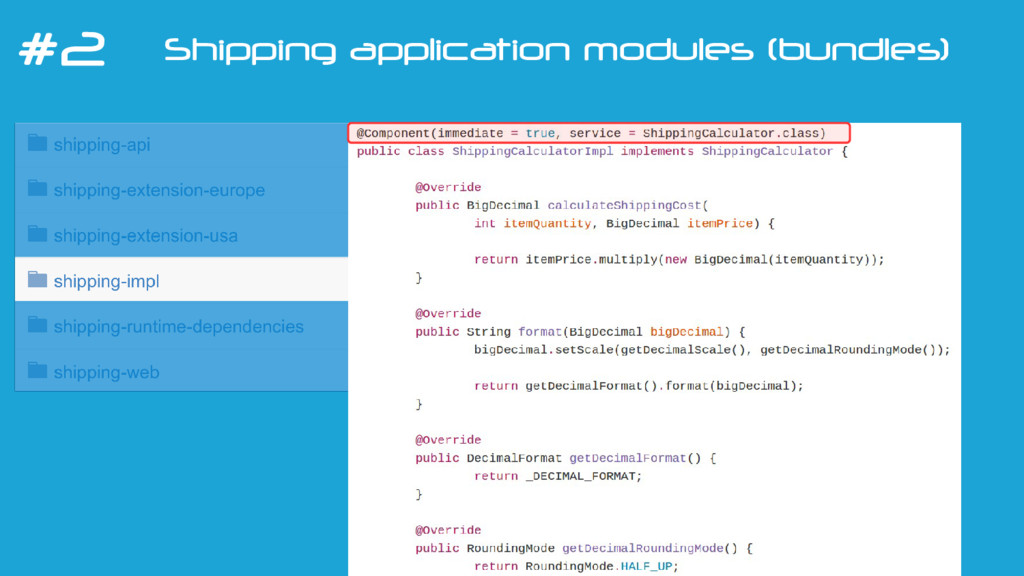

41. #2 Shipping application modules (bundles)
42. #2 Shipping application modules (bundles)

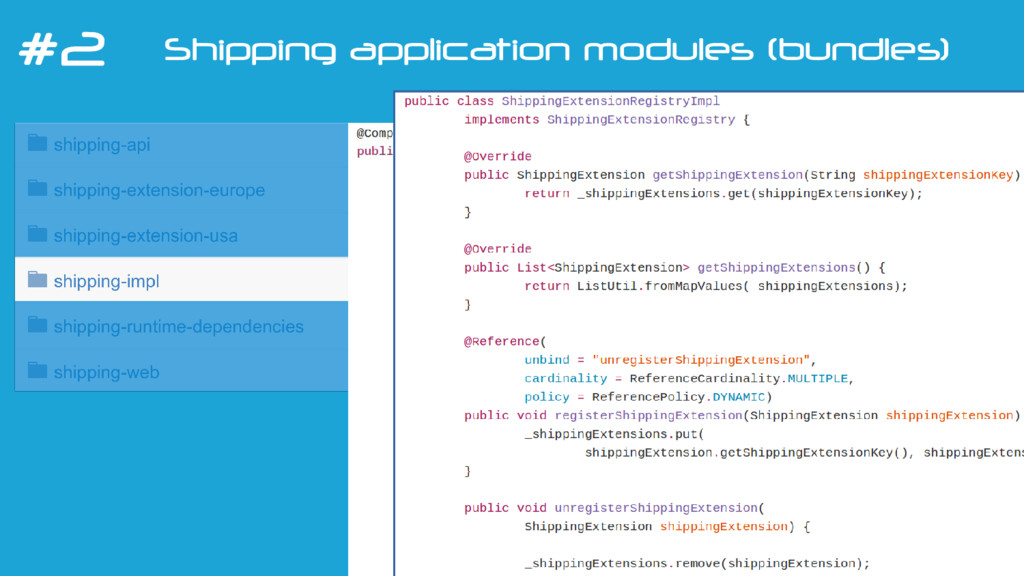

43. #2 Shipping application modules (bundles)
44. #2 Shipping application modules (bundles)

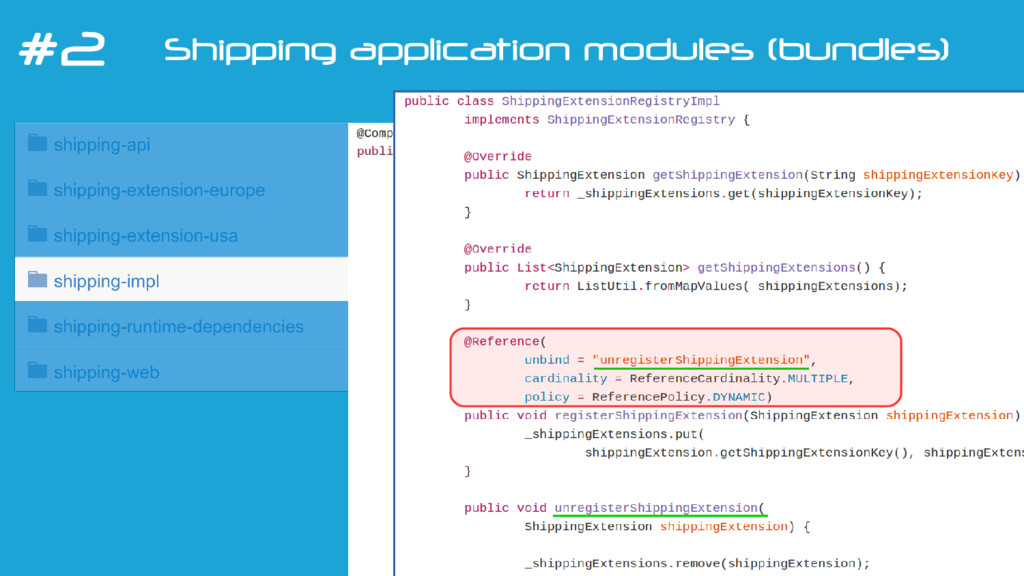

45. #2 Shipping application modules (bundles)
46. #3 Shipping application modules (bundles)

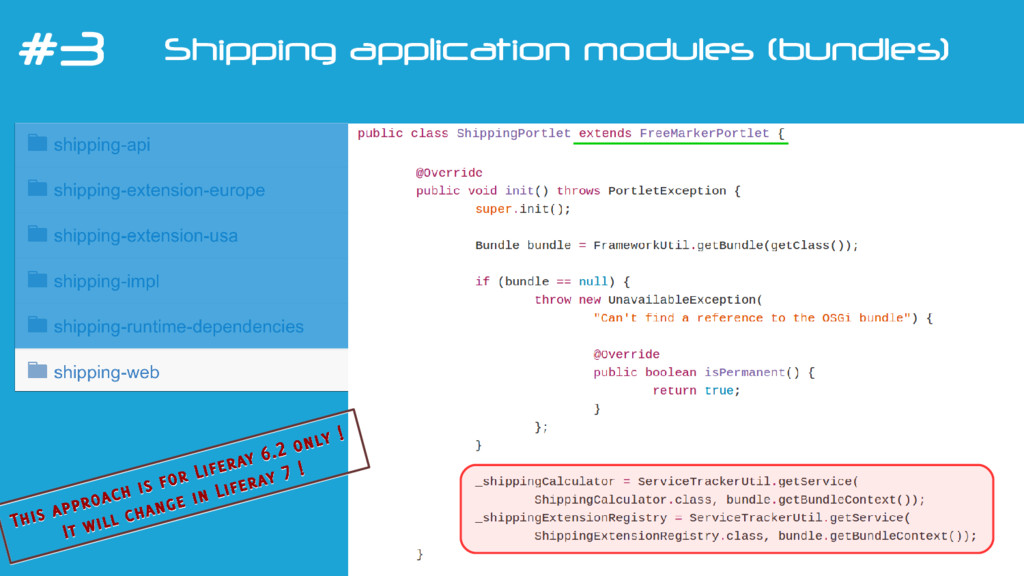

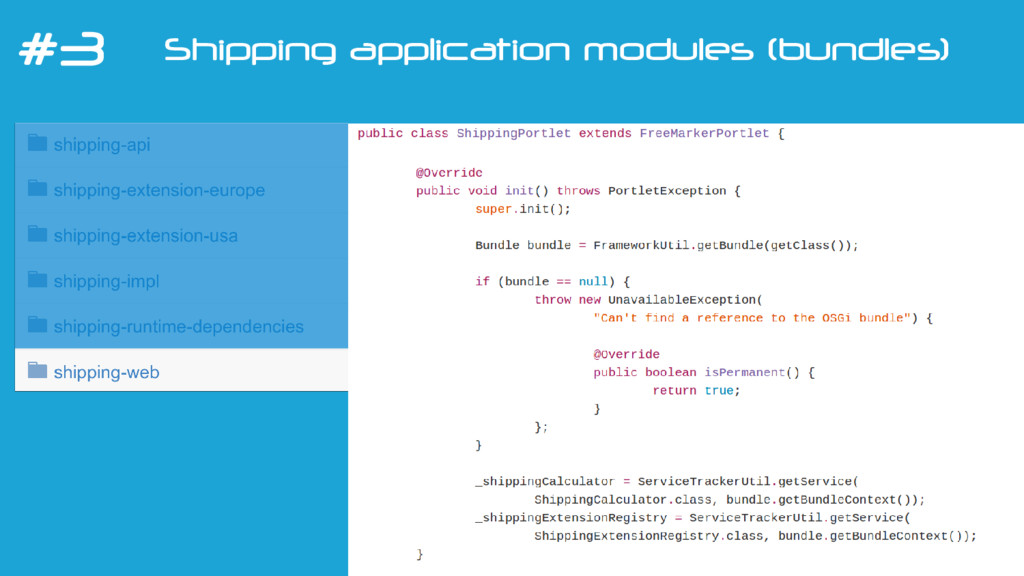

47. This approach is for Liferay 6.2 only ! It will change in Liferay 7 ! This approach is for Liferay 6.2 only ! It will change in Liferay 7 ! #3 Shipping application modules (bundles)
48. Our main application is ready! Let's try it !

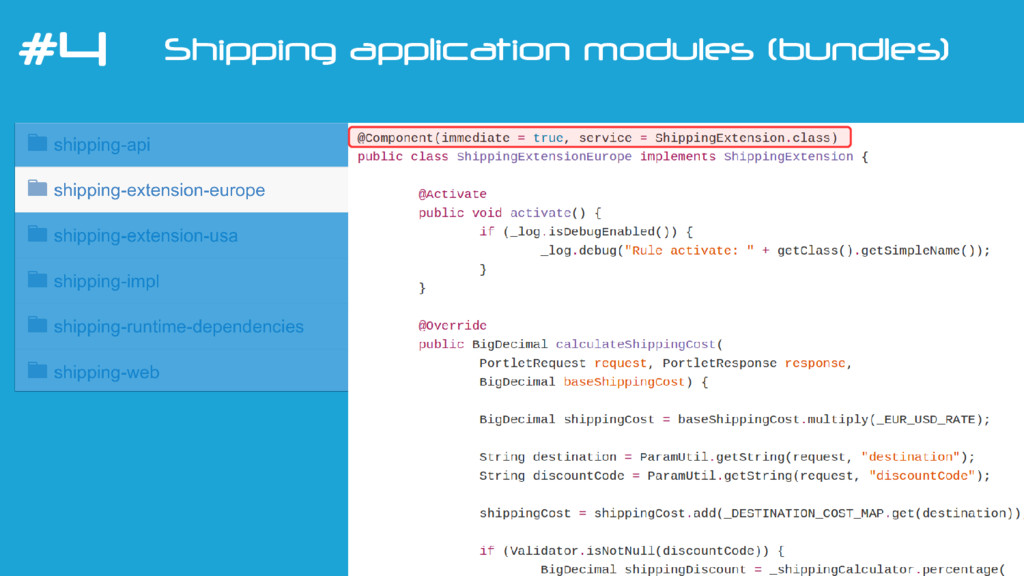

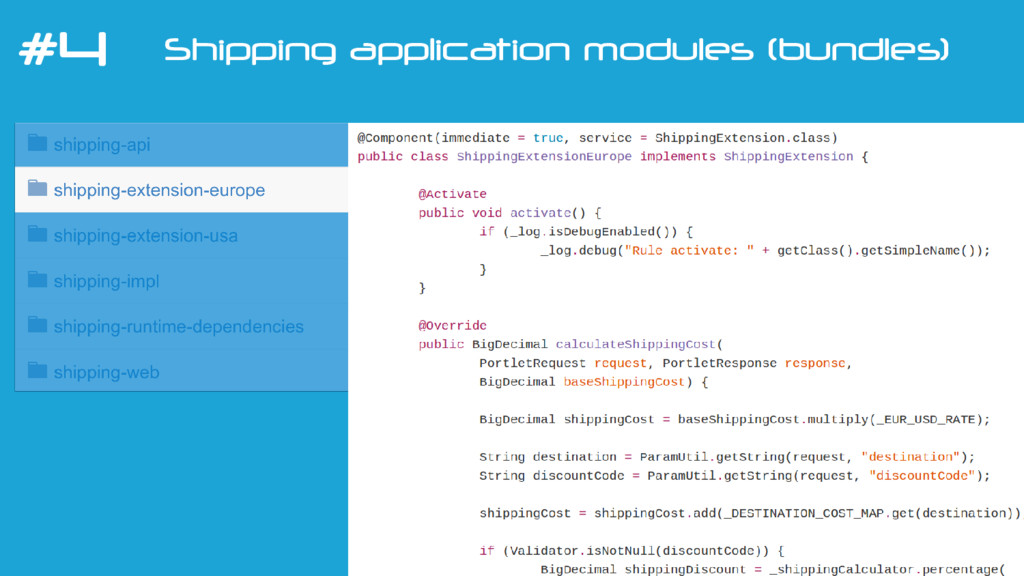

49. #4 Shipping application modules (bundles)
50. #4 Shipping application modules (bundles)
51. Let's try it !

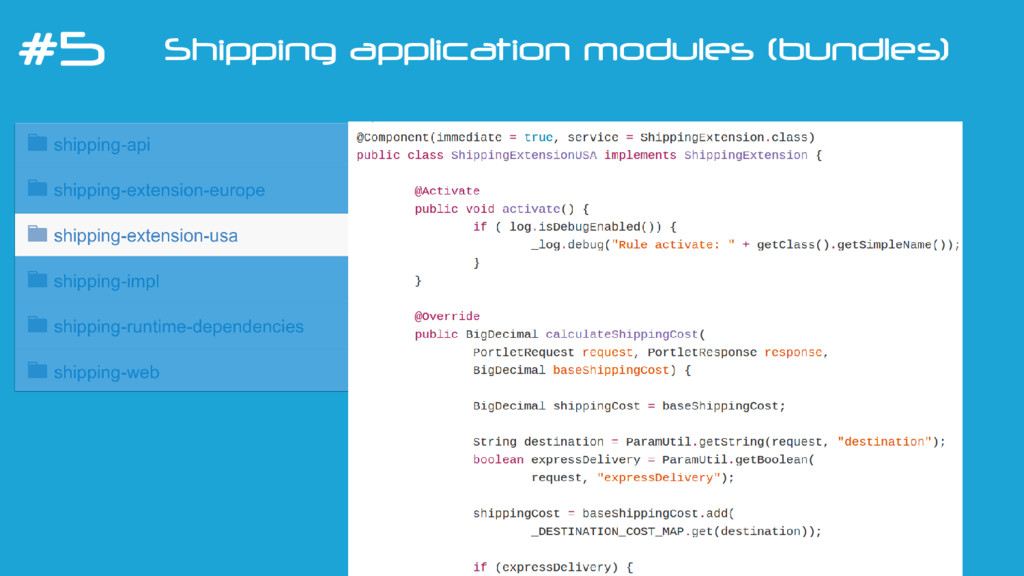

52. #5 Shipping application modules (bundles)

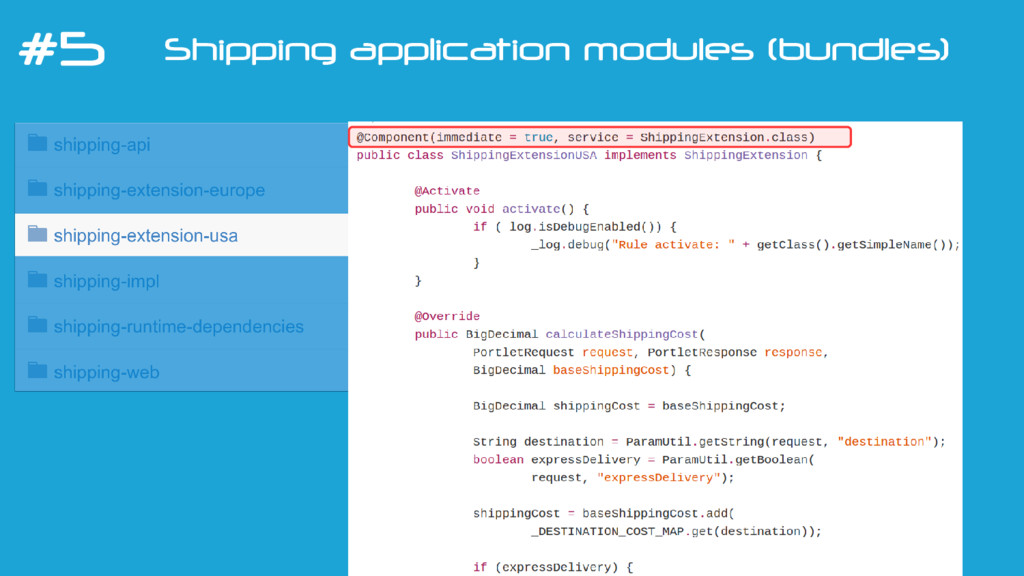

53. #5 Shipping application modules (bundles)
54. Let's try it !
55. Where you go from here?
56. Send feedback! Build your own OSGi modules Learn more about OSGi Try the samples yourself https://github.com/epgarcia/liferay-plugins/commits/LRNAS2014.OSGI
