1. ICS 212 Program Structure William McDaniel Albritton M.S.
2. Memory Allocation  Fundamentals of Inheritance  Protected Member Access Control  Constructors  Overriding Functions  Overview of Class Hierarchy
4. Fundamentals of Inheritance
5. What Is Inheritance?  Inheritance is a form of software reusability in which new classes are created from existing classes by absorbing their attributes and behaviors, and overriding or embellishing these with capabilities the new classes require  Inheritance saves time in program development by reusing proven and debugged high-quality software

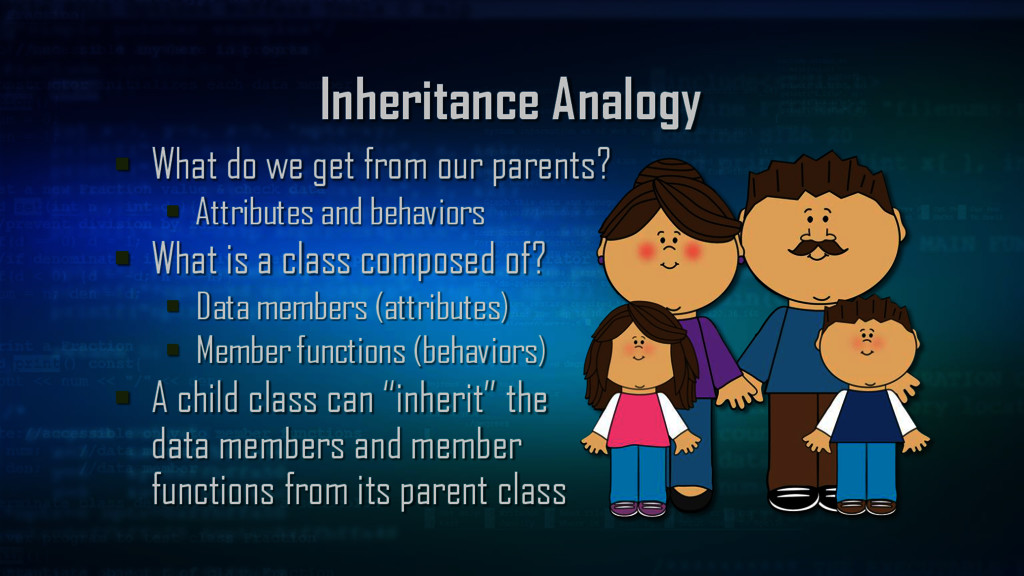

6. Inheritance Analogy  What do we get from our parents?  Attributes and behaviors  What is a class composed of?  Data members (attributes)  Member functions (behaviors)  A child class can “inherit” the data members and member functions from its parent class

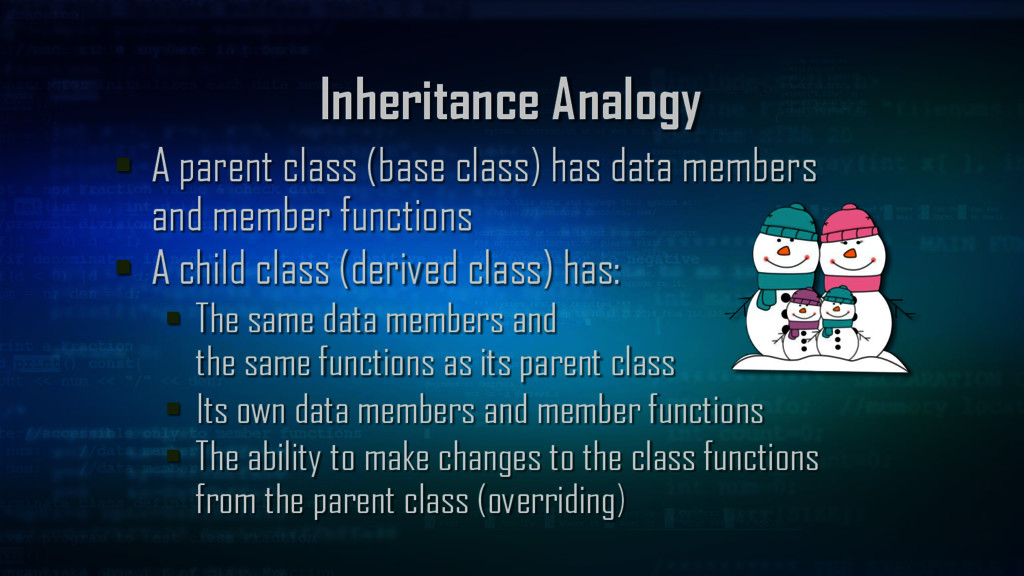

7. Inheritance Analogy  A parent class (base class) has data members and member functions  A child class (derived class) has:  The same data members and the same functions as its parent class  Its own data members and member functions  The ability to make changes to the class functions from the parent class (overriding)

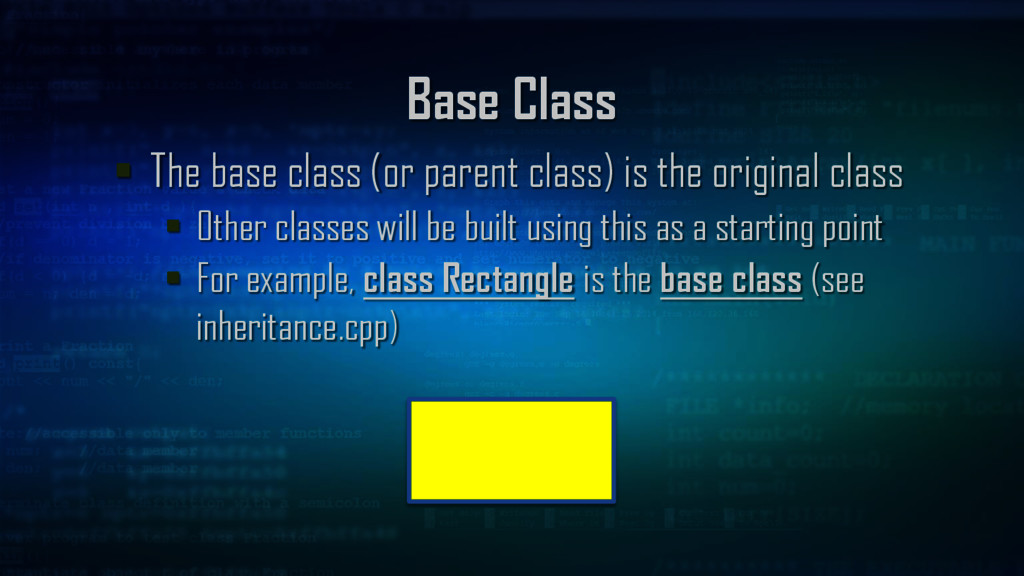

8. Base Class  The base class (or parent class) is the original class  Other classes will be built using this as a starting point  For example, class Rectangle is the base class (see inheritance.cpp)

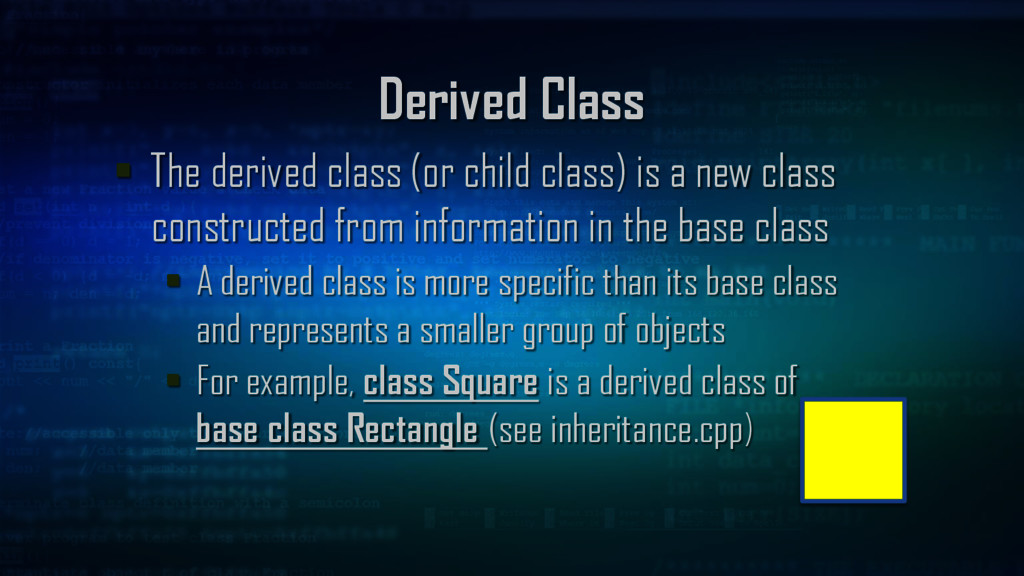

9. Derived Class  The derived class (or child class) is a new class constructed from information in the base class  A derived class is more specific than its base class and represents a smaller group of objects  For example, class Square is a derived class of base class Rectangle (see inheritance.cpp)

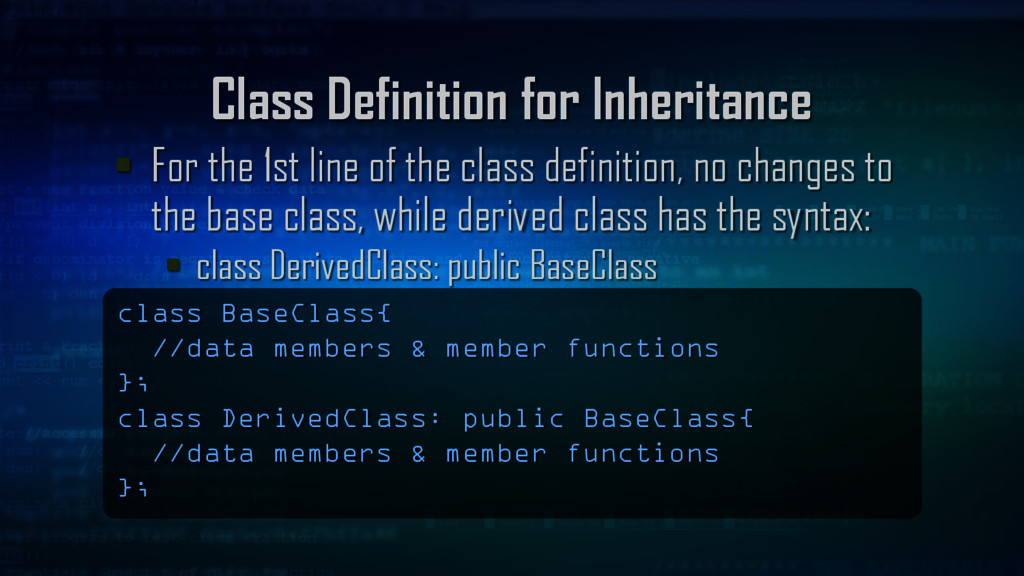

10. Class Definition for Inheritance  For the 1st line of the class definition, no changes to the base class, while derived class has the syntax:  class DerivedClass: public BaseClass class BaseClass{ //data members & member functions }; class DerivedClass: public BaseClass{ //data members & member functions };

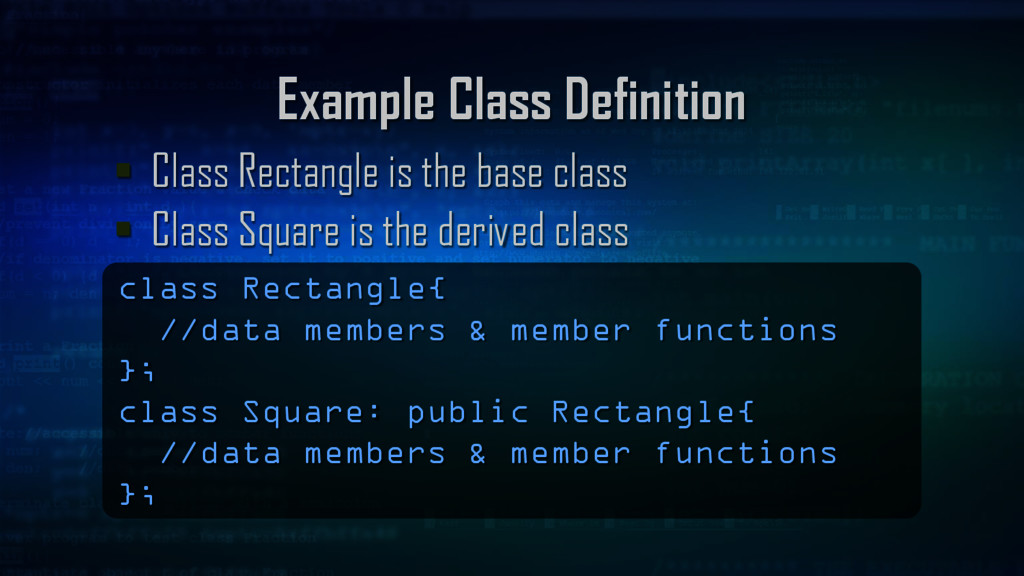

11. Example Class Definition  Class Rectangle is the base class  Class Square is the derived class class Rectangle{ //data members & member functions }; class Square: public Rectangle{ //data members & member functions };
12. Relationships  View inheritance as an “is-a” relationship  The derived class “is-a” specialized and/or extended version of the base class  Inheritance is not a “has-a” relationship  “has-a” relationships deal with composition

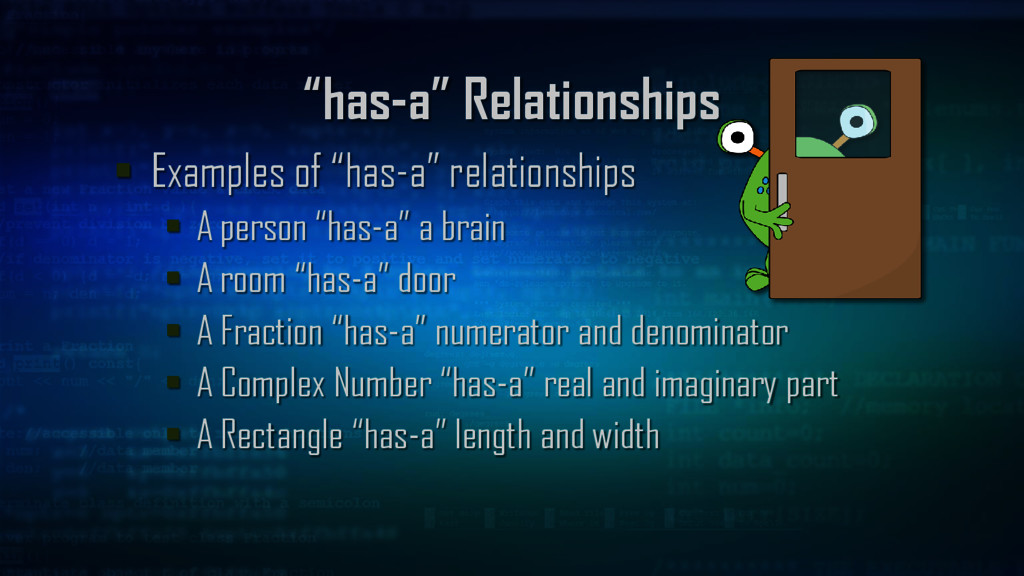

13. “has-a” Relationships  Examples of “has-a” relationships  A person “has-a” a brain  A room “has-a” door  A Fraction “has-a” numerator and denominator  A Complex Number “has-a” real and imaginary part  A Rectangle “has-a” length and width

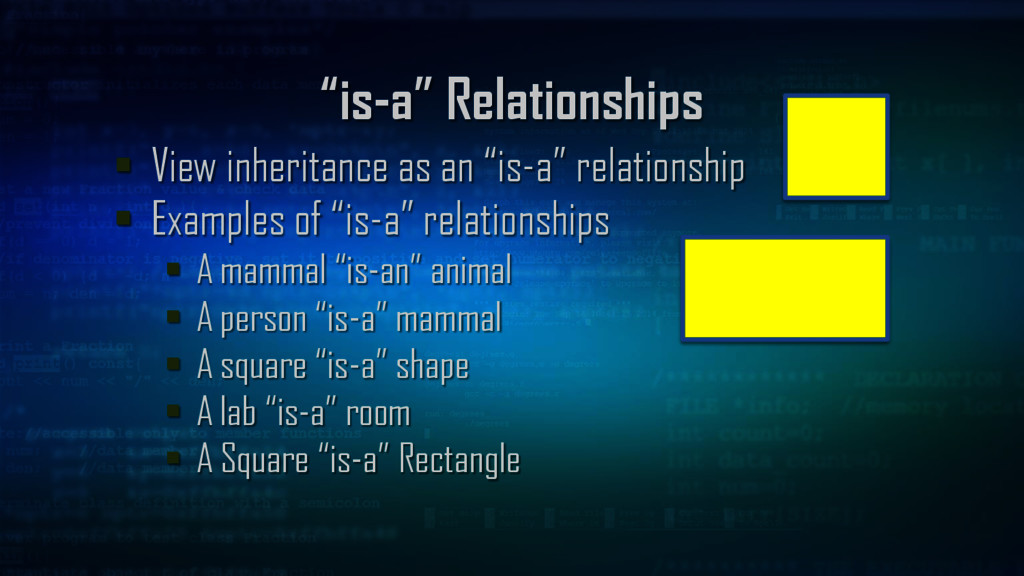

14. “is-a” Relationships  View inheritance as an “is-a” relationship  Examples of “is-a” relationships  A mammal “is-an” animal  A person “is-a” mammal  A square “is-a” shape  A lab “is-a” room  A Square “is-a” Rectangle
16. Protected Member Access Control

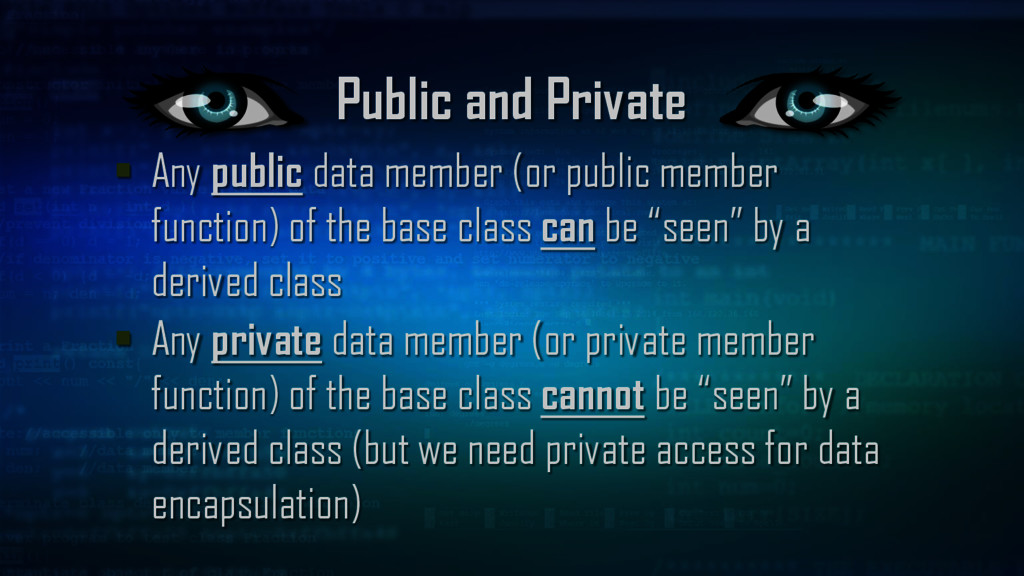

17. Public and Private  Any public data member (or public member function) of the base class can be “seen” by a derived class  Any private data member (or private member function) of the base class cannot be “seen” by a derived class (but we need private access for data encapsulation)

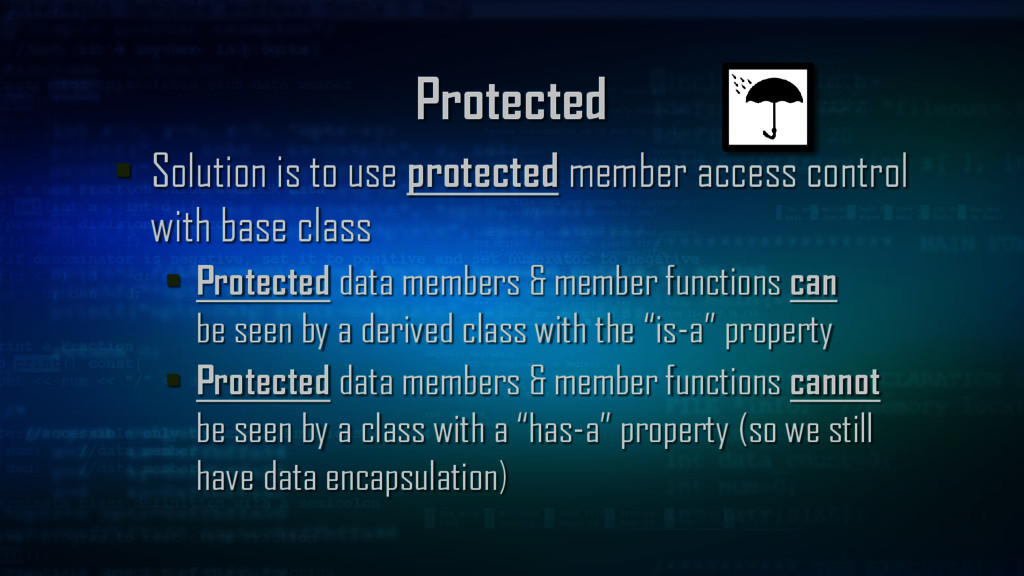

18. Protected  Solution is to use protected member access control with base class  Protected data members & member functions can be seen by a derived class with the “is-a” property  Protected data members & member functions cannot be seen by a class with a “has-a” property (so we still have data encapsulation)

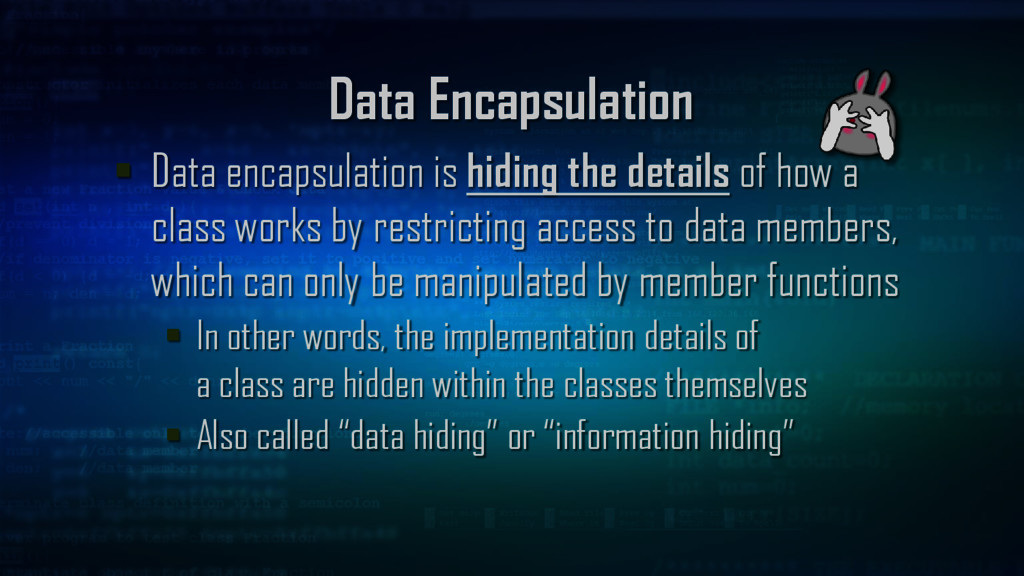

19. Data Encapsulation  Data encapsulation is hiding the details of how a class works by restricting access to data members, which can only be manipulated by member functions  In other words, the implementation details of a class are hidden within the classes themselves  Also called “data hiding” or “information hiding”

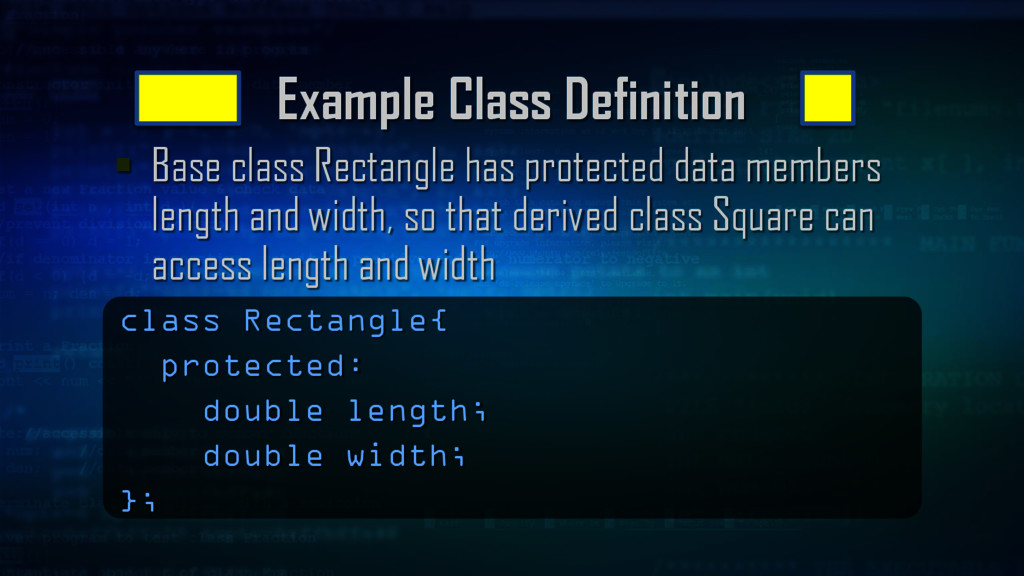

20. Example Class Definition  Base class Rectangle has protected data members length and width, so that derived class Square can access length and width class Rectangle{ protected: double length; double width; };
22. Constructors

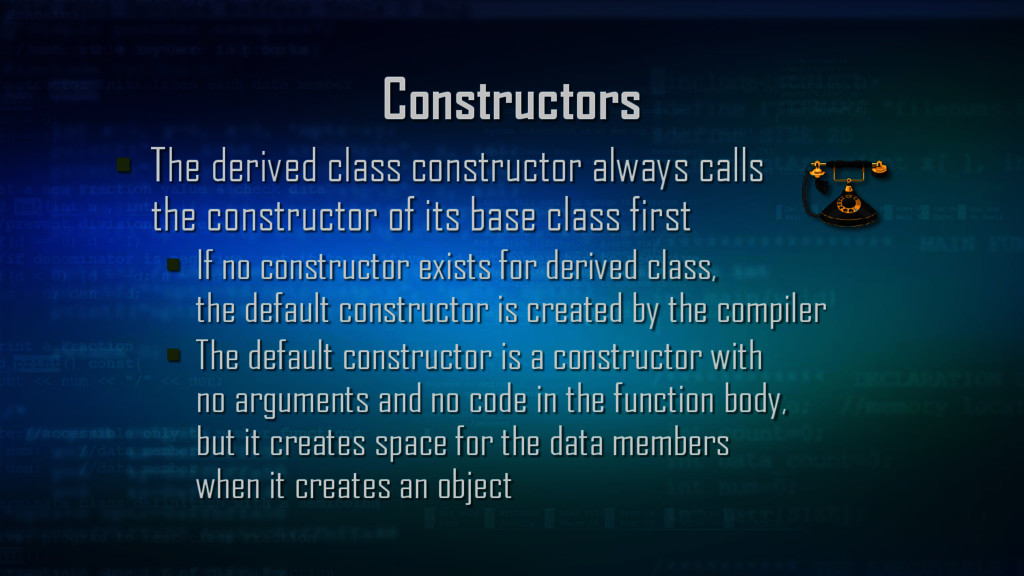

23. Constructors  The derived class constructor always calls the constructor of its base class first  If no constructor exists for derived class, the default constructor is created by the compiler  The default constructor is a constructor with no arguments and no code in the function body, but it creates space for the data members when it creates an object
24. Derived Class Constructor  Square is a derived class of Rectangle, we can use this syntax to call the base class's constructor:  DerivedClass(parameters): BaseClass(parameters){ ... } Square(double side):Rectangle(side,side){ /*data members initialized in base class Rectangle, so no code here*/ }
25. Another Derived Class  To show some more examples of inheritance, we also have derived class Cuboid with base class Rectangle  Cuboid is short for "Rectangular Cuboid"  A Rectangular Cuboid is basically a box  So in addition to the Rectangle’s length and width, the Cuboid also has a height  See example program: inheritance.cpp

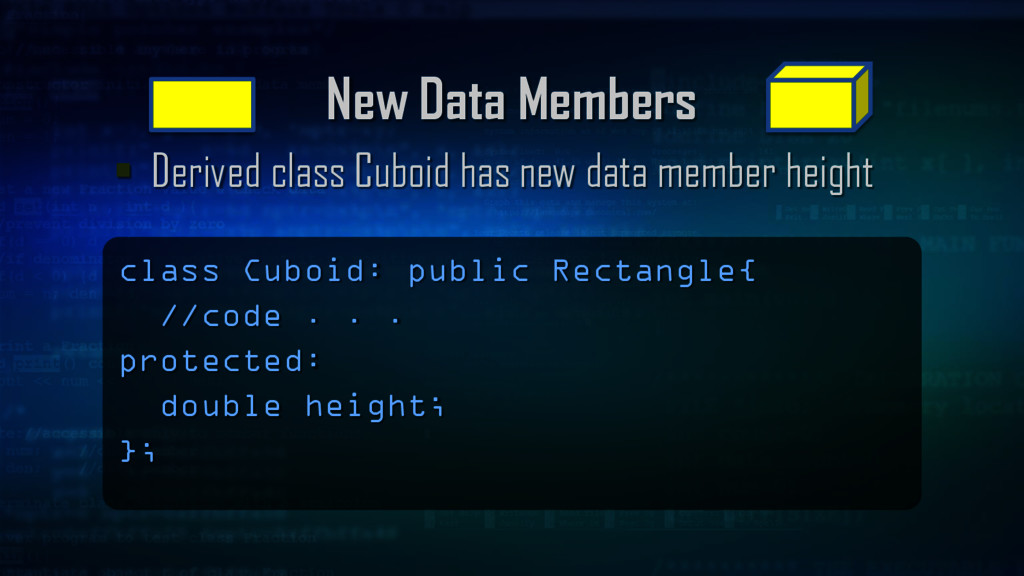

26. New Data Members  Derived class Cuboid has new data member height class Cuboid: public Rectangle{ //code . . . protected: double height; };

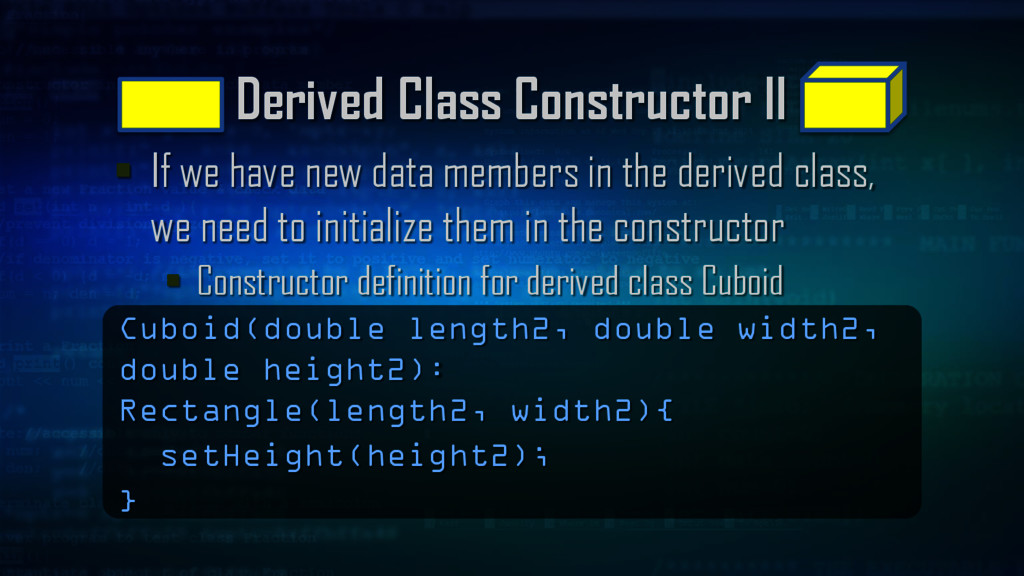

27. Derived Class Constructor II  If we have new data members in the derived class, we need to initialize them in the constructor  Constructor definition for derived class Cuboid Cuboid(double length2, double width2, double height2): Rectangle(length2, width2){ setHeight(height2); }

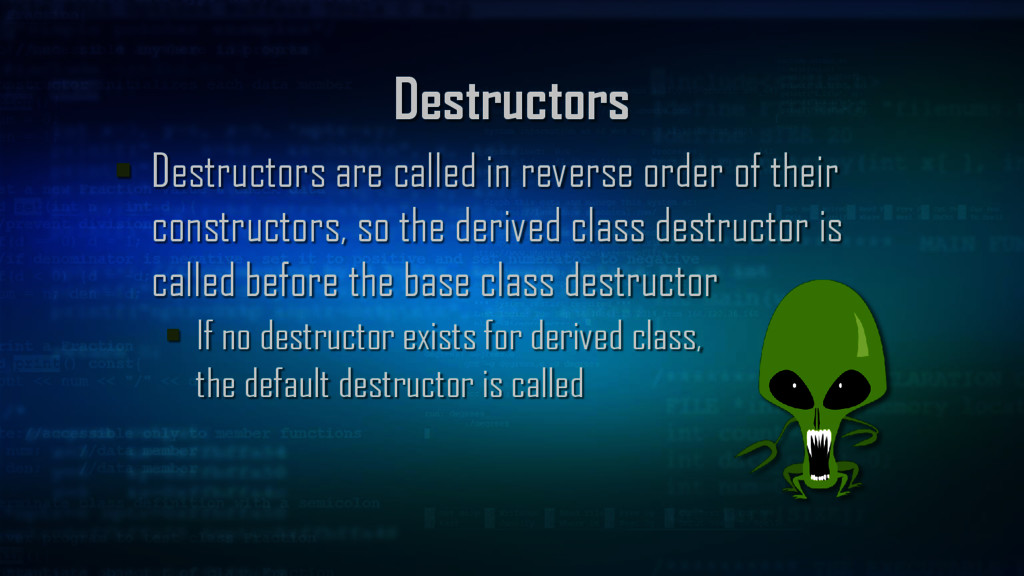

28. Destructors  Destructors are called in reverse order of their constructors, so the derived class destructor is called before the base class destructor  If no destructor exists for derived class, the default destructor is called
30. Overriding Functions

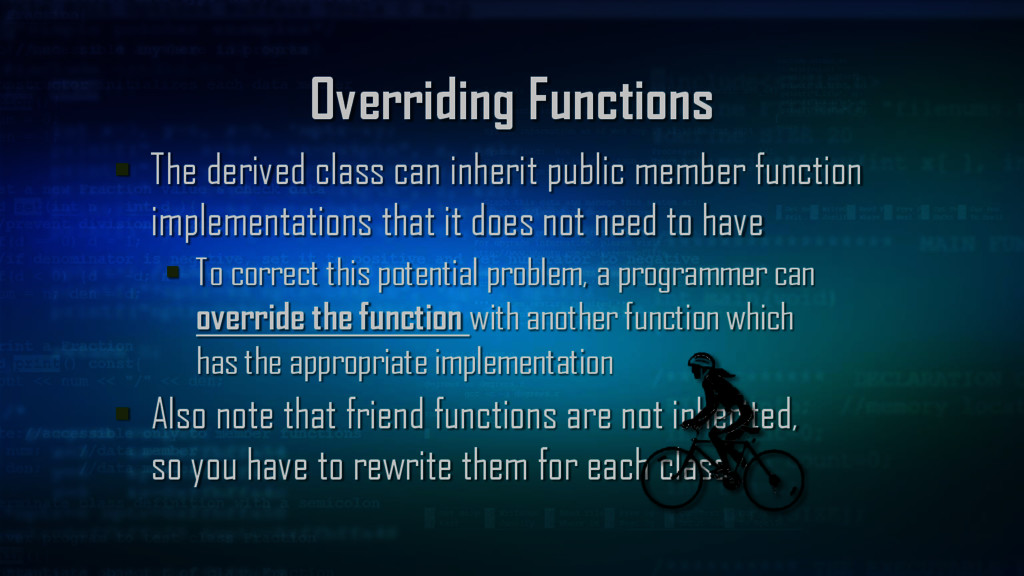

31. Overriding Functions  The derived class can inherit public member function implementations that it does not need to have  To correct this potential problem, a programmer can override the function with another function which has the appropriate implementation  Also note that friend functions are not inherited, so you have to rewrite them for each class

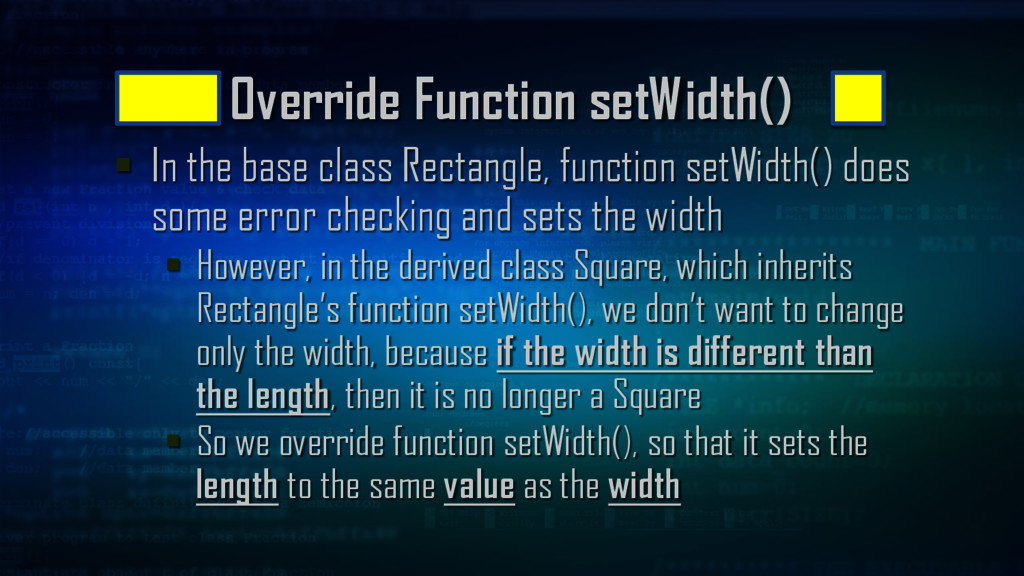

32. Override Function setWidth()  In the base class Rectangle, function setWidth() does some error checking and sets the width  However, in the derived class Square, which inherits Rectangle’s function setWidth(), we don’t want to change only the width, because if the width is different than the length, then it is no longer a Square  So we override function setWidth(), so that it sets the length to the same value as the width

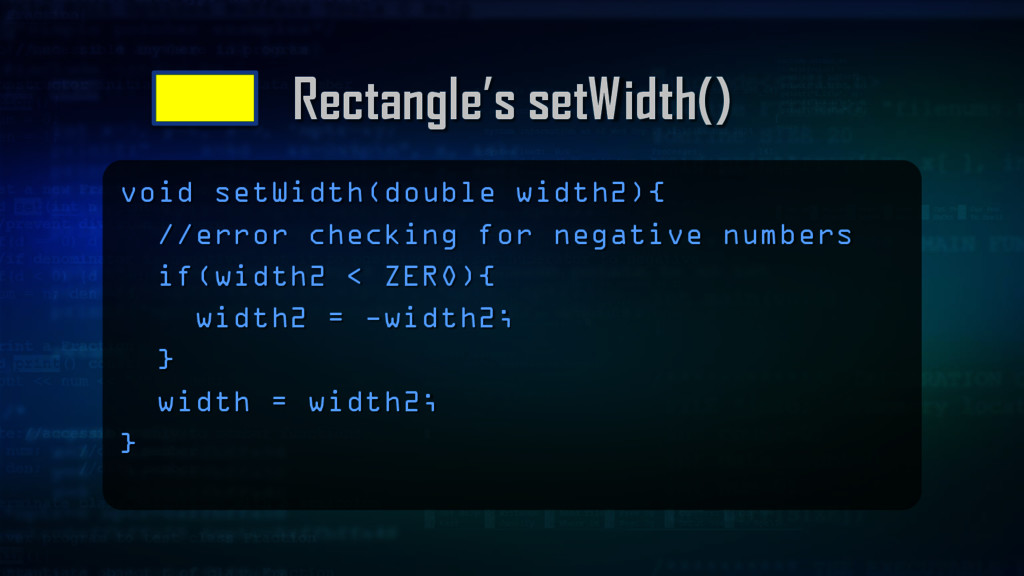

33. Rectangle’s setWidth() void setWidth(double width2){ //error checking for negative numbers if(width2 < ZERO){ width2 = -width2; } width = width2; }

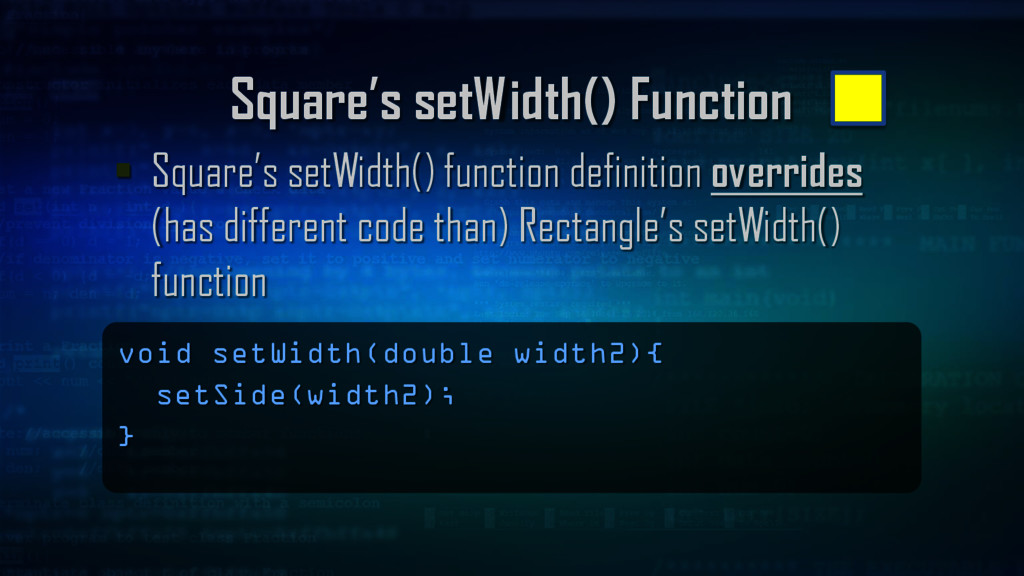

34. Square’s setWidth() Function  Square’s setWidth() function definition overrides (has different code than) Rectangle’s setWidth() function void setWidth(double width2){ setSide(width2); }

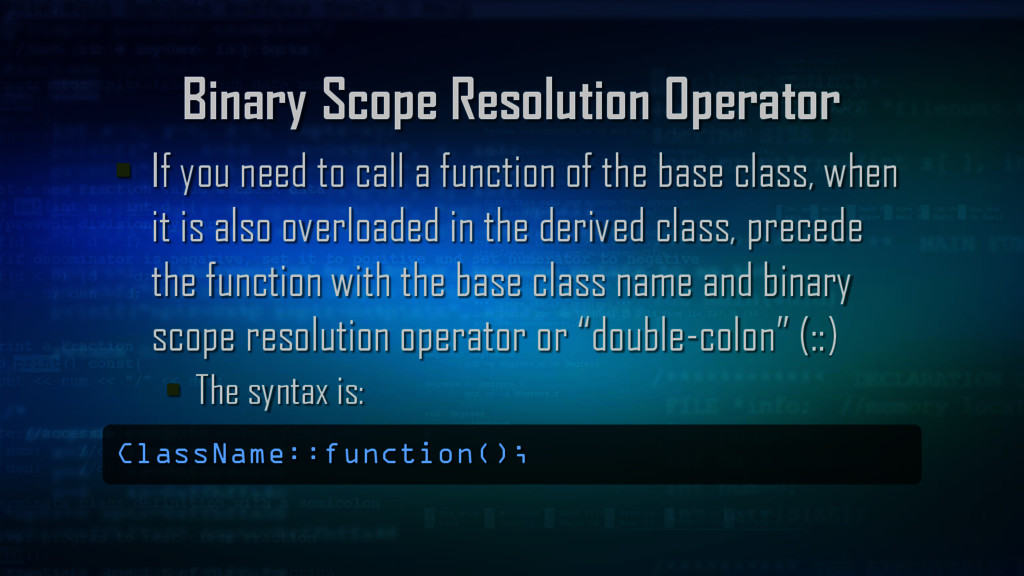

35. Binary Scope Resolution Operator  If you need to call a function of the base class, when it is also overloaded in the derived class, precede the function with the base class name and binary scope resolution operator or “double-colon” (::)  The syntax is: ClassName::function();

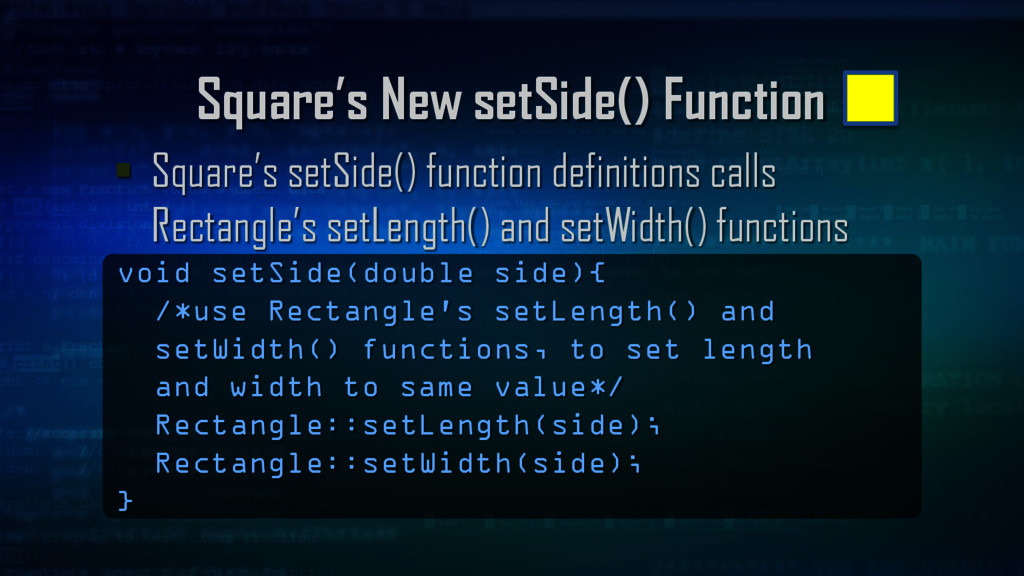

36. Square’s New setSide() Function  Square’s setSide() function definitions calls Rectangle’s setLength() and setWidth() functions void setSide(double side){ /*use Rectangle's setLength() and setWidth() functions, to set length and width to same value*/ Rectangle::setLength(side); Rectangle::setWidth(side); }

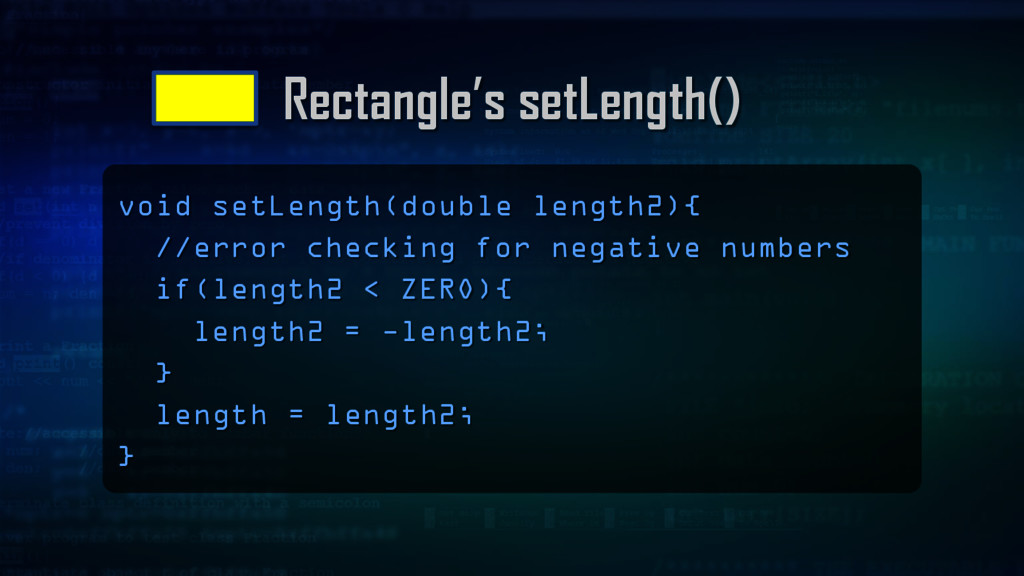

37. Rectangle’s setLength() void setLength(double length2){ //error checking for negative numbers if(length2 < ZERO){ length2 = -length2; } length = length2; }

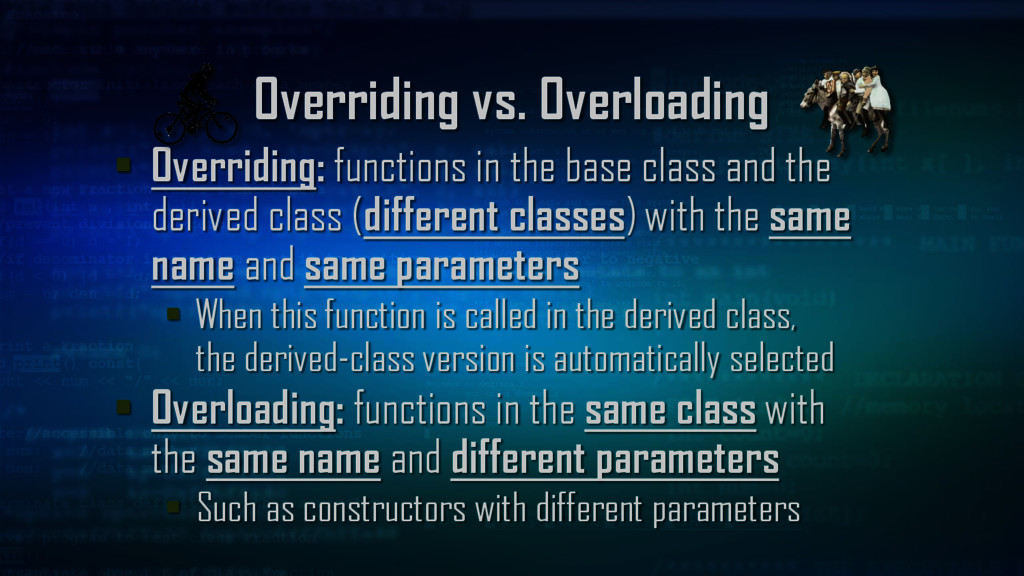

38. Overriding vs. Overloading  Overriding: functions in the base class and the derived class (different classes) with the same name and same parameters  When this function is called in the derived class, the derived-class version is automatically selected  Overloading: functions in the same class with the same name and different parameters  Such as constructors with different parameters

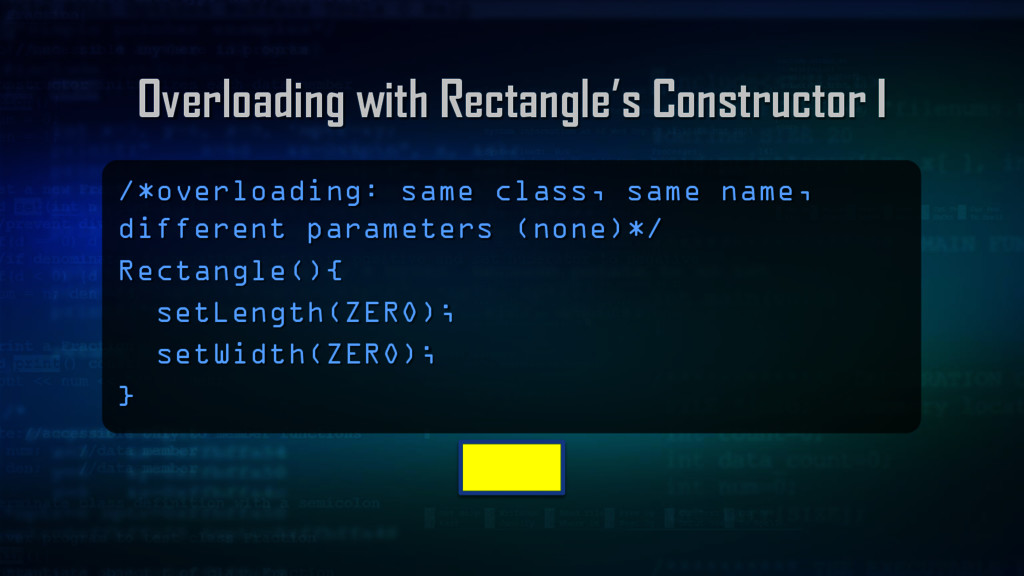

39. Overloading with Rectangle’s Constructor I /*overloading: same class, same name, different parameters (none)*/ Rectangle(){ setLength(ZERO); setWidth(ZERO); }

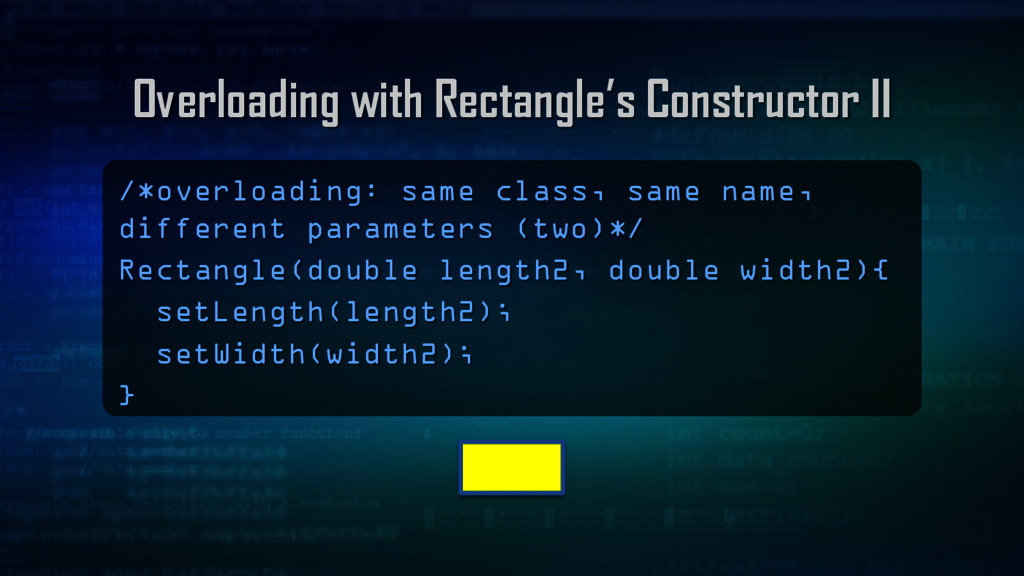

40. Overloading with Rectangle’s Constructor II /*overloading: same class, same name, different parameters (two)*/ Rectangle(double length2, double width2){ setLength(length2); setWidth(width2); }

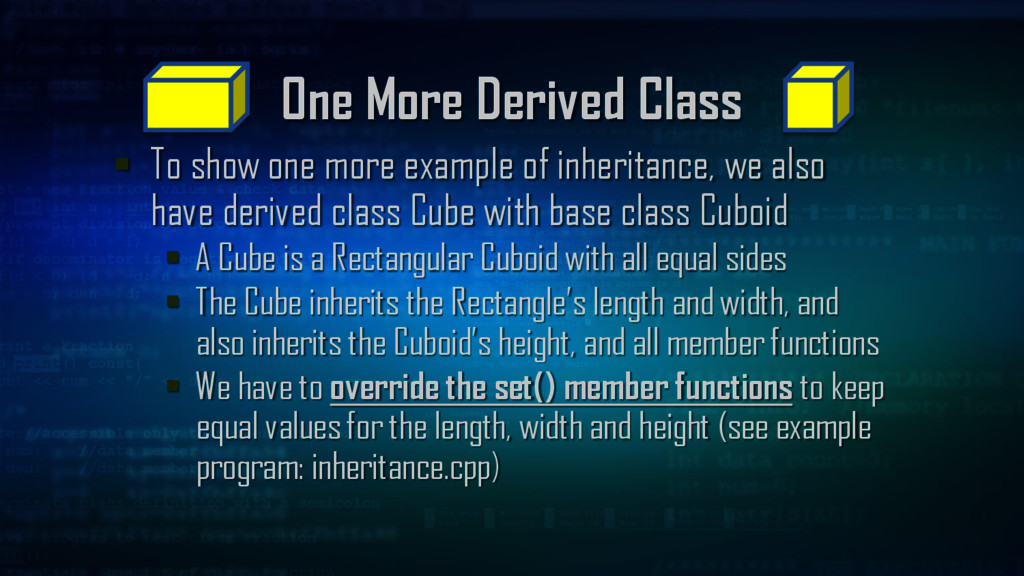

41. One More Derived Class  To show one more example of inheritance, we also have derived class Cube with base class Cuboid  A Cube is a Rectangular Cuboid with all equal sides  The Cube inherits the Rectangle’s length and width, and also inherits the Cuboid’s height, and all member functions  We have to override the set() member functions to keep equal values for the length, width and height (see example program: inheritance.cpp)

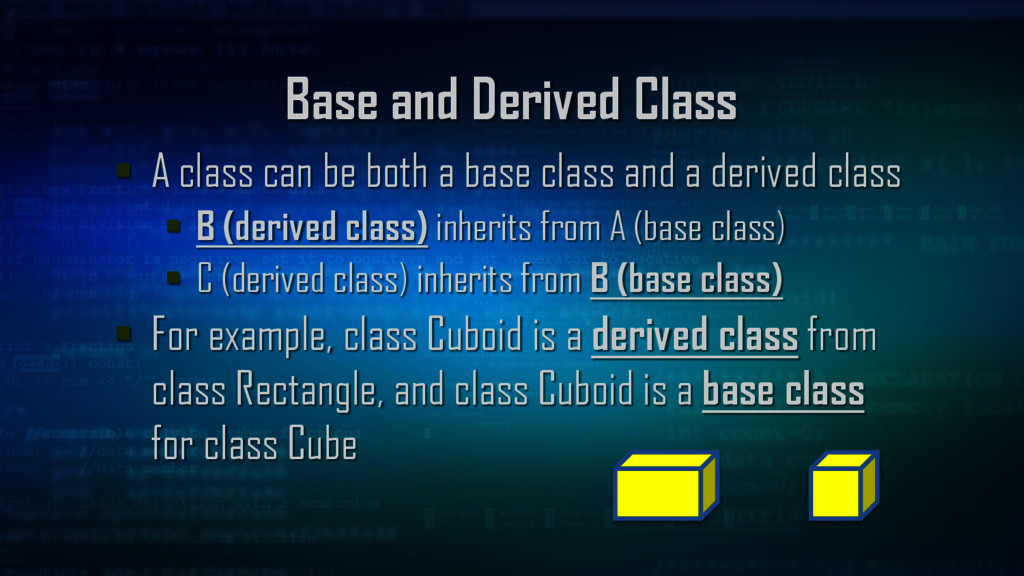

42. Base and Derived Class  A class can be both a base class and a derived class  B (derived class) inherits from A (base class)  C (derived class) inherits from B (base class)  For example, class Cuboid is a derived class from class Rectangle, and class Cuboid is a base class for class Cube

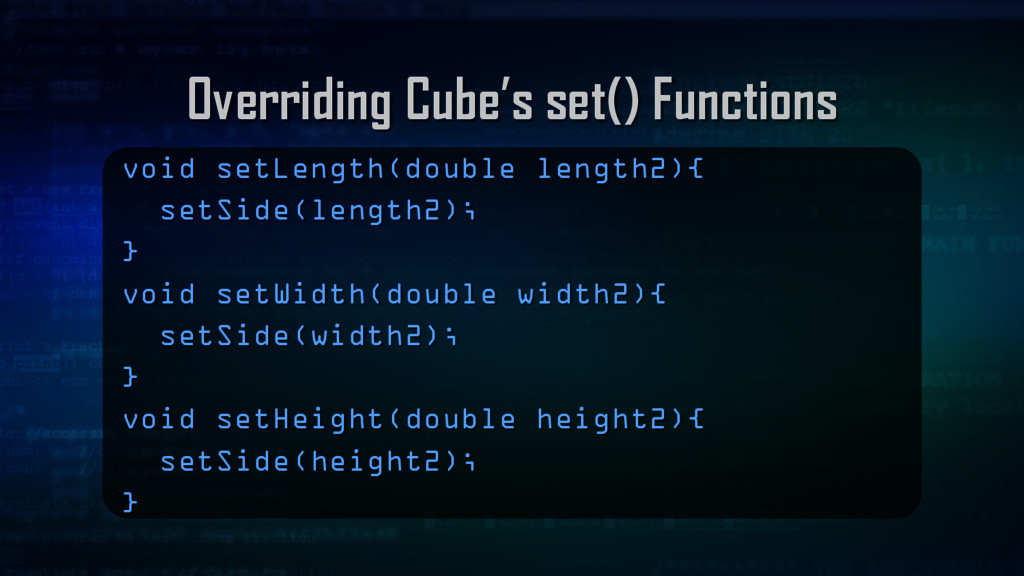

43. Overriding Cube’s set() Functions void setLength(double length2){ setSide(length2); } void setWidth(double width2){ setSide(width2); } void setHeight(double height2){ setSide(height2); }

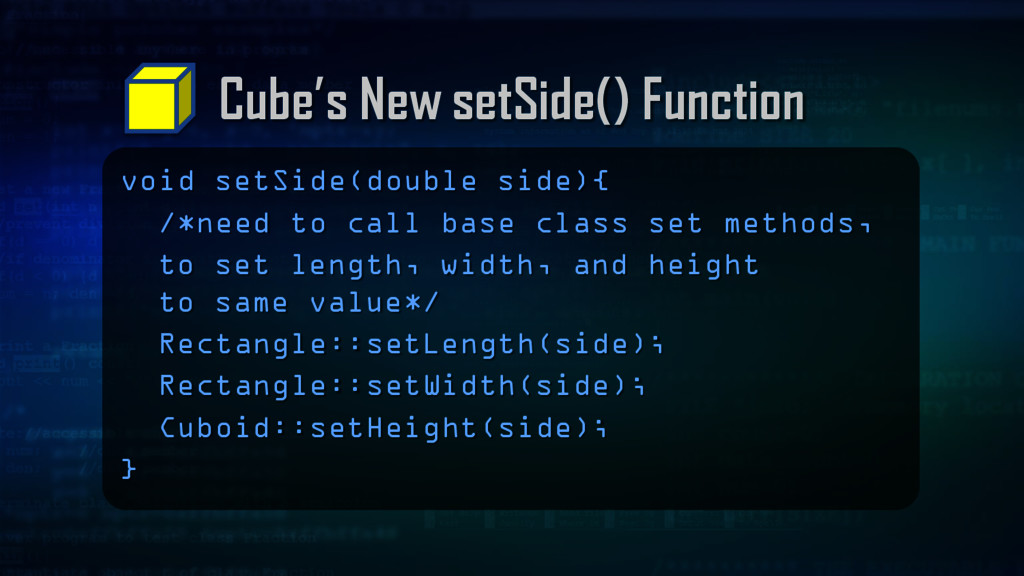

44. Cube’s New setSide() Function void setSide(double side){ /*need to call base class set methods, to set length, width, and height to same value*/ Rectangle::setLength(side); Rectangle::setWidth(side); Cuboid::setHeight(side); }

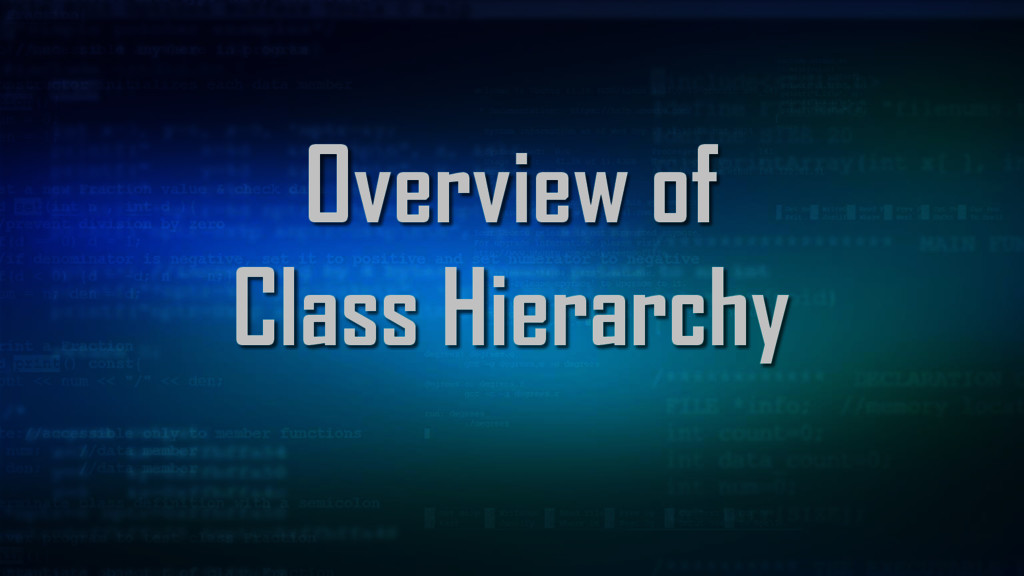

46. Overview of Class Hierarchy

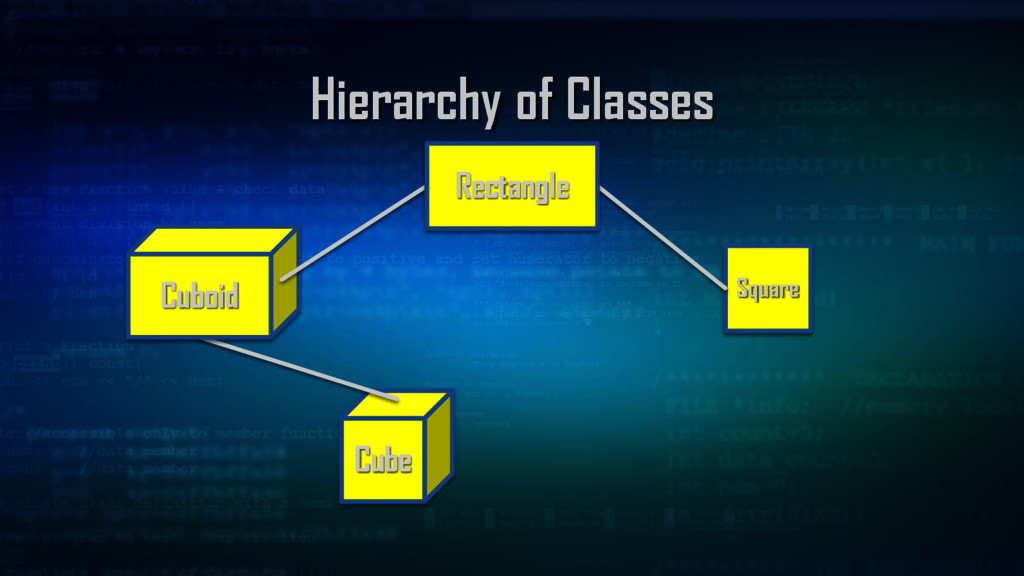

47. Cube Hierarchy of Classes Cuboid Square Rectangle

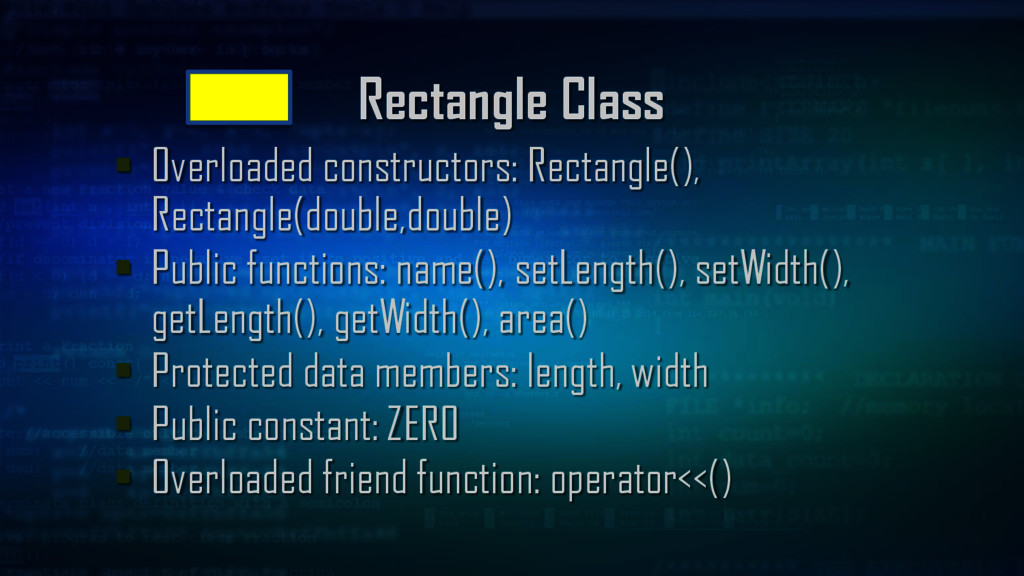

48. Rectangle Class  Overloaded constructors: Rectangle(), Rectangle(double,double)  Public functions: name(), setLength(), setWidth(), getLength(), getWidth(), area()  Protected data members: length, width  Public constant: ZERO  Overloaded friend function: operator<<()

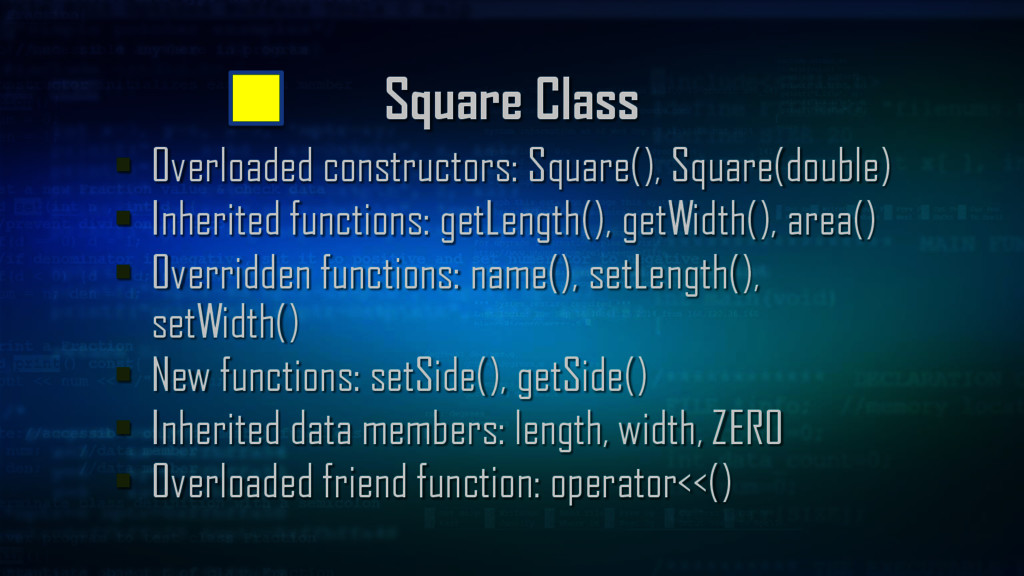

49. Square Class  Overloaded constructors: Square(), Square(double)  Inherited functions: getLength(), getWidth(), area()  Overridden functions: name(), setLength(), setWidth()  New functions: setSide(), getSide()  Inherited data members: length, width, ZERO  Overloaded friend function: operator<<()

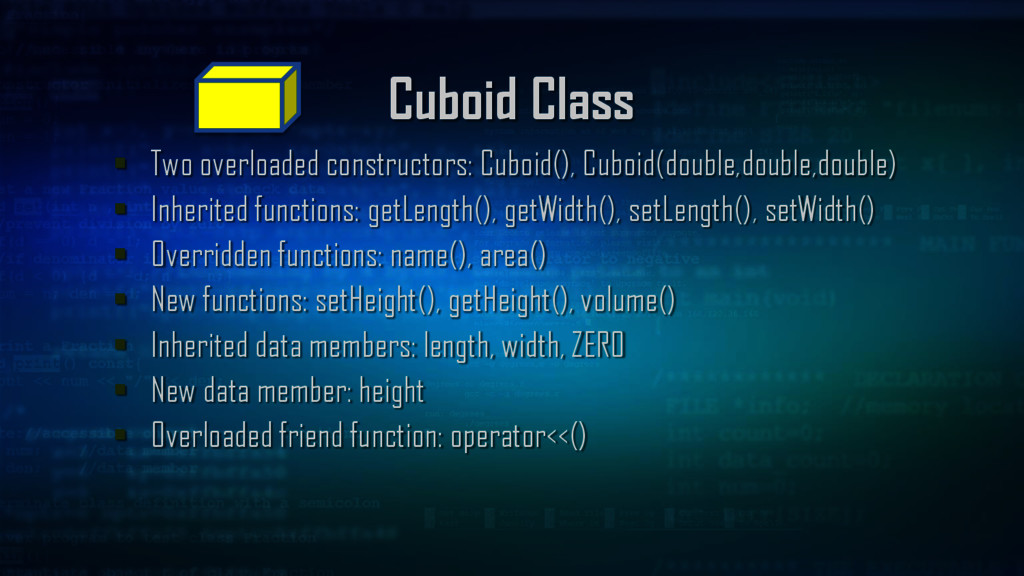

50. Cuboid Class  Two overloaded constructors: Cuboid(), Cuboid(double,double,double)  Inherited functions: getLength(), getWidth(), setLength(), setWidth()  Overridden functions: name(), area()  New functions: setHeight(), getHeight(), volume()  Inherited data members: length, width, ZERO  New data member: height  Overloaded friend function: operator<<()

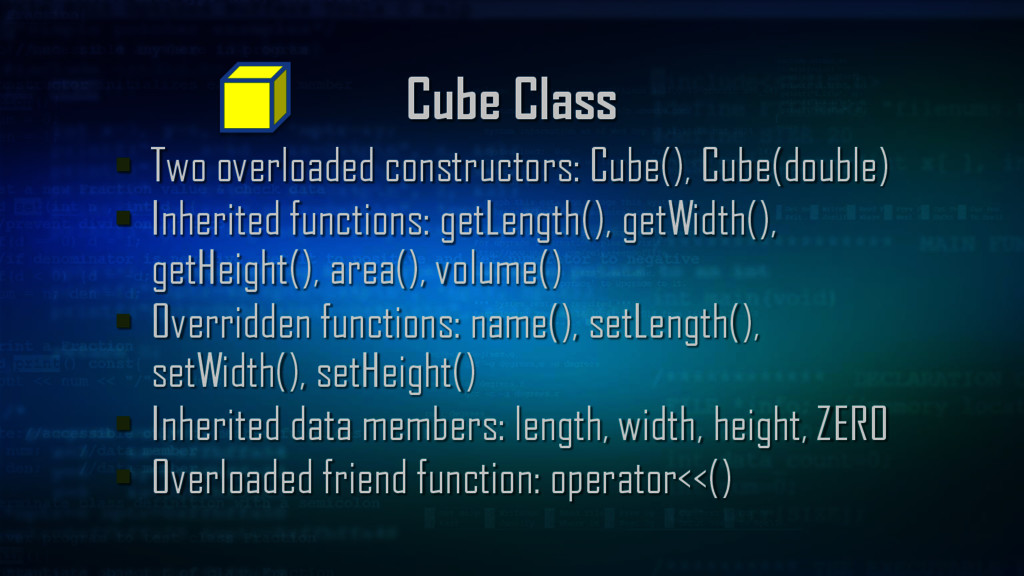

51. Cube Class  Two overloaded constructors: Cube(), Cube(double)  Inherited functions: getLength(), getWidth(), getHeight(), area(), volume()  Overridden functions: name(), setLength(), setWidth(), setHeight()  Inherited data members: length, width, height, ZERO  Overloaded friend function: operator<<()
52. Memory Management  Fundamentals of Inheritance  Protected Member Access Control  Constructors  Overriding Functions  Overview of Class Hierarchy
