Wazero vs Chicory: An In-Depth Comparison Between Two Language-Native Wasm Runtimes

FOSDEM 2025

Transcript

1. wazero vs chicory an in-depth comparison Edoardo Vacchi @evacchi
2. who the hell are you anyway Edoardo Vacchi @evacchi • DSL/PL Research @ UniMi • R&D @ UniCredit • Drools, Kogito codegen @ Red Hat • wazero WebAssembly Run-Time @ Tetrate • chicory, wazero, and more @ 2
3. who the hell are you anyway Edoardo Vacchi @evacchi • DSL/PL Research @ UniMi • R&D @ UniCredit • Drools, Kogito codegen @ Red Hat • wazero WebAssembly Run-Time @ Tetrate • chicory, wazero, and more @ 3

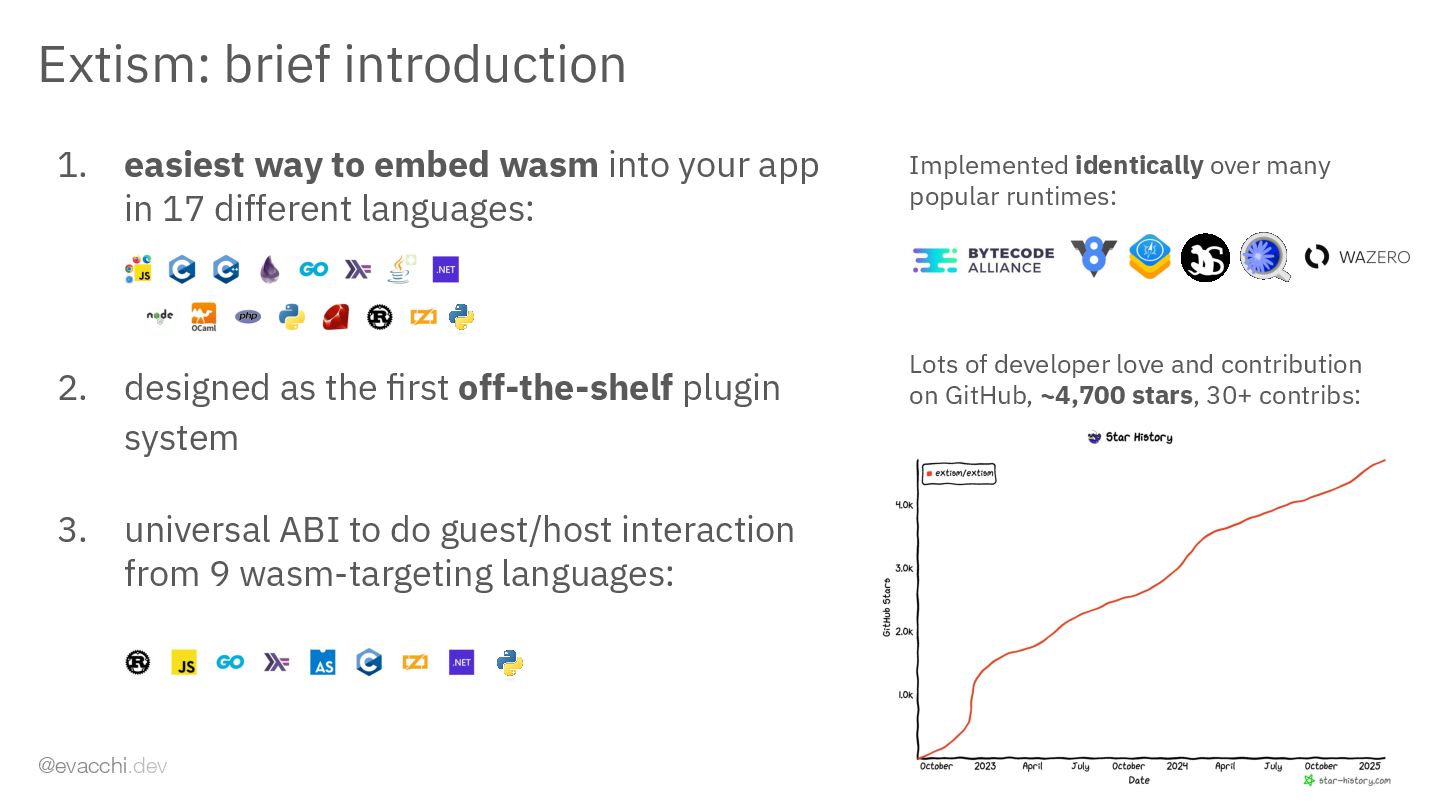

4. Extism: brief introduction
 1. easiest way to embed wasm into your app in 17 different languages:



 2. designed as the first off-the-shelf plugin system

 3. universal ABI to do guest/host interaction from 9 wasm-targeting languages:


 Implemented identically over many popular runtimes:
 Lots of developer love and contribution on GitHub, ~4,700 stars, 30+ contribs:
 @evacchi.dev

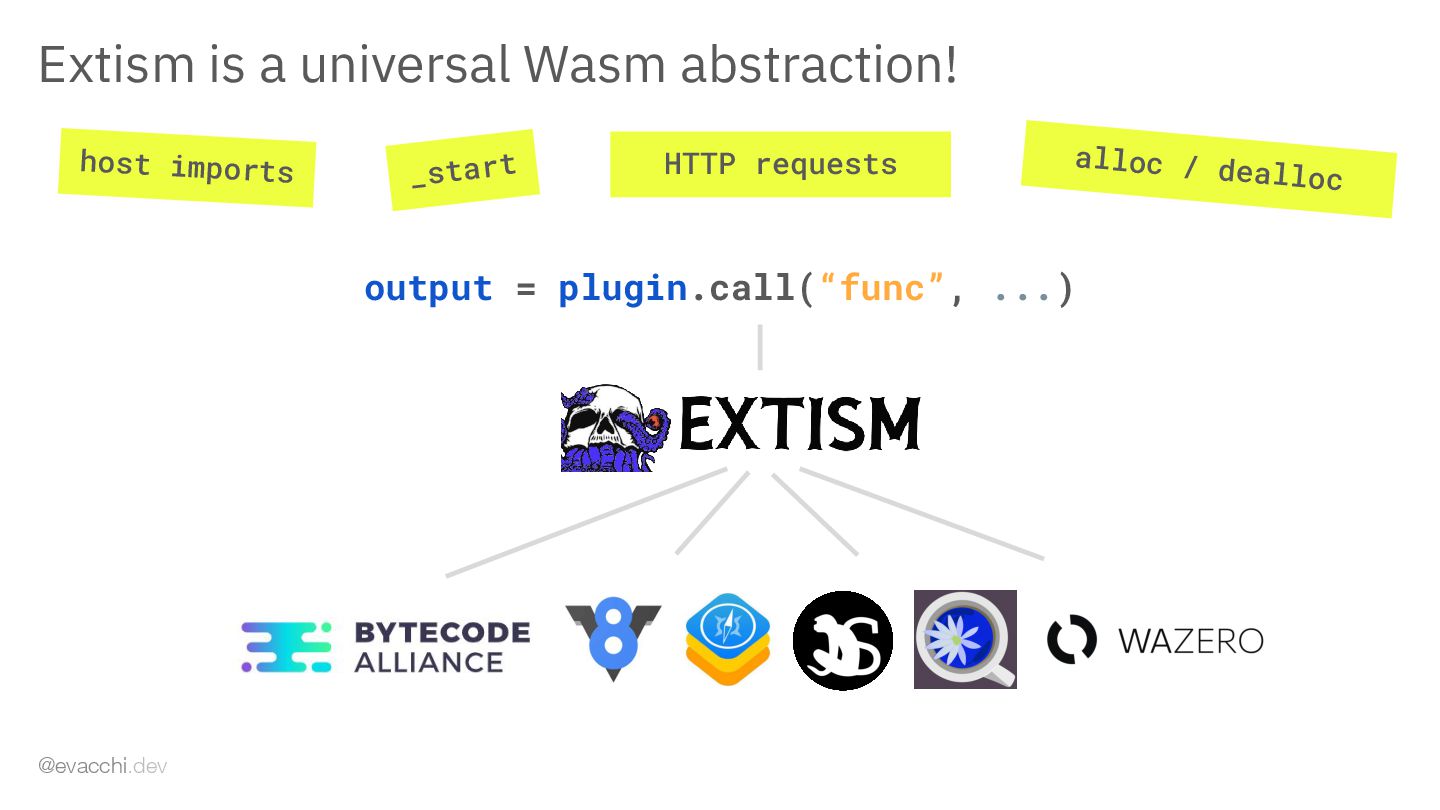

5. Extism is a universal Wasm abstraction!
 output = plugin.call(“func”, ...) alloc / dealloc _start HTTP requests host imports @evacchi.dev

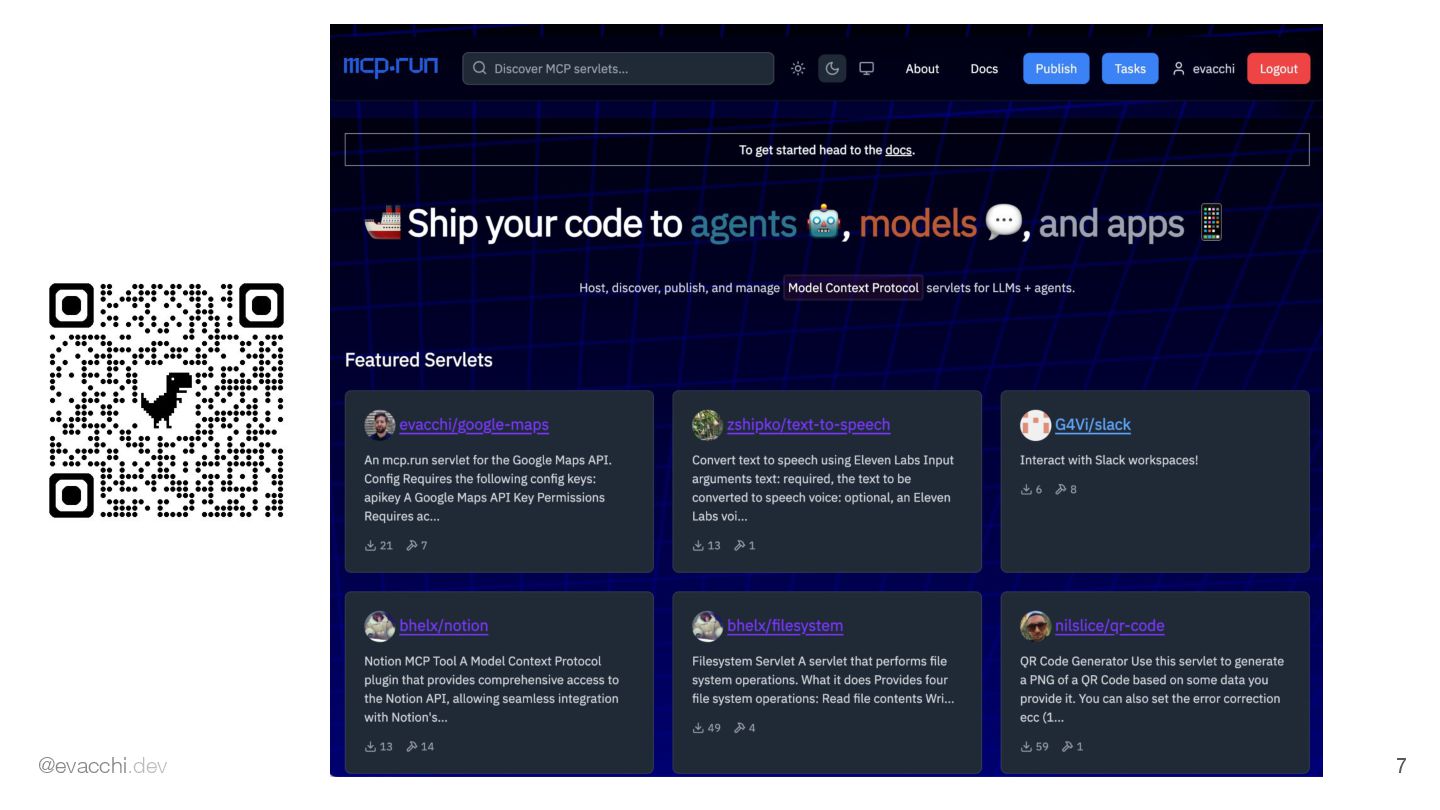

6. 6 @evacchi.dev
7. 7 @evacchi.dev
8. wasm lets your users write software extensions using their favorite language and run it in a sandboxed environment

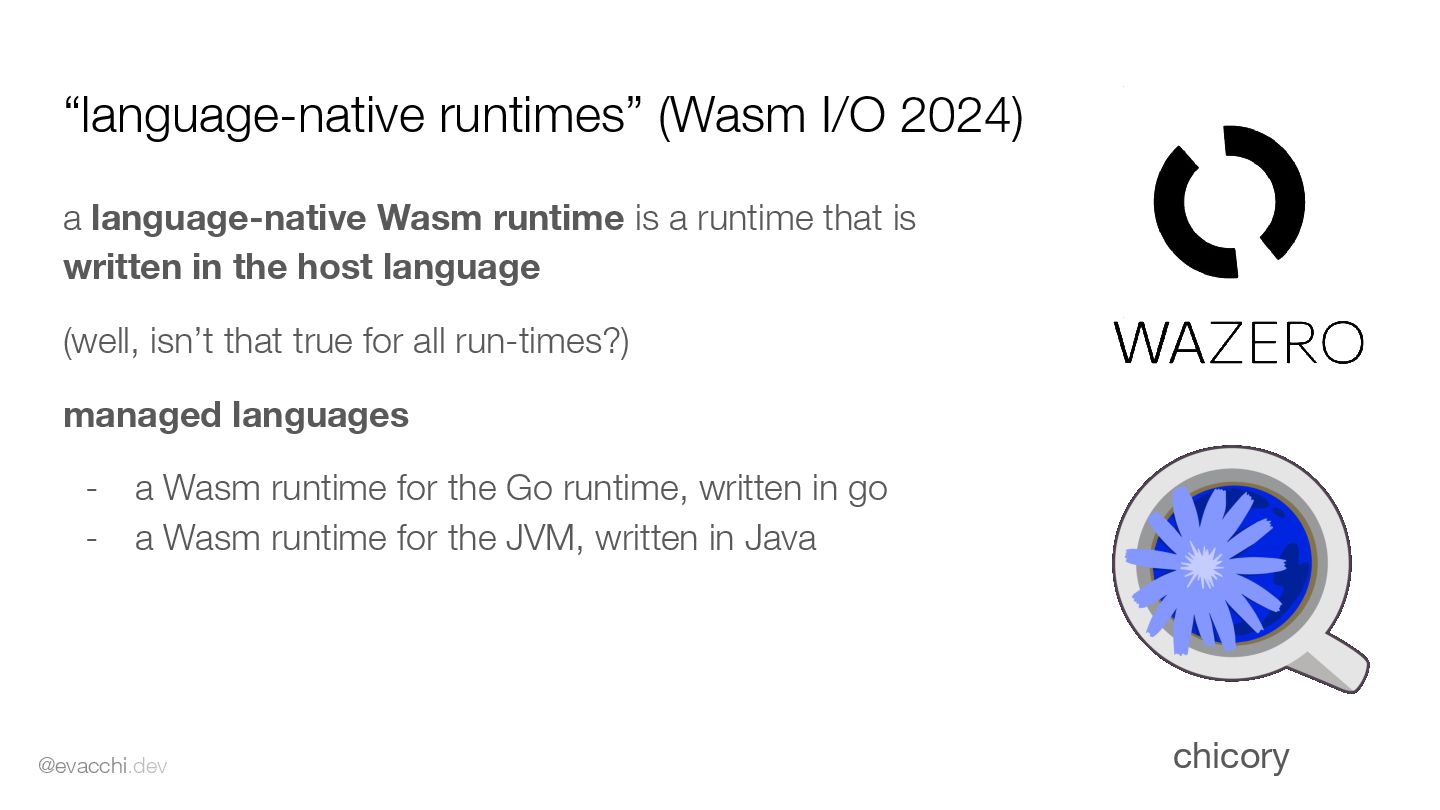

9. “language-native runtimes” (Wasm I/O 2024) a language-native Wasm runtime is a runtime that is written in the host language (well, isn’t that true for all run-times?) managed languages - a Wasm runtime for the Go runtime, written in go - a Wasm runtime for the JVM, written in Java chicory @evacchi.dev
10. what is wazero wazero is a Go runtime for WebAssembly - wazero implements an interpreter for WebAssembly, supporting all* the architectures and operating systems where Go is supported - wazero implements an ahead-of-time, load-time, multi-pass, optimizing compiler for WebAssembly, supporting amd64, arm64 and all* major operating systems (*) OSs: macOS/Linux/Windows and in some cases FreeBSD archs: arm64, amd64; RISC-V for some workloads

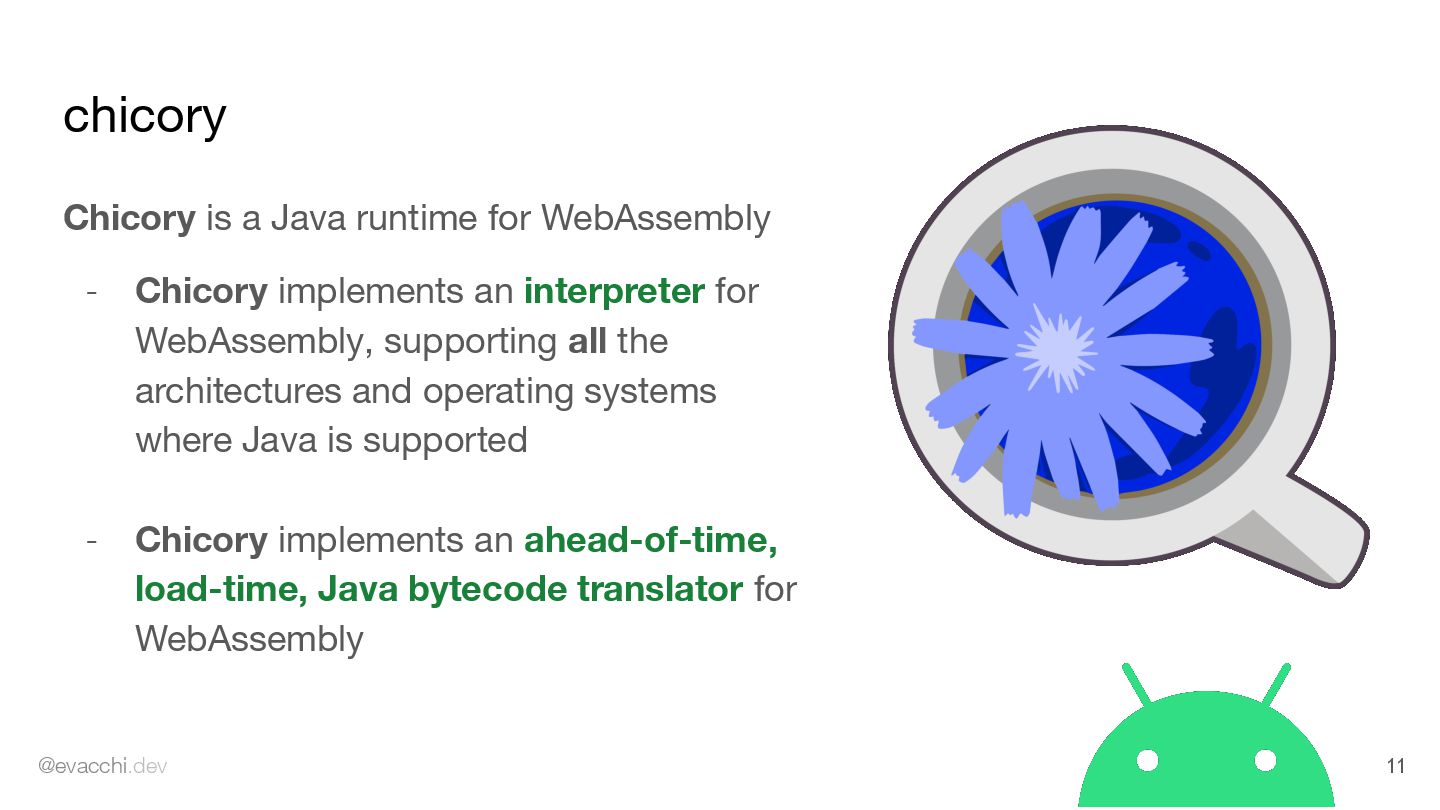

11. chicory Chicory is a Java runtime for WebAssembly - Chicory implements an interpreter for WebAssembly, supporting all the architectures and operating systems where Java is supported - Chicory implements an ahead-of-time, load-time, Java bytecode translator for WebAssembly 11 @evacchi.dev

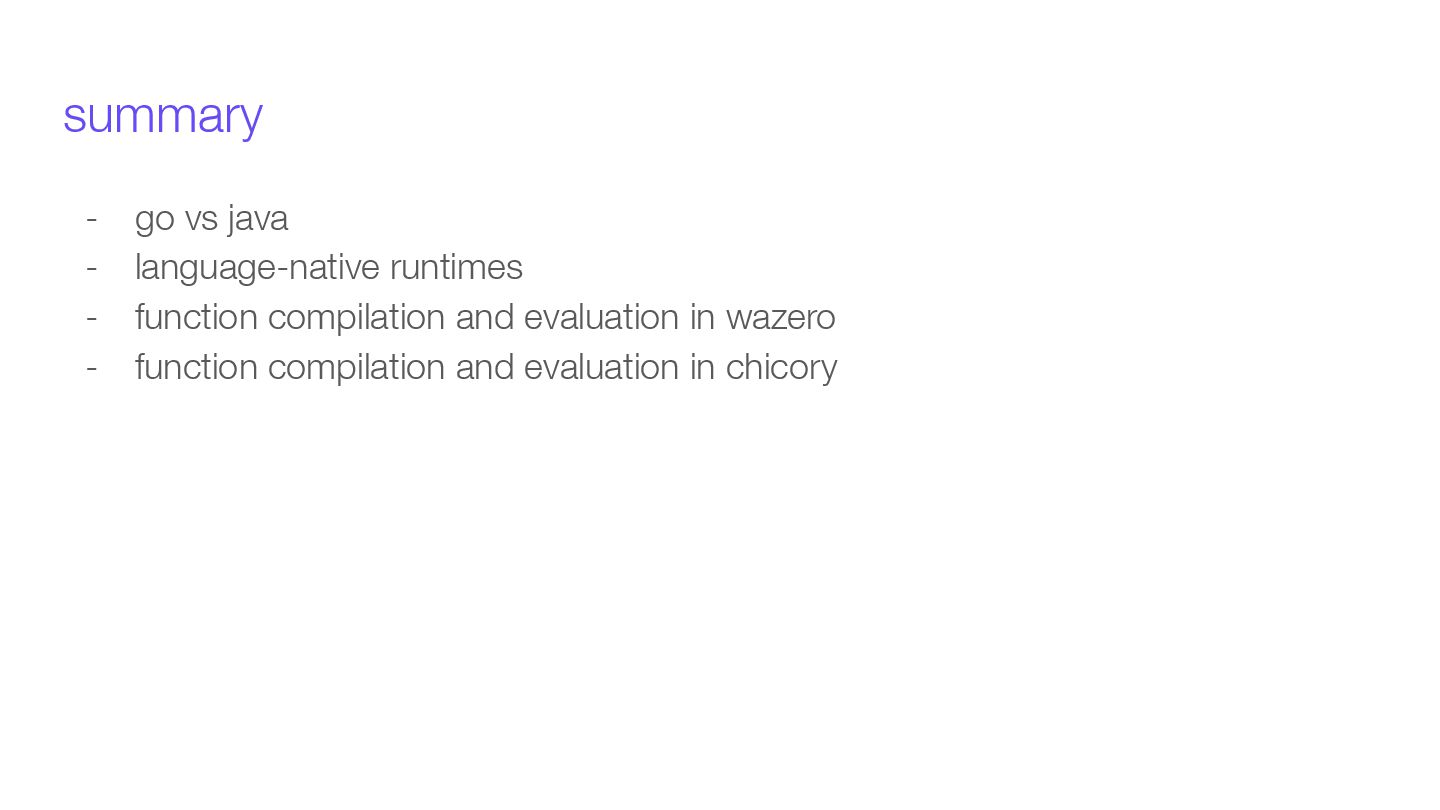

12. summary - go vs java - language-native runtimes - function compilation and evaluation in wazero - function compilation and evaluation in chicory
13. go vs java

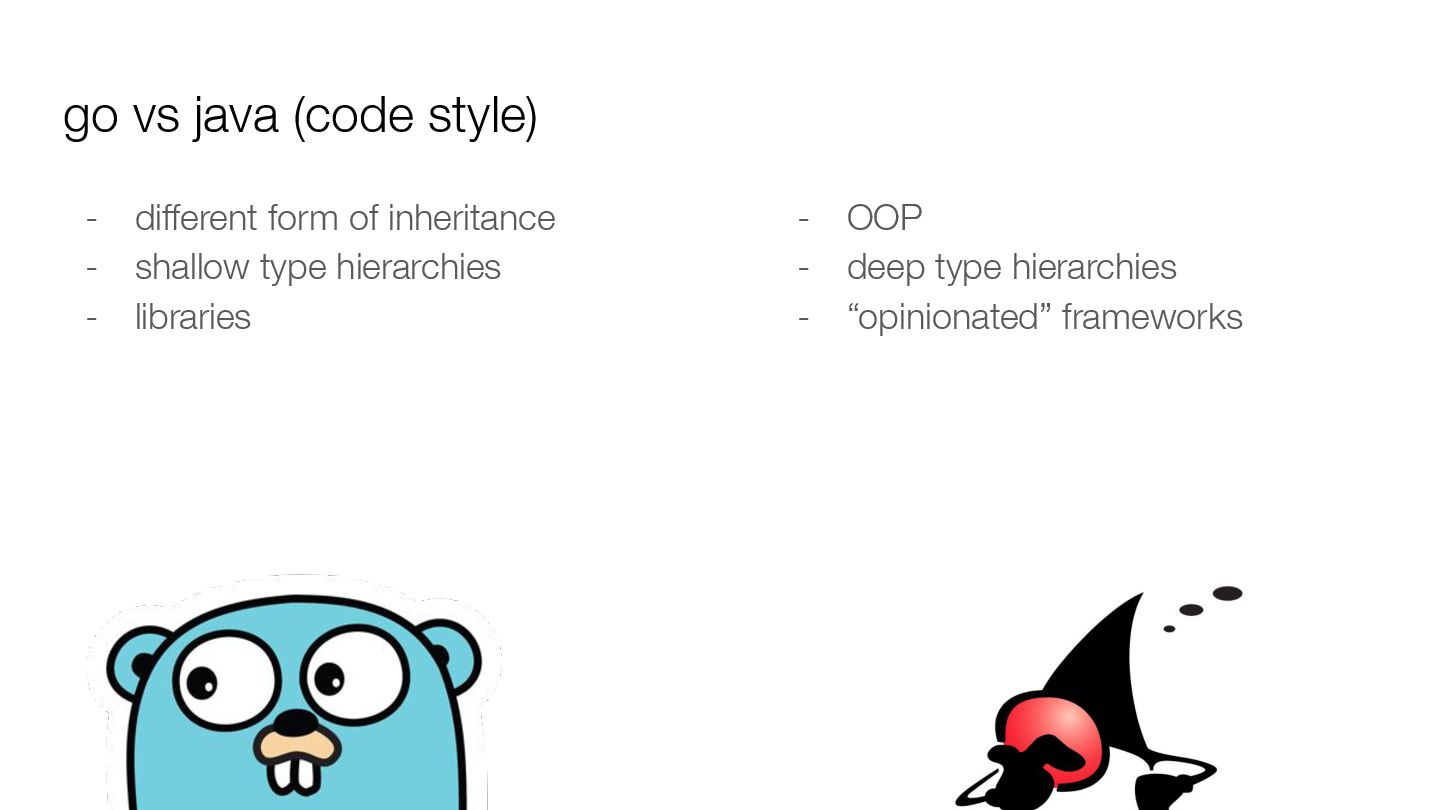

14. go vs java (code style) - different form of inheritance - shallow type hierarchies - libraries - OOP - deep type hierarchies - “opinionated” frameworks

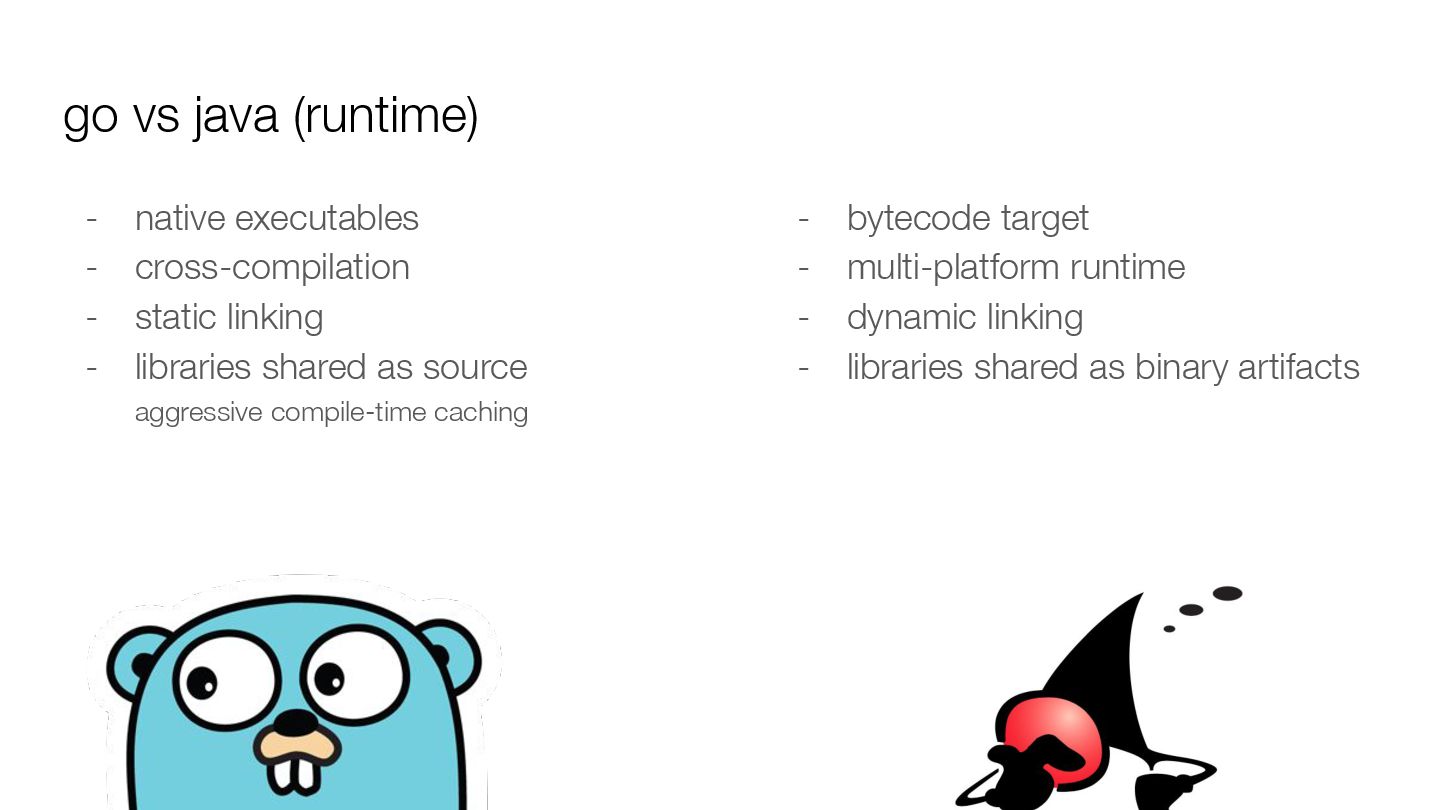

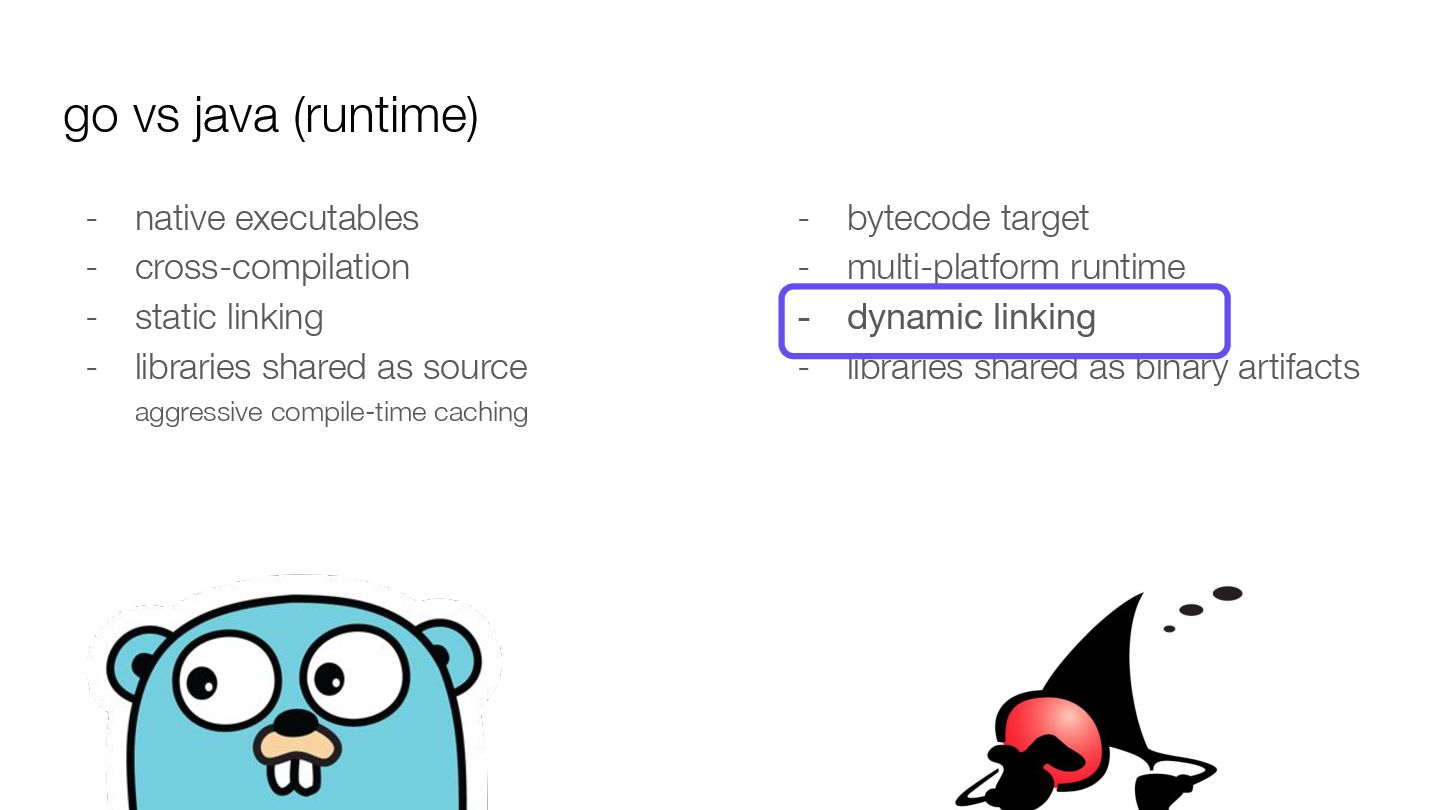

15. go vs java (runtime) - native executables - cross-compilation - static linking - libraries shared as source aggressive compile-time caching - bytecode target - multi-platform runtime - dynamic linking - libraries shared as binary artifacts
16. go vs java (runtime) - native executables - cross-compilation - static linking - libraries shared as source aggressive compile-time caching - bytecode target - multi-platform runtime - dynamic linking - libraries shared as binary artifacts

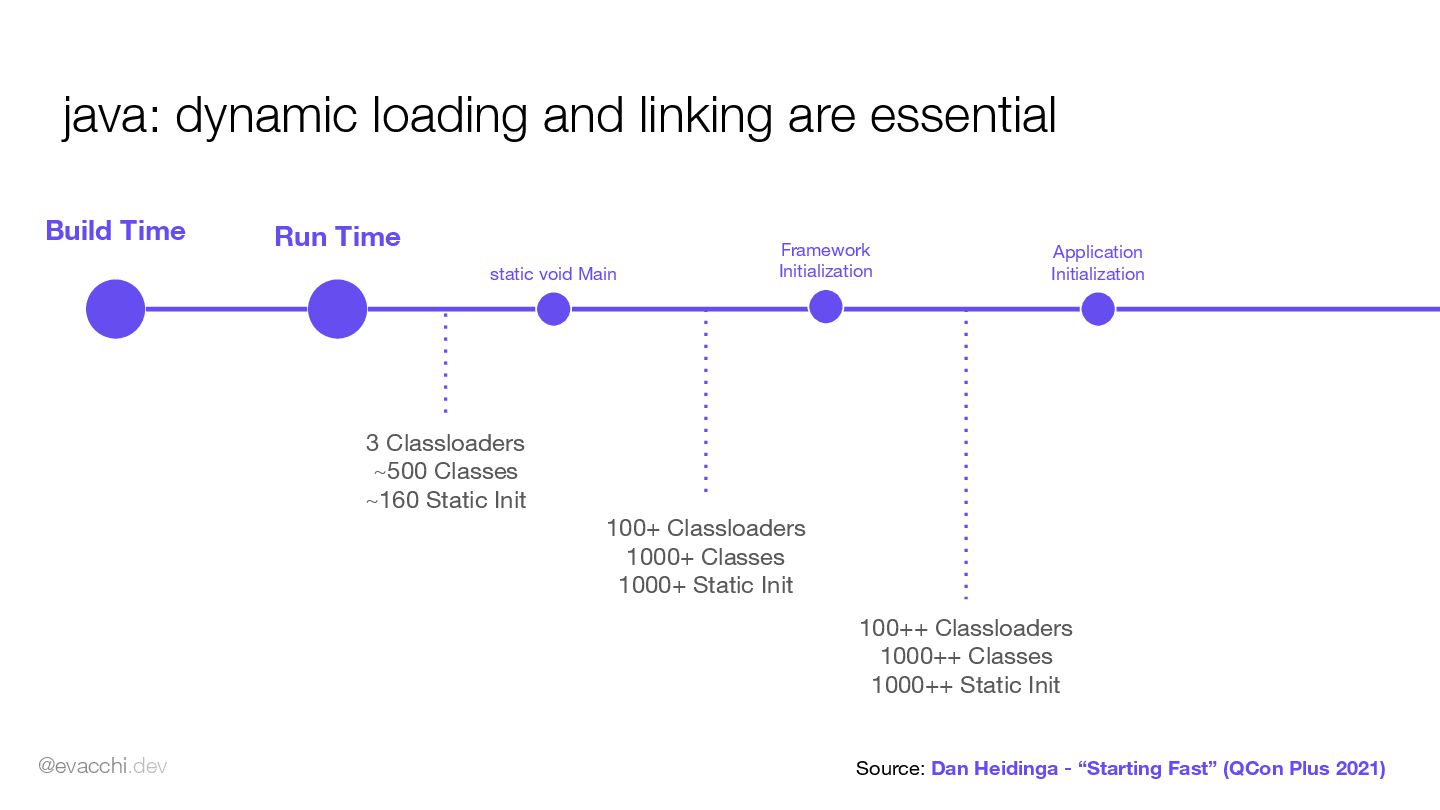

17. java: dynamic loading and linking are essential Build Time Run Time 3 Classloaders ~500 Classes ~160 Static Init 100+ Classloaders 1000+ Classes 1000+ Static Init 100++ Classloaders 1000++ Classes 1000++ Static Init static void Main Framework Initialization Application Initialization Source: Dan Heidinga - “Starting Fast” (QCon Plus 2021) @evacchi.dev
18. go vs java: similarities - “large” runtime (cross-compilation) - garbage collection - goroutines - “large” multi-platform runtime - garbage collection - virtual threads (before: tasks+thread pools) …native executables with native-image
19. the problem with ffi • most language runtimes have limitations when they need to interoperate with native code • “foreign function interface” • e.g. Python, Java with JNI, libFFI, or Go with cgo • if you interoperate with C/native, you have to follow its rules 19 @evacchi.dev

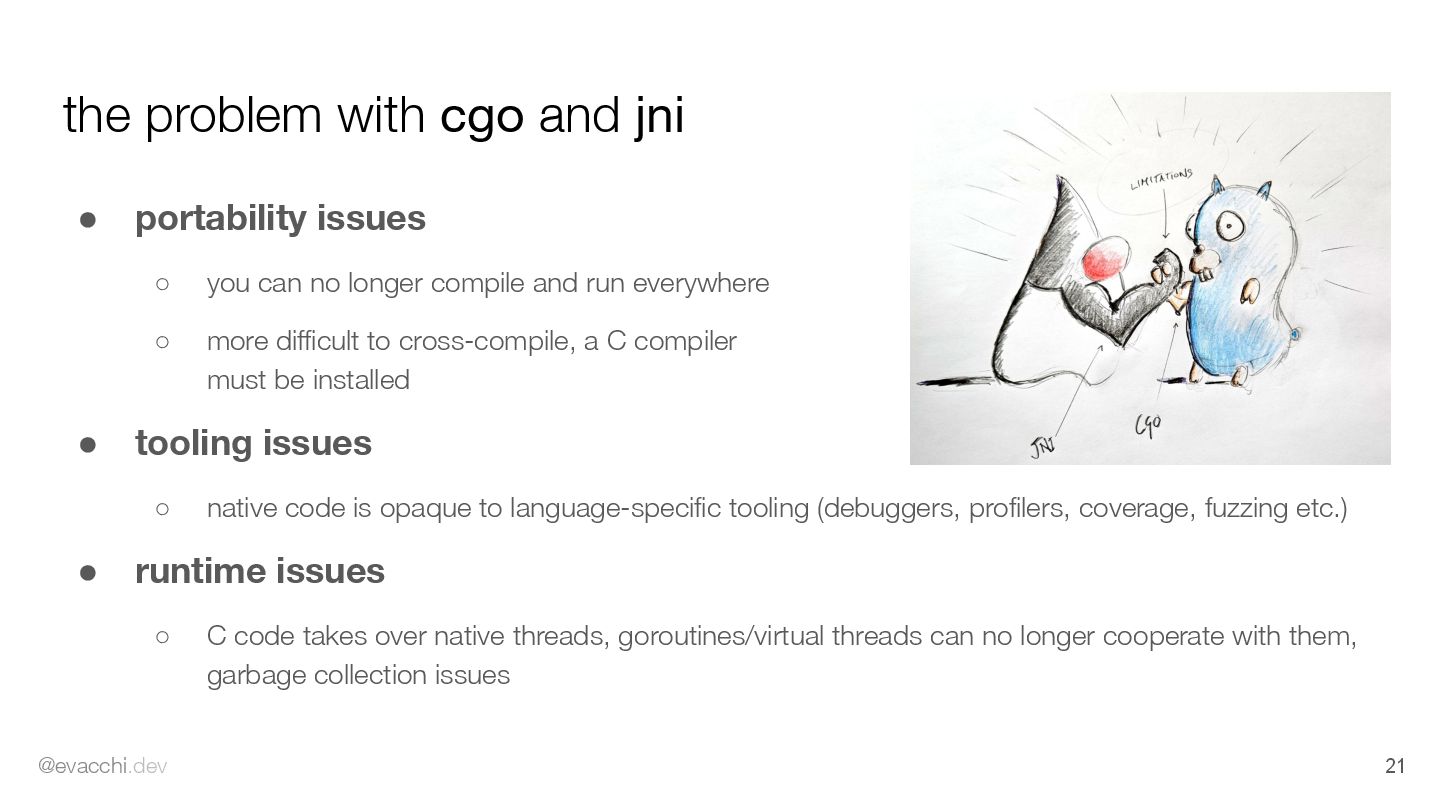

21. the problem with cgo and jni • portability issues ◦ you can no longer compile and run everywhere ◦ more difficult to cross-compile, a C compiler must be installed • tooling issues ◦ native code is opaque to language-specific tooling (debuggers, profilers, coverage, fuzzing etc.) • runtime issues ◦ C code takes over native threads, goroutines/virtual threads can no longer cooperate with them, garbage collection issues 21 @evacchi.dev
22. the problem with cgo and jni • performance issues ◦ crossing the FFI boundary has a cost • safety issues ◦ memory space shared with host code ◦ no sandboxing 22 @evacchi.dev
23. software extensions
24. the go environment best features: - static linking - cross-compilation - goroutines @evacchi.dev

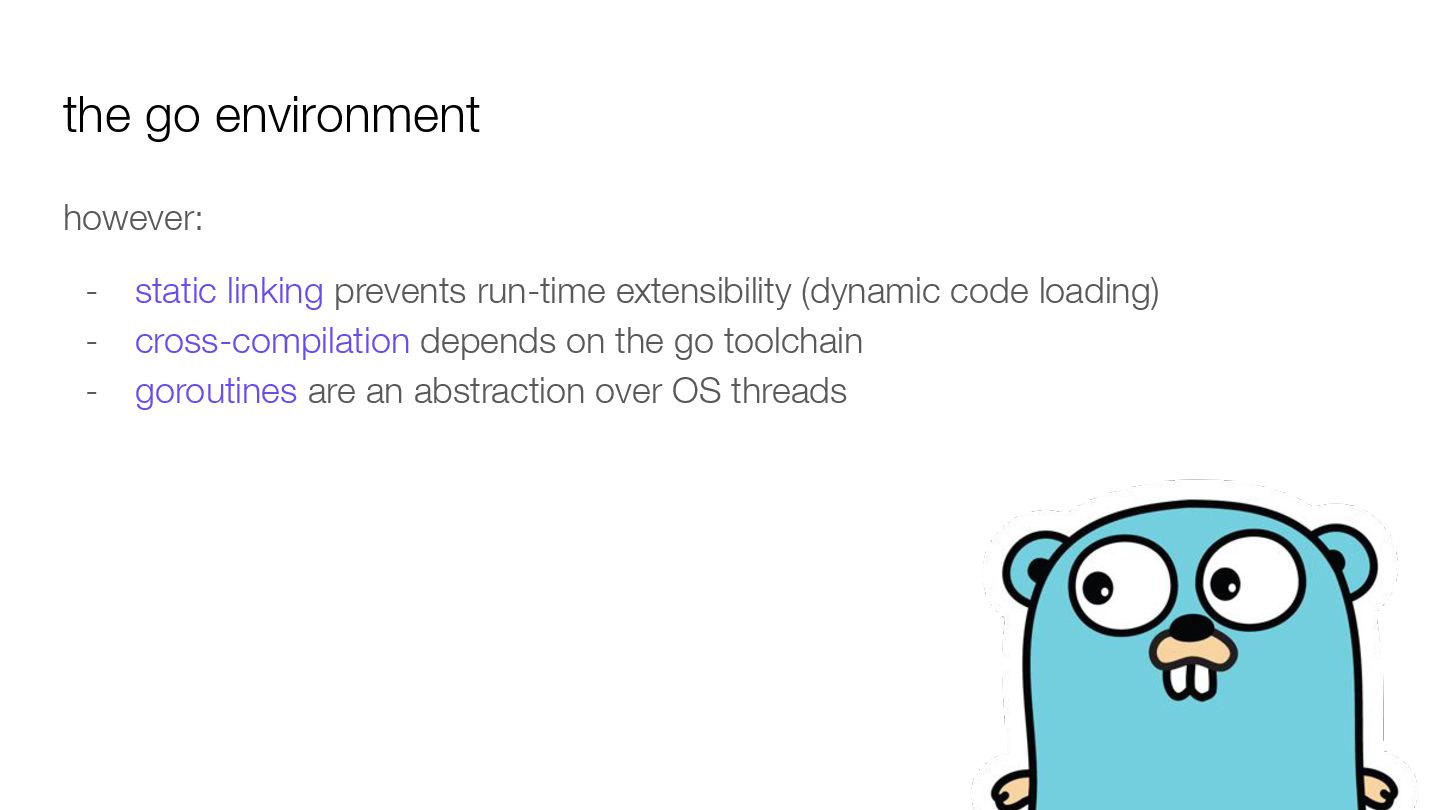

25. the go environment however: - static linking prevents run-time extensibility (dynamic code loading) - cross-compilation depends on the go toolchain - goroutines are an abstraction over OS threads
26. Software Extensions in Go - Go plugin (limited) - A scripting language implemented in Go - Native extensions

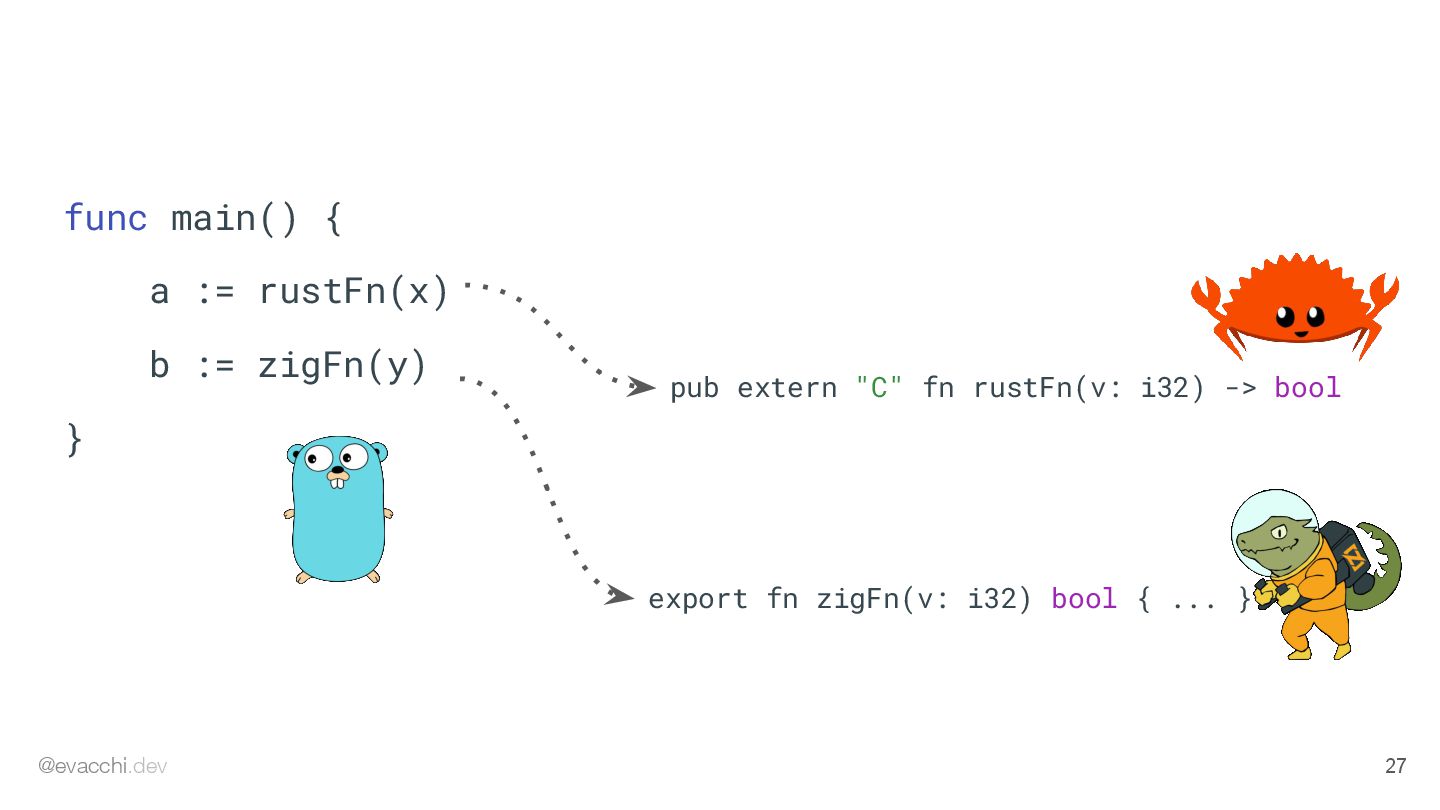

27. func main() { a := rustFn(x) b := zigFn(y) } pub extern "C" fn rustFn(v: i32) -> bool export fn zigFn(v: i32) bool { ... } 27 @evacchi.dev

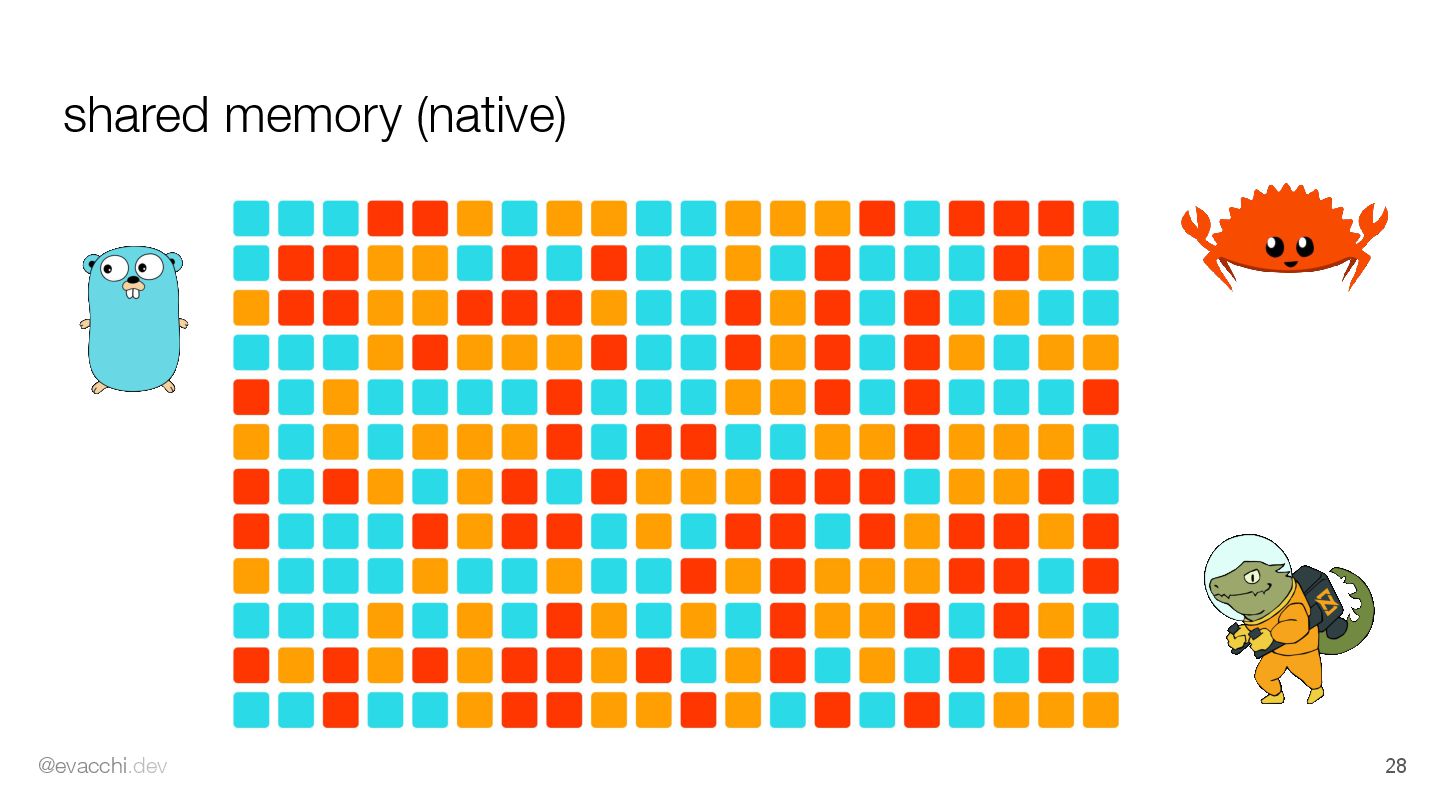

28. shared memory (native) 28 @evacchi.dev

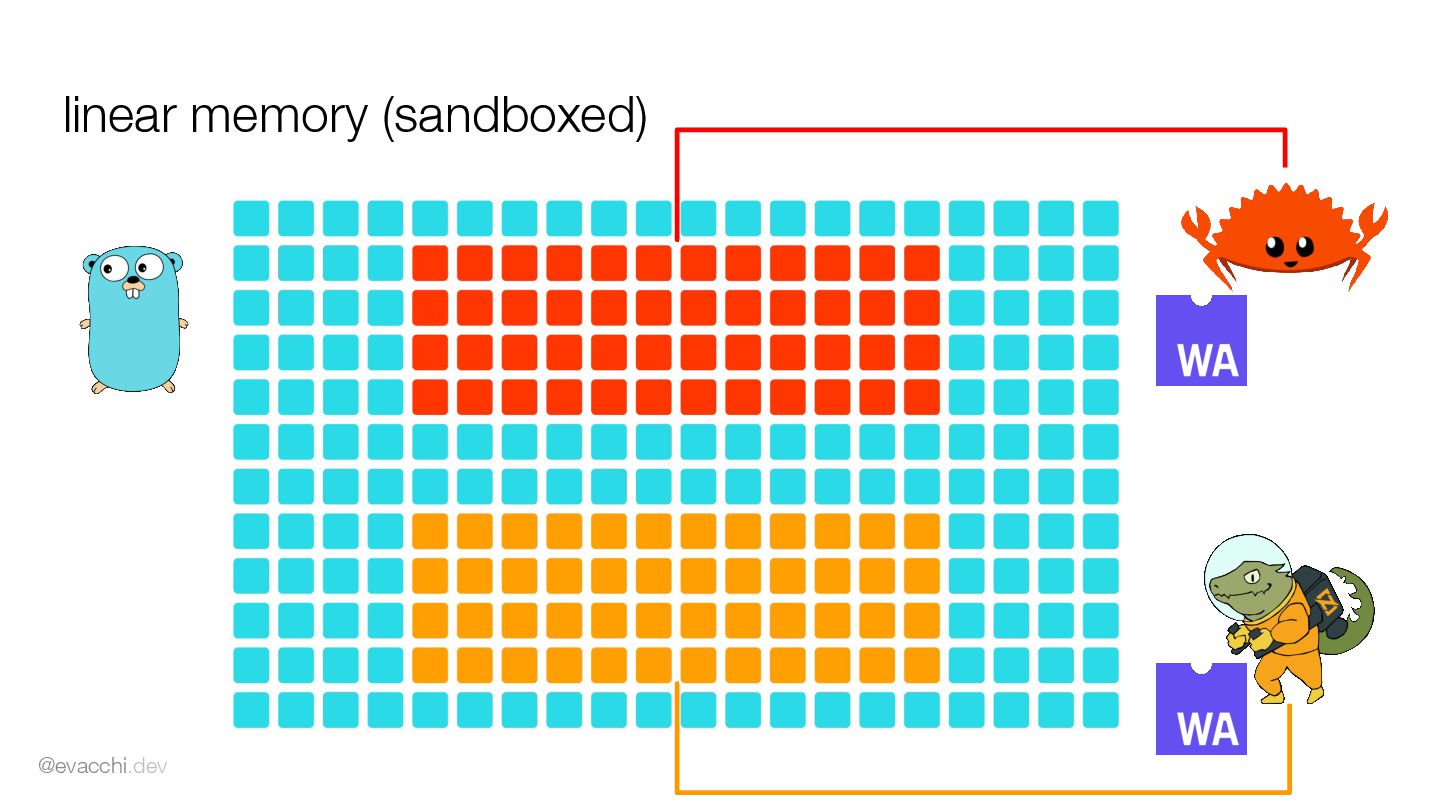

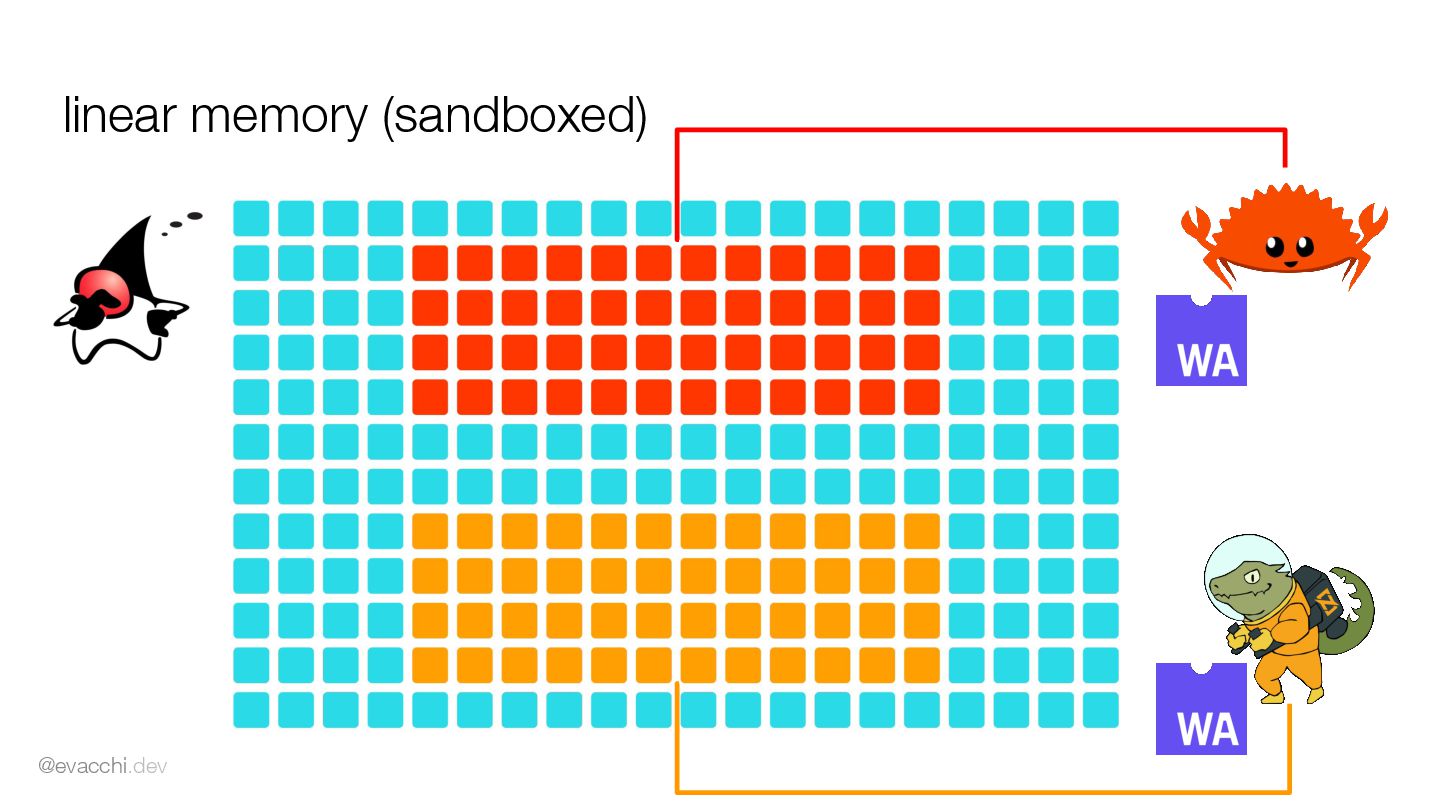

29. linear memory (sandboxed) @evacchi.dev

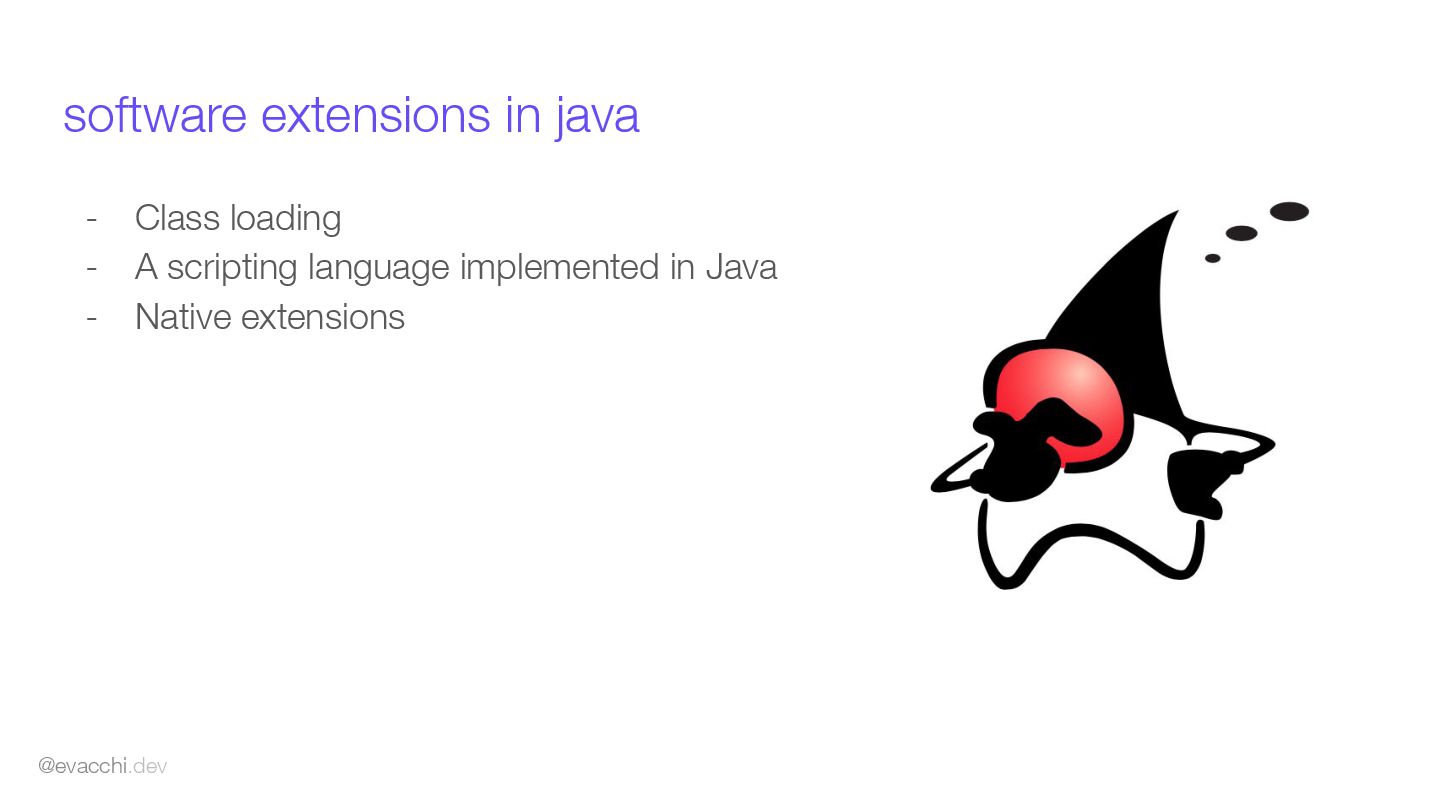

30. software extensions in java - Class loading - A scripting language implemented in Java - Native extensions @evacchi.dev

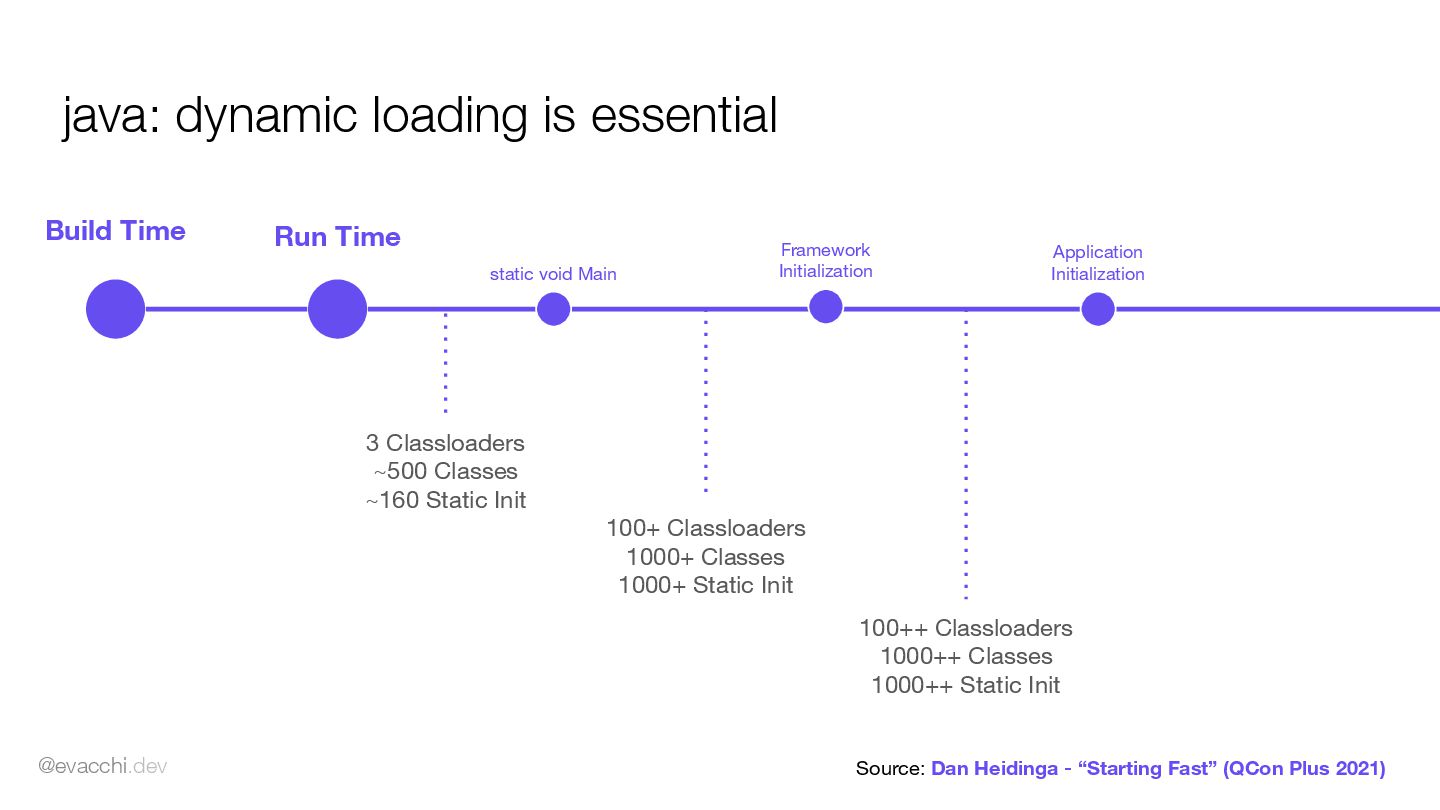

31. java: dynamic loading is essential Build Time Run Time 3 Classloaders ~500 Classes ~160 Static Init 100+ Classloaders 1000+ Classes 1000+ Static Init 100++ Classloaders 1000++ Classes 1000++ Static Init static void Main Framework Initialization Application Initialization Source: Dan Heidinga - “Starting Fast” (QCon Plus 2021) @evacchi.dev
32. Class-Loading - SecurityManager is deprecated - No sandboxing - Hard to contain resource usage

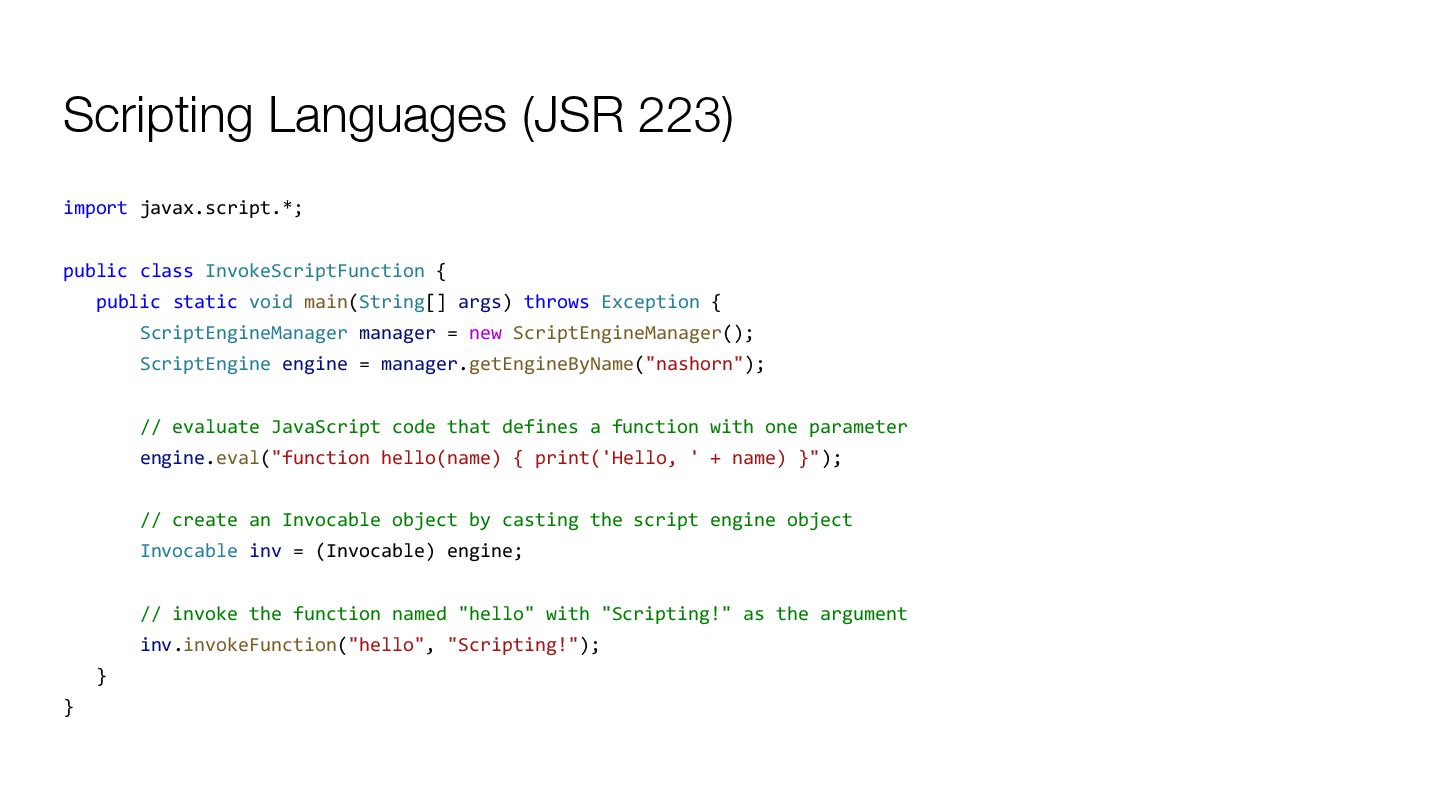

33. Scripting Languages (JSR 223) import javax.script.*; public class InvokeScriptFunction { public static void main(String[] args) throws Exception { ScriptEngineManager manager = new ScriptEngineManager(); ScriptEngine engine = manager.getEngineByName("nashorn"); // evaluate JavaScript code that defines a function with one parameter engine.eval("function hello(name) { print('Hello, ' + name) }"); // create an Invocable object by casting the script engine object Invocable inv = (Invocable) engine; // invoke the function named "hello" with "Scripting!" as the argument inv.invokeFunction("hello", "Scripting!"); } }

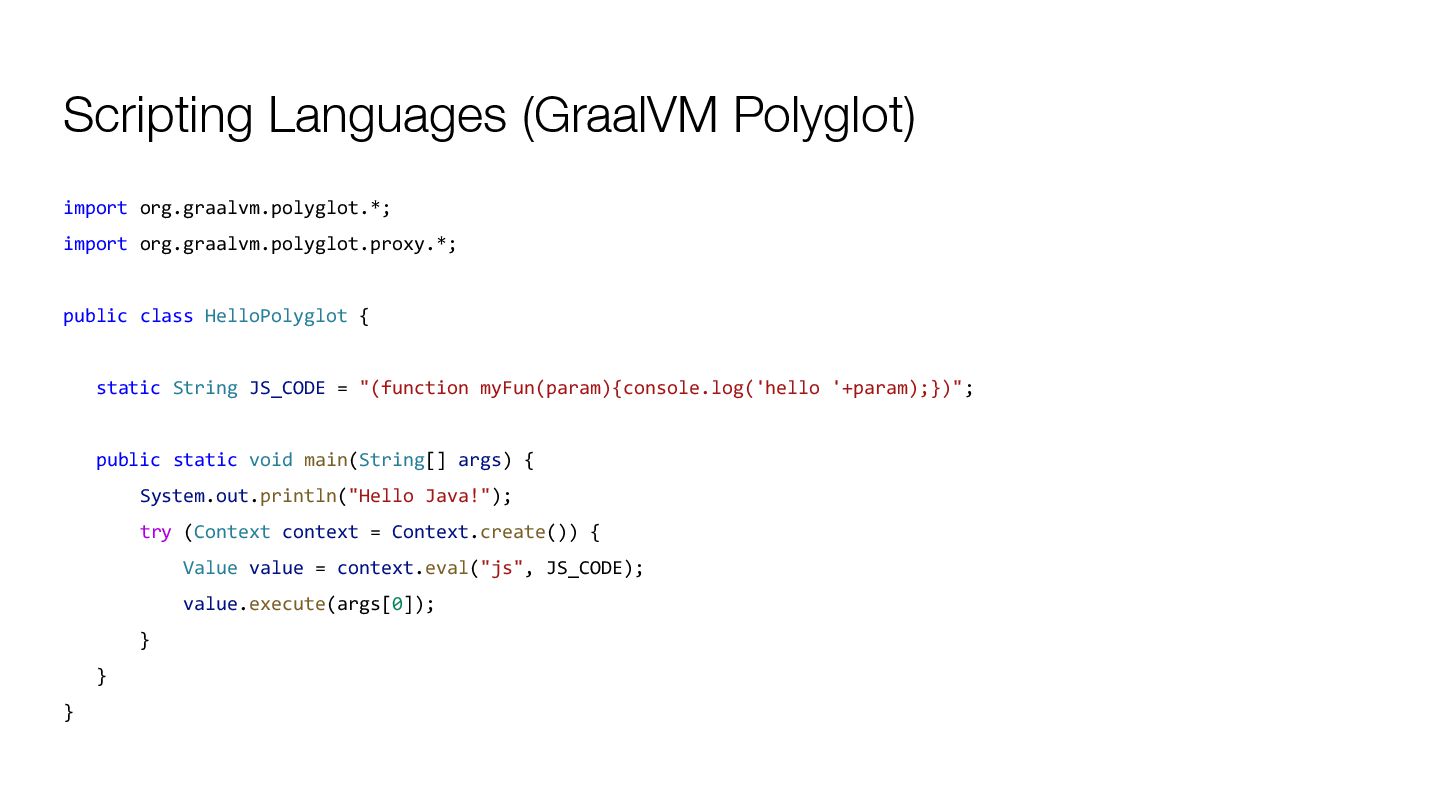

34. Scripting Languages (GraalVM Polyglot) import org.graalvm.polyglot.*; import org.graalvm.polyglot.proxy.*; public class HelloPolyglot { static String JS_CODE = "(function myFun(param){console.log('hello '+param);})"; public static void main(String[] args) { System.out.println("Hello Java!"); try (Context context = Context.create()) { Value value = context.eval("js", JS_CODE); value.execute(args[0]); } } }

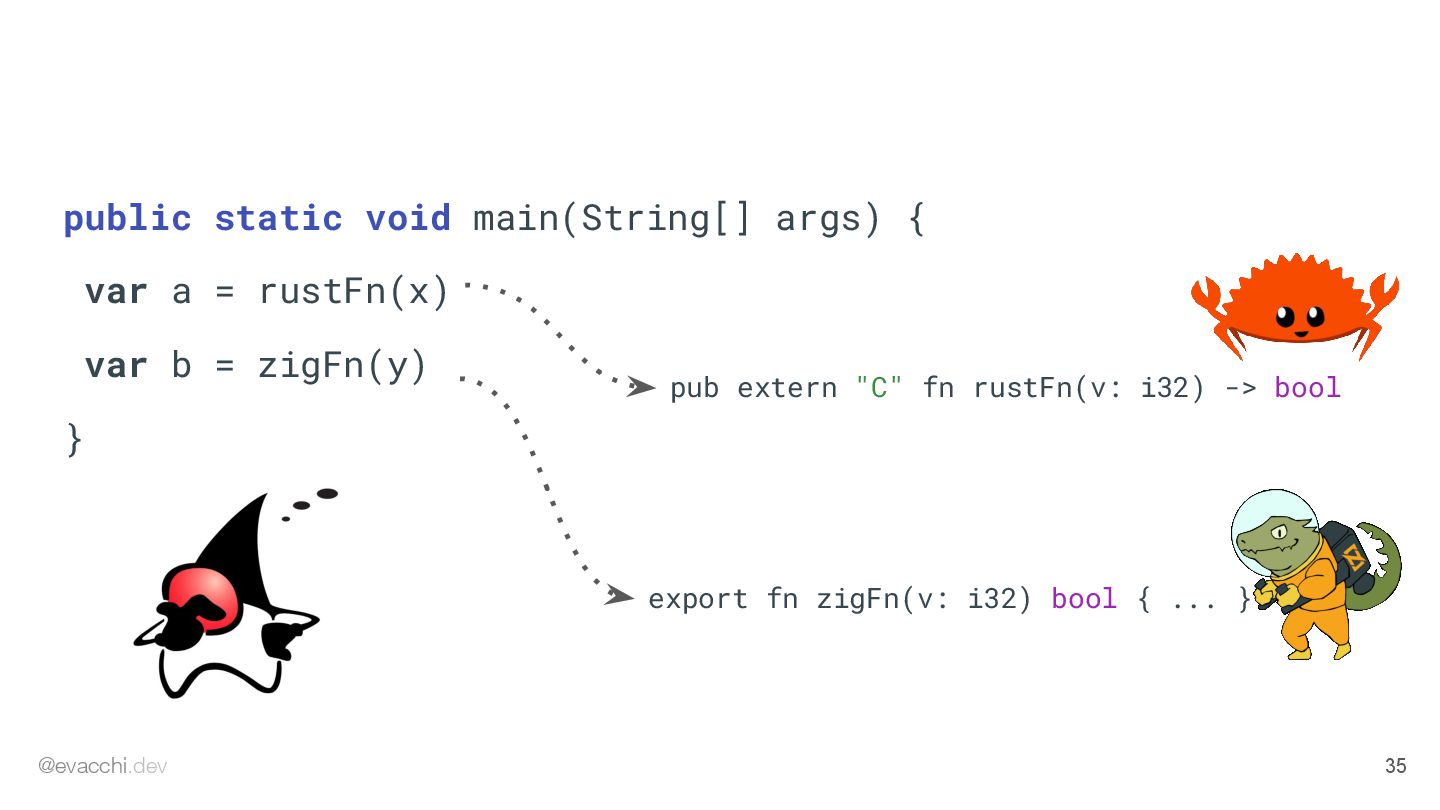

35. public static void main(String[] args) { var a = rustFn(x) var b = zigFn(y) } pub extern "C" fn rustFn(v: i32) -> bool export fn zigFn(v: i32) bool { ... } 35 @evacchi.dev

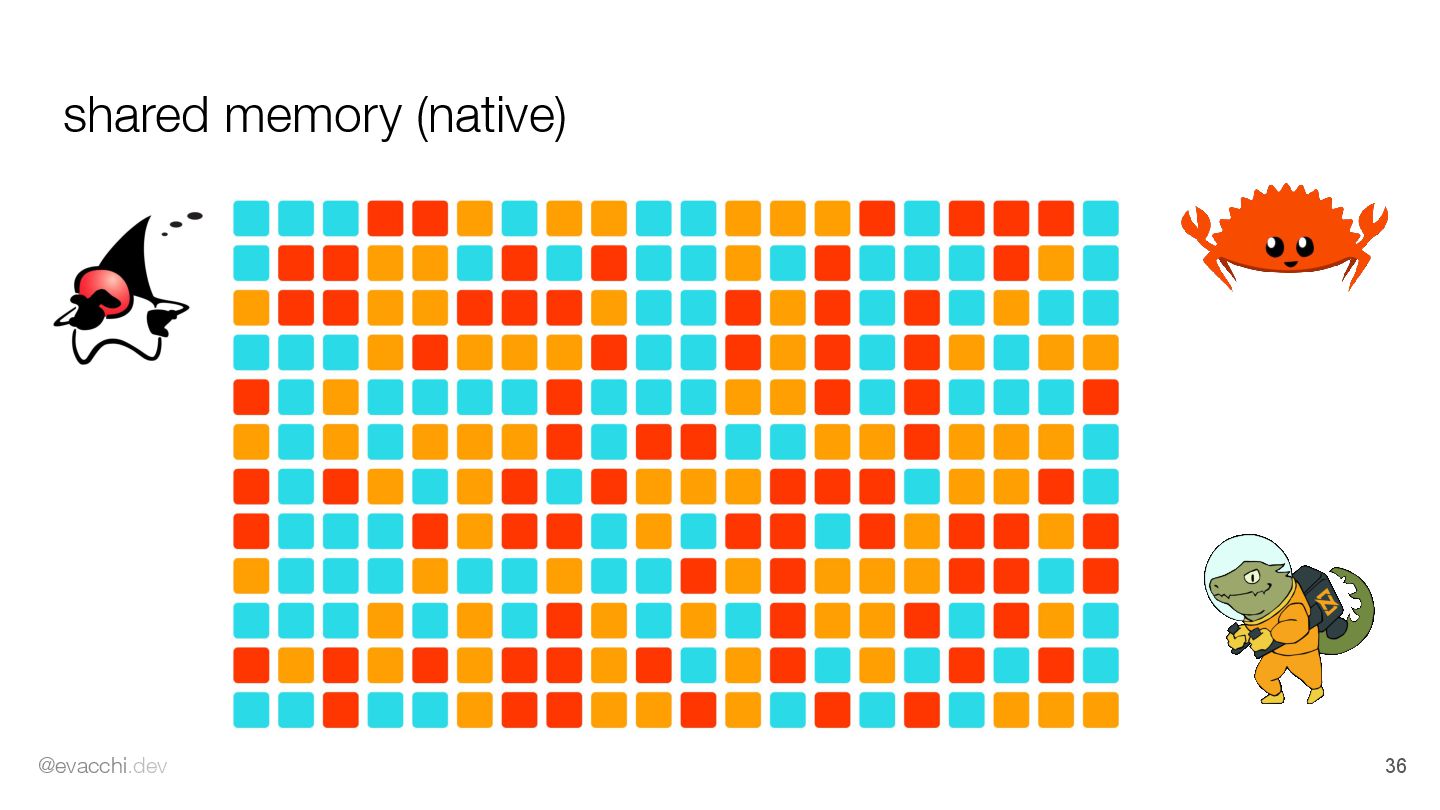

36. shared memory (native) 36 @evacchi.dev
37. linear memory (sandboxed) @evacchi.dev
38. language-native runtimes
39. language-native runtime a language-native Wasm runtime is a runtime that is written in the host language (well, isn’t that true for all run-times?) managed languages - a Wasm runtime for the Go runtime, written in go - a Wasm runtime for the JVM, written in Java chicory @evacchi.dev

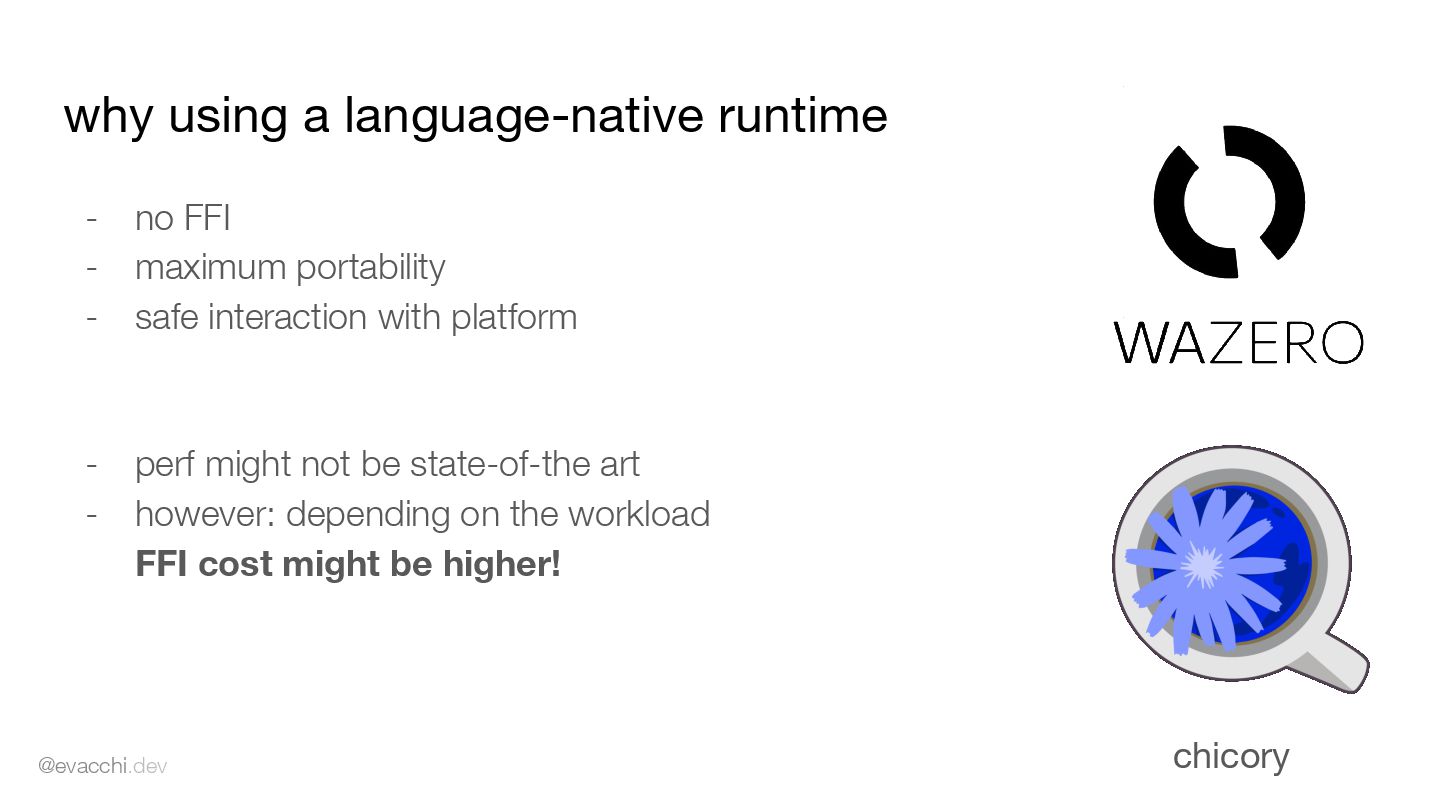

40. why using a language-native runtime - no FFI - maximum portability - safe interaction with platform - perf might not be state-of-the art - however: depending on the workload FFI cost might be higher! chicory @evacchi.dev
41. function compilation

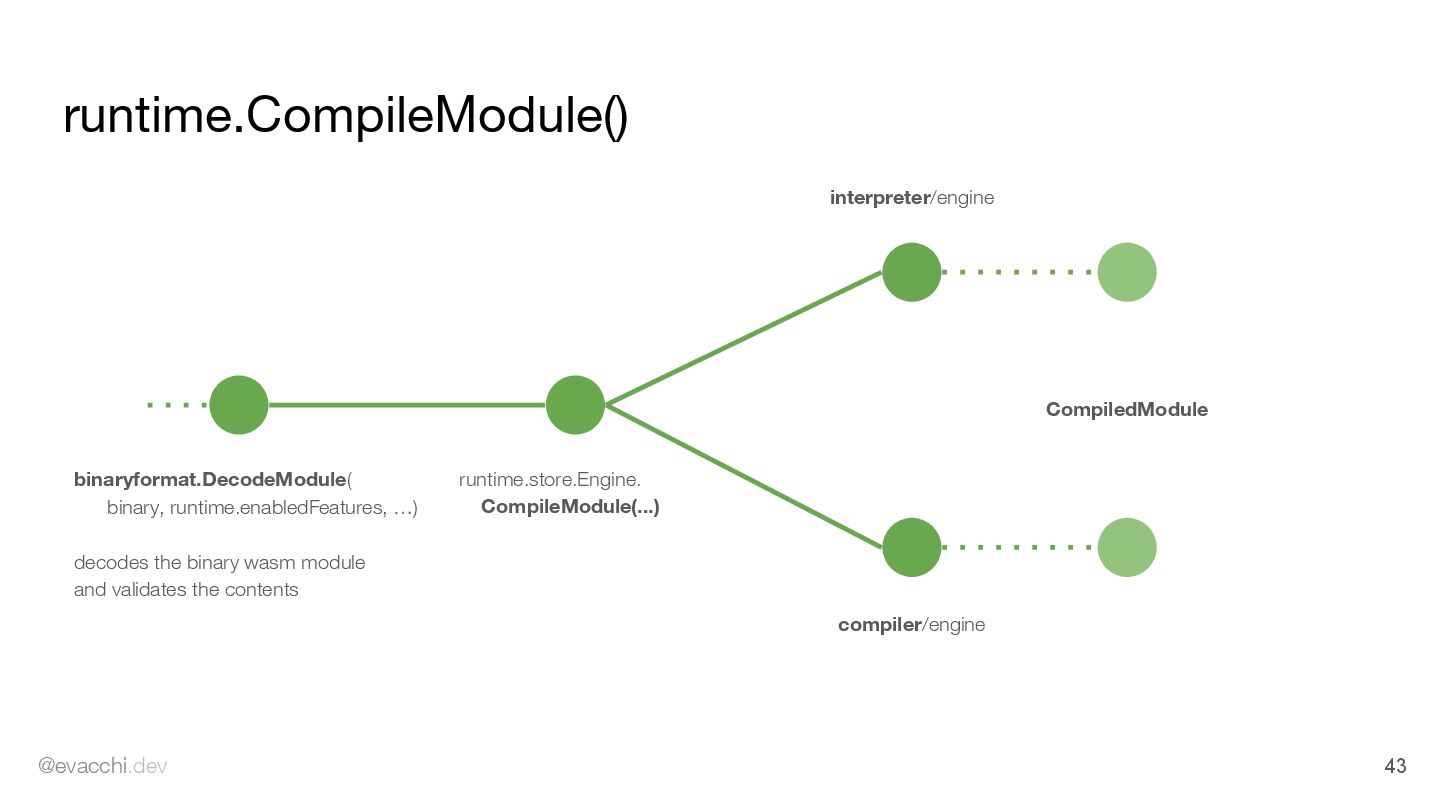

43. runtime.CompileModule() binaryformat.DecodeModule( binary, runtime.enabledFeatures, …) decodes the binary wasm module and validates the contents runtime.store.Engine. CompileModule(...) interpreter/engine compiler/engine CompiledModule 43 @evacchi.dev

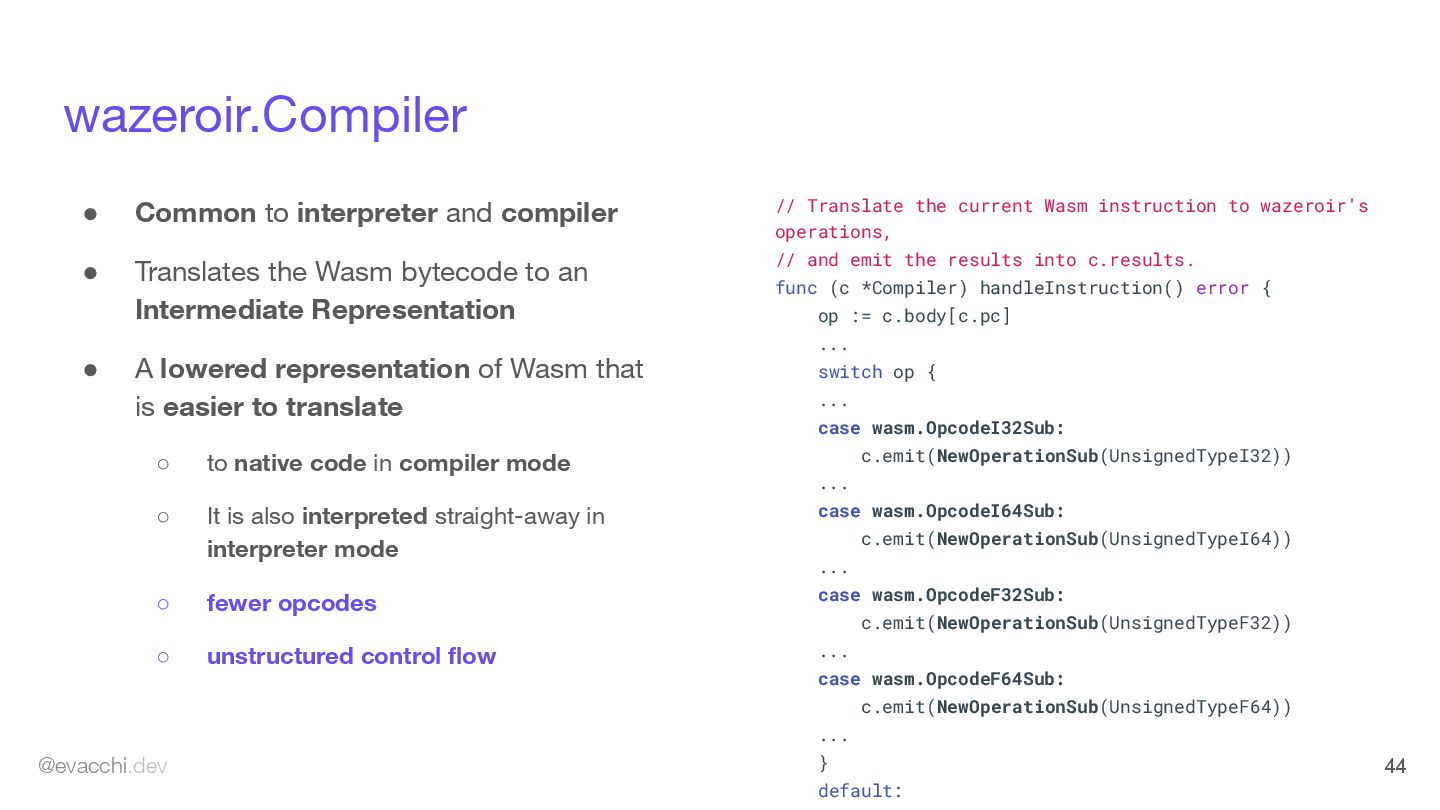

44. wazeroir.Compiler • Common to interpreter and compiler • Translates the Wasm bytecode to an Intermediate Representation • A lowered representation of Wasm that is easier to translate ◦ to native code in compiler mode ◦ It is also interpreted straight-away in interpreter mode ◦ fewer opcodes ◦ unstructured control flow // Translate the current Wasm instruction to wazeroir's operations, // and emit the results into c.results. func (c *Compiler) handleInstruction() error { op := c.body[c.pc] ... switch op { ... case wasm.OpcodeI32Sub: c.emit(NewOperationSub(UnsignedTypeI32)) ... case wasm.OpcodeI64Sub: c.emit(NewOperationSub(UnsignedTypeI64)) ... case wasm.OpcodeF32Sub: c.emit(NewOperationSub(UnsignedTypeF32)) ... case wasm.OpcodeF64Sub: c.emit(NewOperationSub(UnsignedTypeF64)) ... } default: 44 @evacchi.dev
45. optimizing compiler

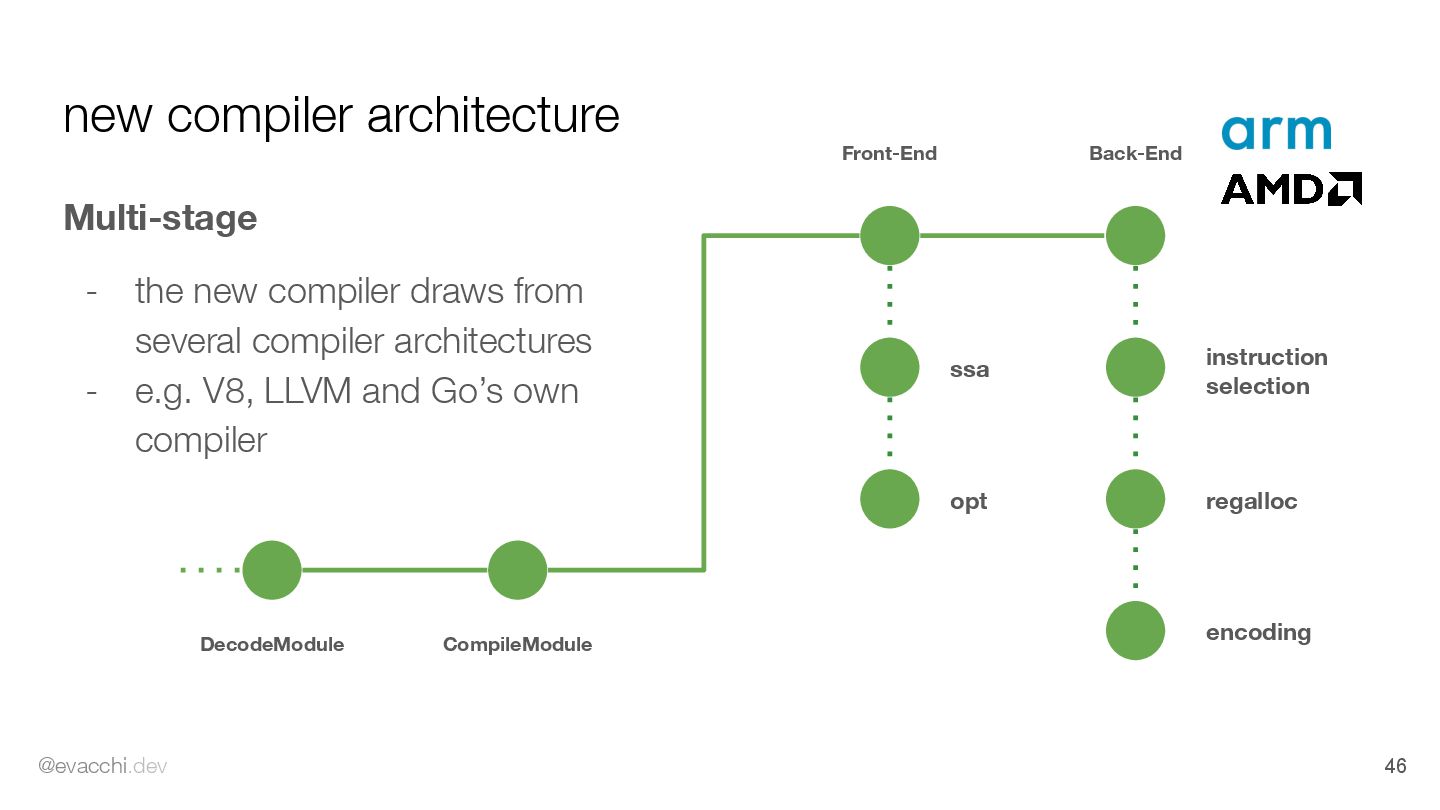

46. new compiler architecture @evacchi.dev 46 Multi-stage - the new compiler draws from several compiler architectures - e.g. V8, LLVM and Go’s own compiler DecodeModule CompileModule Front-End Back-End ssa opt instruction selection regalloc encoding

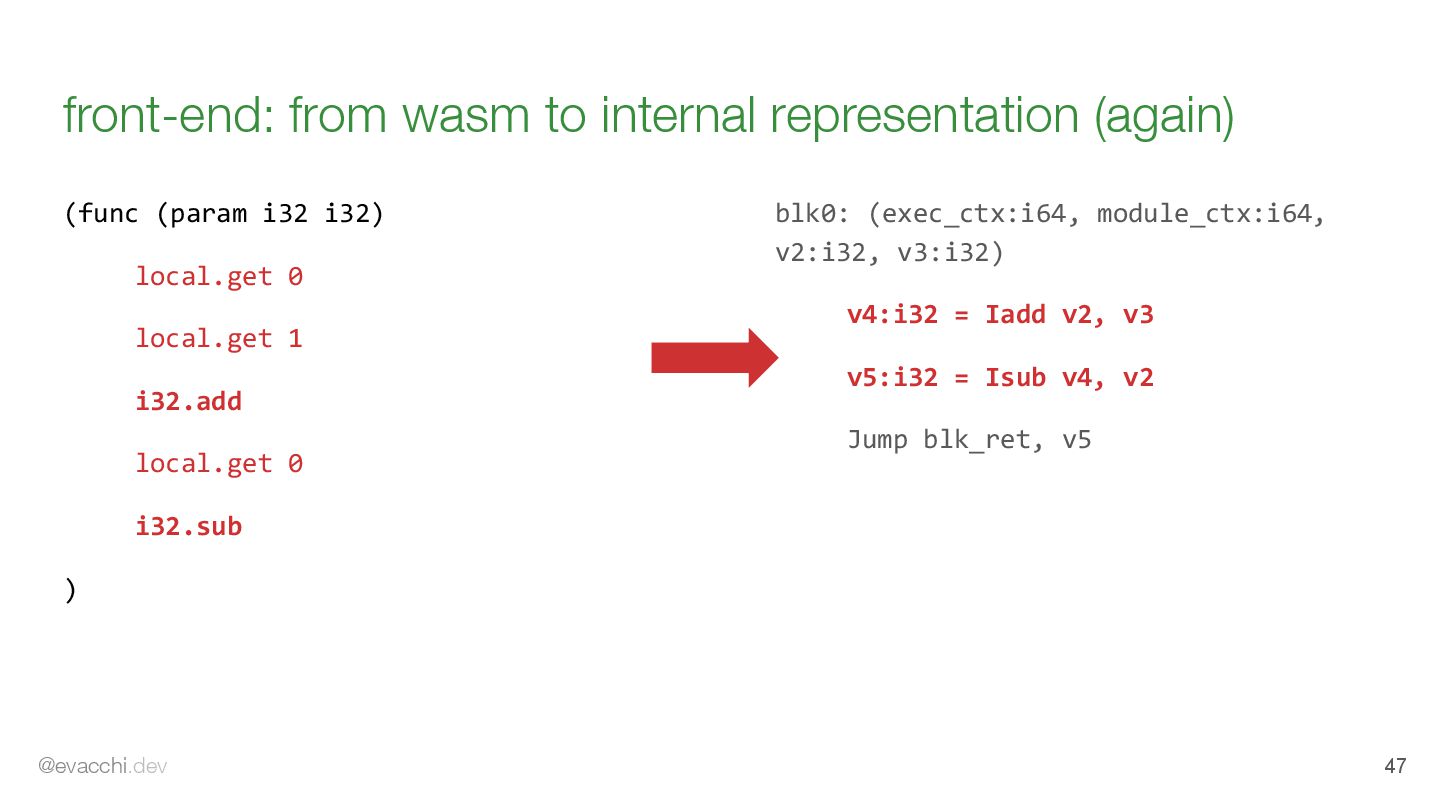

47. front-end: from wasm to internal representation (again) (func (param i32 i32) local.get 0 local.get 1 i32.add local.get 0 i32.sub ) 47 @evacchi.dev blk0: (exec_ctx:i64, module_ctx:i64, v2:i32, v3:i32) v4:i32 = Iadd v2, v3 v5:i32 = Isub v4, v2 Jump blk_ret, v5

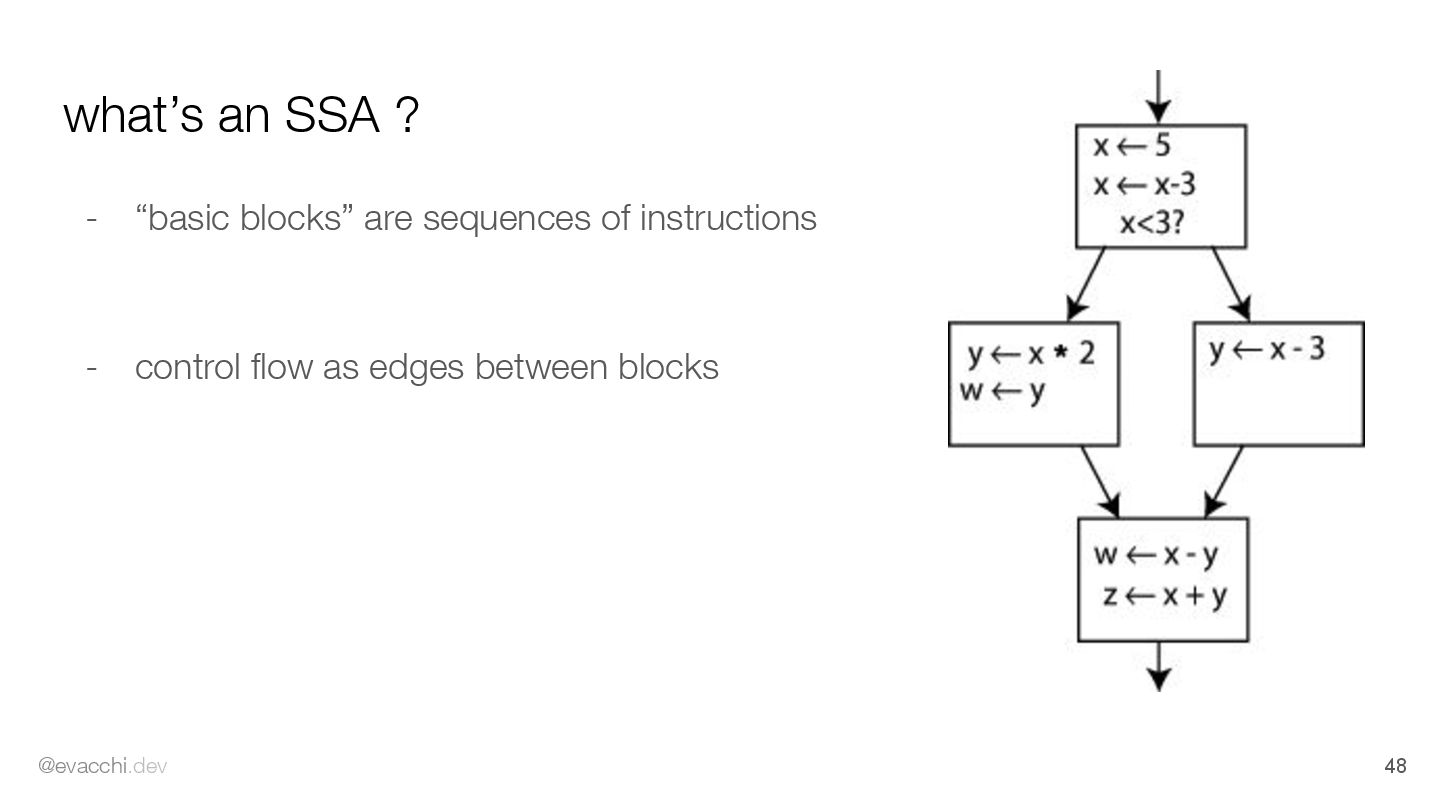

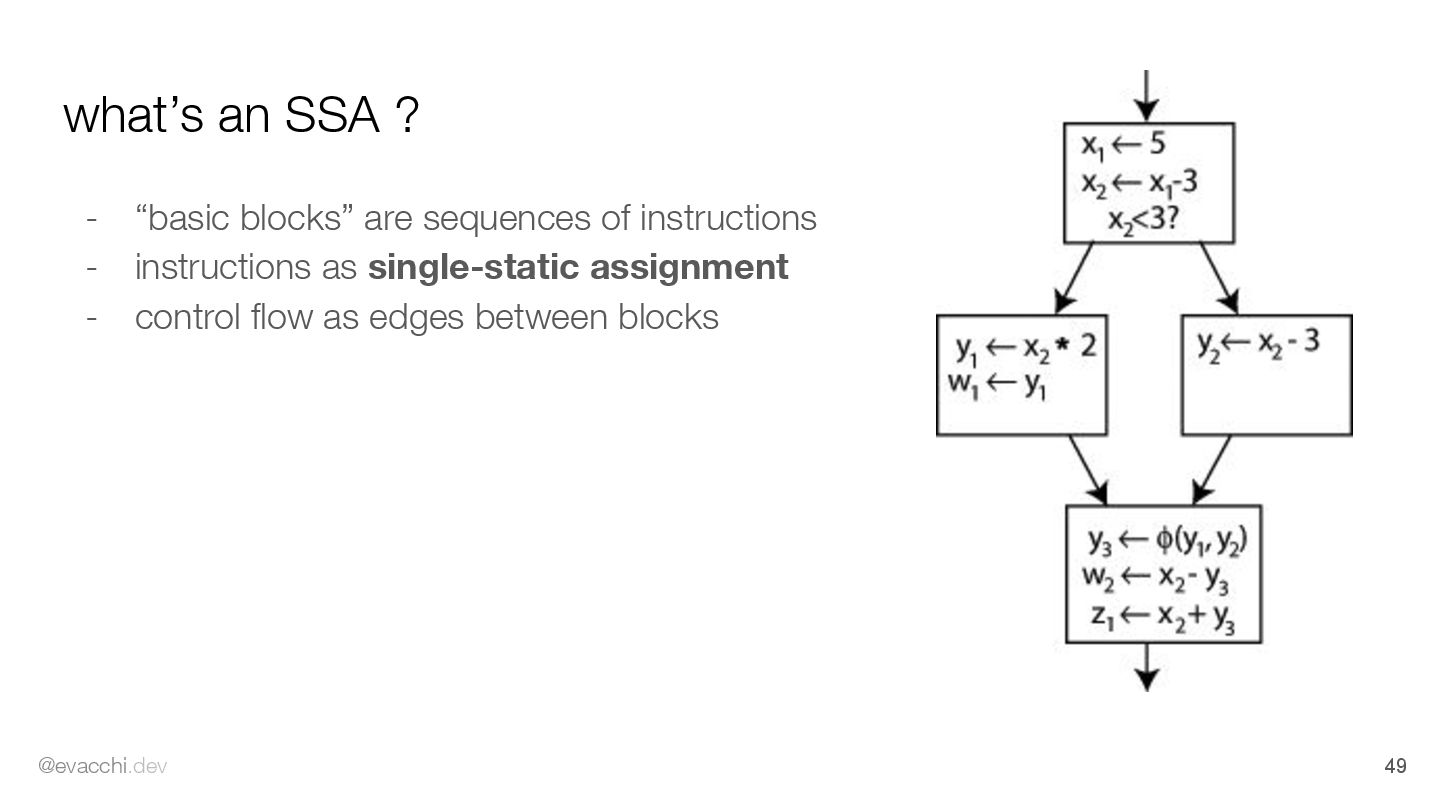

48. what’s an SSA ? - “basic blocks” are sequences of instructions - control flow as edges between blocks @evacchi.dev 48
49. what’s an SSA ? - “basic blocks” are sequences of instructions - instructions as single-static assignment - control flow as edges between blocks @evacchi.dev 49

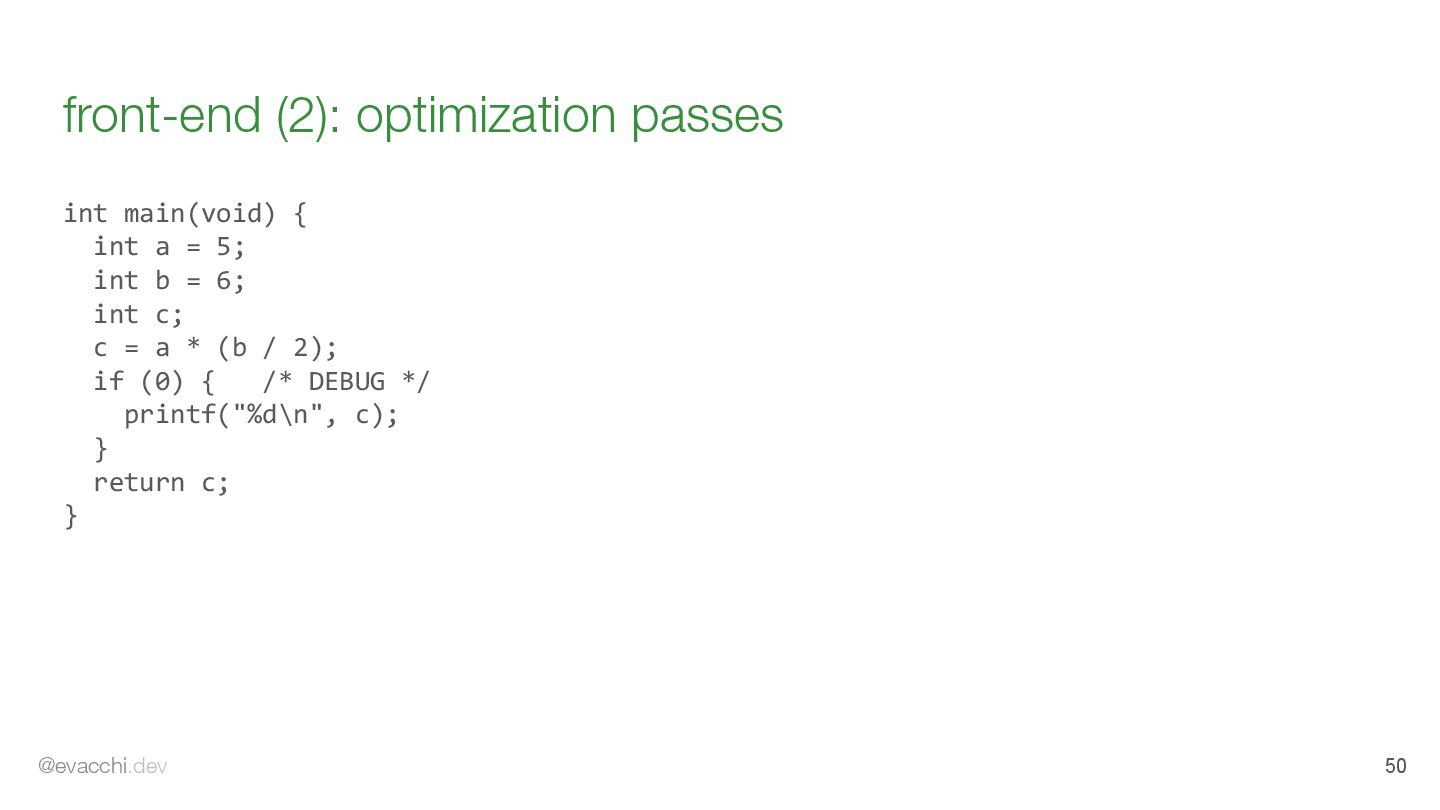

50. front-end (2): optimization passes int main(void) { int a = 5; int b = 6; int c; c = a * (b / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } 50 @evacchi.dev

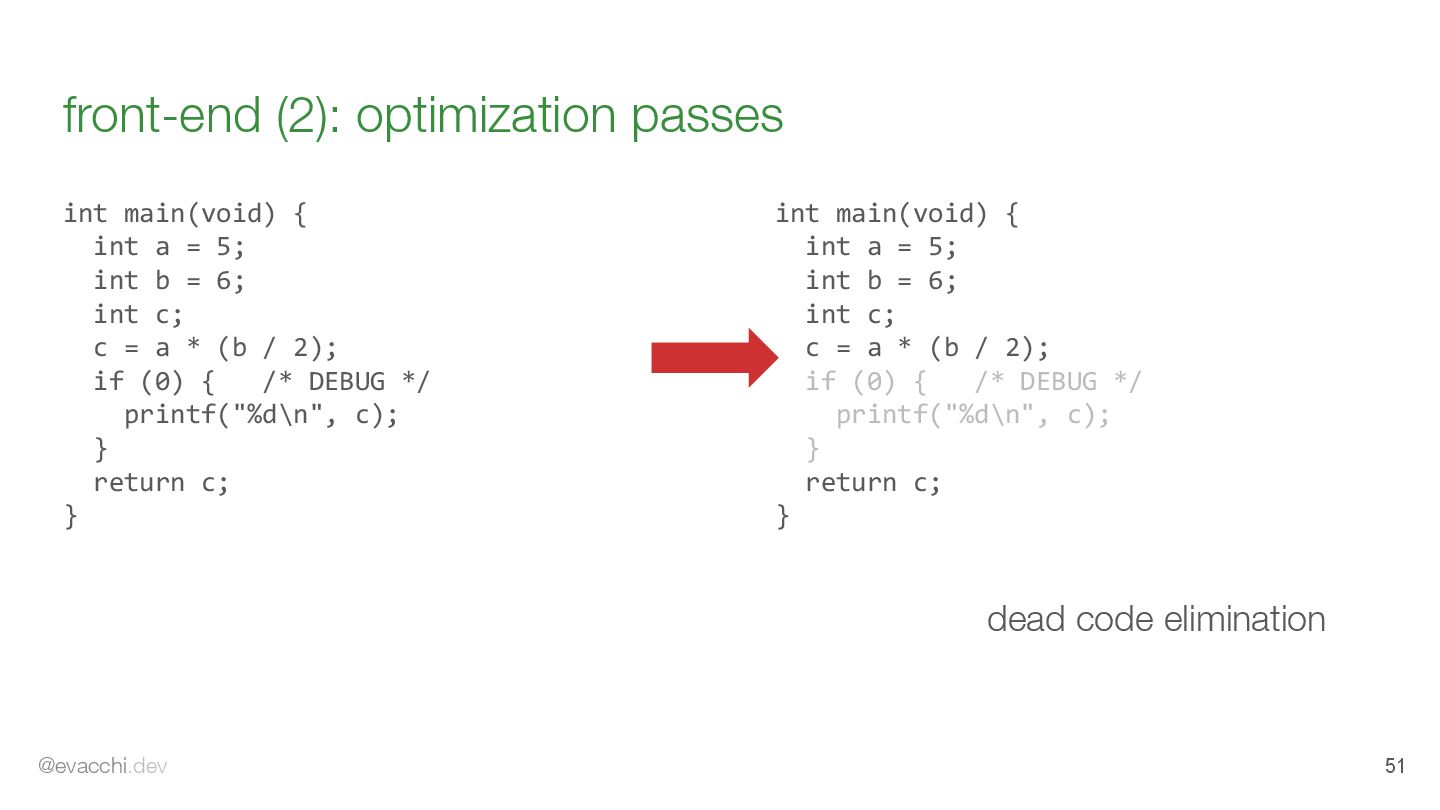

51. front-end (2): optimization passes int main(void) { int a = 5; int b = 6; int c; c = a * (b / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } 51 @evacchi.dev int main(void) { int a = 5; int b = 6; int c; c = a * (b / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } dead code elimination
52. front-end (2): optimization passes int main(void) { int a = 5; int b = 6; int c; c = a * (b / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } 52 @evacchi.dev int main(void) { int a = 5; int b = 6; int c; c = 5 * (6 / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } constant propagation / constant folding

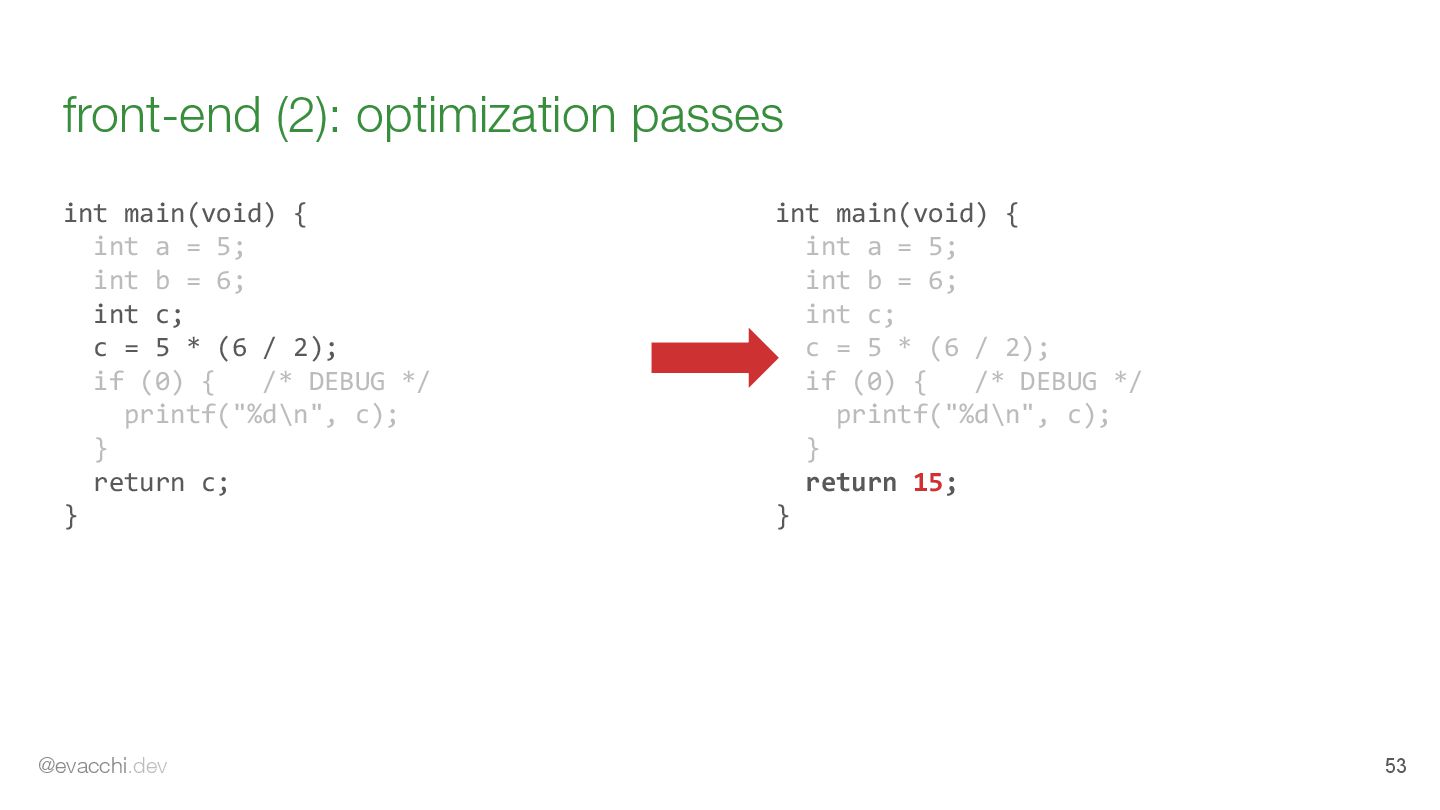

53. front-end (2): optimization passes int main(void) { int a = 5; int b = 6; int c; c = 5 * (6 / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return c; } 53 @evacchi.dev int main(void) { int a = 5; int b = 6; int c; c = 5 * (6 / 2); if (0) { /* DEBUG */ printf("%d\n", c); } return 15; }

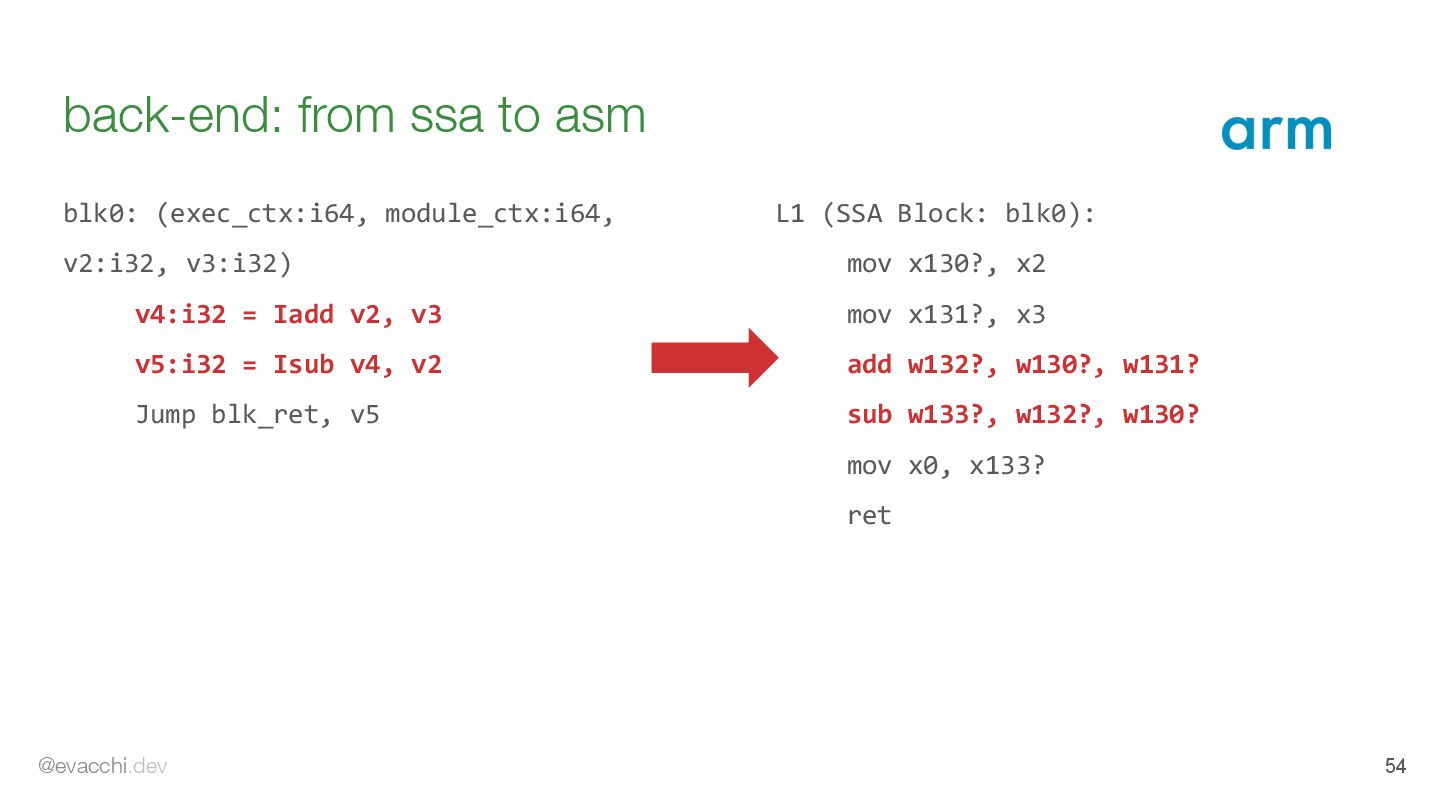

54. back-end: from ssa to asm blk0: (exec_ctx:i64, module_ctx:i64, v2:i32, v3:i32) v4:i32 = Iadd v2, v3 v5:i32 = Isub v4, v2 Jump blk_ret, v5 54 @evacchi.dev L1 (SSA Block: blk0): mov x130?, x2 mov x131?, x3 add w132?, w130?, w131? sub w133?, w132?, w130? mov x0, x133? ret
55. register allocation @evacchi.dev 55 plus, zero, stack pointer, program counter, pstate 32 floating-point/SIMD registers (128 bits), numbered from 0 to 31
56. back-end (2): register allocation L1 (SSA Block: blk0): mov x130?, x2 mov x131?, x3 add w132?, w130?, w131? sub w133?, w132?, w130? mov x0, x133? ret 56 @evacchi.dev (After regalloc) L1 (SSA Block: blk0): mov x2, x2 mov x3, x3 add w8, w2, w3 sub w8, w8, w2 mov x0, x8 ret

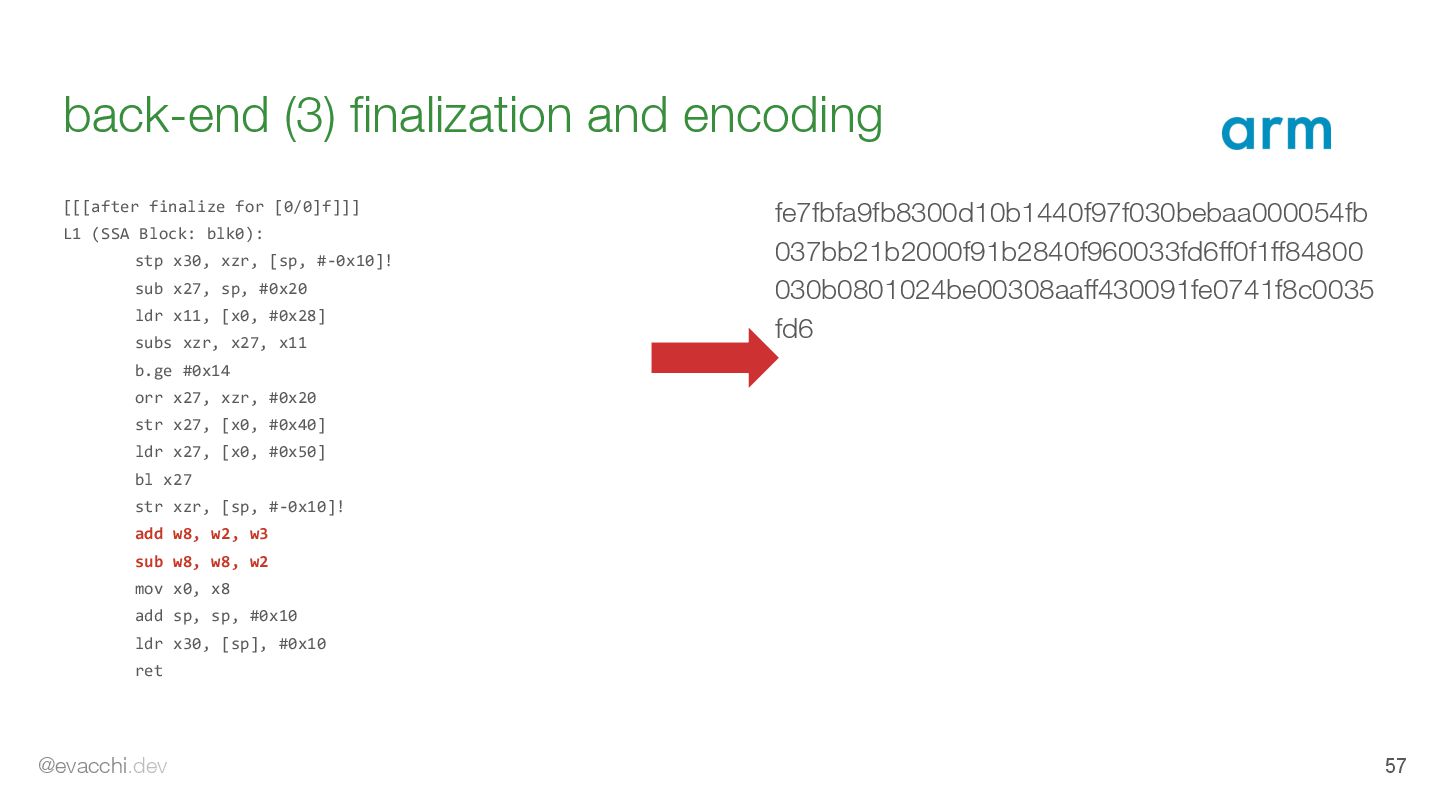

57. back-end (3) finalization and encoding [[[after finalize for [0/0]f]]] L1 (SSA Block: blk0): stp x30, xzr, [sp, #-0x10]! sub x27, sp, #0x20 ldr x11, [x0, #0x28] subs xzr, x27, x11 b.ge #0x14 orr x27, xzr, #0x20 str x27, [x0, #0x40] ldr x27, [x0, #0x50] bl x27 str xzr, [sp, #-0x10]! add w8, w2, w3 sub w8, w8, w2 mov x0, x8 add sp, sp, #0x10 ldr x30, [sp], #0x10 ret 57 @evacchi.dev fe7fbfa9fb8300d10b1440f97f030bebaa000054fb 037bb21b2000f91b2840f960033fd6ff0f1ff84800 030b0801024be00308aaff430091fe0741f8c0035 fd6
58. function invocation

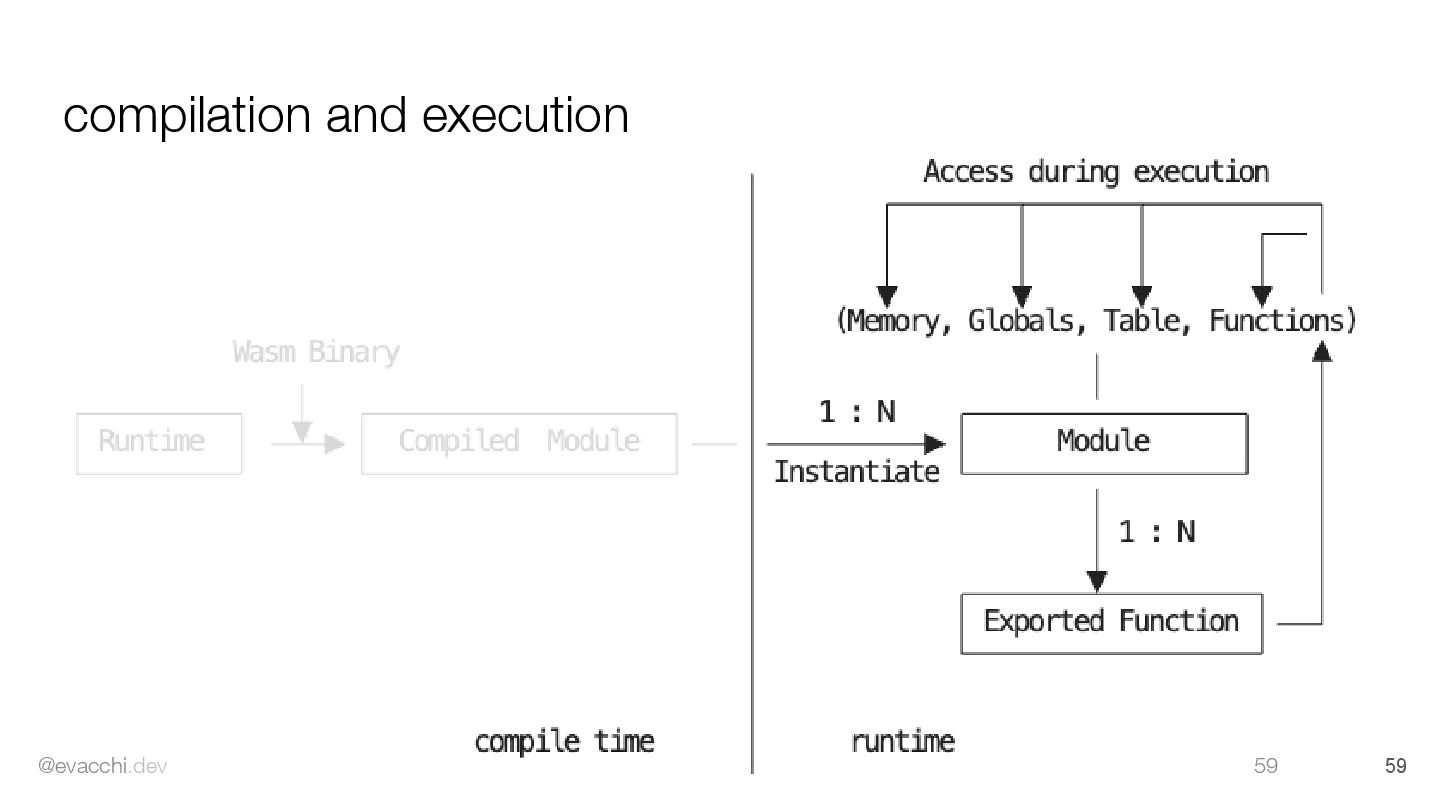

59. compilation and execution 59 59 @evacchi.dev
60. @evacchi
61. 61 @evacchi.dev

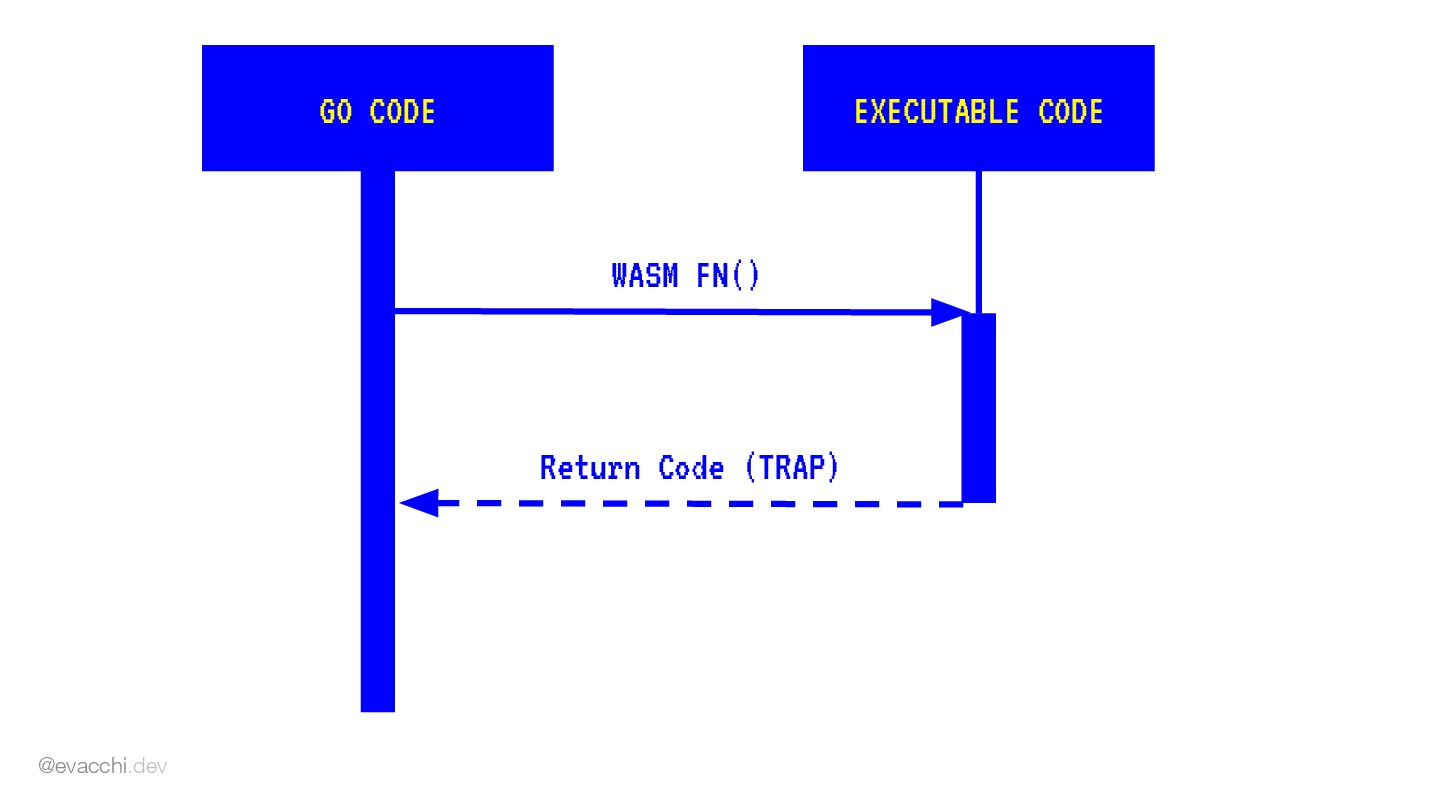

62. GO CODE EXECUTABLE CODE WASM FN() Return Code (TRAP) @evacchi.dev
63. what about host functions?
64. GO CODE EXECUTABLE CODE WASM FN() Return Code (TRAP) @evacchi.dev

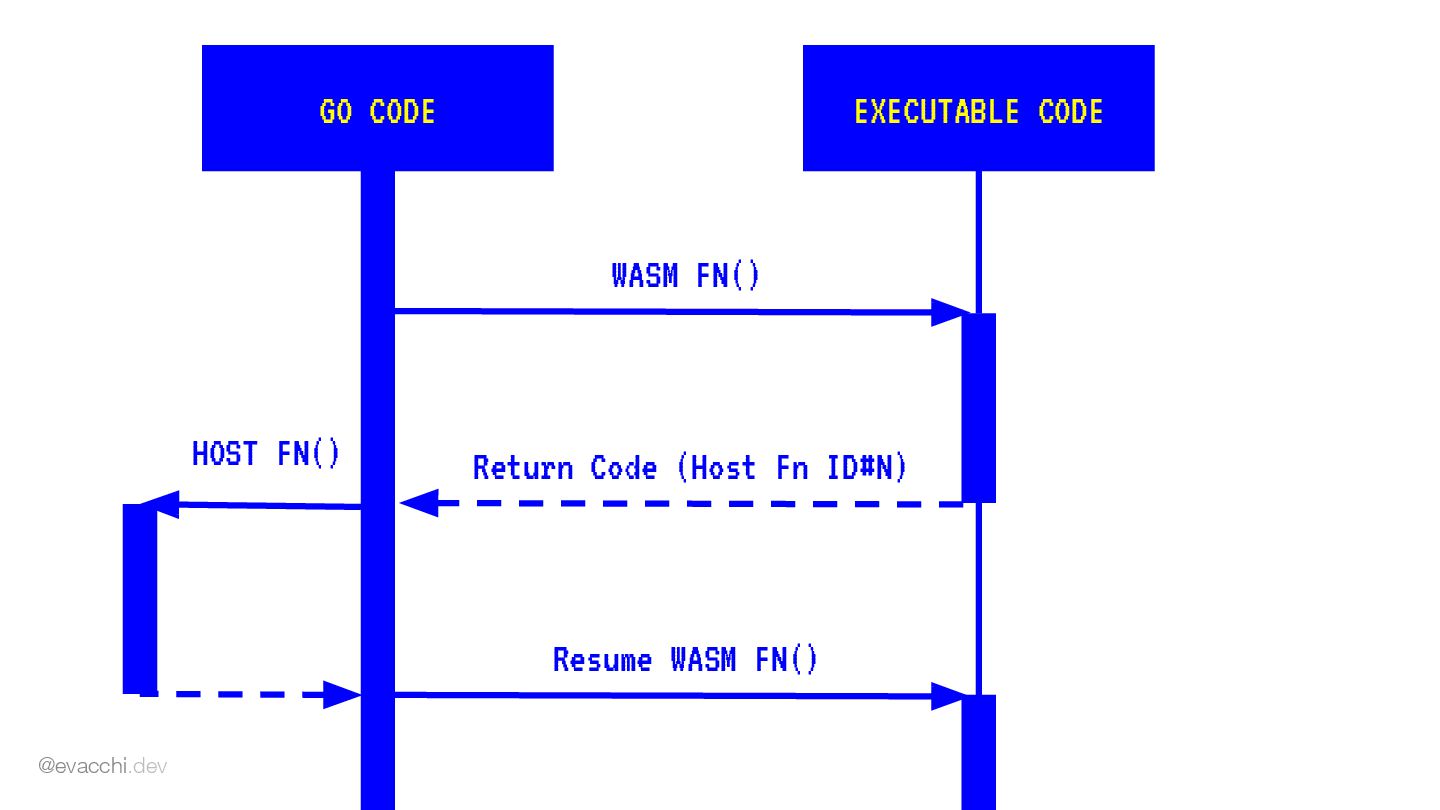

65. GO CODE EXECUTABLE CODE WASM FN() Return Code (Host Fn ID#N) Resume WASM FN() HOST FN() @evacchi.dev
66. chicory
67. @evacchi.dev

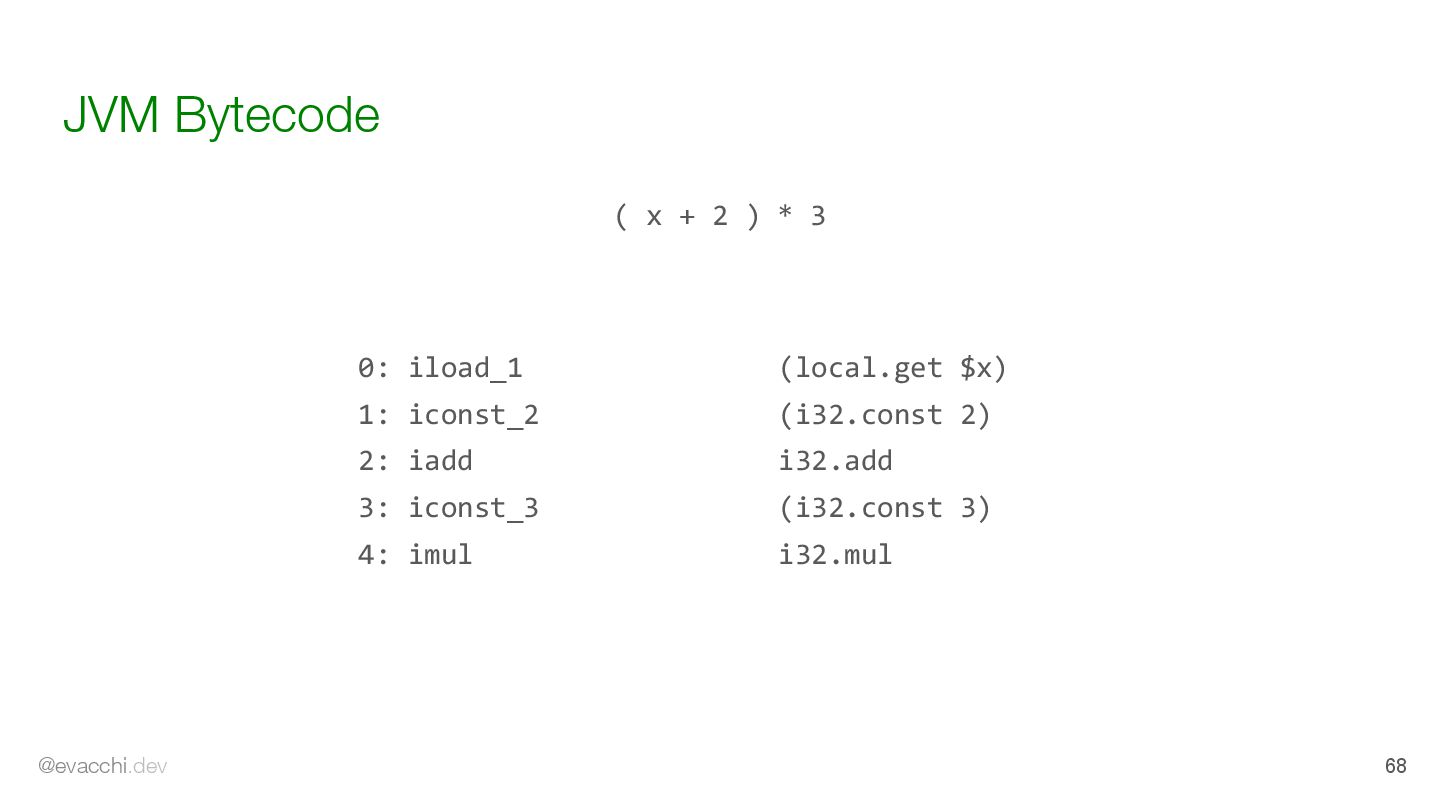

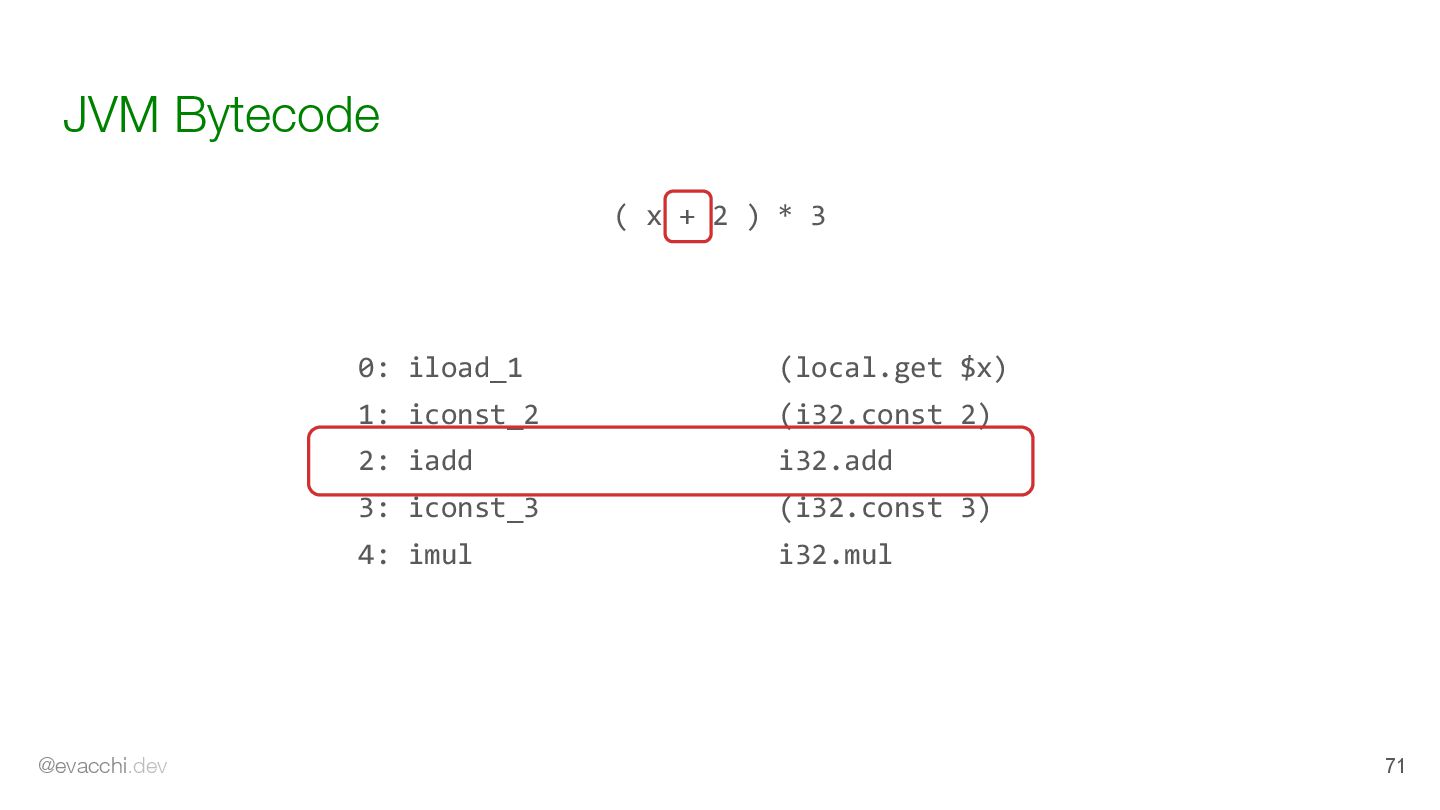

68. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 68 @evacchi.dev

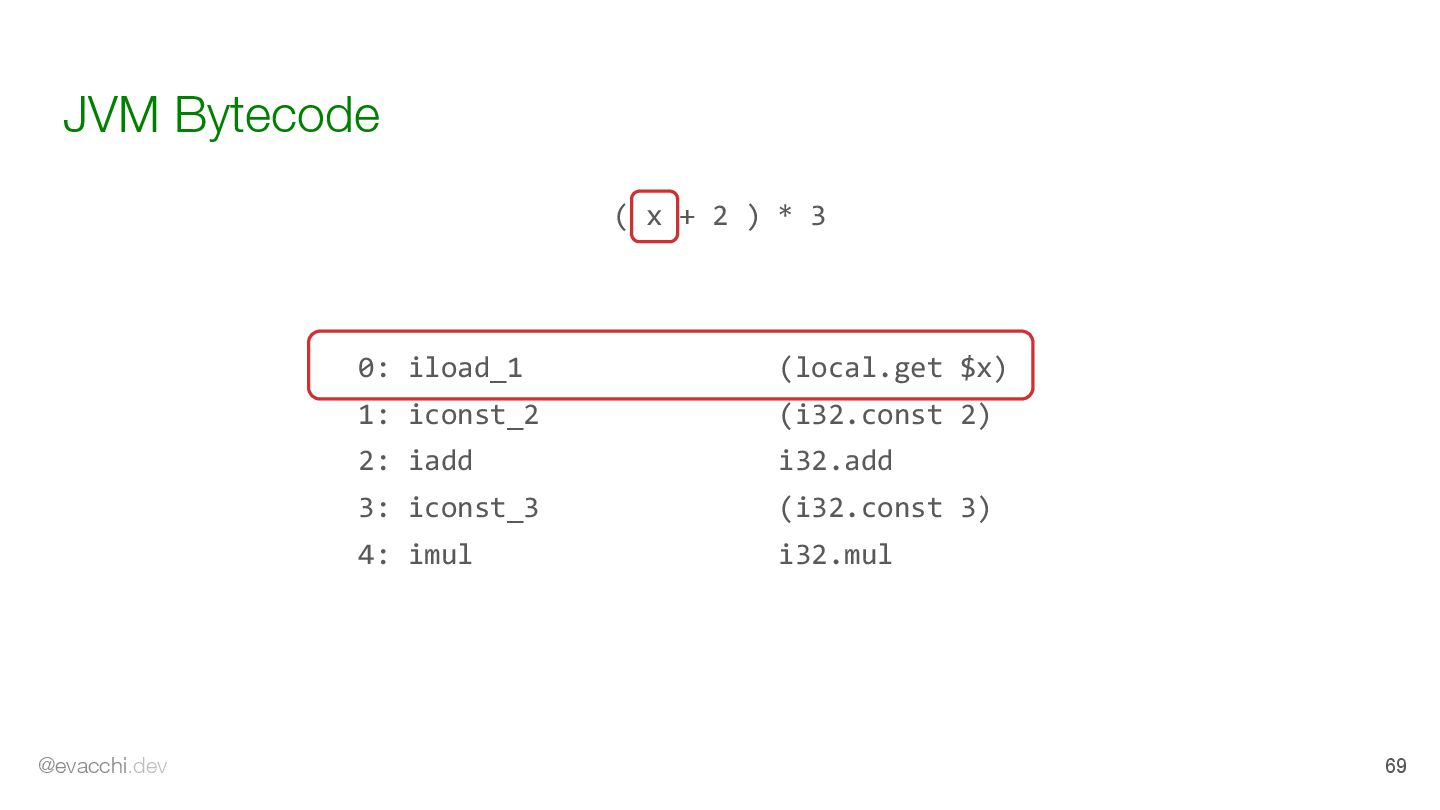

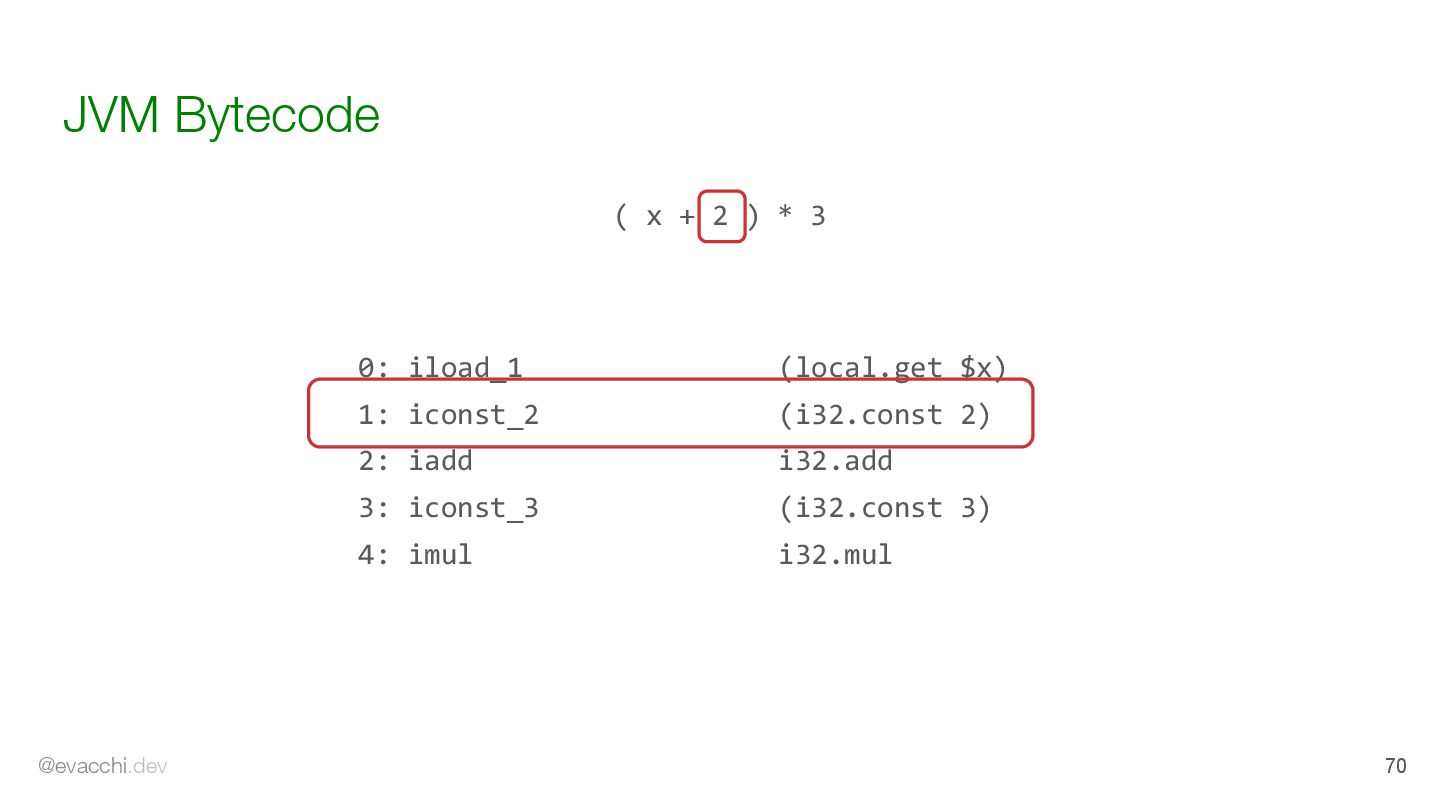

69. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 69 @evacchi.dev
70. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 70 @evacchi.dev
71. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 71 @evacchi.dev
72. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 72 @evacchi.dev

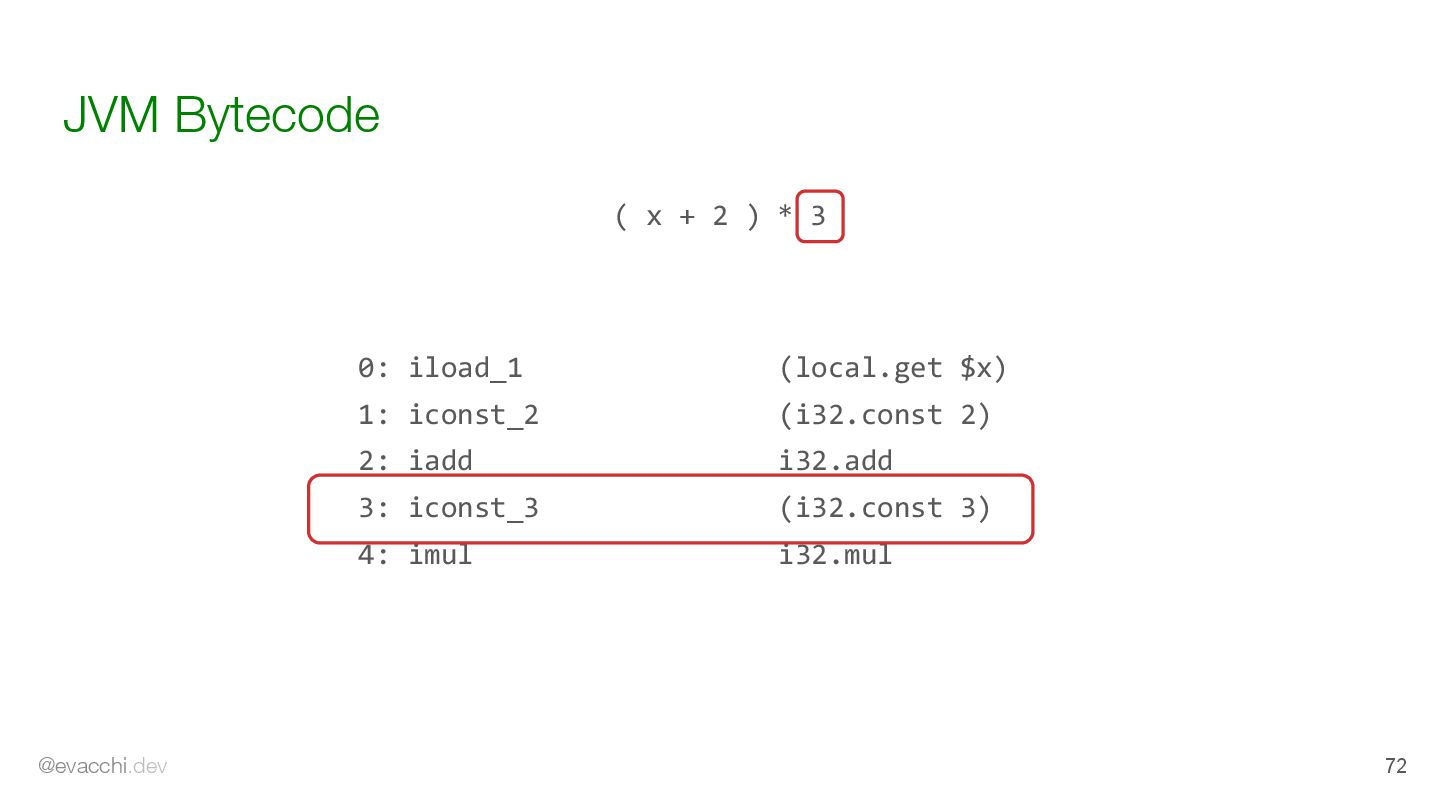

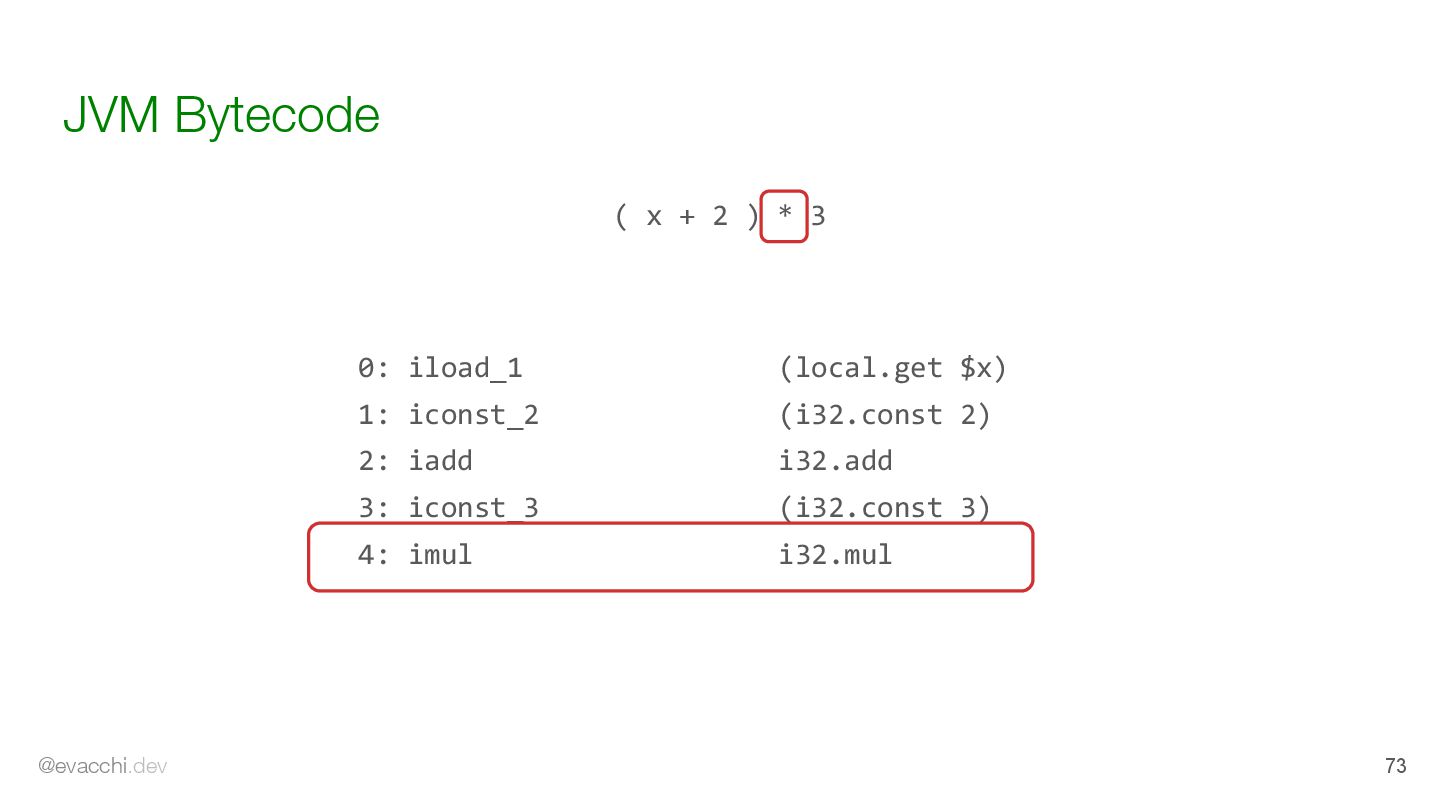

73. JVM Bytecode 0: iload_1 1: iconst_2 2: iadd 3: iconst_3 4: imul ( x + 2 ) * 3 (local.get $x) (i32.const 2) i32.add (i32.const 3) i32.mul 73 @evacchi.dev

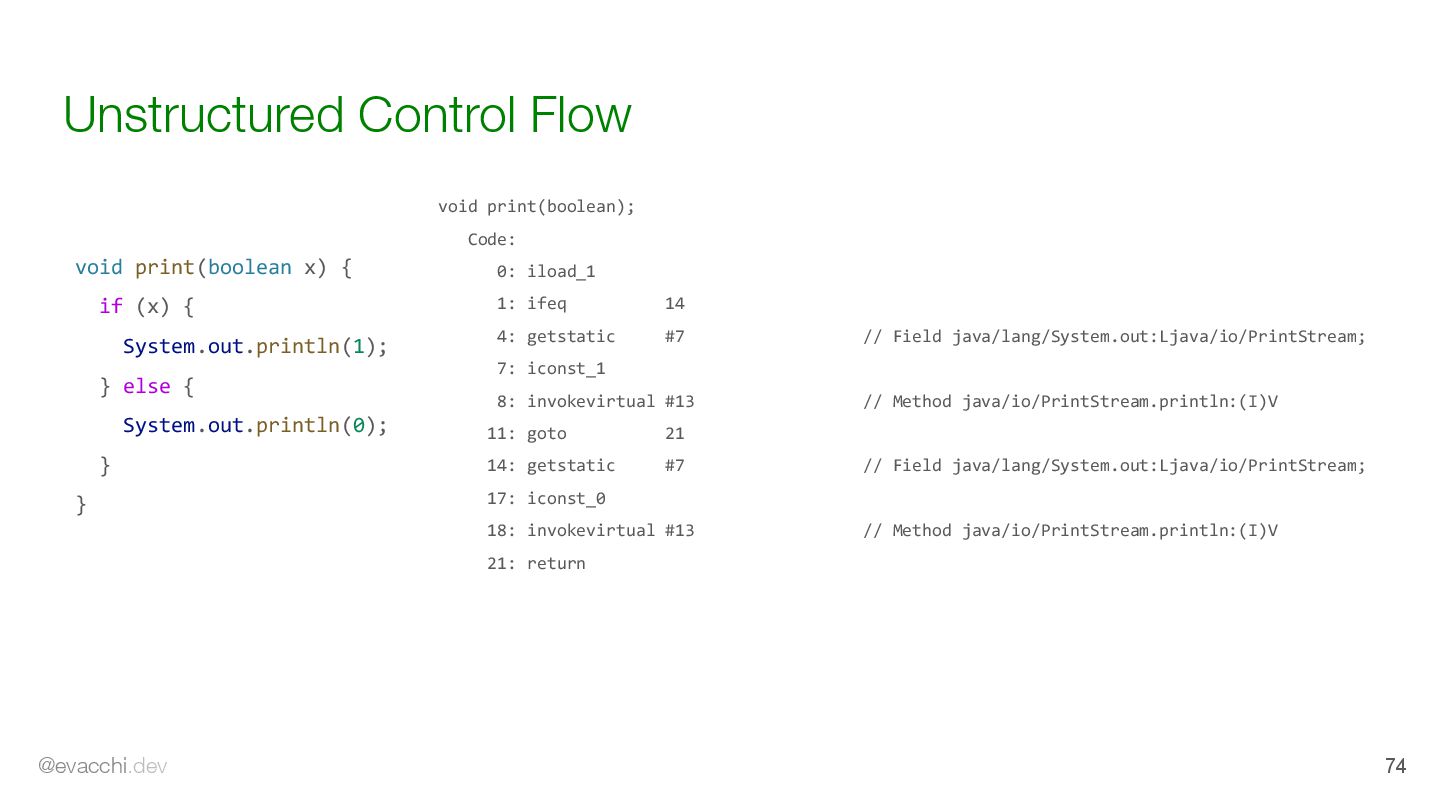

74. Unstructured Control Flow void print(boolean x) { if (x) { System.out.println(1); } else { System.out.println(0); } } void print(boolean); Code: 0: iload_1 1: ifeq 14 4: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 7: iconst_1 8: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 11: goto 21 14: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 17: iconst_0 18: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 21: return 74 @evacchi.dev

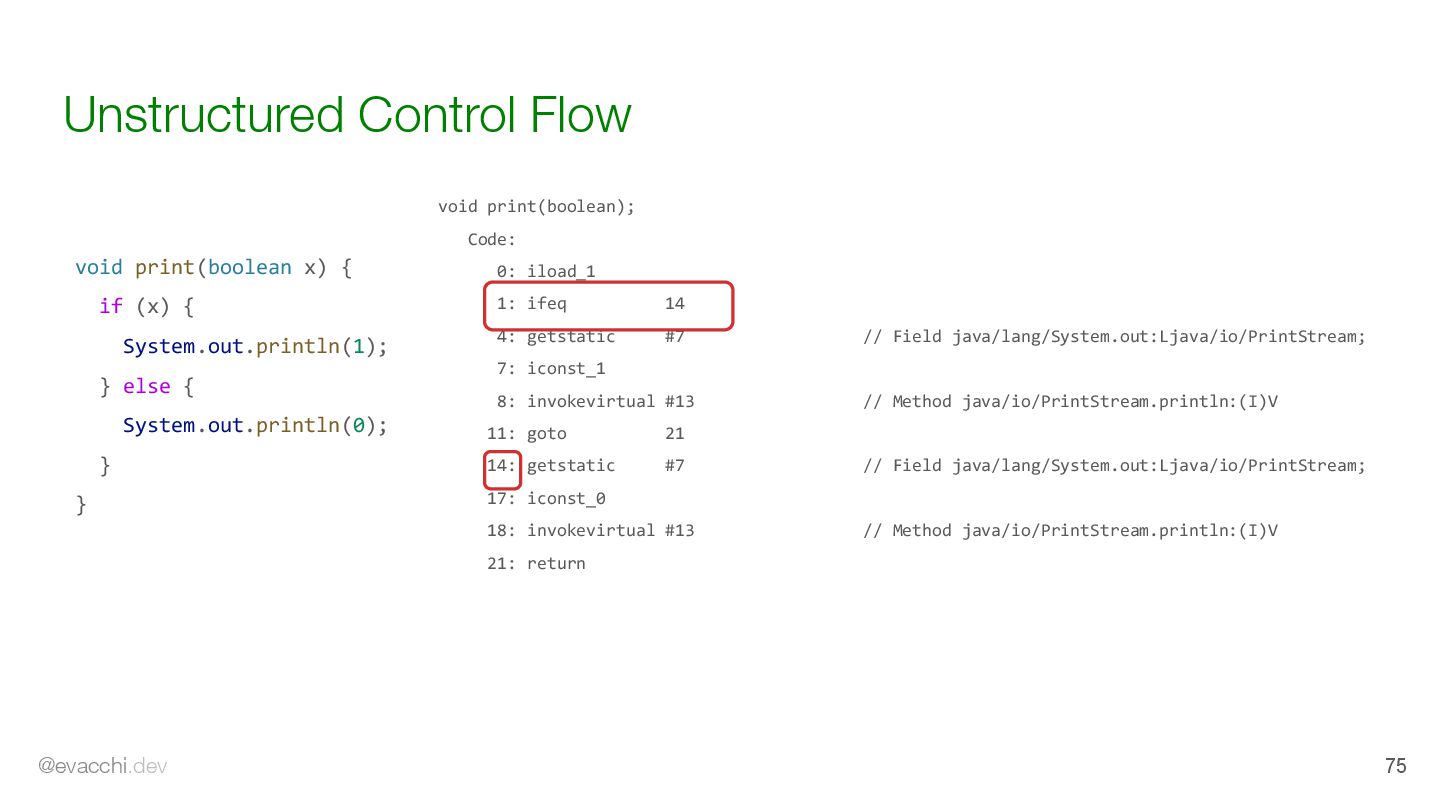

75. Unstructured Control Flow void print(boolean x) { if (x) { System.out.println(1); } else { System.out.println(0); } } void print(boolean); Code: 0: iload_1 1: ifeq 14 4: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 7: iconst_1 8: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 11: goto 21 14: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 17: iconst_0 18: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 21: return 75 @evacchi.dev
76. Unstructured Control Flow void print(boolean x) { if (x) { System.out.println(1); } else { System.out.println(0); } } void print(boolean); Code: 0: iload_1 1: ifeq 14 4: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 7: iconst_1 8: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 11: goto 21 14: getstatic #7 // Field java/lang/System.out:Ljava/io/PrintStream; 17: iconst_0 18: invokevirtual #13 // Method java/io/PrintStream.println:(I)V 21: return 76 @evacchi.dev

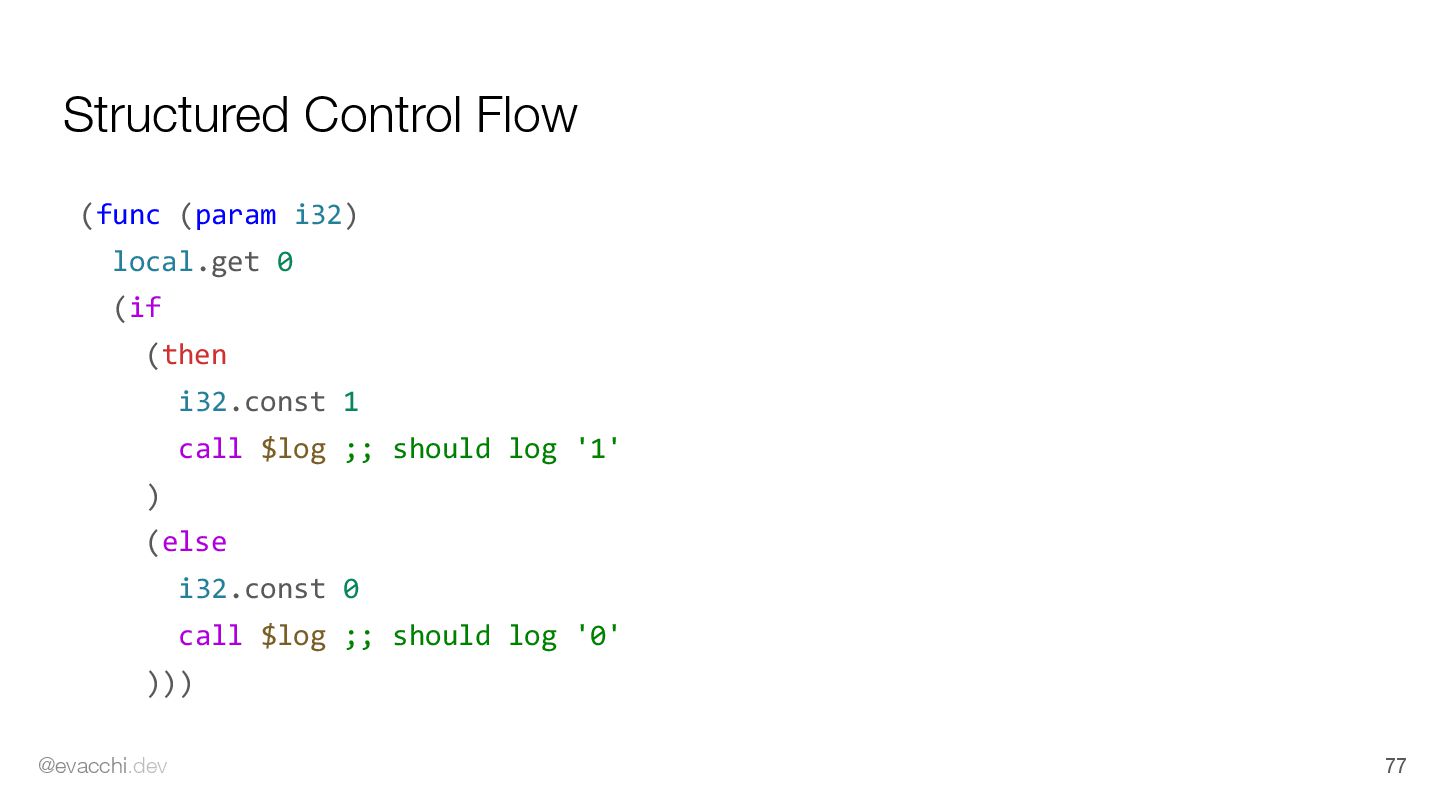

77. Structured Control Flow (func (param i32) local.get 0 (if (then i32.const 1 call $log ;; should log '1' ) (else i32.const 0 call $log ;; should log '0' ))) 77 @evacchi.dev

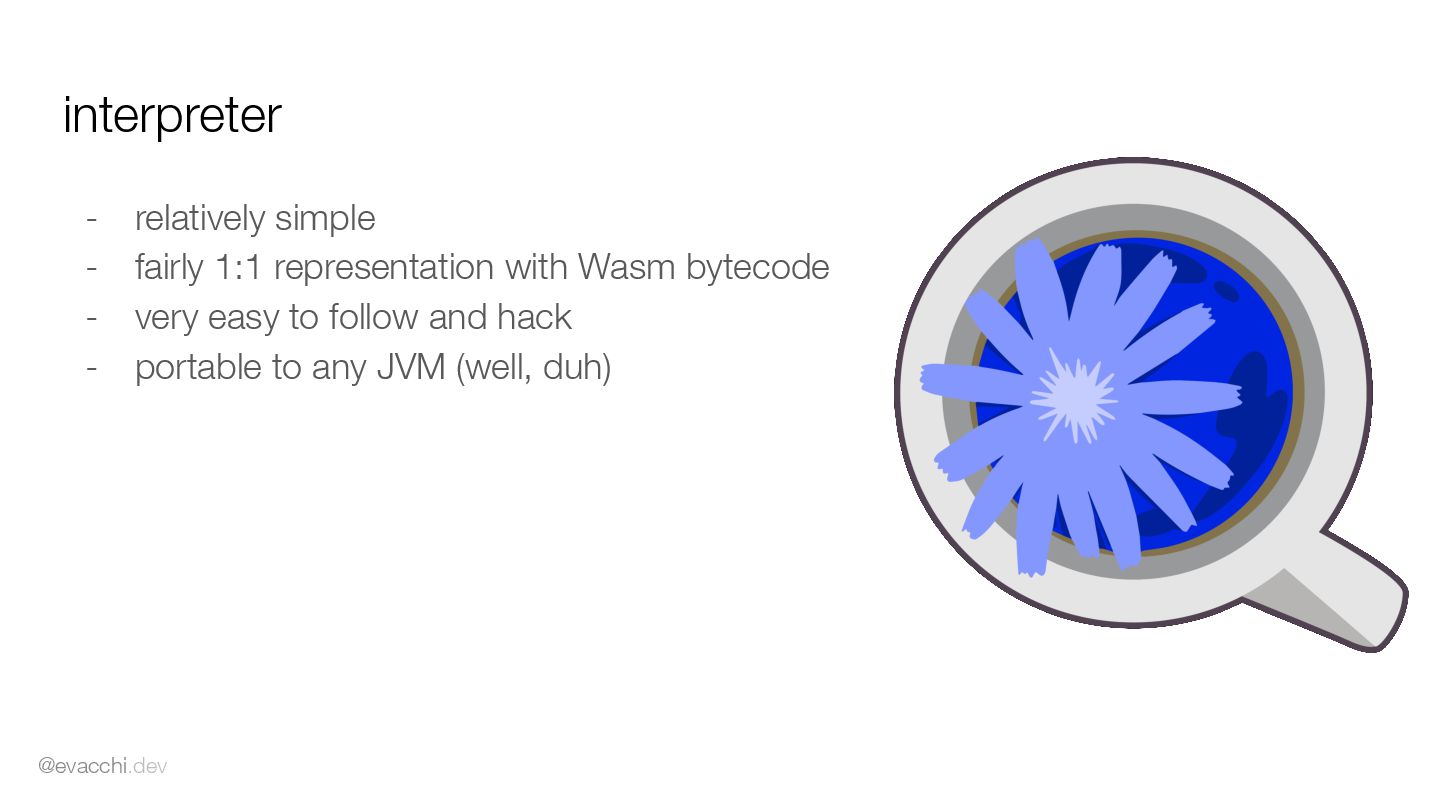

78. interpreter - relatively simple - fairly 1:1 representation with Wasm bytecode - very easy to follow and hack - portable to any JVM (well, duh) @evacchi.dev

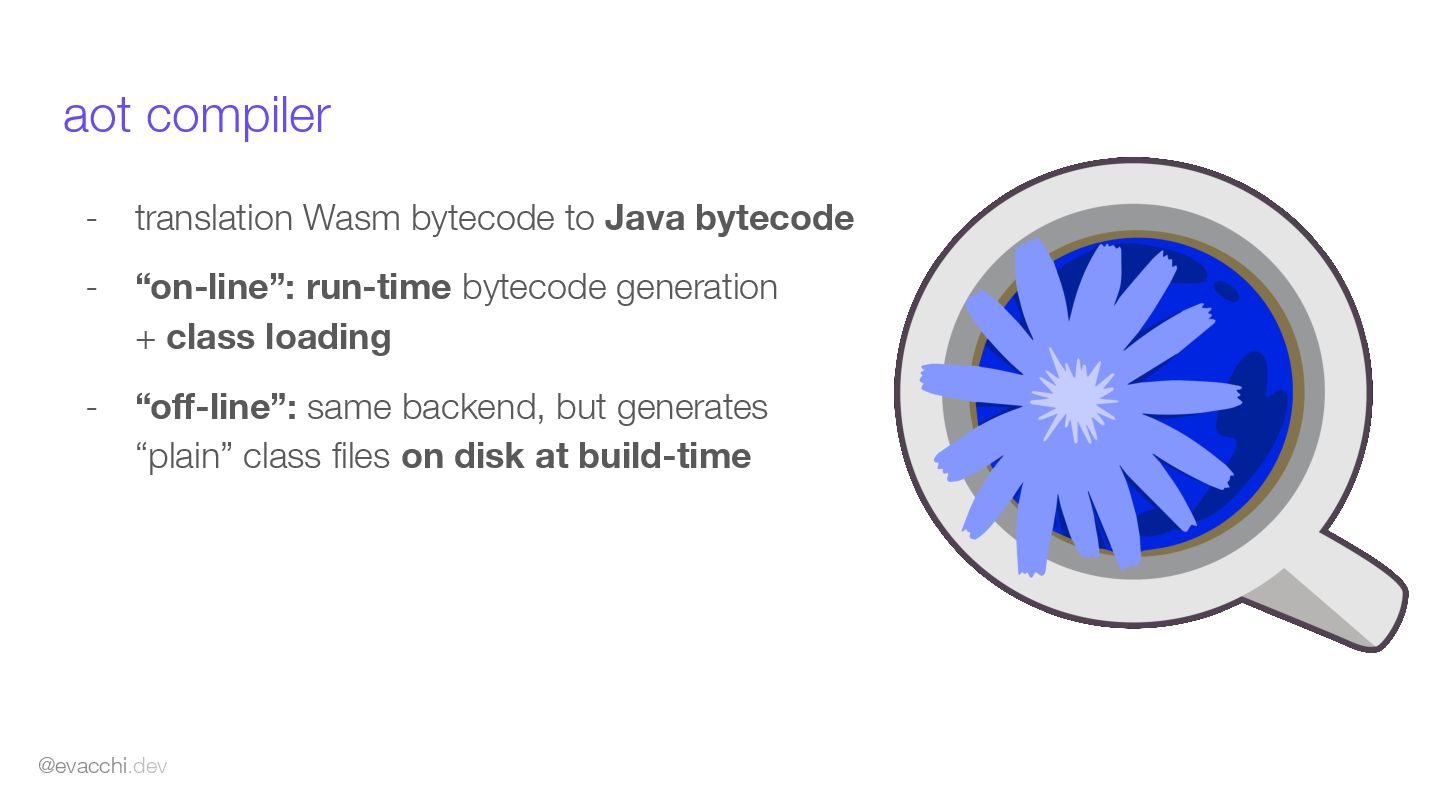

79. aot compiler - translation Wasm bytecode to Java bytecode - “on-line”: run-time bytecode generation + class loading - “off-line”: same backend, but generates “plain” class files on disk at build-time @evacchi.dev
80. Machines var s = new Store(); // register other modules ... var importValues = s.toImportValues(); var inst = Instance.builder(module) .withImportValues(importValues) .withMachineFactory(InterpreterMachineFactory::create) .build(); MACHINES! @evacchi.dev

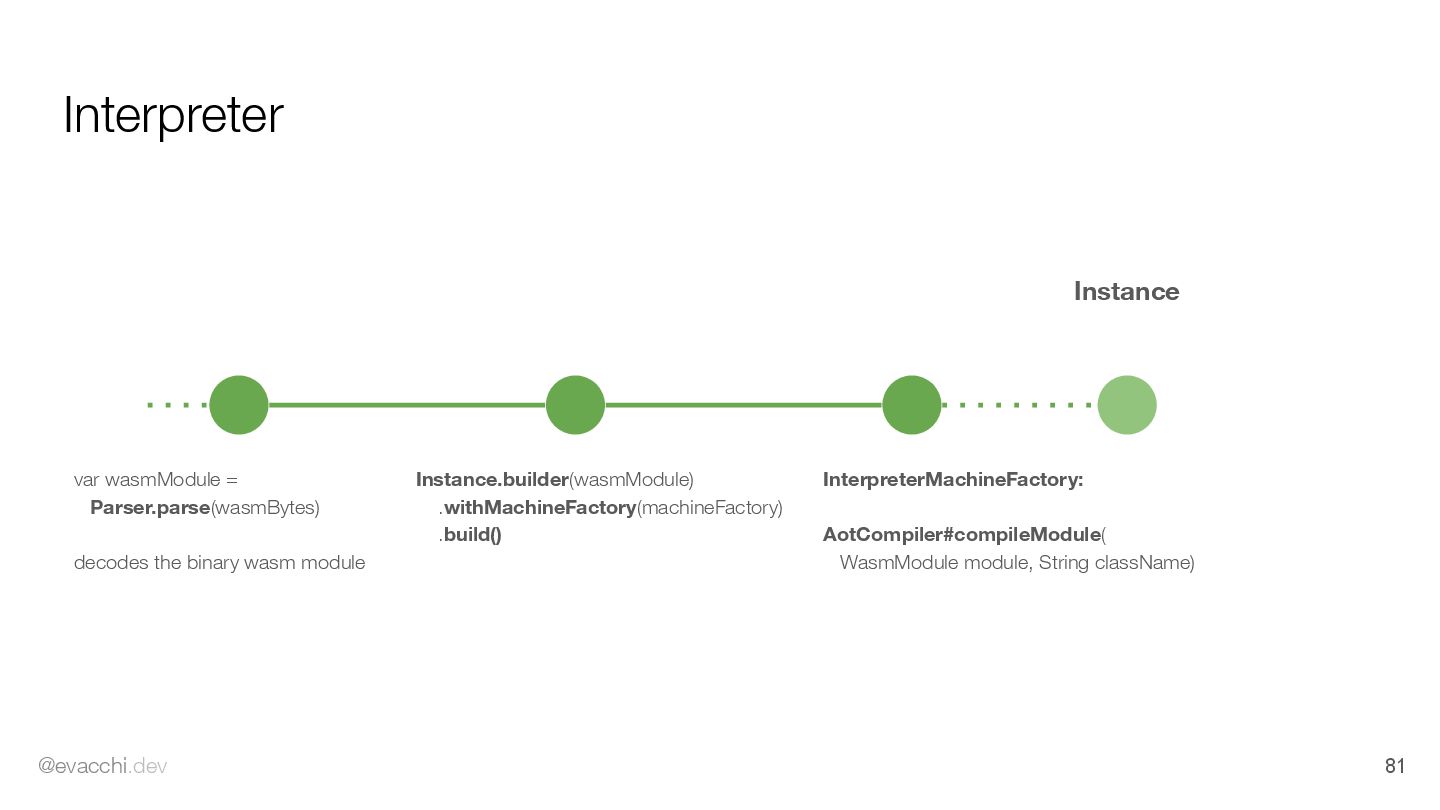

81. Interpreter var wasmModule = Parser.parse(wasmBytes) decodes the binary wasm module InterpreterMachineFactory: AotCompiler#compileModule( WasmModule module, String className) 81 @evacchi.dev Instance.builder(wasmModule) .withMachineFactory(machineFactory) .build() Instance
82. Machines (AoT) var s = new Store(); // register other modules ... var importValues = s.toImportValues(); var inst = Instance.builder(module) .withImportValues(importValues) .withMachineFactory(AotMachineFactory::create) .build(); MACHINES! @evacchi.dev

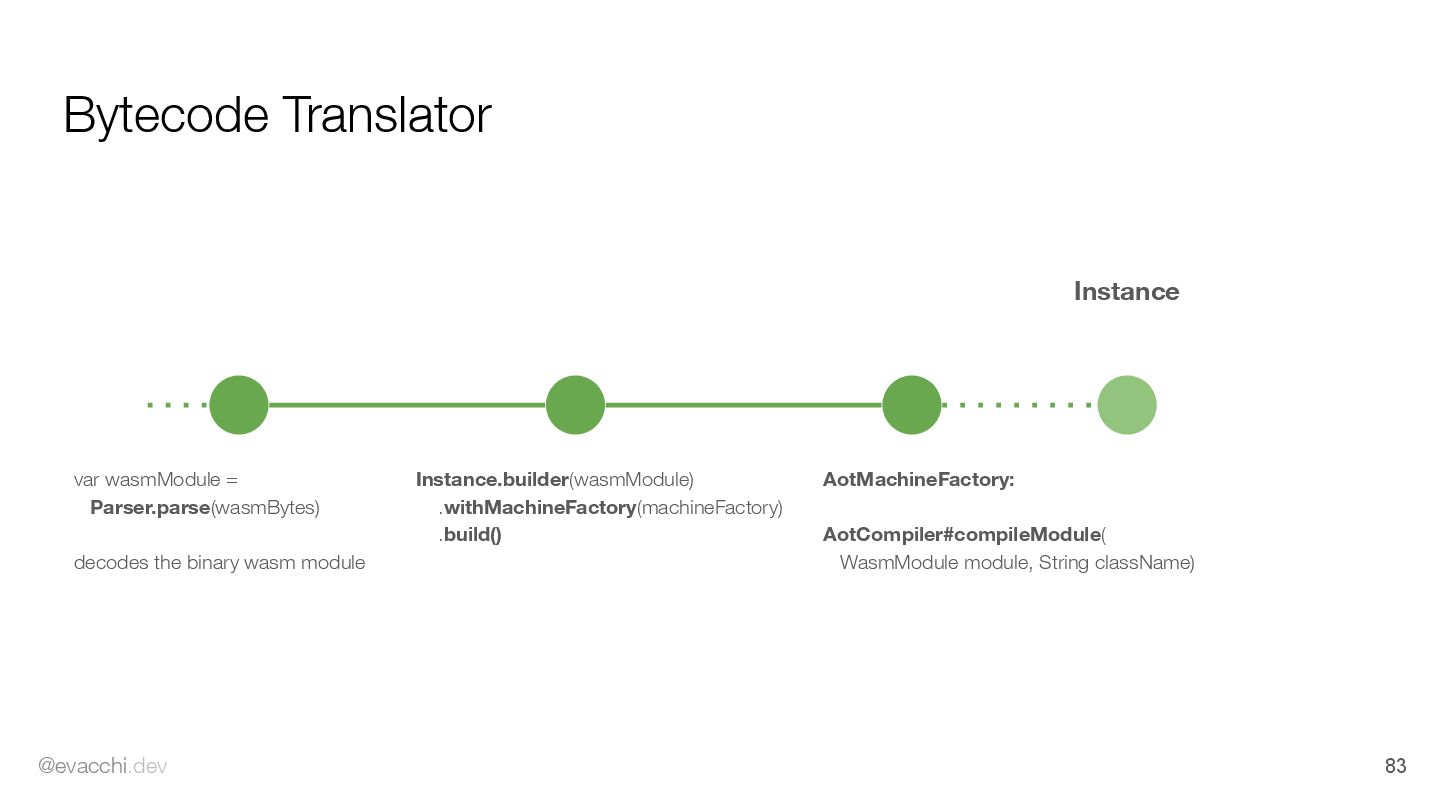

83. Bytecode Translator var wasmModule = Parser.parse(wasmBytes) decodes the binary wasm module AotMachineFactory: AotCompiler#compileModule( WasmModule module, String className) 83 @evacchi.dev Instance.builder(wasmModule) .withMachineFactory(machineFactory) .build() Instance

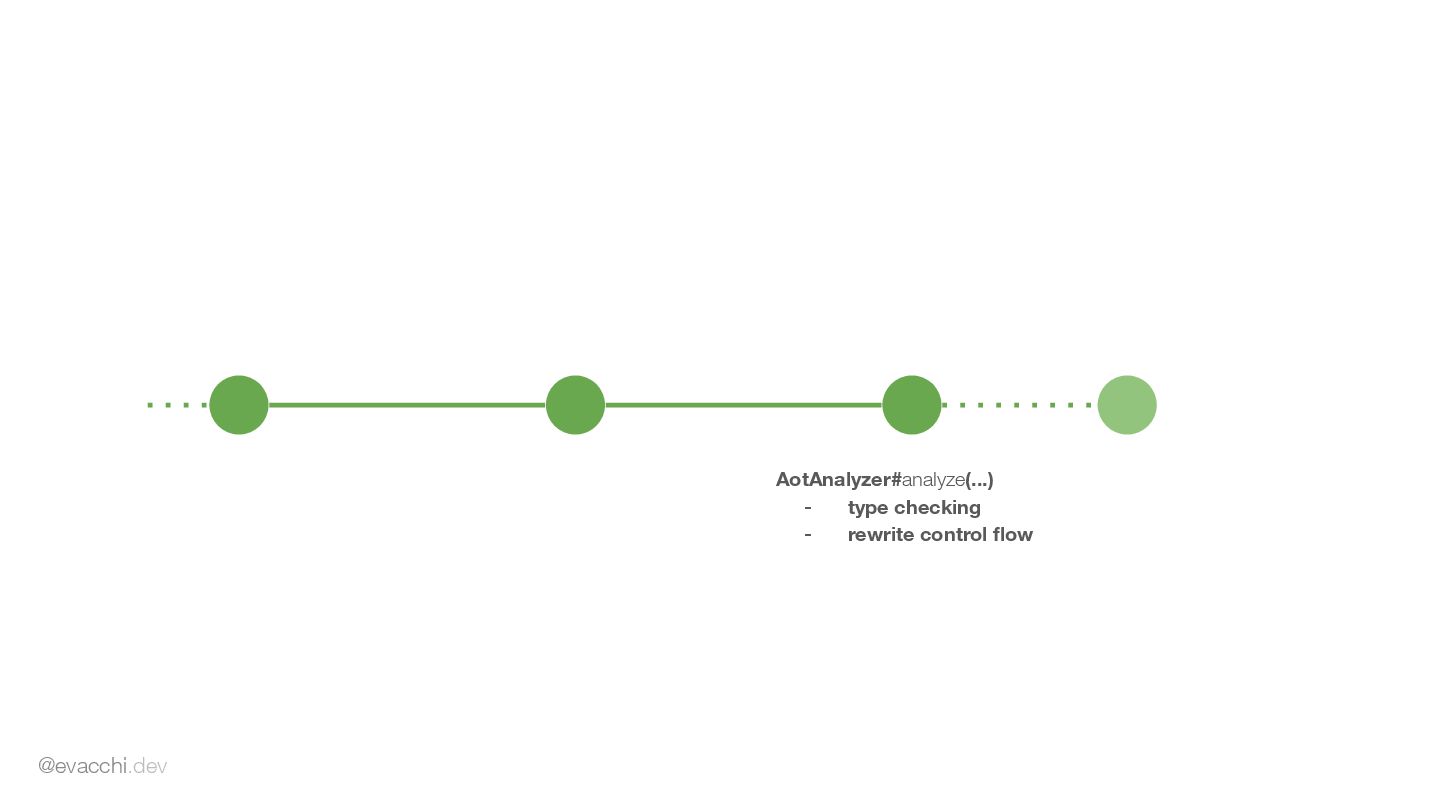

84. AotAnalyzer#analyze(...) - type checking - rewrite control flow @evacchi.dev

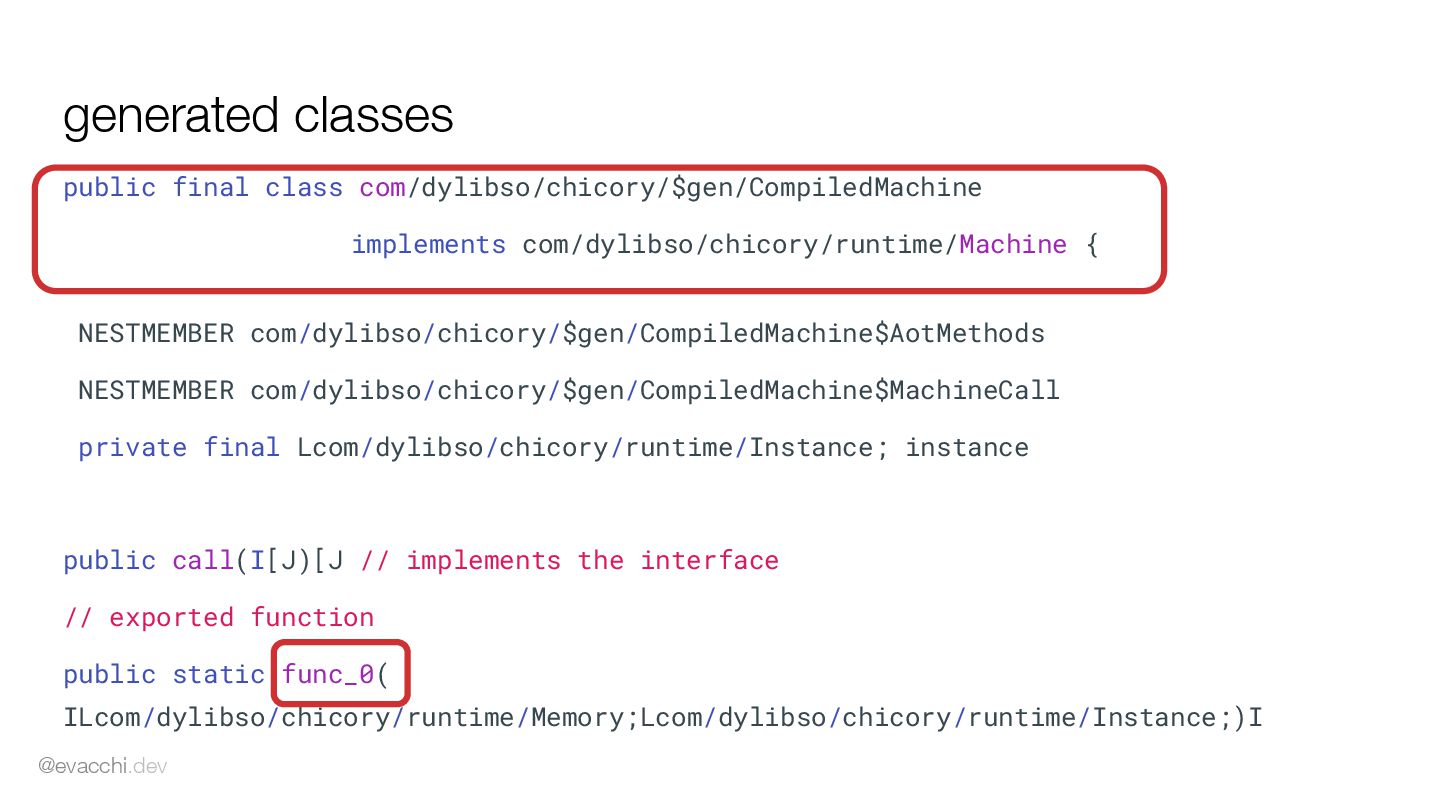

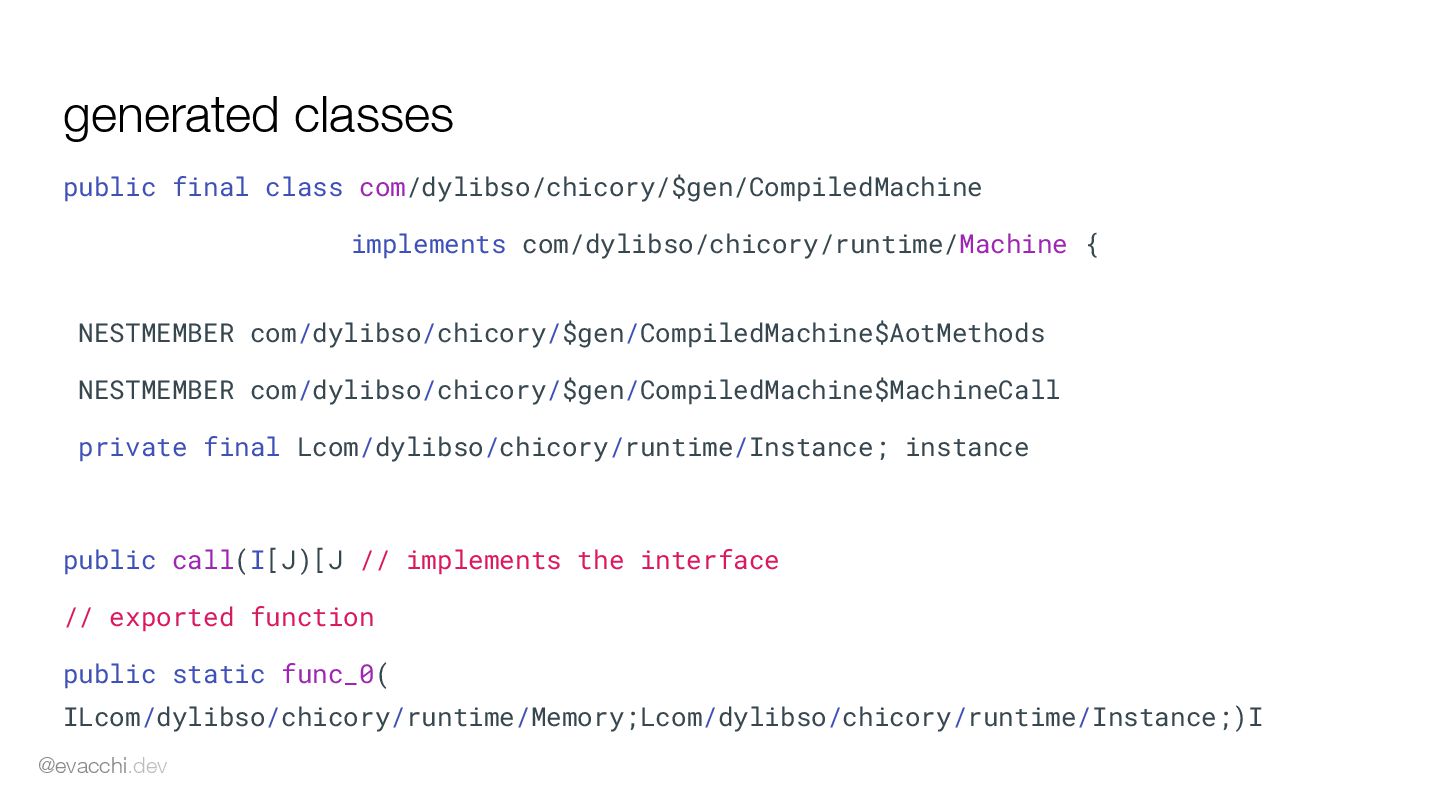

85. generated classes public final class com/dylibso/chicory/$gen/CompiledMachine implements com/dylibso/chicory/runtime/Machine { NESTMEMBER com/dylibso/chicory/$gen/CompiledMachine$AotMethods NESTMEMBER com/dylibso/chicory/$gen/CompiledMachine$MachineCall private final Lcom/dylibso/chicory/runtime/Instance; instance public call(I[J)[J // implements the interface // exported function public static func_0( ILcom/dylibso/chicory/runtime/Memory;Lcom/dylibso/chicory/runtime/Instance;)I @evacchi.dev
86. generated classes public final class com/dylibso/chicory/$gen/CompiledMachine implements com/dylibso/chicory/runtime/Machine { NESTMEMBER com/dylibso/chicory/$gen/CompiledMachine$AotMethods NESTMEMBER com/dylibso/chicory/$gen/CompiledMachine$MachineCall private final Lcom/dylibso/chicory/runtime/Instance; instance public call(I[J)[J // implements the interface // exported function public static func_0( ILcom/dylibso/chicory/runtime/Memory;Lcom/dylibso/chicory/runtime/Instance;)I @evacchi.dev
87. control flow analysis switch (ins.opcode()) { ... case IF: stack.pop(ValueType.I32); stack.enterScope(ins.scope(), blockType(ins)); // use the same starting stack sizes for both sides of the branch if (body.instructions().get(ins.labelFalse() - 1).opcode() == OpCode.ELSE) { stack.pushTypes(); } result.add(new AotInstruction(AotOpCode.IFEQ, ins.labelFalse())); break; case ELSE: stack.popTypes(); result.add(new AotInstruction(AotOpCode.GOTO, ins.labelTrue()));

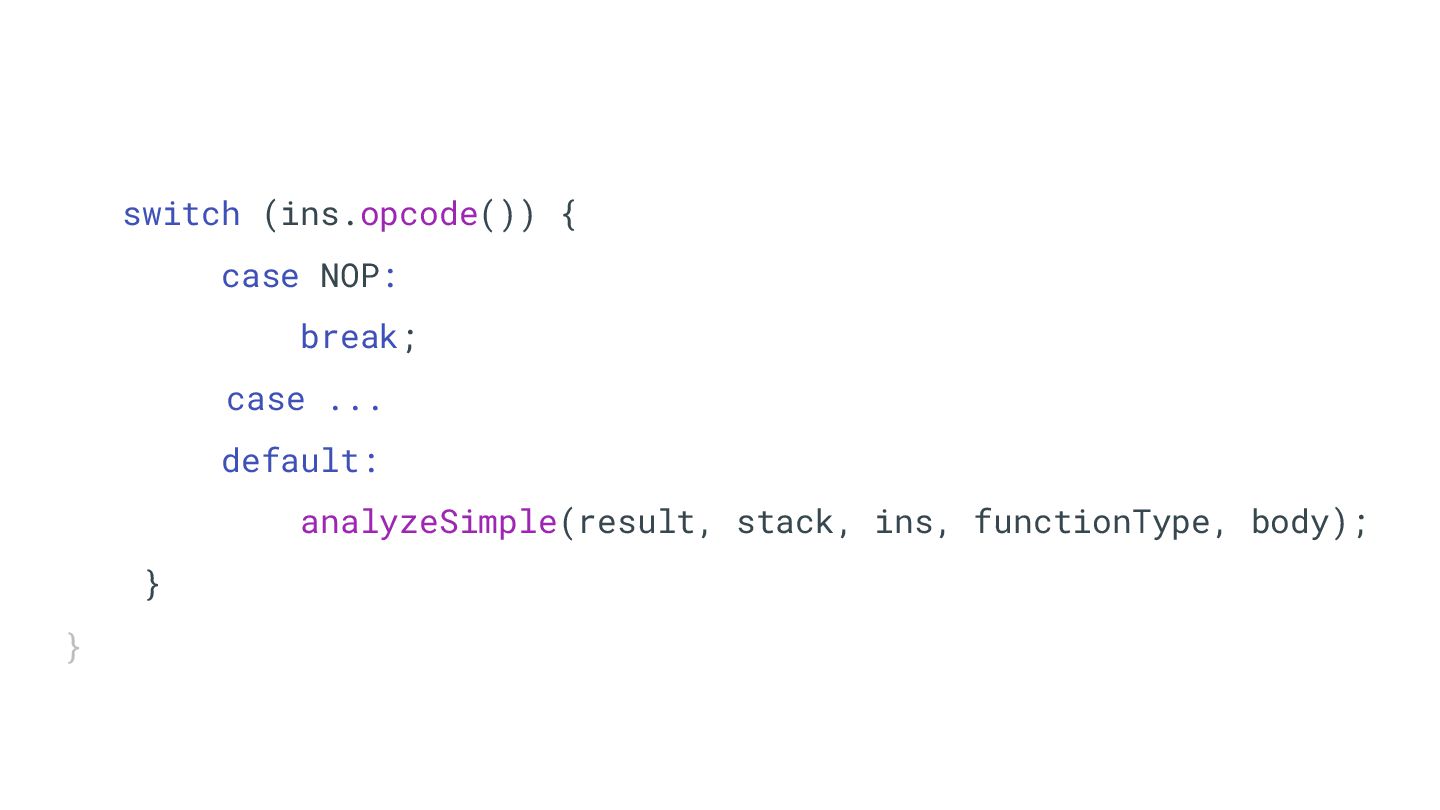

88. switch (ins.opcode()) { case NOP: break; case ... default: analyzeSimple(result, stack, ins, functionType, body); } }

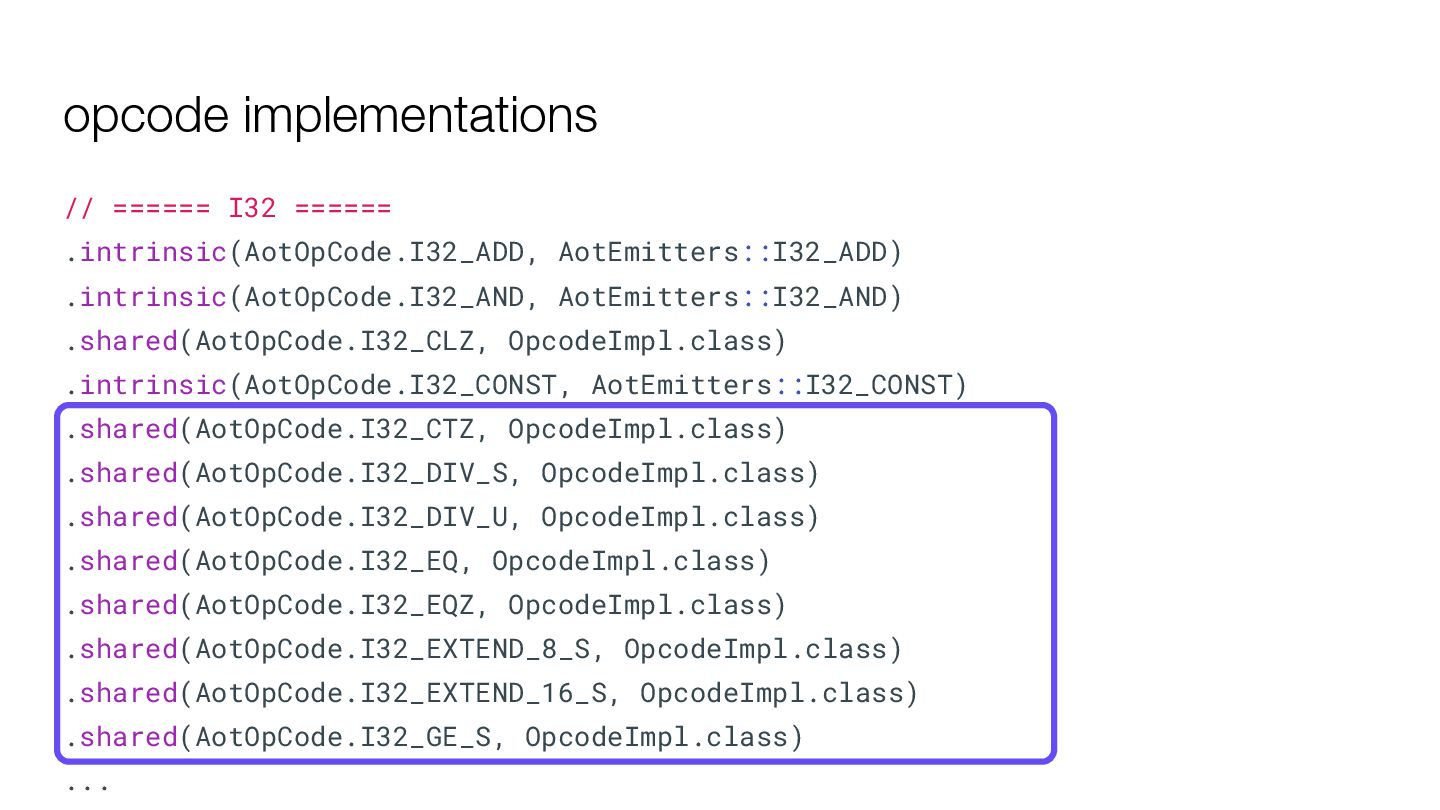

89. opcode implementations // ====== I32 ====== .intrinsic(AotOpCode.I32_ADD, AotEmitters::I32_ADD) .intrinsic(AotOpCode.I32_AND, AotEmitters::I32_AND) .shared(AotOpCode.I32_CLZ, OpcodeImpl.class) .intrinsic(AotOpCode.I32_CONST, AotEmitters::I32_CONST) .shared(AotOpCode.I32_CTZ, OpcodeImpl.class) .shared(AotOpCode.I32_DIV_S, OpcodeImpl.class) .shared(AotOpCode.I32_DIV_U, OpcodeImpl.class) .shared(AotOpCode.I32_EQ, OpcodeImpl.class) .shared(AotOpCode.I32_EQZ, OpcodeImpl.class) .shared(AotOpCode.I32_EXTEND_8_S, OpcodeImpl.class) .shared(AotOpCode.I32_EXTEND_16_S, OpcodeImpl.class) .shared(AotOpCode.I32_GE_S, OpcodeImpl.class) ...
90. function invocation
91. instantiate the class, invoke the methods.

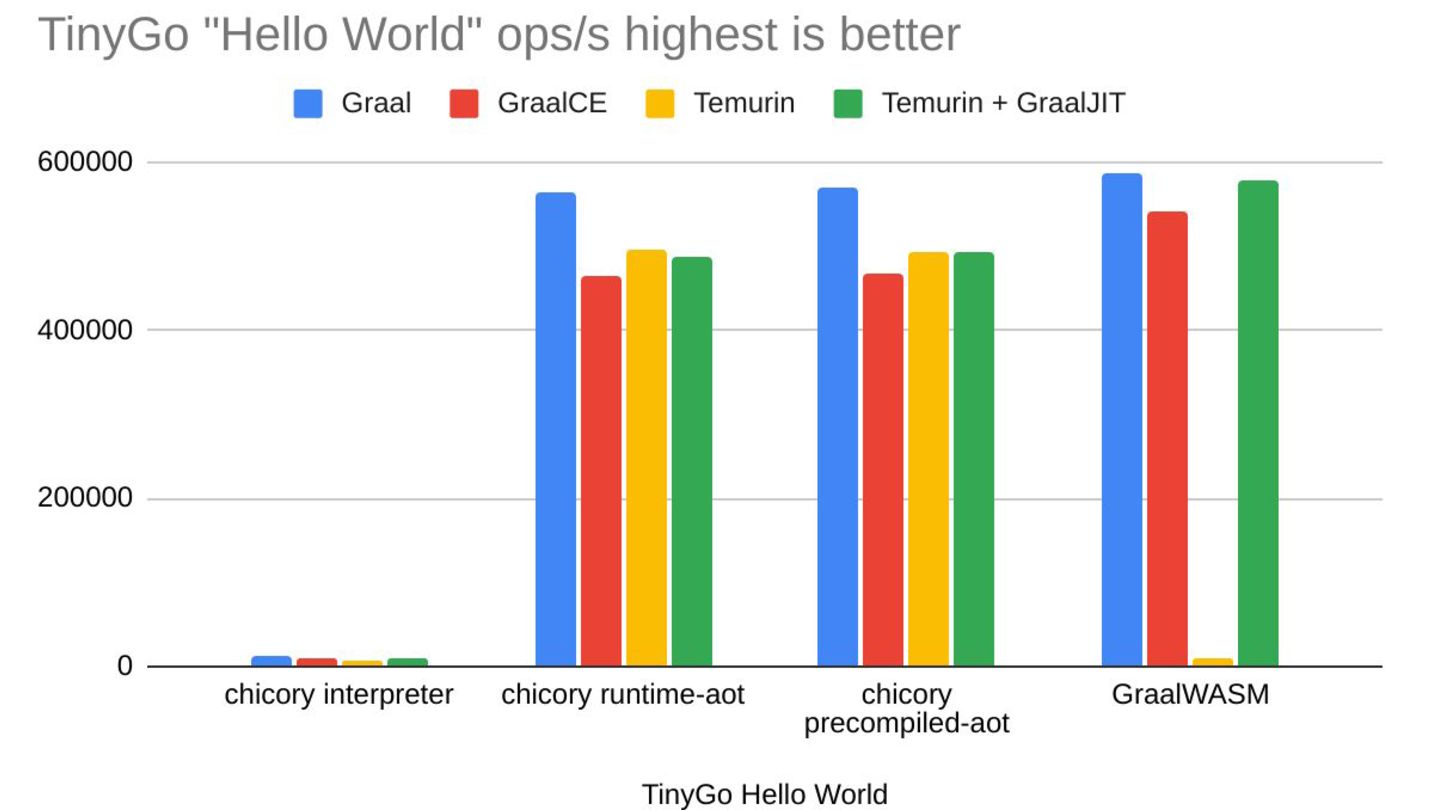

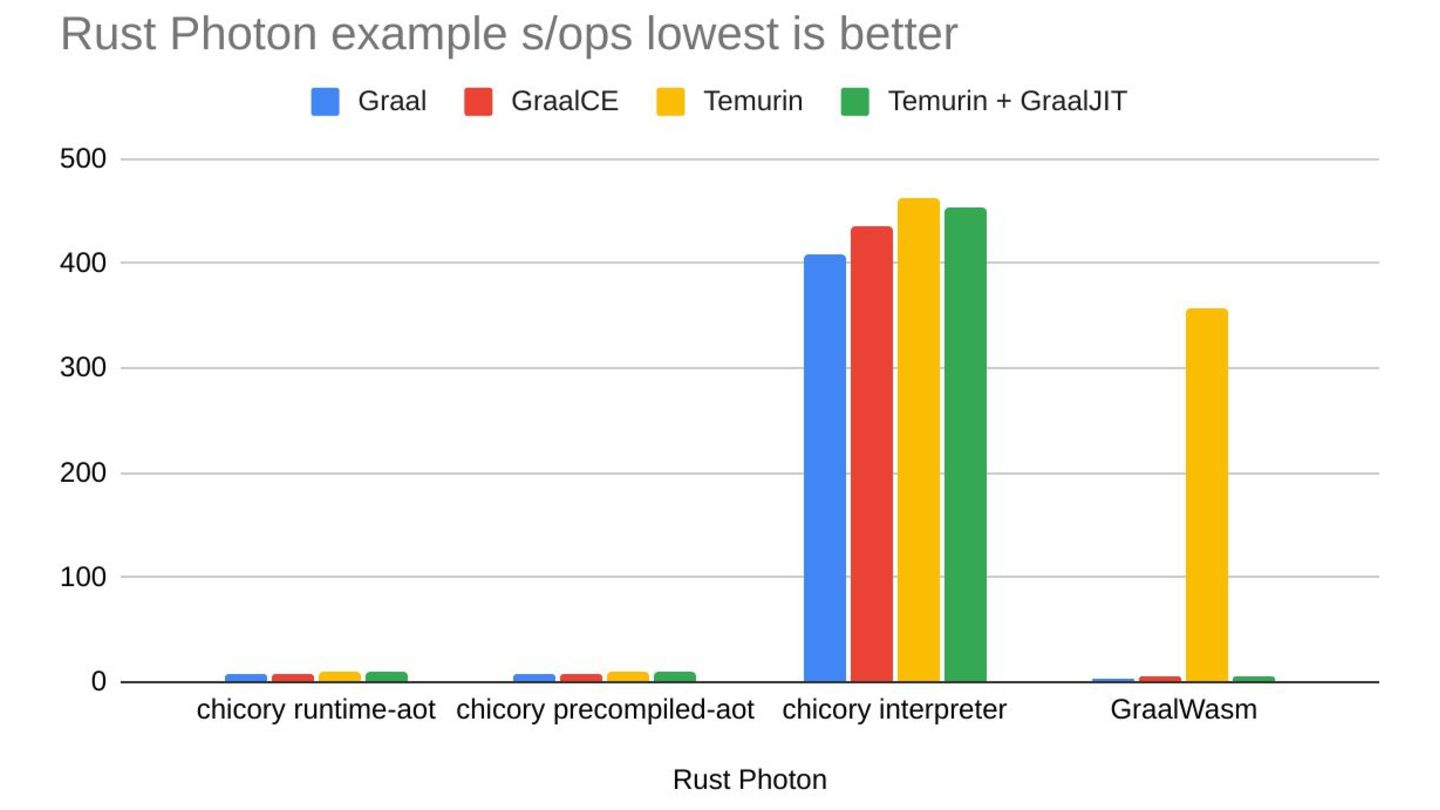

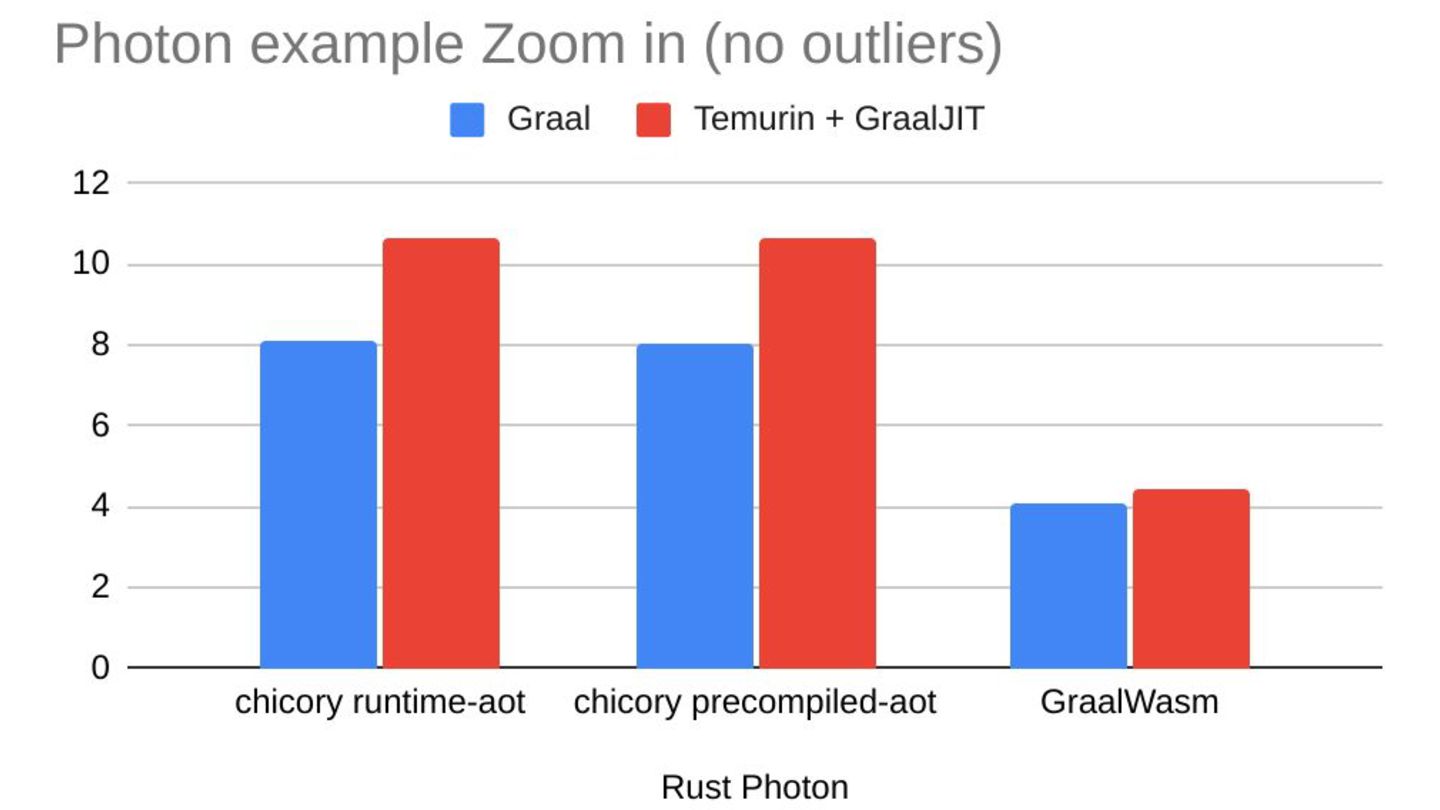

92. early results
95. chicory on android
99. what about aot?

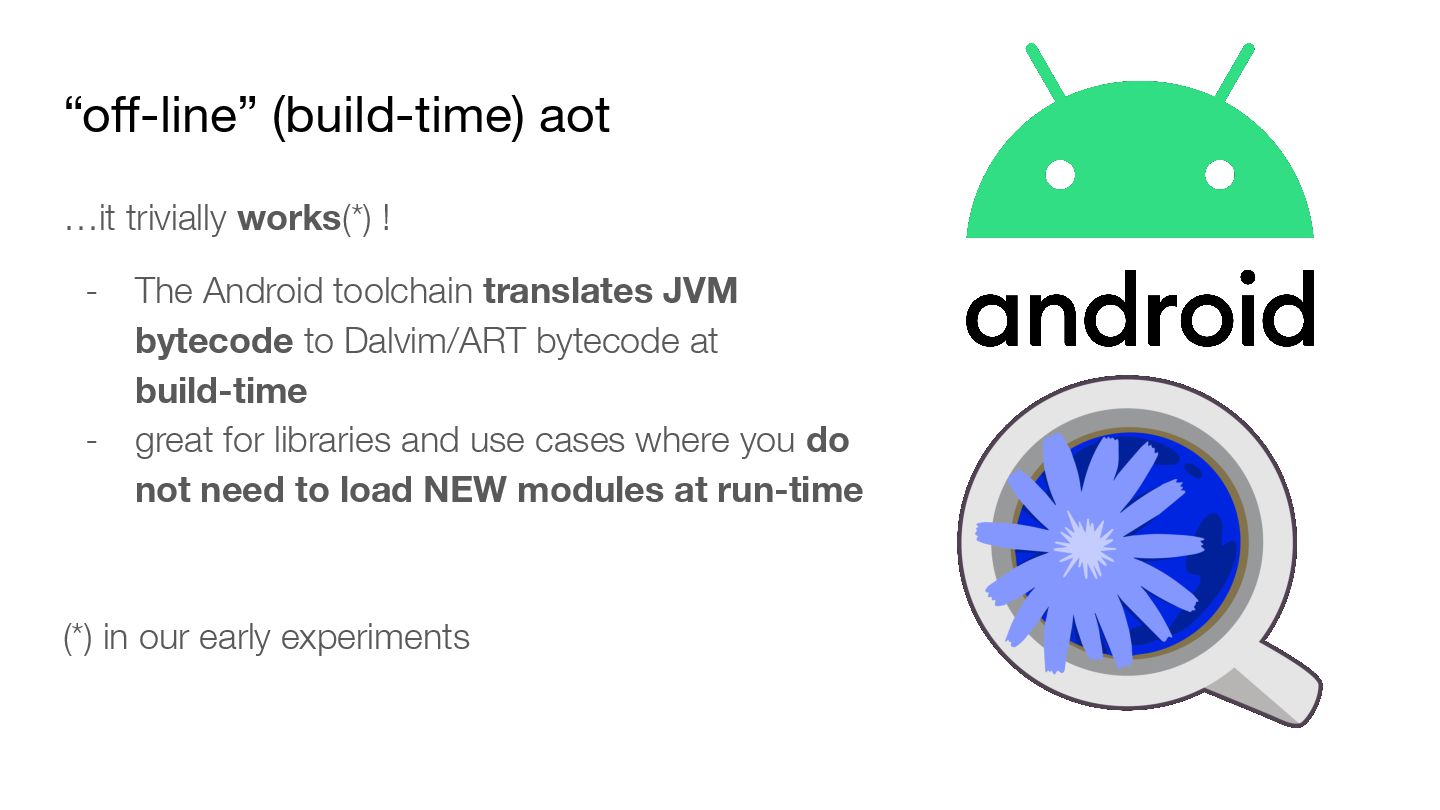

100. “off-line” (build-time) aot …it trivially works(*) ! - The Android toolchain translates JVM bytecode to Dalvim/ART bytecode at build-time - great for libraries and use cases where you do not need to load NEW modules at run-time (*) in our early experiments
101. “on-line” run-time aot - Dalvik VM / ART - register machine - run-time class-loading kind of an “advanced” use case - very recent API level MACHINES!
