Making Bounded Model Checking Interprocedural in (Static Analysis) Style

Daniil Stepanov, Marat Akhin and Mikhail Belyaev

International Conference on Software Testing, Machine Learning and Complex Process Analysis (TMPA-2019)
7-9 November 2019, Tbilisi

Video: https://youtu.be/kVsQJnSlgfI

TMPA Conference website https://tmpaconf.org/
TMPA Conference on Facebook https://www.facebook.com/groups/tmpaconf/

Transcript

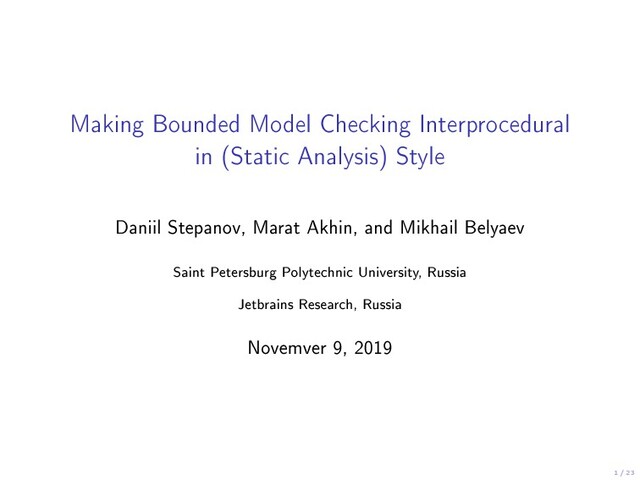

1. 1 / 23
   Making Bounded Model Checking Interprocedural
   in (Static Analysis) Style
   Daniil Stepanov, Marat Akhin, and Mikhail Belyaev
   Saint Petersburg Polytechnic University, Russia
   Jetbrains Research, Russia
   Novemver 9, 2019


   View Slide

2. 2 / 23
   Static analysis
   Static program analysis is the analysis of computer software which
   is performed without actually executing programs


   View Slide

3. 3 / 23
   Interprocedural analysis
   One of the hardest problems in BMC is interprocedural analysis
   Standard approach is function inlining
   An alternative to function inlining is context-sensitive analyses


   View Slide

4. 4 / 23
   Related work
   Craig interpolant for an inconsistent pair of formulas (B, Q) is
   a formula I such that:
   • B → I
   • (I, Q) is also an inconsistent pair of formulae
   • I contains only uninterpreted symbols common to B and Q
   External specications
   • specialized annotation comments
   • embedded domain-specic language (DSL)
   • external DSL
   Another tools:
   • Saturn - function summaries


   View Slide

5. 5 / 23
   Bounded model checking algorithm


   View Slide

6. 6 / 23
   Verication example
   Program:
   int x;
   int y=8,z=0,w=0;
   if (x)
   z = y - 1;
   else
   w = y + 1;
   assert (z == 7 || w == 9)
   Constraints:
   y = 8,
   z = x ? y -1 : 0,
   w = x ? 0 : y + 1,
   z != 7,
   w != 9
   UNSAT. Assert always true


   View Slide

7. 7 / 23
   Verication example
   Program:
   int x;
   int y=8,z=0,w=0;
   if (x)
   z = y - 1;
   else
   w = y + 1;
   assert (z == 5 || w == 9)
   Constraints:
   y = 8,
   z = x ? y -1 : 0,
   w = x ? 0 : y + 1,
   z != 5,
   w != 9
   SAT. Program contains a bug
   Counterexample: y = 8, x = 1, w = 0, z = 7


   View Slide

8. 8 / 23
   Borealis


   View Slide

9. 9 / 23
   Program representation


   View Slide

10. 10 / 23
    Problem
    void print_element(int* arr , int num){
    printf("arr=%i\n", arr[num]); // Check
    }
    void print_next_element(int* arr , int num){
    print_element(arr , num + 1);
    }
    int main(int argc , char* argv [])
    {
    int a[] = {1, 2, 3};
    print_element(a, 0);
    print_next_element(a, 0);
    return 0;
    }


    View Slide

11. 11 / 23
    Solution
    Call graph traversal
    Extraction of information which aects variables from security
    properties
    Combining of extracted information


    View Slide

12. 12 / 23
    Call graph for program example
    void print_element(int* arr , int num){
    printf("arr=%i\n", arr[num]);
    }
    void print_next_element(int* arr , int
    num){
    print_element(arr , num + 1);
    }
    int main(int argc , char* argv [])
    {
    int a[] = {1, 2, 3};
    print_element(a, 0);
    print_next_element(a, 0);
    return 0;
    }


    View Slide

13. 13 / 23
    Collect phase
    Given a function F and its safety property Q, we collecting
    argument-specic information, which is relevant to Q, from all call
    sites of F
    Slicing function w.r.t current query
    Dealing with recursion
    Handling of nested calls


    View Slide

14. 14 / 23
    Nested call inuence example
    int get_next_index(int a) {
    return a + 1;
    }
    void print_element(int* arr , int num)
    {
    printf("arr=%i\n", arr[num]);
    }
    void print_next_element(int* arr , int
    num) {
    int idx = get_next_index(num);
    print_element(arr , idx);
    }
    int main(int argc , char* argv []) {
    int a[] = {1, 2, 3};
    print_element(a, 0);
    print_next_element(a, 0);
    return 0;
    }


    View Slide

15. 15 / 23
    Merging information
    void print_element(int* arr , int num){
    printf("arr=%i\n", arr[num]); // Check
    }
    int main(int argc , char* argv [])
    {
    int a[] = {1, 2, 3};
    print_element(a, 0);
    return 0;
    }
    Equality predicates at junctions
    arr = a; num = 0


    View Slide

16. 16 / 23
    Resulting PS for example
    int get_next_index(int a) {
    return a + 1;
    }
    void print_element(int* arr ,
    int num) {
    printf("arr=%i\n",
    arr[num]);
    }
    void print_next_element(int*
    arr , int num) {
    int idx =
    get_next_index(num);
    print_element(arr , idx);
    }
    int main(int argc , char*
    argv []) {
    int a[] = {1, 2, 3};
    print_element(a, 0);
    print_next_element(a, 0);
    return 0;
    }
    main_ %0= alloca (3,(3 * 1)),
    @I arraydecay1=gep[inbounds ](main_ %0 ,0+0+0),
    print_next_element_num =0
    print_next_element_arr=arraydecay1
    )->(
    @I next_index =( print_next_element_num + 1),
    print_next_element_call=next_index
    )->(
    num=print_next_element_call
    arr=print_next_element_arr
    )->(
    @I idxprom=cast(+ Integer (64), num),
    @I arrayidx=gep(arr ,0+ idxprom))


    View Slide

17. 17 / 23
    Combining phase
    PS corresponds to a formula of the form P0 ∨ P1 ∨ . . . ∨ Pn
    Pi
    - distinct calling context
    For PS we have to create synthetic variable free_var


    View Slide

18. 18 / 23
    Resulting PS example
    (BEGIN
    (
    @P free_var =0
    )->(
    main_ %0= alloca (3,(3 * 1)),
    @I main_arraydecay=gep[inbounds ]( main_ %0 ,0+0+0),
    num=0
    arr=main_arraydecay
    )->(
    @I idxprom=cast(+ Integer (64), num),
    @I arrayidx=gep(arr ,0+ idxprom)
    ),
    (
    @P free_var =1
    )->(
    main_ %0= alloca (3,(3 * 1)),
    @I main_arraydecay1=gep[inbounds ]( main_ %0 ,0+0+0),
    print_next_element_num =0
    print_next_element_arr=main_arraydecay1
    )->(
    @I get_next_index_add =( print_next_element_num + 1),
    print_next_element_call=get_next_index_add
    )->(
    num=print_next_element_call
    arr=print_next_element_arr
    )->(
    @I idxprom=cast(+ Integer (64), num),
    @I arrayidx=gep(arr ,0+ idxprom)
    )
    END)


    View Slide

19. 19 / 23
    Processing to solver
    There are 2 equivalent ways of processing it via an SMT solver
    As one large formula
    Each small disjunct separately


    View Slide

20. 20 / 23
    Testing
    We tested the prototype in the following congurations:
    Basic intraprocedural BMC (intra)
    BMC with full inlining (inline)
    Our interprocedural BMC approach (inter)


    View Slide

21. 21 / 23
    Testing


    View Slide

22. 22 / 23
    Conclusion
    Our main takeaways are as follows:
    Interprocedural analysis is a bottleneck for BMC
    The speed of the algorithm depends not so much on the size
    of the project as the complexity of its internal connections


    View Slide

23. 23 / 23
    Contact information
    {stepanov, akhin, belyaev}@kspt.icc.spbstu.ru
    Borealis repository:
    https://bitbucket.org/vorpal-research/borealis
