Digital Image Processing Restoration (Week 14-15) NHSM - 4th year
- Fall 2025 - Prof. Mohammed Hachama [email protected] http://hachama.github.io/home/

Outline Introduction Spatial filtering Frequency filtering Morphological filtering Deconvolution NHSM
- 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 2/21

Introduction NHSM - 4th year: Digital Image Processing - Restoration
(Week 14-15) - M. Hachama ([email protected]) 3/21

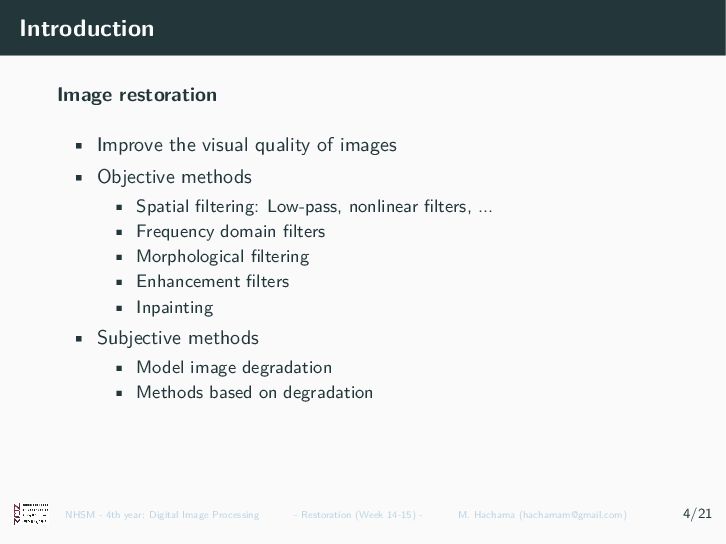

Introduction Image restoration • Improve the visual quality of images
• Objective methods • Spatial filtering: Low-pass, nonlinear filters, ... • Frequency domain filters • Morphological filtering • Enhancement filters • Inpainting • Subjective methods • Model image degradation • Methods based on degradation NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 4/21

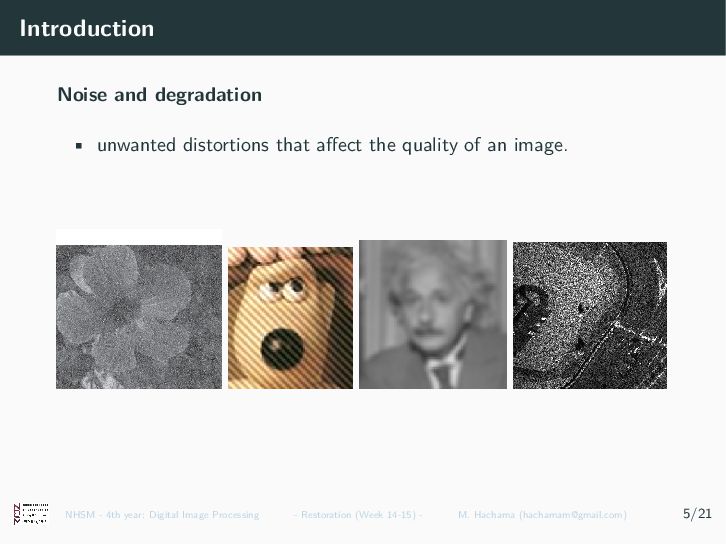

Introduction Noise and degradation • unwanted distortions that affect the
quality of an image. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 5/21

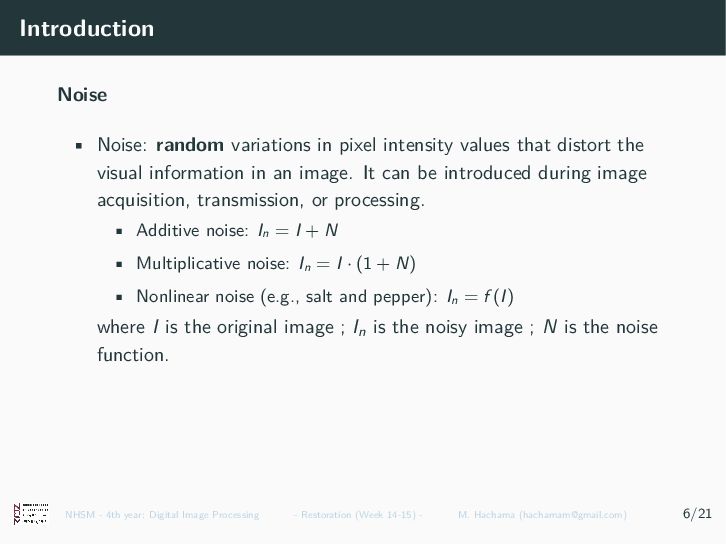

Introduction Noise • Noise: random variations in pixel intensity values
that distort the visual information in an image. It can be introduced during image acquisition, transmission, or processing. • Additive noise: In = I + N • Multiplicative noise: In = I · (1 + N) • Nonlinear noise (e.g., salt and pepper): In = f (I) where I is the original image ; In is the noisy image ; N is the noise function. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 6/21

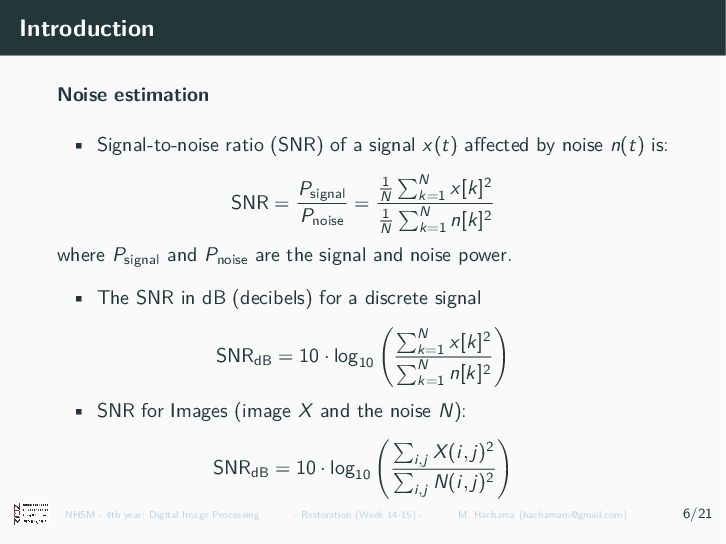

Introduction Noise estimation • Signal-to-noise ratio (SNR) of a signal
x(t) affected by noise n(t) is: SNR = Psignal Pnoise = 1 N N k=1 x[k]2 1 N N k=1 n[k]2 where Psignal and Pnoise are the signal and noise power. • The SNR in dB (decibels) for a discrete signal SNRdB = 10 · log10 N k=1 x[k]2 N k=1 n[k]2 • SNR for Images (image X and the noise N): SNRdB = 10 · log10 i,j X(i, j)2 i,j N(i, j)2 NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 6/21

Introduction Noise estimation • Peak Signal-to-Noise Ratio (PSNR) = Mean
Squared Error (MSE) between the original image X and the reconstructed (or noisy) image ˆ X PSNRdB = 10 · log10 MAX2 I MSE where MAXI is the maximum possible pixel value of the image (255 for 8-bit image) and MSE = 1 MN M i=1 N j=1 X(i, j) − ˆ X(i, j) 2 NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 6/21

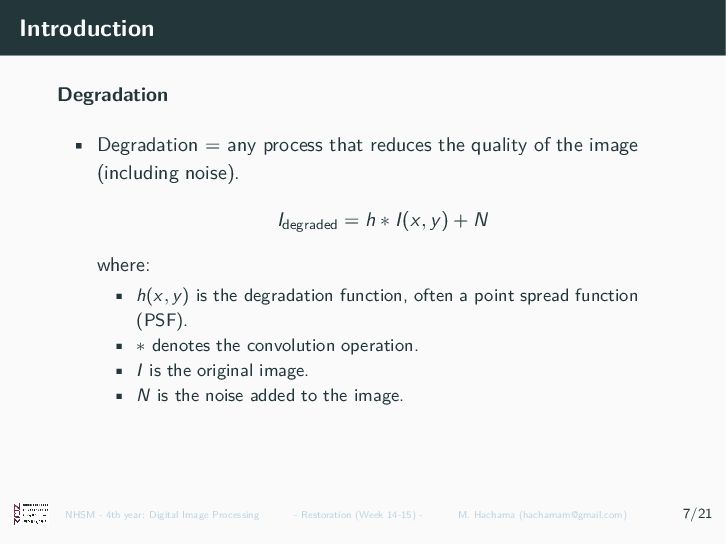

Introduction Degradation • Degradation = any process that reduces the
quality of the image (including noise). Idegraded = h ∗ I(x, y) + N where: • h(x, y) is the degradation function, often a point spread function (PSF). • ∗ denotes the convolution operation. • I is the original image. • N is the noise added to the image. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 7/21

Introduction Types of Degradation • 1. Blurring: Results from camera
movement, out-of-focus lenses, or atmospheric conditions. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 7/21

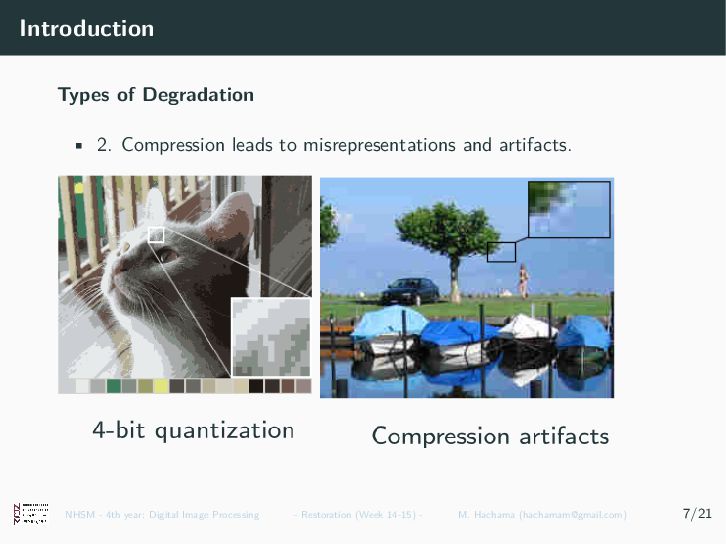

Introduction Types of Degradation • 2. Compression leads to misrepresentations
and artifacts. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 7/21

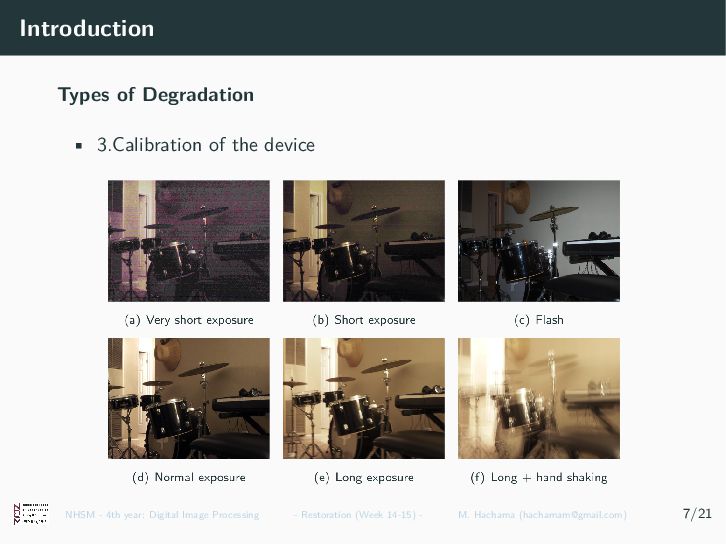

Introduction Types of Degradation • 3.Calibration of the device •
e.g., Exposure = the amount of light that reaches the camera’s sensor while taking a photo (fractions of a second or entire hours). NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 7/21

Introduction Types of Degradation • 3.Calibration of the device NHSM

Spatial filtering NHSM - 4th year: Digital Image Processing -
Restoration (Week 14-15) - M. Hachama ([email protected]) 8/21

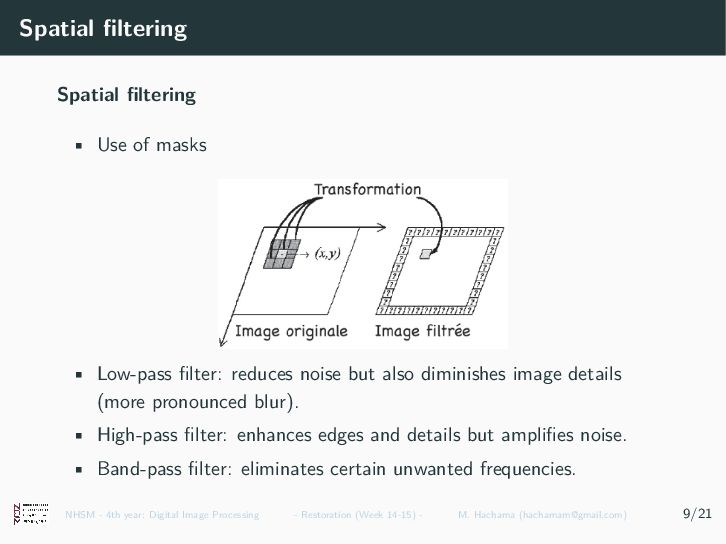

Spatial filtering Spatial filtering • Use of masks • Low-pass
filter: reduces noise but also diminishes image details (more pronounced blur). • High-pass filter: enhances edges and details but amplifies noise. • Band-pass filter: eliminates certain unwanted frequencies. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

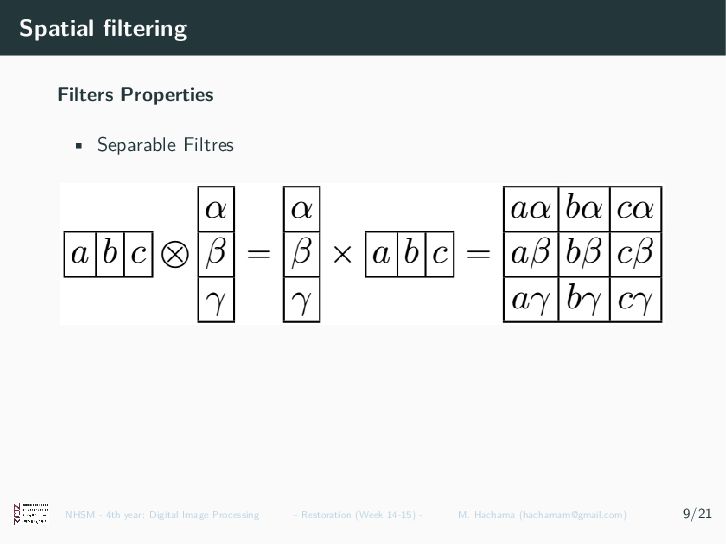

Spatial filtering Filters Properties • Separable Filtres NHSM - 4th
year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

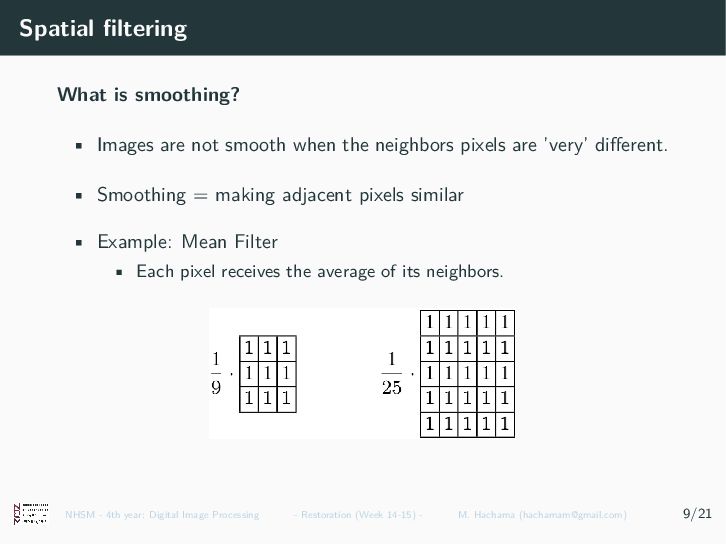

Spatial filtering What is smoothing? • Images are not smooth
when the neighbors pixels are ’very’ different. • Smoothing = making adjacent pixels similar • Example: Mean Filter • Each pixel receives the average of its neighbors. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

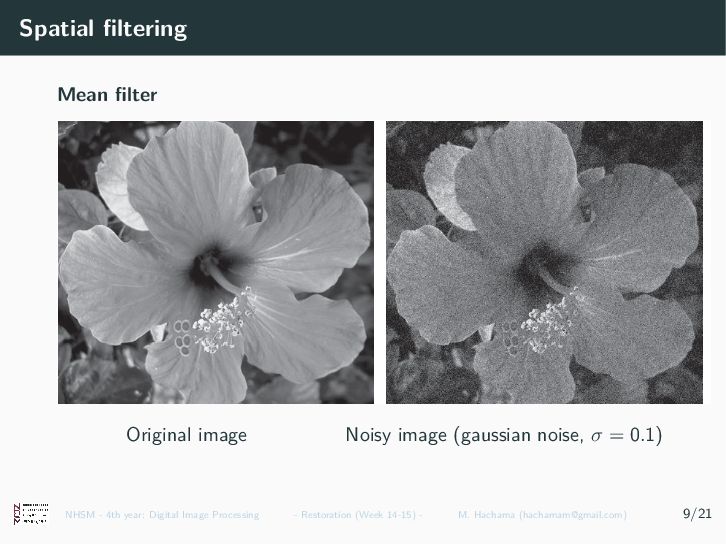

Spatial filtering Mean filter Original image Noisy image (gaussian noise,
σ = 0.1) NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

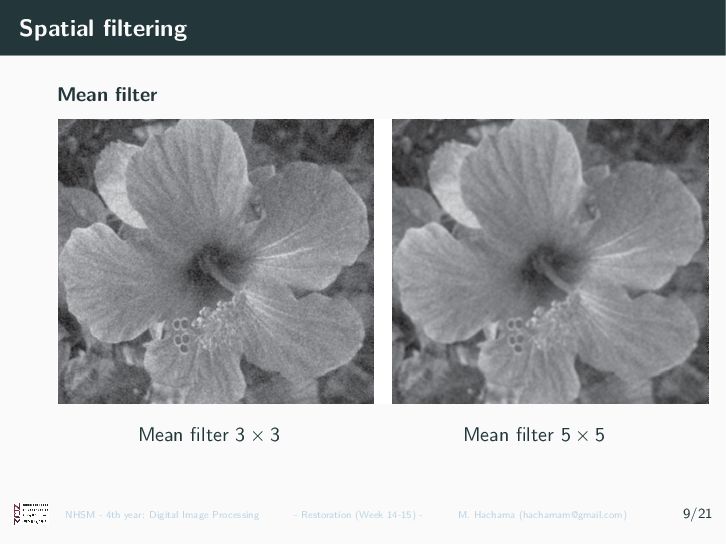

Spatial filtering Mean filter Mean filter 3 × 3 Mean
filter 5 × 5 NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

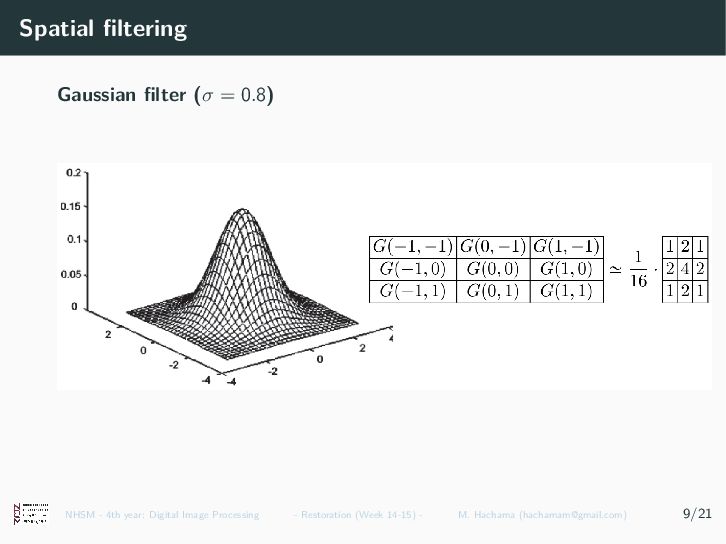

Spatial filtering Gaussian filter (σ = 0.8) NHSM - 4th

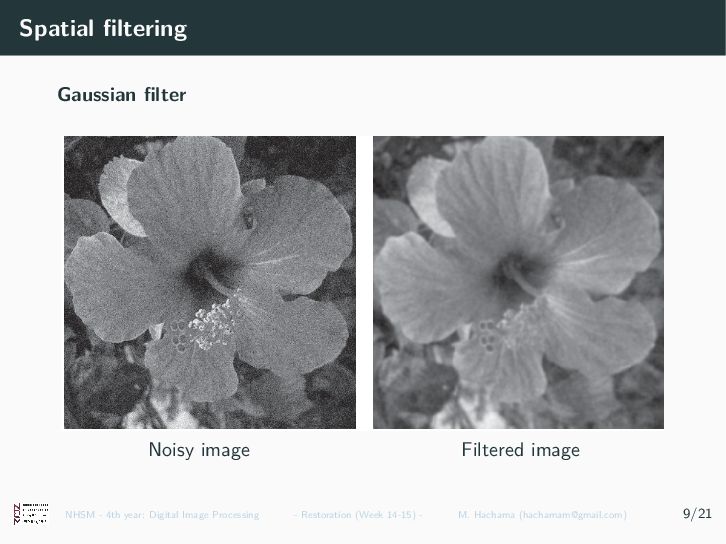

Spatial filtering Gaussian filter Noisy image Filtered image NHSM -
4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

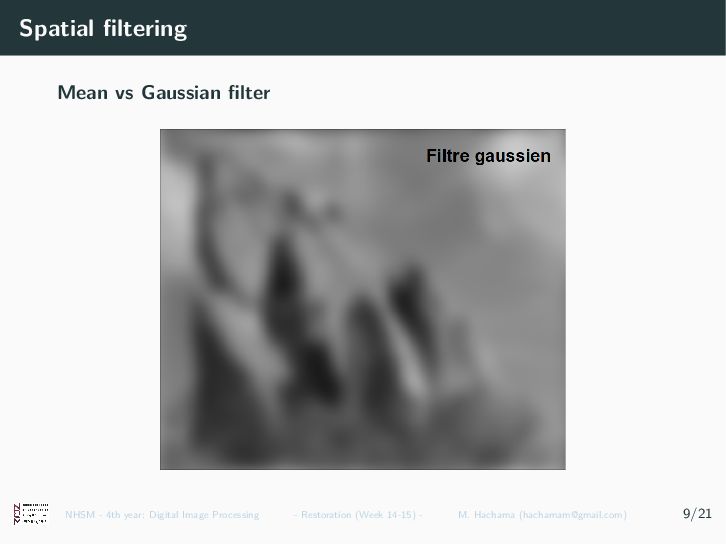

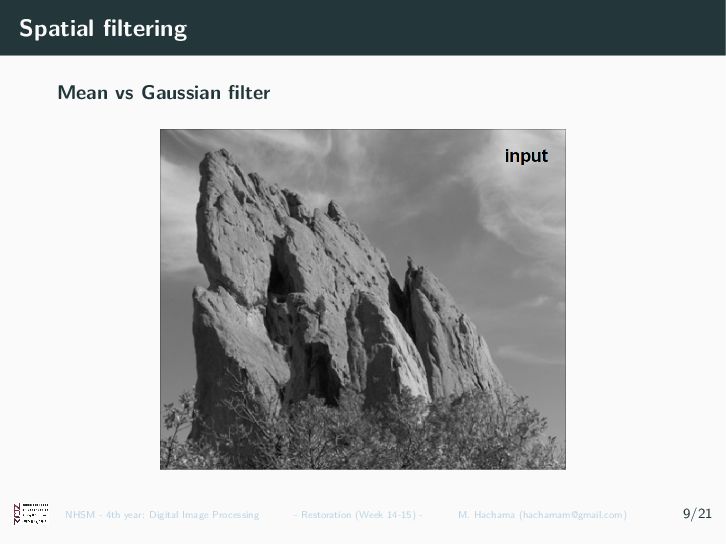

Spatial filtering Mean vs Gaussian filter NHSM - 4th year:
Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

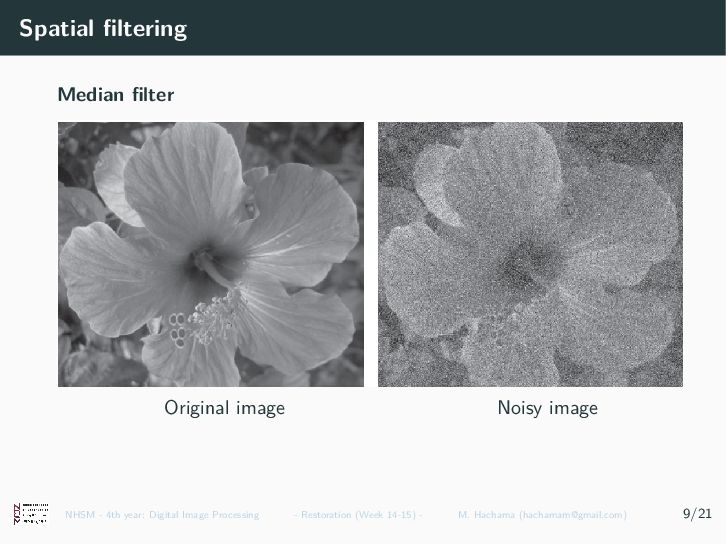

Spatial filtering Median filter • How many noisy points can
it filter? NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

Spatial filtering Median filter Original image Noisy image NHSM -

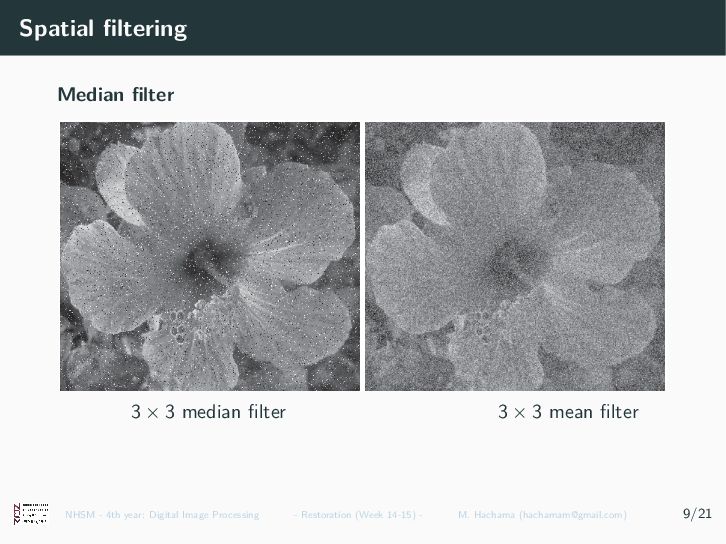

Spatial filtering Median filter 3 × 3 median filter 3
× 3 mean filter NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 9/21

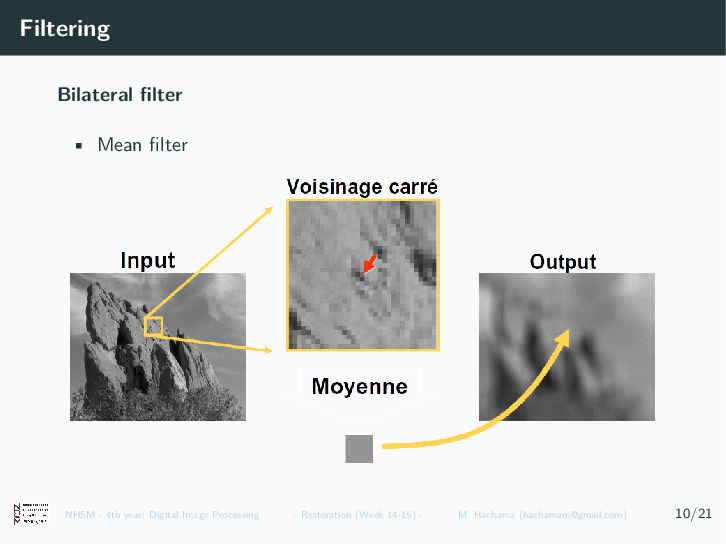

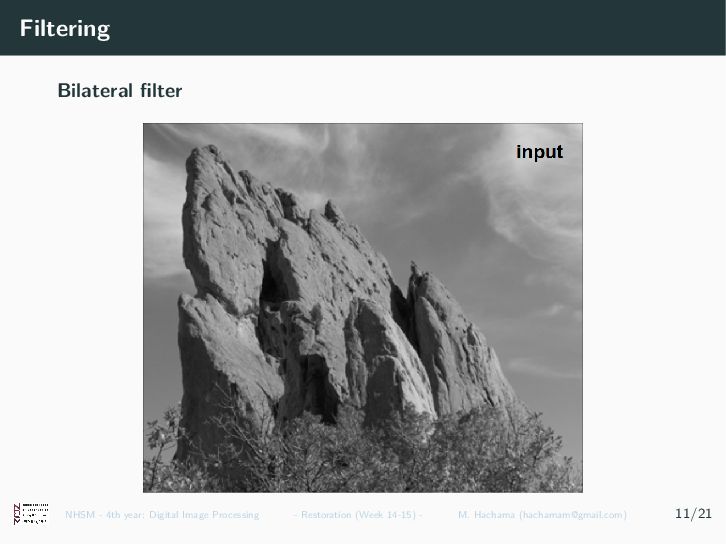

Filtering Bilateral filter • Mean filter NHSM - 4th year:

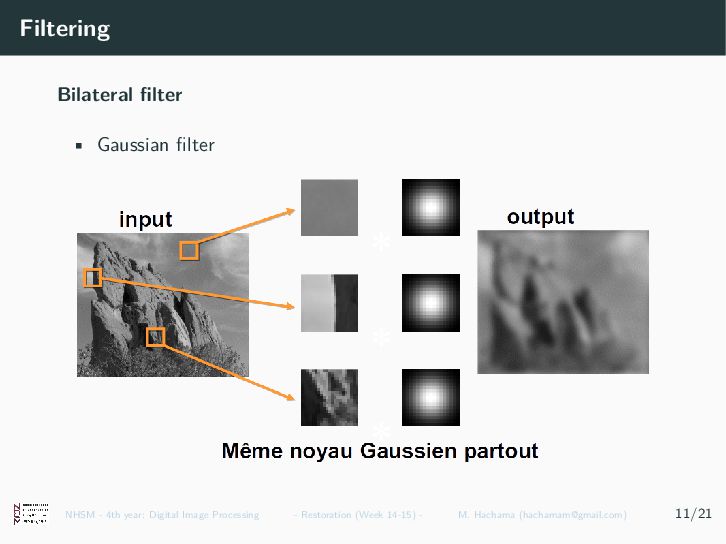

Filtering Bilateral filter • Gaussian filter NHSM - 4th year:

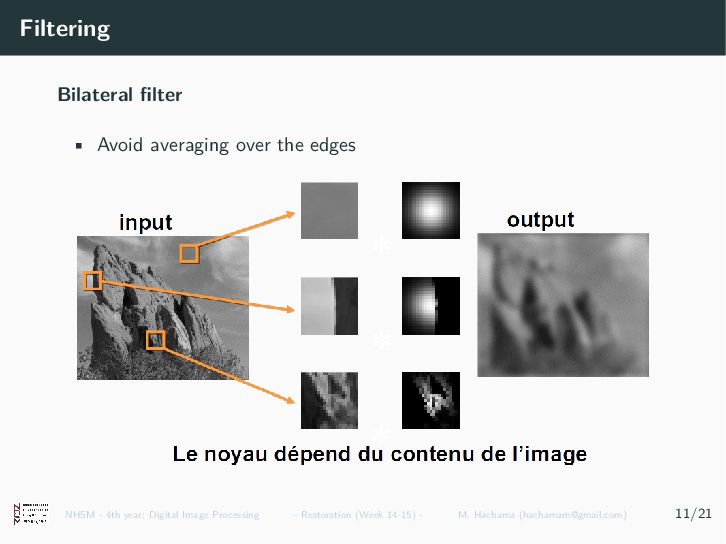

Filtering Bilateral filter • Avoid averaging over the edges NHSM

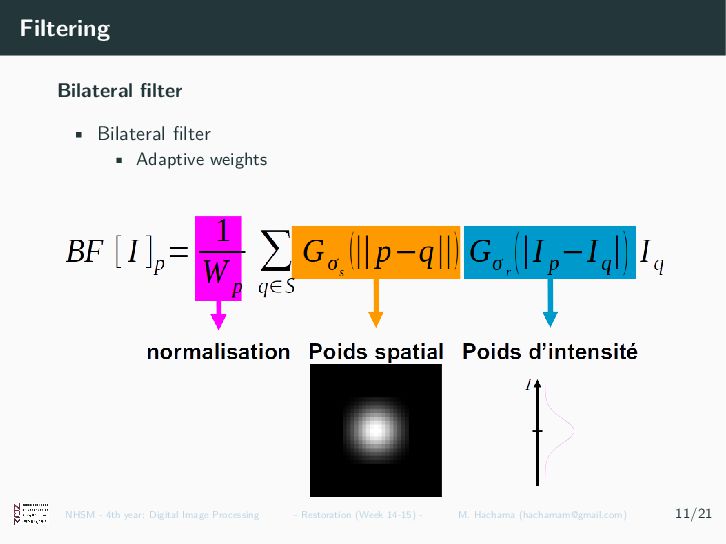

Filtering Bilateral filter • Bilateral filter • Adaptive weights NHSM

Filtering Bilateral filter NHSM - 4th year: Digital Image Processing
- Restoration (Week 14-15) - M. Hachama ([email protected]) 11/21

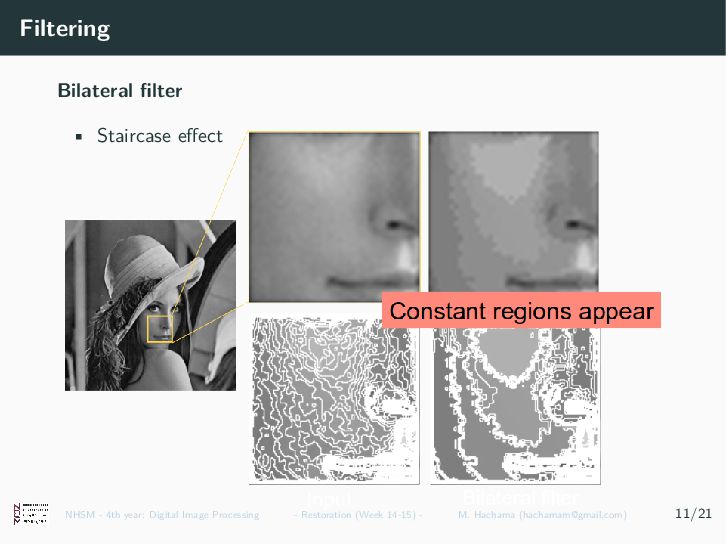

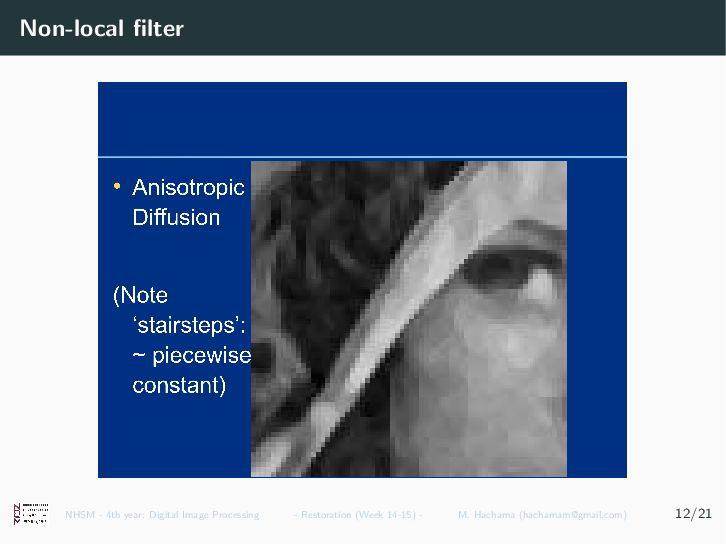

Filtering Bilateral filter • Staircase effect NHSM - 4th year:

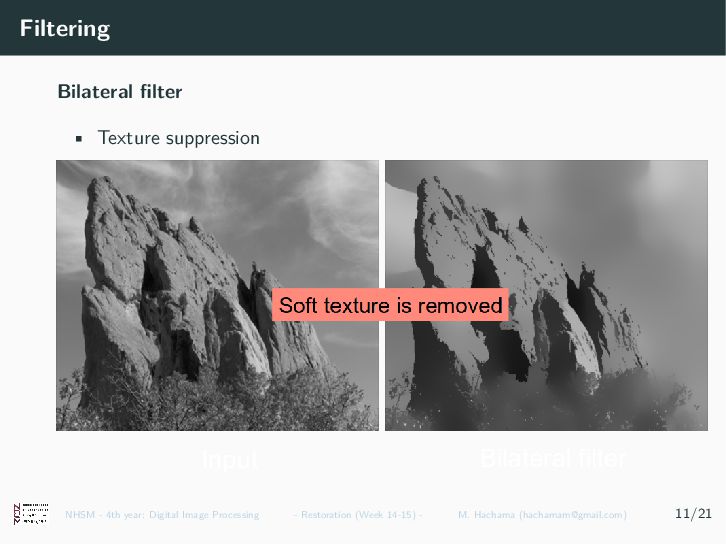

Filtering Bilateral filter • Texture suppression NHSM - 4th year:

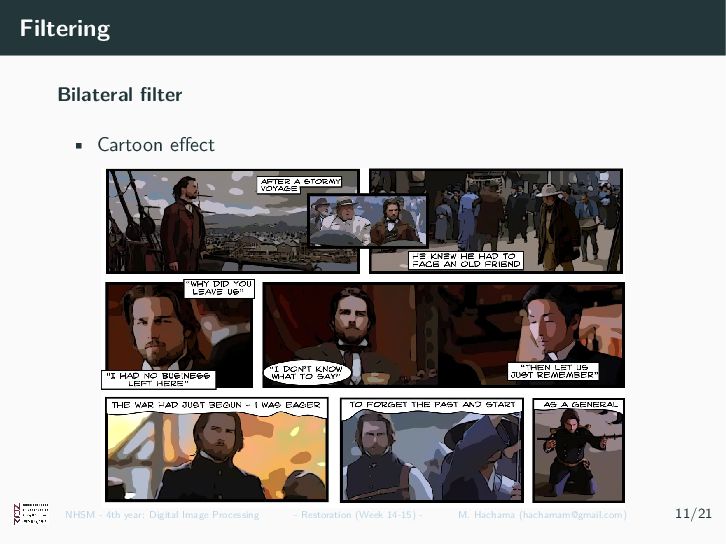

Filtering Bilateral filter • Cartoon effect NHSM - 4th year:

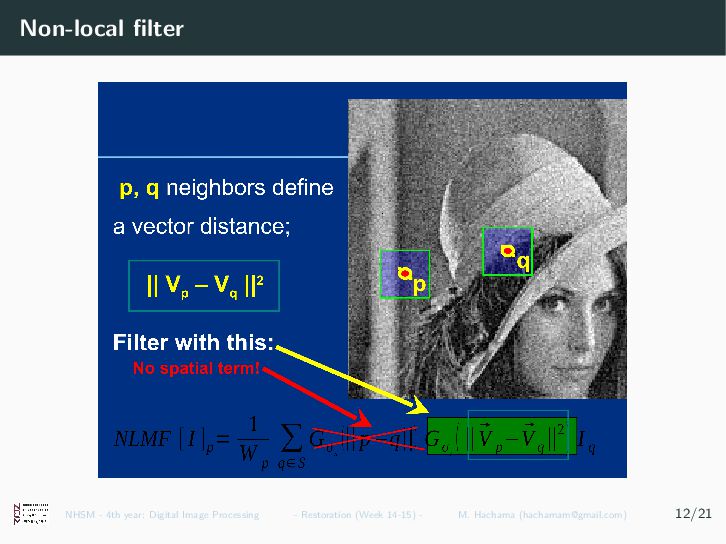

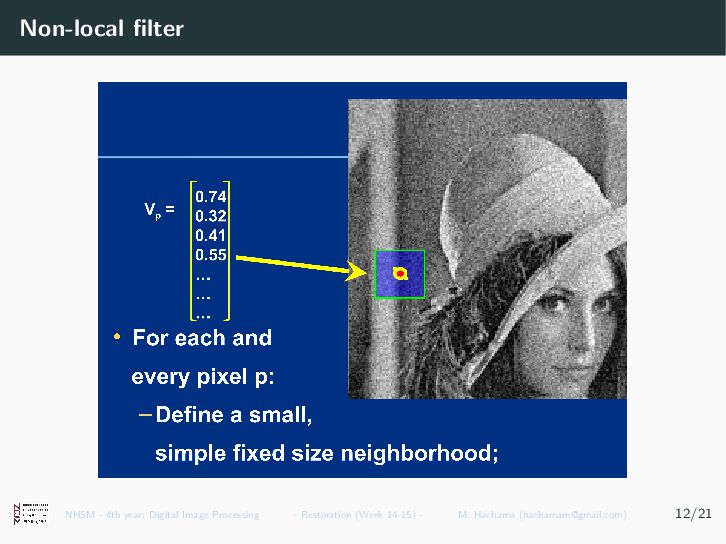

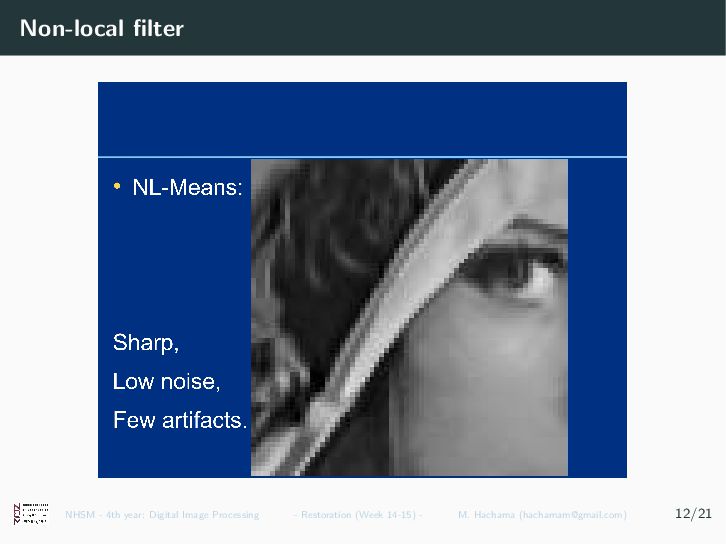

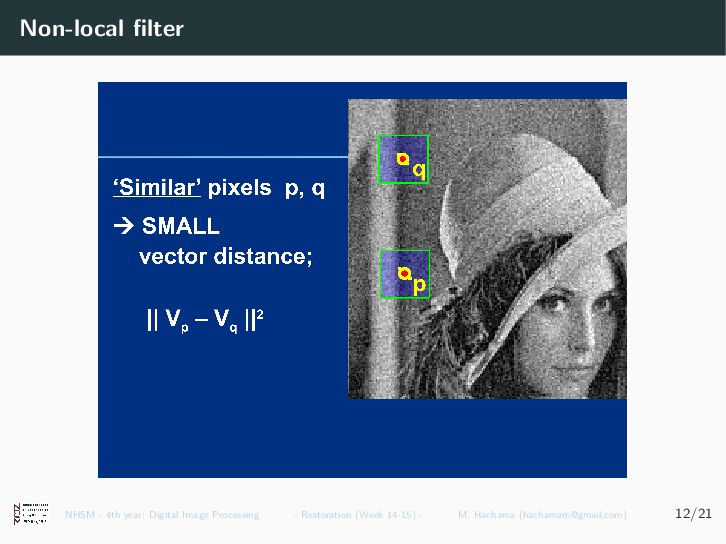

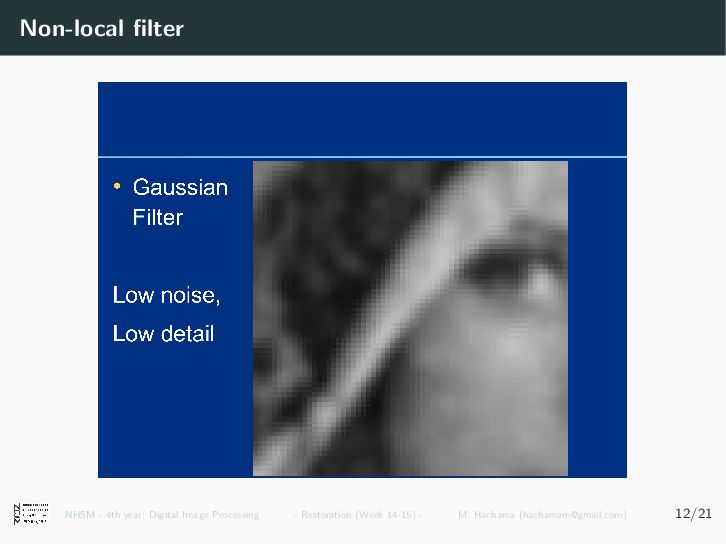

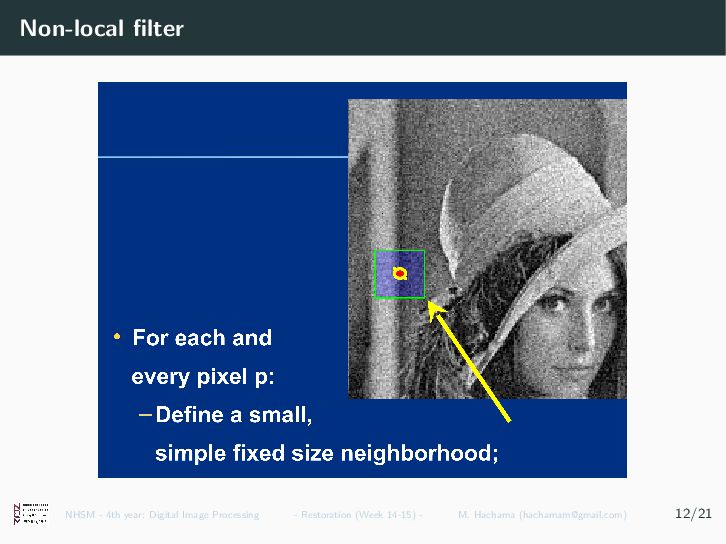

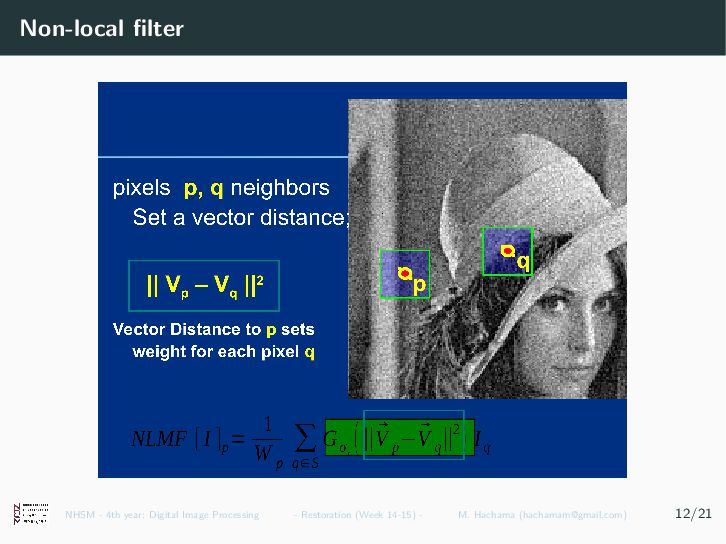

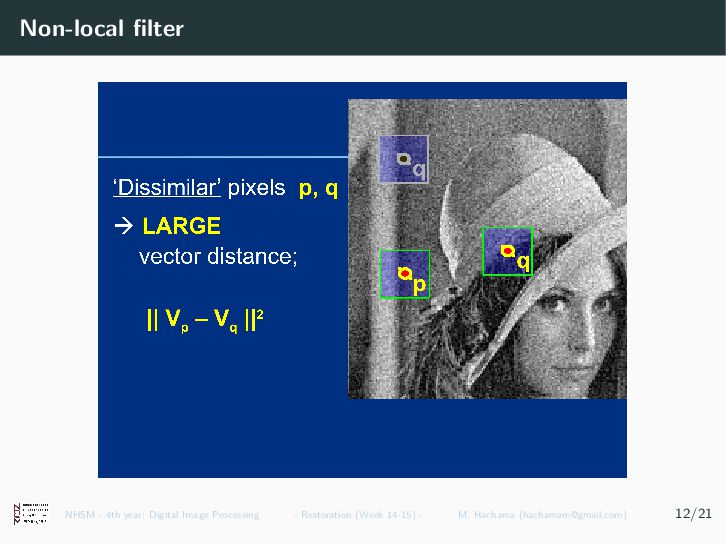

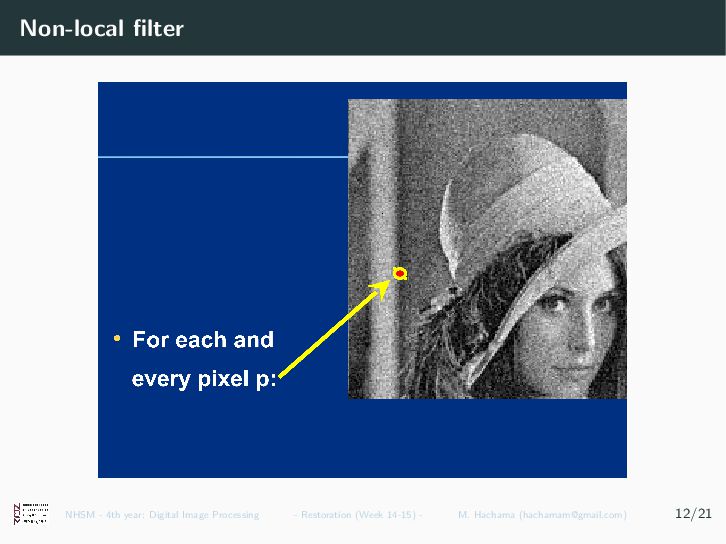

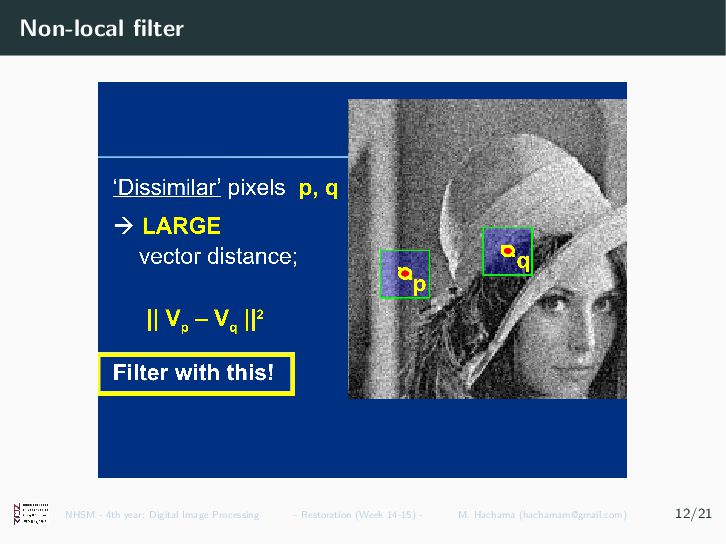

Non-local filter • Like the bilateral filter: averaging ”similar” pixels
• Bilateral: neighboring pixels with similar intensities • NL-Means: pixels with similar neighborhoods NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 12/21

Non-local filter NHSM - 4th year: Digital Image Processing -

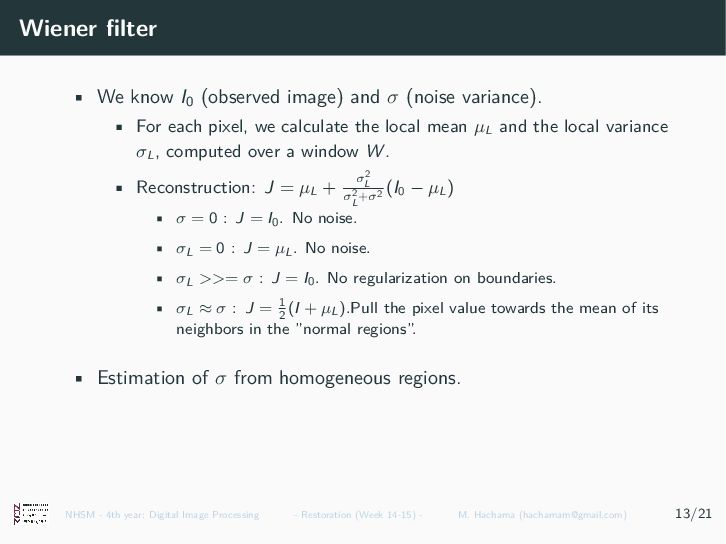

Wiener filter • We know I0 (observed image) and σ
(noise variance). • For each pixel, we calculate the local mean µL and the local variance σL , computed over a window W . • Reconstruction: J = µL + σ2 L σ2 L +σ2 (I0 − µL ) • σ = 0 : J = I0. No noise. • σL = 0 : J = µL . No noise. • σL >>= σ : J = I0. No regularization on boundaries. • σL ≈ σ : J = 1 2 (I + µL ).Pull the pixel value towards the mean of its neighbors in the ”normal regions”. • Estimation of σ from homogeneous regions. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 13/21

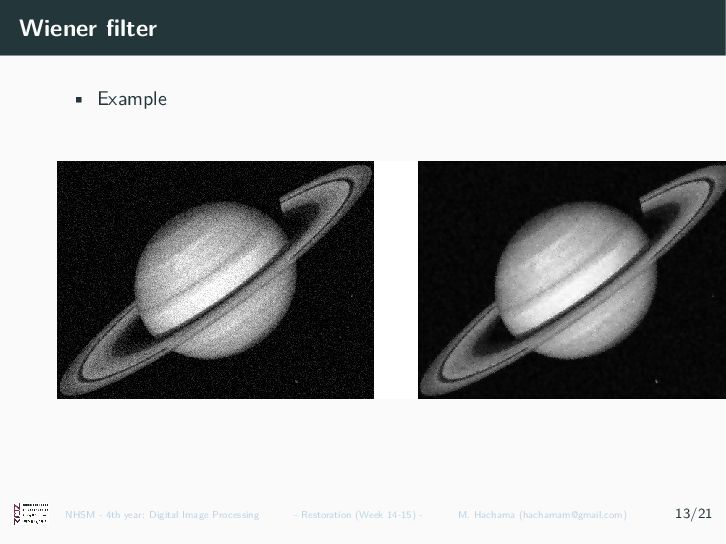

Wiener filter • Example NHSM - 4th year: Digital Image
Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 13/21

Frequency filtering NHSM - 4th year: Digital Image Processing -

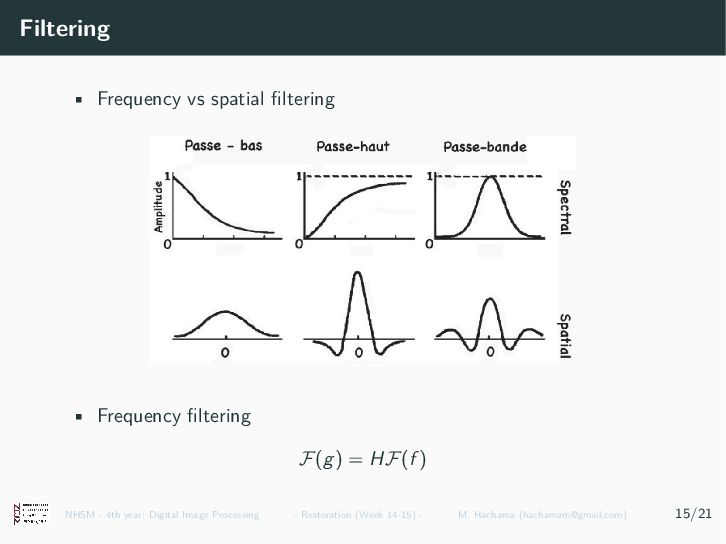

Filtering • Frequency vs spatial filtering • Frequency filtering F(g)
= HF(f ) NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 15/21

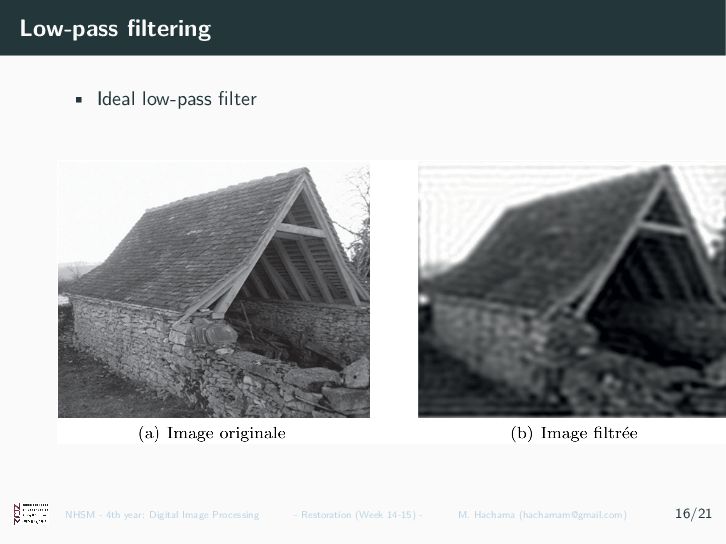

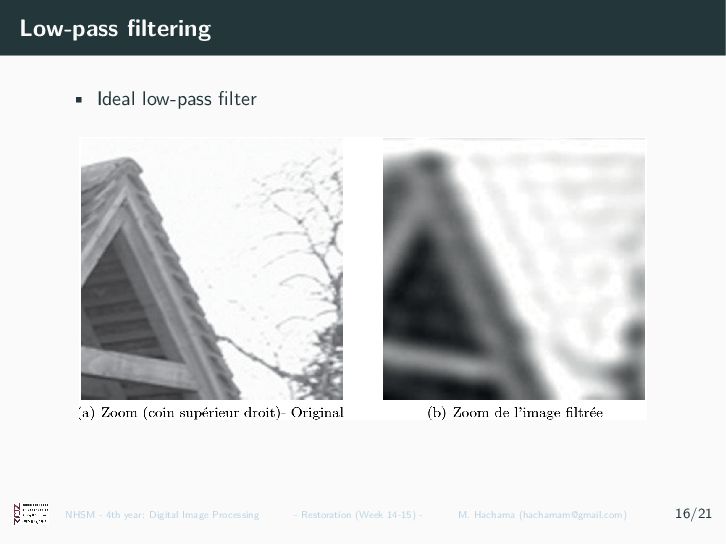

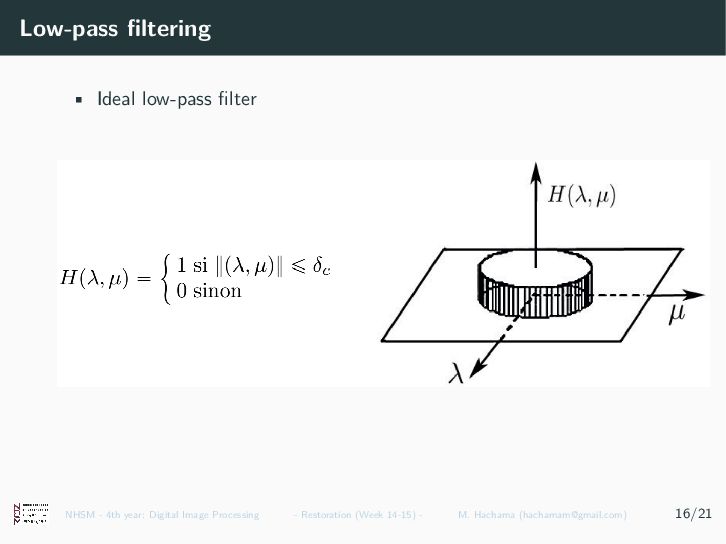

Low-pass filtering • Ideal low-pass filter NHSM - 4th year:

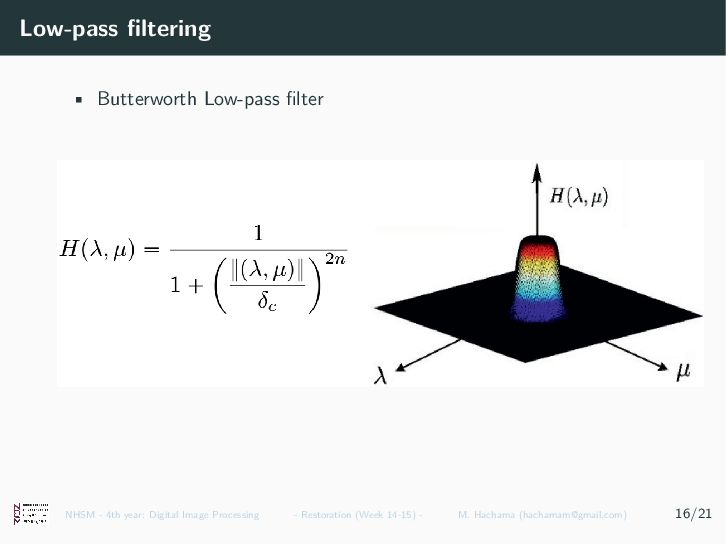

Low-pass filtering • Butterworth Low-pass filter NHSM - 4th year:

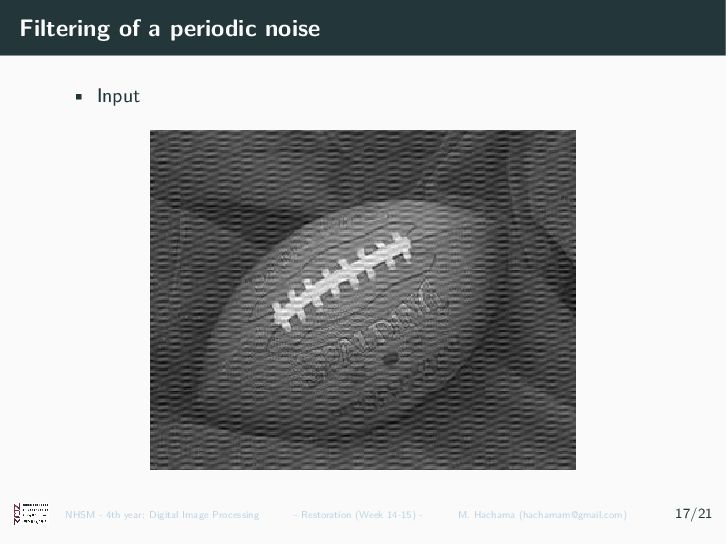

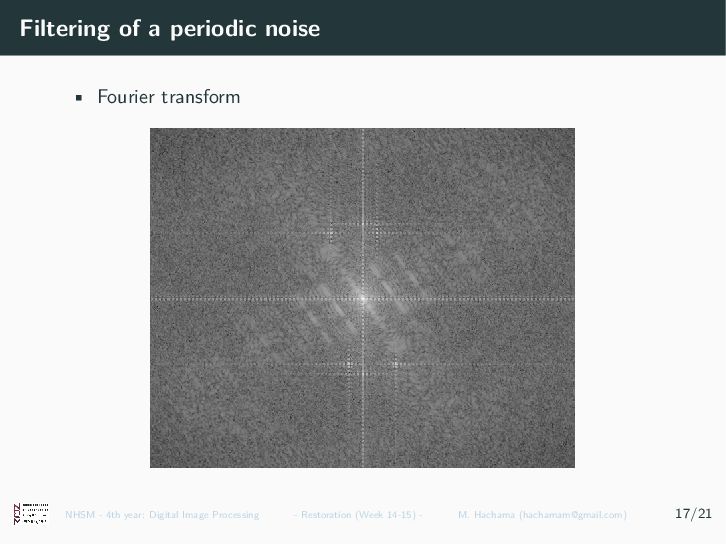

Filtering of a periodic noise • Input NHSM - 4th

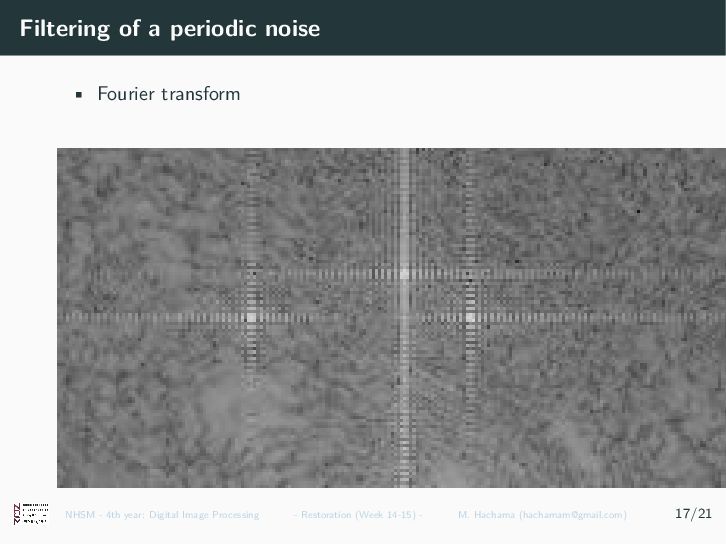

Filtering of a periodic noise • Fourier transform NHSM -

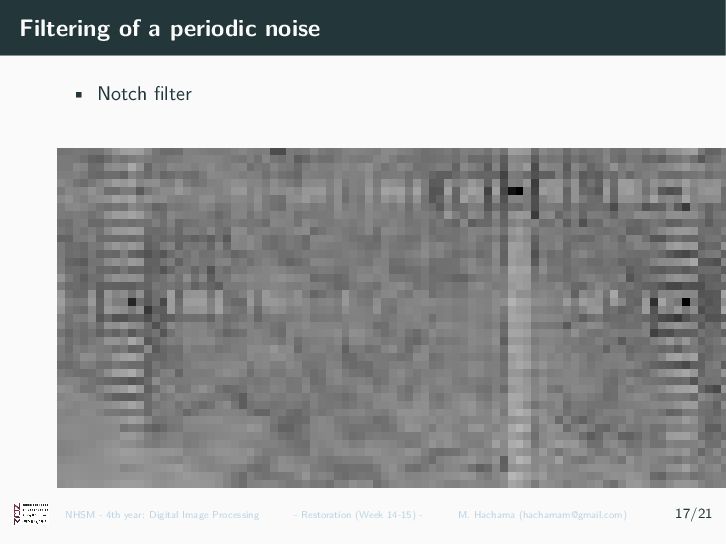

Filtering of a periodic noise • Notch filter NHSM -

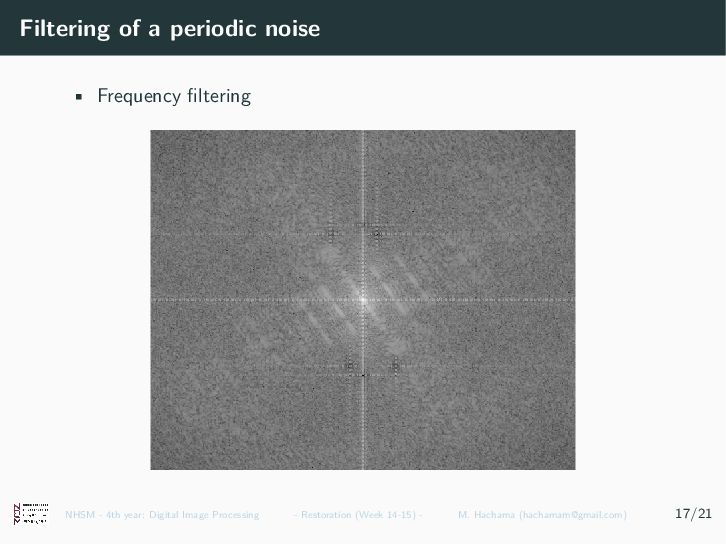

Filtering of a periodic noise • Frequency filtering NHSM -

Filtering of a periodic noise NHSM - 4th year: Digital
Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 17/21

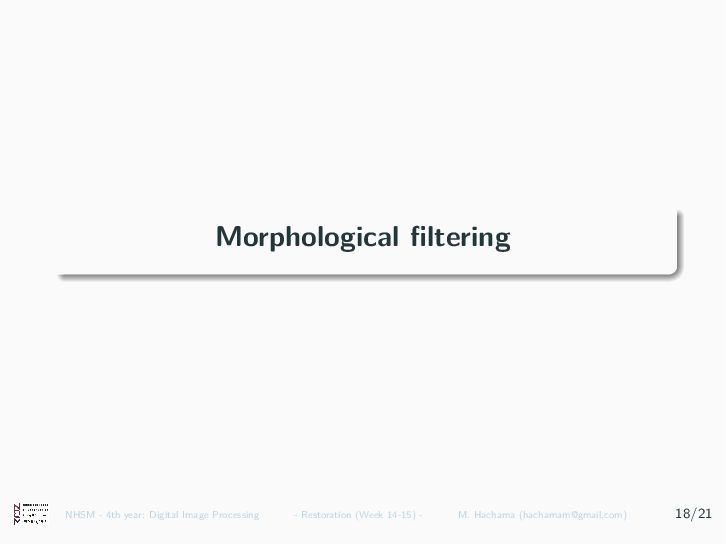

Morphological filtering NHSM - 4th year: Digital Image Processing -

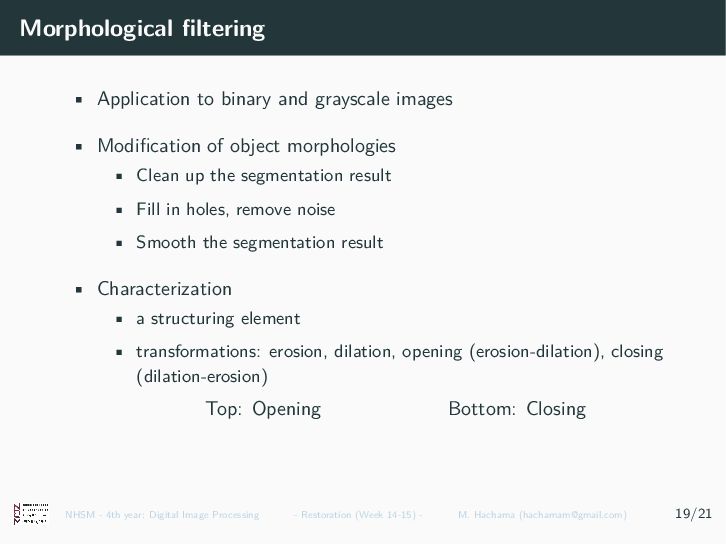

Morphological filtering • Application to binary and grayscale images •
Modification of object morphologies • Clean up the segmentation result • Fill in holes, remove noise • Smooth the segmentation result • Characterization • a structuring element • transformations: erosion, dilation, opening (erosion-dilation), closing (dilation-erosion) Top: Opening Bottom: Closing NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 19/21

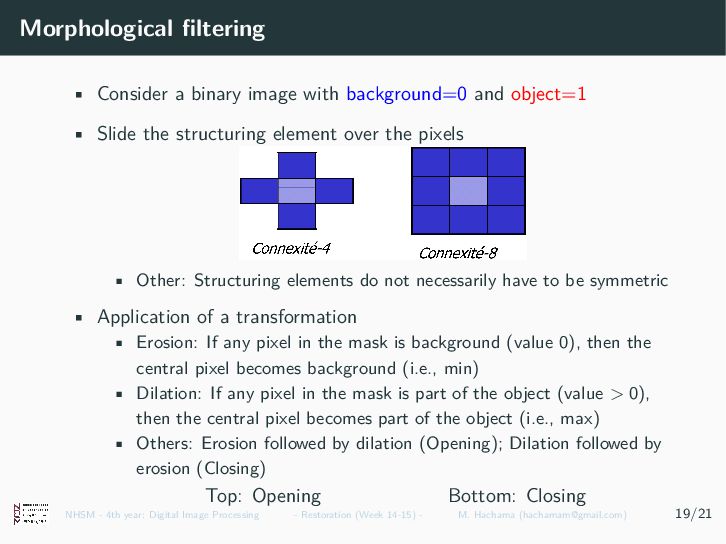

Morphological filtering • Consider a binary image with background=0 and
object=1 • Slide the structuring element over the pixels • Other: Structuring elements do not necessarily have to be symmetric • Application of a transformation • Erosion: If any pixel in the mask is background (value 0), then the central pixel becomes background (i.e., min) • Dilation: If any pixel in the mask is part of the object (value > 0), then the central pixel becomes part of the object (i.e., max) • Others: Erosion followed by dilation (Opening); Dilation followed by erosion (Closing) Top: Opening Bottom: Closing NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 19/21

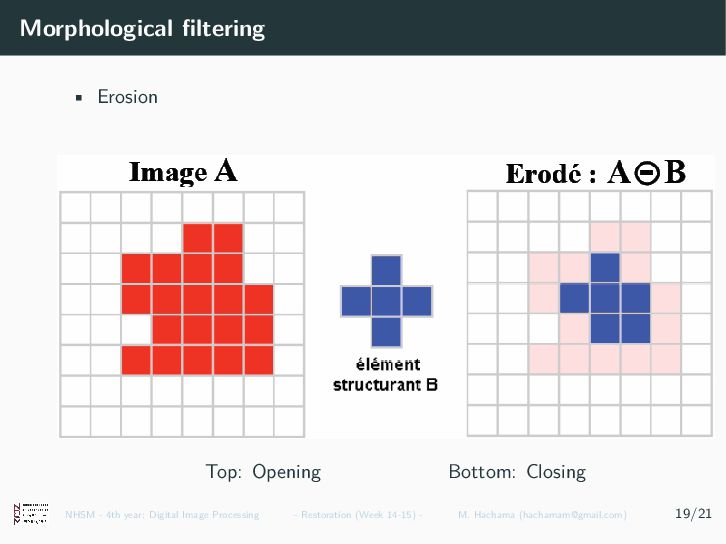

Morphological filtering • Erosion Top: Opening Bottom: Closing NHSM -

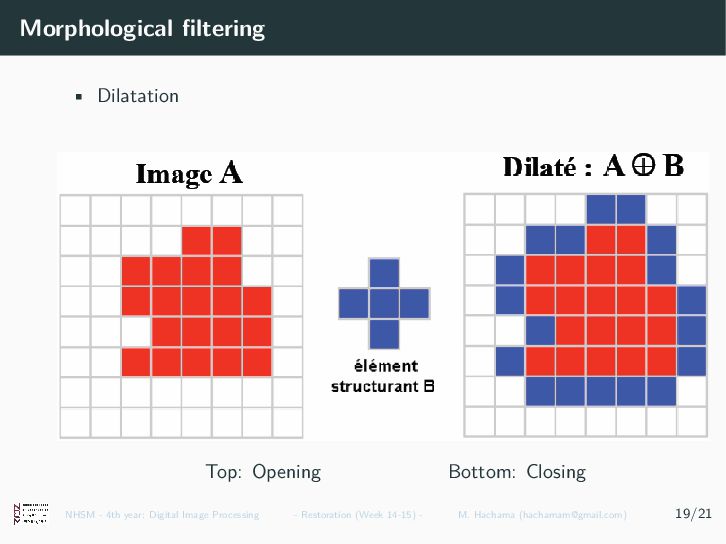

Morphological filtering • Dilatation Top: Opening Bottom: Closing NHSM -

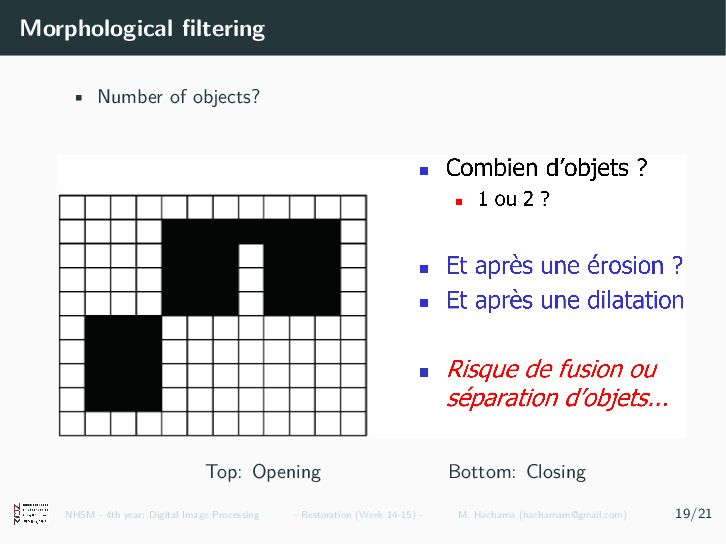

Morphological filtering • Number of objects? Top: Opening Bottom: Closing
NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 19/21

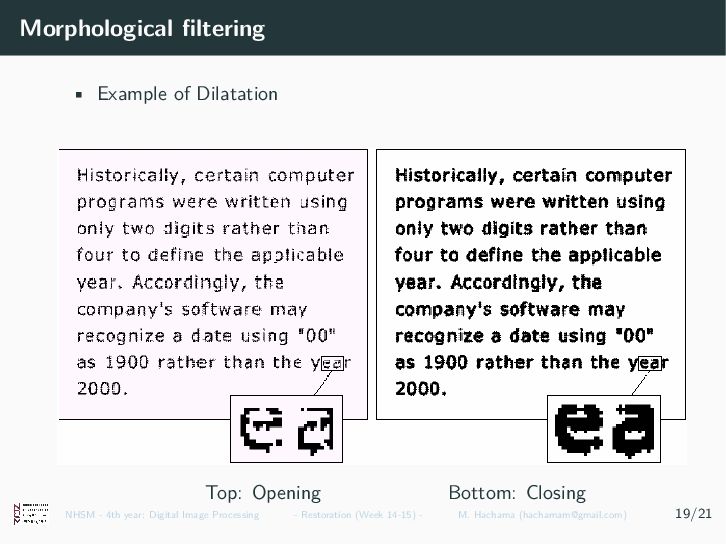

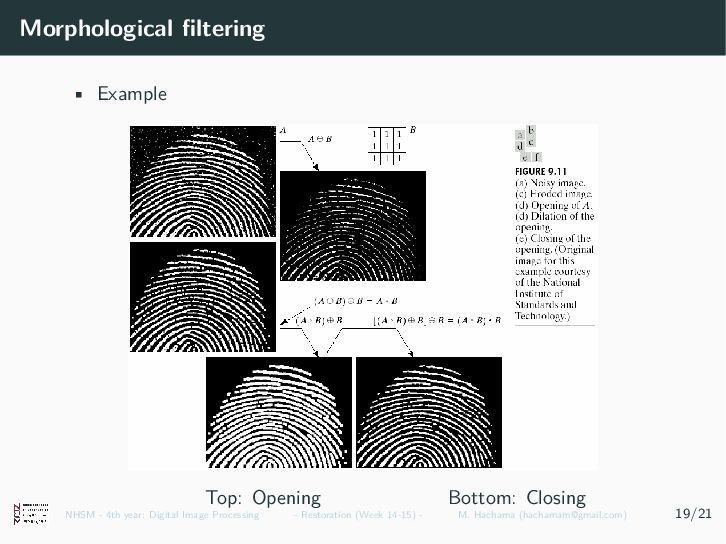

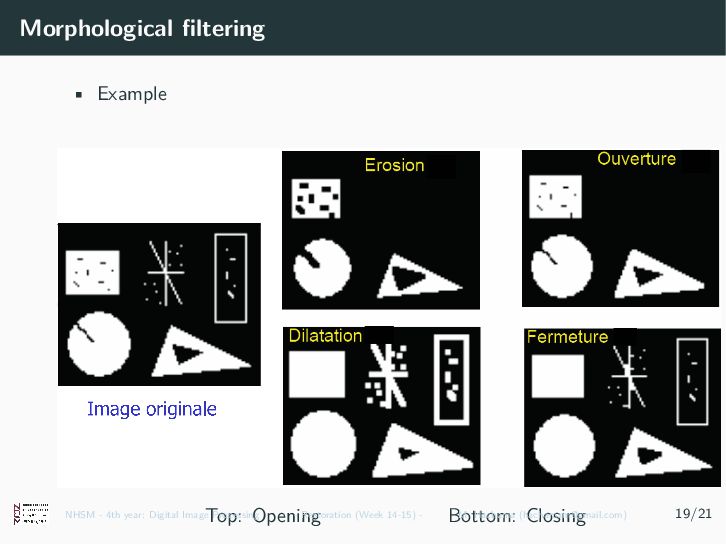

Morphological filtering • Example of Dilatation Top: Opening Bottom: Closing
NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 19/21

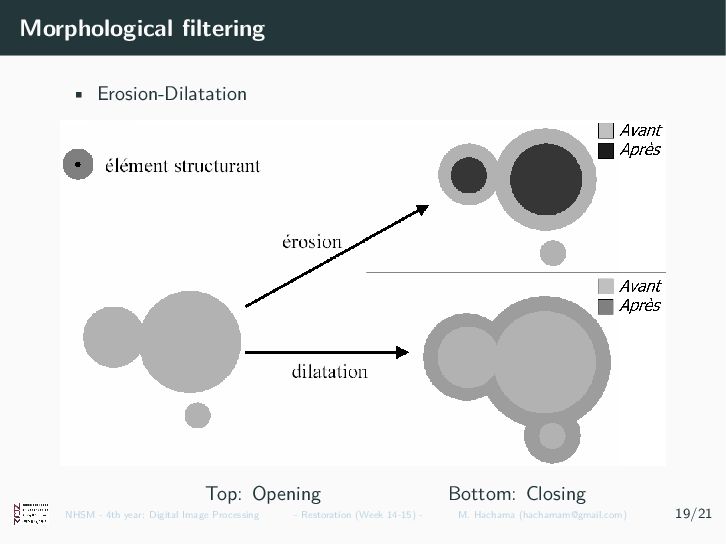

Morphological filtering • Erosion-Dilatation Top: Opening Bottom: Closing NHSM -

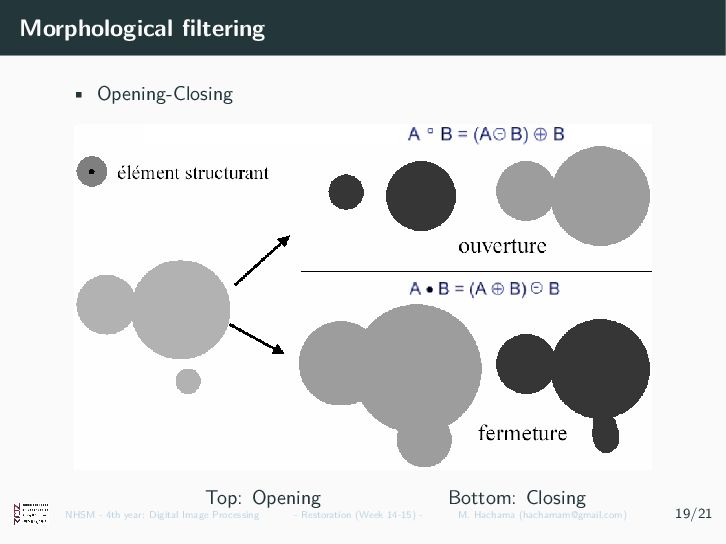

Morphological filtering • Opening-Closing Top: Opening Bottom: Closing NHSM -

Morphological filtering • Example Top: Opening Bottom: Closing NHSM -

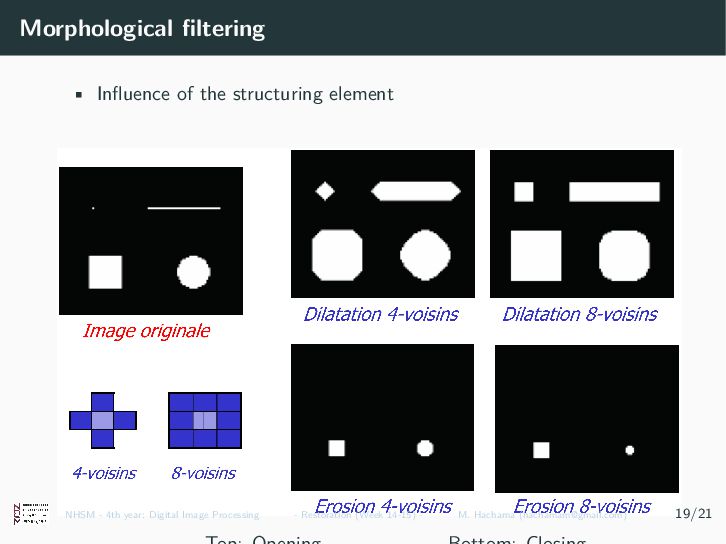

Morphological filtering • Influence of the structuring element NHSM -

Morphological filtering • Example Top: Opening Bottom: Closing NHSM -

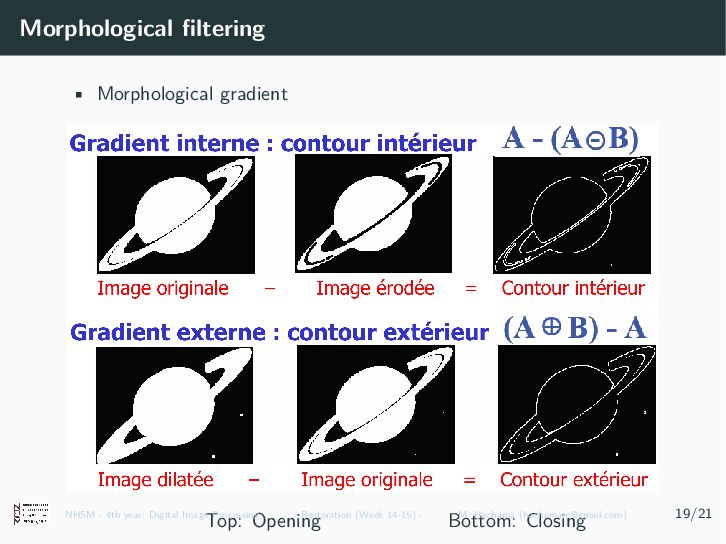

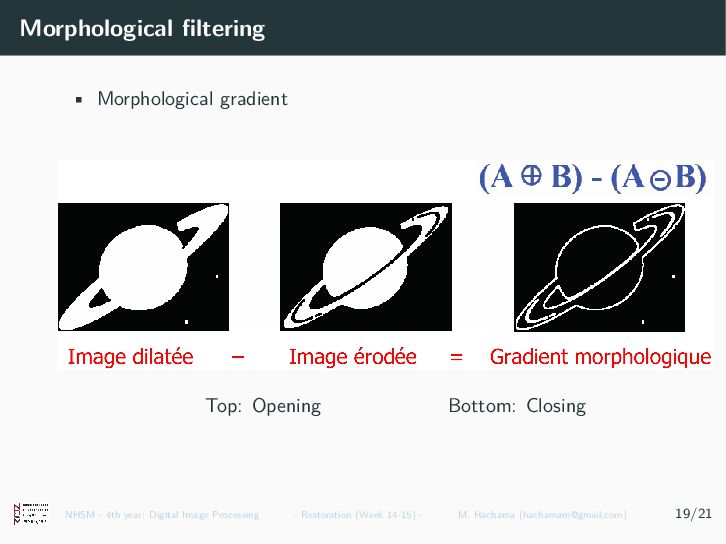

Morphological filtering • Morphological gradient Top: Opening Bottom: Closing NHSM

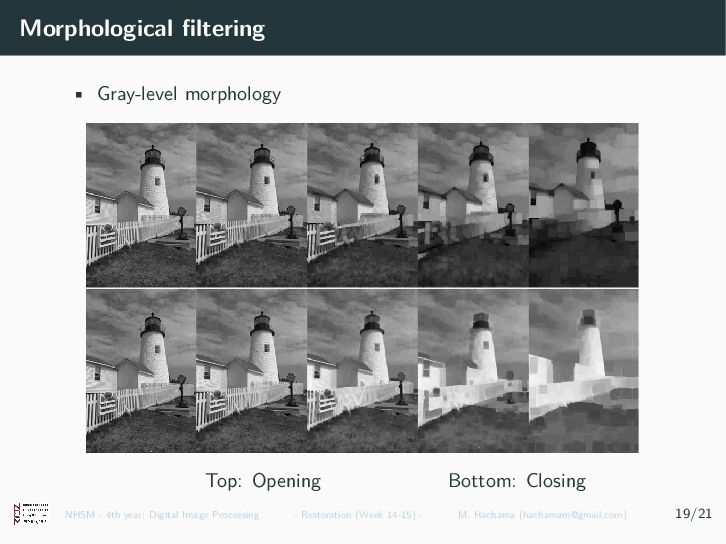

Morphological filtering • Gray-level morphology Top: Opening Bottom: Closing NHSM

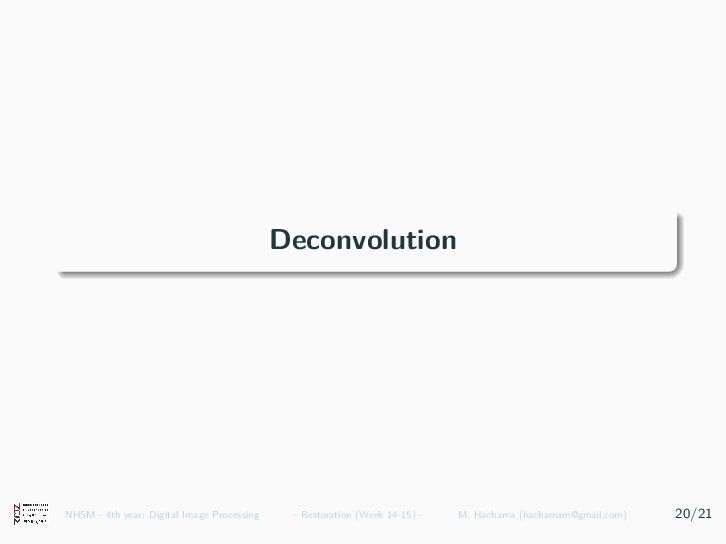

Deconvolution NHSM - 4th year: Digital Image Processing - Restoration
(Week 14-15) - M. Hachama ([email protected]) 20/21

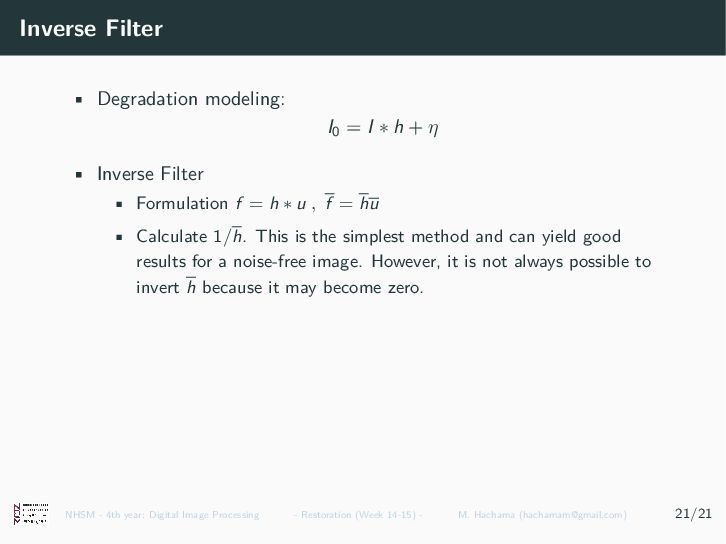

Inverse Filter • Degradation modeling: I0 = I ∗ h
+ η • Inverse Filter • Formulation f = h ∗ u , f = hu • Calculate 1/h. This is the simplest method and can yield good results for a noise-free image. However, it is not always possible to invert h because it may become zero. NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 21/21

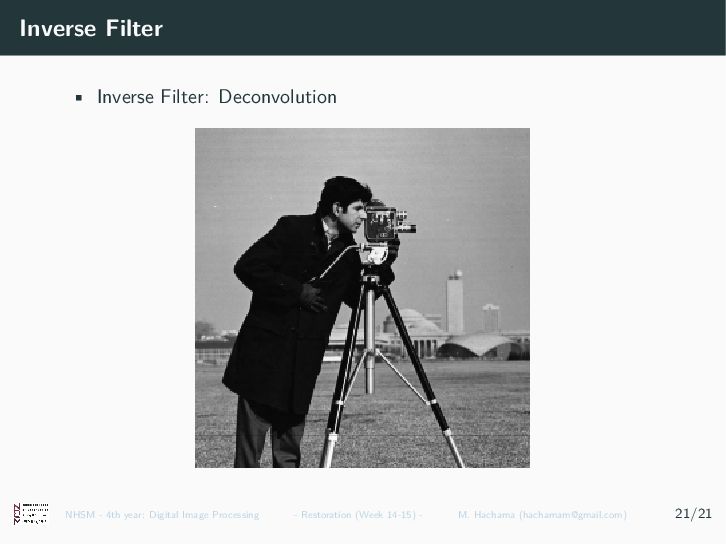

Inverse Filter • Inverse Filter: Deconvolution NHSM - 4th year:

Inverse Filter • Inverse Filter: Blurred image + Noise NHSM

Inverse Filter • Inverse Filter: Deconvolution NHSM - 4th year:

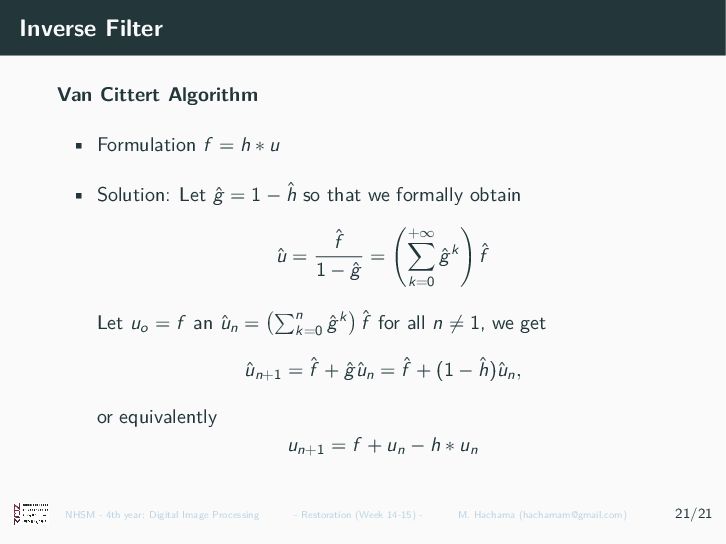

Inverse Filter Van Cittert Algorithm • Formulation f = h
∗ u • Solution: Let ˆ g = 1 − ˆ h so that we formally obtain ˆ u = ˆ f 1 − ˆ g = +∞ k=0 ˆ gk ˆ f Let uo = f an ˆ un = n k=0 ˆ gk ˆ f for all n ̸= 1, we get ˆ un+1 = ˆ f + ˆ gˆ un = ˆ f + (1 − ˆ h)ˆ un, or equivalently un+1 = f + un − h ∗ un NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 21/21

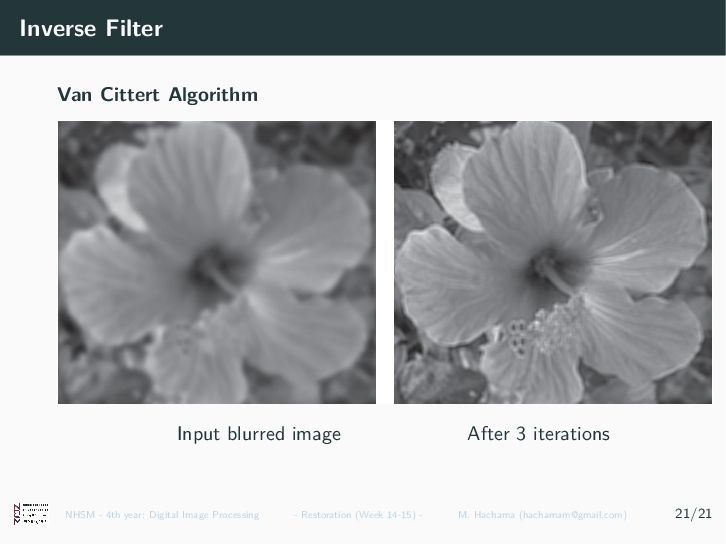

Inverse Filter Van Cittert Algorithm Input blurred image After 3
iterations NHSM - 4th year: Digital Image Processing - Restoration (Week 14-15) - M. Hachama ([email protected]) 21/21
