Honza Javorek
February 04, 2018

Test your API docs!

Today many API docs are driven by API description formats, such as Swagger/OpenAPI, API Blueprint, and so on. I'm working on an Open Source tool (Dredd), which verifies whether the implementation is according to the description. This enables a whole new workflow to API designers - they can design before implementing, and then ensure the implementation is in sync with the design.

https://fosdem.org/2018/schedule/event/test_api_docs_with_dredd/

Honza Javorek

February 04, 2018
Tweet

More Decks by Honza Javorek

Other Decks in Technology

Transcript

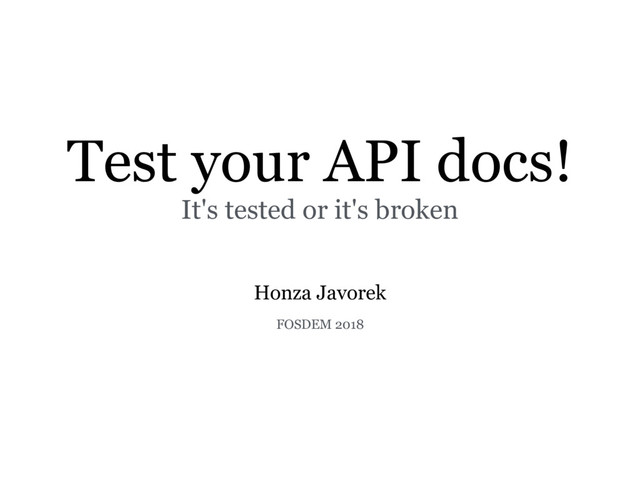

  1. Test your API docs!
    It's tested or it's broken
    Honza Javorek
    FOSDEM 2018

    View Slide

  2. Honza
    honzajavorek.cz
    @honzajavorek

    View Slide

  3. View Slide

  4. View Slide

  5. View Slide

  6. PRAGUE

    View Slide

  7. Czech Republic

    View Slide

  8. PYCON.CZ

    View Slide

  9. View Slide

  10. Interface of libraries
    #!/usr/bin/env python
    import django

    View Slide

  11. Interface of systems
    curl https://api.github.com/

    View Slide

  12. Technical?

    View Slide

  13. User interface!

    View Slide

  14. import urllib2
    gh_url = 'https://api.github.com'
    req = urllib2.Request(gh_url)
    password_manager = urllib2.HTTPPasswordMgrWithDefaultRealm()
    password_manager.add_password(None, gh_url, 'user', 'pass')
    auth_manager = urllib2.HTTPBasicAuthHandler(password_manager)
    opener = urllib2.build_opener(auth_manager)
    urllib2.install_opener(opener)
    handler = urllib2.urlopen(req)
    print handler.getcode()
    print handler.headers.getheader('content-type')
    Do you like this interface?

    View Slide

  15. Requests: HTTP for Humans

    View Slide

  16. >>> r = requests.get('https://api.github.com/user',
    ... auth=('user', 'pass'))
    >>> r.status_code
    200
    >>> r.headers['content-type']
    'application/json; charset=utf8'
    >>> r.encoding
    'utf-8'
    >>> r.text
    '{"type":"User"...'
    >>> r.json()
    {'disk_usage': 368627, 'private_gists': 484, ...}
    Do you like this interface?

    View Slide

  17. How do you design the
    interface?

    View Slide

  18. Eating your own dog food

    View Slide

  19. def test_basic_building():
    req = requests.Request()
    req.url = 'http://kennethreitz.org/'
    req.data = {'life': '42'}
    pr = req.prepare()
    assert pr.url == req.url
    assert pr.body == 'life=42'

    View Slide

  20. Writing tests first
    helps to design the interface
    TDD

    View Slide

  21. test > RED > implement > test > GREEN
    req = requests.Request()
    req.url = 'http://kennethreitz.org/'
    req.data = {'life': '42'}
    pr = req.prepare()
    assert pr.url == req.url
    assert pr.body == 'life=42'

    View Slide

  22. Writing down behavior first
    helps to design the interface
    BDD

    View Slide

  23. Feature: Status code
    Background:
    Given you expect HTTP status code "200"
    Scenario: Different real response status
    When real status code is "500"
    Then Gavel will set some error for "status code"
    And Request or Response is NOT valid
    Scenario: Response status code match
    When real status code is "200"
    Then Gavel will NOT set any errors for "status code"
    And Request or Response is valid
    Gherkin / Cucumber

    View Slide

  24. Testable documentation!

    View Slide

  25. 1. Design
    2. Test
    3. Implement

    View Slide

  26. 1. Think, agree, promise
    2. Test the promise
    3. Fulfill the promise

    View Slide

  27. How did Kenneth
    design requests?

    View Slide

  28. View Slide

  29. Before I start writing a single line of code,
    I write the README and fill it with usage
    examples. I pretend that the module I
    want to build is already written and
    available, and I write some code with it.

    https://www.kennethreitz.org/essays/how-i-develop-things-and-why

    View Slide

  30. RDD

    View Slide

  31. RDD
    Readme Driven Development
    http://tom.preston-werner.com/2010/08/23/readme-driven-
    development.html

    View Slide

  32. # Requests
    The `requests` library allows you to perform HTTP
    requests from your Python code.
    ## Example
    ```python
    >>> r = requests.get('https://github.com')
    >>> r.status_code
    200
    ```
    ## License
    MIT
    README.md

    View Slide

  33. Readme Driven
    Development
    • chance to think through the project first
    • docs are ready - no need to write them retroactively
    • your team can use the interface before it exists
    • easy to discuss the interface with everyone

    View Slide

  34. Interface in README
    =
    Essential interface user expects

    View Slide

  35. README must not
    get out of sync with code

    View Slide

  36. How do we ensure
    implementation
    matches the design?

    View Slide

  37. python -m doctest README.md
    doctest

    View Slide

  38. language: "python"
    python:
    - "3.6"
    script:
    - "python -m doctest README.md"
    Continuous Integration

    View Slide

  39. 1. Think, agree, README
    2. Test the README
    3. Fulfill the README

    View Slide

  40. What if we could design and
    test web APIs like this?

    View Slide

  41. # Calendar API
    The API gives you various means to work with date and time.
    ## GET /now
    Provides you with current date and time.
    - Response 200 (application/json)
    ```json
    {
    "day": 29,
    "month": 2,
    "year": 2017,
    "hour": 11,
    "minute": 45,
    "second": 38
    }
    ```
    API.md

    View Slide

  42. View Slide

  43. View Slide

  44. dredd API.md http://localhost:8000
    Dredd

    View Slide

  45. View Slide

  46. View Slide

  47. View Slide

  48. View Slide

  49. View Slide

  50. View Slide

  51. View Slide

  52. Go
    JavaScript
    Perl
    PHP
    Python Ruby
    Rust

    View Slide

  53. language: "python"
    python:
    - "3.6"
    before_install:
    - "npm install -g dredd"
    script:
    - "dredd API.md http://localhost:8000"
    Continuous Integration

    View Slide

  54. View Slide

  55. View Slide

  56. What about the OpenAPI Spec?
    (fka Swagger)

    View Slide

  57. YAML

    View Slide

  58. 1. Think, agree, API desc.
    2. Test the API desc.
    3. Fulfill the API desc.

    View Slide

  59. Testing implementation against design
    allows you
    designing before implementing

    View Slide

  60. Designing before implementing
    allows you
    better design

    View Slide

  61. Dredd
    allows you
    better design

    View Slide

  62. Remember
    • think first, design first, docs first, test first
    • discuss the the interface design before implementing
    • use the interface before implementing (mocks, tests)
    • have your interface design as a single source of truth
    • test implementation against the design

    View Slide

  63. View Slide

  64. github.com/apiaryio/dredd
    @honzajavorek

    View Slide
