CSC308 Lecture 13

Software Engineering I
Design Patterns
(202302)

Transcript

1. jgs

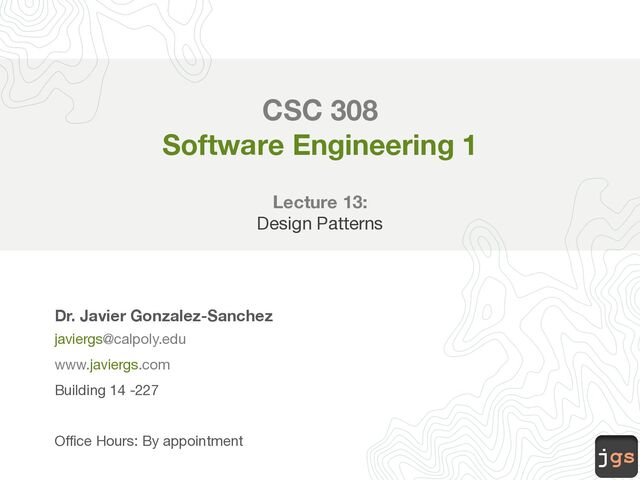

   CSC 308
   Software Engineering 1
   Lecture 13:
   Design Patterns
   Dr. Javier Gonzalez-Sanchez
   javiergs@calpoly.edu
   www.javiergs.com
   Building 14 -227
   Office Hours: By appointment


   View Slide

2. jgs
   Previously …


   View Slide

3. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 3
   Not Everything that Can be … Should be …


   View Slide

4. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 4
   From Assignment 01


   View Slide

5. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 5
   Homework (1 of 2)
   Single Responsibility
   Principle


   View Slide

6. jgs
   Patterns
   Software Design


   View Slide

7. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 7
   § Design patterns are solutions to software design problems you find again
   and again in real-world application development.
   § Patterns are about reusable designs and interactions between objects.
   § The 23 Gang of Four (GoF) patterns are generally considered the
   foundation for all other patterns (Gamma, Helm, Johnson, and Vlissides).
   Definition


   View Slide

8. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 8
   Timeline
   1989 Beck
   OO Thinking
   1993 Gamma et al.
   GoF Patterns


   View Slide

9. jgs
   Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 9
   GoF Patterns


   View Slide

10. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 10
    GoF Patterns


    View Slide

11. jgs
    Observer
    Software Design


    View Slide

12. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 12
    From Assignment 01


    View Slide

13. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 13
    Observer


    View Slide

14. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 14
    class Student {
    public String answerQuestion (String question) {
    String answer;
    // solve the question
    return answer;
    }
    }
    Student


    View Slide

15. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 15
    class Teacher {
    private String question;
    public String getQuestion() {
    return question;
    }
    public void createQuestion () {
    question = // AI to create a question here
    }
    }
    Teacher


    View Slide

16. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 16
    Observer


    View Slide

17. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 17
    public abstract class Observer {
    public abstract void update(Subject s);
    }
    Observer


    View Slide

18. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 18
    import java.util.LinkedList;
    public abstract class Subject {
    private LinkedList observers = new LinkedList();
    public void addObserver(Observer observer) {
    observers.add(observer);
    }
    public void removeObserver(Observer observer) {
    observers.remove(observer);
    }
    public void notifying() {
    for (Observer ob : observers) {
    ob.update(this);
    }
    }
    }
    Observable


    View Slide

19. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 19
    class Student extends Observer {
    public String answerQuestion (String question) {
    String answer;
    // solve the question
    return answer;
    }
    @Override
    public void update(Observable s) {
    String q = ((Teacher)s).getQuestion();
    Sting answer = answerQuestion (q);
    System.out.println (answer);
    }
    }
    Student as Observer


    View Slide

20. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 20
    class Teacher extends Observable {
    private String question;
    public String getQuestion() {
    return question;
    }
    public void createQuestion () {
    question = // AI to create a question here
    notifying();
    }
    }
    Teacher as Observable


    View Slide

21. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 21
    public class Main {
    public static void main(String[]a) {
    Teacher teacher = new Teacher();
    Student s1 = new Student();
    Student s2 = new Student();
    teacher.addObserver(s1);
    teacher.addObserver(s2);
    // Teaching
    teacher.createQuestion();
    // More Teaching
    teacher.createQuestion();
    }
    }
    Main


    View Slide

22. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 22
    Scenario
    Observer
    + update()
    Observable
    + addObserver()
    + notifyObservers()
    + setChanged()
    Teacher
    Student Main


    View Slide

23. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 23
    Questions


    View Slide

24. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 24
    Office Hours
    Tuesday and Thursday 3 - 5 pm
    But an appointment required
    Sent me an email – javiergs@calpoly.edu


    View Slide

25. jgs


    View Slide

26. jgs
    CSC 308
    Software Engineering 1
    Lab 13:
    Assignment 02
    Dr. Javier Gonzalez-Sanchez
    javiergs@calpoly.edu
    www.javiergs.com
    Building 14 -227
    Office Hours: By appointment


    View Slide

27. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 27
    Project – User create dots


    View Slide

28. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 28
    Project – User selects Cluster and clicks Run
    ✅


    View Slide

29. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 29
    Project – User selects Cluster and clicks Run
    ✅


    View Slide

30. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 30
    Project – User selects Line and clicks Run
    ✅


    View Slide

31. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 31
    Project – User selects Line and clicks Run
    ✅


    View Slide

32. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 32
    Project – User selects Line and clicks Run
    ✅
    ✅


    View Slide

33. jgs
    Javier Gonzalez-Sanchez | CSC 308 | Winter 2023 | 33
    Project – User selects Cluster and clicks Run
    ✅
    ✅


    View Slide
