Bringing Medical imaging data to life

Presented at PyData Bratislava Meetup

Event description: Join us on a journey into our own hearts through the images and data. Come to discuss artificial intelligence, healthcare, computer vision, and Python. This meetup is a sequel of my PyCon SK 2017 talk from two weeks ago.

Today, we are acquiring more health data about ourselves than ever before. Many of us are already using apps and devices that record our physical activity, weight, diet, mood, heart rate, blood pressure, or sleep.

In addition to that, medical imaging techniques, such as magnetic resonance imaging (MRI) or computed tomography (CT), are giving us insights into our bodies with unprecedented detail. Yet, only few of us can interpret them (Remember the last time you saw your X-Ray?)

At KardioMe we build tools assisting radiologists and cardiologists to be more efficient with image analysis, tools that will empower all of us to better understand our health data and take better control of it.

In the talk we will explore how we use machine learning and image processing to extract meaningful image descriptions of our hearts. How machine learning helps us to organise and navigate through large scale (medical) image collections for visualisation.

Do not hesitate to leave your suggestions in the comments for discussion.

Transcript

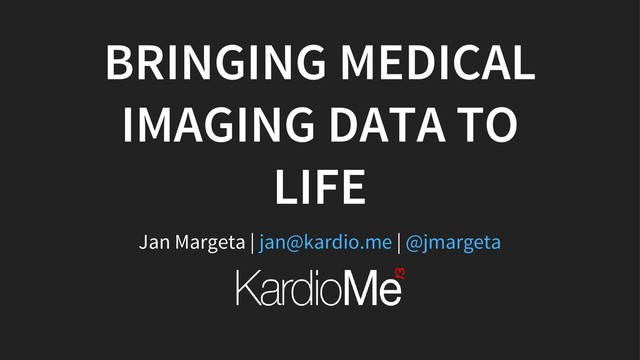

1. BRINGING MEDICAL IMAGING DATA TO LIFE Jan Margeta | | jan@kardio.me @jmargeta
2. DATA DELUGE AND AI MORE DATA THAN EVER BEFORE
3. EVERY 18 SECONDS
4. 45%
5. IMAGING IN CARDIOLOGY X-Ray ultrasound fluoroscopy computed tomography magnetic resonance Kelly 2007 Carmo et al. 2010 Arnold et al. 2008 Foley et al. 2010 Vanezis et al. 2011
6. ? ? SPOT THE DIFFERENCES
7. HEALTHY ISCHEMIC HEART FAILURE SPOT THE DIFFERENCES
8. VOLUME: 142 ML VOLUME: 212 ML MEASURE THE DIFFERENCES
9. SEGMENTATION 30 minutes to do manually Xue et al. 2013
10. WHAT A HUMAN SEES
11. WHAT A HUMAN SEES
12. WHAT A COMPUTER SEES
13. WELCOME TO COMPUTER VISION , Joint work with and Margeta et al. 2013 Inria Microsoft Research Cambridge Tobon-Gomez et al. 2013
14. MACHINE LEARNING SOLVING PROBLEMS WITH DATA prediction = predict (data, model)
15. IMAGE RECOGNITION IN 6 LINES OF CODE from keras.applications import imagenet_utils from keras.applications.vgg16 import VGG16 # Load and prepare input images images_raw = load_images() images = imagenet_utils.preprocess_input(images_raw) # Load a pretrained image classification model model = VGG16(include_top=True, weights='imagenet') # Do the prediction predictions = model.predict(images)
16. EXCELLENT FOR NATURAL IMAGES
17. FINDING THE IMAGE REPRESENTATION
18. CARDIAC VIEW RECOGNITION , Joint work with and Margeta et al. 2015 Inria Microsoft Research Cambridge
19. LANDMARK REGRESSION , Joint work with and Margeta et al. 2015 Inria Microsoft Research Cambridge
20. DRAW CIRCLES NO MORE Joint work with and Inria IHU Liryc
21. FROM 30 MINUTES TO 12 SECONDS* *on a GPU Joint work with and Inria IHU Liryc
22. , DESCRIBING THE HEARTS Kristin McLeod et al. 2016 Simula research laboratory
23. , DESCRIBING THE HEARTS Kristin McLeod et al. 2016 Simula research laboratory
24. PREDICTING THE FUTURE FRIENDS ARE WORKING HARD
25. , Inria ELECTROMECHANICAL COUPLING More information Hugo Talbot et al. 2012 CHECK OUT open-source simulation framework:
26. , and THERAPY PLANNING WITH MACHINE LEARNING Rocío Cabrera Lozoya et al. 2015 Inria IHU Liryc
27. FROM HEARTS TO OUR SENSES
28. , and Demarcy, T., Vandersteen, C., Raffaelli, C., Gnansia, D., Guevara, N., Ayache, N., & Delingette, H. (2017). Automated Analysis of Human Cochlea Shape Variability from segmented μCT images. Computerized Medical Imaging and Graphics. . COCHLEAR IMPLANT INSERTION PLANNING Thomas Demarcy et al. 2016 Inria Oticon Medical To appear
29. AGE-RELATED MACULAR DEGENERATION IMAGING , Hrvoje Bogunović et al. 2017 OPTIMA @ Medical University of Vienna
30. AGE-RELATED MACULAR DEGENERATION IMAGING , Hrvoje Bogunović et al. 2017 OPTIMA @ Medical University of Vienna
31. AGE-RELATED MACULAR DEGENERATION PREDICTION , Hrvoje Bogunović et al. 2017 OPTIMA @ Medical University of Vienna
32. TIPS AND TRICKS
33. ITERATE FAST ONE METRIC TO RULE THEM ALL
34. PROGRESS WITH CONFIDENCE HAVE REPEATABLE PIPELINES
35. NO GLORY IN DATA PREPARATION BUT IT MUST BE DONE
36. HAVING A SMALL DATASET? DO SOMETHING ABOUT IT https://affinelayer.com/pixsrv/
37. GOT UNLABELED DATA? DON'T BE LAZY, JUST ANNOTATE IT IF YOU CAN, THERE ARE TOOLS TO HELP YOU , Joint work with and Check out also Scikit learn example on Margeta et al. 2015 Inria Microsoft Research Cambridge Label Propagation digits active learning
38. BE PRACTICAL HAVE AN OPEN MIND
39. PYTHON + AI + MEDICINE = A⚕ by Michael F. Mehnert, , via Wikimedia Commons Original file CC BY-SA 3.0
40. LIBRARIES MEDICAL DATA LOADING pydicom SimpleItk ITK nibabel
41. STORAGE OF LARGE INTERMEDIATE / PREPROCESSED IMAGING DATA bcolz h5py
42. MACHINE LEARNING / Keras Tensorflow MxNet MinPy PyTorch
43. VISUALISATION matplotlib seaborn bokeh mayavi vtk paraview
44. YOUR HEALTH DASHBOARD
45. THANKS , , , , , , , , , , , , , , , , , , , CONNECT WITH ME Jan Margeta | | Krissy Hrvoje Hubert Hugo Karol Loïc Maxime Rado Rocío Thomas Maggie Asclepios GapData Institute IHU Liryc Microsoft Research Cambridge NumFOCUS PyData OPTIMA Oticon Medical Simula research laboratory jan@kardio.me @jmargeta
46. CREDITS By original file by Michael F. Mehnert , via Wikimedia Commons Radau P, Lu Y, Connelly K, Paul G, Dick AJ, Wright GA. “Evaluation Framework for Algorithms Segmenting Short Axis Cardiac MRI.” The MIDAS Journal – Cardiac MR Left Ventricle Segmentation Challenge, Statue of Asklepius, exhibited in the Museum of Epidaurus Theatre. CC BY-SA 3.0 http://hdl.handle.net/10380/3070
47. Some results come from my PhD thesis funded by through its PhD Scholarship Programme and by the Microsoft Research ERC Advanced Grant MedYMA
48. RESOURCES PhD thesis - Jan Margeta PhD thesis - Rocío Cabrera Lozoya PhD thesis - Hugo Talbot Book From Andrew Ng Fast AI Notebooks and course Visualizing convnets Conv filter visualization
49. Transfer learning with MNIST Label propagation with scikit learn Keras and pretrained models Staying organized - Templates for data science Cardiac atlas project Sunnybrook cardiac dataset UK biobank
50. Mimesis team @ Inria Asclepios @ Inria SOFA - Opensource simulation framework Cardiovascular death stats Detecting cancer with deep learning Dermatologist-level classification of skin cancer with deep neural networks
