Clustered Global Phrase Reordering Model for Statistical Machine Translation

Clustered Global Phrase Reordering Model for Statistical Machine Translation

Masaaki Nagata, Kuniko Saito, Kazuhide Yamamoto and Kazuteru Ohashi. Clustered Global Phrase Reordering Model for Statistical Machine Translation. Proceedings of 21st International Conference on Computational Linguistics and 44th Annual Meeting of the Association for Computational Linguistics (COLING-ACL 2006), pp.713-720 (2006.7)

Transcript

  1. 1.

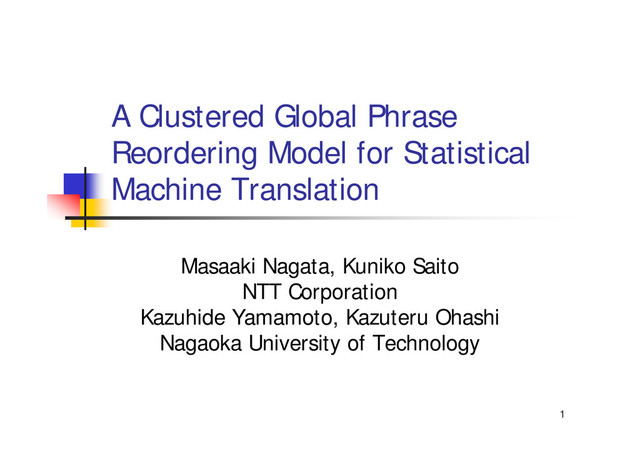

    1 A Clustered Global Phrase Reordering Model for Statistical Machine

    Translation Masaaki Nagata, Kuniko Saito NTT Corporation Kazuhide Yamamoto, Kazuteru Ohashi Nagaoka University of Technology
  2. 2.

    2 Introduction (1/3) „ Global reordering is essential to translation

    of languages with different word orders „ Japanese verb at the end of the sentence must be moved at the beginning after subject in English „ Standard phrase-based translation systems use a word distance-based reordering model „ (Koehn et al., 2003) (Och and Ney, 2004) „ Penalize non-monotonic alignment exponentially „ Ignore orientation of the alignment and the identities of the source and target phrases
  3. 3.

    3 Introduction (2/3) „ Block orientation bigram „ (Tillmann-Zhang05) „

    Block: a pair of source and target phrases that are translations of each other „ Local reordering of adjacent blocks are expressed as a three-valued orientation „ Right (monotone), Left (swapped), or Neutral „ Global reordering is not explicitly modeled. „ Neutral: the block is less strongly linked to its predecessor block
  4. 4.

    4 Introduction (3/3) „ We present a global reordering model

    „ Explicitly models long distance reordering „ Predicts four type of reordering patterns „ Monotone (adjacent | gap), reverse (adjacent | gap) „ Considers identities of source and target phrases „ Parameters are estimated from the N-best phrase alignment of training sentences „ It significantly outperformed the baseline „ IWSLT-2005 Japanese-English translation task
  5. 5.

    5 Baseline Translation Model (Koehn et al., 2003) SMT: search

    for the target sentence that maximizes p(e|f) Phrase-based SMT: f is segmented into I phrases, and each source phrase is translated into a target phrase Distortion (reordering) probability is defined by heuristics Translation probability is calculated from the relative frequency of phrase alignments in the training sentences
  6. 6.

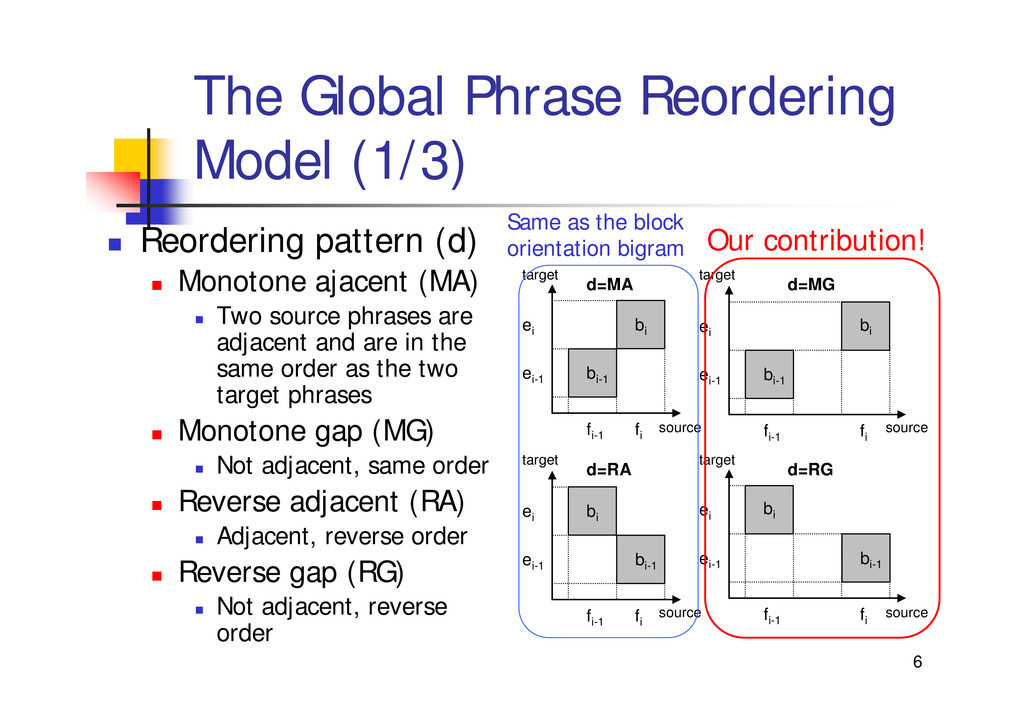

    6 The Global Phrase Reordering Model (1/3) „ Reordering pattern

    (d) „ Monotone ajacent (MA) „ Two source phrases are adjacent and are in the same order as the two target phrases „ Monotone gap (MG) „ Not adjacent, same order „ Reverse adjacent (RA) „ Adjacent, reverse order „ Reverse gap (RG) „ Not adjacent, reverse order bi-1 bi fi-1 fi ei-1 ei bi-1 bi fi-1 fi ei-1 ei bi-1 bi fi-1 fi ei-1 ei bi-1 bi fi-1 fi ei-1 ei source target target source target target source source d=MA d=MG d=RA d=RG Our contribution! Same as the block orientation bigram
  7. 7.

    7 The Global Phrase Reordering Model (2/3) „ Example of

    Japanese-to-English phrase alignment and reordering pattern „ Japanese verb “で_ある” at the end of the sentence is aligned to the English verb “is” at the beginning just after the subject 言語 は コミュニ ケーション の 道具 で ある language is a means commu- nication of MG RA RA b 1 b 2 b 3 b 4 言語 は コミュニ ケーション の 道具 で ある language is a means commu- nication of MG RA RA b 1 b 2 b 3 b 4 MG appears very often in Jap-Eng translation
  8. 8.

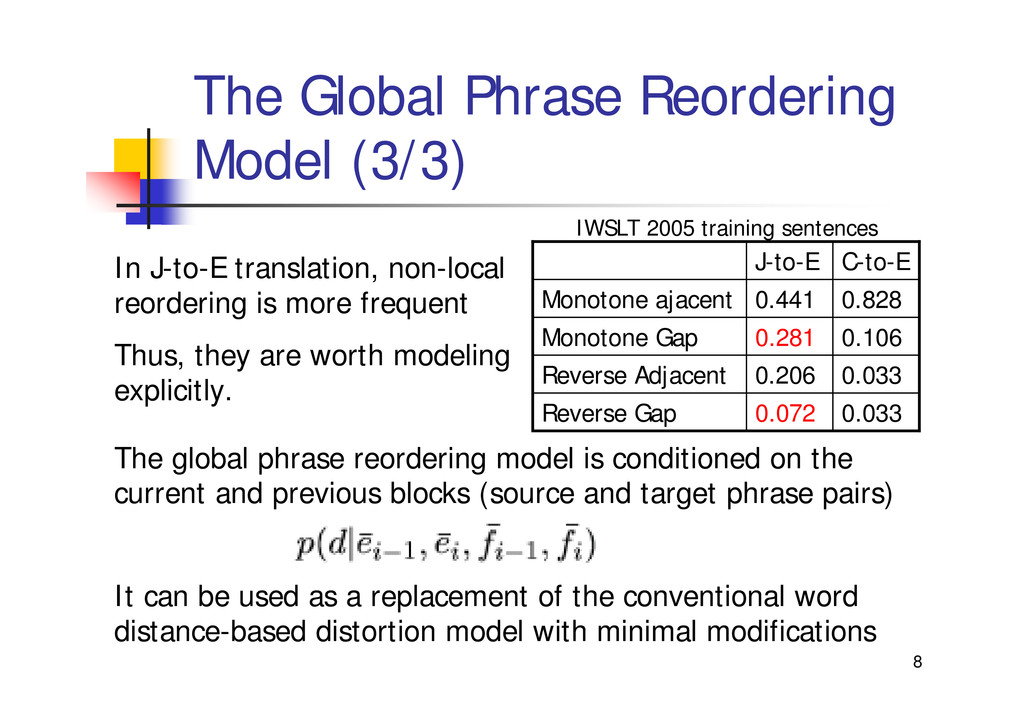

    8 The Global Phrase Reordering Model (3/3) J-to-E C-to-E Monotone

    ajacent 0.441 0.828 Monotone Gap 0.281 0.106 Reverse Adjacent 0.206 0.033 Reverse Gap 0.072 0.033 In J-to-E translation, non-local reordering is more frequent Thus, they are worth modeling explicitly. The global phrase reordering model is conditioned on the current and previous blocks (source and target phrase pairs) It can be used as a replacement of the conventional word distance-based distortion model with minimal modifications IWSLT 2005 training sentences
  9. 9.

    9 Parameter Estimation Method „ Parameters can be estimated from

    the relative frequencies in the Viterbi phrase alignment „ To cope with sparseness, we used „ N-best phrase alignment „ Bilingual phrase clustering „ Various approximations of the model
  10. 10.

    10 N-best Phrase Alignment (1/3) „ Search the phrase segmentation

    and phrase alignment that maximizes the product of phrase translation probabilities „ IBM model 1 phrase alignment „ Bilingual phrase segmentation „ Phrase translation probabilities are approximated using word translation probabilities
  11. 11.

    11 N-best Phrase Alignment (2/3) „ The search for N-best

    phrase alignment is implemented as followings: „ All source word and target word pairs are considered to be initial phrase pairs „ If the phrase translation probability of the phrase pair is less than the threshold, it is deleted „ Each phrase pair is expanded toward the eight neighboring directions (see next slides) „ If the phrase translation probability of the expanded phrase pair is less than the threshold, it is deleted. „ The process of expansion and deletion is repeated until no further expansion is possible. „ The consistent N-best phrase alignment are searched from all combinations of the above phrase pairs
  12. 12.

    12 Example of phrase pair expansion toward eight neighbors „

    Extensions of the current phrase pairs (の, of) are „ (コミュニケーション_の, means_of) „ (の, means_of) „ (の_道具, means_of) „ (コミュニケーション_の, of), „ (の_道具, of) „ (コミュニケーション_の, of_communication) „ (の,of_communication) „ (の_道具, of_communication) の 道具 コミュニ ケーション means commu- nication of 1 2 3 4 5 6 7 8
  13. 13.

    13 N-best Phrase Alignment (3/3) „ The search for consistent

    N- best phrase alignment „ is implemented as a phrase-based decoder whose output is constrained only to the target sentence. „ N-best: 20 „ We call the method “ppicker” „ For comparison, we also used the standard phrase extraction method „ “grow-diag-final” „ (Koehn et al., 2003) 信号_は_赤_でし_た the_light_was_red 信号_は 赤_でし_た the_light was_red 信号_は でし_た the_light was 赤 red (1) (2) (3)
  14. 14.

    14 Bilingual Phrase Clustering „ We used a bilingual word

    clustering tool „ “mkcls” (Och et al., 1999) „ It makes partitions of the phrases that maximize the joint probability of the training bilingual corpus „ All words in a phrase are concatenated by an underscore '_' to form a pseudo word „ All N-best phrase alignments are treated equally „ # of classes: 20 „ For comparison, two different phrase classification „ “1pos”: POS of the first word in English phrase and that of the last word in Japanese Phrase „ “2pos”: POS of the first and last words of each phrase
  15. 15.

    15 Approximation of the Model (Reducing Conditioning Factors) „ Other

    than the baseline and the full model, „ We tried 8 approximations based on two intuitions „ Current block would be more important than previous block „ Previous target phrase might be more important than current target phrase (IBM model 4 analog) IBM model 4
  16. 16.

    16 Experiments „ Corpus „ IWSLT-2005 Japanese-English translation task „

    Basic travel conversations „ 20,000 training sentences „ Average sentence lengths (J: 9.9 words, E: 9.2 words) „ Two development sets, each contains 500 sentences with 16 reference translations „ We used ‘devset2’ (IWSLT-2004) for the experiment „ Tools „ Japanese morphological analysis: ChaSen „ English POS tagging: MXPOST
  17. 17.

    17 Clustered vs. Lexicalized Reordering Model „ Identity of each

    phrase is represented by „ Class: class assigned by bilingual clustering „ Lex: lexical form „ 1pos, 2pos: POS of boundary words „ “class” is consistently better than “lex” „ The accuracy of “lex”' drops rapidly as the number of conditioning factors increases „ Sparse data problem „ The best score is achieved when the phrase reordering pattern is conditioned on „ Either the current target phrase or the current block
  18. 18.

    18 BLEU score for clustered and lexicalized reordering model 0.35

    0.36 0.37 0.38 0.39 0.4 0.41 0.42 0.43 baseline φ f[0] e[0] e[0]f[0] e[-1]f[0] e[0]f[-1,0] e[-1]f[-1,0] e[-1,0]f[0] e[-1,0]f[-1,0] class 2pos 1pos lex
  19. 19.

    19 Interaction between Phrase Extraction and Phrase Alignment „ Two

    different phrase extraction methods „ ppicker: our method „ grow-diag-final: (Koehn et al., 2003) „ “ppicker” is consistently better „ Because it’s better to optimize the combination of phrase segmentation and phrase alignment „ But it’s computationally expensive ppicker grow-diag-final class lex class lex baseline 0.400 0.400 0.343 0.343 Φ 0.407 0.407 0.350 0.350 f[0] 0.417 0.410 0.362 0.356 e[0] 0.422 0.416 0.356 0.360 e[0]f[0] 0.422 0.404 0.346 0.327 e[0]f[-1,0] 0.407 0.381 0.346 0.327 e[-1,0]f[0] 0.410 0.392 0.348 0.341 e[-1,0]f[-1,0] 0.394 0.387 0.339 0.340
  20. 20.

    20 Global vs. Local Reordering Model „ For comparison, we

    implemented reordering models with three-valued reordering pattern „ monotone adjacent, reverse adjacent and neutral „ Similar to block orientation bigram (Tillmann-Zhang05) „ Clustered/lexicalized reordering models „ class3/lex3: three-valued local reordering model „ class4/lex4: four-valued global reodering model „ Four-valued model consistently outperformed three-valued model „ “grow-diag-final” is used for this experiment to save time
  21. 21.

    21 BLEU score of global and local reordering model 0.3

    0.31 0.32 0.33 0.34 0.35 0.36 0.37 baseline φ f[0] e[0] e[0]f[0] e[0]f[-1,0] e[-1,0]f[0] e[-1,0]f[-1,0] class4 lex4 class3 lex3
  22. 22.

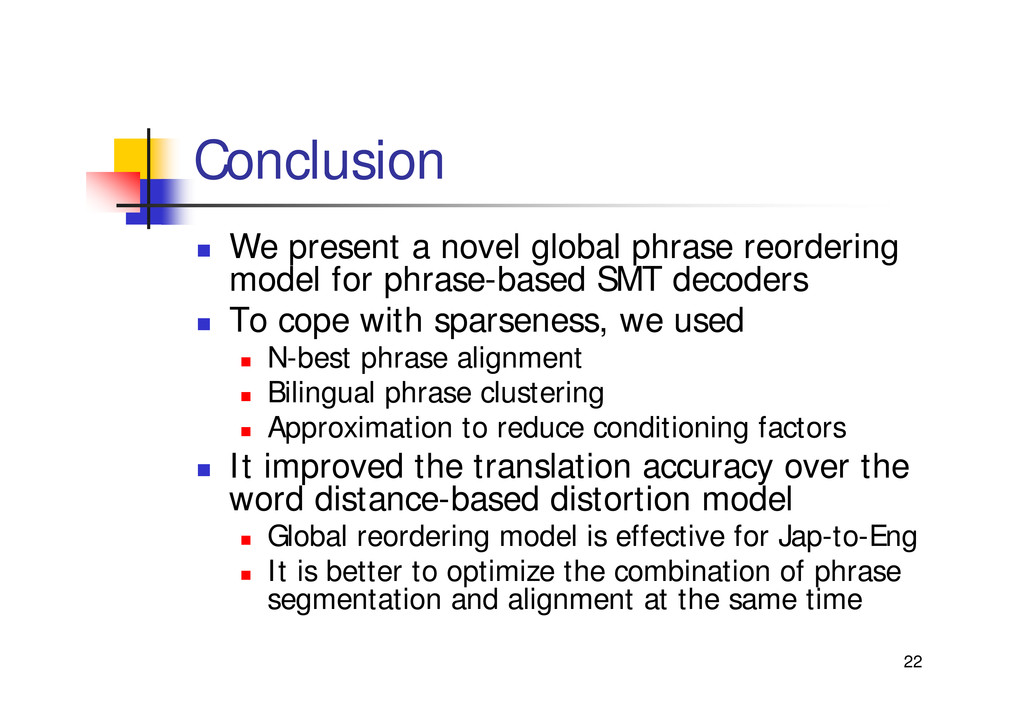

    22 Conclusion „ We present a novel global phrase reordering

    model for phrase-based SMT decoders „ To cope with sparseness, we used „ N-best phrase alignment „ Bilingual phrase clustering „ Approximation to reduce conditioning factors „ It improved the translation accuracy over the word distance-based distortion model „ Global reordering model is effective for Jap-to-Eng „ It is better to optimize the combination of phrase segmentation and alignment at the same time
