PG-Strom - A FDW module utilizing GPU device

slides on LT session of PGcon2012

Transcript

1. PG-Strom ~A FDW module utilizing GPU device~ NEC Europe SAP Global Competence Center KaiGai Kohei <kohei.kaigai@emea.nec.com>

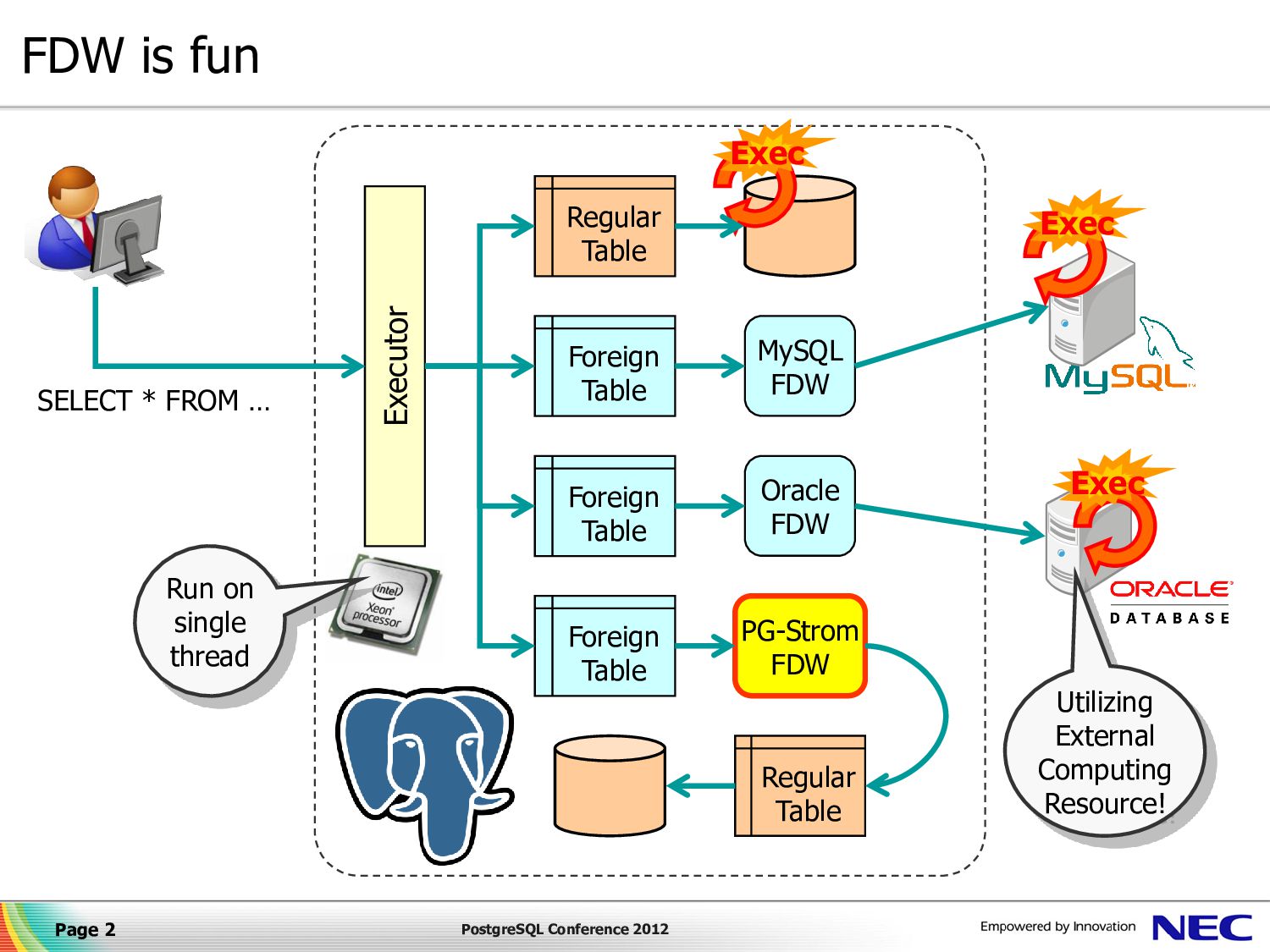

2. Page 2 PostgreSQL Conference 2012 FDW is fun Executor Regular Table Foreign Table Foreign Table Foreign Table MySQL FDW Oracle FDW PG-Strom FDW Exec Exec Exec Regular Table SELECT * FROM … Utilizing External Computing Resource! Run on single thread

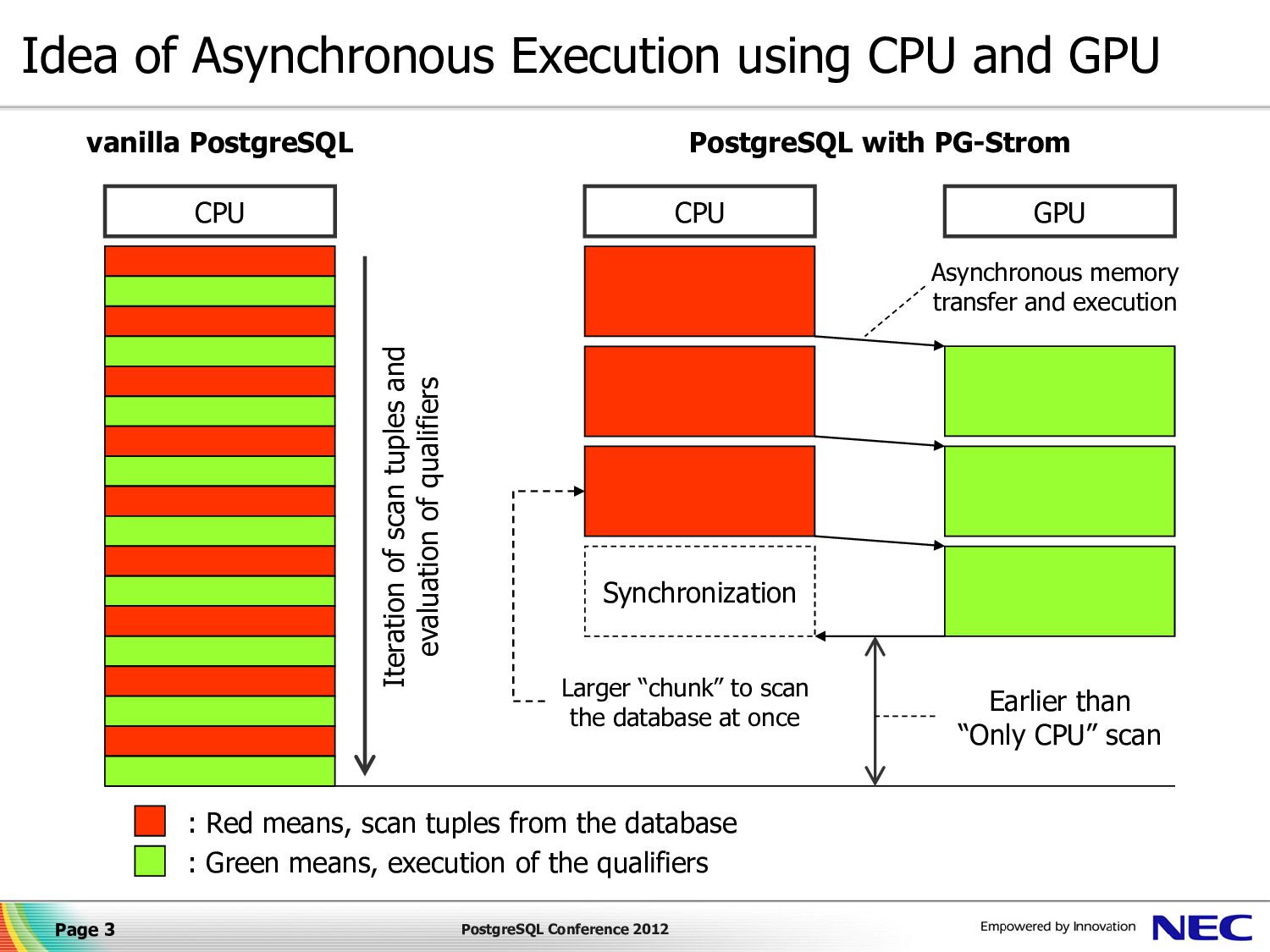

3. Page 3 PostgreSQL Conference 2012 Idea of Asynchronous Execution using CPU and GPU CPU vanilla PostgreSQL PostgreSQL with PG-Strom CPU GPU Synchronization Iteration of scan tuples and evaluation of qualifiers Larger “chunk” to scan the database at once Asynchronous memory transfer and execution Earlier than “Only CPU” scan : Red means, scan tuples from the database : Green means, execution of the qualifiers

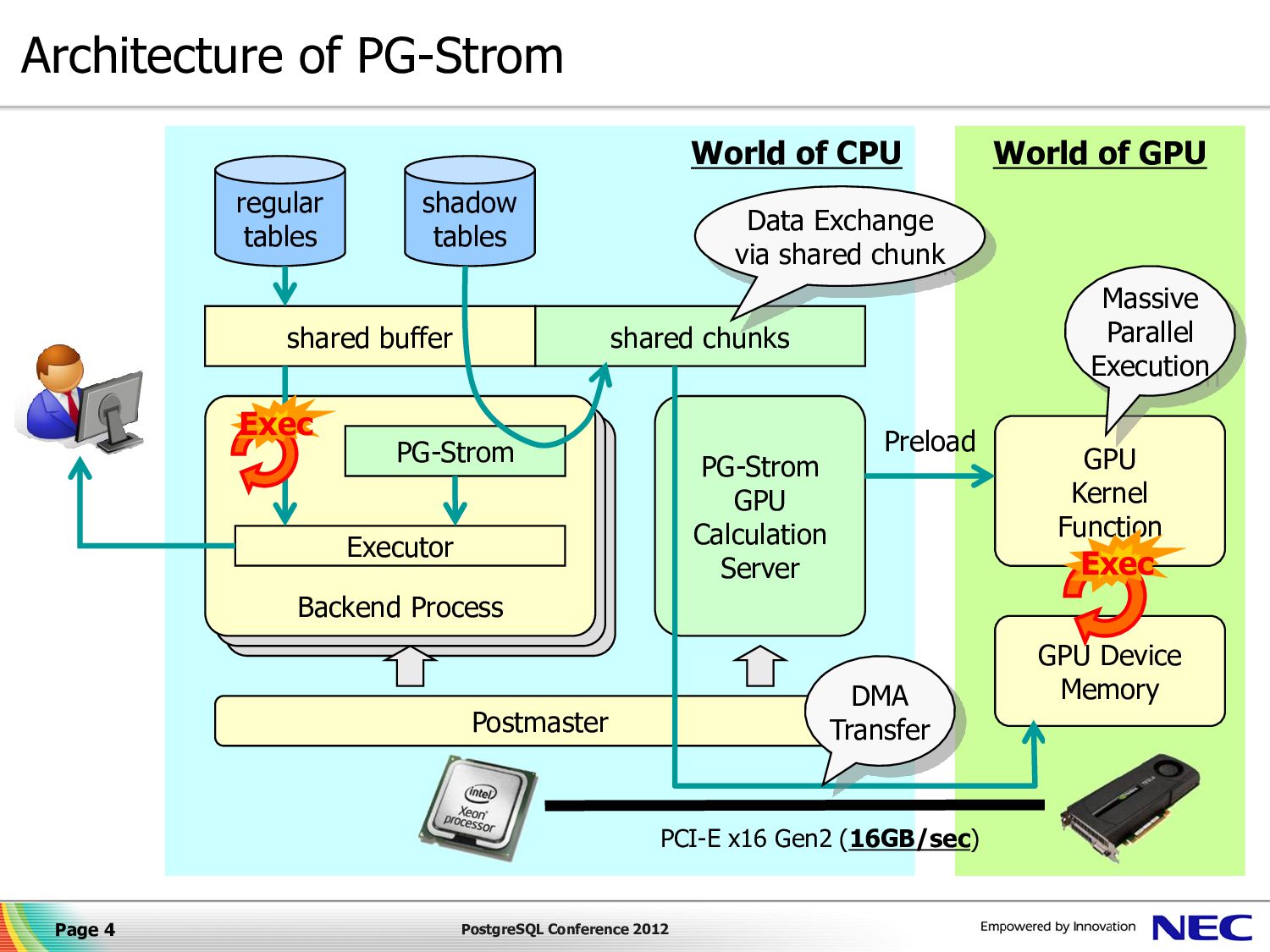

4. Page 4 PostgreSQL Conference 2012 World of CPU World of GPU Backend Process Architecture of PG-Strom Postmaster PG-Strom GPU Calculation Server shared chunks shared buffer shadow tables regular tables Backend Process GPU Kernel Function PCI-E x16 Gen2 (16GB/sec) Backend Process Executor PG-Strom GPU Device Memory Preload Exec Exec Data Exchange via shared chunk Massive Parallel Execution DMA Transfer

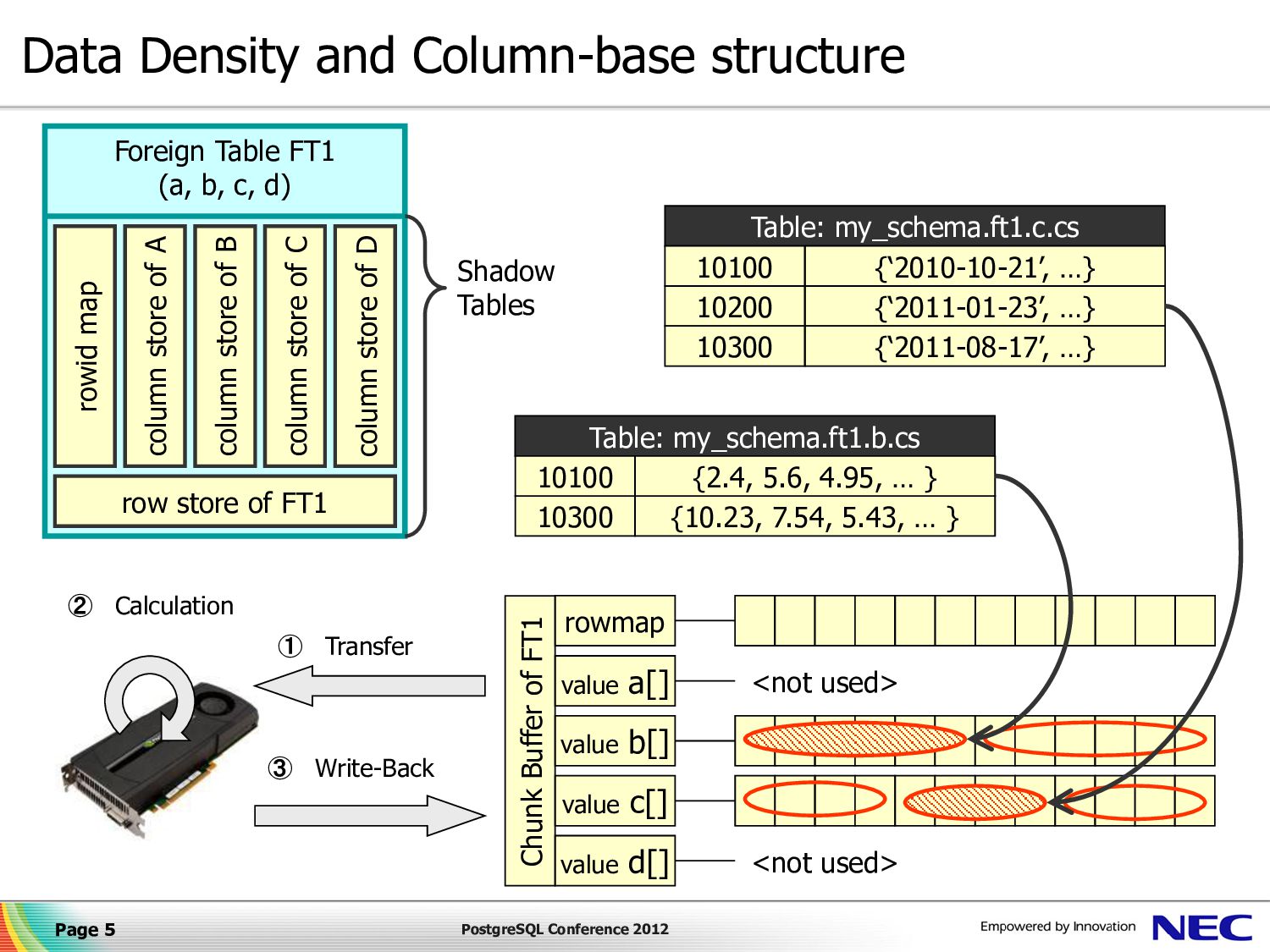

5. Page 5 PostgreSQL Conference 2012 Data Density and Column-base structure Chunk Buffer of FT1 value a[] rowmap value b[] value c[] value d[] <not used> <not used> Table: my_schema.ft1.b.cs 10300 {10.23, 7.54, 5.43, … } Table: my_schema.ft1.c.cs {‘2010-10-21’, …} 10100 {2.4, 5.6, 4.95, … } {‘2011-01-23’, …} {‘2011-08-17’, …} ② Calculation ① Transfer ③ Write-Back 10100 10200 10300 Foreign Table FT1 (a, b, c, d) rowid map column store of A column store of B column store of C column store of D row store of FT1 Shadow Tables

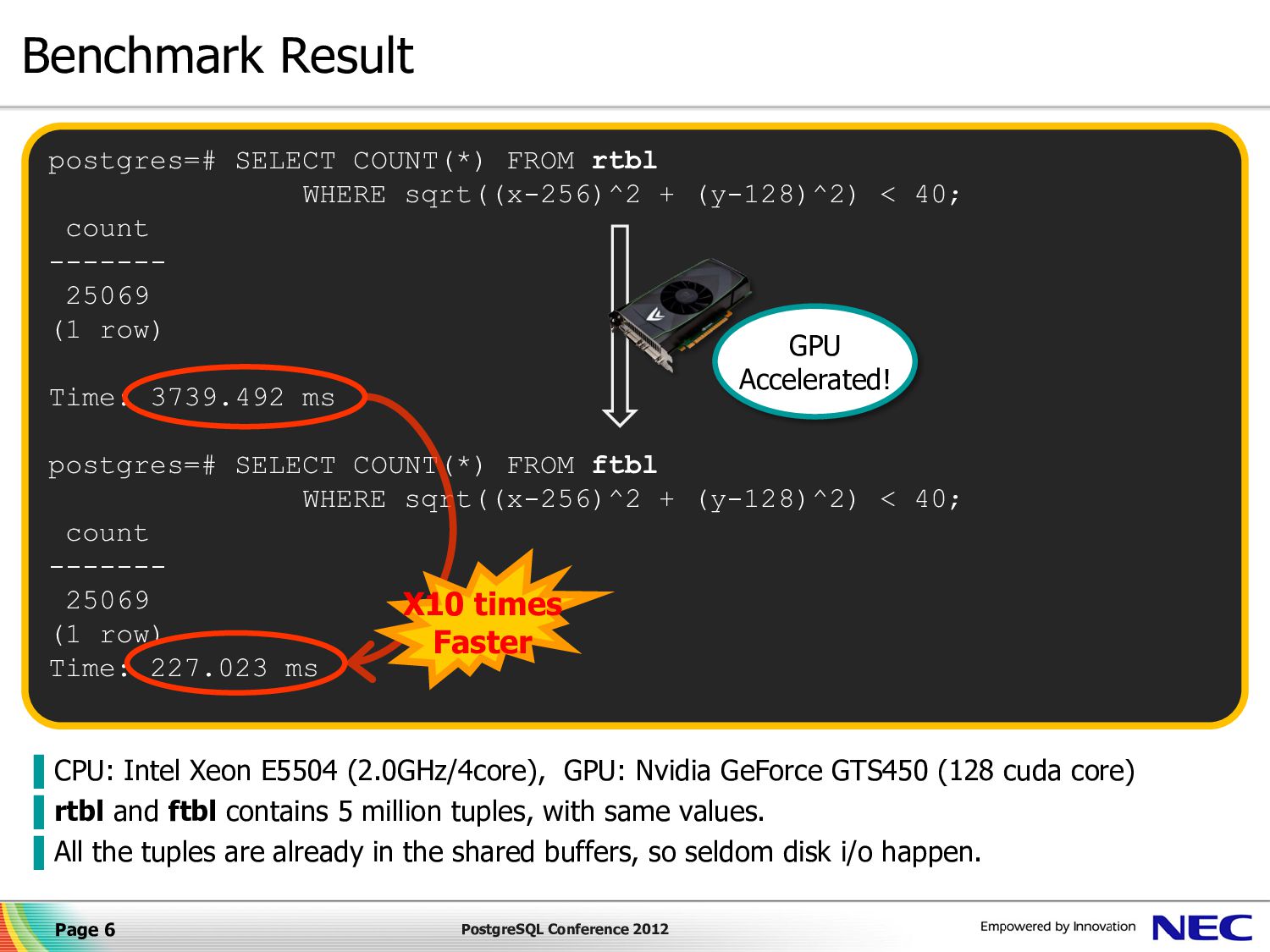

6. Page 6 PostgreSQL Conference 2012 Benchmark Result ▌CPU: Intel Xeon E5504 (2.0GHz/4core), GPU: Nvidia GeForce GTS450 (128 cuda core) ▌rtbl and ftbl contains 5 million tuples, with same values. ▌All the tuples are already in the shared buffers, so seldom disk i/o happen. postgres=# SELECT COUNT(*) FROM rtbl WHERE sqrt((x-256)^2 + (y-128)^2) < 40; count ------- 25069 (1 row) Time: 3739.492 ms postgres=# SELECT COUNT(*) FROM ftbl WHERE sqrt((x-256)^2 + (y-128)^2) < 40; count ------- 25069 (1 row) Time: 227.023 ms X10 times Faster GPU Accelerated!

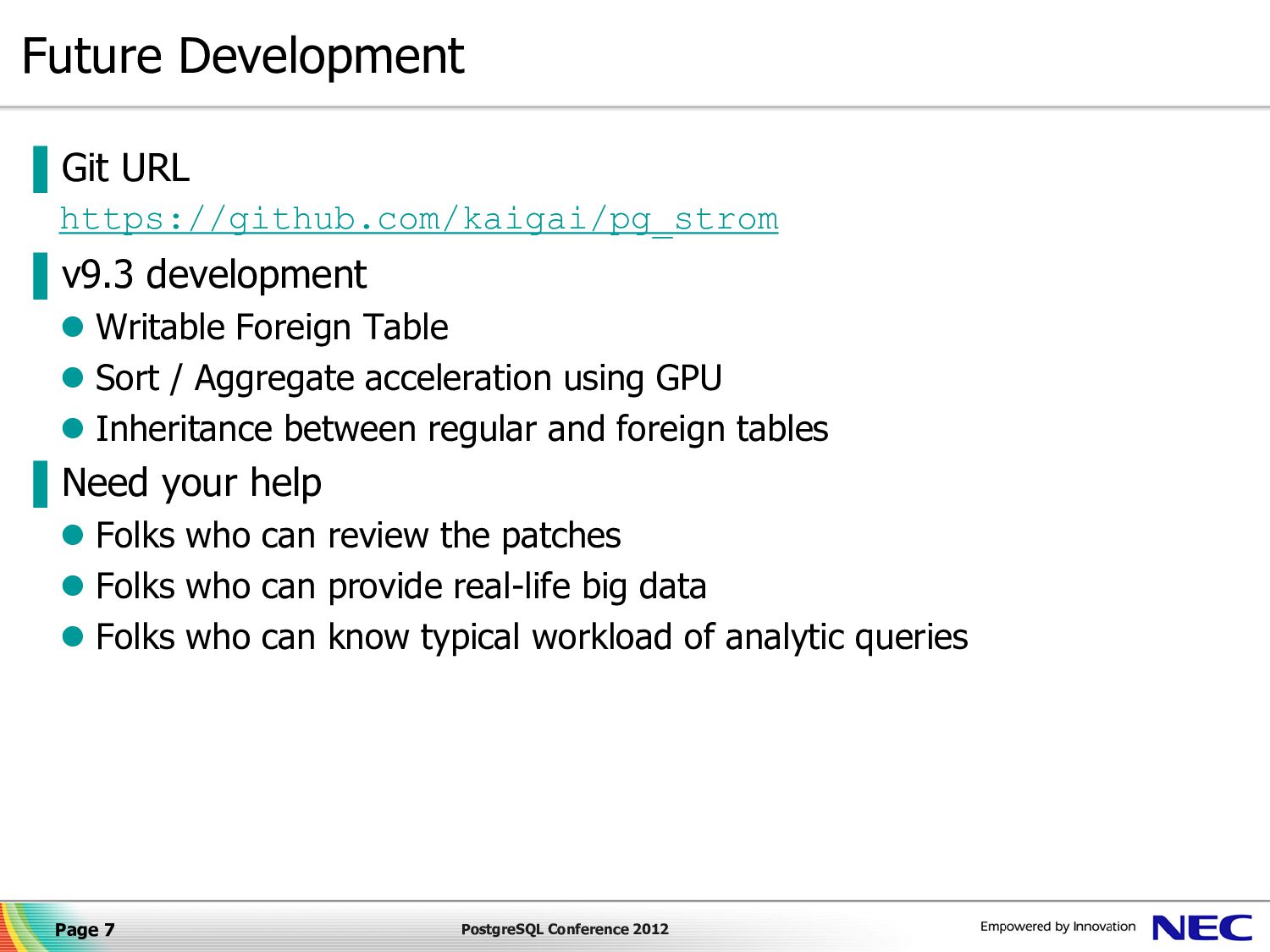

7. Page 7 PostgreSQL Conference 2012 Future Development ▌Git URL https://github.com/kaigai/pg_strom ▌v9.3 development  Writable Foreign Table  Sort / Aggregate acceleration using GPU  Inheritance between regular and foreign tables ▌Need your help  Folks who can review the patches  Folks who can provide real-life big data  Folks who can know typical workload of analytic queries
8. Page 8 PostgreSQL Conference 2012
